D6.4 Collection of all SWP deliverables (with

nature=P,O,D) produced during month 13-24

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

 Deliverable

Deliverable reference number

IST-027635/D06.4/FINAL | 1.00

Deliverable title

D6.4 Collection of all SWP deliverables (with
nature=P,O,D) produced during month 13-24

WP contributing to the deliverable

WP6

Due date

Oct 2007

Actual submission date

Nov 2007

Responsible Organisation

LDV,Lehrstuhl für Datenverarbeitung, TUM

Authors

Chun Hui Suen

Abstract

Keywords

OpenTC WP6

Dissemination level

Public

Revision

FINAL | 1.00

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months



background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

This deliverable is a compilation of the following software deliverables:

D06a.2 Concept system prototype including basic DRM functionality (M 18)

D06b.4 First MEITC prototype with 2 compartments (M24)

D06d.2 EFS C/C++ API implementation (M22)
(No accompanying documentation)

D06e.5 Complete MFA System Prototype (M 24)
(refer to the section D06e.5 in deliverable D06.3 on description of the system
prototype)

The source code itself is attached on an accompanying CD.
The accompanying documentation for D06a.2 and D06b.4 is compiled in the following
sections of this document.

Note: The deliverable D06d.2 is deemed incomplete and will be revised in the next
phase   of   the   project.   Thus,   it   will   not   be   publicly   released   with   the   rest   of   this
document.

Open_TC Deliverable D06.4

2/2

background image





D6a.2 Concept system prototype including

basic DRM functionality

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Report (see p 84/85 Annex 1 - Nature)

Deliverable reference number

IST-027635/D6a.2/Final|1.1

Deliverable title

Concept system prototype including basic DRM
functionality

WP contributing to the deliverable

WP6a

Due date

M17

Actual submission date

Apr 2007

Responsible Organisation

LDV

Authors

LDV (Florian Schreiner, Chun Hui Suen)

Abstract

Keywords

Dissemination level

Internal

Revision

Final|1.1

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months



background image





Concept system prototype including basic DRM functionality

Final|1.1

Table of Contents

1  Introduction............................................................................................................................3

2  System description.................................................................................................................3

2.1 Overview.............................................................................................................................3

2.2 Key exchange......................................................................................................................3
2.3 DRM core ............................................................................................................................4

2.4 Key database .....................................................................................................................4
2.5 License interpretation ........................................................................................................4

2.6 Modified VLC player ...........................................................................................................5

3  Features implemented to date ...............................................................................................6

4  Usage Instructions..................................................................................................................6

4.1 Adding new content to the system......................................................................................6

4.1.1 Encrypting content.........................................................................................................6
4.1.2 Modifying entries in the key database............................................................................7

4.1.3 Putting entries into the license database.......................................................................7

4.2 Starting the DRM Core........................................................................................................7

4.3 Starting media player (VLC) client.......................................................................................8

5  Classes description in DRM Core.............................................................................................9

5.1.1 OtcTest...........................................................................................................................9
5.1.2 SimpleTCPPlayerStub.....................................................................................................9

5.1.3 CoreManager..................................................................................................................9
5.1.4 DbManagerImpl..............................................................................................................9

5.1.5 InterpreterInterface......................................................................................................10
5.1.6 MPEG21Interpreter.......................................................................................................10

5.1.7 Item..............................................................................................................................10
5.1.8 Key...............................................................................................................................10

5.1.9 License.........................................................................................................................11
5.1.1 0Rel..............................................................................................................................11

6  features to be implemented in the future ............................................................................12

Open_TC Deliverable 6a.2

2/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

Introduction

This document serves as a general introduction to the prototype DRM system, with instructions
on   how  to  setup  and  use  the  system,  as  well  as  a  technical   overview  of  the  components.

System description

2.1 Overview

The following sections describes the internal operations of the communication chain between

the VLC media player and the DRM core, and also the internal classes implemented to date in
the DRM core.

2.2 Key exchange

The prototype key exchange protocol is based on a simple TCP/IP connection. Figure 1 shows
an  overview of the key exchange  between  the VLC player and DRM  core. The VLC player,

parses the mp4 file. In the header of the mp4 file, if a "MVID" box is found within the "MOOV"
box, the 32-bit integer stored in the "MVID" box is the MovieID. The VLC player then opens a

local connection to the DRM core and sends this 32-bit integer. The DRM core, upon receiving
the   32-bit   MovieID,   performs   the   appropriate   license   interpretation.   If   there   is   a   positive

authorization, the DRM core returns the 16 byte AES key from the key database.

This simple key exchange protocol will be used only for the prototype, and will be replaced by a
RPC-based   protocol,   with   options   for   describing   playback   restrictions   in   the   final

implementation.

Open_TC Deliverable 6a.2

3/12

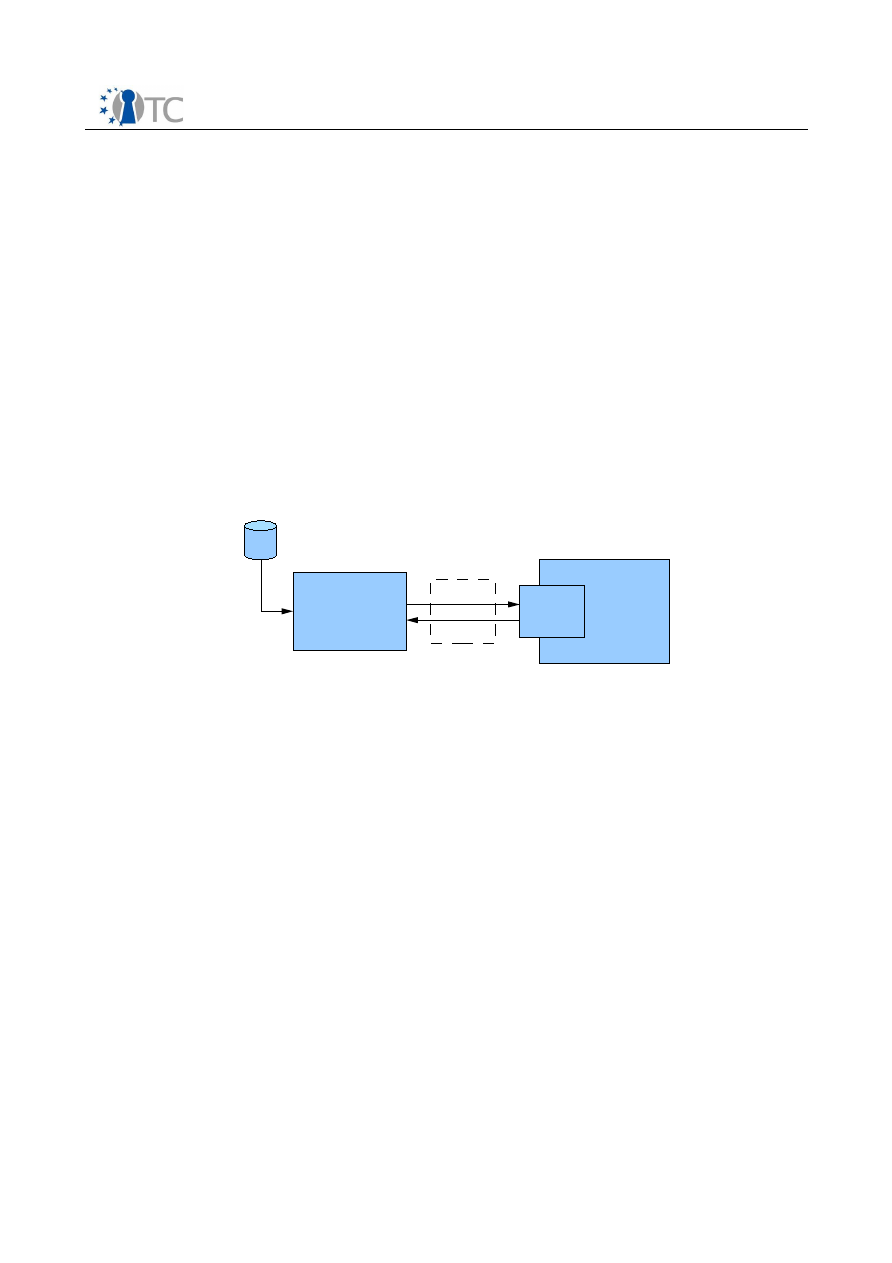

Figure 1: Overview of key exchange

modified VLC

player

encrypted

content

DRM Core

Player

Stub

movieID

key

key exchange

background image





Concept system prototype including basic DRM functionality

Final|1.1

2.3 DRM core

The DRM core is implemented in Java, with a similar class hierarchy as described in the initial
design   specification.   The   main   program   entry   point   is   the

OtcTest

  class.   It   starts   the

SimpleTCPPlayerStub

,   which   acts   as   a   client   player   stub   to   the   DRM   core,   and   the

CoreManager

. The

CoreManager

  implements the 2 main external interfaces of the DRM core,

ManagementInterface

and

 PlayerInterface.

The SimpleTCPPlayerStub

acts as a TCP socket listener for the media player. Upon receiving

the MovieID from the VLC player, it calls the

getDecryptionKey

 function in

CoreManager

. The

CoreManager

  in   turn   calls   the

DatabaseManager

  and   MPEG21Interpreter   to   perform   license

interpretation.   In   this   prototype   implementation,   license   interpretation   is   performed   by   an
external script

translateMPEG21.py

, which is implemented in python.

2.4 Key database

The current implementation of the key database is based on plain text file storage. Licenses
and root grants are stored as xml files, and the content keys as a text file within the database

directory. This will be stored in a relational database in the final implementation.

2.5 License interpretation

License interpretation is performed by a python script, which is called by the java-based DRM

core. The following MPEG-21 terms are recognized:

Tags

Type

Meaning

license

general

a REL License

grant

general

grant a right

rootGrant

general

root grant

keyHolder

general

principal in which the right is granted to

issuer

general

issuer of license

digitalResource

general

contains corresponding MovieID of content

propertyUri

general

Required or provided property

prerequisiteRight

condition

Condition: require a right which can be fulfilled

validityInterval

condition

Condition: within the validity interval

notBefore

condition

Condition: not before specified date

notAfter

condition

Condition: not after specified date

exerciseLimit

condition

Condition: right not applied more than specified

count

condition

Condition: specifies count

possessProperty

right

Grants a property to respective keyHolder

play

right

Right to play (default right for playback)

Open_TC Deliverable 6a.2

4/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

2.6 Modified VLC player

The   media   player   is   modified  from   the   open   source   Video   Lan  (VLC)   version   0.8.6a  stable
source. VLC player was chosen as the base player, because:

it is open-source,

has wide support of different video and audio codecs,

has support for MP4 based file format that is closely related to the MPEG-21 file format,

has   a   well   developed   module/plug-in   system   which   aids   in   the   development   of

modifications to support OpenTC DRM system.

Modifications were applied to the

mp4.c

 file in

modules/demux/mp4

 . In addition to the normal

MP4 file parsing process, the additional steps were included:

During initialization, the parser searches for a”MVID” box. If found, a 4-byte MovieID is

read from the box content, and the content is assumed to be encrypted for the OpenTC
system:

It then opens a TCP/IP connection to the DRM core (this is currently set to

localhost

for   testing),   and   sends   the   MovieID   to   the   core.   Upon   receiving   the   content

decryption key, the AES decryption function is initialized with the decryption key,
and decryption mode is activated.

If   decryption   mode   is   activated,   during   the   de-multiplexing   of   the   main   video
content   in   the   “mdat”   box,   the   AES   decryption   function   is   called   to   perform

decryption on-the-fly on the required block (in ECB mode). This allows for seeking to
different positions within the file without decrypting the entire file first.

Internally, the start and 16-byte block boundaries of the “mdat” is checked, so
that the blocks are decrypted with exactly the same block boundaries as the

encryption process.

Open_TC Deliverable 6a.2

5/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

Features implemented to date

The following features have been implemented to date:

content decryption on media player

encryption tool

core:

inter-connection between manager classes

license interpretation

Usage Instructions

The prototype DRM system consist of 2 main components: the DRM Core and a modified VLC-
based media player. The following sections will explain how to use each of the components,

and its related tools. The modified VLC player is able to playback any unencrypted content like
the normal VLC player. Playback of encrypted content is currently limited to content packaged

in MP4 format. An encryption tool (see section  4.1.1) is provided to encrypt the MP4 content
and embed a special MovieID, which will be the main reference ID between the player and DRM

core. Sections 2.2 and 2.3 explain how the corresponding key and license database should be
modified.   Sections  2.4  and  2.5 show  how  the  DRM  core and  modified  VLC  can  be  started.
Included together with this document are the files

DRMcore.zip

  which contain the DRM core

and tools, and

vlc­0.8.6a_OTC_Modified.tar.gz

which contains the modified VLC player.

4.1 Adding new content to the system

In order to add new media content to the system, steps 4.1.1 to 4.1.3 should be taken to first

encrypt the media, and update the database entries in the DRM core.

4.1.1 Encrypting content

A tool written in C is provided to encrypt MP4 based multimedia files using 128-bit AES
encryption. This is done by:

1. extracting the

DRMcore.zip

 file into a directory

DRMcore

 by the command:

unzip DRMcore.zip

2. goto the

DRMcore/opentc/tools/encrypter

 directory

3. run the encrypter program using:

./encrypter  inputfile.mp4  outputfile.mp4  MovieID  AES_KEY

where

inputfile.mp4

 is the path to the input file in mp4 format,

outputfile.mp4

 is the output

file path,

MovieID

 is an integer (which will be referenced in the license), and

AES_KEY

 is a 128-

bit AES key (represented using exactly 16 ASCII characters).

Open_TC Deliverable 6a.2

6/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

Note: Encryption is independant of codec, but only codecs supported by VLC can be played
(most codecs supported in official VLC code is enabled in compilation option).

4.1.2 Modifying entries in the key database

To insert new entries into the content key database, the following steps should be taken to edit

the respective text files:

1. in the

DRMcore/opentc/database

 directory

2. edit the

keyData.txt

 file and add a new line of the form:

3. MovieID=AESKEY

where

MovieID

  corresponds to the integer used in encryption, and

AESKEY

  is 16 pairs of hex

numbers of the corresponding

AES_KEY

 used in the encrypter program (without space between

pairs of hex numbers).

To remove  entries, simply remove the respective lines in the

keyData.txt

 file.

4.1.3 Putting entries into the license database

To insert a new license into the content key database for a particular content file, the following

steps should be taken:

1. in the

DRMcore/opentc/database

 directory

2. create a text file named

<movidID>.xml

 (replace <movidID> by the MovieID integer in

the encryption process)

3. write a MPEG-21 license in this xml license file (refer to existing example for the license

structure)

The list of supported tags is given in section 2.4.

Additionally, root grants can be created by making text license files named:

Rootxxx.xml

 (where xxx is an integer in increasing order)

4.2 Starting the DRM Core

In order to start the DRM core, follow the instructions:

1. from the

DRMcore/opentc

 directory.

2. start the server using the command:

3. java ­cp bin de.tum.ldv.opentc.OtcTest

Note

: Java 5.0 or above is necessary for the DRM core, and python version 2.4 with standard

libraries.

Open_TC Deliverable 6a.2

7/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

4.3 Starting media player (VLC) client

extract the

vlc­0.8.6a_OTC_Modified.tar.gz

 file.

The   tar   file   contains   pre-compiled   binaries   for   a   Ubuntu   6.10   system.   If   recompilation   is
necessary, please follow the standard compilation procedure for VLC given in the file

INSTALL

The demux/mp4 module is necessary for the decryption and decoding of encrypted media for

OpenTC.
start the modified VLC client by running

./vlc

Choose quick open file from the menu and select the encrypted mp4 file to open.

Open_TC Deliverable 6a.2

8/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

Classes description in DRM Core

The following section describes the class, the interactions among the implemented classes
within the DRM core, and its public methods.

5.1.1 OtcTest

Class Description:

 Main entry point for prototype DRM core

5.1.2 SimpleTCPPlayerStub

Class Description:

 A stub class which runs as a listener thread, and waits for connection from

the media player. It acts as a player stub to the DRM core.

5.1.3 CoreManager

Class Description:

 Main manager class of the DRM core which implements the

ManagementInterface

and

 PlayerInterface

interface. It initializes all other manager

classes, and calls the appropriate manager upon request.

functions:

public



int

 playerInit(String playerCapabilities)

playerStub registers with DRM core and receives playerID.

public



void

 insertLicense(String licenseText, Rel relType, Item item)

insert license into database.

public

 Key getDecryptionKey(

int

 playerID, Item item, String operation)

get content decryption key

public

 Key getAttestationKey(

int

 playerID, Rel relType, String serverURL)

get attestation key

5.1.4 DbManagerImpl

Class Description:

 Implementation of the

DatabaseManager

 interface.

functions:

public

 List<License> getLicense(Item item)

get license by item reference

public



void

 setLicense(Item item, License license, ItemState state)

save license in database (not yet implemented)

Open_TC Deliverable 6a.2

9/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

public



void

 deleteLicense(Item item)

delete license by item reference (not yet implemented)

public

 ItemState getItemState(Item item)

retrieve item state (not yet implemented)

public



void

 setState(Item item, ItemState state)

save item state into database (not yet implemented)

public

 Key getDecryptionKey(Item item)

get content key for item

5.1.5 InterpreterInterface

Class



Description

:



interface class for license interpretation

functions:

String

 interpretLicense(java.util.List<License> licenseGroup, Item item,

ItemState state, SystemState system, String operation)

interprets license by calling the specific interpreter based on REL type

5.1.6 MPEG21Interpreter

Class Description: License interpreter for MPEG21 license format

functions:

public

 String interpretLicense(List<License> licenseGroup, Item item,

ItemState state, SystemState system, String operation)

interprets license (by calling python script)

5.1.7 Item

Class Description:

 encapsulates a reference to content item

functions:

public



int

 getID()

get item reference (MovieID)

5.1.8 Key

Class Description:



encapsulates the content key

Open_TC Deliverable 6a.2

10/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

functions:

public



byte

[] getKey()

get content key

public



int

 getKType()

get key type

public



int

 getLength()

get key length

5.1.9 License

Class Description:



encapsulates the license string

functions:

boolean

 isRELType(String type)

check REL type

boolean

 isRELType(Rel rel)

check REL type

public

 String getText()

get license string

5.1.10 Rel

Class Description:



represents a particular REL type

functions:

public

 String getName()

get name of REL type

Open_TC Deliverable 6a.2

11/12

background image





Concept system prototype including basic DRM functionality

Final|1.1

features to be implemented in the future

The following features are yet to be implemented:

user-friendly response when content key not received

time-based restriction on content playback

packaging core and player into secured compartments

core:

license and key in sealed DB storage

Database based license interpretation

license translation

proper RPC protocol between core and player compartment

utility class

management functions

attestation

secure time

user credentials based on certificates

Open_TC Deliverable 6a.2

12/12

background image





D6b.4 First MEITC prototype with 2

compartments

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

 Deliverable

Deliverable reference number

IST-027635/D06b.4/FINAL | 1.00

Deliverable title

D6b.4 First MEITC prototype with 2
compartments

WP contributing to the deliverable

WP6

Due date

Oct 2007

Actual submission date

Oct 2007

Responsible Organisation

TUBITAK

Authors

Görkem Çetin

Abstract

Installation instruction for MEITC prototype

Keywords

OpenTC WP6

Dissemination level

Public

Revision

FINAL | 1.00

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months



background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

1 Installing and running the MEITC framework

This section describes how to build a Message Exchange Infrastructure for Trusted
Computing (MEITC). Currently, the TPM/TSS parts are left blank, so only a pure mailer
system will be built with the help of general purpose Linux servers.
MEITC consists of the following components:

A web server, which handles all the incoming requests. The requests are
forwarded to the mail server in order to read, reply or delete the users' mails.

An e-mail server, which is used to handle the incoming and outgoing mails. The
mail server runs postfix and dovecot to answer POP3/IMAP connections.

A MySQL server, which holds the users' mailboxes.

A CSP (certificate service provider), which is used to hold the user's certificates.
CSP is also responsible for updating and revoking the certificates in its
database.

Since MEITC will run under a hypervisor, all the components explained above need to
be installed on seperate virtual machines. These VMs need to be small in size, in order
to enable the specific binaries to be measured. Currently, the size of each of these
components are around 600 Mb, but currently work is underway to lower this number
to a reasonable point.
The figure below shows a diagram of the system. FIGURE: Diagram of the system.
Here, each of the servers take an IP mentioned below. These IP's need not be same in
your system, but for the sake of consistency, you are advised to keep the IP's.

1. Certificate Server:

192.168.1.100



2. Postfix Mail Server:

192.168.1.101



3. MySQL server:

192.168.1.102



4. Apache Web Server:

192.168.1.103



In this model, certificate service provider (CSP) will act as the dom0, which will serve
as the hypervisor system. The details on how to install a Xen server on the dom0 is
explained in section 3. First, the installation of dom0 is required, and then, the servers
mentioned above (2,3,4) will be installed.
Please proceed to the tutorial on how to install dom0 and then refer back to this
document.

2 Installing and running the Apache web server under

MEITC

Pardus Linux repositories contain Apache as the primary web server, together with
scripting languages like PHP. For the message exchange infrastructure on the web
server part, the following software should be up and running.

Apache web server: Version 2.0.3 or more

PHP with IMAP extensions: Version 4 or more.

Apache web server will be used for the incoming connections to the web server.
Apache will redirect the requests via PHP to the mail server, where a postfix system is
installed. According to the request, a mail can be fetched from the INBOX, forwarded
to another recipient, deleted or replied.

Open_TC Deliverable D06b.4

2/7

background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

In order to install the web server, install a domU component on dom0 and configure
the IP addresses, DNS servers and gateway. The Apache server will have the IP
192.168.1.103, so executing the following commands will set up a running Apache
system, which is connected to the internet.

Install a domU client on dom0

Boot the domU client.

Enter the system as root.

Run the nano editor, opening /etc/conf.d/local.start: nano /etc/conf.d/local.start

Enter the following lines to the end of the file. We assume that the gateway is
192.168.1.1 ifconfig eth0 192.168.1.103 netmask 255.255.255.0 route add
default gw 192.168.1.1

Save the file, and execute it by the following command: sh /etc/conf.d/local.start

Now, modify the DNS so that it will point to the correct DNS server. For
this, /etc/resolv.conf will be edited like the following: nameserver 192.168.1.1
Put your DNS server IP instead of "192.168.1.1"

The web server will now have the corresponding IP and the DNS as planned.

Now we will install the web server components. The following packages need to be
installed using the PISI package manager:

Apache web server

PHP scripting language

For this, enter the following two commands as root:

sudo pisi it apache mod_php

2.1 Installing and running the Postfix mail server under MEITC

Like Apache, Pardus Linux repositories contain necessary software for Postfix (e-mail
server) and Dovecot (IMAP and POP3 server). It's enough to install cyrus-sasl, dovecot
and postfix to have a fully functional e-mail server.

sudo pisi it postfix dovecot cyrus­sasl

3 HOWTO - Xen under Pardus

This document tells how to install Xen under Pardus to have more than 1 working
virtual machines, i.e hypervisors. Xen packages for Pardus can be obtained from the
package repository by using package manager.
Every virtual machine running under Xen is called a "domain". The underlying
manager, which controls these domains is called Domain 0 (dom0). Likewise, the
virtual machines running on top of dom0 are called unprivileged domain (domU).
Dom0, in fact, nothing but a special kind of kernel loaded by Xen hypervisor.

3.1 Installing the required packages

The following command should be issued in order to install dom0, domU and other
helper/manager applications.

Open_TC Deliverable D06b.4

3/7

background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

pisi it xen xen­tools kernel­dom0 kernel­domU

This command will install the xen package, together with xen tools for management
and kernel for dom0 and domU respectively.

3.2 Booting with dom0

For the physical machine to booth with Xen hypervisor (dom0), we need to add a few
lines to the boot loader, grub.conf, found in /etc/grub.conf.
Note that you need to modify the lines (hd0,1) and root=/dev/hda2 lines according to
your system. (hd0,1) shows the second partition (here, noted as "1") in the first disk
(noted as "0").

title Xen [2.6.16.29­4­dom0]

root (hd0,1)

kernel (hd0,1)/boot/xen.gz

module (hd0,1)/boot/kernel­2.6.16.29­4­dom0 root=/dev/hda2

module (hd0,1)/boot/initramfs­2.6.16.29­4­dom0

Now, after booting the system with this kernel, we can immediately start producing
virtual machines called domU's.

3.3 Creating a test domU

Before creating a domU, we need to install a pre-packaged Linux image. Run the the
following commands to install the image under Pardus.

Download the ttylinux-xen.bz2 file from

this URL

Unzip the file by

bunzip2 ttylinux­xen.bz2



Generate the following Xen configuration file under /etc/xen.

kernel = "/boot/kernel­2.6.16.29­4­domU"

memory = 64

name = "ttylinux"

disk = ["file:/home/username/ttylinux,sda1,w"]

root = "/dev/sda1 ro"

Note that the file URL next to "disk" parameter should be modified to reflect the
changes ttylinux file resides.

Start the Xen management service by issuing

service xen­tools start

commmand.

Start ttylinux with the following command (again, under root privileges). Note
that the default password for ttylinux is "root".

xm create /etc/xen/ttylinux ­c

Now, you have booted your first virtual machine. Now, using another console, you can
test your unprivileged domains, and manage them by using dom0 with the help of xm
command.

xm list

Name      ID  Mem(MiB) VCPUs  State  Time(s)

Domain­0   0      1165     1  r­­­­­    85.7

Open_TC Deliverable D06b.4

4/7

background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

ttylinux   4        64     1  ­b­­­­     0.2

As you have tried a prepackaged ttylinux specifically created for Xen, now it's time to
create a new virtual machine that we can seriously build or applications on. There are
different methods to boot an unprivileged domain via Xen, such as Logical Voluma
Manager (LVM), a real disk partition or a sparse file which is a filesystem itself
including a virtual machine.

xm shutdown

 command can be used to power off a virtual machine safely, giving its

name as a parameter.

xm shutdown ttylinux

3.4 Creating a real domU

In order to generate a file that will hold our new virtual machine, we need to create a
file with 4 Gb in size. Modify 4095 with the size you want to create, but for our
purposes to have a simple virtual machine, 4 Gb should be enough.

dd if=/dev/zero of=/var/xen/domU­pardus bs=1M seek=4095 count=1

Now, format it as ext3 partition as currently Pardus best works with ext3.

mkfs.ext3 /var/xen/domU­pardus

Open a temporary directory where you'll bind this file into:

mkdir ­p /mnt/pardus

Mount the formatted file (/var/xen/domU-pardus) under /mnt/pardus. Regardless to
say, this should be done with root privileges.

mount ­o loop /var/xen/domU­pardus /mnt/pardus

PISI command will be used to generate repository informtion under /mnt/pardus. Issue
the following command:

pisi ar pardus­1.1 http://paketler.pardus.org.tr/pardus­1.1/pisi­index.xml.bz2 ­

D /mnt/pardus/

Install the base system under /mnt/pardus with the following command:

pisi it system.base ­D /mnt/pardus ­­ignore­comar

Use the chroot command to start working under the new Pardus directory.

chroot /mnt/pardus

Copy a ld.so.conf file and generate a library path cache by issuing ldconfig command:

cp /usr/share/baselayout/ld.so.conf /etc/ && ldconfig

Start COMAR, aka Pardus configuration manager.

service comar start

Open_TC Deliverable D06b.4

5/7

background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

Let the postinstall scripts run by COMAR

pisi configure­pending

Modify the password of the root user by passwd command

passwd

New UNIX password:

Retype new UNIX password:

passwd: password updated successfully

Modify the /etc/fstab file to mention from which virtual disk the virtual machine will
boot.

/dev/xvda  /          ext3     noatime         0 1

none       /proc      proc     nosuid,noexec   0 0

none       /dev/shm   tmpfs    defaults        0 0

Generate and modify /etc/xen/pardus file according to the following:

name = "pardus";

memory = 256;

kernel = "/boot/kernel­2.6.16.29­4­domU";

disk = [ "file:/var/xen/domU­pardus,xvda,w" ];

root = "/dev/xvda ro";

vif = [ "" ];

dhcp = "dhcp";

Provide the necessary device nodes in order to be able to boot. The rest will be
handled by udev during boot time.

/usr/bin/mknod /dev/console c 5 1 /usr/bin/mknod /dev/null c 1 3

Modify the following portion of the /etc/inittab, so that only the line "... tty1" will stay
(i.e

c1:12345:respawn:/sbin/mingetty ­­noclear tty1

). That is, delete tha last 5

lines. Under Xen, we only need one tty.

c1:12345:respawn:/sbin/mingetty ­­noclear tty1

c2:12345:respawn:/sbin/mingetty ­­noclear tty2

c3:12345:respawn:/sbin/mingetty tty3

c4:12345:respawn:/sbin/mingetty tty4

c5:12345:respawn:/sbin/mingetty tty5

c6:12345:respawn:/sbin/mingetty tty6

Use

exit

 command to logout from the chroot environment, and from dom0

unmount /mnt/pardus by issuing

umount /mnt/pardus

 command. Now we are ready to

power on the virtual machine:

xm create pardus ­c

Now you can enter your root password, and start playing with Pardus. One thing to
mention immediately is that, you can install other packages to have a full featured
system. For example, "desktop" component will install a KDE desktop system,
applications will install all types of applications (network, printing, editors, emulators
etc), and server will install all servers (apache, PHP, mysql etc) from the repository.

Open_TC Deliverable D06b.4

6/7

background image





D06a.1 Preliminary DRM System Specification

FINAL | 1.00

You need a fast internet access to do this though.
In order to list all the accessible components, the following command can be issued

pisi lc

3.5 Graphical login to domU

In order to login to domU via KDE, tightvnc package will be used. Tightvnc server is
required both on the server side (i.e domU) and the client side (dom0). Vncserver
command which comes with tightvnc is run under a normal system user (i.e, not root).

vncserver

This command will ask for a password, which in turn will be used on the client side.
Now, the client should be able to reach the desktop of the dom0, and run "startkde".
However, the file which is run as a VNC request is asked from vncserver does not
include a "startkde" line. In order to run KDE on dom0, ~/.vnc/xstartup file should be
modified only to show the line "startkde". Giving the following command will achieve
this:

echo "startkde" > ~/.vnc/xstartup

It's time to run vnc from dom0:

vncviewer machine

This command will ask for a password, and then connect to the IP/hostname specified
by "machine" above.

Open_TC Deliverable D06b.4

7/7
