D02.2 Requirements Definition and

Specification

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Report

Deliverable reference number

IST-027635/D02.2/Final | 1.00

Deliverable title

Requirements Definition and Specification

WP contributing to the deliverable

WP02 (contributions from WP02-08)

Due date

Feb 2007 - M16

Actual Submission Date

April 2007

Responsible Organisation

ITAS

Authors

Dirk Kuhlmann, Arnd Weber (eds.).
Irina Beliakova, Alexander Boettcher, Hans
Brandl, Hubert Braunwart, Anthony Bussani,
Görkem Çetin, Chris I. Dalton, Eckhard Delfs,
Kurt Dietrich, Roman Drahtmüller, Volkan
Erol, Ivan Evgeniev, Ralf Findeisen, E. M.
Gallery, Bora Güngören, Pete Herzog, Zoltan
Hornak, Kadir Imamoglu, Bernhard Jansen,
David Jennings, Bernhard Kauer, Rainer
Landfermann, Matthias Lenk, Peter Lipp,
Hans Loehr, Stephane lo Presti, David
Plaquin, Armand Puccetti, Harigovind
Ramasamy, Gianluca Ramunno, Florian
Schreiner, Matthias Schunter, Christian
Stueble, Gergely Tóth, Ventcislav Trifonov,
Alexander Warg, Dirk Weber, Carsten
Weinhold, Andreas Wespi.



background image





Requirements Definition and Specification

Final | 1.00

Abstract

OpenTC sets out to develop trusted and
secure computing systems based on Trusted
Computing hardware and Open Source Soft-
ware. This deliverable provides a high-level
specification to guide design and future im-
plementation. Requirements were derived in
part from a media analysis, application sce-
narios and use cases definitions that are also
included in this document.

Keywords

Edit Document Properties

Dissemination level

Public

Revision

Final | 1.00

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months

If you need further information, please visit our website

www.opentc.net

 or contact

the coordinator:

Technikon Forschungs-und Planungsgesellschaft mbH
Richard-Wagner-Strasse 7, 9500 Villach, AUSTRIA
Tel.+43 4242 23355 –0
Fax. +43 4242 23355 –77
Email

coordination@opentc.net

The information in this document is provided “as is”, and no guarantee

or warranty is given that the information is fit for any particular purpose.

The user thereof uses the information at its sole risk and liability.

OpenTC Deliverable 02.2

2/141

background image





Requirements Definition and Specification

Final | 1.00

Table of Contents

1 Summary..................................................................................................................... 8
2 Introduction................................................................................................................. 9
3 Results of consortium-internal Survey....................................................................... 11

3.1 Survey Results...................................................................................................... 11
3.2 Summary and Conclusions ................................................................................... 19

4 Media Analysis........................................................................................................... 20

4.1 Method and Selected Media.................................................................................. 20
4.2 TC in General........................................................................................................ 20

4.2.1 Public Discussion.............................................................................................. 20
4.2.2 Some German Positions .................................................................................. 23
4.2.3 Views on OpenTC............................................................................................. 24

4.3 Suggestions.......................................................................................................... 24

5 OpenTC Application Scenarios................................................................................... 26

5.1 Private Electronic Transactions............................................................................. 26

5.1.1 Problem Scenario............................................................................................. 26
5.1.2 Security Environment....................................................................................... 27
5.1.3 Functional Requirements..................................................................................28
5.1.4 Description of Use Cases.................................................................................. 29
5.1.5 Security Objectives and Security Requirements...............................................31

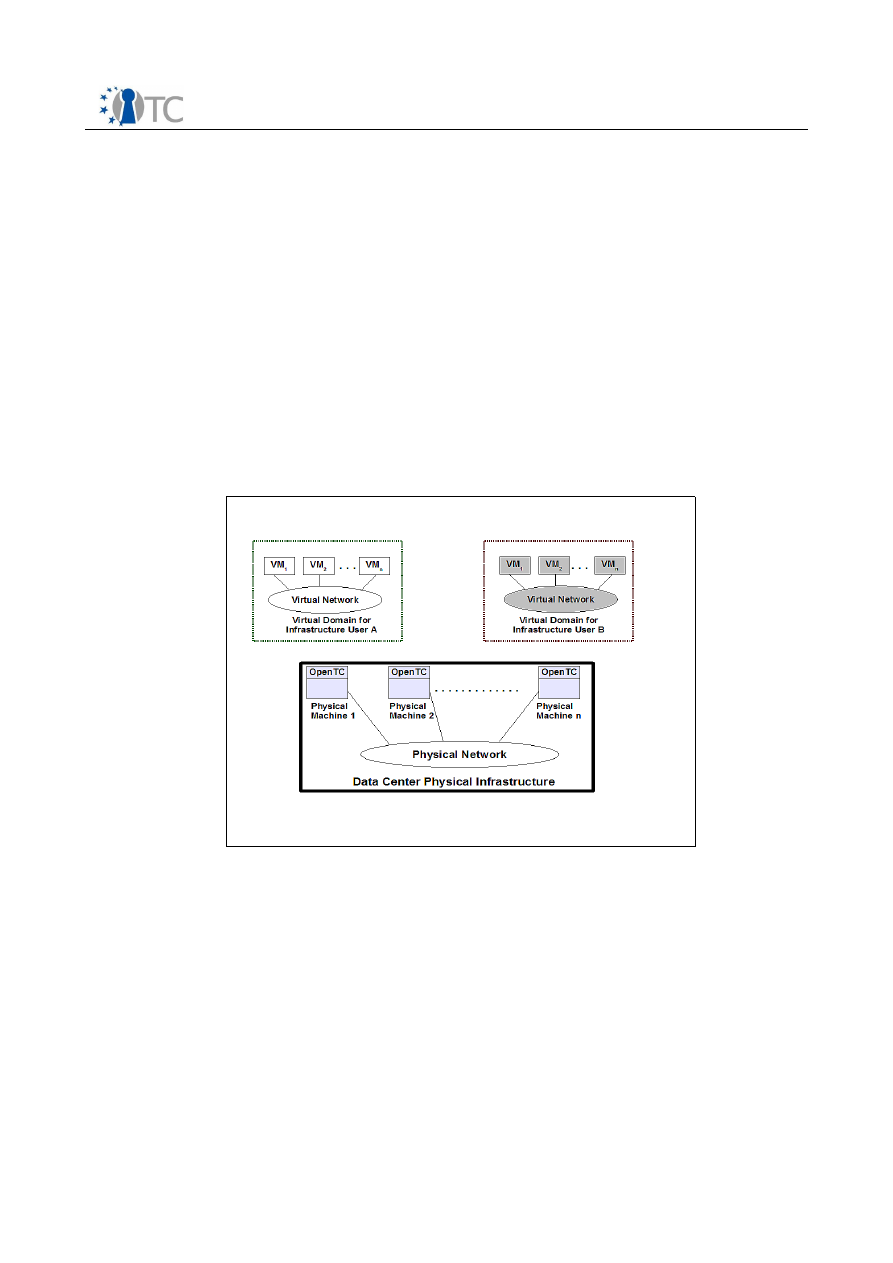

5.2 Trusted Virtual Datacenter ................................................................................... 32

5.2.1 Problem Scenario............................................................................................. 32
5.2.2 Security Environment ...................................................................................... 33
5.2.3 Functional Requirements..................................................................................34
5.2.4 Description of Use Cases.................................................................................. 36
5.2.5 Security Objectives and Security Requirements...............................................37

5.3 Corporate Computing at Home............................................................................. 38

5.3.1 Problem Scenario............................................................................................. 38
5.3.2 Security Environment ...................................................................................... 39
5.3.3 Functional Requirements..................................................................................40
5.3.4 Description of Use Cases.................................................................................. 41
5.3.5 Security Objectives and Security Requirements...............................................42

6 Workpackage Structure and Relationships................................................................ 43
7 High Level Architecture Overview............................................................................. 45

7.1 Motivation............................................................................................................. 45
7.2 Trusted Virtualization Platform Architecture......................................................... 46

7.2.1 Main Components............................................................................................. 46
7.2.2 Trusted Computing Base.................................................................................. 47
7.2.3 Component and Service Layering.....................................................................49
7.2.4 Applications...................................................................................................... 50
7.2.5 Development Support...................................................................................... 50

8 Workpackage 03: Basic Interface and Trust Layers................................................... 51

8.1 SWP 3a: Trusted Computing enhanced CPUs........................................................ 52

8.1.1 Requirements Breakdown................................................................................ 52
8.1.2 High-level Specification and Design................................................................. 53
8.1.3 Services of this Layer....................................................................................... 54
8.1.4 Dependencies: Required Services from Sub-Layers......................................... 55

OpenTC Deliverable 02.2

3/141

background image





Requirements Definition and Specification

Final | 1.00

8.2 SWP 3b: TSS-Stack according to TCG Specification ............................................. 55

8.2.1 Requirements Breakdown................................................................................ 55
8.2.2 High Level Specification and Design................................................................ 55
8.2.3 Services............................................................................................................ 56

8.3 SWP03c: basic TPM-enabled crypto services........................................................ 60

8.3.1 Requirements breakdown................................................................................ 61
8.3.2 High-level Specification/Design........................................................................ 62
8.3.3 Functionality: Services/APIs, Message/Key/Policy formats................................62
8.3.4 Dependencies: required services from sublayers............................................. 63

8.4 SWP03d: Java Integration – High Level Overview..................................................63

8.4.1 The Role of Java................................................................................................63
8.4.2 Integration of Trusted Computing into Java......................................................64
8.4.3 Network Security and Isolation of Security-Critical Applications...................... 66
8.4.4 Applicability of TC-Enhanced Java.................................................................... 67

9 Workpackage 04: Virtual Machine Monitors...............................................................68

9.1 Specific Goals and Deliverables............................................................................ 68
9.2 Requirements and Architecture Discussion.......................................................... 69

9.2.1 Virtualization.................................................................................................... 69
9.2.2 Run-Time Protection and Isolation....................................................................69
9.2.3 Trusted Computing Base.................................................................................. 69

9.3 Goals and Deliverables......................................................................................... 70

9.3.1 Trustworthy Virtualization Layer...................................................................... 70
9.3.2 Base TCG virtualization support....................................................................... 70
9.3.3 OS instance life-cycle management................................................................. 71
9.3.4 Mandatory security policy configuration.......................................................... 73
9.3.5 Basic TPM management................................................................................... 73
9.3.6 Mandatory information flow policy enforcement mechanisms......................... 73

9.4 Xen and L4 specifics............................................................................................. 74

9.4.1 Xen Virtual Machine Monitor............................................................................ 74
9.4.2 L4 Virtual Machine Monitor............................................................................... 75

10 Workpackage 05: Management of OpenTC Framework........................................... 77

10.1 The OpenTC Security Services ........................................................................... 79

10.1.1 Trusted User Interface.................................................................................... 79
10.1.2 User Identity Manager.................................................................................... 80
10.1.3 Compartment Security Manager.................................................................... 80
10.1.4 Compartment Trust Manager......................................................................... 81
10.1.5 Storage Manager............................................................................................ 81
10.1.6 TPM Server..................................................................................................... 81
10.1.7 Cryptographic Services.................................................................................. 82
10.1.8 Virtual Network Management......................................................................... 82

10.2 OpenTC Security Management Services............................................................. 82
10.3 Management of the Trusted Platform Module..................................................... 83

10.3.1 Initialization of the Security Platform............................................................. 83
10.3.2 TPM Configuration.......................................................................................... 84
10.3.3 TPM Backup and Restore Functionality.......................................................... 84

10.4 Key Management Services and Infrastructure.................................................... 85

10.4.1 Public Key Infrastructure Overview................................................................ 85
10.4.2 Trusted Computing enhancement of PKI........................................................ 85
10.4.3 Privacy-enabled Key Management................................................................. 86

10.5 Implementation Architecture.............................................................................. 87

10.5.1 Implementation on L4.................................................................................... 87

OpenTC Deliverable 02.2

4/141

background image





Requirements Definition and Specification

Final | 1.00

10.5.2 Implementation on Xen.................................................................................. 87

10.6 Management Applications................................................................................... 87

10.6.1 Trusted Platform Agent (TPA)......................................................................... 87
10.6.2 Remote Management Provider (DMTF CIM).................................................... 89

11 Workpackage 06: Trusted Computing Applications................................................. 90

11.1 General............................................................................................................... 90
11.2 SWP06a: Interoperable DRM .............................................................................. 90

11.2.1 Requirements breakdown.............................................................................. 90
11.2.2 Planned features ........................................................................................... 91
11.2.3 High level Specification and Design............................................................... 92

11.3 SWP06.b: Message Exchange Infrastructure ...................................................... 94

11.3.1 Requirements breakdown.............................................................................. 94
11.3.2 High-level Specification and Design............................................................... 95
11.3.3 Functionality: Services/APIs, Message/Key/Policy formats..............................97
11.3.4 Dependencies: Required services from sub layers......................................... 99

11.4 SWP06.c: Trusted Platform WYSIWYS application............................................... 99

11.4.1 Requirements Breakdown............................................................................ 100
11.4.2 High-level Specification and Design............................................................. 101
11.4.3 Functionality: Services/APIs, Message/ Key / Policy formats.........................102
11.4.4 Dependencies: Required Services from Sublayers....................................... 104

11.5 SWP06.d: Encrypted File Service...................................................................... 105
11.6 SWP06.e: Multifactor Authentication.................................................................105

11.6.1 Requirements breakdown............................................................................ 105
11.6.2 High-level Specification/Design of selected Workpackages .........................105
11.6.3 Functionality: Services/APIs, Message/Key/Policy formats............................106
11.6.4 Dependencies: Required services from sub-layers....................................... 107

12 Workpackage 07: Evaluation and Assurance......................................................... 108

12.1 General............................................................................................................. 108
12.2 SWP07a: Manual and automated Security Testing, Risk Analysis..................... 108

12.2.1 Objectives.................................................................................................... 108
12.2.2 Approach...................................................................................................... 109
12.2.3 Dependencies with other SWP......................................................................111

12.3 SWP07b: Linux Package Verification................................................................. 111

12.3.1 Objectives.................................................................................................... 112
12.3.2 Approach...................................................................................................... 112
12.3.3 Functionality................................................................................................. 113
12.3.4 Dependencies with other SWP......................................................................113

12.4 SWP07c: Applied Trust Verification and Integrity Methodology........................ 113

12.4.1 Objectives.................................................................................................... 113
12.4.2 Approach ..................................................................................................... 114

12.5 SWP07d: Towards CC EAL5 Certification........................................................... 114

12.5.1 General......................................................................................................... 114
12.5.2 Objectives ................................................................................................... 114
12.5.3 Approach ..................................................................................................... 115
12.5.4 Dependencies with other SWP......................................................................115

13 Workpackage 08: TC for embedded controllers in mobile phones.........................116

13.1 Overview .......................................................................................................... 116
13.2 SWP08a: Market Requirements and technical Capabilities............................... 117

13.2.1 Market, user and mobile network provider requirements............................ 118
13.2.2 Minimum set of functionalities for embedded HW/SW platforms................. 119

OpenTC Deliverable 02.2

5/141

background image





Requirements Definition and Specification

Final | 1.00

13.2.3 Suitability and options of mobile TPM for demonstrator...............................119

13.3 SWP08b: Trusted Operating System for Mobile Platforms ............................... 119

13.3.1 Overview...................................................................................................... 120
13.3.2 Demonstrator Applications........................................................................... 120
13.3.3 Use Case: Secure Wallet...............................................................................121

13.4 SWP08c: Trust and security profiles for application structures ........................ 121

13.4.1  Background on use cases............................................................................ 121
13.4.2 Other Activities............................................................................................. 123
13.4.3 Future activities............................................................................................123

13.5 Use case analysis: Secure wallet on the mobile phone..................................... 124

13.5.1 Overview...................................................................................................... 124
13.5.2 Motivation and Problem Description.............................................................124
13.5.3 Terms and Definitions.................................................................................. 125
13.5.4 Security Objectives & Security Requirements.............................................. 125
13.5.5 Functional Requirements (Use Case Model)................................................. 127

14 The OpenTC Project............................................................................................... 128
15 List of References.................................................................................................. 129
16 List of Abbreviations.............................................................................................. 130
17 Appendices............................................................................................................ 132

17.1 Consortium-internal Questionnaire................................................................... 132
17.2 References identified in the media analysis......................................................135

OpenTC Deliverable 02.2

6/141

background image





Requirements Definition and Specification

Final | 1.00

List of figures

Figure 1: Mapping Virtual Infrastructures to Physical Resources in a Data Center....... 33
Figure 2: Diagram of the platform architecture............................................................ 40
Figure 3: Dependencies between OpenTC workpackages............................................ 44
Figure 4: High Level OpenTC Architecture (idealized logical view)............................... 48

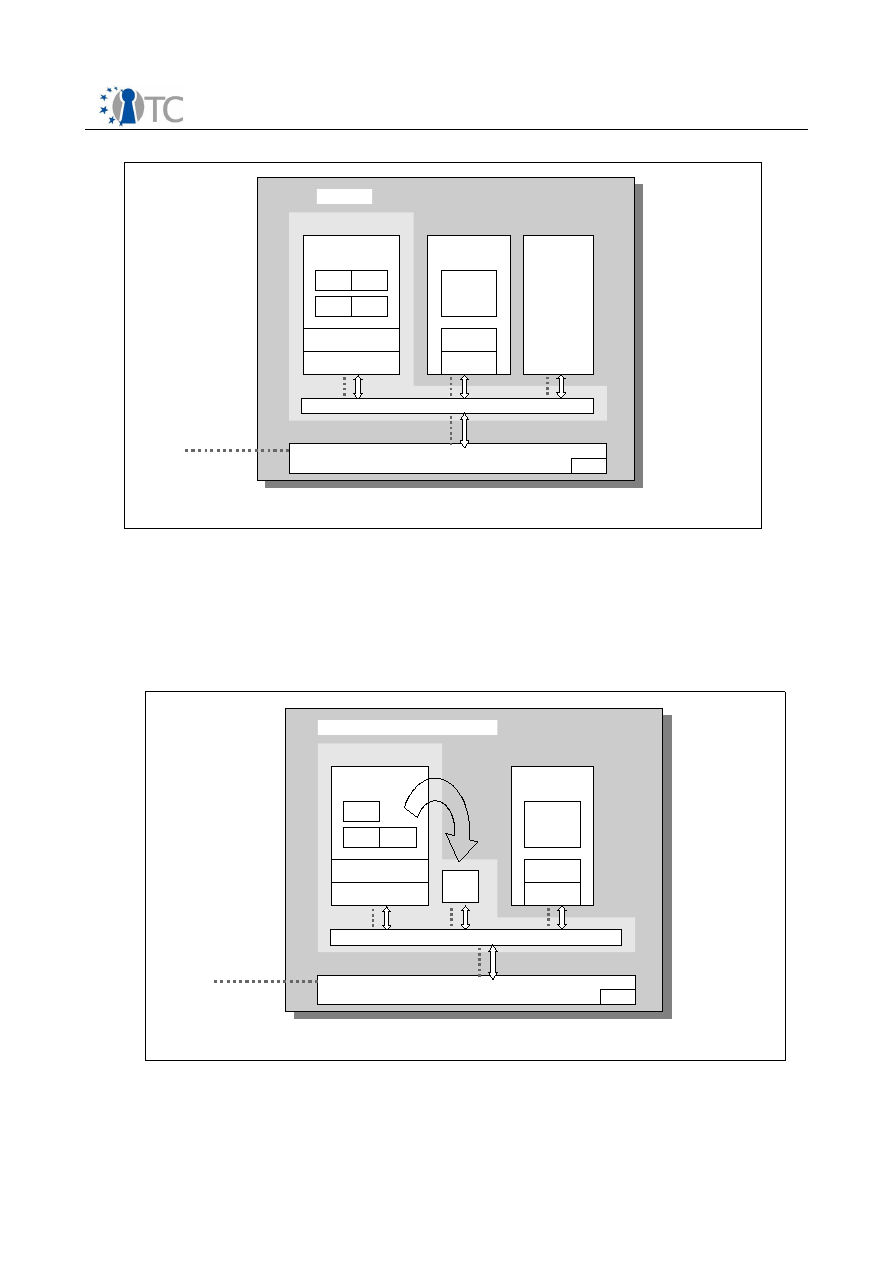

Figure 5: VM-hosted Security services.......................................................................... 49
Figure 6: VM-hosted to generic Security Service.......................................................... 49
Figure 7: Software Components for TCB....................................................................... 55
Figure 8 : TSS Stack...................................................................................................... 57
Figure 9 : TCG TSS architecture – core service............................................................. 58
Figure 10 : TCG TSS architecture service provider....................................................... 60

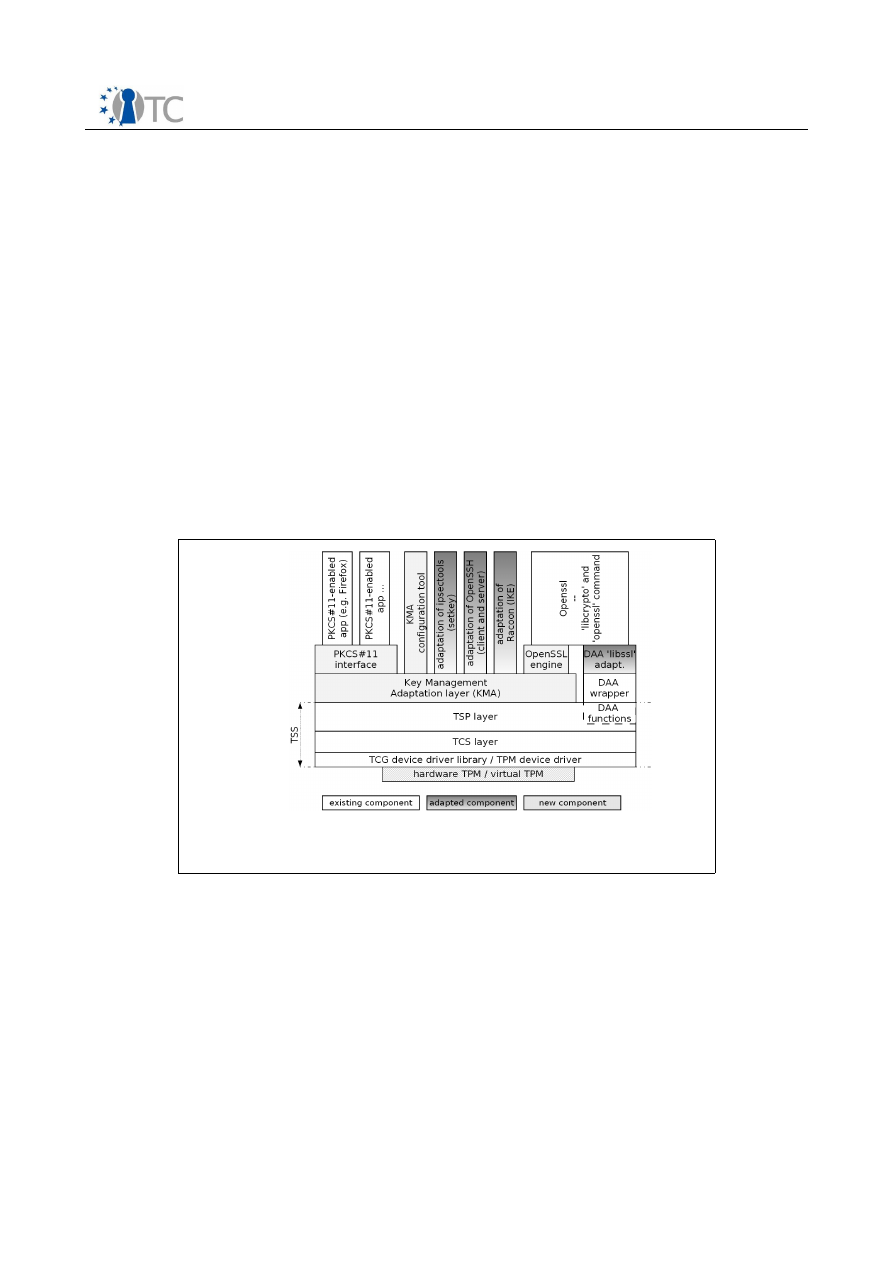

Figure 11: Architecture of the cryptographic libraries/applications.............................. 63

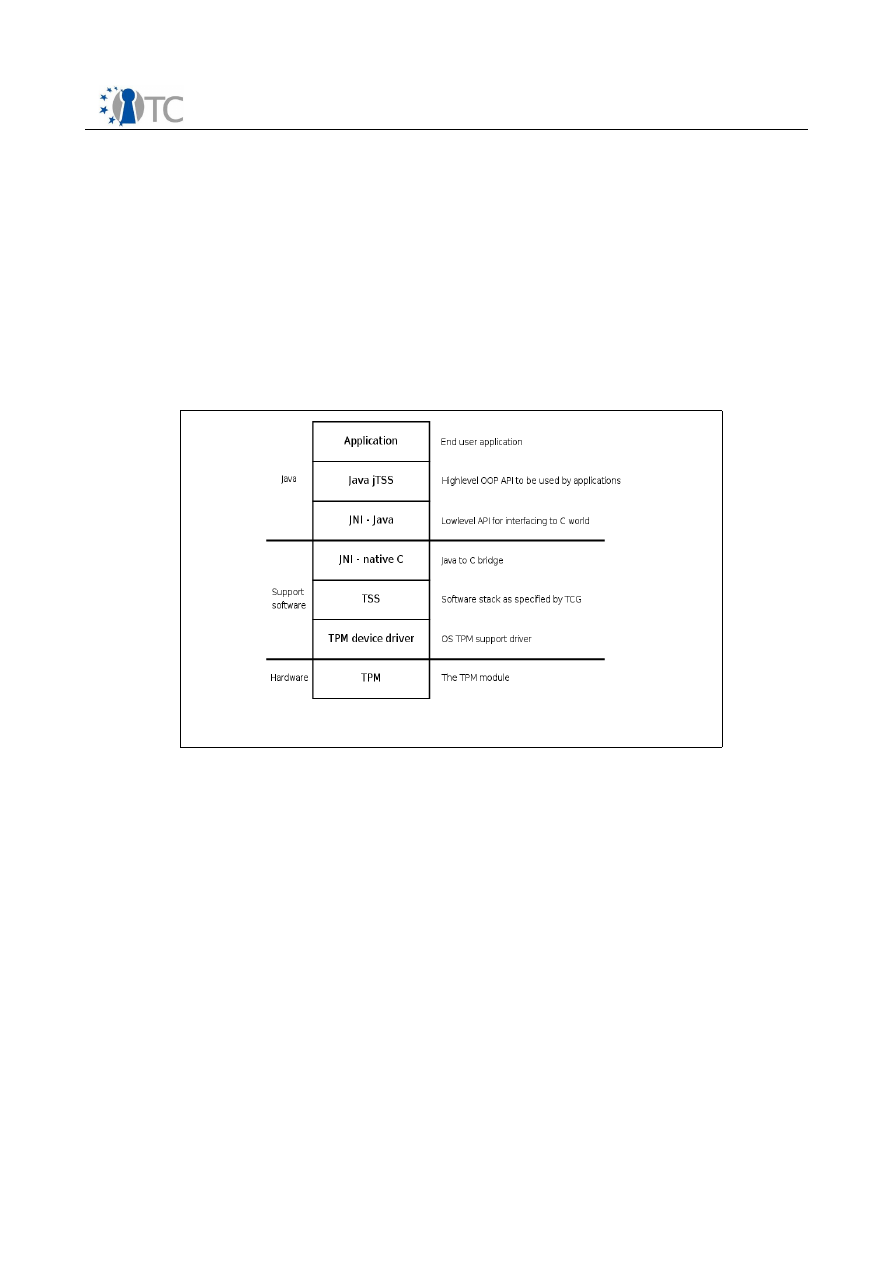

Figure 12 : TSS Abstraction Layers............................................................................... 65

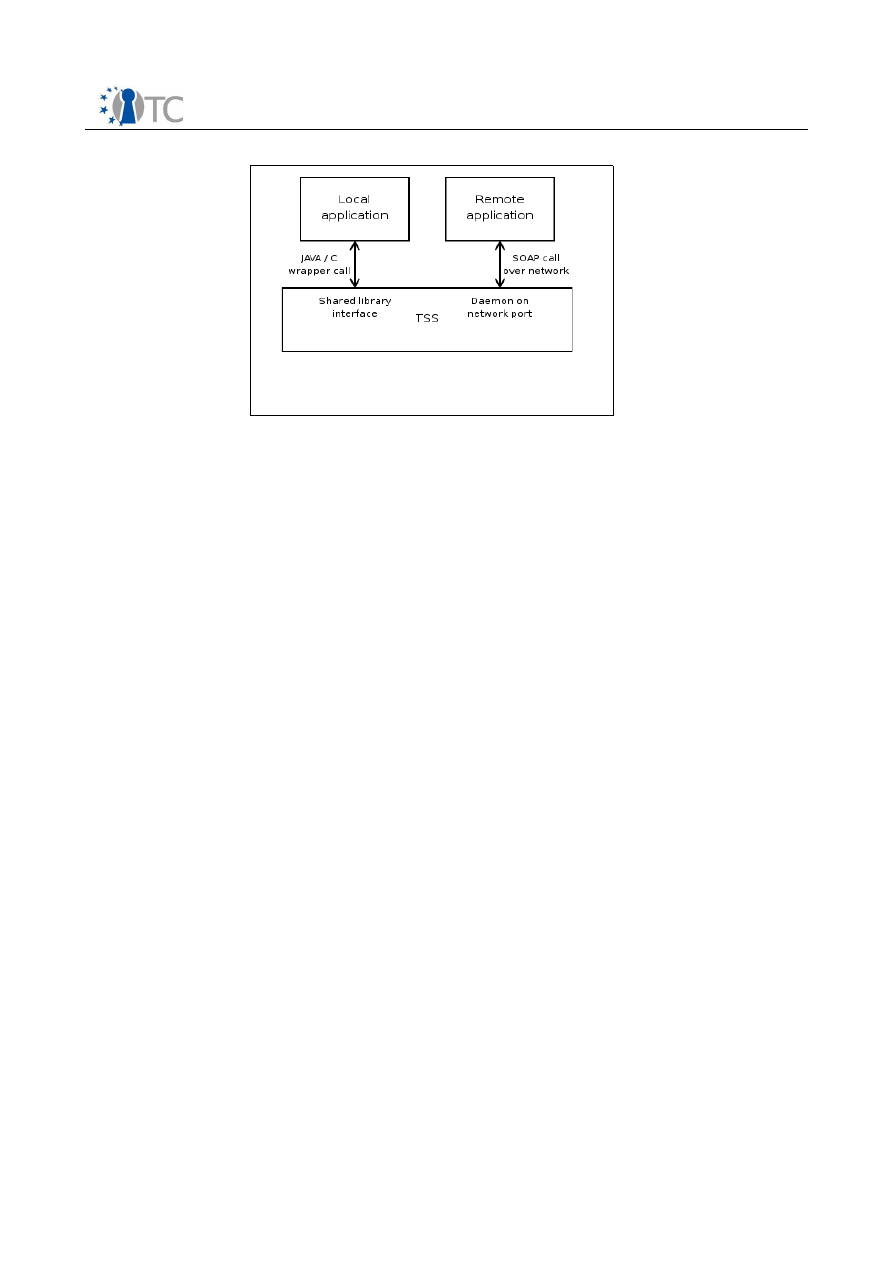

Figure 13: TSS Access Mechanisms.............................................................................. 66

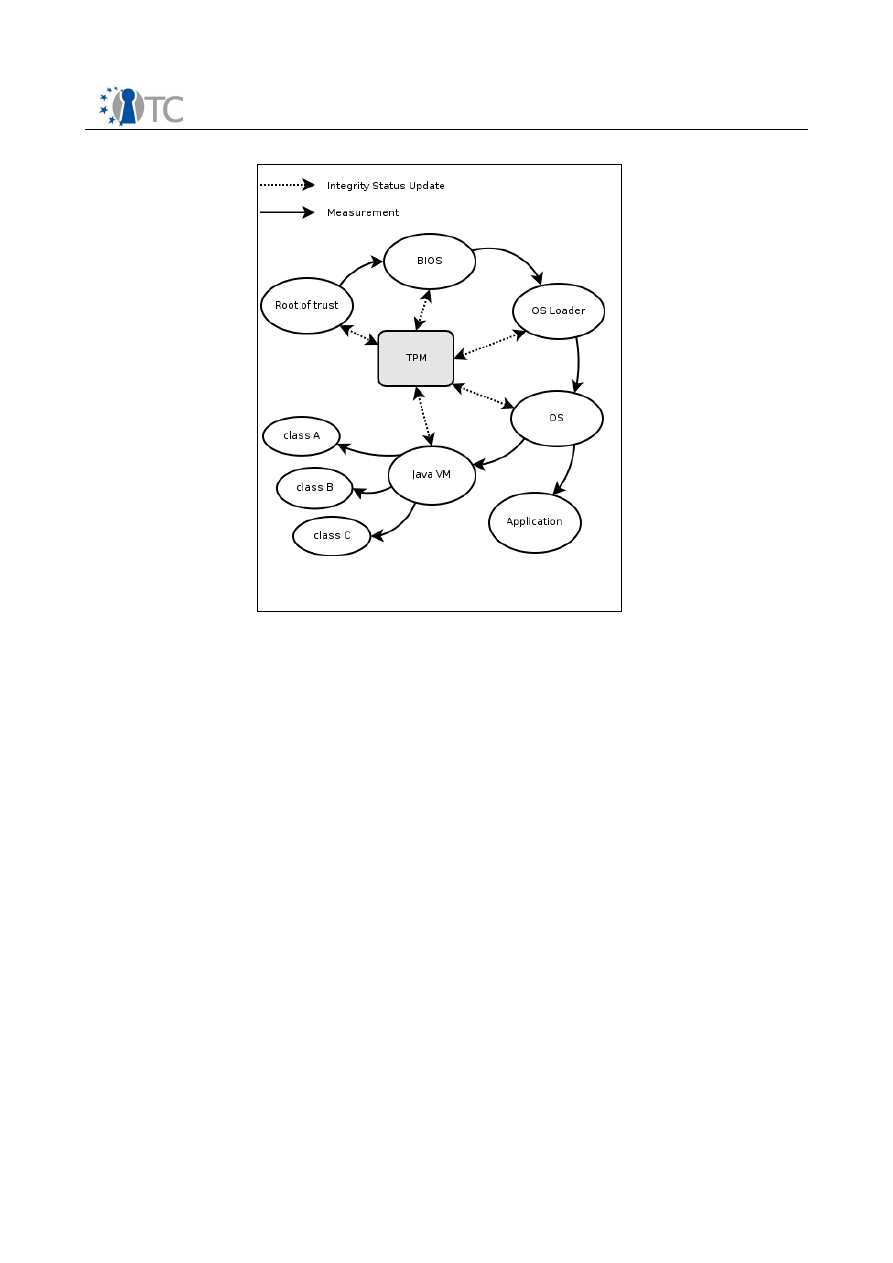

Figure 14: Chain of Trust.............................................................................................. 67
Figure 15: Xen management architecture.................................................................... 73
Figure 16: Xen management functionality................................................................... 73
Figure 17: Layers of the OpenTC Framework................................................................79
Figure 18: Security Management Components sorted by Abstraction.......................... 80
Figure 19: Security Management Components............................................................. 84
Figure 20: Trusted Platform Agent................................................................................ 89
Figure 21: Architecture of a DRM system..................................................................... 93
Figure 22: Architecture of a MEITC system................................................................... 97
Figure 23: communications among MEITC components............................................... 98
Figure 24: WYSIWYS VM with components................................................................. 102
Figure 25: MFA components....................................................................................... 107

OpenTC Deliverable 02.2

7/141

background image





Requirements Definition and Specification

Final | 1.00

1  Summary

OpenTC sets out to develop trusted and secure computing systems based on Trusted
Computing hardware and Open Source Software. This deliverable provides high-level
specifications to guide design and future implementation. Requirements were derived
in part from a media analysis, application scenarios and use cases definitions that are
also included in this document.

OpenTC Deliverable 02.2

8/141

background image





Requirements Definition and Specification

Final | 1.00

2  Introduction

The goal of OpenTC is to define and implement an open Trusted Computing frame-
work. This framework builds on the cost efficient and widely deployed “Trusted Plat-
form Module” (TPM) specified by the Trusted Computing Group (TCG) and the new
generation of x86 CPUs from AMD and Intel. Main software components of OpenTC are
Open Source operating systems and software, supporting Linux in particular.
The architecture is based on security mechanisms provided by low level operating
system layers, with isolation properties interfacing the Trusted Computing hardware.
These layers make is possible to utilize enhanced trust and security properties for
operating systems, middleware, and applications. The suggested architecture is ex-
pected to be applicable to different platform types such as servers, workstations and
embedded systems.
This document gives an overview of context information, requirements, and high level
specifications guiding the direction of OpenTC. Following this introduction, we present
results of a small, consortium-internal survey on Trusted Computing. It was conducted
to document views and opinions, to share them between the various partners of this
large project, and to highlight potential issues to be taken into account during the
design phase. The survey provides a context to consider characteristics of potential
application scenarios and to discuss implications for the future dialog between the
project and the outside world.
In chapter 4, we present the results of a media analysis on the current perception of
Trusted Computing. Drawing from a variety of sources, we outline and comment major
points of discussion that were raised during the public debate. Where possible, we
give recommendations on how to address these concerns in OpenTC's design and
implementation. Using these results and input from consortium partners, we make
suggestions for an application scenario that concerns the protection of electronic
transactions of private end-users in their role as consumers.
Application scenarios and use cases have a dual role in OpenTC. On the one hand,
they are starting points for determining necessary and desirable features of the over-
all architecture. On the other hand, they serve as the context to validate project re-
sults. Substantial effort has been spent in the first months of the project on
investigating suitable application scenarios and defining corresponding use cases. A
summarizing description of three use cases can be found in chapter 5. They address
recommendations from chapter 4. In addition, they address datacenter and server en-
vironments, and enhanced trust and security properties of remote corporate
computers connected to corporate networks via the Internet.
The remainder of this report is dedicated to requirements and high level
specifications. We outline the structure and interdependencies of OpenTC activities
and give a motivation and overview of the general architecture. The following chapters
document requirements (Workpackage 2) and high level specifications for each of the
technical Workpackages 3 to 8 (Workpackage 1 addresses management,
Workpackages 9 and 10 address distribution and dissemination of results).
Determining requirements and specification is a continuous activity. Current findings
will be extended and improved, and it is planned to update this report during the
course of the project. Public documents that aim to obtain feedback from the

OpenTC Deliverable 02.2

9/141

background image





Requirements Definition and Specification

Final | 1.00

interested public are expected to use updated and refined versions of this report as a
starting point.

OpenTC Deliverable 02.2

10/141

background image





Requirements Definition and Specification

Final | 1.00

3  Results of consortium-internal Survey

The consortium conducted a small internal e-mail survey

(a) for identifying areas to be addressed in the future survey work, and
(b) for identifying issues to be taken into account when specifying OpenTC.

The results of this survey are presented in an anonymized way. Answers such as
“don’t know” have been omitted, which appears justifiable as the objectives are to
collect ideas and to share knowledge. Initially, the questionnaire has been tested in
personal interviews. As of March 2006, answers have been received from ten
consortium members, seven from industry, three from academia.
The questions from the questionnaire are presented in courier font. For the complete
questionnaire, please consult the corresponding appendix.

3.1  Survey Results

Experiences with TC

Do you have any practical experiences with Trusted Computing
yourself? If yes:

What are your experiences?

Against which threats has TC been used in your case?

All but two respondents have experiences with TC. In summary, most of the ten
respondents have a TPM in their PC, but only 2 use it. On computers equipped
with TPMs, the hardware is used to secure keys and passwords, for example as
encrypting password files.

Is your institution involved in selling TPMs, computers with TPMs,
or in offering related software or services? If yes:

What sort of products and services are on offer?
Which experiences did your company make in that field?
Why are your customers interested in TC?
Are there any documents available about private or
corporate user interests and experiences?

Respondents from industry are active in the related fields, for example TCG
specification work, TPM manufacturing, related software development and
evaluation, sales of PCs with TPMs.
Software supporting TC from the following manufacturers was mentioned,
supplied either by the respondent's company, or by partner companies:
Infineon, Hewlett-Packard, Utimaco, Wave (backup-server), and Tripwire (check
of hash values against list).
TPMs are considered the cheapest way to secure critical keys and data. All large
corporations are interested in this kind of usage, in particular with regard to
portable computers. The feedback obtained from customers suggests that TPMs
are being used. Customers do not give any details on what exactly they secure
with TPMs. It was not possible to identify any publicly available documents

OpenTC Deliverable 02.2

11/141

background image





Requirements Definition and Specification

Final | 1.00

describing user experiences with TC.

Key finding: S

ecuring corporate networks seems to be the current main market for TC,

e.g., to render hard disks on lost and stolen portable computers unusable. This is in
contrast to the beliefs expressed in many media (see next chapter) according to which
TC is essentially about DRM for increasing revenues from sales of software and
content.

Use Cases and Threats

What are the most important use cases for OpenTC which should be
taken into account during the design, in your view? Please describe
them.

The use cases mentioned by the respondents can be described and grouped as
follows:

Protection of PC-networks

Protection of PCs is the most general use case mentioned:

1. Protection against vulnerabilities (viruses, worms, exploitable security

vulnerabilities in general).

2. Managing large numbers of corporate PCs: block stolen ones, lost HDD

should be unusable, secure email, secure workflow management.

3. Access to WLAN and corporate networks
4. Trusted Network Connect: any use case including corporate users with

mandatory use of TC; Trusted Network Connect: checking the integrity of
corporate client machines, while allowing user to maintain private
execution environment in parallel, for example by means of virtualization.

5. Secure private PCs owned by employees if they are used to access

corporate networks. On private hardware, the owner should be enabled to
run the company OS configuration in parallel to his own OS.

6. Highly-sensitive corporate networks: security and locking-down of

information within a network of computers; restricted usage in specialized
facilities where sensitive information is handled.

These remarks are in line with today’s predominantly corporate use of TPMs.

Secure servers

1. Virtual data center: several operating system instances running on behalf

of different companies or applications run on the same physical server.
With support for load balancing, the number of such servers could be
reduced, resulting in cost savings for equipment, energy, and hardware
maintenance.

2. Server support services: provider installed servers at client location with

24/7 support. The provider needs to assure integrity of servers to prevent
changes, manipulations, etc. from his customer that could result in
additional support costs.

3. Network components: secure Linux servers and routers.

OpenTC Deliverable 02.2

12/141

background image





Requirements Definition and Specification

Final | 1.00

Server-based scenarios are a promising field for applying OpenTC results, since
virtual data centres come with new challenges to isolate execution
environments of different customers.

Single services

The following single services were mentioned:

1. Home banking etc.: potential killer application, its value is easy to

communicate to the public and the media. The solution should reduce the
impacts of unauthorized modifications of application software, viruses,
malware, phishing, etc. Solution might be applicable to auctioning and
other types of e-business.

2. Secure payment: reduce risks of identity theft and phishing.
3. Improving confidence in digital signatures: “

What You Sign Is What You

See

” (WYSIWYS) applications for really secure electronic signatures, to

support the European Directive on electronic signatures.

4. Fair DRM allow executing lawful rights of digital media consumers, for

example with support for sub-licensing in accordance with mutually
agreed policies (copy to portable players, restricted sharing).

5. Shared infrastructure and storage. The traditional client-server model is

not optimal for serving media content that needs a lot of bandwidth.
Private resources could be used for serving content. In this case, it could
be advantageous if private resources can temporarily be put outside the
owner's control (by renting them out).

6. General support for users and developers that enhances the transparency

of the underlying TC mechanisms and the effective control of platform
owners.

Some respondents suggested to use Trusted Computing to secure single
applications whose subversion can result in actual financial loss for platform
owners. DRM for media content was mentioned, but was required to be
implemented with protection of user rights. It was also pointed out that users
might need applications to manage their TPM data.

Small platforms

1. OS for small platforms should support features similar to those on trusted

PC platforms (better protection against mobile viruses, DRM, etc.].

Overview of application areas and scenarios

The following table gives an overview of use cases for which detailed responses
were given.

OpenTC Deliverable 02.2

13/141

background image





Requirements Definition and Specification

Final | 1.00

Name

Threat

Requirements

Com-

part-
ments

OS

Potential

market

Mobile

phones,
embedded

systems

Viruses,

malware,
SIMLOCK

attacks, illegal
copying

Adaptation to

embedded controller

3-6

Embed-

ded,

Micro-

kernel

Top/ middle

level mobile
phones

Home banking

etc.

Viruses,

malware, etc.

Protection against

code modification,
phishing attacks, etc.

2 or

more

Windows

10% [of

PCs], in the
EU about 10-

20 million

Secure
payment

Identity theft,
phishing

Secure storage,
communications, non-

repudiation

Any

WYSIWYS

Faking digital
signatures

Trusted path between
application, keyboard

and monitor

2

Protection
against

vulnerabilities

Viruses etc.

Identification of
executables

Any

Home office

Attacks on
corporate

data

Encryption of HDD,
sealing. Installation

under existing OS
would be convenient

2

Any

Thousands

Corporate

network

Leaking

sensitive
information

Encryption

Mutual attestation of
OS and applications

2

Linux

In

specialised
facilities

DRM

(copying)

Protect rights; allow

copying according to
rights/policies

2

Linux

Widespread

Virtual data

centre

Malicious

code, insider
attacks

Load balancing,

virtualisation of TPM,
strong isolation

20

multiple

4-10

Table 1: Use Cases.

Sorted by number of expected users, with similar use cases being grouped together.

The table shows that use for mobile phones could lead to a deployment of TC on
a very large scale. In 2005, some 800 million phones have been sold (Msmobiles
2006); a significant share of these could become candidates for embedding TC-
technology, as they become increasingly complex machines which need to be
secured.
The second largest application mentioned is home banking (or similar forms of
e-commerce). The respondent estimated that this could result in some 10 or 20
million applications in the EU.

OpenTC Deliverable 02.2

14/141

background image





Requirements Definition and Specification

Final | 1.00

Trusted Computing and the Media

Are you aware of any benefits of Trusted Computing discussed in the
media? Which are these?

As a general observation, the media tends not to discuss potential benefits.

Are you aware of any disadvantages of Trusted Computing discussed
in the media? Which are these?

Responses can be summarized as follows:

The media tends to equate TC with Digital Rights Management. Most
consumers do not like DRM, and some emphasis has been put on the fact
that it will become more difficult to work around DRM-schemes.

There is fear that privately owned computers will be controlled by
Microsoft. The technology could be abused to reduce owner's freedom of
choice with regard to installing and using software.

There could be infringement of privacy if a user is required to
communicate his configuration to external parties that want to check
whether the owner's system has been set up in a defined way.

Which critiques are justified or unjustified, in your opinion?

The comments received can be summarized as follows:

If crucial software components and application are made to run only
with TC capabilities, this could put restrictions on the user.

Privacy-related critiques should be taken seriously. Representative
bodies of users should be able to check privacy-related technical
developments.

Much critique from the media is speculation without factual basis.
Where critique is justified (lack of a compliance program and
conformance criteria), it is often ignored by the media since the topics
are difficult to understand.

Trusted Computing is shrouded in secrecy: information, developer
tools and end-user tools that would help to interact with TPMs in a
straight-forward way are difficult to come by or unavailable. People
fear what they do not understand.

Do you think the public debate around Trusted Computing has somehow
changed during recent time? If so, how would you characterise the
current state of debate around TC?

The responses can be summarized as follows:

Over the last couple of years, the discussion has improved as it has
become more fact-based. Take [the German computer magazine] c’t,
an important computer magazine in Europe. You can see from the

OpenTC Deliverable 02.2

15/141

background image





Requirements Definition and Specification

Final | 1.00

archives that their representation of Trusted Computing changed to
reflect the actual technical facts, notwithstanding that they remain
skeptical.

The IT and software manufacturers had to address the problem of
trust in end systems as an industry – the alternative was potentially
inadequate and inflexible governmental regulation. Some vendors had
preceding work that came from research on DRM which addressed
parts of the requirements, and this may have influenced some early
decisions in the specification phase. For example, years ago a
marketing person from Microsoft had said the area [for applying TC]
was „content”. This was communicated in all media. The TCG was
supposed to be more balanced than the TCPA.

The problem of lost and stolen portable computers has received
increasing attention from the media. The public debate has motivated
TCG standardisation people to add additional privacy and security
features into the TC specification (Direct Anonymous Attestation,
option of deleting the endorsement key). Important parties such as
governments have contributed to the discussion. They now have a
stake in the development of TC and a more balanced view on potential
advantages and disadvantages, and there is an active debate about
using TPMs for Linux.

Public opinion and opinions on certain websites with misinformation
are negative (3 such statements). The general public still does not
understand or even know about TC and its potential benefits, and the
broad mass of users is not interested. Presentations and news about
TC at the RSA conference 2006 did not add to the level of public
understanding, as the only relevant papers were of scientific and
research nature. The use of TPMs in Microsoft VISTA is not a point in
public discussion.

The last case from Sony [a DRM system based on a Windows rootkit]
seems to be unequivocally bad. [this respondent apparently assumes
that negative news about DRM are implicitly negative for TC which is
widely regarded to be related to DRM]

Are there any particularly important websites, newspapers or
journals we should take into account?
Are there any specific documents which were published during the
last few months which we should take into account?

The following recommendations were put forward:

Richard Stallman's and Linus Torvald's recent comments on the GPLv3
and Trusted Computing;

statements produced by the Electronic Privacy Information Center (EPIC);

work on DRM conducted by the EU-funded “Indicare” project;

search for TC/TCG and “discussion forum” and check German and US-
Wikipedia, there is tracking of discussion of content;

OpenTC Deliverable 02.2

16/141

background image





Requirements Definition and Specification

Final | 1.00

check the questions written by the German Federal government, and the
TCG answers.

Some of these suggestions have been taken into account in the media analysis
(next chapter).

If you think of the perception of Trusted Computing by the general
public, is there any action the OpenTC-consortium should take, e.g.
regarding PR activities, or use cases to be chosen?

The responses can be summarized as follows:

In general, public perception could be improved by moving towards the open
software developing environment. The most effective contribution of OpenTC
would be if results can be used as yardstick for Microsoft's effort.

Regarding PR activities, it was suggested to involve a PR-agency to introduce
OpenTC-concepts to the media. On the other hand, it was remarked that it is
an uphill struggle to improve public perception. OpenTC is probably too small
for real PR activities, Its primary chance of producing a positive echo are the
attractiveness of its technical approach and results.

There are important publications such as the Communications of the ACM or
Business Week where technologists and executives get their opinions from.
However, one may have doubts whether Trusted Computing is a topic for
them. In any case, we need the technology first to substantiate our claims.

This issue should probably be discussed with the TCG and their media
professionals (the TCG-website includes a section on publications). From a
practical perspective, OpenTC could produce a bootable system with
practical applications which could be promoted at public and open events to
present first results to some relevant people.

Regarding application scenarios and use cases, OpenTC should promote
positive aspects of Trusted Computing, e.g. by showing important use cases
like protection within a company network. People will probably be interested
know that we are close enough to TCG to make an impact, and OpenTC's
relevance and specific approach should be communicated to the Trusted
Computing Group.

Simple end-user tools (under Windows or a bootable Live Linux CD with tools
to support easy interactions with TPM hardware) are likely to be well
received by the liberal media. The same could be true for solutions where
users have control over controversial aspects (DRM keys, certificate
generation etc.). Solutions should demonstrated that the Open Source
approach allows implementers to modify or replace "official" components
that are considered problematic.

Application scenarios should be chosen with regard to their relevance to the
public, choosing solutions that are considered reasonable to the average
user. In theory, OpenTC could investigate open alternative payment systems
or DRM, but the feasibility and practical impact of such efforts is somewhat

OpenTC Deliverable 02.2

17/141

background image





Requirements Definition and Specification

Final | 1.00

questionable.

Regarding interviews to be conducted, suggestions were made to involve
persons with well known critical attitudes, asking them for concrete
suggestions and for feedback to OpenTC use cases. It was also suggested to
interview a named representative of the German Ministry of the Interior
about requirements.

Design Issues

Are there any open issues in the design of OpenTC? Which are these?
Any comments?

Answers to these questions can be summarized as follows:

In general, we need to maintain speed and momentum, as indifference
may set in and people become complacent about negative aspects of TC
implementations. This, in turn, may result in moves from commercial
organizations to abuse the technology and to stake their claims on home-
user PCs (a captive audience).

Currently it is quite tedious to use TC, since security adds complexity. We
don't have clear indications on how much additional complexity users
would accept. In OpenTC, we should try to make things as seamless as
possible.

Concerning single technical issues, there are real challenges to verify the
integrity of a particular system based on PCR values (Platform
Configuration Register) in a meaningful way. Using open and evolving
OpenTC OS which operates on a variety of hardware only adds to these
difficulties.

Measurement of application trustworthiness is also an issue. Multiple
steps are needed to measure applications and compare their metrics
against a huge database somewhere that is vouched for by an
organisation. This appears to be feasible for components that are rather
static, but many components may be subject to frequent change. This
can be addressed by a monitoring mechanism that does not log
everything into the TPM.

An important issue is to find policy expressions with an appropriate level
of granularity to express the configuration and information flow of virtual
machines. This is required to reason about security properties of virtual
machine compartments connecting to the outside world.

The design should make sure that “trusted” compartments cannot
assume control of the whole computer, and that compartment running on
behalf of other parties are erasable. Some scenarios may leverage pre-
existing trust (for example in data centers). OpenTC may therefore also
consider a design that do not require hardware TPMs.

OpenTC Deliverable 02.2

18/141

background image





Requirements Definition and Specification

Final | 1.00

3.2  Summary and Conclusions

The responding partners presented their views about opportunities and risks of TC, the
likely evolution of the market, and suggestions on potential areas of work. In this
section, we summarize issues which appear to be of particular relevance to the
project.
The most attractive areas for widespread deployment of Trusted Computing
technology, in terms of numbers, are probably mobile phones and home banking. The
first scenario is addressed in an OpenTC Workpackage that investigates TC usage for
embedded and mobile controllers. Regarding home banking or similar application
scenarios, a Linux-based demonstrator using OpenTC components appears to be
feasible, and it could be beneficial to demonstrate the value of TC architectures. As
demonstrated for XEN, components used in OpenTC might eventually be capable of
hosting proprietary operating systems such as Windows (Shankland 2005), but this is
outside the scope of this project.
According to the survey, the most realistic market for Trusted Computing are solutions
for securing corporate networks and data assets (Trusted Network Connect), integrity
validation for remote systems, support for data and hard disk encryption. This is in
contrast to commonly expressed opinions that TC mainly targets DRM for consumer
PCs to increase revenues for software and content providers. A demonstrator
protecting portable computers (with virtualization, migration of keys and protected
data, etc.) could therefore be useful.
Concrete suggestions put forward by the respondents concern specific application
scenarios (isolation mechanisms for data centers, security design that does not
require TPMs, consumer friendly DRM). It was highlighted that additional system
complexity caused by improved security properties may lead to acceptance problems.
Several technical challenges need to be addressed in the areas of policy,
configuration, monitoring and maintaining a trustworthy initial state.
The public perception of TC remains a potential inhibitor, not least because potential
benefits of Trusted Computing are under-represented. Public perception of Trusted
computing might be improved by

involving parts of the open software development communities and user groups
in the design and implementation effort.

providing developer and end user tools, support and information for Trusted
Computing hardware for the public,

providing applications that appeal to the general public

addressing privacy concerns in the design, e.g., by implementing solutions base
on Direct Anonymous Attestation (DAA).

The OpenTC consortium should, within its means, contribute to the public debate.
Professional PR support could be of advantage here. PR-activities could be discussed
with the TCG, and a public event could be used to present first OpenTC results. The
consortium should consider to maintain links with representatives of TC-critical groups
and interested public bodies for obtaining concrete suggestions.

OpenTC Deliverable 02.2

19/141

background image





Requirements Definition and Specification

Final | 1.00

4  Media Analysis

The following analysis of media had the objectives

to assess TC and its relation to DRM systems,

to outline the conditions of TC and DRM acceptability,

to identify general requirements to be taken into account by the project, and

to identify areas to be discussed with stakeholders, for example in workshops
and a web-based discourse process.

The findings from this analysis are described in this chapter.

4.1  Method and Selected Media

Between January and March 2006, we conducted a systematic search for printed and
online material about Trusted Computing. For online searching, we used engines from

Google, Financial Times, New York Times, Heise Online, c’t (Magazin für
Computertechnik),

and

 Golem

 (the last 3 being in German). To identify articles,

statements on blogs, etc., we used the following keywords (the first two alone, and in
combination with all others):

Trusted Computing, OpenTC, digital rights management,

benefits, critique, risks, technology assessment

. We then followed links to web-based

content and literature (see the references section). This approach was followed to gain
a broad overview of how TC-systems are being assessed by those participating in the
debate (interested citizens, professionals, authors of print media, etc.). Note that links
leading to information from companies offering TC components and services have not
been evaluated. We also included explicit suggestions for media to be looked into by
consortium members.

4.2  TC in General

4.2.1  Public Discussion

In the media identified, a general skepticism towards Trusted Computing prevails. We
did not evaluate these arguments statistically (e.g. by counting arguments and
articles, as common in media analysis), since this would not provide additional insights
relevant for the OpenTC project. The reason is that it became obvious that much of
the material reiterates arguments that were put forward at early stages of the public
debate by Anderson (2003), Stallman (2002), EPIC (2002), and Schoen (2003).
The main arguments of these and subsequent authors can be summarized as follows:

1. The main motivation behind TC is to support powerful DRM-systems for

protecting content and software (see Anderson 2003 or more recently
Thompson 2005). “It is about setting up toll booths deep in your own pockets” is
one comment made on Slashdot (2006). Another one is: “The software
companies realize they have a product that never gets old, never wears out and
will perform the task it was purchased to do until hell freezes over unless they
find a way of breaking it. Software companies have been trying to find ways of
making software wear out for decades so they can rake a continuous income
from their customers the way other manufacturers do. They use product

OpenTC Deliverable 02.2

20/141

background image





Requirements Definition and Specification

Final | 1.00

activation to tie the non-wearing software to the fragile hardware for example,
but their customers hate them for it. The customer wants to buy a tool and use
it forever…”

2. TC will take away the control of a PC from the user (Anderson 2003).
3. The computer will have keys kept secret from the user.
4. Control of TC-using computer systems will be with media companies and with

companies such as Microsoft and Intel (cf. Graff 2005).

5. Software may stop operating if one does not obey to the new rules enforced by

means of TC, e.g., with regard to using content, but also with regard to files
from word processors and email programs (Anderson 2003).

6. Exchange of files produced by Open Source software and by TC-using software

will be hindered. Customers could be locked into proprietary solutions. For
instance, Schneier (2005) criticizes that interoperability is not strongly enforced
by the TCG.

7. Existing copyright exemptions, such as those for librarians, scientists,

educators, blind people etc. are difficult to implement in a DRM system implying
that DRM should not be used at all.

8. Users might be traced using keys provided and configuration attested by the

TPMs.

9. Patents owned by TCG-companies could be used to limit competition.

These skeptical views are motivated by the following observations:

Since the mid-nineties, there have been plans by the US government to
implement a “Trusted Third Party” for key escrow.

In the late 1990s, Intel planned means of unique identification in its Pentium III
processor, a move which was abandoned after widespread criticism.

"This is a new focus for the security community," said David Aucsmith, security
architect for chip maker Intel "The actual user of the PC – someone who can do
anything they want – is the enemy." (quoted after Lemos 1999)

The U.S. Digital Millennium Copyright Act might hinder cryptanalysis and hence
progress in cryptography.

The subsequent proposal by US Senator Fritz Hollings to use a trusted chip in all
consumer electronics equipment (Anderson 2003). In critical comments the chip
has since been nicknamed the “Fritz” chip.

Bill Gates reportedly considers exploring the business opportunities of
restricting office document usability: “We came at this thinking about music,
but then we realized that e-mail and documents were far more interesting
domains" (after Thurrott 2002). Similarly, Brad Brunell of Microsoft reportedly
said that with Palladium one could send E-Mails which dissolve after one week
or can’t be printed. Palladium was said to remove any weaknesses of software-
based DRM-systems (EBI-Newsletter 2003).

OpenTC Deliverable 02.2

21/141

background image





Requirements Definition and Specification

Final | 1.00

More recently, Sony modified the Windows operating systems by installing a
rootkit for DRM purposes without informing the users. The rootkit has been said
to produce vulnerabilities. Skepticism increased because the providers of anti-
virus software did not issue warnings (Schneier 2005b).

Richard Stallman even concluded that the potential threats of what he calls
“treacherous computing” makes public resistance necessary (Stallman 2002).
From the perspective of those who are actively developing Trusted Computing
specifications and technology, the public debate is characterized by a high level of
speculation, fear, uncertainty and doubt. Although the applicability of TC for DRM
might have been a driver for some companies, Trusted Computing targets long-
standing problems of IT security and trustworthiness in general.
Whether or not TC enabled systems might take away control from the user will depend
on software implementations and policies that may be required during electronic
interactions, for example, when a remote computer connects to a corporate network.
To disallow direct inspection and modifications of TPM protected keys lies at the heart
of this technology; however, no alternative solution has been put forward that could
achieve the goal of remotely attesting a platform state in a trustworthy manner.
At this stage, one can merely speculate about the level of control that might be
executed by external parties such as content or software providers. Customers may
simply insist on base levels of openness to run arbitrary software or on interoperability
with Open Source based systems, and they may just refuse systems that stop software
from working. Even if it proves possible to implement TC based constraints, their
deployment will primarily depend on market forces and user acceptance.
The problem of DRM solutions allowing privileged access for librarians, researchers
and educators is not specific to those based on Trusted Computing technology. For
this audience, the strength of DRM mechanisms is irrelevant, since their actual access
to content does not rely on circumventing or breaking these mechanisms. As far as
user traceability is concerned, TC included privacy protecting mechanism from the
outset, and this aspect has since been improved by supporting Direct Anonymous
Attestation (DAA).
Potential implications of intellectual property (IP) ownership on aspects of Trusted
Computing are unclear, and it remains to be seen whether they will become stumbling
blocks for non-proprietary implementations. However, as of April 2006, we are not
aware of a single case where IP claims have been brought against freely available
implementations.
In summary: it is currently a matter of speculation whether Trusted Computing will in
fact yield the negative consequences dreaded by its critics. First commercial
applications provide support for protecting keys and sensitive data (cf., e.g., Hewlett
Packard 2003), are mainly targeted at corporate environments. To this extent, TC has
been non-controversial.
For the OpenTC project, the following conclusions can be drawn from the analysis of
the aforementioned, mostly sceptical debate:

1. The project could show that TC can work in the user's interest. The usefulness of

reducing impacts of potential vulnerabilities on PCs and providing hardware
support for storage protection is undisputed. The same holds for checking
whether remote PCs are properly configured before connecting to corporate
networks.

OpenTC Deliverable 02.2

22/141

background image





Requirements Definition and Specification

Final | 1.00

2. It would be attractive to demonstrate TC-protected compartments, using

virtualization to confine the impact of TC-based enforcement mechanisms to
locked-down components.

4.2.2  Some German Positions

For OpenTC, it is interesting to review opinions which are either deviating, more
neutral or referring more closely to the TCG specifications. The most detailed one we
were able to identify is the German government’s position. In 2003, it expressed 47
different requirements towards the TCG and towards Microsoft (cf. Federal
Government 2003, Sandl 2004, Schallbruch 2004; similarly: BITKOM 2004). In turn, the
TCG responded to the demands (2004). For the OpenTC project, the following issues
are of potential relevance:

“It must be possible to transfer the information stored in an existing security
module to a new hardware platform in such a manner that users can continue
using their software even on the new hardware platform.” (request 3.1)
Comment: Key migration is part of the TCG specifications. It could be beneficial
for the public perception of OpenTC if the consortium demonstrated key
migration, e.g., with backup or DRM applications.

“If DRM solutions are developed which are based on the security module (TPM),
such solutions must consider the user's right to copy data and programs for
private purposes and must be implemented accordingly.” (request 3.2)
Comment: While the TCG specifications render this possible, demonstrating this
could be beneficial.

“Users must have full control of their keys, and they must be able to delete
these keys when necessary and to generate new keys... It should be possible to
delete any information previously stored in the TPM and to cancel its
functionality (for example, when scrapping the PC).” (request 4.3) Comment:
The TCG responded to these demands by writing that the owner has the ability
to create, use and invalidate any key. Regarding the endorsement key, the TCG
anticipates that the TPM owners will use it as provided. The consortium could
consider to enable owners and users to view data stored in the TPM, edit such
data as appropriate, and invalidate them as appropriate, e.g., when a PC is to
be handed over to another user or to be scrapped.

Zero-knowledge attestation should be aimed at (request 5.7). Comment: As DAA
has become part of the TCG specifications, there is no need for OpenTC to
address this. It could be considered for demonstrators to be built later in the
course of the project.

The TCG should find a solution which exempts non-commercial open-source
projects from license fees (request 6.1-6.4). The manufacturers in the TCG
should disclose the relevant intellectual property. Comment: The OpenTC
consortium might consider to make related information supporting or hindering
the free use of TC available on its website.

OpenTC Deliverable 02.2

23/141

background image





Requirements Definition and Specification

Final | 1.00

“The TCG's actions may not lead to the occurrence or reinforcement of market-
dominating positions in the IT sector.” (request 8.1) Similarly, interoperability of
TC-using software with other software is demanded (request 9.2) Comment: The
OpenTC project as such can be seen as an initiative aiming at reducing market-
domination. Using virtualization it will be possible to demonstrate that locked-
down software can run side-by-side with ordinary software components.

“If personal data is transmitted in conjunction with the use of the NGSCB, the
user must have the possibility to consent to such transmission in each and
every case.” (request 10.3). Comment: While this is a demand towards
Microsoft, the OpenTC consortium could conclude that it might be beneficial to
display to the users if relevant data are transmitted. It could be considered to
offer at least the option to see whether an attestation to a remote partner is
being conducted.

A number of authors have suggested that transparency can be supported by applying
the TC approach for securing Linux computers (cf. Kursawe, Reimer 2005; Sadeghi et
al. 2004, 2005; Kuhlmann, Gehring 2003). It has also been suggested to provide
attestation for only a small part of the computer, which would allow to leave other
parts un-attested (Bechtold 2005b, see also Weber, Weber 2006).
In summary, the German debate has become somewhat more neutral. E.g. the article
“Trusted Computing in der Diskussion” in the German wikipedia edition clarifies that
software running on TC computers does not need to be certified by a central agency
and that TC does not imply a monopoly in operating systems.

4.2.3  Views on OpenTC

In journals and on the WWW, some opinions about the OpenTC project have emerged
already. In December 2005, news emerged about OpenTC planning for a DRM
demonstrator. A commentator on the “Golem” blog (2005) accused the consortium
members of being “traitors” to the concepts of Open Source Software. When the
German computer magazine “c’t” published an article about OpenTC early in 2006, it
provided some correct information about the project. Referring to the planned MPEG-
21 demonstrator, the article concluded: “The research objectives by OpenTC will
hardly be capable of resolving the doubts which the sceptics have”. Similarly, Bottoni
(2006) said in his Italian blog that the OpenTC “project is based on the availability of
… the ‘famous/notorious’ Fritz Chip” and would essentially deal with DRM. This is just
another example of the old arguments against TC, in particular that it essentially
means DRM, show up again and again.
However, there are also more neutral voices, such as the German “PC-Magazin” which
remained neutral when reporting about OpenTC in an article available online (2005).

4.3  Suggestions

The following suggestions are based on the media analysis above, and on discussions
in the consortium. The OpenTC project could consider the following actions:

1. OpenTC could render possible TC usage for providing multilateral security, by,

e.g., not only protecting a remote party, but also the user. It could be shown
that virtualization allows to constrain the impact of TC-based enforcement
mechanisms to defined components.

OpenTC Deliverable 02.2

24/141

background image





Requirements Definition and Specification

Final | 1.00

2. OpenTC could demonstrate tools to inspect the TPM as well as for editing and

invalidating TPM protected data as appropriate, e.g., when a PC is to be handed
to another user or to be scrapped. Options to migrate keys and protected data
could be included, for example when providing backup or DRM applications.
Demonstrating this for DRM-protected data could be beneficial.

3. OpenTC could address privacy concerns by supporting to inspect privacy-

relevant data transmitted by TC based mechanisms. The user should get a clear
indication if attestation to a remote systems is in progress. Implementing DAA
could be considered.

4. Information on Intellectual Property-issues that could support or hinder the free

use of TC could be made available on the OpenTC website.

In summary: demonstrating the benefits of TC in practical scenarios appears to be the
most promising line of action. Four types of demonstrators may be of particular
interest:

1. A demonstrator showing how to browse and manipulate TPM-data. This could be

of interest for implementers, the Linux-community, specialised media, etc.

2. A demonstrator showing the benefits for organisations such as corporations and

governments. It could show protection against theft and loss of portable
computers, etc.

3. A demonstrator targeting a DRM application that safeguards basic consumer

rights.

4. Finally, a demonstrator could focus on protecting online transactions of private

users.

Regarding the last point, consumers might be interested to better protect private
assets currently at risk. An obvious example is improved protection of browser based
home banking from password and transaction number “phishing”. Using TC based
attestation, users could convince themselves that the execution environment
dedicated to e-commerce transaction has not been tampered with.
Such a demonstrator would be easy-to-understand, and the underlying principles
could be equally applicable for protecting users in the Windows world. The idea of
securing a browser and its execution environment can be extended to other browser-
based electronic transactions such as auctioning or eGovernment. In the next chapter,
we will outline some ideas in the “Private Electronic Transactions”, or “PET”,
application scenario.
This analysis of media will be continued and refined. We intend to discuss the analysis,
conclusions, requirements and specifications in this document with stakeholders in
interviews, workshops and web-based discourse.

OpenTC Deliverable 02.2

25/141

background image





Requirements Definition and Specification

Final | 1.00

5  OpenTC Application Scenarios

Application scenarios and use cases have a dual role in OpenTC. On the one hand,
they are starting points for determining necessary and desirable features of the
overall architecture. On the other hand, they serve as the context to validate project
results. Substantial effort has been spent during the first months of the project on
investigating suitable application scenarios and defining corresponding use cases. A
summarizing description of three use cases can be found in this chapter. They address
recommendations from chapter 4, datacenter and server environments, and enhanced
trust and security properties of remote corporate computers connected to corporate
networks via the Internet.

5.1  Private Electronic Transactions

As part of a Banking Scenario Use Case, the OpenTC project explores how its
architecture can reduce the risks currently involved in doing home banking over the
Internet. First and foremost, these efforts are targeted at enhancements of user's
security. At the same time, an increase of the protection of banks is achieved. Banks
can benefit from trusted computing e.g. through a reduction of expenses for disputed
transfers.

5.1.1  Problem Scenario

Home banking via the Internet has become a convenient and simple way to do their
financial transactions. Although commonly used, Internet home banking has several
security issues which have been reported in public media. For example, phishing is a
popular form of attack based on social engineering and deception: An eavesdropper
tries to gather the Personal Identification Numbers (PINs) and Transaction
Authentication Numbers (TANs) of a user by impersonating the website of the user's
bank. The obtained confidential information is then used to redirect funds from the
user's bank account. Other forms of threats are malicious modifications of the user's
operating system environment, for example by worms, viruses or Trojan horses. In
such a case, the correct behaviour of the system and its applications can no longer be
ensured. Such malicious code might disclose confidential information or interfere with
sensitive transactions of the user.
It is assumed that a private user will continue to use a legacy operating system for his
everyday tasks. In parallel to the legacy OS, OpenTC will provide fully isolated
compartments tailored for specific purposes. Such a compartment is the banking
compartment of this use case. Interaction with the bank is based on a web browser
which is running in this trusted compartment. For secure communication with the
bank, the user switches from the compartment running the legacy OS to the banking
compartment.
The protection offered by this use case is twofold: On the one hand, the user is
guaranteed that the banking compartment is technically protected from malicious
modification. In addition, the trusted compartment provides reasonable protection
against phishing attacks. On the other hand, the bank benefits from a trusted
computing enhanced architecture because it can anticipate reduced losses from
fraudulent transactions, less disputes and a better image in the public.
Furthermore, we assume banking components to be hosted in compartments. A

OpenTC Deliverable 02.2

26/141

background image





Requirements Definition and Specification

Final | 1.00

compartment is characterized by services and applications it hosts, its configuration
and policies attached to it. These policies define

the protection level for data accessed and processed

the protection level of applications and services that participate in the processing
of data

the information flow between different compartments (both local to the hardware
platform and on remote platforms)

permitted interactions with the virtualization environment and management

events that trigger a change in the trust state of a compartment and/or its
execution environment

We focus on what can be controlled or configured on a standard computing platform.
We do not address dependencies from central network services (DHCP, DNS, ...), and
at this stage, we also ignore configuration options for the network and storage fabric
(routers, switches etc.).

5.1.2  Security Environment

Assumptions:

Correct hardware:

The underlying hardware (e.g. CPU, devices, TPM, ...) is

non-malicious and behaves as specified. Optionally, the correct properties of the
hardware can be attested by platform certificate.

Correct trusted credentials:

 Assuming that we have the bank server

credentials (i.e. all certificates on the certification path for the SSL/TLS server
authentication, from the root CA to the server certificate, both included) already
installed and if we assume that we implicitly trust these credentials, no man-in-
the middle attack can occur. By saying “already installed” we mean that the
credentials are part of the bank domain image.

Trusted Administrator:

 The standard services for compartment

administration and platform management must be trusted to act in accordance
with the wishes of users, since they have to access security-critical information.

No physical attacks:

Physical attacks against the underlying hardware

platform must not happen.

Trusted Bank.

The actual bank is a trusted party. That means that it is

assumed that the bank handles all sensitive data of users securely.

Threats:

Phishing:

 An attacker tries to impersonate the banking website of the user's

bank. This way, confidential data such as credentials (user name, password,
PINs, TANs) might be disclosed. The attacker can then use this information to
illegally withdraw money from the user's bank account.

Trojan horse and Malware:

Potentially harmful software such as Trojan

horses or key loggers might get installed on a computer system without the
knowledge and approval of the user. This software might report sensitive data
of the user to an attacker.

Modification of the Untrusted Compartment:

Assuming that a modification

OpenTC Deliverable 02.2

27/141

background image





Requirements Definition and Specification

Final | 1.00

of the untrusted compartment does only aim at the modification of this
compartment we can exclude a modification of the trusted compartment.

Network redirection to a fake web server:

 Network redirection to a fake

bank server due to

pharming

, DNS cache poisoning and similar attacks.

Exploitation of software vulnerabilities

Modification of the Trusted Compartment.

 An attacker (malicious software)

modifies the trusted compartment. As consequence, banking transactions must
be denied as attestation fails (by whatever attestation mechanism).

5.1.3  Functional Requirements

5.1.3.1  Goal

The goal of the demonstrator is to show how home banking transactions can be
protected against attacks such as phishing by means of trusted computing. Moreover,
the demonstrator is designed in way that it can relatively easily be modified to cover
other browser-based electronic transactions such as auctioning.

5.1.3.2  Target Groups

The target group is the software service consumer, a user that wants to do bank
transactions using his home or office PC while he/she still wants to use insecure
software installed on the same PC.

5.1.3.3  Roles and Actors

User:

The entity that performs the bank transaction in the trusted

compartment and various tasks in the untrusted domain. In some scenarios
[user] and [admin] may be the same person.

Admin

: The system administrator (client side) installs the software (i.e. bank

domain image) and performs the “take ownership” operation.

OpenTC-OS:

 Open Trusted Computing Operating System. This is the

virtualization layer that is managing the multiple compartments of the client.
Building blocks of this component are trusted boot mechanisms, a hypervisor to
run multiple compartments as well as related management infrastructure.

Browser:

 The browser is the interface to the banking application. It is pre-

configured with the trusted certificates from the bank and can only connect to
the [client proxy]. Both, the [browser] and the [client proxy] are started when
the trusted compartment is instantiated.

Untrusted Compartment / Legacy OS:

 For everyday tasks such as word

processing, surfing the Internet or image processing the user is working with his
well known, general purpose operating system. This system is executed on top
of a hypervisor in parallel to trusted compartments such as the banking
compartment. Due to its size and the number and variety of applications that
are executed on this system, it is not practical to enhance such a general
purpose system with trusted computing functionality. As a consequence, this
compartment is considered untrusted.

OpenTC Deliverable 02.2

28/141

background image





Requirements Definition and Specification

Final | 1.00

Bank:

The entity the user wants to do his banking transactions with. The

detailed internal setup of the bank is unknown, the external representation is
the bank proxy (see next paragraph) and the bank application. The bank builds
and issues the banking domain software image to the user. Further, the bank
defines the policy whether a connecting user machine is to be considered
“trusted” or not.

Bank Proxy:

 This proxy or gateway is placed within the domain of the bank. It

provides access to the banking application and performs verification of
attestation values received from the client. In addition to that, it provides
signed measurements of its own state to the client. The proxy could be
operated by the bank or managed by a third party.

Client Proxy:

 The client side proxy is responsible for forwarding the requests

from the local browser to the [bank proxy] and vice versa. Additionally, the
[client proxy] provides measurement values of the client to the bank and
verifies the attestation values received from the bank. In contrast to realizing
this functionality as a browser extension, this approach is more flexible: It can
not only be used to add attestation to

http(s)

 connections, but to any kind of IP

based communication protocol.

Phisher:

 A phisher is a person who tries to trick someone into giving away

confidential data such as access information for a bank account. A common
form of phishing is based on e-mails containing information that is seemingly
coming from a trusted entity. If the user is unable to identify the provided
information as forged and follows links contained in the mail, he typically will be
directed to a website that closely resembles the one of the trusted entity. If the
user enters sensitive data into forms of the website, this information is
disclosed to the phisher. In case of a bank website, that way the phisher can
gain access to the bank account of the user.

Malware:

 A malicious piece of code, which is able to infiltrate and modify a

computer system without the owner's consent. Note that it is out of scope for
this document how in particular this is achieved, be it e.g. through exploitation
of bugs or design weaknesses of the system or by tricking the owner into
granting unknown software too many security privileges.

Credential manager:

 The credential manager is responsible to manage and

store the user's credentials. The credentials actually used when authenticating
the user to the bank are derived from those credentials the user has received
from the bank. The credential manager ensure that these derived credentials
are securely stored (preferably protected by the TPM). Since the credential
manager relies on the availability of secure storage, it might not be included in
demonstrator implemented in the first phase of the project.

5.1.4  Description of Use Cases

The use cases are separated into four different subsets, namely

1. Installation of the OpenTC-OS and the banking compartment
2. Normal operation of the system
3. Use Cases showing how phishing attacks are prevented
4. Use Cases showing how (malicious) modifications of the code base are handled

OpenTC Deliverable 02.2

29/141

background image





Requirements Definition and Specification

Final | 1.00

Installation:

Preparation of the Bank Domain Image.

 The bank domain image is

developed by the bank. The image is then distributed to the customers.

Taking TPM Ownership.

 If not already done previously, the “take ownership”

operation of the TPM is carried out by the system administrator.

Installation of Bank Domain Image.

 The trusted bank domain image

provided by the bank is installed on top of the trusted core operating system.
Any number of untrusted compartments can be installed in parallel.

Setting Policies and Credentials for Banking Compartment.

 As the final

step of the installation process, the security policies for the banking
compartment have to be set. This includes firewall rules and credentials for
compartment access.

Normal System Operation

Platform Boot.

The user boots his platform in order to perform arbitrary

operations

Instantiation and activation of banking compartment.

 The user wants to

do banking transaction and starts the banking compartment.

Derivation and secure storing of Credentials.

 The credentials which are

sent to the bank are derived from the credentials which have been provided to
the user by the bank. The derivation involves some additional secret which is
obtained via a secure connection from the bank.

User Authentication with Derived Credentials.

 The derived credentials are

presented to the bank for authentication in an automated process that does not
involve the user.

Stopping the Banking Compartment:

 The user disables interactions of the

compartment and the compartment is unloaded by the hypervisor.

Prevention of Phishing attacks

Phishing Attack without derived credentials (and without Secure
Storage)

A phishing mail tries to direct the user to a forged banking website.

When following the link contained in the mail, the browser of the untrusted
compartment looks visually different from the one in the trusted compartment.

Phishing Attack with Derived Credentials (and Secure Storage)

. Attack

scenario as above. The user is protected by using derived credentials. As the
original credentials he got from the bank are not transferred, no useful
authorization data is discloses to the phisher.

Handling of malicious modifications

Modifications of the trusted compartment.

 Modification of the banking

software to be run in a trusted compartment.

Start of modified compartment.

A trusted compartment starts up, but no

transaction should be possible because the modified software gets noticed.
 The proper detection of a modification as early as possible and thus prevention
of further harm to the end user is an absolute requirement for wide acceptance
of e-banking.

OpenTC Deliverable 02.2

30/141

background image





Requirements Definition and Specification

Final | 1.00

Modifications in untrusted compartment.

This use case reflects the current

situation in personal computing: unwanted software silently taking control of his
PC.

Startup trusted compartment from untrusted insecure one.

Demonstrate

switch from known insecure compartment to the secure and safe banking one.

5.1.5  Security Objectives and Security Requirements

The implementation of the application scenario has to fulfil the following security
objectives and requirements. They address the identified security environment
aspects; reflect the stated intent, counter all identified threats and cover all identified
organizational security policies and assumptions.

No unauthorized use of compartments.

Unauthorized entities must not be

able to execute applications within protected compartments.

No unauthorized change of compartment properties.

Unauthorized

entities must not be able to change properties of the software, configuration,
and information flow policy of a compartment.

Secure connection between client platform and banking server.

Connection between client and bank must not be eavesdropped or manipulated
in any way. Furthermore, the end points of the connection i.e. the bank server
and the client must be non-ambiguous authenticated.

Attestation of the client.

The client (user's platform) must attest that it has

not been manipulated.

Identification of trusted compartment.

 The user shall be able to tell the

difference between the trusted from the untrusted compartment.

Attestation of the bank (optional, extended version)

. The banking

gateway must attest that it has not been manipulated.

The TCB should be protected from manipulations to guarantee the enforcement of
security policies.
The following functional and assurance security requirements should be satisfied by
the product and the supporting evidence for its evaluation in order to meet the
security objectives:

Confidentiality and integrity of application/data.

This requirement should

hold during execution and storage.

Trusted path to user

. The inputs/outputs of the application a user interacts

with should be protected from unauthorized access by other applications.

Trusted channel between trusted compartment and external parties.

Non-ambiguous distinction of trusted and untrusted compartments.

secure, non ambiguous signalling mechanism is required that clearly identifies
the compartment the user is working with.

Secure compartment activation facility.

 A mechanism to securely start

compartments and to switch between them is required.

OpenTC Deliverable 02.2

31/141

background image





Requirements Definition and Specification

Final | 1.00

5.2  Trusted Virtual Datacenter

This   part   of   the   document   summarizes   the   trusted   virtual   data   center   application
scenario;   a   more   detailed   version   is   available   in   OpenTC   document   IST-027635
(“Virtual Data Center”) provided by IBM and HPLB.

5.2.1  Problem Scenario

The trusted virtual data center application scenario illustrates the provisioning of
physical resources in a data center to customers' virtual infrastructures while
satisfying strong security requirements to einsuresure the level of security is
comparable to physically separate servers. The scenario is intended to demonstrate
the cross-platform security management framework for managing multiple machines.
The goal is to show that trusted virtualization in a data center can improve security
assurances for the outsourcing company while maintaining the advantages of
virtualization, namely increased utilization and more efficient allocation of resources,
improved flexibility and adaptability, and decreased expenses.

In this scenario, we are interested in the management of security policies, network
connectivity, and information flow policies for clusters of virtual machines belonging to
multiple outsourcing companies with potentially conflicting interests. The
management entity must be designed to ensure transparent migration of virtual
machines (potentially needed for dynamic load balancing, improved resource
utilization) while meeting security/flow policies. Virtual machines must be isolated
from crashes, errors, transient failures, malware, and other ''bad'' things on other
virtual machines. The management entity must be capable of dynamically rebooting,
creating, and destroying virtual machines and interconnections among them.
To provide context for the rest of the description of the trusted virtual data center
scenario, we first describe the various actors in the scenario and the roles they
perform.

OpenTC Deliverable 02.2

32/141

Figure 1: Mapping Virtual Infrastructures to Physical Re-
sources in a Data Center

background image





Requirements Definition and Specification

Final | 1.00

5.2.2  Security Environment

5.2.2.1  Assumptions

Correct hardware:

 The underlying hardware (e.g., CPU, devices, TPM, ...) is

non-malicious and behaves as specified. Optionally, the correct properties of the
hardware can be attested by a node or platform certificate. Network cables are
plugged into the right ports in hardware switches. More generally, the hardware
configuration of the system is assumed to be "safe".

No physical man-in-the-middle attack:

 An attack that relays the whole

communication between users (administrators or customers) and the platform
to another device by inserting a dummy device must not happen.

Trusted Administrator:

 The standard services for compartment

administration and platform management must be trusted to act in accordance
with the wishes of compartment owners, since they have to access security-
critical information. A certain amount of trust on the data center administrator
seems inevitable.

Management Entity as One Logical Unit:

 The management entity is

logically a single entity, providing a unified interface to the outside world.

Differing Trust Levels for Administrators of Virtual Infrastructure and
Physical Infrastructure:

 The service provider trusts its own administrator

(virtual infrastructure administrator) more than the data center administrator.

Trust on TCB:

The TCB (including the chain of components from the hardware

TPMs up to the management entity) is trusted.

5.2.2.2  Threats

Spoofing of authentication information:

An adversary may try to

eavesdrop the authentication information of service providers.

Trojan horse:

 An adversary may try to eavesdrop confidential information from

a compartment by inserting a Trojan horse application that looks like a
legitimate part of the compartment's applications, services, or configuration.

Faked component identities and credentials:

 Adversary components may

try to interact with service components hosted in customer compartments by
presenting faked identities and credentials, stating that they are part of the
customer's service.

TCB manipulation:

An adversary may try to violate security policies by

maliciously manipulating software-components of the TCB. Examples are
manipulations of the boot loader or the security kernel. Alternatively, the
adversary tries to bootstrap an alternative (untrusted) security kernel.

Malicious device drivers:

 An adversary may try to manipulate device drivers

such that hardware functions (e.g., direct memory access) can be used to
violate security policies.

Denial of Service:

An adversary may try to prevent that authorized users can

use a protected domain by denial of service attacks against the Legacy OS. He
also may attempt to deliberately provoke changes of the trust state of the

OpenTC Deliverable 02.2

33/141

background image





Requirements Definition and Specification

Final | 1.00

secure OS environment, thereby preventing it to operate on data protected by
access control that requires compartment integrity properties.

Unauthorized resource sharing:

 An adversary with platform administration

privileges may try to eavesdrop data from a compartment A by allowing other
platform components to access A's memory space or persistent storage.

Unauthorized changes of information flow policy:

An adversary with

platform administration privileges may try to change the information flow policy
of a customer's compartment, thereby allowing interactions with defined or
arbitrary components that can reside on the same node, on another node inside
the datacenter, or outside of the datacenter.

Unauthorized Actions by Data Center Administrator:

The data center

administrator may replace software components (such as the management
entity) with malicious ones, change the configuration of the whole system to an
unsafe configuration, or migrate the VM to hosts that are not part of the data
center.

Theft of VM Image:

by data center operator or administrator, from the

network while migration (through sniffing), or by obtaining a copy of the
physical hard disk.

Process Impersonation:

Impersonation with respect to the platform. e.g.,

impersonating the automated software update procedure.

Bugs in Management Entity:

Software bugs in the management component

can be exploited as vulnerabilities, potentially leading to control of the entire
physical infrastructure by an adversary.

5.2.3  Functional Requirements

5.2.3.1  Goal

The general idea underlying our architecture is to establish various compartments on
one computing platform where each compartment can have its own security policy.
The policy defines

the protection level for the data accessed and processed in a compartment as
well as for the applications that run in this compartment, and

the information flow between individual compartments as well as between the
compartments and external parties.

The primary goal is that each compartment behaves as if it is a single platform
separated from other compartments.
A secondary, mid-term goal is to provide compartments with identities, isolation and
protection properties that can be kept 'alive': it should be possible to 'hibernate' a
compartment and its protected resources. At a later stage, it should be possible to re-
instantiate the hibernated compartment in an execution environment that has security
properties equivalent to the original one. Ultimately, this would allow to 'migrate' a
compartment before changes to the platform's trust state actually take place.

OpenTC Deliverable 02.2

34/141

background image





Requirements Definition and Specification

Final | 1.00

5.2.3.2  Target Groups

Datacenter operators

Software service providers

Software service consumers

P2P/GRID operators and service providers

5.2.3.3  Roles and Actors
Infrastructure Owner

: also referred to as

 infrastructure provider or platform owner

The infrastructure owner provides virtualized computing resources. This entity defines
the allowed configurations of the underlying platform and the shared network and
storage infrastructure. Note that this also includes (re-)configuration of infrastructure
elements and certain changes to the platform's configuration. The platform owner is
also owner of the TPM and thus is aware of the TPM owner authorization information.
Typical example is a data center represented by an infrastructure administrator.

Infrastructure User

: also referred to as

computing service provider

 or

infrastructure

customer.

 This entity uses the virtualized resources allocated to him by the

infrastructure provider. Permitted interactions between infrastructure user and
virtualized resources are defined in Service Level Agreements (SLAs). These SLAs may
include specific information flow and protection policies for user components. In
technical terms, the usage and interaction of virtualized resources is constrained by a
compartment policy and that of the underlying platform. An example is a distributed
rendering service running on top an infrastructure provided by a datacenter operator
or by a P2P network. Infrastructure Provider and Computing Service Provider might be
identical in simplified scenarios.

End User

: also referred to as

service consumer

. The end user is an entity that

consumes the service offered by the computing service provider.

Verifier

: The verifier an entity that is interested in verifying properties of a platform

or a compartment. This can be the infrastructure owner, the infrastructure user, an
end user, or another party. The verifier can be remote, local to the data center, local
to the service, or local to the node. The verifier is typically represented by a software
component implementing an automated decision process; however, interactive
verification is permitted. Platform and compartment policies may define which
properties to verify. Disclosure of properties to the verifier may be subject to policies
of the attester.

Attester

: The attester is an entity that reports about a platform or compartment in

response to a request of a verifier. More concretely, an attester may issue qualitative
or quantitative statements regarding a platform or a compartment, or he can confirm
that certain statements correspond to recorded state information. For instance a
binary attester determines/measures the configuration of a platform according to a
certain metric. An example of a

local attester

 is a Trusted Platform Module (TPM), or a

combination of a TPM and a software component hosting a machine to be attested. An
example of a

distributed attester

 is a software agent that gathers, evaluates and

compiles attestation information from all nodes and compartments that are required
for a composite service.

Legacy OS

: The Legacy OS is the default operating system running inside a

compartment.

OpenTC Deliverable 02.2

35/141

background image





Requirements Definition and Specification

Final | 1.00

Configuration Database:

 database operated by the Infrastructure Provider that

contains up-to-date information about node characteristics: unique identifier, MAC/IP
addresses, hardware characteristics, TPM endorsement key/certificate, platform
attestation identity certificate (AIK).

Data Center CA

: Certificated Authority operated by the Infrastructure Provider. The

DCA can certify AIKs and legacy keys for secure protocols such as SSL and ssh.

5.2.4  Description of Use Cases

The use cases are separated into three subsets, namely

1. System initialization and bootstrapping,
2. Configuration Management, and
3. User-level use cases.

5.2.4.1  System initialization and bootstrapping

Node bootstrapping:

 The platform owner boots a management image on a

node to configure basic platform parameters.

System Initialization:

 The platform owner sets initial platform values.

Take Ownership:

 The platform owner (infrastructure provider) takes

ownership over the TPM.

Platform AIK generation:

 The platform owner (infrastructure provider)

installs an AIK.

Build infrastructure service image:

 The infrastructure provider/platform

owner builds a service image including virtualization layer, management and
driver domains, and management software.

Boot infrastructure service image:

 The platform owner creates a service

platform ready to host customer components.

Create Legacy Keys:

 The owner creates and certifies key pairs for secure

network protocols. Keys are bound to the platform.

5.2.4.2  Configuration Management

Create Service Management VM:

 The infrastructure owner creates a

dedicated management compartment for a customer. Services and interfaces
hosted by this compartment concern the definition of virtual services from
collaborating components, allocation of resources and deployment of service
components to customer compartments.

Define Compartment:

 The prospective owner of a compartment defines the

properties (software components configuration, policies).

Register Compartment:

 The prospective owner of a compartment

instantiates a compartment image.

Start Compartment (Policy Enforcement):

 The compartment owner enables

interactions of the compartment that are subjected to its information flow
policy.

OpenTC Deliverable 02.2

36/141

background image





Requirements Definition and Specification

Final | 1.00

Stop Compartment (Policy Enforcement):

The compartment owner disables

interactions of the compartment that are subjected to its information flow policy

Unregister Compartment:

 The compartment owner terminates the

compartment.

Change Compartment (Policy Enforcement):

 Changes compartment

properties.

Report compartment state:

 Quotes state of compartment, might include

information of platform (HW) TPM, virtual TPM allocated to compartment, and
audits from security monitors that are part of the platform TCB

Report platform state:

 Quotes state of hardware TPM, might include audits

from security monitors that are part of the platform TCB

Create Service Management VM:

 The infrastructure owner creates a

dedicated management access point for a customer running in a compartment.
Services and interfaces hosted by this compartment concern the definition of
virtual services from collaborating components, allocation of resources and
deployment of service components to customer compartments.

5.2.4.3  User-level use cases

Open Session:

 The user wishes to use another compartment.

Close Session:

 The user wishes to end a session with a compartment.

5.2.5  Security Objectives and Security Requirements

The implementation of the application scenario has to fulfil the following security
objectives and requirements.

5.2.5.1  Security Objectives

Separability:

 The use of different security-critical applications based on the

OpenTC security architecture has to be at least as secure as the execution of
the same applications on physically separated computing platforms connected
via a network.

No unauthorized use of compartments:

 Unauthorized entities must not be

able to execute applications within protected compartments.

No unauthorized change of compartment properties:

 Unauthorized

entities must not be able to change properties of the software, configuration,
and information flow policy of a compartment.

5.2.5.2  Security Requirements

Integrity of the TCB:

 The TCB should be protected from manipulations to

guarantee the enforcement of security policies.

Confidentiality and integrity of application/data:

 This requirement should

hold during execution and storage.

Trusted path to user:

The inputs/outputs of the application a user interacts

with should be protected from unauthorized access by applications running in

OpenTC Deliverable 02.2

37/141

background image





Requirements Definition and Specification

Final | 1.00

other compartments.

Trusted channel between trusted compartment and external parties:

Information flow between a trusted compartment and external parties must be
protected from unauthorized access.

Information flow:

The information flow policies between different

compartments (both local to the hardware platform and on remote platforms)
must be satisfied.

5.3  Corporate Computing at Home

Existing computing platforms cannot provide a secure environment to protect security
critical data/applications against attacks by malicious applications/processes. This
problem concerns many different application scenarios in private and business areas.
Here, we focus on a special case of the compartmented workstation scenario,
corporate computing at home: an employee of a company is performing corporate
tasks on her home PC. This part summarizes the scenario; a more detailed version is
available in OpenTC document “otcW05-01-Compartmented Security” provided by
RUB.

5.3.1  Problem Scenario

In the given scenario, the employee is interested in protecting her private data (taxes,
medical, financial, web browsing history etc.). She requires the assurance that her
sensitive information can only be accessed by applications she trusts. In particular,
applications of the company running on her PC must not be able to access her private
data.
The company, on the other hand, is interested in controlling access to and handling of
critical information (e.g., classified documents, contracts, content) securely, i.e.,
protecting it from non-cleared usage. The employee should not be able to circumvent
control mechanisms by using available functions for her own purpose, or by exploiting
security weaknesses of existing software components.
In general, each party desires to enforce its own security policy on the platform. The
security architecture underlying the application scenario will provide functionalities
that allow secure enforcement of both policies.
The general idea is to establish two compartments assigned to trust domains on the
platform where each compartment can have its own security policy. The policy defines

the protection level for the data accessed and processed in a compartment as
well as for the applications that run in this compartment, and

the information flow between individual compartments as well as between the
compartments and external parties.

The goal is that each trust domain behaves as if it is a single platform separated from
other trust domains.
One trust domain is assigned to the employee (for private computing usage) and one
to the company (for corporate tasks that the employee performs at home). From the
employee's perspective, her compartment is trustworthy and the company's
compartment is untrustworthy. She therefore executes all privacy-critical applications

OpenTC Deliverable 02.2

38/141

background image





Requirements Definition and Specification

Final | 1.00

in the trustworthy domain, while company related applications, e.g., editing corporate
office documents, are done in the untrusted one. Of course, inversely, the company
does not trust the employee's compartment.

5.3.2  Security Environment

Concerning the environment of the application scenario, it has to be considered which
kinds of theoretically possible attacks are realistic and which are not. In our concrete
case, we can assume that certain attacks do not occur; therefore, we explicitly
exclude them from examination. Furthermore, we define a list of realistic threats to
the assets against which specific protection within the product or its environment is
required.
The following assumptions describe the security aspects of the environment in which
the product will be used or is intended to be used:

Correct hardware.

 The underlying hardware (e.g., CPU, devices, TPM,...) is

non-malicious and behaves as specified.

No physical man-in-the-middle attack.

 An attack using a dummy device

that relays the whole communication between the user and the platform to
another device must not happen.

Trusted Administrator.

 The compartment administrator of the system must

be trusted to act according to the owner's wishes, since she will have access to
all security-critical information.

Physical attacks.

 Physical attacks against the underlying hardware platform

must not happen.

OpenTC Deliverable 02.2

39/141

Figure 2: Diagram of the platform architecture

C o m p a n y

N e t w o r k

Private

Computing

Compartment

Corporate

Computing

Compartment

Physical Hardware

TPM

Virtualization Layer

  S e c u r i t y   K e r n e l

H o m e   P C

Trusted   channel

Trusted Software Layer

background image





Requirements Definition and Specification

Final | 1.00

The following threats are realistic in our application scenario and have to be taken
care of by the OpenTC security architecture:

Spoofing of authentication information.

 An adversary may try to eavesdrop

the user authentication information.

Trojan horse.

 An adversary may try to eavesdrop confidential information by

deceiving users by a Trojan horse application that looks like a secure
application.

Faked identity.

 An adversary may try to bypass control mechanisms by

providing a faked identity.

Trusted Computing Base (TCB) manipulation.

 An adversary may try to

violate security policies by maliciously manipulating software-components of
the TCB. Examples are manipulations of the bootloader or the security kernel.
Alternatively, the adversary tries to bootstrap an alternative (untrusted)
security kernel.

Malicious device drivers.

 An adversary may try to manipulate device drivers

such that hardware functions (e.g., direct memory access) can be used to
violate security policies.

Denial of Service.

 An adversary may try to prevent that authorized users can

use a protected domain by denial of service attacks against the Legacy OS.

5.3.3  Functional Requirements

5.3.3.1  Goal

The  general  idea  is  to  establish  various  compartments  on  one  computing  platform
where each compartment can have its own security policy. The policy defines

the protection level for the data accessed and processed in a compartment as
well as for the applications that run in this compartment, and

the information flow between individual compartments as well as between the
compartments and external parties.

The goal is that each compartment behaves as if it is a single platform separated from
other compartments.

5.3.3.2  Target Groups

Target groups are companies and their employees. By means of the OpenTC security
architecture,   employees   are   enabled  to   securely   perform   corporate   tasks   on   their
home PC.

5.3.3.3  Roles and Actors

In this section we define different roles and actors important for the use case model.

Owner

: The owner of a platform is an entity who defines the allowed

configurations of the underlying platform. Note that this also includes certain
changes to the platform's configuration. In practice, these changes are
patches/updates. The platform owner is also the owner of the TPM and thus is

OpenTC Deliverable 02.2

40/141

background image





Requirements Definition and Specification

Final | 1.00

aware of the owner authorization information.

User

: The user of a computing platform is an entity interacting with the

platform under the platform's security policy. In our application scenario, user
and owner are typically both personified by the employee.

Verifier

: The verifier is interested in verifying a certain property of a platform.

This party can be a local user or a remote party.

Attestor

: The attestor is a machine that reports about a client machine in

response to the request of a verifying machine. More concretely, the attestor
may confirm a certain statement or quantity of this machine. For instance a
binary attestor determines/measures the configuration of a client machine
according to a certain metric. An attestor can be local, i.e., located on the
platform or it can be distributed. An example of an attestor is a Trusted Platform
Module (TPM), or a combination of a TPM and a software component hosting a
machine to be attested.

Legacy OS

: The Legacy OS is the default operating system that is used by the

user. It is executed within its own compartment.

5.3.4  Description of Use Cases

From   a   user's   (employee's)   perspective,   this   section   gives   a   short   and   limited
description   of   the   use   cases   for   the   “Compartmented   Workstation   (Corporate
Computing   at   Home)”   application   scenario.   For   a   detailed   view,   refer   to  OpenTC
document “

otcW05-01-Compartmented Security

”.

Bootstrapping.

 The owner boots the OpenTC security architecture from CD-

ROM. After completion, the applications of the OpenTC security architecture can
be used.

System Initialization.

 The platform owner sets the initial platform values.

After completion, initialization values, an owner secret, and a default user have
been set.

Take Ownership

. The platform owner takes ownership of the TPM of the

hardware platform. After completion, the TPM has a valid owner.

Register Compartment.

 The owner defines the properties of a new

compartment to be executed by users. After completion, the registered
compartment can be executed by authorized users as described.

Unregister Compartment.

 The owner removes a compartment from the list of

valid compartments. After completion, the compartment cannot be used any
more.

Change Compartment

. The owner changes the configuration of a

compartment.

Private Computing.

 The user (employee) executes her private applications

within an isolated compartment.

Corporate Computing.

 The user (employee) executes tasks for her company

within another isolated compartment, which is assigned to the company.

OpenTC Deliverable 02.2

41/141

background image





Requirements Definition and Specification

Final | 1.00

5.3.5  Security Objectives and Security Requirements

The implementation of the application scenario has to fulfil the security objectives and
requirements that are listed in the following. They are crucial for both involved parties,
company and employee.
The security objectives address the identified security environment aspects; they
reflect the stated intent and counter all identified threats and cover all identified
organizational security policies and assumptions:

Separability.

 The use of different security-critical applications based on the

OpenTC security architecture has to be at least as secure as the execution of
the same applications on physically separated computing platforms connected
via network.

No unauthorized use of compartments.

 Unauthorized entities must not be

able to execute applications within protected compartments.

The security requirements have to be satisfied by the product; they define the
functional and assurance security requirements that the product and the supporting
evidence for its evaluation need to satisfy in order to meet the security objectives.

Integrity of the TCB.

 The TCB should be protected from manipulations to

guarantee the enforcement of security policies.

Confidentiality and integrity of application/data.

 This requirement should

hold during execution and storage.

Trusted path to user.

 The inputs/outputs of the application a user interacts

with should be protected from unauthorized access by other applications.

Trusted channel between trusted compartment and external parties.

The communication channel between the company and its trusted compartment
on the employee's home PC should provide confidentiality, authenticity and
integrity.

OpenTC Deliverable 02.2

42/141

background image





Requirements Definition and Specification

Final | 1.00

6  Workpackage Structure and Relationships

In line with the Technical Annex, this specification covers workpackages 3-8. The
relationships between these work packages are depicted in Figure 3

Workpackage 3 (Basic Interfaces and Trust Layer)

 leverages TC hardware

mechanisms for boot loader and operating system. It includes the development of a
basic driver and software stack for Linux, L4 and Xen, the provision of TC functionality
via PKCS#11, and its integration in standard cryptographic protocols. Furthermore, it
addresses isolation and bootstrapping features of new CPU types with trusted
operating system layers.

Workpackage 4 (Trusted OS development)

 designs and implements trusted OS

layers on the basis of L4 and Xen. It provides a common set of basic Trusted
Computing mechanisms in a OS-independent way through a common management
interface.

Workpackage 5 (Security Management and Infrastructure)

designs and

implements security services on top of trusted OS layers. This concerns services for
local platform configuration as well as for managing collections of trusted platforms.

Workpackage 6 (Test/Prototype Applications for Proof-of-Concept and Use

OpenTC Deliverable 02.2

43/141

Figure 3: Dependencies between OpenTC workpackages

WP03c:
Crypto Services:

SSH

SSL

PKCS#11

IPSEC

OpenSC

WP03d:
Java
VM

WP03a:  Virtualization

layer and interfacing

WP03b:        TSS-Stack

Trusted Platform

Module

AMD Security

CPU

Intel Security

CPU

TSS-
Native
Security
Inter-
Face

WP03: Basic Interface

SWP04a: Basic management interface

WP4c:
L4-
Kernel

WP4b:
TPM
Virtuali-
zation

Linux
OS

WP4d:
XEN-
Kernel

Linux-
Kernel

WP04: Trusted OS kernels

WP05: Security Management

WP5b:
Trusted
Platform
services

WP5a:
Security
Services
for TC

WP5c:
Security
management
framework

WP5d:
Key
Management
infrastructure

WP06: Applications

WP6a:
DRM
solution
With
MPEG-21

WP6d:
TC based
Encrypted
File Service

WP6c:
Proof-of-
Concept
TP
WYSIWYS

WP6b:
Message
Exchange
for TC
(MEITC)

WP6e:
TP features
for authenti-
cation to

computers

WP08:TC for embedded controllers

Analyzing
application

WP8a.4:
TSS-Stack
for embedded
controller

WP8b:
Trusted
OS for
embedded
controllers

Proof-of-Concept

Mobile Phone Embedded Controller

WP8a.3:
TPM Firmware
for embedded
controller

Transferring Technology
and Experience

WP09:
Distribution of results
via SUSE Linux

WP10:
Standardisation,
Dissemination,
Training

Open Trusted Computing: Functional Diagram

WP03c:
Crypto Services:

SSH

SSL

PKCS#11

IPSEC

OpenSC

WP03d:
Java
VM

WP03a:  Virtualization

layer and interfacing

WP03b:        TSS-Stack

Trusted Platform

Module

AMD Security

CPU

Intel Security

CPU

TSS-
Native
Security
Inter-
Face

WP03: Basic Interface

SWP04a: Basic management interface

WP4c:
L4-
Kernel

WP4b:
TPM
Virtuali-
zation

Linux
OS

WP4d:
XEN-
Kernel

Linux-
Kernel

WP04: Trusted OS kernels

WP05: Security Management

WP5b:
Trusted
Platform
services

WP5a:
Security
Services
for TC

WP5c:
Security
management
framework

WP5d:
Key
Management
infrastructure

WP06: Applications

WP6a:
DRM
solution
With
MPEG-21

WP6d:
TC based
Encrypted
File Service

WP6c:
Proof-of-
Concept
TP
WYSIWYS

WP6b:
Message
Exchange
for TC
(MEITC)

WP6e:
TP features
for authenti-
cation to

computers

WP08:TC for embedded controllers

Analyzing
application

WP8a.4:
TSS-Stack
for embedded
controller

WP8b:
Trusted
OS for
embedded
controllers

Proof-of-Concept

Mobile Phone Embedded Controller

WP8a.3:
TPM Firmware
for embedded
controller

Transferring Technology
and Experience

WP09:
Distribution of results
via SUSE Linux

WP10:
Standardisation,
Dissemination,
Training

Open Trusted Computing: Functional Diagram

WP07:

SW

Development

Support

WP07a:

Security

testing,

risk analysis

WP07d:

Towards

CC EAL5

certification

WP07b:

Linux

package

verification

background image





Requirements Definition and Specification

Final | 1.00

Examples)

 designs and implements a set of applications that exploit mechanisms

provided by the TC hardware and the trusted OS layer for application scenarios.

Workpackage 7 (Software development support, quality evaluation and
certification)

investigates the question of how to ensure trustworthiness of trusted

platforms from the angles of testing, formal analysis and methodology.

Workpackage 8 (Trusted Computing for embedded controllers and mobile
phones)

 will provide a proof-of-concept for porting one of the trusted OS layers (L4)

to a mobile phone base controller, exploiting results from all Workpackages mentioned
above.
The next chapter gives a high-level overview of the OpenTC architecture. This is
followed by describing the specific goals and approach for each Workpackage in
dedicated chapters.

OpenTC Deliverable 02.2

44/141

WP07c:

Trust

verification

and integrity

methodology

background image





Requirements Definition and Specification

Final | 1.00

7  High Level Architecture Overview

OpenTC provides secure virtualization and Trusted Computing (TC) technologies in
order to increasing the security of operating systems and applications.
Our central goal is an architecture that combines Trusted Computing hardware and
platforms on the one hand and Operating System virtualization technology on the
other, allowing to isolate and secure execution environments for applications. In
addition to this, an application can can make use of TC features in the traditional way,
that is, directly through device or library interfaces to the Trusted Computing Module
(TPM) or Trusted Software Stack (TSS).
This chapter gives an overview of the architecture. We will first outline the central
characteristics of virtualization and motivate how to complement them with Trusted
Computing mechanisms. This is followed by a description of the architecture, its main
software components and its trusted computing base, and a summary overview of
important components and services.

7.1  Motivation

In virtualized architectures, operating systems are hosted by a

Virtual Machine

Monitor

 (

VMM

) or

hypervisor, a

thin software layer that allows



to run multiple

independent instances of (potentially different) Operating Systems in parallel. These
OS instances – typically referred to as

Virtual Machines (VMs)

 – are isolated against

each other: the VMM guarantees that VMs can only act within the boundaries of their
defined execution environment (

compartment

).

The main hypervisor task is to share and schedule resources of the underlying
hardware platform between multiple hosted VMs. From a trust and security
perspective, it is of importance that access of VMs to resources can be subjected to
access control mechanisms built into the hypervisor. These mechanisms can
effectively be employed to control how a VM interacts with the 'outside world' – that is,
with resources and other VMs on the platform as well as with physically remote
entities.
The VMM features mentioned above – compartmentalization, access controlled
resource sharing and information flow policing – offer core functionality that can be
exploited for computer security architectures. From a risk management perspective,
virtualization constrains the potential damage that can be caused by attacks on any
hosted VM. A successful attack on a VM does not lead to the subversion of the whole
platform (which would be the case if the OS would run directly on the hardware), nor
are other hosted OS instances affected. Security critical platform management
functions can be separated out to run in compartments with locked-down OS versions,
thereby minimizing their exposure to attacks.
With

mandatory control mechanisms

supported at the hypervisor layer, VMs and

software executed by them can be turned into appliance-like entities that operate in
execution environments with defined security properties. This makes it possible to
treat VMs as sandboxes or

compartments

 with individual access control and

information flow policies attached to them. For example, the environment may inhibit
modification or inspection of executed code or processed data during runtime. In this
case, assurances may be required that the hypervisor provides no (or only strictly
controlled and audited) mechanisms to override a compartment policy.

OpenTC Deliverable 02.2

45/141

background image





Requirements Definition and Specification

Final | 1.00

This is where Trusted Computing technology as defined by Trusted Computing Group
(TCG) comes into play. TCG technology makes it possible to audit startup and
configuration and to attest to the auditing log, in a trustworthy and verifiable manner.
Furthermore, TCG hardware can protect cryptographic secrets from being accessed in
an untrusted environment. The OpenTC architecture for Open Trusted Virtualization
exploits these mechanisms amongst others.

7.2  Trusted Virtualization Platform Architecture

This section gives an overview of the architecture that is present on a single platform
(physical machine). Minimum platform prerequisite is an X86 architecture with an
integrated Trusted Platform module (TPM) and BIOS support for TPM-assisted trusted
boot. An optional prerequisite are next generation CPU and chipset support for
virtualization as provided e.g. by AMD's

Pacifica

 architecture.

7.2.1  Main Components

A trusted virtualization platform includes the following software components

Support for Trusted Platform Boot.



During Bootup, integrity metrics of the platform's Trusted Computing Base are
generated and logged into the Trusted Computing Module. They can be
retrieved for attestation purposes.

Platform Security Kernel

. The platform's Trusted Computing base includes

the virtualization layer (hypervisor, VMM),

its configuration and policies,

management components and platform-wide security services.

During platform initialization, integrity metrics of these components are
generated and logged into the Trusted Platform Module. They can be retrieved
for attestation purposes.

Virtual Machines.

These OS instances that have been booted and initialized

by the platform security kernel and are hosted by the virtualization layer.
Prior to their execution, these virtual machines might be checked for their
integrity in a process that is similar to the platform's trusted boot process. In
this case, Security Kernel component generates integrity metrics for the hosted
OS instances and logs them into the hardware TPM or a dedicated and properly
protected virtual TPM. The metrics can be retrieved for attestation purposes.

Virtual machines are stored on and launched from disk images that include the OS and
all applications that can run under its control. VM access to platform resources and
interactions with other VMs are controlled by elements of the security kernel. The
architecture may employ one or more dedicated VMs for direct support of the Platform
Security Kernel. This is discussed later in this chapter with regard to hosting hardware
drivers and security services.
The current OpenTC architecture is based on

paravirtualization

. This approach

requires active co-operation of the hosted OS, which makes it necessary to modify the
original OS accordingly. In future, hardware support for virtualization provided by next
generation X86 CPUs and chipsets will allow to run unmodified OS versions. User

OpenTC Deliverable 02.2

46/141

background image





Requirements Definition and Specification

Final | 1.00

applications, on the other hand, do not have to be modified. Irrespective of the
approach to virtualization they can be executed in their original form.

An idealized, layered view of the OpenTC platform architecture is depicted in Figure 4.

7.2.2  Trusted Computing Base

Virtualization introduces an additional level of control and isolation at the level of
hosted VMs. Operating system instances can be subjected to information flow policies
enforced by the underlying layer. In conjunction with the platform hardware, this layer
constitutes the Trusted Computing Base (TCB). As a general rule, it is desirable to
minimize the TCB.
To this end, the virtualization mechanism, its management components and platform-
wide trusted services should preferably be self-contained without relying on support of
a full-fledged host OS. It is possible to design the architecture to honour this principle:
in addition to hosting OS instances, both virtualization layers used in OpenTC (L4 and
XEN) allow to run generic tasks directly on top. In particular, the design of L4 would
allow a very close approximation of the idealized architecture in Figure 4.
Nevertheless, there are strong arguments in favour of hosting OpenTC security
components inside an OS. Firstly, this concerns the availability of hardware drivers.
Both L4 and XEN can interface drivers that are integral parts of a hosted Linux VM.
This approach requires only minimal modifications to the original Linux drivers to
make them usable for the hypervisor – a much preferred alternative to developing
generic drivers for the hypervisor layer from scratch. Second, it makes it possible to
employ helper applications (in particular, scripting tools) for booting and configuring
VMs. In the absence of such tools, generic applications have to be written for the
hypervisor layer; each minor modification requires re-compilation. This complicates
the development process and makes system administration more difficult.

OpenTC Deliverable 02.2

47/141

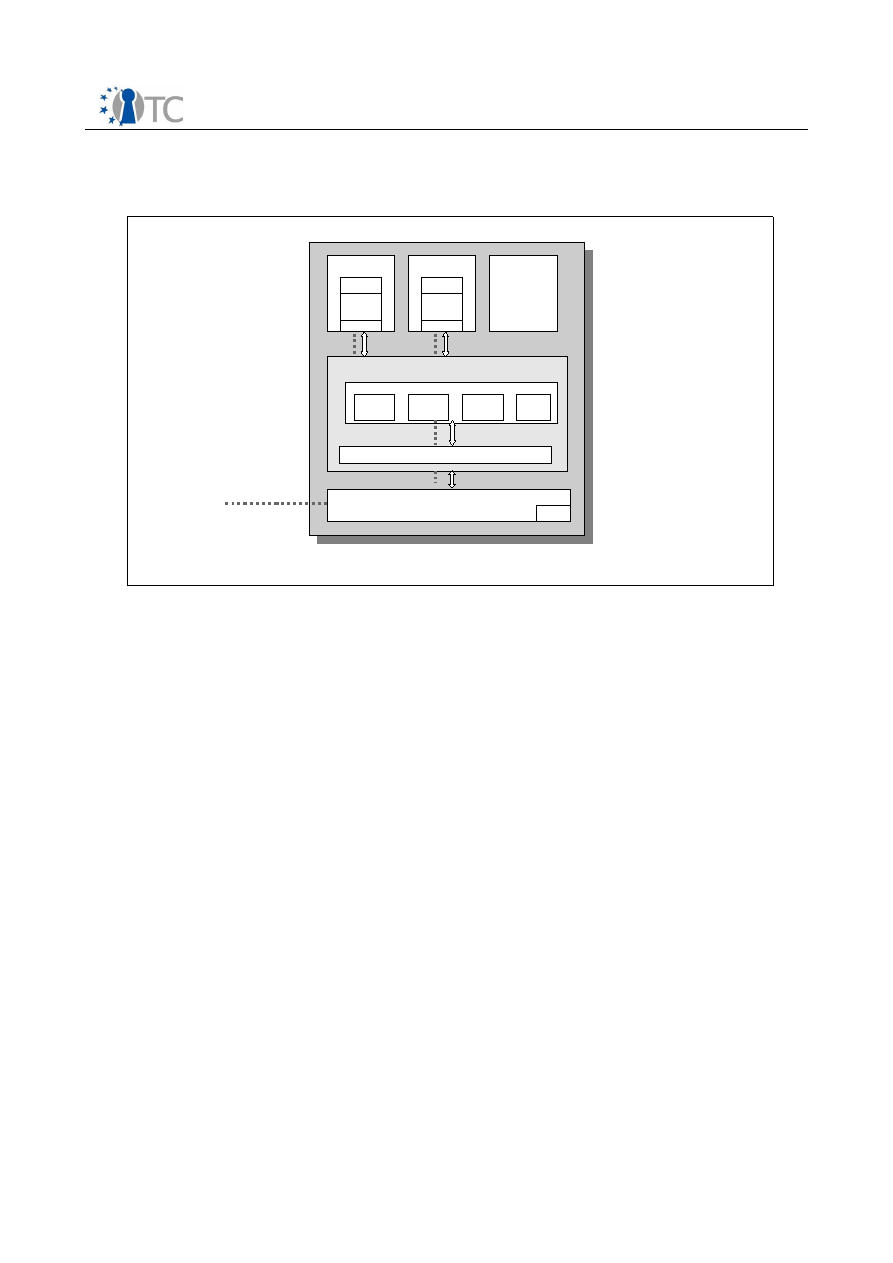

Figure 4: High Level OpenTC Architecture (idealized logical view)

Physical Hardware

(CPU, e.g. AMD Pacifica)

TPM

Virtualization Layer

  S e c u r i t y       K e r n e l

P l a t f o r m   I n t e r f a c e

Trusted Software Layer

Trust

Manager

TPM

Server

Storage

Mgmt

(...)

(...)

Virtual Machine

vDrivers

Linux

OS

Virtual Machine

vDrivers

Linux

OS

Operating System

Procs

Procs

Applications

Drivers, TSS

background image





Requirements Definition and Specification

Final | 1.00

Figure 5 shows how the idealized architecture could be mapped if security
components and drivers are to be hosted by a VM that is part of the security kernel.
While advantages for development and configuration suggest this alternative for the
first phase of OpenTC, an evolutionary approach will be investigated to strike a
balance between a security centric view emphasizing the reduction of the Trusted

Computing Base and practical considerations about system development and
administration.

OpenTC Deliverable 02.2

48/141

Figure 6: VM-hosted to generic Security Service

Physical Hardware

(CPU, e.g. AMD Pacifica)

TPM

Virtualization Layer

  S e c u r i t y       K e r n e l

Network

Security Services

Operating System

Applications

Drivers, TSS

Trusted

Management

VM(s)

Trust

Manager

TPM

Server

Storage

Mgmt

(...)

Linux OS

HW Drivers

Virtual Machine

vDrivers

Linux

OS

Procs

Figure 5: VM-hosted Security services

Physical Hardware

(CPU, e.g. AMD Pacifica)

TPM

Virtualization Layer

  S e c u r i t y       K e r n e l

Network

Security

Services

Operating System

Virtual Machine

vDrivers

Linux

OS

Procs

Applications

Drivers, TSS

Trusted

Management

VM(s)

Trust

Manager

TPM

Server

Storage

Mgmt

(...)

Linux OS

HW Drivers

(...)

background image





Requirements Definition and Specification

Final | 1.00

Abstract interface definitions may allow us to rebuild Linux hosted components as
tasks running generically on the virtualization layer. TCB minimization could thereby
be achieved in a stepwise fashion. This approach is depicted in Figure 6.

7.2.3  Component and Service Layering

This section outlines where the components produced by Workpackages 3, 4 and 5
reside in the OpenTC architecture. For a detailed discussion of these components, the
reader should consult the corresponding chapters on these Workpackages.

7.2.3.1  Hardware and Virtualization Layer
Secure Boot/Secure Initialization.

 For traditional X86 CPUs, this functionality can

be provided by a boot loader that supports Trusted Computing hardware. With next
generation X86 CPUs, it will be possible to invoke secure initialization from an ordinary
boot loader or as integral step of starting the virtualization layer (see description of
SWP3a).

Hardware Virtualization Abstraction Interface.

 This component supports to run

paravirtualized or unmodified guest operation systems hosted by the virtualization
layer. The implementation will be adapted for the XEN and L4 hypervisors (SWP3a).

Virtual Machine Monitors / Hypervisors.

 OpenTC explores two different hypervisor

architectures (L4 and XEN) for hosting instances of the Linux operating system. (SWP
4c/d).

7.2.3.2  Trusted Software Layer

The components in this section will typically be hosted by a management domain
(provided by a dedicated Linux VM). As discussed in the previous chapter, we will
explore an evolutionary path of migrating such components to generic hypervisor
tasks where appropriate.

Platform Support and Management Components

Trusted Platform Driver.

This driver provides the interface to the Trusted Platform

Module hardware. Access to the TPM-driver is intermediated by a security service of
the trusted software stack.

TSS Services:

 This component implements a service interface between the Trusted

Platform Driver and higher level services and application (SWP3b).

Basic Management Interface.

 This component offers a unified view on basic

management operations for both hypervisors (XEN / L4). Its first instance provides a
common set of user commands. Later instances will extend this to lower system levels
(library API or kernel interface).

TPM Virtualization.

 In a virtualized environment, each hosted operating system may

require a dedicated Trusted Platform Module (TPM). This can be achieved by providing
virtual instances for TPMs – effectively the functionality of hardware TPMs simulated
by software (SWP4b).

TPM enabled cryptographic protocols and services.

Existing security protocols

and components (ssh, SSL and IPSec, PKCS#11) extended to use the TPM as
cryptographic and key storage device. (SWP3c)

OpenTC Deliverable 02.2

49/141

background image





Requirements Definition and Specification

Final | 1.00

TPM enabled JAVA VM.

 A JAVA environment that allows easy integration of TCG

features into JAVA-based applications (SWP3d).

Trusted Platform Services.

 As part of the trusted software layer, these services use

the functionality offered by the hardware and virtualization layer to implement
security requirements of the secure computing platform. It also includes functions for
local platform management (SWP5a).

Infrastructure Support and Management Components

Security Management Services.

 As part of the trusted software layer, these

services support platform and compartment management on behalf of a local or
remote management entity (SWP5c).

Key Management Support.

User side key management, key and certificate

exchange protocols aware of additional trusted computing features, services for
identity creation, revocation and verification of credentials, Trusted Computing
enabled PKI (SWP5d).

7.2.4  Applications

At this stage, we do not envisage any of the applications to become part of the core
architecture. They serve the threefold purpose of i) demonstrating the benefits of
Trusted Computing hardware at the application layer, ii) producing requirements for
services in the Trusted Software Layer, and iii) serve as a prototypic environment to
validate concepts and services of the OpenTC architecture. For a more detailed
overview, the reader should refer to the chapter describing WP6.

7.2.5  Development Support

Potential implications of development support, quality assurance and evaluation are
under investigation. Activities and approaches can be found in the chapter describing
WP7.

OpenTC Deliverable 02.2

50/141

background image





Requirements Definition and Specification

Final | 1.00

8  Workpackage 03: Basic Interface and Trust Layers

This Workpackage provides the interfaces to the trusted computing hardware
according to the requirements of unified SW APIs. It separates functions of the
platform’s enhanced main processor, the platform security module (TPM) and relevant
peripherals from those of the required abstract SW layer. It comprises four main tasks
listed below.

TC enhanced CPUs

Next generation x86 CPUs such as AMD's

Pacifica

 and INTEL's

Vanderpool

 processors

have been designed to leverage concepts of Trusted Computing. In addition, they
include functionality for hardware-supported virtualization. This allows for substantial
improvements when implementing security and protection features required for
Trusted Computing architectures in general and TC hardware support in particular.
The implementation of the corresponding software components will become easier
with virtualization support built into the CPUs, and it allows to migrate resource
management into user space and to encapsulate runtime environments.
OpenTC aims at producing a vendors-neutral solution that allows for broad and
universal access to TC on all standard platforms. Cambridge University Computer
Laboratory (CUCL) maintains an open research cooperation with INTEL and will adopt
their virtualization layer XEN to support the new CPU architecture. This work is
performed outside of OpenTC's project activities. In the past, however, all results have
been made publicly accessible under Open Source licenses. We expect this to be the
case in future, too. The solutions built by OpenTC can be expected to reflect the
specifics of both CPU architectures

TCG Software Stack (TSS)

The TCG Software Stack (the TSS) includes driver and interface software on TPM-
equipped platforms. Its specification was produced by the Trusted Computing Group
and is publicly available (TCG 2005a). The project we will adapt the TSS for Linux as
well as for the trusted OS layer based on L4 and XEN.

TPM-enabling widely available crypto interfaces and basic crypto services

Trusted Computing hardware offers key protection mechanisms, cryptographic
functions, and authentication features that can strengthen the implementation of
standard security protocols such as SSL and SSH. We will extend the widely deployed,
full-strength open source implementations of these protocols (OpenSSH and OpenSSL)
and their cryptographic libraries. A PKCS#11 module and IPsec tools for Linux will be
adapted to use the TPM for key storage protection and as hardware crypto device. We
will define and implement a privacy enhancement of the SSL/TLS protocols and
perform a study about privacy enhancement of the IKE/ISAKMP protocols.

JAVA Integration

Given the importance of JAVA for management components, web services or mobile
applications, it is essential to interface and support TCG / TPM technology under Java.

OpenTC Deliverable 02.2

51/141

background image





Requirements Definition and Specification

Final | 1.00

8.1  SWP 3a: Trusted Computing enhanced CPUs

AMD will provide support to adapt the trusted OS layers to the AMD

Pacifica

 processor

virtualization extensions and

Presidio

 platform-level security extensions according to

the evolving requirements. In particular, this concerns the development of a CPU
hardware interface layer and a low level virtualization with security package, allowing
for easy use and development of this new technology to support TC issues.
Virtualization refers to the creation of one or more execution environments on the
same machine each of which mirrors the original platform in order to make the
respective operating system believe it was exclusively running on a real platform. This
approach has several advantages over the traditional way to share the resources of a
platform and enables a variety of valuable applications such as the simultaneous
execution of multiple operating systems or server sharing.
Together with hardware security features such as secure initialization this can address
the vast challenge of computer security present in today's computer platforms.
Potentially untrusted software or operating systems can run in a sandbox like
environment with complete separation from the rest of the system.
The traditional approach to implement virtualization are based on a complicated
virtual machine monitor running on top of the operating system. In contrast to that,
more modern para-virtualization introduces a very thin hypervisor layer which
manages the virtual machines and provides most basic operating system
functionalities and an interface for the guest operating systems running inside the
virtual machine. Here, the operating systems are modified for the virtual machine to
reuse infrastructure of the management software called virtual machine monitor
(VMM) or hypervisor. This para-virtualization leads to a significant performance
improvement but incorporates the disadvantage of needing to modify the requested
operating system. This is especially a problem for proprietary operating systems.
Hardware virtualization features can extend the hypervisor based solution by
supporting unmodified operating systems and further improving performance. Thus
the disadvantages of traditional and hypervisor based software virtualization can be
overcome with special hardware features of the processor.

8.1.1  Requirements Breakdown

AMDs secure virtual machine (SVM) technology consists of hardware extensions for
virtual machine monitors (VMM) and security enhancements of the overall x86
platform.
For support of unmodified operating systems inside a virtual machine SVM provides a
new guest execution environment that enforces strong isolation between the virtual
machines and the VMM and hence enables protected compartments on the system. All
actions of the guest OS that might comprise this isolation cause the control of the
machine to be transfered back to the VMM.
In order to ensure the trustworthiness of the VMM the SVM extension provides means
to establish a Trusted Computing Base (TCB) with a new instruction called SKINIT
(secure kernel initialization). This instruction protects, measures using a TPM and
executes a so called secure loader (SL).
We will provide secure initialization software which will verify platform validity and
establish a TCB. Furthermore low-level interfacing to hardware virtualization is
specified.

OpenTC Deliverable 02.2

52/141

background image





Requirements Definition and Specification

Final | 1.00

8.1.2  High-level Specification and Design

8.1.2.1  Hardware Virtualization Abstraction Interface

The SVM technology by AMD comprises several hardware mechanisms for virtual
machine monitors or hypervisors to be able to run unmodified guest operating
systems. In order to reduce the effort to adapt the VMM to the new technology an
abstraction layer is required which hides the complexity of new CPU instructions and
structures from the VMM code.
On the other hand existing code for virtualizing components of an x86 CPU and
platform should be leveraged as much as possible if they are not explicitly replaced by
hardware support.
Therefore this new software entity called Hardware Virtual Machine (HVM) not only
provides several C functions and structures but also requires a number of C functions
and structures to be exported by the VMM. The functionality is hidden behind a
function pointer table and is directly accessed by the VMM.
The HVM shall be responsible for running a guest inside a virtual machine, save and
restore its state, handle intercepts and interrupt injection whereas the VMM remains
accountable for initializing and managing guests in terms of interrupt and exception
handling, shadow page table maintenance and other system services.

8.1.2.2  Secure Initialization Architecture

Additional to virtualization functions the SVM technology also provides security
enhancements which can be used to establish a trusted computing base (TCB). The
following elements comprise the SVMs support for a TCB:

Hardware enforced privilege levels

Strong domain separation

I/O protection

Device protection

Attestable initialization of the TCB software elements

TPM support

The first four of these elements are directly provided by the SVM guest execution
environment. For I/O port and MSR (Machine Specific Register) protection special
bitmaps specify the privileges of each guest. Furthermore bus-master peripheral
devices are prevented from accessing arbitrary memory by a mechanism called multi-
domain device exclusion vector (DEV).
Secure initialization requires immutable hardware components in order to prevent
software based attacks. The new SKINIT instruction provides this immutability while
retaining the ability to use traditional platform boot mechanisms. This can be achieved
since uncontrolled software triggers the secure initialization process which comprises
of loading a secure loader (SL) and TCB code into memory and executing the SKINIT
instruction.
This instruction will then securely measure and start the secure loader. This
measurement is extended to the TPM. It is made sure that no external hardware event

OpenTC Deliverable 02.2

53/141

background image





Requirements Definition and Specification

Final | 1.00

can tamper with or interrupt the secure initialization process.
The software components involved in establishing a TCB are the following and
depicted in figure Figure 7.

SL1, the 64 KB part of the secure loader executed by SKINIT

SL2, the rest of the secure loader, measured and executed by SL1

Configuration verification (CV) makes sure the platform configuration is in a
known state by using tables which contain platform information and platform
specific code

The SL1/2, CV and the secure kernel have
to be loaded in the untrusted portion of
the boot process. After all I/O operations
have been stopped SKINIT instruction is
executed which then measures the SL1
using the TPM and executes it. SL1 itself
only measures and executes SL2.
SL2 then measures and verifies the
configuration verification core and the
associated tables and executes the CV
core. After the configuration has been
verified the secure kernel is measured,
verified and initialized.
All measurements are extended to TPM
PCRs.

8.1.3  Services of this Layer

8.1.3.1  Hardware Virtualization Abstraction Interface

The HVM will provide the following functions to the VMM or hypervisor:

Execute a guest using VMRUN instruction

Handle low-level intercepts

Inject interrupts/exceptions

Save state of host and guest

Provide a soft interrupt mechanism for VMM in order to execute arbitrary VMM
code

The VMM on the other hand has to provide the following functions as a fixed API
exported to the HVM component:

Shadow page table management

Memory and I/O handlers

IRQ handler

virtual (A)PIC

Scheduler

OpenTC Deliverable 02.2

54/141

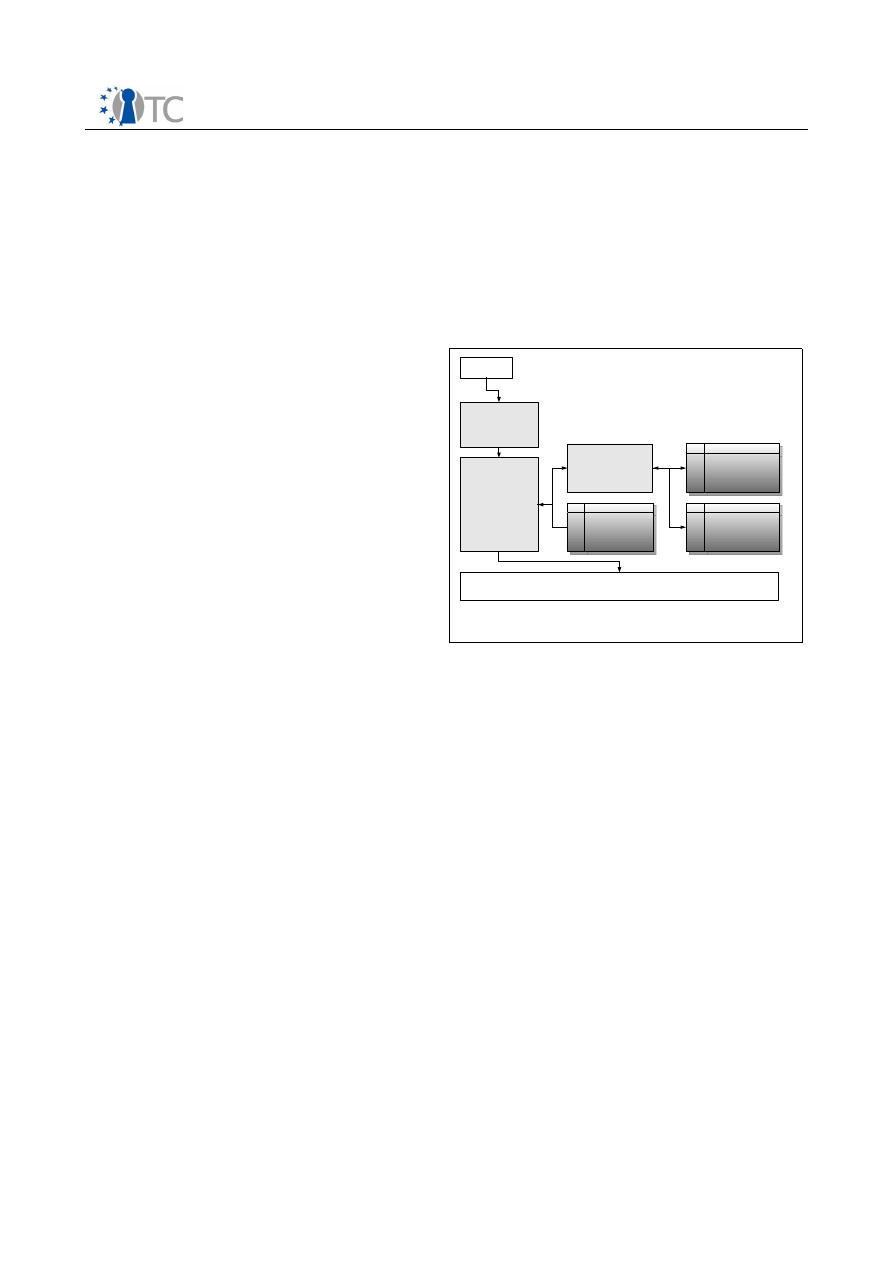

Figure 7: Software Components for TCB

SKINIT

SL 1

SL 2

Secure Kernel

AMD table

/w code

CV Core

Platform table

(UUIDs , keys )

Vendor tables

/w code

background image





Requirements Definition and Specification

Final | 1.00

A common structure is defined which holds all information required for a virtual CPU.

8.1.3.2  Secure Initialization

The AMD secure initialization software will provide a dynamic root of trust for
measurement (DRTM) and platform validity verification. It is intended to be OS
independent and requires a multi-boot secure kernel image.

8.1.4  Dependencies: Required Services from Sub-Layers

The software provided in this Sub Workpackage requires an AMD Athlon™ 64, AMD
Turion™ 64 or AMD Opteron™ processor revision F or later. Furthermore a TPM version
1.2 is required.

8.2  SWP 3b: TSS-Stack according to TCG Specification

The TCG main specification defines a subsystem with protected storage and protected
capabilities: This subsystem is the Trusted Platform Module (TPM). Since the TPM is
both a subsystem intended to provide trust and an inexpensive component, its
internal resources have been kept to a minimum. While these limitations reduce
production costs and make it easier to verify security properties, it also make it
cumbersome to directly interact with the TPM hardware.
The TCG architecture addresses this issue by treating functions that require protected
storage capabilities differently from those that don't. Functions that do not directly
require hardware protected storage are not implemented in the TPM hardware. They
are implemented as software modules that use the abundant resources of the
platform’s main CPU and memory. These software components provide comprise the
TSS.

8.2.1  Requirements Breakdown

Well defined interfaces are a prerequisite for a thorough understanding of TSS
structure and allow to easily adapt to future changes of the specification. This is of
some importance since the extensions of the original specification are under active
development by various TCG working groups. We therefore favour a distributed,
modular design where each module implements a functionality that is explicitly
defined in the TCG specification. This requires to take the structure specification as a
template for the architecture.

8.2.2  High Level Specification and Design

The TSS specification distinguishes TCG Device Driver (TDDL), TSS Core Services (TCS)
and TSS Service Provider (TSP) components. The TDDL provides the transition
between user and kernel mode and offers a standard library interface to the TPM. The
TCS resides in user mode interfacing the TDDL. It is a single instance system service
offering access to all TPM primitives and additional functions to efficiently manage the
TPM resources. Its main function is to provide a simple interface to functions of the
hardware TPM. It must provide single threaded access to the TPM and can support to
multiplex the hardware between parallel threads.

OpenTC Deliverable 02.2

55/141

background image





Requirements Definition and Specification

Final | 1.00

The TSP is the topmost layer that will typically be interfaced by applications. The TSP
also includes a small number of auxiliary functions. It is intended, although not
mandatory, that the TSP obtains TCG services through the TCS. In environments that
provide layered protection (for example, by memory rings) or process separation for
applications, this module is intended to reside within the same ring and process as the
application. Typically, multiple TSP instances will exist on multi-process systems.

8.2.3  Services

Trusted Device Driver Library and Interface

The TCG Device Driver Library (TDDL) is an intermediate module between the TCS and
the kernel mode TPM Device Driver (TDD). The TDDL will offer a user mode interface.
In contrast to a kernel level interface, this approach permits to abstract from OS
specifics, ensures the different TSS implementations can communicate with any TPM,
and allows TPM vendors to provide a software TPM simulator as a user mode
component.
The TDDL is implemented as single-instance, single threaded module. The TDDL
expects TPM commands to be serialized, which is typically performed by the TCS. The
TPM vendor is responsible for defining the interface between the TDDL and the TCG
device driver. The vendor is free in his choice of communication and resource
allocation mechanisms between this library on the one hand and a kernel mode TPM
device driver or software TPM simulator on the other.

TSS Core Services (TCS)

The following figure gives an overview of the functions to be implemented as part of
the TCS. They are explained in more detail in the list below.

OpenTC Deliverable 02.2

56/141

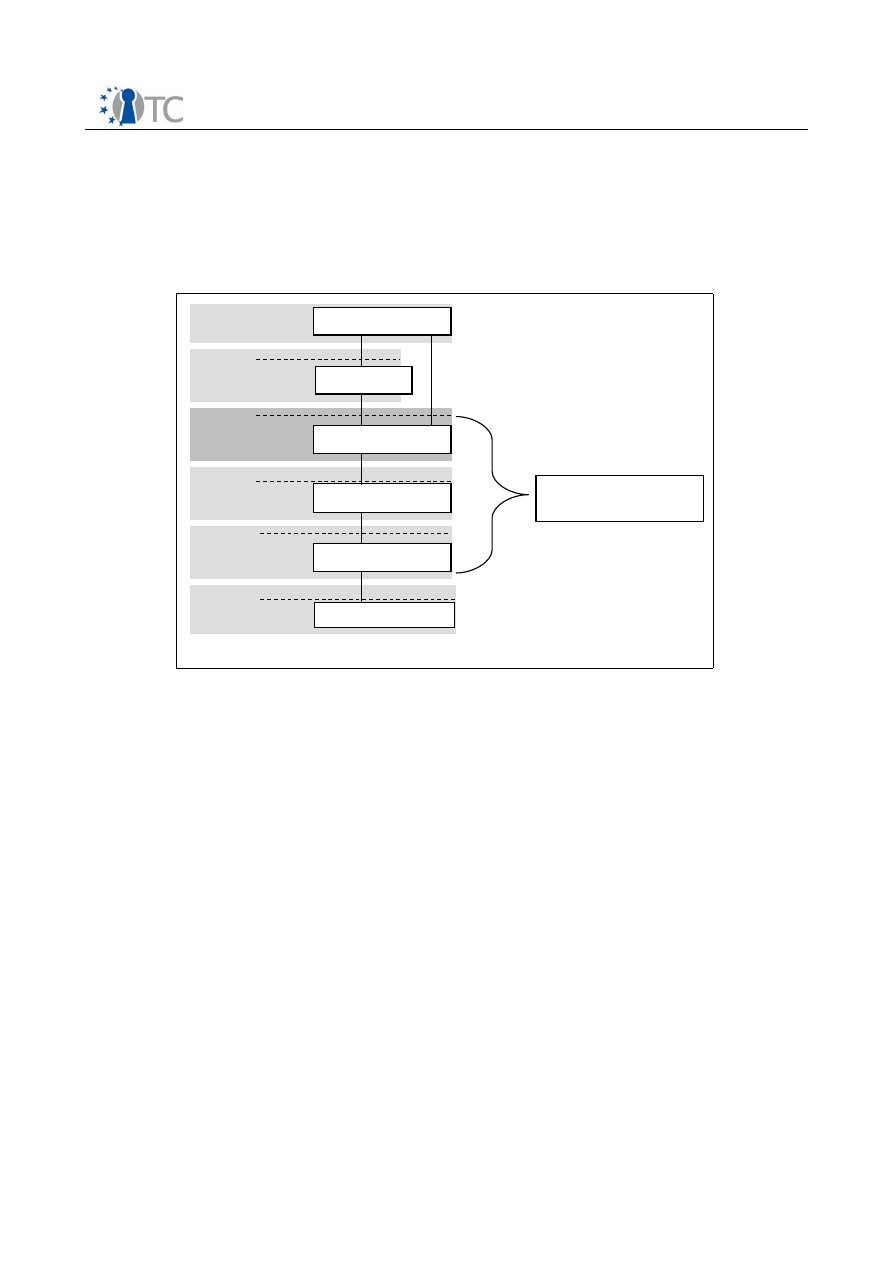

Figure 8 : TSS Stack

TPM

TSS Device Driver Library

TSS Core Service

TSS Service Provider

TCPA Crypto

Service Providers

TCPA Application

Section 6

Section 5

Section 4

Section 3

Appendix?

TPM
Interface

TPM Device
Driver Library
Interface

TSS Core Service
Interface

TSS Service
Provider Interface

Crypto Service
Provider
Interfaces

TPM

TSS Device Driver Library

TSS Core Service

TSS Service Provider

TCPA Crypto

Service Providers

TCPA Application

Section 6

Section 5

Section 4

Section 3

Appendix?

TPM
Interface

TPM Device
Driver Library
Interface

TSS Core Service
Interface

TSS Service
Provider Interface

Crypto Service
Provider
Interfaces

TPM

TSS Device Driver Library

TSS Core Service

TSS Service Provider

TCPA Crypto

Service Providers

TCPA Application

Section 6

Section 5

Section 4

Section 3

Appendix?

TPM
Interface

TPM Device
Driver Library
Interface

TSS Core Service
Interface

TSS Service
Provider Interface

Crypto Service
Provider
Interfaces

TSS modules covered by

specification



background image





Requirements Definition and Specification

Final | 1.00

1.

TCS-Interface-Layer (SOAP-Interface).

The interface to the TCS is the TCS

Interface (TCSI). This is a simple ‘C’ style interface but should be realized in
SOAP (Simple Object Access Protocol). While it may allow multithreaded access
to the TCS, each operation is intended to be atomic. It resides as a system
process, separate from the application and service provider processes. If the
environment provides for the TCS to reside in a system process, communication
between the service providers and the TCS would be via an RPC.

2.

Persistent-Storage-Access-Component (System).

Component covers the

physical access and representation of the TCS persistent storage
representation. The TSS specification separates the storage context into a per
user boundary and in a system linked one. This functionality and the data
representation reflect a TSS (i.e. TSP and TCG) common code component.

3.

Facade-Abstraction-Component.

Component contains a facade factory to

generate separate facade objects per calling context. This layer performs the
parameter checking for the TCS-Interface.

4.

Synchronization-Helper-Module.

Collection of some small helper classes;

encapsulate the native system calls for synchronization object handling.

5.

Logical cache content handling.

Characterize a logical TPM device per

connection context and organize logical resource cache management.

6.

Logical TPM Resource handling.

Contain a management class and resource

OpenTC Deliverable 02.2

57/141

TCG-TSS-Service-Provider

(local)

Basic architectural building blocks for TCG-TSS-Core-Service

Physical-TPM-

Command-Module

Persistent-Storage-

Access-Component

TCG-Core-Service-

TPM-Access

TCS-Persistent-
Storage (system)

TCG-TSS-TDDL

TCS-Interface-Layer (SOAP-Interface)

1

Logical cache

content handling

TCSI-Level

TPM connection

management

Setting and Policy

Access

Streaming-Helper-

Classes

Error-Handling-Class

Synchronization-Helper-

Module

TCS-Module-

Management

Facade-Abstraction-

Component

Logical TPM Resource

handling

TPM Device organize

management

Extended TPM Resource

and access handling

Common-Module-

Service

4

2

3

5

6

7

8

9

12

13

14

15

16

17

18

19

TCS

TCG-TSS-Service-Provider

(remote)

TPM

TPM-Driver

Physical cache strategy

and organization

10

11

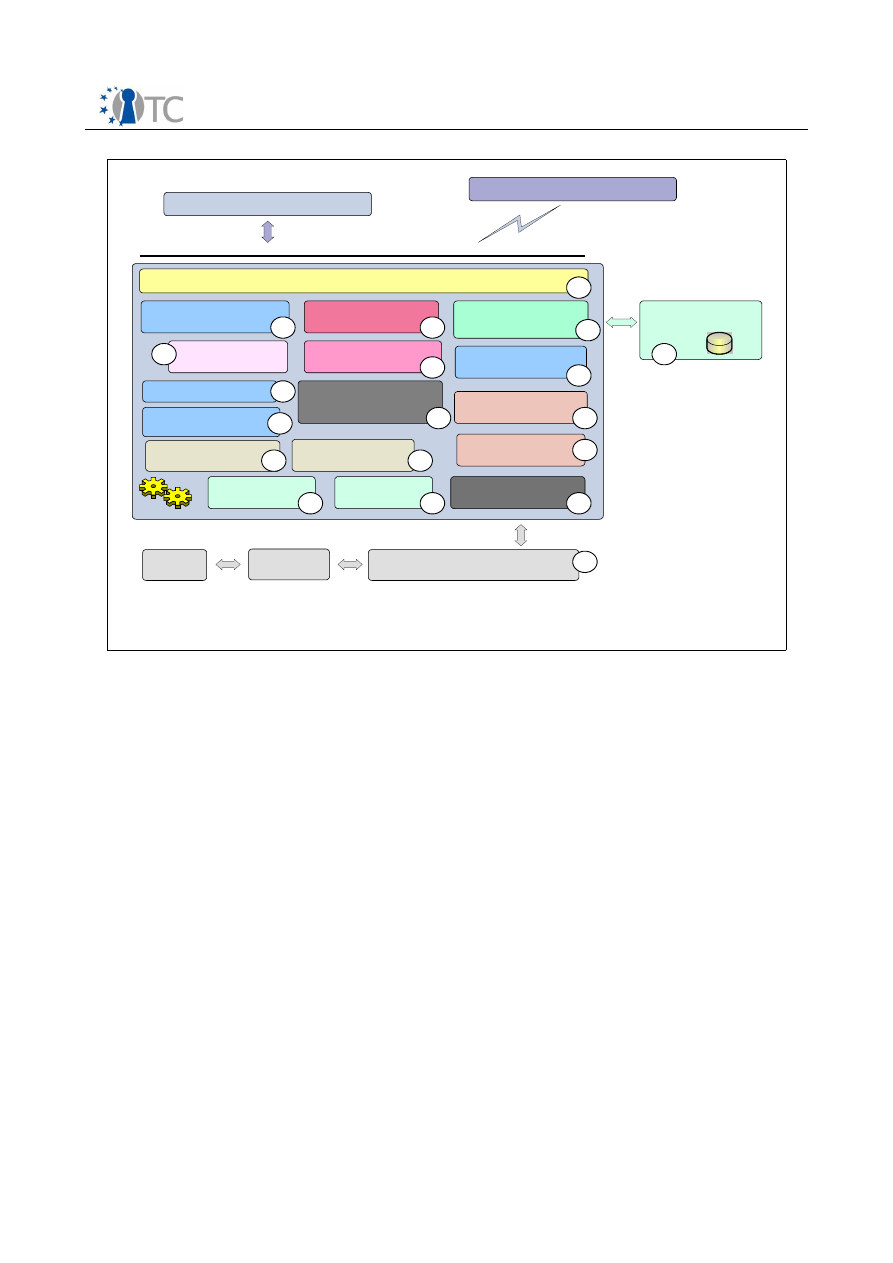

Figure 9 : TCG TSS architecture – core service

background image





Requirements Definition and Specification

Final | 1.00

classes for the two major handled resource types key and authorization
sessions. The task is divided into a resource map management and into a
resource representation unit.

7.

Setting and Policy access.

Function and class pool to summarize operations

used to access and validate setting information.

8.

Extended TPM Resource and access handling.

Characterize a physical TPM

device designed as singleton and organize physical resource cache
management. Due to the character as single entry point for all TPM operations
this layer is responsible for TPM access synchronization.

9.

Error-Handling-Class.

Helper class(es) used in the exception handling process

of the TSS components (i.e. TSP and TCS). The structured exception concept will
be used for error handling inside of the TSS modules.

10.

 Streaming-Helper-Classes.

Helper classes transform TCG structures into

BYTE-Stream-Representation and verse versa.

11.

 Physical cache strategy and organization.

Contain physical management

classes and resource classes for the two major handled resource types key and
authorization sessions. The task is divided into a resource map management
and into a resource representation unit. In addition this component
automatically detects the underlying TPM device version and selects the
corresponding physical caching strategy and function set.

12.

 Physical-TPM-Command-Module.

Module is responsible for the TPM

command stream generation (byte-stream-generator) receiving the response
and extracting the response parameter elements.

13.

 TPM-Device organize management.

Component includes classes and

functionality to handle TPM device specific startup and shutdown procedures. In
addition it controls the consistence of the resource management of the TCS.

14.

 TPM connection management.

Contain the management classes and

functionality to establish the connection to the TPM device. A further task is to
setup the power management control handling between Infineon-TPM-Driver
and TCS.

15.

 Common-Module-Service.

Common functions used for TCS module

management (e.g. registration, start and stop).

16.

 TCS-Module-Management.

General operations used to administrate and

arrange TCS module wide services (e.g. memory handling).

17.

 TCG-Core-Service-TPM-Access.

Component covers the physical access and

representation of the TDDL communication. Abstraction layer offer the functions
to establish, operate and close the TPM communication in a local situation.

18.

 TCS-Persistent-Storage (System).

Contain the physical data representation

for TCS persistent storage (on per system and access able for all users). The
preferred mechanism would be XML based.

TSS Service Provider (TSP)

The following diagram and list gives an overview of the functions that are to be
implemented as part of the TSP.

OpenTC Deliverable 02.2

58/141

background image





Requirements Definition and Specification

Final | 1.00

1.

TSP-Interface-Layer (C-Interface).

 Represents the TSPI of the TSS-Service-

Provider and uses the C-Interface notation. Includes the first object access
abstraction layer; accomplishing the object oriented nature of the TSP interface.
Contains functionality to create and release interface layer objects which are
linked to the working layer.

2.

TSP-Working-Objects.

Collection of all TSP related productive objects (e.g.

Key, EncData…). Act as a kind of business workflow control for all TCG related
transformations and calculations. These operations are performed with
assistance of the different specialized support components and classes.

3.

Synchronization-Helper-Module.

Collection of some small helper classes;

encapsulate the native system calls for synchronization object handling.

4.

Setting and Policy Access.

Function and class pool to summarize operations

used to access and validate setting information.

5.

Authorization-Handling-Component.

Component contains the knowledge

and TPM command parameter data for the authorization data stream
construction. This unit interacts with the TSP-Policy-Class from the TSP-Working-
Object and the Auth-Session-Handling module to calculate the authorization
(e.g. HMAC) data package. It interacts as a kind of instrumentation factor for the
TCG authorization flow.

6.

Streaming-Helper-Classes.

Helper classes transform TCG structures into

BYTE-Stream-Representation and verse versa.

OpenTC Deliverable 02.2

59/141

TCG-Aware-Application

Basic architectural building blocks for TCG-TSS-Service-Provider

User

Crypto-Service-

Module

Persistent-Storage-

Access-Component

TCG-Core-Service-Access

TSP-Persistent-
Storage (user)

TCG-TSS-Core-Service

TSP-Interface-Layer (C-Interface)

1

Transport-Protection-

Helper

TSPI-Level

Crypto-Algorithm-
Support Module (e.g.
OpenSSL)

Secret-Memory-

Helper

Setting and Policy

Access

Streaming-Helper-

Classes

Error-Handling-Class

Synchronization-Helper-

Module

TSP-Module-
Management

TSP-Working-

Objects

Authorization-

Handling-Component

Auth-Session-

Handling

TSP-Context-

Organization

Common-Module-

Service

4

2

3

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

Local or remote
calling context.

TSP

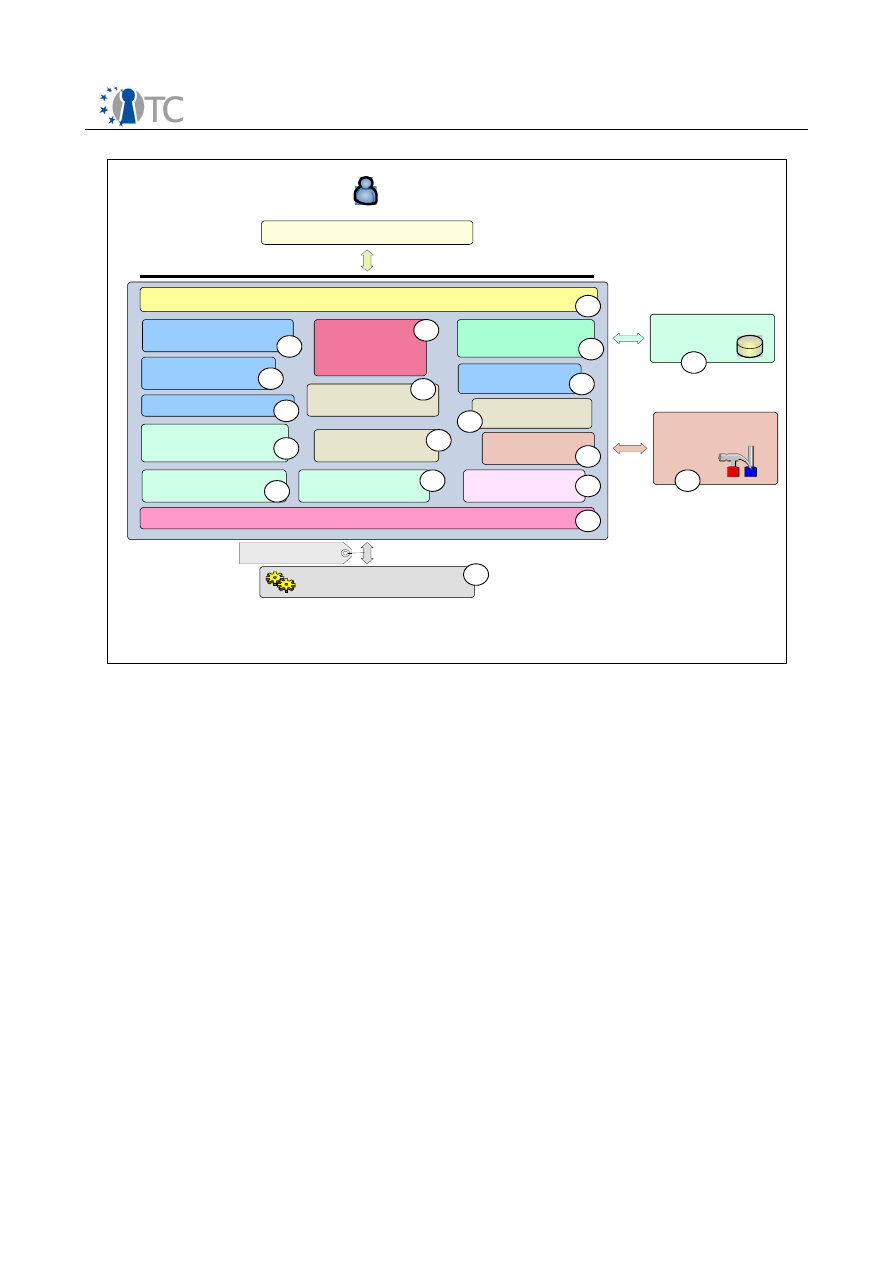

Figure 10 : TCG TSS architecture service provider

background image





Requirements Definition and Specification

Final | 1.00

7.

Persistent-Storage-Access-Component.

Component covers the physical

access and representation of the TSP persistent storage representation. The TSS
specification separates the storage context into a per user boundary and in a
system linked one. This functionality and the data representation reflect a TSS
(i.e. TSP and TCG) common code component.

8.

Crypto-Service-Module.

Abstraction layer to offer a set of cryptographic

functions needed for the TCG related data transformations (e.g. HMAC, SHA1…)
in the TSP. The native algorithm suite is not part of the TSP module.

9.

Error-Handling-Class.

Helper class(es) used in the exception handling process

of the TSS components (i.e. TSP and TCS). The structured exception concept will
be used for error handling inside of the TSS modules.

10.

 TSP-Context-Organization.

Cover the lifetime control for all TSP context

object elements. Represent a kind of garbage collection for open context
resources.

11.

 Auth-Session-Handling.

Envelop the lifetime control for all TSP authorization

sessions for a context object element. Contain functionality to validate the
status of the sessions.

12.

 Secret-Memory-Helper.

Offer functionality for limited permission memory

area access used to store e.g. secret data.

13.

 Transport-Protection-Helper.

Set of helper function to support the

construction (e.g. encrypt, decrypt…) of the transport protection related data
streams. In addition export the central execution method for transport
protected communication.

14.

 TSP-Module-Management.

General operations used to administrate and

arrange TSP module wide services (e.g. memory handling).

15.

 Common-Module-Service.

Common functions used for TSP module

management (e.g. registration, load and unload).

16.

 TCG-Core-Service-Access.

Component covers the physical access and

representation of the TCS communication. Abstraction layer offer the functions
to establish, operate and close the TCS communication in a local and a remote
situation.

17.

 TSP-Persistent-Storage (User).

Contain the physical data representation for

TSP persistent storage. The preferred mechanism would be XML based.

18.

 Crypto-Algorithm-Support-Module.

Extern crypto module or library (e.g.

OpenSSL) which offers all basic algorithms (e.g. hashing) required to derive the
TSP crypto function set (e.g. HMAC).

19.

TCG-TSS-Core-Service.

System service reflects the TSS-Core-Service.

8.3  SWP03c: basic TPM-enabled crypto services

This Sub Workpackage is mainly related to the use of the TPM as a “classic”
cryptographic device that provides a limited set of cryptographic primitives and a
protected storage for keys and certificates. In order to use the TPM that way with
existing applications, these must be modified to access the TSS. A complementary
approach suitable for existing applications (like Firefox) already enabled to use

OpenTC Deliverable 02.2

60/141

background image





Requirements Definition and Specification

Final | 1.00

standard crypto API is to develop an instance of such APIs (e.g. PKCS#11) on top of
the TSS stack. Both approaches can also include the exploitation of the sealing
feature, a unique TPM capability to bind the keys’ protection also to a well specified
platform status. Another task is related to the design and the development of an
enhancement to the SSL/TLS protocols to support the Direct Anonymous Attestation
protocol as an additional authentication protocol, for both the user platform and the
user itself.

8.3.1  Requirements breakdown

There are several widely used application that can use the TPM as crypto device. If
these are applications that implement the crypto operations internally, the proper
approach to TPM-enable them is to modify their source code to use the TSS functions
for the crypto primitives and the protected storage.
Each application has its own information model for data, keys and certificates, but
such information models share some aspects:

the keys/certificates have some attributes associated or can be considered as
attributes of other objects (like an IPsec security association)

the keys are identified by means of textual labels

the keys and all other information data are stored in files

On the other side the TSS/TPM provides a protected storage for keys and other data
that can be stored within the TPM or outside the TPM, with the same security level,
through a chain of encrypted keys up to the Root of Trust for Storage (RTS) keys,
stored only within the TPM. These features allow the creation of an arbitrary
information tree that may contain asymmetric keys used directly within the TPM and
other keys and data to be used by the application. All data stored within the TSS
protected storage are identified by UUIDs.
In order to minimize the work to be done for the adaptation of the existing applications
to the TSS, a new component called Key Management Adaptation (KMA) module will
be developed.
A component to setup and manage the KMA with different applications will be also
developed.
Furthermore, to TPM-enable existing applications that support standard cryptographic
interfaces (like Firefox), a PKCS#11 interface module will be developed on top of KMA.
This Sub Workpackage includes also activities related to the privacy and trust
enhancement of security network protocols. It includes the definition of the
enhancement of the SSL/TLS protocols for using the DAA protocol and its
implementation by modifying the OpenSSL toolkit and a study about the enhancement
of the IKE/ISAKMP protocols with DAA.
This activity will provide a first look at the needs of privacy/trust enabling the network
security protocols and at the complexity of this task. Therefore the results of this study
will be useful to evaluate the opportunity to start further activities or projects more
specifically focused on the standardization of the privacy/trust enhancement of
network security protocols and on the implementation of the related prototypes.

OpenTC Deliverable 02.2

61/141

background image





Requirements Definition and Specification

Final | 1.00

8.3.2  High-level Specification/Design

The overall architecture from the cryptographic libraries/applications perspective is
represented in Figure 11. Several components will be developed or modified and they
are represented respectively with the uniform gray boxes and the faded gray boxes.
Instead, components already existing or developed in other Sub Workpackages are
represented with the white boxes. The components are:

Key Management Adaptation module (new module)

modules on top of KMA

OpenSSH client and server (adaptation)

OpenSSL engine (new module)

IPsec configuration tools like setkey (adaptation)

IKE demon Racoon (adaptation)

PKCS#11 module interface (new module)

DAA enhancement of the libssl library of the OpenSSL toolkit (adaptation)

8.3.3  Functionality: Services/APIs, Message/Key/Policy formats

The component that serves as the basis for most of the other is the KMA module that
is an API logically positioned on top of the TSS and provides the following services
facilitation services:

database built on top of the TSS protected storage for storing keys, certificates
and related attributes or data for more complex information models;

referencing keys, certificates and other data by using textual labels or
searching for them by using the values of associated attributes;

binding the keys and other data to the status of the system through the TPM's

OpenTC Deliverable 02.2

62/141

Figure 11: Architecture of the cryptographic libraries/applications

background image





Requirements Definition and Specification

Final | 1.00

sealing features or other ways supported by the OpenTC architecture;

support for keys/data access control built on top of the TSS/TPM authorization
mechanisms;

optional support for configuration by policy;

optional support for returning keys and other data as pseudo-files.

The KMA configuration tool serves to set up the KMA database to build the information
model for each specific application and to set the properties for each key (like sealing,
etc.) that cannot be set directly by the modified application.
The adaptation of OpenSSH, Ipsec tools, and Racoon (IKE) will consist in the use of the
TPM as protected storage (and optionally also as cryptographic device for RSA
encryption, only if this feature will be evaluated as necessary for the OpenTC
architecture); the new OpenSSL engine and the PKCS#11 interface module, instead,
will use the TPM for both purposes.
The adaptation of the libssl library will be done on top of the DAA wrapper component
that is built in turn on top of the DAA functions provided by TSS v.1.2.

8.3.4  Dependencies: required services from sublayers

The components designed and developed in this Sub Workpackage are built on top of
the TSS, developed in SWP03b and on top of the DAA wrapper component, developed
in SWP05d.

8.4  SWP03d: Java Integration – High Level Overview

This Workpackage focuses on the integration of Trusted Computing (TC) technology
into the Java programming language. This section outlines the importance of this work
and presents an overview of the individual aspects addressed as part of this
Workpackage.

8.4.1  The Role of Java

The Java programming language and related technologies have undergone a broad
adoption ranging from large-scale business applications hosted in dedicated data
centers to resource constrained environments as found in mobile phones or Personal
Digital Assistants (PDAs). Java programs are not compiled to native machine code but
to a special form of intermediate code, called byte code. This byte code is then
executed by a virtual machine (VM) called the Java VM. This characteristic makes Java
an excellent choice for development aiming at heterogenous environments as for
example grid computing provides.
In contrast to other programming languages such as C or C++, Java is equipped with
inherent security features supporting the development of more secure software.
Among those features are automatic array-bounds checking and garbage collection.
These features help to avoid common problems such as buffer overflows or memory
leaks. Additional aspects that distinguish Java from other environments are code-
signing mechanisms and the verification of code when it is loaded.

OpenTC Deliverable 02.2

63/141

background image





Requirements Definition and Specification

Final | 1.00

8.4.2  Integration of Trusted Computing into Java

With the advent of Trusted Computing (TC) as envisioned by the Trusted Computing
Group (TCG), it becomes possible to further enhance Java in terms of security. As a
first step, it is required to provide simple mechanisms for Java developers to access
the functionality provided by the Trusted Platform Module (TPM) and the TCG Software
Stack (TSS).
Note that the TSS not only exposes a software interface to access the functionality of
the TPM, but also features more complex operations, which are typically combining
several basic functions. Amongst others, the TSS provides functions to generate
cryptographic keys and signatures. Furthermore, it provides functions to measure and
attest the state of a platform and to cryptographically protect data via sealing and
binding functions.

The TSS itself is designed to be implemented using the C programming language and
thus offers a very straightforward way to call each function. In the Java environment a
programming interface is expected to be an object oriented Application Programming
Interface (API). To enable the use of the TSS functionality from Java, additional layers
have to be introduced. Figure 12 depicts a possible implementation, giving an
overview of the stacked layers from highest abstraction (Java) down to the hardware.
Each layer transforms and adapts calls to the next layer, offering functionality as
possible by the specific environment constraints.
In order to allow access not only to the local TSS but also to trusted environments
located on remote machines, the Java TSS API has to implement a remote procedure
call mechanism. Conforming to the TSS 1.2 specification, this facility will be based on
the Simple Object Access Protocol (SOAP) ensuring interoperability with TSS
implementations from different vendors running on a variety of platforms. The two
ways to access the TSS from Java (local API calls and SOAP) are presented in Figure
13
.

OpenTC Deliverable 02.2

64/141

Figure 12 : TSS Abstraction Layers

background image





Requirements Definition and Specification

Final | 1.00

Java integration, as planned for the OpenTC project, will go beyond simply allowing
Java developers to access TPM and TSS functionality. The features of the TC
architecture will be used to extend the trust and security provided by the underlying
operating systems to the Java VM and its applications.
A fundamental part of the TCG specification is the creation of a chain of trust that is
rooted in the TPM and its surrounding trusted building blocks. These building blocks
include the core root of trust for measurement which measures the BIOS before it
hands over control to it. The measurements, which actually are cryptographic hashes
of the code, are securely stored in the TPM.
The chain of trust is continued up to the operating system and application level. In
fact, a Java VM is nothing else but an application that is executed by the operating
system. After control has been passed to the Java VM, it is up to the VM to enforce TC
features. Java allows to dynamically load additional code in the form of classes at
runtime. Consequently, the class loading mechanisms have to be extended in such a
way that all loaded classes get measured and the hash values are stored in the
platform configuration registers of the TPM. This measuring however is not limited to
classes loaded from local storage.
Other variations of dynamically loaded code such as Java Applets have to be taken
into account. Additionally, the behavior and trustworthiness of applications can
considerably be influenced by configuration files or external scripts processed by the
application. Therefore, these aspects have to be considered as well as native code.
With the Java Native Interface (JNI), developers are able to write native libraries which
can be loaded by the Java VM. Not all these goals can be achieved by modifications
and extensions of the Java class library. Additionally, enhancements of the VM itself
are required. Figure 14 shows the chain of trust, beginning by the root of trust and
ending in the dynamically loaded classes.

OpenTC Deliverable 02.2

65/141

Figure 13: TSS Access Mechanisms

background image





Requirements Definition and Specification

Final | 1.00

8.4.3  Network Security and Isolation of Security-Critical Applications

Remote attestation - which means that a remote party is able to verify that a platform
is in a specific state regarding the applications it is executing - is one of the core
issues of Trusted Computing. It allows a remote party, such as an Internet-merchant,
to verify that it is communicating with a valid customer and that the machine of the
customer is in a proper state – e.g. not infected with viruses or worms that could
illegally interfere with a business transaction. At the same time, the customer
significantly benefits from trusted computing because it enables him to undoubtedly
verify that the merchant is the one he claims to be. Additionally, the customer can
ensure that the server of the merchant was not manipulated by a third party in order
to reveal sensitive information.
Remote attestation as well as verification mechanisms have to be made available to
Java. Aside from verifying the state of the connection partners, the protection of
network connections is an important topic. This topic is addressed by the Trusted
Network Connect (TNC) working group of the TCG.
As part of this effort, Transport Layer Security (TLS) Attestation is specified providing
an extension to the currently deployed TLS protocol.
The secure network communication facilities already present in Java will be enhanced
to take advantage of TLS attestation.
Securing an entire general purpose operating system might not always be practical or
feasible. With the availability of virtualization technologies, it becomes possible to

OpenTC Deliverable 02.2

66/141

Figure 14: Chain of Trust

background image





Requirements Definition and Specification

Final | 1.00

establish secure and isolated compartments within one physical machine. While a
legacy operating system is running in an untrusted compartment, a secure application
for doing sensitive transactions over the network can be executed in another, secure
compartment. Java could significantly benefit from that approach by running the Java
VM in such a compartment. This allows to keep the underlying hardware abstraction
and operating system layer as small as possible. By minimizing the secure code base,
the complexity of measurement and remote attestation is greatly reduced.
Notwithstanding, the TC enhanced Java environment will be able to run in a stripped-
down, special-purpose compartment as well as on full featured operating systems.

8.4.4  Applicability of TC-Enhanced Java

As mentioned before, Java is used for network oriented applications such as grid
computing or any kind of web service. This type of application will especially benefit
from the integration of TC capabilities into Java environments. For the first time, it
becomes possible to establish trust in properties of communication partners that is not
only based on software but rooted in a trusted piece of hardware.
Other kinds of application that are gaining more and more momentum across Europe
are e-Government and e-Commerce applications. They cover various areas such as
civil services like financial management, health services, netbanking or e-voting which
require a very high level of trust and security.
In order to demonstrate the benefits of TC in combination with Java a proof-of-concept
prototype will be developed. A reasonable demonstrator could be for example an
adaption of the Austrian Security-Layer framework to the features of TC. Other
prototypes could show for example the use of trusted computing in the areas of grid
computing, peer-to-peer applications or any kind of distributed computing.

OpenTC Deliverable 02.2

67/141

background image





Requirements Definition and Specification

Final | 1.00

9  Workpackage 04: Virtual Machine Monitors

The overall aim of WP4 is to provide a thin trustworthy software layer designed to
simultaneously host multiple service and operating system instances of differing trust
levels on the same physical platform in a secure and safe manner. As a foundation for
the trust and security services / applications of WP5, WP4 will support the enforcement
of mandatory information flow security policies governing the behaviour of instances
running on top of the virtualization layer as well offering an interface to basic TPM
management functionality as also required by WP5.
To achieve this, the thin software layer, referred to as Trusted Virtualization Layer, will
combine traditional virtualization technology such as Xen and L4 with trusted
computing technology (TCG).
The Trusted Virtualization Layer (TVL) provides an homogeneous, reliable and secure
software layer needed to support the applications described in the chapter on WP6
and meet their security requirements. Both Xen and L4 will provide an implementation
of a common architecture for this TVL, ensuring both interoperability and consistency
regarding the security of the whole system.
WP4 focuses on defining the basis for the interoperability and the security features of
the TVL. Those elements will first be derived from the various use cases (see
corresponding chapter), and then will be implemented under Xen and L4.
(Terminology note: in the following discussion we refer to

instances –

 these are tasks

running on top of the virtualization layer and may be whole operating systems or
individual applications).

9.1  Specific Goals and Deliverables

1. A virtualization layer and associated management components for the

safe

hosting of multiple operating system instances with differing trust levels
concurrently. The architecture and design will seek to minimize the TCB of the
system whilst still allowing for effective management of the system as required
by the scenarios of WP5. Prototypes will be provided based on both Xen and L4.

2. Base mechanisms layered on top of the platform HW security technology

1



interface of WP3 that will allow for secure and verifiable boot of both the
virtualization layer and individual instances running on top of the virtualization
layer in order to satisfy the needs of WP5. Prototypes will be provided based on
both L4 and Xen.

3. A common management API for the configuration and management of the

functionality provided by the virtualization layer. This will include basic tasks
such as starting and stopping an instance running, the configuration of
mandatory security policies for instances running above the virtualization layer
and sufficient TPM management capability to satisfy the higher level needs of
WP5. Prototypes will be provided based on both L4 and Xen.

4. Mechanisms for the enforcement of mandatory information flow security

policies governing the behaviour of OS instances running on top of the
virtualization layer. Prototypes will be provided based on both L4 and Xen.

1 TCG and the hardware virtualization/security extensions available on the AMD SVM platform.

OpenTC Deliverable 02.2

68/141

background image





Requirements Definition and Specification

Final | 1.00

9.2  Requirements and Architecture Discussion

9.2.1  Virtualization

The primary function of the TVL is to provide an homogeneous executing environment
for a set of components being executed concurrently on the same physical platform.
The type of components that are supported to be hosted by the TVL includes
unmodified standard operating systems, operating systems modified to take
advantage of the functionality of the TVL, and simple monolithic tasks dedicated to
perform specific operations using the functionality of the TVL. In order to host
unmodified operating systems, the TVL will require the assistance of hardware specific
mechanisms provided by the platform, as described in the previous chapter on WP3.
Like any virtualization technology, the TVL is responsible for providing resources to
each of the hosted components, scheduling their execution over time and managing
their lifecycle. It also provides an I/O communication mechanism between the hosted
components and their associated resources.
The project will define a Common Management Interface for the TVL, which will allow
management components to allocate and configure resources of a physical machine.
The Common Management Interface will also provide functionality for managing the
hosted components life cycle and configure their I/O channels with their resources and
other devices.
Last, the development of the TVL will also involve the implementation of several
virtual resources (such as virtual network, virtual TPMs, virtual hard drives, etc.) to
support the OSes needs for the applications described in the chapter on WP6.

9.2.2  Run-Time Protection and Isolation

The TVL is the first layer of software which provides active protection of the system
following the boot of the platform. It uses hardware mechanisms provided by the CPU
and/or chipset to protect its memory from other running components (see WP3). It
also uses the same hardware mechanisms to provide memory isolation between
running components themselves. Because the hardware resources will be shared
between potentially malicious hosted components, the TVL also needs to use these
hardware mechanisms to provide robust I/O isolation between the hosted components.
As a result, the TVL must be able to isolate each component and contain it inside its
own virtual network and its own virtual hardware, independently of the actual physical
hardware resources being shared. This approach supports application scenarios
described in WP6 where the entity controlling the software environment is different
from the (potentially malicious) users of the software.
The project will first define the protection and isolation needed for the components
and the hardware, and will then define the programming interface for managing the
security and protection mechanisms of the TVL, thus ensuring the interoperability of
the management solutions.

9.2.3  Trusted Computing Base

Because the complexity of the TVL is limited, configuration of the virtualized resources
and of the security mechanisms will be driven by some other privileged components
running on the physical platform. Together with the TVL, those components form the

OpenTC Deliverable 02.2

69/141

background image





Requirements Definition and Specification

Final | 1.00

Trusted Computing Base (TCB).
In order to protect long term secrets associated to the TCB (such as identities), the
TVL together with other TCB components will integrate TCG technology and integrity
measurement. The TPM will be used to allow for the protection of the long term secret
even when the active protection provided by the TVL is unavailable (for example,
when the platform is switched off or booted in an uncontrolled environment).
The TVL will implement the chain of trust as described by the TCG specifications and
will provide some extended functions to capture and verify the integrity of the TCB
and other critical hosted components. Those functions will be available through a
programming interface provided by the TVL allowing the definition of access control
policies based on the integrity of the TCB.
The integration of those functions together with the security and protection
mechanisms will allow the management components to configure the system-
including its physical and virtual resources and various required I/O channels - in a
secure and verifiable manner.

9.3  Goals and Deliverables

As outlined in the introduction WP4 has 4 main goals and deliverables. In this section
we go through each of the 4 main goals in more depth and describe further detail of
the deliverables intended to meet the goals.

9.3.1  Trustworthy Virtualization Layer

Both Xen and L4/L4env are already capable of running multiple isolated OS instances
simultaneously on a single physical platform. WP4 will explore how a balance can be
achieved between the small TCB of L4 versus the manageability of the current Xen
platform. Under Xen, a single OS instance running in domain 0 (as it is known)
provides all the platform configuration, management and security services. Domain 0
typically runs a full Linux OS distribution, thus making the TVL TCB significantly large
when implemented under Xen.
WP4 will provide Xen with the capability of splitting the main security services away
from the large body of domain 0 code. The security services will run in their own
isolated domain without needing to be hosted by a full operating system with the aim
of reducing the size of the TVL trusted computing base.
L4 on the other hand supports the notion of an application or service in its own right
running as a task on top of the virtualization layer. Unlike on Xen, the service does not
need hosting by an operating system. However, under L4 it is difficult to get a system
wide view of the platform making the managements requirements of WP5 hard to
satisfy. WP4 will provide sufficient management capability for L4 to satisfy the
requirements of WP5 whilst constraining the size of the TVL TCB.

9.3.2  Base TCG virtualization support

The TVL is part of the chain of trust as defined by TCG and therefore needs to be
measured. The TVL guards access to the platform hardware (including the TPM), it
must also provide support for reporting measurements that were logged into the
module. WP4 will assume an implementation of the Root of Trust (RTM) for
measurement and of the chain of trust available to boot the TVL. In order to integrate

OpenTC Deliverable 02.2

70/141

background image





Requirements Definition and Specification

Final | 1.00

the TVL with the TCG trusted boot chain, WP4 will Implement :

A Trusted Boot Process.

 This process can be provided by combining the TCG

boot chain in the platform firmware with a Trusted Boot Loader. This loader is
the first software executed by the firmware during the boot sequence. It will be
measured by the firmware and its measurement stored in the the TPM. The
Trusted Boot Loader will then measure the TVL image as well as any parameters
passed to the TVL at boot time. The TVL measurement will be stored into the
appropriate PCRs of the TPM. The Trusted Boot Process will then execute the
provided TVL image.

An alternative trusted boot process can exploit new CPU initialization
mechanisms provided by AMD's

Pacifica

 and Intel's

LaGrande

 technology (see

last chapter). This approach does not rely on firmware based RTMs and trusted
launching components with asserted integrity.

Integrity Measurement functionalities and interface in TVL.

 Once the

TVL is loaded, the Trusted Boot Process (potentially with the help of the TVL
depending on the implementation) will ensure the chain of measurements is
carried on until all the software parts of the Trusted Computing Base are loaded.
The measurements will be reported to the appropriate PCRs of the TPM (NB: The
exact measured components will vary depending on the implementation of the
TVL, namely Xen and L4). Once each component part of the TCB has been
loaded and measured, the TVL can pass on execution to the appropriate booting
instance.

In addition to the implementation of the chain of trust described above, the TCB will
implement a specific measurement mechanism for the various instances it hosts. The
implementation of the measurement mechanisms will vary depending on the
underlying implementation (Xen or L4) but both the executed image and the
configuration of the instances will be measured. The result of the measurement will be
accessible to the instances through an interface provided by the TCB. This interface
will allow an instance to verify the integrity of the whole boot chain as well as the
integrity of any instance. Integrity measurements can be used to ensure enforcement
of mandatory security policies, which can be configured through the provided
interface.
Common management API
The aim of the common management API is to allow higher level management
components drive the configuration and management of the virtualization layer
functionality in the same way regardless of whether L4 or Xen is being used as the
basis for the virtualization layer. The common API can be viewed down into 3 areas.
Firstly the basic life-cycle management of an OS or service instance running on top of
the virtualization layer. Secondly, configuration and management of the mandatory
information security policies associated with the OS / service instances (see section
2.4). Finally, to support the needs of WP5, some basic TPM management functionality
must be provided in the virtualized environment.

9.3.3  OS instance life-cycle management

Currently Xen provides a fairly rich and usable interface to the life-cycle management
of OS instances running on top of its virtualization layer. Figure 15 shows the current
architecture. Typically, management of the OS instance life cycle is through use of the

OpenTC Deliverable 02.2

71/141

background image





Requirements Definition and Specification

Final | 1.00

XM command, as shown in the figure this interacts with the

xend

 management

daemon, which itself is layered on sub-management services such as the console
daemon.

Figure 16 shows the functionality of the Xen management services available via the
XM command. A C based API is also available for accessing the management
functionality. It is proposed that the Xen management interface forms the basis of the
common API for OS/service instance life-cycle management for WP4.

OpenTC Deliverable 02.2

72/141

Figure 16: Xen management functionality

[root@localhost ~]# xm
Usage: xm <subcommand> [args]

Control, list, and manipulate Xen guest instances

xm common subcommands:

console <DomId>                  Attach to domain DomId's console.
create [-c] <ConfigFile>

[Name=Value]..       Create a domain based on Config File

destroy <DomId>                  Terminate a domain immediately
help                             Display this message
list [--long] [DomId, ...]       List information about domains
mem-set <DomId> <Mem>            Adjust the current memory usage for a domain
migrate <DomId> <Host>           Migrate a domain to another machine
pause <DomId>                    Pause execution of a domain
reboot <DomId> [-w][-a]          Reboot a domain
restore <File>                   Create a domain from a saved state file
save <DomId> <File>              Save domain state (and config) to file
shutdown <DomId> [-w][-a][-R|-H] Shutdown a domain
top                              Monitor system and domains in real-time
unpause <DomId>                  Unpause a paused domain
vcpu-set <DomId> <VCPUs>         Set the number of VCPUs for a domain

<DomName> can be substituted for <DomId> in xm subcommands.

For a complete list of subcommands run 'xm help --long'
For more help on xm see the xm(1) man page
For more help on xm create, see the xmdomain.cfg(5) man page

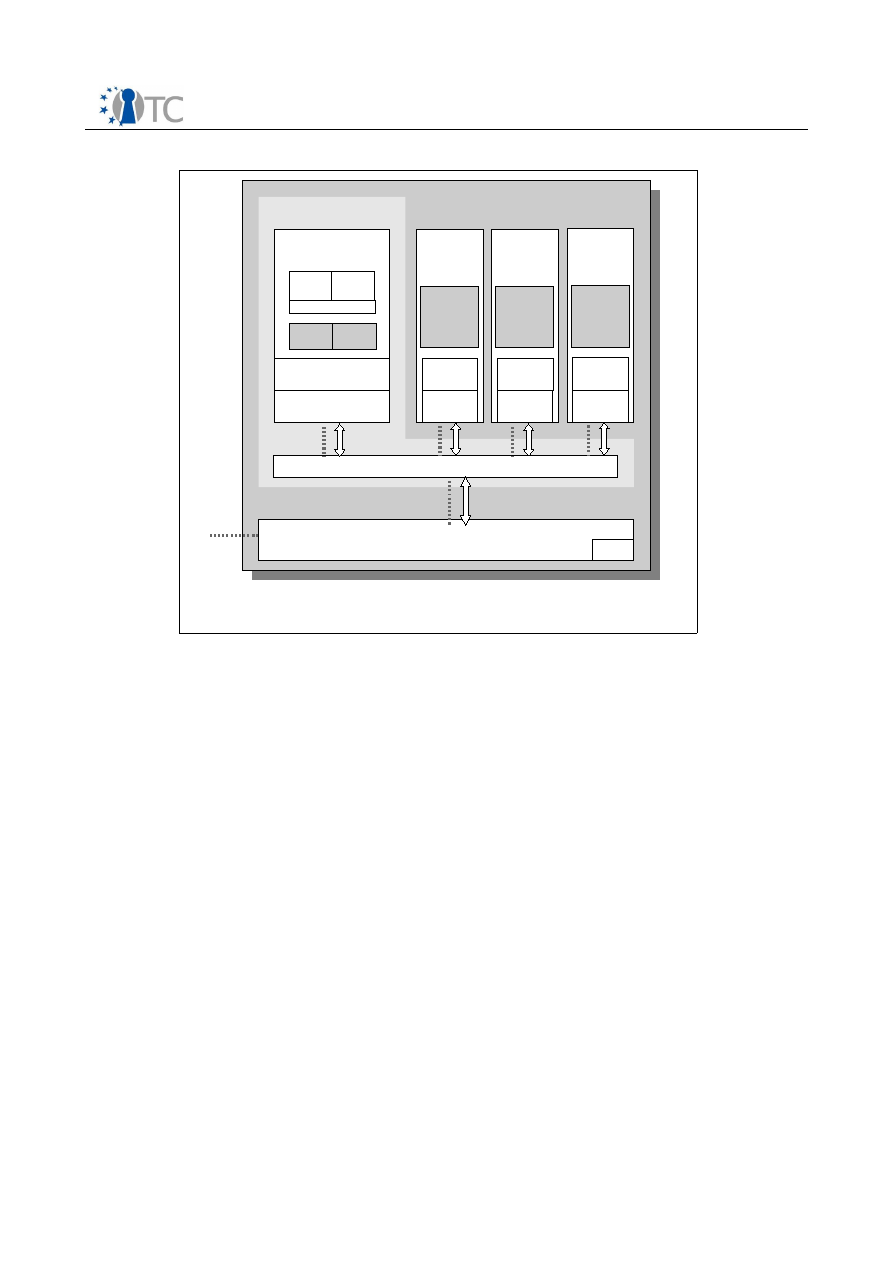

Figure 15: Xen management architecture

Physical Host

Dom0

DomU

xenbus

netfront

blkfront

netback

blkback

xenbus

console

daemon

ctrl

daemon

xenbus

daemon

libxc / lib xen

Xend (daemon)

xm (cmd line tool)

background image





Requirements Definition and Specification

Final | 1.00

9.3.4  Mandatory security policy configuration

It should be possible to configure the mandatory secure policy controls over OS /
service instances on the virtualized platform in a unified fashion for both the L4 and
Xen virtualization layers. The policy configuration API should be at the same level as
the abstractions used in defining policy control requirements in WP5. See section 9.3.6
for more detail on the proposed mandatory policy controls.

9.3.5  Basic TPM management

The Common Management API will also provide support for the initialization and
management of the TPM. Especially, it will allow configuration of access control to the
hardware TPM for various instances. The configuration will be captured as part of the
integrity measurement, either into the TPM itself if the configuration of the access
control relates to the instances part of the TCB, or as part of the integrity and
measurement interface if the configuration relates to the hosted instances. The
measured integrity of the platform combined with the TPM Management interface will
allow management instances to lock specific secrets to the integrity of the Platform,
its TVL+TCB and its configuration, and thus ensure enforcement of security policies of
the management instances.
A specific implementation might chose to either provide a direct access to the
hardware TPM with hardware enforcement of the access control, or provide TPM
functionalities through some proxy. Regardless of the implementation, the interface
should allow an instance specialized in the management of the platform, to perform
standard TPM management functions such as Ownership management and Identity
creation for instance. Should the TPM access be provided through a proxy, the
interface will ensure an authentication and confidentiality at least as good as the one
obtained through standard TCG protocols. This should ensure the TPM Management
Interface to be usable securely by both local and remote management entities. Note
however, that the TPM Management interface should only be accessible locally, and
any remote entity wishing to use this interface will have to rely on a local agent
relaying its actions.

9.3.6  Mandatory information flow policy enforcement mechanisms

An important aspect of WP4 is the ability to place mandatory information flow policy
controls over OS / service instances running on the virtualization layer. The underlying
virtualization layers (L4 and Xen) should provide sufficient functionality to strongly
enforce the policy controls required by WP5. Initially, WP4 intends to support network
based information flow controls over instances running on top of the virtualization
layer.
As a simple example, take an an operating system running on top of the virtualization
layer that is hosting a web server. In this case, it may be desirable to restrict incoming
network traffic to TCP port 80 (the HTTP port). Likewise, outgoing traffic from that
operating system may be restricted to TCP connections already established.
An important point about these controls is that they should be mandatory – even if the
operating system hosting the web server is fully compromised it should not be
possible to subvert the network policy controls associated with that instance. An other
important point is that these controls should be easy to associate with a particular
instance. This ties in with section 9.3.2



above. The controls should be specifiable using

the level of abstraction required by WP5 as far as possible, with the aim of being able

OpenTC Deliverable 02.2

73/141

background image





Requirements Definition and Specification

Final | 1.00

to directly map user security requirements into system configurations. With this in
mind, the underlying access control primitives of the virtualization layers of Xen and
L4 should not be exposed unnecessarily. The underlying virtualization layers may
require additional access controls primitives / mechanisms to be implemented in order
to enforce the required policies.
WP4 will explore with WP5 what the most useful abstractions are for the specification
of policy controls, again with the aim of being able to directly map as far as possible
user security requirements to particular system configurations. WP4 will also explore
the value of system wide and distributed group based policy controls over multiple
instances as well as the initial case of controls that apply to an individual instance
only.

9.4  Xen and L4 specifics

9.4.1  Xen Virtual Machine Monitor

9.4.1.1  High-level Design

The Xen Virtual Machine Monitor is a thin layer of software which multiplexes physical
resources between a number of

domains,

each of which typically hosts an guest

operating system. A domain receives a certain portion of CPU time and physical
memory which it further subdivides between user-space processes running on top of
the guest operating system. Xen enforces the invariant that a given domain may only
access its own physical memory

2

, thus providing isolation and safety. A domain also

has a set of

ports

which can be “connected” to other domains to form a primitive 1-bit

communication mechanism called an

event channel

. Xen must be invoked to connect

a pair of ports between two different domains, and thus can easily check if such
communication should be allowed.
Primitive event channels are analogous to hardware interrupts: they are useful for
notification, but not in general for data transfer. Xen provides one more important
primitive to enable inter-domain communication when required:

grants.

A grant is

effectively an access token for a page of physical memory, conferring read-only, read-
write or “map” permissions to a particular domain. Only the owner of a physical page
may issue a grant. This is done by invoking Xen which can check the page ownership
as well as the target and mode of the grant – only if this is permissible under the
current access control policy will the grant issuance proceed.
By using these various primitives, Xen can securely multiplex a set of guest operating
systems on a single physical machine. However to more fully support the TVL, support
for

security services

 running in isolated tasks is required. This involves creating a

simple single address space “operating system” with cooperative multi-threading
along with support libraries and functions to effectively use event channels and
grants. In addition, support must be added to enable the use of 1.2 TPMs for integrity
measurement and attested boot. Finally Xen needs to be enhanced with support for
IOMMU and related I/O protection hardware as and when it becomes available (e.g.
Intel's VT-d).

2 An exception, explicitly using shared memory communication via

grants

, is described below.

OpenTC Deliverable 02.2

74/141

background image





Requirements Definition and Specification

Final | 1.00

9.4.2  L4 Virtual Machine Monitor

9.4.2.1  High-level Design

The L4 microkernel is a minimal software layer, which multiplexes basic physical
resources such as memory pages, CPU time, and I/O ports among various servers.
Multiplexing of higher-level resources such as network packets or hard disk devices is
done by

L4Env

 servers. This multi-server approach results in a small Trusted

Computing Base TCB, clean interfaces between the various components, and strong
isolation. As a consequence, a compromised server cannot affect the whole system.
This basic platform supports running multiple instances of paravirtualized guest
operating systems, such as L4Linux.
The current L4 microkernel provides isolation and a message transfer mechanism.
However, it cannot restrict the communication and sharing of memory among various
servers. We will extend the microkernel with a simple mechanism to enforce
communication restrictions and we will explore capability-based solutions. Mandatory
access control on higher levels either can be mapped to communication control or
must be implemented in servers.
To support authenticated booting of

trusted services,

 we will provide the Open Secure

LOader OSLO, which uses the

skinit

 instruction on AMD SVM platforms to generate a

Dynamic Root of Trust for Measurement (DRTM). OSLO is responsible for measuring
the microkernel and the basic servers using a TPM. Additional servers or guest
operating systems started on top of this microkernel-based platform are measured by
a server providing minimal virtual TPM functionality. Using such a TPM abstraction
allows to create a tree of independent authentication chains as well as to minimize the
complexity of the virtual TPM server.

9.4.2.2  Management interface

The three areas of the common management interface will be implemented as follows.
Firstly, the interface for basic life-cycle management of an OS instance running on top
of L4 will provide a subset of the functionality offered through the Xen command line
interface. Configuring, starting and stopping of VMs will be supported. Migration of
L4Linux instances should be possible as well. Fine grained accounting of resources is
out of the scope of the first 18 months. Secondly, configuration and management of
the mandatory information security policies associated with the OS instances will be
implemented based on a common policy language developed by HP, CUCL, and TUD.
Finally, for the basic TPM management functionality the input of WP5 is needed. The
interface should be as small as possible.

9.4.2.3  Offered Services

On the lowest level, we will provide the

O

pen

S

ecure

LO

ader OSLO and the L4/Fiasco

microkernel. The microkernel will be supported by a set of

L4Env

 core servers such as

memory pagers and an application loader. We will also provide the

ORe

 network

multiplexer, which allows to share a physical network interface card among multiple
VMs. Furthermore, we will implement a server for Virtual TPM support.
Multiple instances of L4Linux 2.6 will be used to provide isolated VMs.

OpenTC Deliverable 02.2

75/141

background image





Requirements Definition and Specification

Final | 1.00

Full virtualization of the L4-based platform is not a goal for the first 18 months of the
project. For the time being, we will use the paravirtualization approach implemented in
L4Linux. We will not offer a trusted graphical user interface (GUI).

OpenTC Deliverable 02.2

76/141

background image





Requirements Definition and Specification

Final | 1.00

10  Workpackage 05: Management of OpenTC Framework

WP 5 delivers the infrastructure that configures and manages the Virtualization Layer
of WP4 in order to provide the rich security services required by the OpenTC
applications (WP6, WP8).
The Virtualization Layer built by WP04 constitutes the foundation of the OpenTC
framework. It is capable of running multiple compartments (applications, agents, or
virtualized operating systems) on the same hardware platform while guaranteeing
strong isolation as well as enforcing given security policies.
In order to enable the Virtualization Layer core to work and to provide the functionality
required by the security-critical applications, a variety of infrastructure components
are needed. Workpackage 05 specifies and builds the following layers (see Figure 18):

The

security services

 provide high-level security services that are essential

for the Virtualization Layer to function. In addition, they provide security
assurances and rich functionalities that applications of WP06 and WP08 require.
By leveraging the OpenTC platform, these security assurances will go beyond
the security provided by today’s security services in software or on smart cards.

The

security management services

 provide services to manage the OpenTC

platform. This includes keys as well as security and networking policies. Security
policies define how the kernel and the compartments are configured in order to
implement the higher-level security requirements of applications. Networking
policies define the connectivity of the virtual networks as well as flow policies
among them. A particular focus in this area is the privacy-enablement of all
components. It also includes certificate and key management as well as life-
cycle management for the trusted components (e.g., Trusted Platform Module
(TPM) in the the case of TCG) that plays a crucial role for security functionalities.

Management applications

are components to allow users to configure and

manage the OpenTC platform. There are two management applications that we
will build. A trusted platform agent provides a GUI to individuals using a
machine, whereas a DMTF-CIM provider provides an XML management interface
that enables automated management of OpenTC machines.

These goals are achieved by implementing a number of security services on both
hypervisors. These security services provide the functionality needed by the operating
system to satisfy these goals.

OpenTC Deliverable 02.2

77/141

background image





Requirements Definition and Specification

Final | 1.00

Workpackage 5 is the first overall approach to building an integrated infrastructure for
multilaterally-secure trusted computing. As a consequence, we face various research
and integration challenges. Some of the key challenges are:

Policy management

: This concerns the establishment of a security policy management

for both local hosts and large clusters of machines. The goal is to provide a unified
interface for managing the security-relevant configurations and security policies
of the underlying Virtualisation Layer such that the machines can meet overall
security requirements. One example is to define overall security requirements
(such as corporate security guidelines in an intranet) and then automatically
break them down into per-platform policies that assure that the cluster achieves
the overall security objectives.

Multilateral security

: This concerns the capability of the trusted infrastructure to

satisfy the (security) requirements of different parties with different (and possibly
conflicting) interests. One example of such seemingly conflicting interests is that
citizens demand full privacy including secrecy of the software used whereas
enterprises and governments want to verify that their security requirements are
met. One approach towards resolving this paradox is to enhance the new
paradigms

Property-based Attestation

 and

Direct Anonymous Attestation

that

OpenTC Deliverable 02.2

78/141

Figure 17: Layers of the OpenTC Framework

Virtualisation

Layer (WP04)

Trusted

Platform

Agent

CIM

Provider

Security

Services

OpenTC

Applications

(WP6+8)

Virtualisation

Layer

Security Services

Layer

Operating

Systems

Application

Layer

 Operating Systems Layer

Management

Services

Security

Management

Layer

background image





Requirements Definition and Specification

Final | 1.00

allow anonymous proofs of platform capabilities towards arbitrary credentials and
security assurances. We expect to resolve this aspect by using mechanisms that
allow verification of the properties and capabilities of the components in the sense
of multilateral security, i.e., without violating the defined privacy policies.

Trust management

: In order to enable a remote party to evaluate the trust in a

component or platform, it is essential to develop a well-defined concept of
identities, roles, and assurances. On the technical side, this requires resolving key
management challenges that are posed in a equalized environment. One example
of such a challenge is seamless migration: As we aim at enabling seamless
migration of virtual machines between physical machines, the key management
needs to enable the consistent migration of the hardware-protected keys that
belong to this virtual machine.

10.1  The OpenTC Security Services

This section provides an overview of the security services. The OpenTC security
services are based on the Virtualisation Layer and provide security services to the
applications layer. In addition, they provide management interfaces to the
management layer.

In this section we describe general services that are implemented on most platforms.
In the next section we describe services that are platform-specific.

10.1.1  Trusted User Interface

The trusted user interface service provides a secure path between the platform and
the user. This trusted user interface is separate from the user interfaces of the hosted
platforms. The main goal of the trusted user interface is to authenticate users and
communicate the trustworthiness of the different compartments to the user. Another
important goal is to communicate security-relevant information such as warnings to
the user reliably.
For devices used by individual end-users (as opposed to servers), the Trusted User
Interface may be implemented as a Graphical User Interface that controls the graphic
adapter and the input devices, i.e., mouse and keyboard, to establish a trusted path

OpenTC Deliverable 02.2

79/141

Figure 18: Security Management Components sorted by Abstraction

Trusted User Interface

Cryptographic

Services

Key Management

Policy Enforcement

TPM Services

Compartment

Security Manager

Compartment

Trust Manager

User Identity Manager

background image





Requirements Definition and Specification

Final | 1.00

between the user and a compartment. It realizes compartment authentication by
secure compartment window labels containing user-readable information about the
compartment’s configuration such as a unique compartment name provided by the
Compartment Security Manager. The Trusted GUI strictly enforces a strong isolation
between compartments to prevent information leakage on the GUI level. Unauthorized
compartments cannot, for instance, access the graphical output of other
compartments.
In a secure banking scenario, for example, the user would easily be able to note, from
the label or the color of the banking compartment window border provided by the
Trusted GUI, that the integrity and confidentiality of his security-critical input is indeed
protected.
Hosts in data centers do not need a graphical user interface to an administrator. The
trusted user interface can therefore be implemented by one of the following options:

Secure console: One option to implement the trusted user interface is by means
of a secure remote shell such as SSH that enables an administrator to issue
administration commands.

Management Interface: By means of a standardized management interface such
as SNMP and DMTF-CIM, management software can manage a platform. This
includes the management of security functions.

For data centers, the second approach will be our focus. More details can therefore be
found in Section 10.2.

10.1.2  User Identity Manager

The User Identity Manager administers users (each defined by a name, a state (e.g.,
user is logged in) and a secret (to be used for authentication purposes)), roles and
groups. It is a high-level abstraction of identities and attributes that are associated
with a user.

10.1.3  Compartment Security Manager

In a secure system that should be capable of executing potentially malicious
compartments without violation of the mandatory security policy, the installation and
update of compartments and security-critical services have to be controlled by a
trustworthy service. One task of the Compartment Security Manager therefore is to
help users to derive the minimal set of privileges for a desired compartment, and to
translate and provide the results. As the Compartment Security Manager enforces a
security policy defined by the platform owner, it is, for instance, possible to ensure
that the entire system or only a compartment behaves like a closed system that can
only be manipulated by authorized entities.
The Compartment Security Manager also defines the compartments that are allowed
to be executed. Before a new compartment is started, the Compartment Security
Manager measures the integrity of the compartment’s binary. After having verified
that the compartment conforms to the security policy, the compartment is started.
Moreover, the Compartment Security Manager offers a mapping from local process
identifiers to global unique compartment identifiers. The compartment identifiers can
be used by other compartments to derive the compartment’s configuration in order to
enforce their own compartment-related policies.

OpenTC Deliverable 02.2

80/141

background image





Requirements Definition and Specification

Final | 1.00

10.1.4  Compartment Trust Manager

The Compartment Trust Manager reports compartment identifiers (and thus implicitly
the compartment's configuration) provided by the Compartment Security Manager to
remote compartments. Moreover, it offers an interface to create and certify
cryptographic keys that are bound to compartments. By means of the Trust Manager,
a remote trusted channel can be established between different entities (platforms).
An example use case is that of secure content distribution. The content and a
corresponding license are encrypted with a key provided by the Trust Manager and
sent to the user via a trusted channel. The Trust Manager certifies that the
cryptographic key used to encrypt the content and the license is bound to a specific
compartment (or a compartment with a specific property); the identity and attributes
of which are reported by the Compartment Security Manager. Through this means it
can be ensured that the license is respected by the compartment. In addition, the
certificate issued by the Trust Manager implies that the compartment runs in a secure
environment.

10.1.5  Storage Manager

The Storage Manager enables other compartments to persistently store their local
states. Optionally, it preserves the integrity, confidentiality, and freshness of the
managed data and/or binds compartment data to certain properties, e.g., a user, a
role, the Trusted Computing Base (TCB), or the compartment’s configuration. The
latter ensures strong isolation of persistently stored compartment states, because it
prevents compartments from accessing the state of another compartment.
In a typical use case, the Storage Manger interacts with the Compartment Security
Manager, the User Identity Manager and the TPM Server: A user might want to save a
text document that no one else should be allowed to read; the document should be
bound to the user. To achieve that, the text editor sends the document to the Storage
Manager.

The Storage Manager contacts the Compartment Security Manager to get an
affirmation that the document indeed originates from the assumed compartment, and
then checks whether the compartment is actually allowed to bind documents to the
user (for, e.g., privacy-related reasons, it is reasonable not to generally allow
compartments to bind data to users). Given that the answer is positive, the Storage
Manager now connects to the User Identity Manager, which verifies whether the given
user indeed exists, is logged in and is allowed to bind data to herself. In case all is
cleared, the Storage Manager contacts the TPM Server in order to be provided with the
TPM functions needed to finally bind and save the data.

10.1.6  TPM Server

The TPM Server provides compartments with an abstract and simple interface to the
functions of the Trusted Platform Module (TPM), independent of varying TPM
implementations of different vendors. One interface that can be used to expose these
services is the TPM 1.2 interface, which has been standardized by the TCG. As a
consequence, the TPM service may comprise the ritualized TPM that has been
described in the OpenTC proposal.

OpenTC Deliverable 02.2

81/141

background image





Requirements Definition and Specification

Final | 1.00

10.1.7  Cryptographic Services

The security services discussed above are based on different cryptographic schemes
and protocols which are logically summarized in this service. The cryptographic
services require platform keys and TPM services. Furthermore, they provide access to
the key management infrastructure that is detailed in Section 10.4 and provide
security protocols such as SSL/TLS that leverage the platform's security capabilities.
They also offer a user-level interface to selected cryptographic services of
Workpackage 03

.

10.1.8  Virtual Network Management

In data centers it is essential to manage different virtual networks and the association
of hosts to networks efficiently. For managing this association we have developed a
model called “trusted virtual domains”. Trusted virtual domains are comparable to
today's security domains except that they provide well-defined assurances that are
automatically enforced as well as automated membership management. The goal is to
only admit hosts to a domain that satisfies the security policy of the domain.

10.2  OpenTC Security Management Services

We aim at managing a set of multiple trusted platforms with embedded TPMs and
implementation for Trusted boot. The set of platforms is under the control of a single

Management Entity

. From a logical point of view, this entity is centralized; from a

physical point of view, however, it can be implemented as a central controller or as
decentralized, co-operating agents.
Each trusted platform runs a Virtualization Layer hosting a set of virtual machines and
services. The responsibility for managing the virtualized environment of a specific
platform lies with the platform's

Management Layer

, which in turn requires support

from the following security services:

Hardware Management

This service provides functionality to allow both local

and remote management software to securely perform critical hardware
management operations. One important piece of hardware that needs special
management functions is the Trusted Platform Module. Management tasks
include taking and revoking ownership of the TPM, creating platform identities,
and migrating owner-specific keys. This service must honor and enforce policies
defined by the Management Entity when performing these and similar actions.

Identity Management.

 On a given physical machine, this service allows the

VM Management Component

 to securely and provably create and receive

credentials for platforms and users. During interactions with the centralized

Management Entity

, these credentials are used to identify the local

Management Component

and to establish its trustworthiness. Access to these

credentials is subject to policies defined by the Management Entity. This
services provides the security context for the compartment trust and security
managers as well as the storage managers. It uses the public key infrastructure
outlined in Section 10.4.

Compartment Security Management.

 This service supports the creation and

management of Virtual Machines on behalf of the

Management Entity

 in a

secure manner. In particular, the

Management Entity

 uses this service to ensure

that no other entities can access the data contained in the image of the VM that

OpenTC Deliverable 02.2

82/141

background image





Requirements Definition and Specification

Final | 1.00

is instantiated.

Compartment Trust Management.

This service is used by the platform's

VM

management component

 to prove the platform integrity to the

Management

Entity

. In particular, it supports the deployment of policies and configurations

provided by the

Management Entity

Key Management Services:

Services to manage keys for platforms and other

services. As key management is a complex service that requires various
infrastructure services, we provide a detailed description in Chapter 10.4.

Trusted Platform Module (TPM) Management

 According to the TCG

specification, a TPM should be able to work in a number of different roles,
handle key and data material in diverse operational conditions while supporting
various user roles. A special SW package, the TPM manager, will control the TPM
and allow the user to configure the TPM as required.

We now describe the latter two management services in more detail.

10.3  Management of the Trusted Platform Module

We now outline the services that are needed to manage the TPM and enable the
services that depend on the TPM.

10.3.1  Initialization of the Security Platform

An administrator shall be allowed to start the Security Platform Initialization process.
During this initialization phase, the following capabilities are required:

Take ownership

 of the Security Platform by the Security Platform Owner

(mandatory)

Initialization of the

emergency recovery

 feature, which is required for a restore

process (creation or assignment of Emergency Recovery Token / Public Key).
This is a non-mandatory function recommended by the TCG. For reasons of
operational continuity, it is advisable to implement this functionality.

OpenTC Deliverable 02.2

83/141

Figure 19: Security Management Components

Management

Entity

Management

System

Advanced

Security Services

Advanced

Security Services

Advanced

Security Services

Trusted Virtualization

Layer

Basic Security &

Integrity Service

Common Security

Interface

TPM

Management

VM

VTPM

Customers

VM

Customers

VM

Customers

VMs

VTPM

Interface

to Customers

Customers

Common Management

Interface

background image





Requirements Definition and Specification

Final | 1.00

Initialization of

password reset

 feature (creation or assignment of Password

Reset Token / Public Key) (optional).

If the TPM Chip has already been initialized with a Security Platform Owner and
Storage Root Key (SRK) but the configuration data of the Security Platform
Solution does not match this state (for instance, because a new OS was
installed or another partition was created on the same platform), the
authentication of the Security Platform Owner is performed as the first step.

The Security Platform Initialization process must be able to handle loss of
electrical power during platform initialization.

10.3.2  TPM Configuration

A local administrator has the ability to process the emergency recovery initialization
and perform the password reset initialization steps at any time after a successful
platform initialization has been performed.

Enable and Disabling the TPM: the procedure indicates the current TPM state
(enabled or disabled) and allows the Security Platform Owner to change it.

Defining TPM Usage Policies: A user may choose not to use all TPM functionality.
This requires that a user can enforce a policy on the TPM. Examples are to use
the TPM for key management but not for attestation. Another example is to
temporarily disable the TPM. The procedure indicates the current TPM state
(enabled or disabled) and allows a user to temporarily disable the TPM Chip.
This step is non-reversible for a boot cycle. The system must be rebooted to re-
enable the TPM. The platform administrator (TPM owner) can disable this
feature via a policy setting.

10.3.3  TPM Backup and Restore Functionality

The Backup and Restore feature safeguards for situations of data loss in case of a
hardware or storage medium failure or destruction of the system. With this feature,
keys and certificates, the configuration and feature data of a user are saved. It also
covers accidental erasure or overwriting of data.
The backup storage medium can be a hard drive, a server share or a separate storage
device such as a removable medium. The TPM management procedure handles
archive locations in the Back-up and Restore feature extensively as it does not require
the user to provide multiple locations.

10.3.3.1  Emergency Recovery

This feature is used to support emergency recovery in the event of a damaged
Security Platform, damaged Platform Security Chip or when the Storage Root Key is
lost. Therefore, the basic user keys are transferred to another medium that is not
bound to any specific PC. This software release allows the use of other storage media
for the Emergency Recovery Token such as a floppy disk or a network share with
restricted access. In a future version of the software, a smart card or secure USB-
token will also be allowed to store this token.

OpenTC Deliverable 02.2

84/141

background image





Requirements Definition and Specification

Final | 1.00

10.3.3.2  User-Initialized Key Migration

In contrast to the Emergency Recovery feature, key migration addresses the user's
ability to utilize keys (including credentials) on another platform. This process allows
the transfer of keys to another platform. This action requires another Trusted Platform
to successfully complete the migration by the Security Platform Owner. The keys are
not allowed to leave the protected environment of a TPM-secured system.
The user can transfer (migrate) his or her keys and the related credentials (USK, CSP
keys, PKCS#11 keys and Certificates) from one TPM system to another. User-initialized
Key Migration utilizes the rewrap mode as specified by TCG.
The Security Platform is designed to address the situation in which a user has
forgotten their Basic User Password. Also, a user does not have to remember any
secret data to process a successful password reset. However, it is expected that the
user will have a removable medium to store a secret that is required for the successful
completion of the password reset process.

10.4  Key Management Services and Infrastructure

The goal is to build a trusted computing (TC) enabled PKI and to resolve the challenges
arising during its implementation. This includes flexible management software on the
user side, key and certificate exchange protocols aware of additional trusted
computing features, and servers offering identity creation, revocation and verification
services of credentials. The infrastructure building block requirements, possible
adaptations and enhancements of (existing) public key infrastructure services are
researched in Workpackage 05d.

10.4.1  Public Key Infrastructure Overview

One approach to address the “trust problem” of a client/server connection is the use
of a public key infrastructure. By using specialized cryptographic methods and their
application in certificates, an assessment of trustworthiness of a communication
partner can be realized. Although a server can show its identity to a client with a
credential, the client is still forced to prove this credential and decide its
trustworthiness. Only after this step can the client connect to a service and can all
communication be handled over a cryptographically secured channel. From the server
point of view, it has to be verified that the connecting client is really the one he or she
claims to be (think e.g. of e-banking applications).
There are inherent administrative needs of a security infrastructure. One cannot
simply claim some information to be true: a third party has to attest the information
(e.g. ones identity or the identity of a web server) by issuing credentials. The collected
evidence must be distributed and made available on-line in order to be (re)checkable
at later times by anyone. The management of the security tokens throughout their
entire life-cycle in the PKI must be considered from the beginning until their phase-out
and appropriate processes must be specified.

10.4.2  Trusted Computing enhancement of PKI

The perspective of having a TPM hardware module in every PC in the near future – or
even other types of connected equipment such as mobile phones – provides both an
improvement and new challenges for a PKI. The TPM itself provides a unique and

OpenTC Deliverable 02.2

85/141

background image





Requirements Definition and Specification

Final | 1.00

tamper-resistant cryptographic key pair which can be used for securing endpoint to
endpoint connections. The association of these key with identities, the creation of
person bound as well as anonymous certificates, however, require new management
practices because of the unchangeable TPM. The collision of the concept of a unique
identifier and the importance of preserving a level of anonymity while being part of a
security infrastructure will have to be evaluated in different application scenarios. This
Workpackage works on the design and implementation of a PKI capable of supporting
as many usage scenarios as possible, while e.g. the extent of key backup and policy
migration of hardware-bound keys is still to be determined.

10.4.3  Privacy-enabled Key Management

In Trusted Computing the TPM module itself is a part of the demonstrated trust level.
Being part of a network and utilizing a well-known secure TPM obviously increases this
trust level and enable one to securely execute transactions. A “Privacy CA” server
embodies a trusted third party and thus the PKI component turning TPM-specific
information into certificates called Attestation Identity Keys (AIKs), which prove the
backing of a TPM module but do not reveal the specific user. These AIKs can be used
further in cooperation with traditional certification authorities to derive common X.509
style certificates. A PKI must provide defined interfaces and processes to allow the
status of the credentials in the system to be queried. On revocation of a TPM and its
derived certificates all affected parties must be reachable immediately or be informed
of the change in status on their next related PKI operation.
As an alternative implementation to the Privacy CA, the new TPM standard (1.2) has
defined a protocol called “Direct Anonymous Attestation” (DAA). The goal of DAA is to
enable users to create unlinkable pseudonyms without interacting with a third party
such as the Privacy CA. Once a platform has obtained its DAA keys, it can visit any site
and establish a new attestation identity key (AIK) while proving that the key is stored
in a valid and certified TPM platform. Besides providing open implementations of DAA
as a stand-alone protocol, a focus of OpenTC is the integration of DAA into existing
protocols such as SSL/TLS for both platform and user authentication (see SWP03c).
This enables users to anonymously browse web-sites while securely establishing
unlinkable pseudonyms for secure transactions in the background.
The following services will be implemented:

Privacy CA server (optionally TPM-enabled)

Classic CA server (optionally TPM-enabled), enabled to issue X.509 certificates
including the SKAE extension

DAA roles as stand-alone servers: issuer, verifier and anonymity revocation
authority (optionally TPM-enabled)

The services and the authorities will communicate through network protocols. For
communicating with the CA and PCA, the XKMS and CMC protocols will be developed.
For communicating between the various DAA roles, a dedicated network protocol will
be defined as well as standard formats for DAA data and messages: these aspects will
be implemented by an overall DAA wrapper built on top of the DAA functions provided
by TSS.

OpenTC Deliverable 02.2

86/141

background image





Requirements Definition and Specification

Final | 1.00

10.5  Implementation Architecture

We now outline how the core security and management services are implemented on
the different implementations of the Virtualisation Layer.

10.5.1  Implementation on L4

On L4, the OpenTC security and management services are compartments that run
directly on top of the L4 micro kernel. Each service provides a well-defined interface
for inter-process communication (IPC). Interaction between services or between
instances of L4Linux and services is performed by using these interfaces. An IPC call
that is issued by a process first goes to the L4 micro kernel, which then transfers it to
the callee. The IPC mechanism is implemented similarly to the IPC architecture of
CORBA.

10.5.2  Implementation on Xen

The Implementation of the security and management services on the Xen Hypervisor
is split into two parts. The low-level part is implemented directly in the Xen Kernel
running with full privileges. This part contains the security enforcement of the security
services. The lower-level part controls the basic access, communication and
enforcement and provides a well-defined interface to the higher layers. The higher
level includes non-enforcement parts of the security services as well as the
management components. Both run in a privileged service VM (usually called Dom0 in
Xen) or in a special security service VM as normal user processes.
The Compartment Security Manager, the Compartment Trust Manager and the Storage
Manager directly interface Xen by using the provided low-level interface. The TPM
Server component is also split into a low-level hardware-interfacing part for device
abstraction, which is implemented in the service VM Linux Kernel, and the TPM Server
that uses this abstract interface to multiplex the Hardware TPM in many virtual TPMs
and provide these to Xen via the low-level interface. For communication between
these services in the service VM IPC is used.

10.6  Management Applications

We now describe the applications that enable owners to manage their machines. We
distinguish two types of applications:

The Trusted Platform Agent (TPA) allows individual end-users to manage their
own machine.

A management agent based on the DMTF-CIM standard allows remote
automated management of machines in enterprises.

10.6.1  Trusted Platform Agent (TPA)

A local management software, the Trusted Platform Agent (TPA), will offer full control
over all issues of the system to the user. This starts with the operation to be done to
use the capabilities of a Trusted Platform, the so-called “take ownership” operation
during which a root system identity is built within the TPM. Further operations are the
creation and handling of extra keys needed for various applications and different users
– there may be distinct secure storage areas, dedicated keys used for backup and
migration, etc. The option of full activation/deactivation at will of a TPM is a necessity

OpenTC Deliverable 02.2

87/141

background image





Requirements Definition and Specification

Final | 1.00

to keep user trust in the TC concept.
The local TPA is also capable to interface with a PKI and its authorities (servers) to
enable the use of TC features in a networking context. For endpoint to endpoint
communication this requires a common standardized PKI protocol capable of carrying
“traditional” PKI exchanges as well as TC-specific ones. A good choice of a specific
protocol base or the support and extension of multiple ones will hopefully be revealed
during the runtime of this Workpackage while implementing demo applications.
The architecture of the local TPA is shown in Figure 20. The TPA modules that will be
developed in Workpackage 05d are represented as gray boxes.

The Trusted Platform Agent is based on the following components:

A standard user interface to the services implemented by the underlying
modules:

Interface to Privacy CAs for requesting the certification of AIKs

Interface to Classic CAs with support for SKAE X.509 extension

Local repository for certificates

'DAA platform' role running on top of the DAA wrapper

Management of the Trusted Platform Module

DAA wrapper (built on top of the DAA functions provided by TSS) that will
provide the implementation of

standard formats for the exchanged DAA data for using DAA as a
stand-alone protocol or integrated within other protocols,

a network protocol for using the DAA as a stand-alone protocol.

A set of console commands running on top of the TPA API

The architecture of the TPA will be designed to support additional services through the
development of the related plug-ins.

OpenTC Deliverable 02.2

88/141

Figure 20: Trusted Platform Agent

TSS

Hardware TPM

TSS/TPM vDriver

TPM device driver

DAA functions

DAA functions

TPA (Trusted Platform Agent)

DAA wrapper

'DAA platform'

role

Trusted Platform Agent API

SKAE parser

TPM

identities

and keys

mgmt

Console commands

Interfaces to Privacy CA / Classic CA

Std PKI prots

CMC/XKMS

repository

background image





Requirements Definition and Specification

Final | 1.00

The local TPA will be designed to run on both a single box with a conventional OS and
within a Virtual Machine provided by the OpenTC framework.
In the context of the OpenTC framework, one instance of the local TPA will run within
the Management VM for managing platform-wide tasks such as the management of
the TPM and requesting the certificates for the trusted services: this instance of the
TPA will run itself as trusted service and will therefore be part of the TCB.
Other instances, in contrast, might run within generic VMs for VM-specific tasks such
as requesting the certificates for services and applications running within the VM itself.
These instances will not be trusted because they run outside the TCB, but they will
rely on a virtual TPM that will be part of the TCB.
For managing a TPM, it is essential that the user interface be context-aware. The
overall Security Platform state depends on the individual state of the TPM Chip, the
BIOS settings for the Platform Security Chip, the Security Platform initialization status
and the Security Platform User status. Because of this complexity, users will need
guidance on actions that are reasonable to perform at a given state. The guidance has
to provide status-sensitive alerts, dynamic menus and tips. The current status of the
Security Platform must be visible to the current user.

10.6.2  Remote Management Provider (DMTF CIM)

To allow remote management of servers, we will implement a so-called DMTF-CIM
provider. This agent runs on each server and provides an XML-based interface based
on the DMTF-CIM standard for managing the machine.
This management interface will wrap all functions that are needed to manage a server
remotely . Examples include managing the life-cycle of virtual machines, provisioning
keys and security policies, and configuring the hardware.

OpenTC Deliverable 02.2

89/141

background image





Requirements Definition and Specification

Final | 1.00

11  Workpackage 06: Trusted Computing Applications

11.1  General

This Workpackage includes the development of test and prototype applications that
show how to use the TPM and the trusted services provided by OpenTC-OS and which
are advantages of such technologies. These use examples and proofs of concept span
Digital Rights Management, messaging system, electronic signatures, encrypted file
service and multi-factor authentication.

11.2  SWP06a: Interoperable DRM

The Workpackage will provide a preliminary DRM system specification



which will be

followed by a concept prototype. The concept prototype will demonstrate (at least
basic) DRM functionality supported by the OpenTC platform, but will be limited in
terms of real-time capability and media type support. Integration of specifications
from WP3 and WP4 will lead to a final system specification which will include platform-
dependent details and adaptation for the L4- and XEN-based trusted computing
systems. The final deliverable will be a complete system prototype supporting a
multitude of media types and a complete DRM capability spectrum.

11.2.1  Requirements breakdown

The Interoperable DRM system application scenario describes a DRM system that is
based on Trusted Computing and MPEG-21 for protecting multimedia content. The
system mainly consists of 2 components: the

DRM core

 and the

secure media player

The DRM core is a secure service that handles content licenses and encryption keys,
exposing its functionality through an application programming interface (DRM core-
API) to applications. The media player is a secured application that uses the DRM core-
API to render protected content. After the integrity of the image of the VM has been
checked, the application runs in a secure environment of a separate VM
The DRM system expects the presence of an underlying trusted system and requires
the following services from it:

Secure Environment:

 The DRM core and the media player application may

only execute when a secured environment is present. Thus, the underlying
system must provide:

Memory isolation and protection of processes running in the secure
environment.

Secure audio and video output paths to certified (signed) hardware drivers
and/or hardware No unauthorized application or service should be able to
read from this output path. Optionally cryptographic protection between the
driver and the hardware can also be applied when supported by the
hardware.

A means to measure the integrity of the DRM system and associated
applications. This implies the existence of a method for measuring
applications before they are loaded and executed.

Cryptographic services.

 The DRM core requires several cryptographic

services which have to be provided by the underlying system:

OpenTC Deliverable 02.2

90/141

background image





Requirements Definition and Specification

Final | 1.00

A Trusted Software Stack (TSS)

, supporting AIK generation and sealing.

AIKs are required for authentication/remote attestation purposes, while
sealing is used to lock cryptographic keys to specific system configurations.
The core can thus ensure that content encryption keys are only accessible
when the systems integrity is ensured.

Trusted Storage. The

 DRM core will use trusted storage for its license and

key databases.

A system-wide

database of certificates

 of root certification authorities, along

with services to verify certificates.

Central policy management:

 Operation of the DRM core and the media

player application will be subject to an operation policy of whatever kind. It
would be beneficial if the underlying system can provide a system-wide policy
management facility, so that DRM-related configuration can be seamlessly
integrated into the management tool.

11.2.2  Planned features

One main feature of the system will be the interoperability to other DRM systems. The
OpenTC system will be based on the MPEG-21 standard, which is an international
standard developed by ISO. The standard is a joint development by a number of
companies from the multimedia sector and it is a good basis for a wider support.
Furthermore the system will contain a component that provides support of other
existing DRM systems.
The principal scope of the OpenTC DRM system will be the protection of multimedia
content. Generally the system can also be used to protect other contents, e.g.
personal or secret information. There exists the need for a secure DRM system in the
medical sector, which governs the access to the medical records of the patients.
Another feature of the research in this area will be the conception of a “fair” DRM
system. That means that the resulting systems will be beneficial not only for the
content provider, but also the consumer of a content. It is planned that all participants
in the system will be treated equally, so that every participant can either act as a
consumer or as a content provider. A content provider can use the system to protect
his own creation against any misuse.
Nevertheless the content provider can still decide to restrict the usage of the content
in an “unfair” way. This decision isn't based on a technical problem, it's more of a
consequence of the business model. In order to have a fair usage of DRM, each
participant has to consider carefully its business model. The business model should
provide different added-value to the user, by granting additional rights to the user. We
foresee the following rights, which would support a “fairer” usage of DRM:

copy

burn

sell

With the right to “copy” the consumer can create a limited amount of private copies.
By transferring these copies, the content can be shared with a small number of
OpenTC devices, which belong to the domain of the user. This domain has to be
defined beforehand by the user and has to be limited to a maximum number of
devices. In the same way, the right “burn” grants the user to save the content on a

OpenTC Deliverable 02.2

91/141

background image





Requirements Definition and Specification

Final | 1.00

disc. “Sell” means, that a consumer can sell the content to another user. With these
technical possibilities, the DRM works in a way transparent to the consumer.

11.2.3  High level Specification and Design

The main components of the system are the DRM core and the media player
application. The DRM core is an operating system component that handles tasks
related to interpretation and management of licenses and content encryption keys,
while the media player is a secure application that uses the functionality exposed by
the DRM core to access and render protected content. By placing all key and license-
related functionality in an operating system component as a secure service, we enable
a higher level of trust from all involved parties toward the DRM system. The system's
overall architecture is shown in Figure 21: the components developed for this Sub
Workpackage are represented as grey boxes.

11.2.3.1  DRM core

The DRM core handles the following tasks:

License parsing services.

The DRM core contains an implementation of the

MPEG-21 Rights Expression Language (REL) and is thus able to parse MPEG REL
license files. In case a foreign license is introduced to the system, the core
invokes the license translation services described below to convert it to MPEG
REL. Whenever the media player application requests an action on a media file,
the core parses the corresponding license to decide if access shall be granted or
not. The respective content decryption key can then be handed out to the
secure player. This implies that the DRM core is sure about the integrity of the
media player application.

OpenTC Deliverable 02.2

92/141

Figure 21: Architecture of a DRM system

Legacy Player

VM

I/O Socket

interface

 to DRM API

OpenTC-Player

VM

Player App

 to DRM API

Legacy Player

App

Linux

OS minimal

vDrivers

Physical Hardware

(CPU, e.g. AMD Pacifica)

Virtualization Layer

  S e c u r i t y   K e r n e l

Trusted

Management

VM(s)

Linux OS

HW Drivers

Linux

OS minimal

vDrivers

Trust

Mgr

TPM

Server

DRM-Core

Secure

storage

TPM

DRM API

License

Trans.

 file access

background image





Requirements Definition and Specification

Final | 1.00

License translation services.

 The DRM core supports translation of licenses

to other formats (e.g. OMA REL) and creation of sub-licenses, i.e. licenses with
modified policies that replace existing ones. This enables the system to import
and export from different DRM systems and devices (e.g. portable devices,
network devices), as well as enable sub-licensing for third parties. Translation
and sub-licensing are only possible when the peer's integrity is ensured.

Secure storage.



The content encryption keys, licenses and other important

information regarding media items are stored in protected databases under the
control of the DRM core. The core seals the master keys for the databases using
the underlying TSS services. This ensures that the databases can only be
accessed when the system is verified to be running in a secure state.

General management services.

 Key and license databases are maintained

by the core. The core's general management services can be used to perform
various maintenance operations on the databases, e.g. listing of licenses,
license terms, decryption key management etc.

Legacy player application support.

 The DRM core provides an interface to

legacy media player applications, that may be preferred by users. The interface
maps a file access of the legacy player to a complete DRM procedure under the
core's control. Thus, the legacy player application will be provided with
decrypted content only if this is allowed by the license, even though the player
is not aware of the existence of the license. Such functionality can be enabled
at the legacy player side with a plug-in mechanism and must be supported by
the legacy player.

11.2.3.2  Media player application

The media player application is able to recognize and playback a variety of media
formats. If protected content is to be accessed, the DRM core is invoked to parse the
corresponding license and provide the content decryption key. Protected content is
only rendered through secure output paths to video and audio drivers. Decryption of
content is handled by the player application in real time.

11.2.3.3  DRM core-API

The complete functionality of the DRM core is exposed through the DRM core-API,
which provides sets of function calls that enable applications to use the core's
services. The function sets map directly to the service classes given above:

License parsing.

Applications can reference existing licenses through unique

identifiers and request the core to check if particular rights are applicable.
Applications receive the respective content decryption keys if the requested
right is granted.

Content key and license management.

 Applications can request insertion or

deletion of licenses and respective keys in the core's databases. If foreign
licenses are introduced, the core's translation services are invoked to translate
the license into MPEG REL. Sub-licenses can be requested from the core, for
portable or other external parties. License management functions also take care
of license download for newly acquired content.

DRM system identification services.

The core-API includes services that

OpenTC Deliverable 02.2

93/141

background image





Requirements Definition and Specification

Final | 1.00

request the core to create AIKs and/or identifiers for attestation and
authentication purposes. There are also functions that describe the core's
capabilities to applications.

Legacy interface.

 This is the part of the API that enables plug-ins of legacy
