Basic Management Interface

D04.1 Basic Management Interface

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Report

Deliverable reference number

IST-027635/D04.1/

1.0

Final

Deliverable title

Basic Management Interface

WP contributing to the deliverable

WP4

Due date

Apr 2006 - M06

Actual submission date

Jun 12 2006

Responsible Organisation

HPLB

Authors

HPLB (David Plaquin, Chris Dalton, Dirk
Kuhlmann)
TUD (Bernhard Kauer, Carsten Weinhold)
CUCL (Steven Hand, Steve Kell)
RUB (Rainer Landfehrmann)

Abstract

Definition of the Basic Management Interface
requirements and first draft of an actual API.

Keywords

BMI, BMI requirements, API

Dissemination level

Public

Revision

1.0 Final

Instrument

Start date of the
project

November 2005

Thematic Priority

IST

Duration

42 months

Basic Management Interface

Final

Table of Contents

1 Introduction .............................................................................................................. 7
2 Design Objectives...................................................................................................... 8

2.1 Context and scope................................................................................................. 8
2.2 Interoperability....................................................................................................... 8

3 Related Work and Standardization Efforts................................................................. 9

3.1 libvirt, an Open Source Library for Resource Management.................................... 9
3.2 CIM....................................................................................................................... 10
3.3 Summary.............................................................................................................. 10

4 Overview of Components and Data Model............................................................... 11

4.1 Trusted Virtualization Layer and Boot-Up Services...............................................11
4.2 Protection Domains.............................................................................................. 12
4.3 Controllers............................................................................................................ 12
4.4 Connections.......................................................................................................... 13

5 Life Cycle and Configuration Management for XEN and L4...................................... 14

5.1 Xen....................................................................................................................... 14

5.1.1 Boot of system and domain 0.......................................................................... 14
5.1.2 Initial configuration of additional domains....................................................... 14
5.1.3 CPU.................................................................................................................. 15
5.1.4 Memory............................................................................................................ 15
5.1.5 Storage devices............................................................................................... 15
5.1.6 Network devices.............................................................................................. 16
5.1.7 Pass-through of arbitrary PCI devices.............................................................. 16
5.1.8 Domain life-cycle management and dynamic configuration............................ 16
5.1.9 Life-cycle management................................................................................... 16
5.1.1 0Dynamic configuration................................................................................... 16
5.1.1 1Configuration of Mandatory Access Control (MAC)........................................ 17

5.2 L4......................................................................................................................... 17

5.2.1 Boot of system................................................................................................. 17
5.2.2 File providers................................................................................................... 18
5.2.3 Loader and loader configuration files.............................................................. 18
5.2.4 CPU.................................................................................................................. 19
5.2.5 Memory............................................................................................................ 19
5.2.6 Storage devices............................................................................................... 19
5.2.7 Network devices.............................................................................................. 19
5.2.8 Life-cycle management................................................................................... 19
5.2.9 Mandatory access control................................................................................ 20

6 Integrity requirements and design........................................................................... 21

6.1 Boot Sequence and Chain of Trust....................................................................... 21
6.2 Design objectives................................................................................................. 21
6.3 Static Root of Trusted Measurement.................................................................... 21

6.3.1 Starting Xen..................................................................................................... 22
6.3.2 Starting L4....................................................................................................... 22

6.4 Dynamic Root of Trusted Measurement............................................................... 23
6.5 Protection Domain Integrity................................................................................. 23

7 Interface Specification............................................................................................. 25

7.1 Interface: Management of Protection Domains (PDManagement)........................25

7.1.1 Method: getVersion() ...................................................................................... 26
7.1.2 Method: allocatePD() ...................................................................................... 26

Open_TC Deliverable 04.1

3/41

Basic Management Interface

Final

7.1.3 Method: getController() .................................................................................. 26
7.1.4 Method: getController() .................................................................................. 26
7.1.5 Method: listPD() .............................................................................................. 27
7.1.6 Method: getDeviceManager() ......................................................................... 27

7.2 Interface: PDController......................................................................................... 27

7.2.1 Method: getPDID() .......................................................................................... 28
7.2.2 Method: setPriority() ....................................................................................... 28
7.2.3 Method: getPriority() ....................................................................................... 28
7.2.4 Method: getCurrentStatus() ............................................................................ 29
7.2.5 Method: requestStatusChange() ..................................................................... 29
7.2.6 Method: destroy() ........................................................................................... 29
7.2.7 Method: setupPD() .......................................................................................... 29
7.2.8 Method: setAllowedConnections() .................................................................. 29
7.2.9 Method: getAllowedConnections() .................................................................. 30
7.2.1 0Method: setConfigParam() ............................................................................ 31
7.2.1 1Method: getConfigParam() ............................................................................ 31
7.2.1 2Method: setRuntimeParam() ......................................................................... 31
7.2.1 3Method: getRuntimeParam() ........................................................................ 32
7.2.1 4Method: listRuntimeParams() ....................................................................... 32

7.3 Interface: PDImage............................................................................................... 33

7.3.1 Method: getImageSize() ..................................................................................33
7.3.2 Method: getData() .......................................................................................... 33

7.4 Interface: IntegrityManagement........................................................................... 34

7.4.1 Method: getIntegrityLink() .............................................................................. 34
7.4.2 Method: getProtectedCredentials() ................................................................. 34

7.5 Data Structures.................................................................................................... 35

7.5.1 Structure: ConnectionPolicy............................................................................. 35
7.5.2 Structure: ConnectionIntegrityPolicy............................................................... 35
7.5.3 Structure: IntegrityReport................................................................................ 35
7.5.4 Structure: IntegrityPolicy................................................................................. 36
7.5.5 Structure: ProtectedCredentials.......................................................................36
7.5.6 Structure: PDDescription................................................................................. 36
7.5.7 Structure: RuntimeCapability...........................................................................37

7.6 Runtime Parameters............................................................................................. 38

8 List of Abbreviations / Glossary................................................................................ 41

Open_TC Deliverable 04.1

4/41

Basic Management Interface

Final

Introduction

The

OpenTC

architecture combines virtualization and Trusted Computing (TC)

technology. Virtualization allows to create software compartments that act as

protection domains

, meaning that interactions between them are subjected to policy

controls. Trusted Computing technology is employed to log and report integrity
information about software components that are started on a system. In

OpenTC

, we

use these mechanisms to ensure the integrity of the virtualization layer and its
management components. A

platform

comprises the system hardware including its

Trusted Computing Module (TPM) and those software components that are checked for
integrity and logged into protected TPM registers.
The

Basic Management Interface

(BMI) described in this document reflects three

principal requirements. First, the

OpenTC

architecture supports two different

approaches to virtualization, and the interface provides a common view and
interoperability from a management perspective. Second, protection domains can be
created and reconfigured dynamically, and the BMI must support a minimal set of
functions needed to configure and manage a hypervisor (or

virtualization layer

) and

hosted components (

protection domains

) through their life cycle. Third, the BMI must

cover functionalities allowing to link the integrity of the platform, as captured by
Trusted Computing mechanisms, with the integrity of various other software
components hosted by the hypervisors. These integrity functions are fundamental to
reliably enforce security policies, and they support the implementation of security
services for reporting platform integrity characteristics to remote parties.
With regard to a unified view on the different virtualization approaches, the current
snapshot of the BMI focused on finding an appropriate common denominator. It is
geared towards supporting the existing hypervisor prototypes and typically does not
assume modifications to their current implementation. However, the work on the BMI
specification has already revealed functional characteristics that are deemed to be
useful in future hypervisor implementations. These extensions will be reflected in later
versions of the BMI.
The document is structured as follows. In the next chapter, we outline the design
objectives of the Basic Management Interface. Section 3 briefly introduces some
existing and ongoing standardization work in the area of virtualization layer
abstraction, and Section 4 discusses the data models that were considered for the
specification of the BMI. Section 5 describes important design and management life
cycles characteristics for the virtualization layers used in OpenTC, namely Xen and L4.
Section 6 is dedicated to integrity management requirements for both virtualization
layers and the link with the chain of trust.
Section 7 covers the actual specification of the BMI. The specification describes the
programming interface in a traditional method, parameters, return value manner. The
interfaces described in the BMI (such as Protection Domains and their controllers, and
the Integrity Management) follow the model exposed in section 4.

Open_TC Deliverable 04.1

7/41

Basic Management Interface

Final

Design Objectives

2.1 Context and scope

The Basic Management Interface is designed to provide a common view and
interoperability from a management perspective, to support configuring as well as
managing of hypervisors, and to expose basic functionalities to log and report the
integrity of the platform and hosted components. Its design has also been driven by
the goal of support functionalities required by various use cases developed in OpenTC.
We anticipate the requirements of these use cases to evolve during the life time of the
project, and so will the actual BMI specification. We will refer to the specific version
discussed in this document as BMI v0.1.
The main focus of the BMI v0.1 was to abstract

Xen

and

specific management

functionality in a way that ensures minimal compatibility. The interface must allow to
initialize a system in such a way that it can host applications developed for the use
cases. The scope of BMI v0.1 is limited with regard to integrity functionality in that it
only supports functions for reporting integrity metrics. As the use cases develop,
extensions of the current BMI specification will finalize draft functions for integrity
management that support secure policy enforcement by basic security services. It will
also include additional functions to support more complex life cycles such as migration
of protection domains, dynamic hardware configuration, and security policies.

2.2 Interoperability

A major goal of the BMI is to allow transparent interoperability for management
software on both virtualization layers. In order to ensure implementability for both Xen
and L4, this specification only defines an interface. In particular, it is is as agnostic as
possible with regard to specific architecture or programming language. The interface
implementation for each virtualization layer will be described as part of future WP04
deliverables.
Due to their specific approaches to virtualization, it was not always possible to
abstract away the differences of

Xen

and

. In some instances, certain features

proved to be impractical or even impossible to include in the current implementation
of a particular type of hypervisor. As our aim for BMI v0.1 was not to impose
modifications on the existing prototypic implementations of both layers, this has
resulted in a small number of “visible” differences in the interface specification for
both virtualization approaches. In these cases, we have taken care that the interface
allows to query the exact features (aka capabilities) supported by each layer. This
allows a consistent implementation of a management solution for the two types of
hypervisors.
The exposure of such differences can be considered a useful input for hypervisor
designs yet to be developed, and they may be addressed by a unified approach in
future implementations.

Open_TC Deliverable 04.1

8/41

Basic Management Interface

Final

Related Work and Standardization Efforts

As new and efficient virtualization and para-virtualization technologies are emerging,
aspects of managing virtualization and hosted components are getting increasing
attention. This has spawned several efforts around software engineering and
standardization, both within the Open source community and the business world.

OpenTC

is primarily interested in a potential exploration and use of open source

solutions and public standards. In the following, we outline two activities that have
potential relevance for our efforts.

3.1

libvirt,

an Open Source Library for Resource Management

Libvirt is an open source C library aimed at managing virtualized resources for Linux
based systems. It is mainly geared towards managing virtualized Linux instances with
focus on

Xen

as hosting environment.

Documentation and source code for this library is hosted at

http://www.libvirt.org.

According to this documentation, the design goal of the

libvirt

library is to implement

“...building blocks for higher level management tools and for applications focusing on
virtualization of a single node (the only exception being domain migration between
node capabilities which may need to be added at the libvirt level)”. In the following,
we give a brief outline of the features and usability aspects of this library.
The stated objective of

libvirt

is to define an API that “allows to do efficiently and

cleanly all the operations needed to manage domains on a node”. The API focuses on
single node management and excludes high level multi-nodes management features
such as load balancing, etc. Nevertheless, the library will most probably include basic
functionalities needed to support such management functions.

libvirt

aims to mask the

heterogeneity of virtualization layers, and by providing a stable API, it intends to hide
variations in future hypervisor implementations. These objectives are very close to
those of WP4, in particular the abstraction of the virtualization layer.
In its current definition, however,

libvirt

suffers from several limitations which would

make it difficult to use

libvirt

directly as a Basic Management Interface. First,

libvirt

architecture is “in a large part Xen specific since this is the only hypervisor supported
at the moment”. This implies that the minimal atomic entity that can be managed by

libvirt

is a typical

Xen

domain or, in other words, a complete virtualized operating

system.
This is a serious limitation with regard to the

architecture, since the atomic entity

that can be managed for

based virtualization layer is a “task”. In

, a complete

virtualized operating system (such as

L4Linux

) is typically mapped to multiple

interacting tasks. By using

libvirt

, a management application would lose the ability to

control security policies between tasks composing a virtualized operating system, and
would therefore have to rely on inflexible, hard coded policies. This limitation of

libvirt

would also impact design, implementation and management of security services
developed in WP05, which can be implemented as entities that are much simpler than
a complete virtualized operating system.
Second, the overview of the

libvirt

library explicitly states that it “won't try to provide

all possible interfaces for interacting with the virtualization features”. This limitation is
problematic with regard to the integrity management functions of the BMI. Integrity
management and TCG related functionalities will require specific interfaces and

Open_TC Deliverable 04.1

9/41

Basic Management Interface

Final

concepts for both

Xen

and

, and these interface would not be accessible by

libvirt.

Finally, the

libvirt

interface relies on a complex computing environment being

available for the implementation of the library. In particular, it relies on parsing
capabilities for XML documents and POSIX-type functionalities for file and I/O as part of
the library implementation. This requirement not only poses a difficulty for an L4
environment which has a limited computing environment at start up. It can also be
considered as a potential weakness for the security of the system: the need for such a
complex environment increases the size and complexity of the code that needs to be
trusted on the managed system.
As a conclusion, while a

libvirt

type of interface might be well suited for managing

virtualized operating systems at a WP05 level, the Basic Management Interface
requires a lower-level, virtualization independent, secured and TCG aware definition.

3.2 CIM

The Common Information Model (CIM) is a standardization activity within the
Distributed Management Task Force (DMTF). DMTF itself has mode than 3500 active
participants across 39 countries and spread across nearly 200 organizations. DMTF is
the organization leading the development of management standards targeting
interoperability for enterprise and Internet environment. It addresses the
standardization of IT management in a platform-independent and technology
independent manner, focusing on interface definitions, data models, communication
protocols and architecture definition.
CIM defines an object model for all the resources present in a computing
infrastructure. The CIM standard is expressed through schemas of UML definitions
(available as MOF or XML formats) and specifications (available as descriptive text
files). The latest schema publicly available at the time of the writing of this document
is the version 2.12 published in April 2006. CIM schemas define information models
ranging from physical resources such as network card and storage components to
applications such as databases and web services. CIM also covers modelling of objects
like systems (software based such as operating systems or hardware based such as
servers), users, events, security and policies. Since CIM also addresses virtualization
and virtualized resources, this standard is a natural reference for the Basic
Management Interface definition effort.
Similarly to

libvirt

, CIM abstracts virtualized operating systems using the notion of

compartment objects. As discussed earlier, this means that this level of abstraction is
slightly too high level for the BMI definition. Furthermore, the models around security
defined by CIM are based around “traditional” access control security. For instance,
they do not cover Trusted Computing type of mechanisms, or aspects of system
integrity. As a consequence CIM can not express security policies with access control
based on the integrity of the virtualization layer and critical security services.

3.3 Summary

Libvirt

and CIM both provide a partial basis for the work on the BMI, but the current

limitations of those models are potential inhibitors success of WP04. We will follow
these activities, may include some of their concepts where appropriate, and check
their applicability for higher level management. For BMI v01, however, we decided to
focus on the specific requirements of WP04 and OpenTC for the interface definition.

Open_TC Deliverable 04.1

10/41

Basic Management Interface

Final

Overview of Components and Data Model

Each physical machine or

node

contains a set of CPUs, a hardware Trusted Platform

Module (TPM), a certain amount of memory (RAM) and a set of physical devices such
as network cards, graphic cards, storage interfaces (IDE, SCSI, SATA, etc...) and
various other controllers. These components have traditionally been presents in
physical machines and can be detailed e.g. in terms a CIM specification.
An object oriented design is the most common and appropriate approach to model
computing system (CIM uses such an object oriented model for instance).
Consequently, the BMI also defines the software components, their functionalities and
their relationship using an object oriented view. This has the benefit to be easier
understandable and verifiable by humans. It should be noted, however, that an object
oriented definition does not prescribe specific types of programming languages.
Object oriented concepts can be implemented in any languages (including low level
languages like assembly).
This following sections describe the principal objects manipulated in the BMI and their
interactions. The detailed description of the object interfaces can be found in the
section 7 of this document.

4.1 Trusted Virtualization Layer and Boot-Up Services

The implementation of the BMI relies on the existence of a Trusted Virtualization Layer
(TVL). The TVL is implemented by

Xen

as a virtualization layer, and by a set of

boot-up services. These services are required to bring the physical machine to an
attestable state where it can serve the requests from the management software
through the BMI. They are responsible for initializing the system's hardware during
system boot, for providing the TVL with essential drivers to access hardware other
boot up services may rely on (such as TPM driver for instance), and for offering
additional services specific to the virtualization layer.
The boot-up services also provide functionalities required for the implementation of
the BMI, but they are not reflected in the BMI definition. In fact, in order to abstract the
way a particular virtualization layer is booted up, the TVL is treated as a monolithic
software rather than a set of manageable components. From the perspective of the
BMI, the TVL is a piece of a software layer that needs to be trusted in order to allow
extending this trust to the the whole system.
For this reason, the TVL is also sometimes referred to as the Trusted Computing Base
(TCB). However, we will avoid the expression “TCB” as the actual definition of a TCB
tends to vary with regard to the application. For instance, in the case of the BMI, the
TVL (together with the components of the chain of trust) is the TCB for the
implementation of the BMI. On the other hand, when considering a complex scenario
where a user needs to trust the whole system he is using, the TCB would comprise
more services, such as the graphical user interface. A more detailed discussion on the
chain of trust and integrity of the TVL is part of section 6.
While the BMI do not expose the modularity of the TVL, it defines higher level dynamic
and modular “protection domains”, their management interface and their interactions
as seen from the point of view of the TVL. This way, management components only
have to deal with the configuration and management of the dynamic part of the
system once booted, and will leave the specifics of the initialization up to the TVL.

Open_TC Deliverable 04.1

11/41

Basic Management Interface

Final

4.2 Protection Domains

Protection Domains are software components with one or more Virtual CPUs (mapped
to real CPUs) and some virtual memory (mapped to the physical memory of the
machine) allocated to them. They are implemented as a Domain (in Xen) or a Task (in
L4). The entity which creates a new Protection Domain (such as a Management Agent)
must provide a binary image describing the executable part of the Protection Domain.
The format of the binary image of a Protection Domain is specific to a particular
virtualization layer, but the entity using the BMI does not need to be aware of the
differences. It can simply consider the binary image as an opaque piece of data
associated with a Protection Domain.
Once resources have been allocated for a new Protection Domain, the BMI creates a
corresponding execution environment. The TVL then schedules the Protection Domain,
with a priority assigned to it through the BMI. Each Protection Domain can provide
specific services to other Protection Domains. For instance, each security service
implemented by WP05 could be a Protection Domain providing an interface to
virtualized operating systems or other security services.

4.3 Controllers

The BMI provides a controller interface for each Protection Domain being created. The
Controller allows to manage the state and configuration of a Protection Domain by

Open_TC Deliverable 04.1

12/41

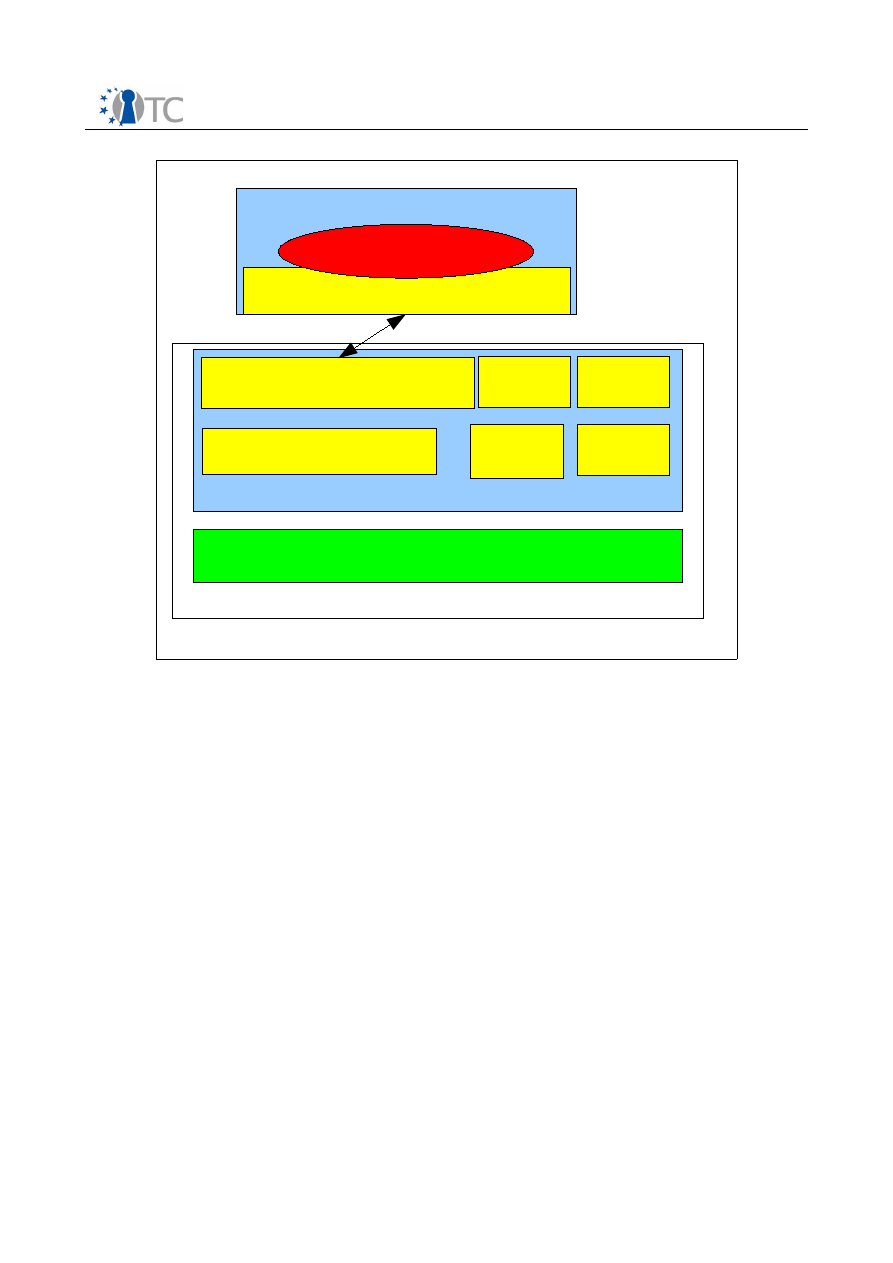

Figure 1: Structure of TVI and BMI

Essential Device Drivers

Basic Management Interface

Implementation (Services)

Device

Manager

Protection

Domain

Manager

System

Boot

Others

(Specific)

Boot up services

Basic Management Interface

Protection Domain

Management Component

Virtualization Layer

L4/Xen

TVL

Basic Management Interface

Final

dedicated components both at creation and run time over its life cycle. The interface
exposed by the controllers is therefore key in managing the Protection Domains
hosted by the TVL. A protection domain can access its own controller as well as
controller of Protection Domains it has created and/or has the appropriate privileges to
do so.
Controllers enable the setup of Protection Domains by abstracting the source of their
binary images, and by delegating the responsibility of gathering and providing the
actual bits of data to the application client of the BMI. While a binary image could
exists either as a file on a hard disk, as a file on a remote server, or as a stream being
generated on the fly by a building component, the Controller will simply receive the
binary image data and build the corresponding domain transparently.
Furthermore, Controllers include functionality allowing to set and change parameters
associated to the Protection Domain. These parameters will typically be passed to the
corresponding Protection Domain. Depending on the requirements of the underlying
virtualization architecture, there may be cases where parameters are interpreted
directly by the BMI.
Finally, controllers provide access to the Integrity Management interface. This
interface creates the link between the integrity of the TVL and the integrity of the
controlled Protection Domain (see section 6 for a more detailed discussion on
integrity).

4.4 Connections

Protection Domains need to interact with each others to provide the services they
implement. For instance, a Protection Domain running a virtualized operating system
has to interact with Protection Domains providing device drivers for network, storage,
potentially keyboard, etc.
These interactions take place over communication channels that are referred to as

Connections

in the BMI definition. The implementation of the communication channels

is specific to the virtualization architecture, and the actual semantic of the messages
exchanged over those channels depends on the type of the implemented services. For
instance,

Xen

relies on a protocol based on shared memory and events to implement

communication channels, while

uses an message based Inter Process

Communication (IPC) approach. This is the main reason why the BMI currently does
not specify how to establish connections between Protection Domains, or how to pass
messages through Connections. As the semantic and format of messages vary for
each service, they will be defined by the teams working on the virtualization layers.
Although the BMI does not specify an interface for establishing and using
communication channels, it provides functionalities to control access to connections.
The access control policies will be enforced by the TVL when Protection Domains
attempt to create or use a communication channel. A management component can
therefore control the topology of the allowed communications between the Protection
Domains under its control.
As the trustworthiness of a system may not only depend on its own integrity, but also
on that of other systems it can interact with, the Management Interface of the BMI
supports basic functionalities for combining connection policies with system integrity.
This allows to can implement applications that can remotely attests to the integrity of
the TVL it runs on, as well as all the other Protection Domains it depends on for its
implementation.

Open_TC Deliverable 04.1

13/41

Basic Management Interface

Final

Life Cycle and Configuration Management for XEN and L4

This section describes the existing processes under

Xen

and

involved in creating

and configuring a Protection Domain (referred to as a d

omain

for

Xen

and a

task tree

for

). These descriptions are used to validate the functionalities of the BMI.

5.1 Xen

The following paragraphs outline the life cycle of a domain in

Xen

, including how it

receives configuration information about devices it may access and how access
control policy fits in.

•

boot of host machine,

Xen

Domain 0

•

pre-configuration of domains

•

life-cycle management of domains (incl. stopping, rebooting)

•

dynamic configuration of domains

•

configuration of mandatory access control (MAC) policies and mechanisms

5.1.1 Boot of system and domain 0

The first domain,

Domain 0

, is created automatically when the system boots up. This

domain has special management privileges: it builds other domains and manages their
virtual devices. It also performs administrative tasks such as suspending, resuming
and migrating other virtual machines. Within

domain 0

, a daemon process called

xend

is responsible for managing virtual machines and providing access to their consoles.
Commands are issued to

xend

over an HTTP interface, via a command-line tool called

“

”.

5.1.2 Initial configuration of additional domains

Before an additional domain can be started, a corresponding configuration must be
created.

Xen

configuration files contain the following standard variables.

Table 1: Xen domains standard configuration variables

Variable

Description

kernel

Path to the kernel image.

ramdisk

Path to a ramdisk image (optional).

memory

Memory size in megabytes.

vcpus

The number of virtual CPUs.

root

Specify the root device parameter on the kernel command line.

nfs_root

Path of the root filesystem on the NFS server (if any).

nfs_server IP address for the NFS server (if any).

Open_TC Deliverable 04.1

14/41

Basic Management Interface

Final

Variable

Description

Disk

List of block devices to export to the domain, e.g.

Disk = ['phy:hda1,sda1,r' ]

hostname Set the hostname for the virtual machine.

dhcp

Set to “dhcp” if you want to use DHCP to configure networking.

netmask

Manually configured IP netmask.

gateway

Manually configured IP gateway.

vif

Network interface conguration. This may simply contain an empty string
for each desired interface, or may override various settings, e.g.

vif = [ 'mac=00:16:3E:00:00:11, bridge=xen-br0', 'bridge=xen-br1' ]

console

Port to export the domain console on (default 9600 + domain ID).

extra

Extra string to append to the kernel command line (if any)

Additional fields (e.g. to configure virtual TPM functionality) are documented in
example configuration files included with the Xen documentation in the /etc/xen
directory of

Xen

's distribution. When created, a domain is assigned an ID by the

hypervisor which will then be used to reference it in later system calls.

5.1.3 CPU

Xen

allows a domain's virtual CPU(s) to be associated with one or more host CPUs.

This can be used to allocate real resources among one or more guests, or to make
optimal use of processor resources when utilizing dual-core, hyperthreading, or other
advanced CPU technologies.

5.1.4 Memory

Memory may be partitioned statically; alternatively, domains allow dynamism by
implementing a ``balloon'' driver. This is a driver which occupies a variable amount of
a domain's memory, and gives that memory back to

Xen

. The result is that the guest

operating system is under the illusion that it has a fixed amount of physical memory,
but in fact, the area being occupied by the balloon driver is pooled for use by other
domains. The size of the balloon may be dynamically altered, but can never cause the
domain to occupy more memory than its configured maximum; there is also a
corresponding minimum when the balloon is full.

5.1.5 Storage devices

Storage can be made available to virtual machines in a number of different ways. The
most straightforward method is to export a physical block device (a hard drive or
partition) from

Domain 0

directly to the guest domain as a virtual block device (VBD).

Storage may also be exported from a filesystem image or a partitioned filesystem

Open_TC Deliverable 04.1

15/41

Basic Management Interface

Final

image as a file-backed VBD. Finally, standard network storage protocols such as NBD,
iSCSI, NFS, etc., can be used to provide storage to virtual machines.

5.1.6 Network devices

Each domain network interface is connected to a virtual network interface in

Domain 0

by a point to point link (effectively a virtual crossover cable). Traffic on these virtual
interfaces is handled in

domain 0

using standard Linux mechanisms for bridging,

routing, rate limiting, etc. x

end

calls on two shell scripts to perform initial

configuration of the network and configuration of new virtual interfaces. By default,
these scripts configure a single bridge for all the virtual interfaces. Arbitrary routing /
bridging configurations can be configured by customizing the scripts.

5.1.7 Pass-through of arbitrary PCI devices

Individual PCI devices can be assigned to a given domain (a PCI driver domain) to
allow that domain direct access to the PCI hardware. The PCI devices you wish to
assign to unprivileged domains must be hidden from your backend domain (usually
domain 0) so that it does not load a driver for them. This is done using the
pciback.hide kernel parameter which is specified on the kernel command-line and is
configurable through

GRUB

. An example kernel command-line which hides two PCI

devices might be:

root=/dev/sda4 ro console=tty0 pciback.hide=(02:01.f)(0000:04:1d.0)

PCI devices can also be bound and unbound to the PCI backend after boot through the
manual binding/unbinding facilities provided by the Linux kernel in

sysfs

5.1.8 Domain life-cycle management and dynamic configuration

Life-cycle management functions are exposed through

xend

's HTTP server inteface,

and may be performed from the command-line using the

tool. Various dynamic

configuration options are also available.

5.1.9 Life-cycle management

The interface exposed by

xend

provides operations that can be used to

•

create, pause, shutdown, reboot and destroy domains

•

assign friendly name (basically a string) to created domains

•

save and restore domains (to and from files in

domain 0

)

•

migrate a domain to a different physical host, in either a live or non-live manner

•

send system request like signals to domains (Linux domains only)

5.1.10 Dynamic configuration

In addition to life-cycle management,

xend

exposes the following configuration

operations:

•

change the maximum and current memory allocations of a domain

•

enable virutal CPUs (VCPUs) in a domain (up to the configured maximum)

•

pin a VCPU to a physical CPU

Open_TC Deliverable 04.1

16/41

Basic Management Interface

Final

•

attach, detach or list virtual block devices

•

attach, detach or list virtual network devices

•

create, destroy or list the host's virtual networks

As well as the operations exposed by

xend

, dynamic binding and unbinding of PCI

devices can be performed using the Linux

sysfs

interface in

domain 0

Note that

xend

also supports the following monitoring and diagnostic operations:

•

print the

Xen

message buffer or the

xend

log

•

list current domains, and convert between friendly "names" and IDs

•

display a real-time domain resource monitor (

xentop

)

5.1.11 Configuration of Mandatory Access Control (MAC)

MAC policies are binary blobs compiled from XML by a tool. Typical policies are Type
Enforcement and Chinese Wall Policies. They are normally loaded by the bootloader as
a separate module. Additionally, each domain and resource is assigned a security
label, which will be used to make an access control decision by the policy module.
Some additional

commands are provided for live manipulation of these policies.

These allow:

•

dynamic loading of policy (currently very limited: only works when an
unrestricted default policy is in place, or if the new policy has the same name as
the existing one)

•

listing the labels defined by a particular policy

•

displaying the label of each domain (in addition to other fields)

•

applying a label to a domain.

The configuration file syntax has also been extended to include an 'access_control',
option which may specify a policy and label for a domain.
Finally, there are separate tools provided for the following operations:

•

get an access control decision for a pair <domain, label>

•

get the label for a given domain.

5.2 L4

In the

case, domain-like virtual machines are provided by instances of L4Linux 2.6.

The L4Linux kernel itself is an L4Env application that runs in an

task. All Linux

applications running within an L4Linux instance are implemented as

tasks as well,

forming a

task tree

with the kernel at the root. Individual L4Linux instances are started

by an L4Env service called

loader

, which is also given the configuration for the newly

started virtual machine.

5.2.1 Boot of system

The

microkernel and the basic L4Env services are loaded and bootstrapped by the

boot loader. Binaries and initial configuration files can be read from machine-local
storage (e.g., a CD-ROM or hard disk accessible by the boot loader). Another

Open_TC Deliverable 04.1

17/41

Basic Management Interface

Final

alternative is to retrieve all binaries and configuration files required during boot up
from a TFTP server on the network.

5.2.2 File providers

Once the microkernel and the basic services are running, the loader service can be
used to start new L4Linux instances. L4Linux kernel binaries, initial RAM disks, and
loader configuration files are retrieved via the file provider interface as defined by the

generic_fprov

package. The following implementations of this interface are available:

•

bmodfs

: This is a service that offers files provided by the boot loader

GRUB

Any files to be offered have to be passed to

bmodfs

GRUB

modules. These

modules must be be specified in the

GRUB

configuration file menu.lst and will

then be loaded into system memory during boot up of the host system.

•

tftp

: This service provides files stored on a TFTP server running on another

machine on the network. It has built-in network drivers and can also use

ORe

, a

network multiplexer that allows it to share a single network interface card with,
for example, multiple instances of L4Linux.

5.2.3 Loader and loader configuration files

L4Linux instances are configured at start-up time via information provided in

loader

configuration files. In order to start an L4Linux instance, the

loader

interprets the

specified configuration file. Table 2 lists configuration directives relevant to starting
new L4Linux instances.

Table 2: Directives in loader configuration files

Directive

Description

task

Location of the kernel image and command-line options.

module

Additional modules such as a ramdisk image (optional).

file_provider

The file provider from which the kernel and ramdisk images are to be
loaded.

priority

scheduling priority.

ioport

I/O ports to which access is allowed.

allow_cli

Allow to disable interrupts.

Additional configuration options are passed to the L4Linux kernel on its command line
as specified using the

task

directive in the configuration file. Table 3 gives an overview

of command-line options commonly used for L4Linux kernels.

Table 3: Important command-line options for L4Linux kernels

Variable

Description

mem

Size of main memory available to the L4Linux instance.

Open_TC Deliverable 04.1

18/41

Basic Management Interface

Final

Variable

Description

load_ramdisk

Load a ramdisk.

ramdisk_size

Maximum size of ramdisk images.

l4env_rd

Location of the ramdisk image.

video

Used to specify options for the L4 framebuffer driver.

5.2.4 CPU

The

L4/Fiasco

microkernel and L4Linux instances running on top of it can use only one

CPU. This CPU is shared among multiple L4Linux instances.

5.2.5 Memory

Memory is allocated statically to L4Linux instances using

loader

configuration files.

The L4Linux kernel makes parts of this memory available to the

tasks that

represent its Linux processes.

5.2.6 Storage devices

Persistent storage can be made available for any L4Linux instance. One of the
instances can access the hard disk controller and the attached disks directly. Others
can use standard network storage protocols such as NFS and iSCSI.

5.2.7 Network devices

L4Linux instances can access the network through a stub kernel driver for the

ORe

network multiplexer.

ORe

allows multiple clients (i.e., L4Linux instances) to share one

physical network interface card. It also enables its clients to communicate locally
using network protocols. Multiple instances of

ORe

can also be used to create isolated

vLAN segments. A dedicated instance of L4Linux connected to these vLANs can then
act as a router and firewall.

5.2.8 Life-cycle management

To control the life cycle of L4Linux instances, we provide a light-weight

application

called

run

, which can be accessed via the

graphical console

l4con

. The

run

application provides interfaces to:

•

start applications using the

loader

service

•

kill applications

•

show run time information

•

dump memory

•

enter the kernel debugger of

/Fiasco

•

reboot the host machine

Open_TC Deliverable 04.1

19/41

Basic Management Interface

Final

Additionally, two

/Linux hybrid programs,

run-l4

and

kill-l4

, can be used from within

an L4Linux instance to start or stop other instances of L4Linux. Just like

run

run-l4

also uses the loader service and loader configuration files in order to start a new
instance of L4Linux.
Functionality to support suspending and resuming of L4Linux instances is currently
being developed.

5.2.9 Mandatory access control

Currently, the L4Fiasco microkernel does not enforce restrictions regarding
communication (IPC) among

tasks. Server tasks and applications have to

implement access control and the according policies by themselves. As a short-term
solution for IPC control we will provide an implementation of a reference monitor that
can restrict IPC among communication partners. It will be capable of allowing or
disallowing communication between specific

tasks, and can therefore be used to

enforce information flow policies. The specific data formats and interfaces have yet to
be determined.

Open_TC Deliverable 04.1

20/41

Basic Management Interface

Final

Integrity requirements and design

Trusted Computed technology, as specified by the Trusted Computing Group (TCG),
describes how to measure, report and use a system integrity to either attests it to a
remote party or to locally enforce policies. However, TCG addresses the integrity of
the system from the point of view if its boot sequence and specifies how to establish a
chain of trust of the components involved during the boot process. The integrity of
dynamically allocated and created components, such as the Protection Domains of the
BMI, is not part of the scope of the TCG specification. The goal of the Integrity related
mechanisms of the TVL, exposed through the BMI, is to provide a link between the
integrity of the system and its TVL (established by the chain of trust) and the various
Protection Domains running on the TVL.

6.1 Boot Sequence and Chain of Trust

This section gives an overview of the boot sequence and measurement sequences
executed to implement the Chain of Trust for each of the 2 virtualization layers. It
mainly focuses on examining what is measured and stored into the Platform
Configuration Registers (PCRs) of the TPM during the boot of Xen and L4 respectively.

6.2 Design objectives

Integrity measurements, as defined by TCG, cryptographically depend on the actual
binary data of the executed software components during the boot, and also depend on
the exact order in which they are executed. As a result, in order to limit the
heterogeneity of integrity measurements obtained after boot up on various systems,
and in order to simplify software update operations, the design of the integrity
mechanisms of the TVL aims at reducing the number of measured software
components as much as possible. Implementations of the TVL and its chain of trust will
therefore try to minimize the number of boot up services part of the measured
sequence, while ensuring that all the critical ones are part of the measured sequence
in order not to introduce any security weakness in the system.
The integrity measurement of the boot sequence will start from the Root of Trust for
Measurement (RTM) and will carry on until the TVL and all its security sensitive boot
up services are measured. The integrity of the TVL (and of the underlying system) will
then serve as the basis for the reporting of the integrity of the Protection Domains. In
order to maintain the overall security of the system and the isolation requirements
between Protection Domains, the TVL will ensure that integrity of Protection Domains
is independent from each others. This is also true for the enforcement of security
polices based on the integrity of individual compartments.

6.3 Static Root of Trusted Measurement

This section describes the sequence of events that happens during a boot of a system
when using the static root of trust mode. In this mode, the Core RTM (CRTM) is
composed of the CPU and the Bios Boot Block (BBB) which is the first piece of code
executed after a power on (or a reboot) of the system. The system is therefore in a
well known state (reset) and the first executed code is also known. The sequence of
events is the following:

1. The BBB measures the BIOS and extends the appropriate PCR with this value

Open_TC Deliverable 04.1

21/41

Basic Management Interface

Final

2. The BIOS measures all its Option ROMs and extends the appropriate PCR with

this value

3. The BIOS measures the Master Boot Record (MBR) of the booted media and

extends the appropriate PCR with this value

4. The MBR (which is part of Stage1 of

Trusted GRUB

) measures the first sector of

the stage2 file and extends the appropriate PCR. It then transfers control to the
first sector of stage2.

5. The first sector of Stage2 loads and measures the rest of the stage2 file. It then

extends the appropriate PCR with the measured value.

6. Stage2 loads the configuration file and waits for either a default choice to

happen or for the user to execute a command.

7. Once the user has select one configuration and validated its choice, or once a

default configuration has been chosen due to a timeout,

Trusted GRUB

measures the “string” composed of the commands and their parameters, and
extends the appropriate PCR with this value.

Trusted GRUB

loads every module into memory and measures them

individually. It then extends the appropriate PCR with those values.

9. Execution is transferred to the first loaded module.

6.3.1 Starting Xen

In the case of Xen, the modules loaded by Trusted GRUB are:

1. Binary image of Xen executable
2. Kernel image of Domain 0
3. An optional initial ramdisk used by Domain 0.

Trusted GRUB will transfer execution to Xen executable image at stage 9 in the boot
sequence. Once Xen has finished to initialize it will then start to schedule and execute
the code contained in Domain 0. This privileged domain will then be able to carry on
the boot sequence of the system. Depending on the architecture of this Domain, some
other measurement might be carried out by Domain 0 and reported to the TPM.
Indeed, Domain 0 is part of the implementation of the TVL with regards of the BMI. So,
if Domain 0 includes modules that are loaded from a source external to the initial
ramdisk, it will have to ensure the integrity of these modules is measured and
included in the integrity of the TVL.

6.3.2 Starting L4

In the case of L4, the modules loaded by Trusted GRUB are:

1. L4 MicroKernel image

Startup modules such as

Root task, task manager, task loader, memory

manager, IO Manager, TPM Driver, and VTPM in a L4Env configuration

Similarly to the case of Xen, Trusted GRUB will transfer execution to the root task at
stage 9 in the boot sequence. The root task will then be used to start some other
tasks. The integrity requirement is similar to the previous case if the root task need to

Open_TC Deliverable 04.1

22/41

Basic Management Interface

Final

rely on some other “external” (i.e. Not measured by Trusted GRUB) tasks to
implement the BMI.

6.4 Dynamic Root of Trusted Measurement

This section describes the sequence of events that happens when a system is booted
using the Dynamic root of trust mode. In this mode, the Core RTM (CRTM) is composed
of the CPU, and the chipset of the system. The dynamic mechanism allows the first
piece of code to be measured by the CPU directly and reported to the TPM. The CPU
and the chipset of the system is placed in a well known state, and the chain of trust
then starts with the first software module. This method requires an extra software
module (Open Source Loader,

OSLO

) as part of the chain of trust which is used to start

the dynamic measurement process and boots the virtualization layer.

GRUB

, or another application if running in a traditional operating system, sets

up the memory to receive the virtualization layer code and various other
modules. This is similar to step 8 of the static RTM case, except that no
measurement are sent to the TPM.

OSLO

is then started by either

GRUB

or the other application.

OSLO

then performs a CPU specific instruction which starts the dynamic chain of

trust process. On AMD processors, this instruction is called “skinit”

4. The CPU measures the initial boot code present in OSLO.
5.

OSLO

then measures all the modules based on the Multi Boot Information (MBI)

data passed by

GRUB

, and extend the appropriate PCR with this measurement.

This stage is similar to the measurement done by Trusted GRUB in step 8 of the
Static RTM case.

OSLO

then starts the first module the same way as Trusted GRUB in step 9 of

the Static RTM.

After this step, the remaining of the boot sequence for Xen and L4 is the exactly the
same as the one described in the case of the Static RTM.

6.5 Protection Domain Integrity

Once the TVL and all its boot up services have been started, the TVL can serve
requests from the BMI to create new Protection Domains. The TVL will provide a link
between its own integrity and the integrity of the new Protection Domains by
performing a measurement of the Protection Domain binary image. Because the
format of that image is specific to each virtualization layer, the TVL is responsible for
parsing the image appropriately in order to determine what portions of it need to be
part of the measurements. This measurement will happen before any part of the
Protection Domain gets executed.
The TVL will then keep this measurement in a memory area inaccessible to the
measured Protection Domain or any other Protection Domain which was not involved
to create the measured Protection Domain. This requirement comes from the need for
isolating the integrity of the Protection Domains as explained in the Design Objectives
section.
Access to the measurement will only be allowed through the Integrity Management
interface of the BMI. Through this interface, a Protection Domain can obtain a digital

Open_TC Deliverable 04.1

23/41

Basic Management Interface

Final

Interface Specification

This section describes interfaces provided by the virtualization layer and implemented
by an abstraction library. Typical software clients making use of this interface are
management components and high level security services as developed by WP5. We
anticipate that there will be library implementations that are specific for Xen and L4,
respectively. The library interface will provide interoperability for the management
software running on a particular virtualization layer. The functions exposed by this
interface can be implemented as integral parts of the virtualization layer or,
alternatively, as part of a minimal set of startup services running on top of this layer.
Users of this interface should not make assumptions on whether it is linked to
functions provided by the virtualization layer or by startup services. The interface
specification was originally written in XML format. This allows flexibility and
extensibility regarding properties of methods and data structures. Furthermore, this
approach is implementation language agnostic. At this stage, we have implemented
translation into HTML to facilitate the review process. In future, we will also provide
translations into specification and programming languages such as IDL, C/C++ and
Java. The current specification of the WP4 Management Interface should not be
considered as stable. It is the first snapshot of an iterative process. It will evolve
during the lifetime of the OpenTC project as new functionalities requirement are
identified.

7.1 Interface: Management of Protection Domains (PDManagement)

This interface regroups management functions as exposed by the very first layer of
software to manage the hypervisor. It is assumed that the entity using this interface is
privileged to use it. Therefore, the authentication and access control mechanisms are
not part of this interface definition. This interface can be provided in the form of a
library which implementation is specific to the underlying virtualization layer. At its
lowest level, the interface allows to manage allocatable resources called "Protection
Domains". A Protection Domain is an executable component that receives a portion of
memory and of CPU cycles and is scheduled by the hypervisor. It is an abstract
component in that it can, for example, refer to L4 tasks, virtual devices,
compartments, and services. It typically provides a service to other Protection
Domains through a communication channel. We assumed that all platform
management requests will be initiated through this interface only, allowing to make
the implementation of the interface stateful if needed.
The PDManagement interface includes the following methods:

•

PDManagement.getVersion()

•

PDManagement.allocatePD()

•

PDManagement.getController()

•

PDManagement.getController()

•

PDManagement.listPD()

•

PDManagement.getDeviceManager()

Open_TC Deliverable 04.1

25/41

Basic Management Interface

Final

7.1.1 Method: getVersion()

•

Function:

Return the version of the API implemented by this interface.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

int

The API version implemented by the library/API.
The 16 Most Significant Bits contain the major
version and the 16 Less Significant Bits contain
the minor version. Latest version is
0x00000001.

7.1.2 Method: allocatePD()

•

Function:

Allocate resources to create a new Protection Domain. After a call to

this method, the newly created Protection Domain is not running but should be
ready to run.

•

Parameters:

Name

Type

Description

desc

[in] PDDescription

The resource requirement for the new allocated
Protection Domain.

•

Return value:

Name

Type

Description

PDController

Reference to the controller for the allocated
Protection Domain, or a NULL reference if the
operation failed.

7.1.3 Method: getController()

•

Function:

Get a controller for the Protection Domain with the local identifier

•

Parameters:

Name

Type

Description

[in] int

Local Identifier of the Protection Domain to
retrieve a controller for.

•

Return value:

Name

Type

Description

PDController

Reference to the controller of the Protection
Domain with Local Identifier

, or NULL if there

is no Protection Domain with this

7.1.4 Method: getController()

•

Function:

Request the controller of the current Protection Domain, that is, the

Protection Domain calling this method.

Open_TC Deliverable 04.1

26/41

Basic Management Interface

Final

•

Parameters:

NONE

•

Return value:

Name

Type

Description

PDController

Reference to the controller of the calling
Protection Domain. This method should

never

return NULL.

7.1.5 Method: listPD()

•

Function:

Lists the ID of all Protection Domain currently allocated by the

hypervisor.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

int[]

List of Local ID of currently allocated Protection
Domain

7.1.6 Method: getDeviceManager()

•

Function:

Get an interface to configure the devices of the system.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

DeviceManager

A reference to the device manager of the
system.

7.2 Interface: PDController

This interface allow to set up and configure a Protection Domain.
The PDController interface includes the following methods:

•

PDController.getPDID()

•

PDController.setPriority()

•

PDController.getPriority()

•

PDController.getCurrentStatus()

•

PDController.requestStatusChange()

•

PDController.destroy()

•

PDController.setupPD()

•

PDController.setAllowedConnections()

•

PDController.getAllowedConnections()

Open_TC Deliverable 04.1

27/41

Basic Management Interface

Final

•

PDController.setConfigParam()

•

PDController.getConfigParam()

•

PDController.setRuntimeParam()

•

PDController.getRuntimeParam()

•

PDController.listRuntimeParams()

7.2.1 Method: getPDID()

•

Function:

Get the Local ID of the Protection Domain controlled by this

interface. The ID is local to the physical machine and specific to the hypervisor's
implementation.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

int

The ID of the Protection Domain controlled by
this interface. Note that there is no guarantee
on the current status of the Protection Domain.
Also the Protection Domain controlled by this
interface might not exist anymore. The only
way to know the status of a Protection Domain
is to call the see:

getStatus()

method.

7.2.2 Method: setPriority()

•

Function:

Changes the priority of the Protection Domain. The underlying

implementation might not support changing the priority of a Protection Domain
at run-time.

•

Parameters:

Name

Type

Description

priority

[in] int

Relative priority in the range of -10 to +10.
Priority 0 is the default priority for a Protection
Domain.

•

Return value:

NONE

7.2.3 Method: getPriority()

•

Function:

Get the current priority of the Protection Domain controlled by this

interface.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

int

The current priority of the Protection Domain

Open_TC Deliverable 04.1

28/41

Basic Management Interface

Final

7.2.4 Method: getCurrentStatus()

•

Function:

Gets the current status of the Protection Domain.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

PDStatus

The current status of the Protection Domain.
see:

PDStatus

type for more information.

7.2.5 Method: requestStatusChange()

•

Function:

Request the Protection Domain to switch to a new status

•

Parameters:

Name

Type

Description

status

[in] PDStatus

The new status the Protection Domain should
switch to. Supported Status are implementation
dependent, so a client of this interface should
not assume the operation was sucessful.

•

Return value:

NONE

7.2.6 Method: destroy()

•

Function:

Destroys the Protection Domain controlled by this interface and free

all resources the Protection Domain was using.

•

Parameters:

NONE

•

Return value:

NONE

7.2.7 Method: setupPD()

•

Function:

Instruct the virtualization layer to build the Protection Domain

content. On executing this command, the virtualization layer will use the
provided PDImage

desc

interface to build the memory image of the Protection

Domain.

•

Parameters:

Name

Type

Description

desc

[in] PDImage

Client provided interface for fetching the
Protection Domain data.

•

Return value:

NONE

7.2.8 Method: setAllowedConnections()

•

Function:

Allow a connection to take place between the Protection Domain

represented by the PDcontroller instance and another Protection Domain on the
same platform referred to by the local id

tid

. . The connection will be used by

the controlled Protection Domain to require services from the Protection Domain
identified by

tid

. By default connections are not allowed unless specifically

Open_TC Deliverable 04.1

29/41

Basic Management Interface

Final

allowed by this method. Protection Domains will then use the usual
implementation specific interface provided by the Hypervisor to open
connections to other Protection Domains. This operation will succeed only if the
connections were specifically allowed using this method. Note: Previous allowed
connection to the Protection Domain

•

Parameters:

Name

Type

Description

tid

[in] int

The Local ID of the Protection
Domain to which the connections
policy need to be set.

allowed_connections [in]

ConnectionPolicy[]

A list of communication type
allowed for this connection. Note:
The underlying implementation
might only support a subset of the
types. Clients of this interface
should check the supported
connection types prior to this call.

disable_existing

[in] boolean

Specifies if existing connections
should be disabled (if they are not
part of the

allowed_connections

parameter). If true, existing
connections that are not explicitly
allowed by the

allowed_connections

parameter

will be closed. If false, the
connections will remain open until
the Protection Domain closes them
itself using the standard hypervisor
API.

•

Return value:

NONE

7.2.9 Method: getAllowedConnections()

•

Function:

Get the list of connections allowed from the Protection Domain

controlled by this interface to another specific destination Protection Domain.

•

Parameters:

Name

Type

Description

tid

[in] int

The Local ID of the Protection Domain to which
the connections policy relative to the Protection
Domain controlled by this interface need to be
retrieved.

•

Return value:

Name

Type

Description

ConnectionPolicy[]

Array of allowed connection types from this
Protection Domain to the Protection Domain

tid

Open_TC Deliverable 04.1

30/41

Basic Management Interface

Final

7.2.10 Method: setConfigParam()

•

Function:

This method sets configuration parameter for the Protection Domain

being created. The created Protection Domain will use the corresponding
getConfigParam() function to retrieve its configuration at start up. Some of the
configuration parameters may then be exposed as Runtime Parameters if they
can be altered later on.

•

Parameters:

Name

Type

Description

name

[in] string

The name of the parameter to set. see:

RuntimeCapability

for more details about the

naming conventions.

value

[in] string

The value of the parameter to set. Note: It is
the responsibility of the caller to translate the
value of non string parameter into a string
representation

•

Return value:

NONE

7.2.11 Method: getConfigParam()

•

Function:

Allow a Protection Domain to retrieve a parameter passed to it by

the instance that created it.

•

Parameters:

Name

Type

Description

name

[in] string

The name of the parameter to retrieve. see:

RuntimeCapability

for more details about the

naming conventions.

•

Return value:

Name

Type

Description

string

The value of the requested parameter. Note: It
is the responsibility of the caller to translate the
string representation of the parameter into the
correct data value of the expected type.

7.2.12 Method: setRuntimeParam()

•

Function:

Modifies a Parameter of the currently running Protection Domain.

•

Parameters:

Name

Type

Description

name

[in] string

The name of the parameter to set for the
controlled Protection Domain. The caller should
not assume a parameter exists. It should first
check for the existence of a parameter using
the listRuntimeParams() function. see:

Open_TC Deliverable 04.1

31/41

Basic Management Interface

Final

Name

Type

Description

RuntimeCapability

for more details about the

naming conventions.

value

[in] string

The value of the parameter to set. Note: It is
the responsibility of the caller to translate the
value of non string parameter into a string
representation

•

Return value:

NONE

7.2.13 Method: getRuntimeParam()

•

Function:

Retrieve the current value of a Parameter for a Protection Domain.

Protection Domain may chose to expose their status and capabilities through
the use of these dynamic parameters.

•

Parameters:

Name

Type

Description

name

[in] string

The name of the parameter to retrieve for the
controlled Protection Domain. The caller should
not assume a parameter exists. It should first
check for the existence of a parameter using
the listRuntimeParams() function. see:

RuntimeCapability

for more details about the

naming conventions.

•

Return value:

Name

Type

Description

string

The current (dynamic) value of the parameter

name

7.2.14 Method: listRuntimeParams()

•

Function:

This method allows the caller of this interface to list the currently

defined parameters for the controlled Protection Domain. The listing follows an
approach similar to a file system ( see:

RuntimeCapability

for more details).

This method will return the list of parameter that are hierarchically descendant
of the parameter

root

•

Parameters:

Name

Type

Description

root

[in] string

The parent parameter to list the descendant
parameters from. For instance, using
"/supported-capabilities" will return a list of
parameters named "/supported-
capabilities/****". If "/" is specified, this will list
the first level of parameters. Note: Specifying
the empty string "" is equivalent to specify "/".
Note: Any trailing "/" is ignored..

•

Return value:

Open_TC Deliverable 04.1

32/41

Basic Management Interface

Final

Name

Type

Description

RuntimeCapability[]

The list of parameters child of

root

and their

supported access mode. see:

RuntimeCapability

for more details.

7.3 Interface: PDImage

Abstract the provisioning of Protection Domain's data image. This allows the client of
this interface to abstract the location of the image (such as file, URL, etc...). The
methods of this interface will be called by the implementation of the BMI library when
setting up a Protection Domain, see:

setupPD()

method. The client of this library will

therefore need to provided its own implementation of this interface to allow the BMI to
retrieve the binary image of the Protection Domain the client wishes to create.
The PDImage interface includes the following methods:

•

PDImage.getImageSize()

•

PDImage.getData()

7.3.1 Method: getImageSize()

•

Function:

Get the size of the binary image of the Protection Domain.

•

Parameters:

NONE

•

Return value:

Name

Type

Description

int

Size of the Protection Domain binary image in
bytes.

7.3.2 Method: getData()

•

Function:

Read a set of the data image describing the Protection Domain.

•

Parameters:

Name

Type

Description

offset

[in] int

The offset within the binary image. Note: must
be within the range of 0 and the actual image
size,

length

[in] int

Number of bytes to retrieve.

•

Return value:

Name

Type

Description

byte[]

Requested bytes of the binary images. Note:
The number of bytes actually returned could be
less then

Open_TC Deliverable 04.1

33/41

Basic Management Interface

Final

7.4 Interface: IntegrityManagement

This interface, which extends the PDController interface, allows integrity management
for the Protection Domain controlled by the parent PDController interface.
The IntegrityManagement interface includes the following methods:

•

IntegrityManagement.getIntegrityLink()

•

IntegrityManagement.getProtectedCredentials()

7.4.1 Method: getIntegrityLink()

•

Function:

Get a certificate signed by the TCB component providing the

integrity of the current Protection Domain. The signature allow links between
the integrity of the TCB and the integrity of the current Protection Domain.

•

Parameters:

Name

Type

Description

nonce

[in] byte[]

Random bytes provided by the challenger to
guarantee freshness and prevent replay
attacks. This nonce will be hashed by the
virtualization layer using a predefined hash
algorithm and included in the Integrity Report.

•

Return value:

Name

Type

Description

IntegrityReport

A report signed by the virtualization layer
regarding the integrity of the Protection
Domain controlled by this interface.

7.4.2 Method: getProtectedCredentials()

•

Function:

Provides Credentials to a specific Protection Domain, protected by

the TCB and having the integrity requirements on the various Protection
Domain enforced by the TCB.

•

Parameters:

Name

Type

Description

policy

[in]
IntegrityPolicy

The policy related to these credentials.

protected_credentials [in] byte[]

Secret provided to the Protection
Domain, protected (encrypted) by a key
under the TCB control (and presumably
bound to some PCRs). The result of
decrypting the data should be a
ProtectedCredential structure.

•

Return value:

Name

Type

Description

byte[]

The decrypted secret (if the integrity
requirement is met) or an empty array if not.

Open_TC Deliverable 04.1

34/41

Basic Management Interface

Final

7.5 Data Structures

7.5.1 Structure: ConnectionPolicy

A connection policy specifies the type of allowed connections between two Protection
Domains and the direction of the connection. Connections are, at least conceptually,
directed even though some implementation may not be able to actually distinguish
source Protection Domains from destination Protection Domains.

Member Name

Type

Description

con_type

ConnectionType

The type of connection (if
supported by the underlying
hypervisor).

mode

int

Specifies the access control in
terms of read/write privileges.
Note: The underlying
implementation might support only
r/w channel and might not be able
to support directed channels.

7.5.2 Structure: ConnectionIntegrityPolicy

This structure, which extends ConnectionPolicy, specifies integrity requirement on a
connection policy.

Member Name

Type

Description

dest

byte[]

The integrity hash of the Protection
Domain at the destination end of
this connection.

7.5.3 Structure: IntegrityReport

This structure provide an external entity with a report of the integrity of a Protection
Domain and link it with the integrity of the system.

Member Name

Type

Description

PDIntegrity

byte[]

The hash produced by the
Hypervisor and startup services
when instantiating the Protection
Domain this integrity report refers
to.

pubkey

byte[]

The public part of the key used to
do the signature operation.

signature

byte[]

Signature performed by the TCB
over (Nonce+Protection Domain
Integrity+PCRs). This could be the
result of a TCG quote operation, or
of a "normal" signature operation
from a key bound to PCRs.

Open_TC Deliverable 04.1

35/41

Basic Management Interface

Final

7.5.4 Structure: IntegrityPolicy

This structure allow a client to specify some requirement on the integrity of a
Protection Domain (including its connections to other Protection Domains and the
integrity of the underlying system). This requirement will be translated by the BMI
implementation into the decision of allowing a Protection Domain to have access to its
credentials or not.

Member Name

Type

Description

pdIntegrity

byte[]

The expected hash of the
Protection Domain. see:

IntegrityReport.PDIntegrity

pdConnections

ConnectionIntegrityPolicy[]

List of ConnectionIntegrityPolicy
from the Protection Domain with
the

pdIntegrity

hash.

7.5.5 Structure: ProtectedCredentials

Member Name

Type

Description

secret

byte[]

A secret the Protection Domain will
later try to retrieve using the
IntegrityManagement interface,
see: . Note: There might be a size
limit on the secret depending on
the size of the key used to do the
encryption

policyValidation

byte[]

A hash of the IntegrityPolicy
structure related to this secret.
This allows the BMI implementation
to link the secret for a Protection
Domain with its Integrity Policy.

7.5.6 Structure: PDDescription

Description of the resource requirements for a Protection Domain.

Member Name

Type

Description

mem

int

Amount of requested Memory in
bytes. Note: The underlying
implementation might round it up
depending on the granularity it can
support. Note: If the virtualization
layer can not provide the minimal
amount of requested memory, the
allocation should fail.

cpu

int

Number of requested CPUs. Note:
Due to differences in the
underlying implementation and the
dynamic aspect of the resource
allocations, there is no guarantee

Open_TC Deliverable 04.1

36/41

Basic Management Interface

Final

Member Name

Type

Description

that the created Protection Domain
will actually have the requested
number of CPUs.

performance

int

Indicator about the "share" of the
CPUs the Protection Domain will
get. Note: Due to differences in the
underlying implementation and the
dynamic aspect of the resource
allocations, there is no guarantee
that the created Protection Domain
will actually have the requested
performance index.

7.5.7 Structure: RuntimeCapability

This structure describes a parameter recognized by a Protection Domain, and weither
its value can be changed or not. The underlying implementation of the BMI is
responsible to translate the change or the parameter's value into the approriate action
(such as an event sent to the Protection Domain the parameter refers to, or to a
configuration change request in the hypervisor itself). Read only capabilities are
usually used to repport the current state of the Protection Domain or to inform the
client application calling the BMI about the supported capabilities of a particular
Protection Domain.

Member Name

Type

Description

name

string

The name of the parameter or
capability. The name follows a
hierarchical naming schema similar
to a file system path (like the /proc
directory in standard Linux kernel).
The character '/' is used as a
delimiter for the hierarchy. This
approach allow flexibility and
extensibility without compromising
compatibility. Note: The naming
schema for the parameters name
is defined in a separate document.

read

boolean

This boolean indicates if the
parameter named

name

of the

Protection Domain exposing it can
be read. Non readable parameters
should be writable and could be
used to implement requests that
translate into events. In such
cases, reading the value of the
corresponding parameter would be
semantically wrong.

write

boolean

The boolean parameter indicate if
the parameter name

name

can be

Open_TC Deliverable 04.1

37/41

Basic Management Interface

Final

Member Name

Type

Description

written (modified). Non writable
parameters are usually used to
inform the caller about the current
status of the Protection Domain or
its capabilities. When a parameter
is modified, the BMI will translate
the modification into an
appropriate action.

7.6 Runtime Parameters

Runtime parameters follow a hierarchical definition similar to standard file systems.
They are used to either reflect the status of a Protection Domain or to modify some of
its characteristics at runtime. Each parameter is composed of a name, an optional
string value (depending if the parameter can be read and/or written) and a list of child
(which can be empty). A completely specified parameter name contains a list a
parameter names separated by the '/' character which uniquely identifies a
parameters through the hierarchy. While this naming convention simplifies the
definition of the semantics of the parameters and makes it more intuitive to humans,
the underlying implementation could simply rely on a flat list of completely specified
parameter names.
This section describes the list of parameter that Protection Domains may expose and
the semantic of each of those parameter. The implementation of the BMI will then
abstract the various parameters and their modification and translate the read/write
operations into the operation appropriate for a specific implementation of the TVL.
Note however that the caller of the BMI would have to check for the actual supported
parameters using the Controller interface, and should not expect the existence of all
the parameters for every Protection Domain. The caller should also check if a
particular parameter can be read and/or written as this capability might also depends
on the implementation of the TVL and the type of the Protection Domain associated to
this parameter.
Finally, this approach of naming parameters has been chosen for its flexibility and
extensibility, so as a consequence, the currently provided list is likely to be modified
and increase over the duration of the project.

Parameter Name (path)

Description

/system/memory/max

Maximal amount of memory the
Protection Domain is allowed to use.

/system/memory/min

Minimal amount of memory the Protection
Domain will ever be allocated.

/system/memory/current

The amount of memory currently
allocated to the Protection Domain

/system/cpu/max

Maximal number of CPU (or Virtual CPUs)
the Protection Domain is allowed to

Open_TC Deliverable 04.1

38/41

Basic Management Interface

Final

Parameter Name (path)

Description

allocate.

/system/cpu/min

Minimal number of CPU (or Virtual CPUs)
the Protection Domain will ever be
allocated.

/system/cpu/current

The number of CPU (or Virtual CPUs) the
Protection Domain current has allocated.

/capability/pause

If this parameter exists, it indicates that
the Protection Domain can be paused.
The value of this parameter indicates the
value to send to the
requestStatusChange() method of the
PDController interface.

/capability/restart

If this parameter exists, it indicates that
the Protection Domain can be restared.
This would be translated into a reboot
operation for a virtualized operating
system for instance. The value of this
parameter indicates the value to send to
the requestStatusChange() method of the
PDController interface.

/capability/suspend

If this parameter exists, it indicates that
the Protection Domain can be suspended.
The value of this parameter indicates the
value to send to the
requestStatusChange() method of the
PDController interface. The needed state
will be saved by the TVL in a transparent
manner.
Note: The existence of this parameter
implies the existence of
“/capability/resume”

/capability/resume

If this parameter exists, it indicates that
the Protection Domain can be resumed
(following a suspend operation). The value
of this parameter indicates the value to
send to the requestStatusChange()
method of the PDController interface. The
needed state will be loaded by the TVL in
a transparent manner.
Note: The existence of this parameter
implies the existence of
“/capability/resume”

Open_TC Deliverable 04.1

39/41

Basic Management Interface

Final

List of Abbreviations / Glossary

BBB

BIOS boot block

BMI

Basic Management Interface

bmodfs

L4 specific: implements file provider with generic_fprov interface

CIM

Common Information Model

CRTM

Core Root of Trusted Measurement

generic_fprov L4 specifc: file provider interface definition
iSCSI

Internet SCSI

L4 Con

L4 specific: Lighweight graphical console

MAC

Mandatory Access Control

MBR

Master Boot Record

NBD

Network Block Device

NFS

Network File System

PCI

Peripheral Component Interface

PCR

Platform Configuration Register

RTM

Root of Trusted Measurement

run

Component controlling the loader (requires L4 Con)

SCSI

Small Computer System Interface

TCG

Trusted Computing Group

tftp

L4 specific: component implementing generic_fprov, uses tftp server
over network

TPM

Trusted Platform Module

TVL

Trusted Virtualization Layer

VBD

Virtual Block Device

VCPU

Virtual CPU

Open_TC Deliverable 04.1

41/41

Document Outline
