D6.5 Collection of all SWP deliverables

(nature=R) produced during months 25-36

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Report (see page 87/88 of Annex 1)

Deliverable reference number

IST-027635/D6.5/1.0

Deliverable title

Collection of all SWP deliverables (nature=R)
produced during months 25-36

WP contributing to the deliverable

WP6

Due date

M36 (postponed to M42)

Actual submission date

26.05.09

Responsible Organisation

LDV, Lehrstuhl fuer Datenverarbeitung, TU
Munich

Authors

Chun Hui Suen (LDV), Giovanni Cabiddu,
Gianluca Ramunno, Marco Vallini (POL),
Görkem Çetin, Kadir İmamoğlu (TUB)

Abstract

Collection of all SWP deliverables (nature=R)
produced during months 25-36

Keywords

OpenTC WP6

Dissemination level

Public

Revision

1.0

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months



background image





Collection of all SWP deliverables (nature=R) produced during months 25-36   V 1.0

Introduction:

This Deliverable is a collection of the following internal WP6 Deliverables out of the
Sub-Workpackages with Nature R (Report) within the period of M25 - M36:

D06b.5 - MEITC Use Case Document

D06c.2 - WYSIWYS application design specification

If you need further information, please visit our website

www.opentc.net

 or contact

the coordinator:

Technikon Forschungs-und Planungsgesellschaft mbH
Burgplatz 3a, 9500 Villach, AUSTRIA
Tel.+43 4242 23355 –0
Fax. +43 4242 23355 –77
Email

coordination@opentc.net

The information in this document is provided “as is”, and no guarantee

or warranty is given that the information is fit for any particular purpose.

The user thereof uses the information at its sole risk and liability.

Open_TC Deliverable 6.5

background image





WP06b.5 MEITC Use case document

Project number

IST 027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Document type (internal/public)

Internal document

Report Number – OO Revision

OTC-17

Title

MEITC Use case document

Editor

Görkem Çetin

Authors

Görkem Çetin, Kadir İmamoğlu

Abstract

This   internal   deliverable   is   the   Use   case
document for MEITC system

Keywords

MEITC,   TPM,   TSS,   Web   Server,   Mail   Server,
Database Server, Log Service



background image





OTC-17: MEITC Use case document

Table of Contents

1  Introduction...............................................................................................................3
2  Description.................................................................................................................3
3  Use Cases..................................................................................................................3
4  Abbreviations...........................................................................................................38

Internal document

2/39

background image





OTC-17: MEITC Use case document

Introduction

The purpose of this document is to describe the use cases of the Message Exchange
Infrastructure for Trusted Computing (MEITC) which has been developed within a sub-
workpackage of the Open Trusted Computing (Open_TC) project  by TUBITAK-UEKAE.
Prior to this document, TUBITAK UEKAE has released two documents, namely “D6b.3
MEITC Detailed Design and Test Document” and “D6b.2 MEITC Specification and Test
Plan”. Both documents give an overview of MEITC components.

Description

The   MEITC   system   is  not   a   self-contained   system.   It   depends   on   a   entire   OpenTC
system (CC@H)  which will be developed within the project. This  system  which is a
trusted environment must be ready in order to ensure that MEITC is fully functional.

The users of the MEITC system will use an unmodified web based browser (Mozilla
Firefox, Konqueror, Internet Explorer etc.) to access their accounts. Servers defined in
previous MEITC documents (I.e web server, mail server etc) will support virtualization,
and   will   also   fully   support   TPM   functions.   Access   to   web   servers   will   be   realized
through a web based browser.  In order to increase the trustworthiness of the whole
system, web browser and web server will communicate on a secure channel by using
HTTP on top of the conventional TLS/SSL protocols.

Users will connect to MEITC system via their web based browsers. Each page of the
messaging system will be prepared using JSP and HTML. There will be two types of
users: system administrators and unprivileged user. System administrators will have
administrative privileges to manage user accounts. The other user type will not have
administrative privileges, and instead they only have access to their messages in their
own message boxes.

The user interface of MEITC will have a user-centered design, in which tasks can be
easily followed and executed by the end-user. The user interface should also satisfy
the general requirements of the customer as the software evolves. End-users of MEITC
will see a simple webmail that will give them the ability to read, send and delete e-
mails (or other actions) they would like to take.

For   more   information   about   MEITC,   refer   to   “Third   MEITC   Prototype”   document
(D06b.7-Third MEITC Prototype.odt).

Use Cases

In this section, we will see what the users and the system administrators can do when
using the MEITC system.

General assumptions and requirements

The assumptions below describe the security aspects of the environment in which this
prototype   will   be   used.   These   assumptions   are   heavily   based   on   PET   Banking
Demonstrator Use Cases document.

AR 10: Correct hardware

Internal document

3/39

background image





OTC-17: MEITC Use case document

The underlying hardware is non-malicious and behaves as expected. Optionally, the
correct properties of the hardware can be attested using a platform certificate.

AR 20: Trusted Administrator

Standard services for compartment administration and platform management must be
trusted   to   act   in   accordance   with   the   wishes   of   users,   since   they   have   to   access
security-critical information.

AR 30: Physical attacks

Physical attacks against the underlying hardware platform must not happen.

AR 40: Xen based system

The   MEITC   system   will   benefit   from   virtualization,   so,   a   Xen   based   system   should
already be installed on the system, featuring dom0 (the hypervisor) and domAPP (the
virtual machines).

AR 50: Trusted bootloader

A   trusted   bootloader,   specifically   tGRUB,   is   required   in   order   to   to   measure   the
integrity of the system.

AR 60: TPM driver

A TPM driver is required to reach the TPM module on the mainboard.

AR 70: Trusted Software Stack (TSS)

A trusted software stack (v1.x) is required to use the TPM driver.

AR 80:  OpenSSL TPM Engine

An   openssl   tpm   engine   is   required   to   access   TPM   hardware   with   an   openssl
application.

Internal document

4/39

background image





OTC-17: MEITC Use case document

UC name

UC 10: MEITC system startup

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. The  MEITC  components  are  installed  on  a

trusted computing base

2. The TPM ownership is already taken by the

system administrator

Postconditions

All the servers have remotely attested and are up
and running

Main flow

1. dom0 is powered on by the administrator
2. dom0 is checked and booted by tGRUB
3. dom0   starts   up   the   Database   (DB),   Web

Server   (WS)   and   Mail  Server   (MS)   servers
on different domAPP compartments

4. dom0 checks running status of the domAPP

compartments

5. If all the domAPP compartments are up and

running,   then   dom0   and   each   of   the
compartments establish a connection

6. WS establishes a connection with DB
7. WS establishes a connection with MS

Alternative flow

2.a   If   the   integrity   checking   process   fails,   the
system halts
5.a.1 If one of the compartments does not boot
properly,   then   the   system   administrator   makes
sure that the corresponding domAPP starts
5.a.2 Operation continues with step 3

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

5/39

background image





OTC-17: MEITC Use case document

UC name

UC 11: Taking TPM Ownership

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. The  MEITC  components  are  installed  on  a

trusted computing base

2. The ownership of the system's TPM has not

yet been taken

Postconditions

TPM Ownership has been taken

Main flow

1. The   ownership   of   the   system's   TPM   is

properly taken

Alternative flow

1. The   system   administrator   takes   the

ownership   of   the   system.   As   part   of   this
process, he specifies the owner password

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

6/39

background image





OTC-17: MEITC Use case document

UC name

UC 13: MEITC system shutdown

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. The  MEITC  components  are  installed  on  a

trusted computing base

2. The TPM ownership is already taken by the

system administrator

Preconditions

/UC 10/

Postconditions

All the servers are shut down

Main flow

1. domDB is powered off by the administrator
2. domAPP is powered off by the administrator
3. dom0 is powered off by the administrator

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

7/39

background image





OTC-17: MEITC Use case document

UC name

UC 40: Adding a new user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

The   system   administrator   is   logged   in   to   the
system

Postconditions

User is created

Main flow

1. System   administrator   uses   the   web

interface to choose “add user” operation

2. System   administrator   enters   the   user

details using the web interface

3. Web   browser   checks   all   fields   to   ensure

there are no empty fields

4. Web server demands from the database if

the entered username is already defined

5. Database server responds that the user is

not already defined

6. User   information   is   registered   to   the

database server

7. Database   server   informs   the   web   server

that a new user has been created

8. Web server informs the administrator that

the new user has been created

Alternative flow

4.a.1 If the user is already defined the database
server sends an error message to web server.
4.a.2   Web   server   displays   the   message   on   the
web browser.
4.a.3   Web   browser   demands   from   the   system
administrator to enter the user's details one more
time.
4.a.4 The operations continue with  step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

8/39

background image





OTC-17: MEITC Use case document

UC name

UC 45: Updating an existing user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

1. The   system   administrator   is   logged   in   to

the system

Preconditions

/UC 40/

Postconditions

User updated

Main flow

1. System   administrator   chooses   “update

user” operation from the web interface

2. System   administrator   enters   the   updated

user details using the web interface

3. Web   browser   checks   all   fields   to   ensure

there are no empty fields

4. Web   server   sends   the   user   update

information to the database server

5. User information is updated in the database
6. Database   server   informs   the   web   server

that the user details have been updated

7. Web   server   informs   system   administrator

that the  user details have been updated

Alternative flow

4.a.1 If an empty field exists the browser shows
an error message to the user
4.a.2   Web   browser   demands   that   the   system
administrator   enters   the   updated   users   details
one more time
4.a.3 The operations continue with the step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

9/39

background image





OTC-17: MEITC Use case document

UC name

UC 50: Deleting an existing user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

The   system   administrator   is   logged   in   to   the
system

Postconditions

User is deleted

Main flow

1. System   administrator   uses   the   web

interface to choose “delete user” operation

2. System administrator enters the username

to be deleted to the web interface

3. Web   server   demands   from   the   database

whether this username is already defined

4. Database server responds that username is

already defined

5. Web server sends a confirmation request to

the web browser

6. Web   browser   requests   confirmation   from

the system administrator

7. System   administrator   confirms   the

operation

8. Web browser sends the confirmation to the

web server

9. Web server sends  the  delete operation  to

the database server

10.User   is   deleted   from   the   database   and   a

message is sent to the web server

11.Web server passes this message to the web

browser

12.Web   browser   displays   that   the   selected

user is deleted

Alternative flow

4.a.1 If the user is not already defined, database
server sends to the web server an error message
4.a.2 Web server displays this message on web
browser
4.a.3   Web   browser   requests   from   the   system
administrator to select another username
4.a.4 The operation continues with the step 2

Internal document

10/39

background image





OTC-17: MEITC Use case document

7.a.1 System administrator does not confirm the
operation
7.a.2 Operation is interrupted

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

11/39

background image





OTC-17: MEITC Use case document

UC name

UC 55: Adding an administrator user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

The   system   administrator   is   logged   in   to   the
system

Postconditions

Administrator user created

Main flow

1. System   administrator   uses   the   web

interface to choose “add admin” operation

2. System   administrator   enters   the

administrator   user   details   using   the   web
interface

3. Web server demands from the database if

the   entered   administrator   username   is
already defined

4. Database   server   responds   that   the

administrator user is not already defined

5. Administrator user information is registered

to the database

6. Database   server   informs   the   web   server

that new administrator user is created

7. Web server informs administrator that the

new administrator user is created

Alternative flow

4.a.1 If the administrator user is already defined
the database server sends an error message to
web server
4.a.2   Web   server   displays   the   message   on   the
web browser
4.a.3   Web   browser   demands   from   the   system
administrator   to   enter   administrator   user's
information one more time
4.a.4 The operation continues with the step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

12/39

background image





OTC-17: MEITC Use case document

UC name

UC   56:   Updating   an   existing   administrator
user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

The   system   administrator   is   logged   in   to   the
system

Preconditions

/UC 55/

Postconditions

Administrator user updated

Main flow

1. System   administrator   uses   the   web

interface   to   choose   “update   administrator
user” operation

2. System   administrator   enters   updated

administrator   user   details   using   the   web
interface

3. Web browser checks to ensure there are no

empty fields

4. Web   server   sends   the   updated

administrator user details to the database
server

5. Administrator   user   information   is   updated

to the database

6. Database   server   informs   the   web   server

that   the   administrator   user   details   have
been updated

7. Web server informs administrator that the

administrator   user   details   have   been
updated

Alternative flow

4.a.1 If an empty field is exists the browser shows
an error message to the user
4.a.2   Web   browser   demands   from   the   system
administrator   to   enter   updated   administrator
user's information one more time
4.a.3 The operations continue with the step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

13/39

background image





OTC-17: MEITC Use case document

UC name

UC 57: Delete an administrator user

Primary actors

System administrator

Stakeholders and interest

MEITC  web server, MEITC  database  server, web
browser

Assumptions

The   system   administrator   is   logged   in   to   the
system

Preconditions

/UC 55/

Postconditions

Admin user is deleted

Main flow

1. System   administrator   uses   the   web

interface   to   choose   “delete   administrator
user” operation

2. System   administrator   selects   the

administrator  username to be deleted from
the web interface

3. Web   server   demands   from   the   database

whether   this   administrator   username   is
already defined

4. Database   server   indicates   that   the

administrator username is already defined

5. Web server sends a confirmation request to

the web browser

6. Web   browser   requests   confirmation   from

the system administrator

7. System   administrator   confirms   the

operation

8. Web browser sends the confirmation to the

web server

9. Web server sends  the  delete operation  to

the database server

10.Administrator   user   is   deleted   from   the

database and a message is sent to the web
server

11.Web server passes this message to the web

browser

12.Web   browser   displays   that   the   selected

administrator user is deleted

Alternative flow

4.a.1   If   the   administrator   user   is   not   already
defined, database server sends to the web server

Internal document

14/39

background image





OTC-17: MEITC Use case document

an error message
4.a.2 Web server displays this message on web
browser
4.a.3   Web   browser   requests   from   the   system
administrator   to   select   another   administrator
username
4.a.4 The operation continues with the step 2
7.a.1   System   administrator   doesn't   confirm   the
operation
7.a.2 Operation is interrupted

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

15/39

background image





OTC-17: MEITC Use case document

UC name

UC 60: User authenticates via MEITC

Primary actors

User

Stakeholders and interest

All MEITC servers and web browser on client side

Assumptions

1. User is already defined in MEITC system
2. A web browser is installed in the client side

platform

Postconditions

User is authenticated via MEITC

Main flow

1. User opens web browser in the client side
2. User enters her username and password
3. Web   browser   sends   username   and

password to the web server

4. Web   server   establishes   a   secure   channel

with MEITC mail server

5. Web server sends username and password

to the mail server

6. Mail   server   establishes   a   secure   channel

with the database server

7. Mail server asks the database server for the

username and password

8. Database   server   returns   username   and

password

9. Mail server checks username and password

with the database server

Alternative flow

10.a. If the authentication process fails, operation
stops

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

1. How (or whether) to implement the mutual

remote attestation is still an issue

Internal document

16/39

background image





OTC-17: MEITC Use case document

UC name

UC 100: Accessing user's inbox

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. The user is authenticated as in UC 60

Postconditions

User accesses her inbox

Main flow

1. WS connects to MS for accessing the mail

inbox data of the user

2. MS gets the inbox data from DB server
3. DB server gives the user data to MS
4. MS sends the data to WS
5. WS forwards the data to the client
6. User chooses next operation

Alternative flow

1.a.1 If  MS is not properly functioning, then web
server   gives   an   appropriate   error   message   and
goes back to login page
2.a.1 If DB is not properly functioning, then web
server   gives   an   appropriate   error   message   and
goes back to login page

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

17/39

background image





OTC-17: MEITC Use case document

UC name

UC 110: Sending an e-mail

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User is authenticated as in UC 60
3. User can read mails as explained in UC 100

Postconditions

User sends an e-mail

Main flow

1. User composes the e-mail and selects the

signing and encryption options

2. Client sends the e-mail data to the WS
3. WS sends the e-mail data to the MS
4. MS   sends   the   e-mail   data   to   the   CS   for

signing and encrypting the e-mail

5. MS generates the signature for the e-mail

by   using   the   sender's   private   key   and/or
encrypts it by using the public keys of the
recipient

6. MS logs the e-mail transmission information
7. MS stores a record that contains details of

the e-mail

8. MS sends the e-mail data to the DB
9. DB   stores   the   signed   and/or   encrypted   e-

mail   to   the   sender's   and   the     recipients'
mailboxes

10.MS sends the acknowledge of the operation

and the update of the mailbox to the WS

11.WS forwards the acknowledge  to the web

browser

Alternative flow

1. In   any   of   the   steps   above,   if   the

corresponding   (affected)   server   is   not
functioning properly, then the WS sends a
reply showing the error to the user

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

18/39

background image





OTC-17: MEITC Use case document

UC name

UC 120: Deleting an e-mail

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC   system   is   running,   not   necessarily

with all compartments

2. The user is authenticated as in UC 60
3. The user can read her e-mail as explained

in UC 100

4. The user has her inbox open

Postconditions

The user deletes the selected e-mail

Main flow

1. User   selects   the   appropriate   e-mail   to   be

deleted

2. User clicks on the "Delete" button
3. WS sends this information to MS
4. MS deletes the e-mail and informs DB
5. E-mail is deleted from the DB

Alternative flow

1. In   any   of   the   steps   above,   if   the

corresponding   (affected)   server   is   not
functioning properly, then the WS sends a
reply showing the error to the user

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

19/39

background image





OTC-17: MEITC Use case document

UC name

UC 130: Backup MEITC System

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. Admin user is logged in

Preconditions

/UC 10/

Postconditions

MEITC system backup will be taken

Main flow

1. Administrator   user   clicks  on   "Backup"  link

under the Administrator menu

2. Web Browser sends this link request to the

WS

3. WS (domAPP) retrieves database structure

and data from DB and writes to a text file
This   text   file   will   be   archived   and
compressed in .tar.gz file format

4. WS   archives   and   compresses   users   mail

directories. Users' mails are located in MS
in a directory

5. Administrator user will be asked whether to

download this file or not

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

20/39

background image





OTC-17: MEITC Use case document

UC name

UC 200: Requesting a certificate

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User logins to the certificate manager

Postconditions

User requests a certificate

Main flow

1. User   requests   for   a   new   self   signed

certificate

2. This request is stored in the DB repository.
3. As the administrator logs in, he is asked to

accept or reject the request

4. As administrator accepts, the certificate is

generated

5. Certificate generation information is sent to

the user

Alternative flow

3.a. System administrator rejects revoking
process

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

Normally,   this   should   be   done   by   system
administrator.   Usual   certificate   requesting
mechanisms will be investigated

Internal document

21/39

background image





OTC-17: MEITC Use case document

UC name

UC 205: Requesting a certificate for user via
administrator panel

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. Administrator user is logged in

Postconditions

Administrator user requests a user certificate

Main flow

1. Administrator   user   clicks   to   the   "requests

for a new user certificate" link

2. Administrator   user   enters   all   users'

certificate request data information

3. Client sends this information to the WS
4. WS checks availability of the user
5. If the user exist WS sends this request to

CS

6. CS   generates   the   certificate   request   and

stores it to the DB repository

7. WS forwards  the  acknowledge  to the  web

browser   that   the   certificate   request   is
generated

Alternative flow

5.a. If the user doesn't exist in the system

5.a.1 If the user doesn't exist in the system the
administrator makes sure that the entered user is
defined
5.a.2 Operation continues with step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

22/39

background image





OTC-17: MEITC Use case document

UC name

UC 210: Revoking a certificate

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User has a certificate
3. User logins to the certificate manager

Postconditions

Certificate is revoked

Main flow

1. User asks for his certificate to be revoked
2. This request is stored in the DB repository
3. When the administrator logs in, he is asked

to accept or reject the revocation

4. If the administrator accepts, the certificate

is revoked

5. Certificate revocation information is sent to

the user

Alternative flow

3.a. System administrator rejects the revocation

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

23/39

background image





OTC-17: MEITC Use case document

UC name

UC 220: Viewing a certificate

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User logins to the certificate manager
3. User already has a certificate

Postconditions

User views the selected certificate

Main flow

1. User   clicks   on   the   menu   item   in   order   to

view the certificate

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

All users should be able to see other's certificates

Internal document

24/39

background image





OTC-17: MEITC Use case document

UC name

UC 230: Accepting a certificate request

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. User   has   requested   a   certificate   as   in   UC

200

2. MEITC system is running
3. Administrator   logins   to   the   certificate

manager

Postconditions

Certificate   request   is   granted   and   certificate   is
generated

Main flow

1. Administrator views the certificate request
2. Administrator   accepts   the   certificate

request

3. Certificate   is   generated   by   CS   and   stored

on the database

4. When   the   user   logs   in   again,   he'll   be

informed that certificate is generated

Alternative flow

3.a.   System   administrator   rejects   certificate
request

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

25/39

background image





OTC-17: MEITC Use case document

UC name

UC   240:   Accepting   a   certificate   revocation
request

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. User   has   issues   a   certificate   revocation

request as in UC 210

2. MEITC system is running
3. Administrator   logins   to   the   certificate

manager

Postconditions

Certificate   revocation   request   is   accepted   and
certificate is revoked

Main flow

1. Administrator   views   the   certificate

revocation request

2. Administrator   accepts   the   certificate

revocation request

3. Certificate is revoked by CS and revocation

information is stored on the database

4. Certificate is deleted from the DB

Alternative flow

3.a.   System   administrator   rejects   certificate
revocation request

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

This   process   can   optionally   be   issued
automatically by the system, immediately after a
user request, without administrator intervention

Internal document

26/39

background image





OTC-17: MEITC Use case document

UC name

UC 270: Signing an e-mail

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User is authenticated as in UC 60

Postconditions

User sends a signed e-mail

Main flow

1. User   selects   the   signing   option   and

composes the e-mail

2. Client sends the e-mail data to the WS
3. WS sends the e-mail data to the MS
4. MS generates the signature for the e-mail

by using the sender's private key

5. MS logs the e-mail transmission information
6. MS stores a record that contains details of

the e-mail

7. MS   stores   the   signed   e-mail   data   to   the

recipients' mailbox directory

8. MS sends the acknowledge of the operation

and the update of the mailbox to the WS

9. WS forwards  the  acknowledge  to the  web

browser

Alternative flow

1. In any of the steps above, if the corresponding
(affected) server is not functioning properly, then
the WS sends  a reply  showing  the error  to the
user

4.a.1 If the sender user's private key is not
available, the message is not signed
4.a.2 Operation is interrupted

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

27/39

background image





OTC-17: MEITC Use case document

UC name

UC 280: Encrypting an e-mail

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User is authenticated as in UC 60

Postconditions

User sends an encrypted e-mail

Main flow

1. User   selects   the   encryption   options   and

composes the e-mail

2. Client sends the e-mail data to the WS
3. WS sends the e-mail data to the MS
4. MS encrypts the e-mail by using the public

key of the recipient

5. MS stores the encrypted e-mail data to the

recipients' mailbox directory

6. MS sends the acknowledge of the operation

and the update of the mailbox to the WS

7. WS forwards  the  acknowledge  to the  web

browser

Alternative flow

1. 1. In any of the steps above, if the corresponding

(affected) server is not functioning properly, then
the WS sends  a reply  showing  the error  to the
user

4.a.1 If the recipient user's public key is not
available, the message is not encrypted
4.a.2 Operation is interrupted

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

28/39

background image





OTC-17: MEITC Use case document

UC name

UC 290: Decrypting an e-mail

Primary actors

User

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. User is authenticated as in UC 60
3. E-Mail is encrypted as in UC 280
4. User can access inbox as in UC 100

Preconditions

/UC 280/

Postconditions

User decrypts the encrypted e-mail

Main flow

1. User tries to open encrypted e-mail
2. Client sends the request to the WS
3. WS sends the request to the MS
4. MS   decrypts   the   e-mail   by   using   senders'

private key

5. MS sends the decrypted e-mail data to the

WS

6. WS sends the encrypted email data to the

web browser

7. User read the message

Alternative flow

1. In any of the steps above, if the corresponding
(affected) server is not functioning properly, then
the WS sends  a reply  showing  the error  to the
user

4.a.1 If the user's private key is not available, the
message is not decrypted
4.a.2 Operation is interrupted

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

29/39

background image





OTC-17: MEITC Use case document

UC name

UC 300: Encrypting system logs

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running.
2. Administrator user is logged in

Preconditions

/UC 10/

Postconditions

MEITC log files will be encrypted

Main flow

1. Administrator user clicks on “Log services”

menu

2. Administrator user chooses the a log type.

This   log   type   can   be   MySQL,   Maillog,
Tomcat Apache or MEITC application log

3. Log   file   is   encrypted   by   using   TPM   based

certificate.   This   certificate   is   created   by
using openssl tpm engine

4. Timestamp information will be added to the

encrypted   log   file   name,   like
log_file.YYYYMMDDHHMMSS.enc

5. This  encrypted log file  is be archived and

compressed

6. User downloads the encrypted file

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

Trusted time and privacy CA services which will
be developed in OpenTC are not ready

Internal document

30/39

background image





OTC-17: MEITC Use case document

UC name

UC 310: Decrypting system logs

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running.
2. Administrator user is logged in

Preconditions

/UC 10/
/UC 300/

Postconditions

MEITC log files will be decrypted

Main flow

1. Administrator user clicks on “Log services”

menu

2. Administrator   user   chooses   an   encrypted

log file

3. This log file is decrypted by using log server

key and CA application.

4. Decrypted   log   file   is   archived   and

decompressed

5. Administrator   user   downloads   this

decrypted file

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

Trusted time and privacy CA services which will
be developed in OpenTC are not ready

Internal document

31/39

background image





OTC-17: MEITC Use case document

UC name

UC 320: Showing TPM / TSS Status

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running.
2. Administrator user is logged in

Postconditions

TPM / TSS Status information shown

Main flow

1. Administrator   user   clicks   on   "TPM   /   TSS

Status"   link   under   the   TPM   Configurator
menu

2. Web Browser sends this link request to the

WS

3. WS (domAPP) opens SSH tunnel to dom0
4. In   dom0   TPM   /   TSS   status   (whether   it's

running   or   not)   is   checked   by   using   TPM
Tools

5. WS   sends   TPM   Status   data   to   the   web

browser

Alternative flow

3.a. If the SSH Tunnel doesn't open to dom0 from
domAPP
3.a.1   If   the   SSH   Tunnel   doesn't   open   to   dom0
from domAPP the administrator makes sure that
the  all MEITC services is running

3.a.2 Operation continues with step 2
4.a. If the TPM Tools does not run in the dom0

4.a.1 If the TPM Tools application does not run in
the dom0 the administrator makes sure that the
application is running properly
4.a.2 Operation continues with step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

32/39

background image





OTC-17: MEITC Use case document

UC name

UC 330: Showing TPM / TSS Details

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running.
2. Administrator user is logged in

Postconditions

TPM / TSS detailed information shown

Main flow

1. Administrator   user   clicks   on   "TPM   /   TSS

Detail"   link   under   the   TPM   Configurator
menu

2. Web Browser sends this link request to the

WS

3. WS (domAPP) opens SSH tunnel to dom0
4. In dom0 TPM / TSS detail information (PCR

values) is checked by using TPM Tools

5. WS   sends   TPM   detail   data   to   the   web

browser

Alternative flow

3.a. If SSH tunnel doesn't open from domAPP to
dom0
3.a.1   Administrator   makes   sure   that   all   MEITC
services is running

3.a.2 Operation continues with step 2
4.a. If the TPM Tools does not run in the dom0

4.a.1 If the TPM Tools application does not run in
dom0, administrator makes sure that application
is running properly
4.a.2 Operation continues with step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

33/39

background image





OTC-17: MEITC Use case document

UC name

UC   340:   Logging   out   from   MEITC   admin
panel

Primary actors

System administrator

Stakeholders and interest

Web server and web browser on client side

Assumptions

1. Administrator user is already defined
2. A web browser is installed in the client side

Preconditions

Administrator user is authenticated

Postconditions

Administrator user is logged out

Main flow

1. User clicks the "Logout" link on the MEITC

administrator panel

2. Web  browser   sends  the  logout   request  to

the web server

3. Web   server   destroys   administrator   users

session information

4. WS forwards  the  acknowledge  to the  web

browser.   In   the   acknowledge   message   it
says the administrator user is logged out of
the system

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

34/39

background image





OTC-17: MEITC Use case document

UC name

UC 350: Logging out from the MEITC
Certmanager

Primary actors

User

Stakeholders and interest

Web server and web browser on client side

Assumptions

1. User is already defined in MEITC

certmanager system.

2. A web browser is installed in the client side

platform

Preconditions

User is authenticated to the MEITC certmanager

Postconditions

User is logged out from the MEITC certmanager

Main flow

1. User clicks on  "Logout"  link  on  the  MEITC

certmanager

2. Web browser sends a logout request to the

web server

3. Web   server   destroys   user   session

information

4. WS forwards  the  acknowledgement  to the

web   browser.   In   the   acknowledgement
message it says the user is logged out from
the system

Alternative flow

None

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Internal document

35/39

background image





OTC-17: MEITC Use case document

UC name

UC 360: Creating TPM based log certificate
file for signing MEITC logs

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. Administrator user is logged in

Postconditions

TPM based certificate is created

Main flow

1. Administrator   user   clicks   to   "Create   TPM

based   log   certificate"   link   under   the   Log
Management menu

2. In   the   TPM   based   certificate   status   page,

administrator user clicks “create TPM based
log certificate” button, if this certificate file
is not created before

3. Web browser sends this link request to WS
4. WS (domAPP) opens SSH tunnel to dom0
5. In   dom0   a   log   key   file   is   created   using

openssl TPM engine application.

6. In  dom0,   TPM  based certificate  is  created

using   the   previously   created   log   keyfile,
openssl   and   openssl   TPM   engine
applications

Alternative flow

4.a. If the SSH Tunnel is not created from
domAPP to dom0
4.a.1 Administrator makes sure that all MEITC
services is running
4.a.2 Operation continues with step 2

5.a. If TSS doesn't run in dom0

5.a.1 Administrator makes sure that the
application is running properly
5.a.2 Operation continues with step 6

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

Trousers is used as TSS

Internal document

36/39

background image





OTC-17: MEITC Use case document

UC name

UC   370:   Signing   MEITC   Log   files   with   TPM
based log certificate

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. Administrator user is logged in

Preconditions

/UC 360/

Postconditions

MEITC log file is signed with TPM based certificate

Main flow

1. Administrator   user   clicks   to   "MEITC   logs"

link under the Log Management menu

2. In   MEITC   log   page,   administrator   user

selects the component (MySQL, Tomcat) to
be signed

3. Web browser sends this link request to the

WS

4. WS (domAPP) opens SSH tunnel to dom0
5. In   dom0   a   sha1   log   file   of   the   selected

MEITC component is created using the log
file and sha1sum command

6. In   dom0   sha1   log   file   is   signed   with   TPM

based   log   certificate   file.   Openssl   and
openssl TPM engine is used in this process

Alternative flow

4.a. If an SSH tunnel is not created from domAPP
to dom0
4.a.1 Administrator makes sure that the  all
MEITC services is running

4.a.2 Operation continues with step 2
5.a. If TSS doesn't run in dom0

5.a.1 Administrator makes sure that application is
running properly
5.a.2 Operation continues with step 6

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

Trousers is used as TSS

Internal document

37/39

background image





OTC-17: MEITC Use case document

UC name

UC 380: Verifying Signed MEITC Log Files

Primary actors

System administrator

Stakeholders and interest

All MEITC servers

Assumptions

1. MEITC system is running
2. Administrator user is logged in

Preconditions

/UC 360/
/UC 370/

Postconditions

Signed MEITC log file is verified with tpm based
log certificate

Main flow

1. Administrator   user   clicks   on   “Verify   logs”

link under Log Management menu

2. In  the   MEITC   verify   logs   page,  user  clicks

the file to be verified

3. Web browser sends this link request to WS
4. WS (domAPP) opens an SSH tunnel to dom0
5. In   dom0   compartment,   selected   MEITC

signed   log   file   is   verified   with   TPM   based
log certificate

Alternative flow

4.a. If an SSH tunnel is not created from domAPP
to dom0
4.a.1 Administrator makes sure that all MEITC
services are running

4.a.2 Operation continues with step 2

System requirements

See general assumptions in section 3 "Use Cases"

Open issues

None

Abbreviations

Abbreviations used in this report are given in Table 1.

Table 1. Abbreviations

Abbreviation

Terminology

Definition

CS

Certificate Service

CS is the certificate service provider for
MEITC

TPM

Trusted Platform
Module

The TPM is a micro controller that stores
keys, passwords and digital certificates.

TSS

Trusted Software

The TSS is a software specification that

Internal document

38/39

background image





OTC-17: MEITC Use case document

Abbreviation

Terminology

Definition

Stack

provides a standard API (Application
Programming Interface) for accessing the
functions of the TPM.

PCR

Platform
Configuration
Register

The measurement results of the
configuration by a TPM module are stored
in a platform configuration register inside
of the TPM module as PCR values.

OPENTC

Open Trusted
Computing

OPEN TC consortium is an R&D project
focusing on the development of trusted
and secure computing systems based on
open source software.

MEITC

Message Exchange
Infrastructure for
Trusted Computing

MEITC is a secure message exchange
environment.

HTTP

Hyper Text Transfer
Protocol

HTTP, the actual communications protocol
that enables web browsing

OpenSSL

Open Secure
Socket Layer

OpenSSL is a popular package to add
cryptographic security to applications
communicating over a network

JSP

Java Server Pages

Java Server Pages (JSP) are normal HTML
with Java code pieces embedded in them.
A JSP compiler is used to generate a
Servlet from the JSP page.

HTML

Hypertext (or
HyperText) Markup
Language

HTML is a language to specify the
structure of documents for retrieval
across the Internet using browser
programs of the WorldWideWeb

TC

Trusted Computing Trusted computing is a combination of

software and hardware supporting
applications to ensure that data cannot
be accessed unless the user’s system is
operating as expected and has not been
tampered with

LS

Log Service

LS is used in MEITC system

MS

Mail Server

MS is a component of MEITC system

WS

Web Server

WS is a component of MEITC system

DB

Database

DB server is a component of MEITC
system

Internal document

39/39

background image





WP06.c2: WYSIWYS application design

specification

Project number

IST- 027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Internal deliverable

Deliverable reference number

IST-027635/D06c.2/FINAL 1.10

Deliverable title

WYSIWYS application design specification

WP contributing to the deliverable

WP6

Due date

Apr 2008 - M30

Actual submission date

Apr 2009

Responsible Organisation

Politecnico di Torino

Authors

Giovanni Cabiddu, Gianluca Ramunno, Marco
Vallini (POL)

Abstract

WYSIWYS is a functional and security
requirement for electronic signatures,
especially when used in legal contexts. This
document consists in the design specification
for a WYSIWYS application suitable for
OpenTC security architecture and satisfying
the WYSIWYS requirement. It also includes
the updated high level requirements
specification: for this reason it supersedes
the deliverable D06c.1. Finally it includes
some implementation detail of the prototype
delivered as D06c.3.

Keywords

WYSIWYS, Trusted Computing, Virtualization

Dissemination level

Public

Revision

FINAL 1.10

Instrument

IP

Start date of the
project

1

st

 November 2005

Thematic Priority

IST

Duration

42 months



background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Table of Contents

  1 Motivation and problem description..........................................................................6
  2 Security Environment................................................................................................7

 2.1 Assumptions..........................................................................................................7
 2.2 Threats...................................................................................................................9

  3 Functional Requirements (Use Case Model)............................................................11

 3.1 Goal.....................................................................................................................11
 3.2 Target Groups......................................................................................................11
 3.3 Roles and Actors..................................................................................................11
 3.4 Overview..............................................................................................................11
 3.5 Use Cases (Detailed Description).........................................................................12

 3.5.1 Sign a document.............................................................................................13
 3.5.2 Verify a signed document................................................................................14
 3.5.3 Basic operations..............................................................................................15

  4 Security Objectives & Security Requirements.........................................................23

 4.1 Security Objectives..............................................................................................23
 4.2 Security Requirements.........................................................................................24

  5 Supplementary Requirements................................................................................25

 5.1 Preconditions.......................................................................................................25
 5.2 Required Criteria..................................................................................................25
 5.3 Desired Criteria....................................................................................................25
 5.4 Distinguishing Criteria..........................................................................................26
 5.5 Execution Environment........................................................................................26

 5.5.1 Software..........................................................................................................26
 5.5.2 Hardware.........................................................................................................26

 5.6 Development Environment..................................................................................26

 5.6.1 Software..........................................................................................................26
 5.6.2 Hardware.........................................................................................................26

  6 Architecture for WYSIWYS: Trusted Computing and Virtualization..........................27

 6.1 Compartments and integrity measures...............................................................27
 6.2 Solutions for integrity binding..............................................................................29

 6.2.1 Keys and data structures................................................................................30
 6.2.2 Three phases bind...........................................................................................31
 6.2.3 Conditions.......................................................................................................32
 6.2.4 Initialization phase..........................................................................................33
 6.2.5 Discussion on other types of binding...............................................................33

 6.3 Proving the WYSIWYS requirement......................................................................34

  7 High-Level Software Architecture...........................................................................36

 7.1 Introduction.........................................................................................................36
 7.2 Logical views........................................................................................................36

 7.2.1 Packages.........................................................................................................36
 7.2.2 Use case realisation........................................................................................38

  8 Design.....................................................................................................................49

 8.1 Communication between modules.......................................................................49

 8.1.1 wys_commlib library........................................................................................51
 8.1.2 Interactions between modules........................................................................53

 8.2 Modules................................................................................................................54

 8.2.1 WYSIWYS Control Service (CS)........................................................................54
 8.2.2 Signing Device Interface (SDI).........................................................................55

Open_TC Deliverable 06c.2

2/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.3 Trusted Integrity Service (TIS).........................................................................57
 8.2.4 Trusted Storage Service (TS)...........................................................................59
 8.2.5 Trusted User Interface (TUI)............................................................................60
 8.2.6 Trusted Viewer Service (TVS)..........................................................................63
 8.2.7 Trusted Window Service (TWS).......................................................................64
 8.2.8 Untrusted User Interface (UUI)........................................................................65

  9 Implementation details...........................................................................................66

 9.1 Three phase bind.................................................................................................66

 9.1.1 Key Registration..............................................................................................67
 9.1.2 Signature process............................................................................................68
 9.1.3 WYSIWYS Application startup..........................................................................70
 9.1.4 Drivers.............................................................................................................71

  10 Security requirements for signature creation applications...................................75
  11 List of Abbreviations.............................................................................................79
  12 Acknowledgements...............................................................................................80
  13 References............................................................................................................81

Open_TC Deliverable 06c.2

3/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

List of figures

Figure 1: Use cases diagram........................................................................................12
Figure 2: Keys...............................................................................................................31
Figure 3: Three phase bind scheme..............................................................................32
Figure 4: Package diagram...........................................................................................36
Figure 5: UC 30 sequence diagram...............................................................................40
Figure 6: UC 40 sequence diagram...............................................................................41
Figure 7: UC 50 sequence diagram...............................................................................42
Figure 8: UC 60 sequence diagram...............................................................................43
Figure 9: UC 65 sequence diagram...............................................................................44
Figure 10: UC 70 sequence diagram.............................................................................46
Figure 11: UC 80 sequence diagram.............................................................................47
Figure 12: UC 90 sequence diagram.............................................................................48
Figure 13: Tag-Length-Value .......................................................................................49
Figure 14: T field...........................................................................................................49
Figure 15: Stack of libraries..........................................................................................50
Figure 16: Interactions between modules.....................................................................53
Figure 17: Trusted Integrity Service DB........................................................................67
Figure 18: Drivel Model.................................................................................................71
Figure 19: SDI software stack for POLITO Student's Smart Card..................................73

Open_TC Deliverable 06c.2

4/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

List of Tables

Table 1: Packages required by use cases.....................................................................39

Open_TC Deliverable 06c.2

5/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 1  Motivation and problem description

“What You See Is What You Sign” (WYSIWYS) is a functional and security requirement
for electronic signatures, especially when used in legal contexts (e.g. the European
Directive 1999/93/EC [9] on electronic signatures). To guarantee the trustworthiness
of the content displayed and being signed, there is the need to guarantee a trusted
path   from   the   signing   (or   verifying)   application   to   the   user   and   in   the   opposite
direction. Many past and present solutions that claim to be WYSIWYS compliant, in
reality   they   are   not.   In   fact   they   do   not   protect   against   Trojan   software   or   other
“malware” that can either modify the document image displayed to the user or the
user’s input to activate the signing device operations. This is caused by the insecure
architecture of the I/O subsystems integrated within the current monolithic Operating
Systems.
Therefore   the   design   of   a   WYSIWYS   application   must   also   take   into   account   the
underlying   architecture   in   order   to   guarantee   the   actual   trustworthiness   of   the
application. In particular trusted input/output paths between the application and the
user must be must be in place in order to guarantee the correct binding between the
document presentation and the data actually signed or verified.
The security properties and services provided by OpenTC architecture can be used as
foundation for a WYSIWYS application; enabling features from OpenTC are the trusted
GUI and the assurance about the integrity of the Trusted Computing Base including
hypervisor, operating system, and applications. Moreover memory isolation through
virtualization   and   information   flow   control   policies   allow   designing   the   WYSIWYS
application   in   a   modular   fashion   with   a   strong   confinement   of   components   with
different levels of requirements for strength.
Another relevant aspect is the correctness of the document presentation. Given the
complexity   of   the   current   document   formats,   there   is   no   sufficient   market   for
designing   and   implementing   trustworthy   viewers   solely   for   the   purpose   of   secure
electronic   signatures.   We   therefore   use   a   pragmatic   approach   for   achieving   this
requirement. Standard applications used to produce the documents being signed can
be   used   as   “trusted   viewers”   provided   that   they   are   properly   configured   to   avoid
hidden content, and dynamic content depending on the platform configuration or on
the time when the document is presented.
This   document   includes   the   design   specification   for   a   WYSIWYS   application   for   a
reference architecture of an application for signing and verifying electronic documents
that   satisfies   the   WYSIWYS   requirement.   It   also   includes   the   updated   high   level
requirements specification: for this reason it supersedes the deliverable D06c.1 [8].
Finally it includes some implementation detail of the prototype delivered as D06c.3.

Open_TC Deliverable 06c.2

6/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 2  Security Environment

This   section   describes   the   security   aspects   of   the   environment   in   which   the
product is intended to be used and the manner in which it is expected to be
employed.

 2.1  Assumptions

A   description   of   assumptions   shall   describe   the   security   aspects   of   the
environment in which the Target of Evaluation (TOE) will be used or is intended
to be used. This shall include the following:

information about the intended usage of the TOE, including such aspects
as the intended application, potential asset value, and possible limitations
of use; and

information about the environment of use of the TOE, including physical,
personnel, and connectivity aspects.

/A 10/ Trusted Administrator

The security administrator of the system is non-malicious.

/A 20/ Correct hardware

The underlying hardware (e.g., CPU, devices, TPM, ...) does not contain backdoors, is
non-malicious and behaves as specified.

/A 30/ No Physical attacks

Physical attacks against the underlying hardware platform do not happen.

/A 40/ TOE Binding

The IT-environment offers a mechanism that allows the TOE (WYSIWYS application) to
store   information   and   data   like   signing   keys   such   that   it   cannot   be   accessed   by
another TOE configuration. Example mechanisms are the sealing function offered by a
TPM   as   specified   by   the   TCG   in   combination   with   an   authenticated   bootstrap
architecture,   or   a  tamper-resistant   storage   in   combination   with   a  secure   bootstrap
architecture.

/A 50/ No man-in-the-middle attack

The user can determine whether he/she has a direct trusted path to the video and
keyboard   interfaces   of   the   computer.   A   physical   attack   that   relays   the   whole
communication between a local user and the Input/Output devices to another device
does not happen.

/A 60/ Trusted video path

The architecture underlying TOE provides a reliable and secure video output path.

Open_TC Deliverable 06c.2

7/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/A 70/ Trusted input paths

The architecture underlying TOE provides reliable and secure paths for input devices
(keyboard, mouse, etc.).

/A 80/ Trusted path to cryptographic devices

The architecture underlying TOE, i.e. the TCB, provides a reliable and secure path to
signing devices.

/A 90/ CRTM, TPM, boot loader, VMM and basic security services are
trustworthy

The architecture underlying TOE, namely Core Root of Trust for Measurement (CRTM),
TPM,   boot   loader,   Virtual   Machine   Monitor   (VMM)   and   services   providing   security
features behave as expected. All of them are referred to as Trusted Computing Base
(TCB) hereinafter.

/A 100/ TCB guarantees memory isolation between VMs

The   TCB   guarantees   memory   isolation   between   Virtual   Machines   (VMs)   also   called
compartments.

/A 110/ TCB is able to enforce security policies for information flow control

The   TCB   can   enforce   security   policies   for   information   flow   control   between
compartments:   it   can   guarantee   authenticity,   integrity   and   confidentiality   of
communication channels among compartments.

/A 120/ TCB prevents exploits and replay attacks

The TCB is designed to prevent exploits of uncritical applications to gain access to
security  sensitive information   and replay  attacks,   namely  resetting  the state  of  an
application by replaying an older state.

/A 130/ TCB provides secure installation services for TOE

TCB provides installation services for all security critical applications like TOE.

/A 140/ Integrity of TOE is guaranteed by TCB

The  TCB  guarantees  the  integrity  of  TOE:  either preventing  TOE  from   running  if  it
compromised or allowing TOE to be started but alerting the user about TOE being
compromised.

/A 150/ TCB provides secure GUI

The TCB provides a way to distinguish Trusted Compartments from untrusted ones
when shown.

/A 160/ Atomic operations and internal data

The   TCB   guarantees   that   operations   that   are   required   to   be   atomic   are   executed

Open_TC Deliverable 06c.2

8/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

properly.   If   the   operation   fails,   all   internal   data   related   with   that   procedure   are
deleted.

/A 170/ TCB allows selected VMs to interact with a remote system

The TCB, if needed, can enable any compartment to interact with a remote system (for
example a server on the Internet). All interactions are enforced by security policies.

 2.2  Threats

A   description   of   threats   shall   include   all   threats   to   the   assets   against   which
specific protection within the TOE or its environment is required. Note that not all
possible threats that might be encountered in the environment need to be listed,
only those which are relevant for secure TOE operation.
A threat shall be described in terms of an identified threat agent, the attack, and
the asset that is the subject of the attack. Threat agents should be described by
addressing   aspects   such   as   expertise,   available   resources,   and   motivation.
Attacks should be described by addressing aspects such as attack methods, any
vulnerabilities exploited, and opportunity.
If security objectives are derived from only organizational security policies and
assumptions, then the description of threats may be omitted.

/T 10/ Trojan Horse

An   adversary   may   try   to   get   access   to   sensitive   information   by   deceiving
Administrators or Users such that an application under control of the adversary claims
to be the TOE.

/T 20/ Unauthorised User

An unauthorised user may use TOE to read or modify information owned by another
user.

/T 30/ Unauthorised Administrator

An unauthorised user may use a management functionality of the TOE to grant itself
access to sensitive information.

/T 40/ Unauthorised Data Access

An   unauthorised   application   may   read   or   manipulate   user   information   persistently
stored by TOE.

/T 50/ Denial of Service

An adversary may try to prevent that authorised users can use the TOE by denial of
service attacks against the TCB or the TOE itself.

/T 60/ Document replacement when displayed

A malicious application may try to replace the document being displayed to fool the
user.

Open_TC Deliverable 06c.2

9/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/T 70/ Document replacement when being signed

A malicious application may try to replace the document being signed with another
one while keeping displayed the document selected by the user.

/T 80/ Incorrect document visualisation by output device

The output device may not be able to correctly represent all document details, e.g.
due to screen resolution or output device size not enough for a correct representation
or a limited set of available colours.

/T 90/ Misinterpretation of document format

The format of the document to be signed or verified may be wrongly interpreted by
the viewer.

/T 100/ Dynamic code embedded in the document

The document may include dynamic code (i.e. macros) which can, without invalidating
the signature, modify the document visualisation if different platforms are used or the
document is displayed at different times (e.g. signature or verification time).

/T 110/ Hidden content

The document may include hidden content being signed (e.g. text in the same colour
as the background) without the user being able to notice it.

/T 120/ Third party software bugs and failures

Software   made   by   a   third   party,   like   a   document   viewer   for   a   specific   document
format,   used   inside   a   VM,   may   contains   bugs   and   can   cause   malfunctioning.
Furthermore, that software may accidentally embed malware code.

/T 130/ Replay attacks using valid platform attestation values

An   adversary   may   try   to   use

valid

  attestation   informations   to   certify   a   signature

generated  by a

rogue

 platform.

/T 140/ Signature invalidation

An   adversary   may   try   to   invalidate   a   good   digital   signature   or   a   valid   platform
attestation.

Open_TC Deliverable 06c.2

10/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3  Functional Requirements (Use Case Model)

 3.1  Goal

The goal is designing an application for signing and verifying an electronic document
such that the WYSIWYS requirement is met. Furthermore, the application must provide
a way to prove that a signature is made by a platform in a known state - i.e. that
meets the WYSIWYS requirement - giving additional guarantees to the signer and the
verifier. To achieve this goal, the design is based on the OpenTC platform, a security
architecture built on top  of Trusted Computing and virtualization  technologies. The
application performs the following operations: displaying the document to be signed
and electronically signing the document, displaying an already signed document and
verifying the electronic signature.

 3.2  Target Groups

Defines the users/other components that wish to use the product.

Home user (Single-user platform at home)

Employee (Multi-user platform in enterprise environment)

 3.3  Roles and Actors

In this section we define different roles and actors important for the use case
model. Actors are parties outside the system that interact with the system; an
actor can be a class of users, roles users can play, or other systems. Note that,
depending on the use case, some parties or actors may not be involved.

User

:   The   user  of   a  computing   platform   is  an   entity   interacting   with   the   platform

under the platform's security policy. Examples are employees using enterprise-owned
hardware.

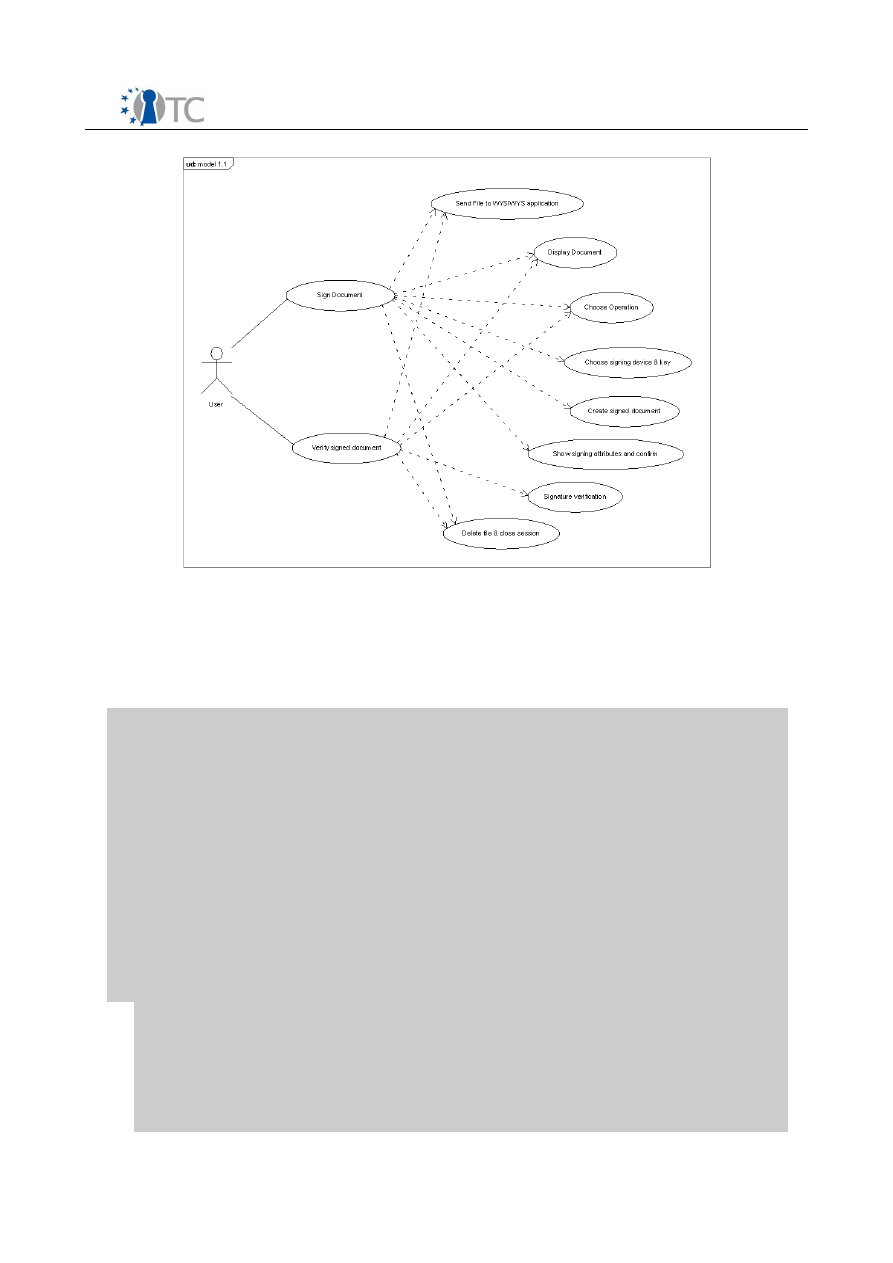

 3.4  Overview

The user can use WYSIWYS application to perform two main operations:

1. signing a document
2. verifying a signed document

Open_TC Deliverable 06c.2

11/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5  Use Cases (Detailed Description)

Each use case focuses on describing how to achieve a single business goal or
task. From a traditional software engineering perspective a use case describes
just   one   feature   of   the   system.   For   most   software   projects   this   means   that
multiple,   perhaps   dozens,   of   use   cases   are   needed   to   fully   specify   the   new
system.  The degree of formality of a particular software project and the stage of
the project will influence the level of detail required in each use case.
A   use   case   defines   the   interactions   between   external   actors   and   the   system
under consideration to accomplish a business goal.
Use   cases   treat   the   system   as   a   "black   box",   and   the   interactions   with   the
system,   including   system   responses,   are   perceived   as   such   from   outside   the
system.   This   is   a   deliberate   policy,   because   it   simplifies   the   description   of
requirements,   and   avoids   the   trap   of   making   assumptions   about   how   this
functionality will be accomplished.
A use case should:

describe a business task to serve a business goal

have no implementation-specific language

be at the appropriate level of detail

be   short   enough   to   implement   by   one   software   developer   in   a   single
release.

Open_TC Deliverable 06c.2

12/81

Figure 1: Use cases diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.1  Sign a document

Use case unique ID

/UC 10/

Title

Sign document

Short description/purpose(s)

The user wants to sign a document

Actors

User

Includes

/UC 30/ Send file to WYSIWYS
/UC 40/ Display document
/UC 50/ Choose operation
/UC 60/ Choose signing device & key
/UC 65/ Show attributes and confirm
/UC 70/ Create signed document
/UC 90/ Delete files & close sessions

Preconditions

WYSIWYS application is running

Postcondition

The user receives back the signed
document

Normal Flow

1. Send file to WYSIWYS application

/UC 30/

2. Display document /UC 40/
3. Choose operation (sign) /UC 50/
4. Choose signing device & key /UC

60/

5. Show attributes and confirm /UC

65/

6. Create signed document /UC 70/
7. Delete file & close sessions /UC 90/

Open_TC Deliverable 06c.2

13/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.2  Verify a signed document

Use case unique ID

/UC 20/

Title

Verify signed document

Short description/purpose(s)

The user wants to verify a signature
applied to a document

Actors

User

Includes

/UC 30/ Send file to WYSIWYS application
/UC 40/ Display document
/UC 50/ Choose operation
/UC 80/ Signature verification
/UC 90/ Delete file & close sessions

Preconditions

WYSIWYS application is running

Postcondition

The user receives the result of signature
verification

Normal Flow

1. Send file to WYSIWYS application

/UC 30/

2. Display document /UC 40/
3. Choose operation (verify) /UC 50/
4. Signature verification /UC 80/
5. Delete file & sessions /UC 90/

Open_TC Deliverable 06c.2

14/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3  Basic operations

 3.5.3.1  Send file to WYSIWYS application

Use case unique ID

/UC 30/

Title

Send file to WYSIWYS application

Short description/purpose(s)

The user sends file to WYSIWYS
application

Actors

User

Preconditions

WYSIWYS application is running

Postcondition

The document is loaded into WYSIWYS
application

Normal Flow

1. The user sends the application the

document's file using a proper
command

2. The application saves the

document internally

3. The application activates a trusted

interface for user interaction

Open_TC Deliverable 06c.2

15/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.2  Display document

Use case unique ID

/UC 40/

Title

Display document

Short description/purpose(s)

The application shows the document and
guarantees a trustworthy display

Preconditions

/UC 30/

Postcondition

The document is shown to the user

Normal Flow

1. The application activates the

correct viewer for the document
format

2. The application loads the document

file from an internal storage

3. The application performs some

checks in the document (e.g.
macro, hidden text) and alerts the
user if their results fail

4. The document is displayed to the

user

Open_TC Deliverable 06c.2

16/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.3  Choose operation

Use case unique ID

/UC 50/

Title

Choose operation

Short description/purpose(s)

The user chooses to sign or verify a
document

Actors

User

Preconditions

/UC 40/

Postcondition

The user has chosen the operation to be
executed

Normal Flow

1. The user is required to choose one

operation

2. The user decides to sign or verify

the document

3. The application takes charge of

user's choice

Open_TC Deliverable 06c.2

17/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.4  Choose signing device & key

Use case unique ID

/UC 60/

Title

Choose signing device & key

Short description/purpose(s)

The user selects the signing device and
key

Actors

User

Preconditions

/UC 50/

Postcondition

The signing device and the key are
chosen

Normal Flow

1. The application shows to the user

the list of available signing devices

2. The user chooses the signing

device

3. The application shows to the user

the list of available keys

4. The user chooses the signing key

Open_TC Deliverable 06c.2

18/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.5  Show signing attributes and confirm

Use case unique ID

/UC 65/

Title

Show signing attributes and confirm

Short description/purpose(s)

The application shows the signing
attributes (i.e. the attributes being
signed) and asks the user if he/she really
wants to sign the presented document
and attributes

Actors

User

Preconditions

/UC 60/

Postcondition

The user has decided if he/she wants to
continue the operation

Normal Flow

1. The application shows to the user

the list of signing attributes

2. The user decides if he/she wants to

confirm the signing operation

Open_TC Deliverable 06c.2

19/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.6  Create signed document

Use case unique ID

/UC 70/

Title

Create signed document

Short description/purpose(s)

Create the file containing the signed
document

Preconditions

/UC 65/

Postcondition

The user receives the signed document

Normal Flow

1. The application loads the document

to be signed from the internal
storage

2. The selected signing device

generates the electronic signature
over document file using the
selected key

3. The application creates the file

containing the document, the
signature and the attestation of the
state of integrity of the platform

4. The application returns to the user

the signed document

Open_TC Deliverable 06c.2

20/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.7  Signature verification

Use case unique ID

/UC 80/

Title

Signature verification

Short description/purpose(s)

The application verifies the correctness of
the electronic signature over the
document

Preconditions

/UC 50/

Postcondition

The user receives the result of verification

Normal Flow

1. The application loads the signed

document to be verified from the
internal storage

2. The application actually verifies the

correctness of the signature

3. The application returns the result of

the verification to the user

Open_TC Deliverable 06c.2

21/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 3.5.3.8  Delete file & close sessions

Use case unique ID

/UC 90/

Title

Delete file & close sessions

Short description/purpose(s)

All sessions are destroyed and the file
internally saved is deleted

Preconditions

/UC 70/ or /UC 80/

Postcondition

The application returned to its initial
state, ready to perform another operation
(sign or verify)

Normal Flow

1. The application deletes the file

from the internal storage

2. The application closes all sessions

Open_TC Deliverable 06c.2

22/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 4  Security Objectives & Security Requirements

 4.1  Security Objectives

The   security   objectives   shall   address   all   of   the   security   environment   aspects
identified.   The   security   objectives   shall   reflect   the   stated   intent   and   shall   be
suitable to counter all identified threats and cover all identified organizational
security policies and assumptions. A threat may be countered by one or more
objectives   for   the   product,   one   or   more   objectives   for   the   environment,   or   a
combination of these.

/SO 10/ Separability

The use of different security-critical TOE components based on the OpenTC security
architecture has to be at least as secure as the execution of the same applications on
physically separated computing platforms connected via network.

/SO 20/ No unauthorized use of TOE components

Unauthorized entities must not be able to arbitrarily execute TOE components.

/SO 30/ Visual identification of TOE User Interface

The user must be able to reliably identify the User Interface of TOE.

/SO 40/ Correct visualisation of the document

TOE must correctly visualise the document being signed or verified.

/SO 50/ Binding between visualisation and signature/verification operations

TOE must actually sign or verify the document being displayed to the user.

/SO 60/ Guarantee the integrity of the components

Building upon the TCB, TOE must be able to guarantee the integrity of the components
that compose the TOE itself to both the signer and the verifier.

/SO 70/ Report the state of integrity of the platform to a remote party

TOE   must   be   able   to   reliably   report   to   a   third   party   the   state   of   integrity   of   the
platform – also including the TOE - held during the signing operations. The state must
be bound to the signature.

/SO 80/ Digital Signature

TOE must be able to produce Digital Signatures that can be classified as the so called
Qualified   Electronic   Signatures   (QES)   signatures,   i.e.   the   Advanced   Electronic
Signatures based on a Qualified Certificate and generated through a Secure Signature
Creation Device [9].

Open_TC Deliverable 06c.2

23/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

NOTE

: the present document does not include requirements and design items related

to   the   “classic”   aspects   of   a   Public   Key   Infrastructure   (PKI),   like   Time   Stamping,
Revocation Status Checking and others, required by a QES.

 4.2  Security Requirements

This part of the requirement specification defines the security requirements that
have to be satisfied by the product. The statements shall define the functional
and   assurance   security   requirements   that   the   product   and   the   supporting
evidence   for   its   evaluation   need   to   satisfy   in   order   to   meet   the   security
objectives.

/SR 10/ No communication among TOE components and external parties

Security   policies   should   be   enforced   to   guarantee   that   TOE   components   cannot
interact   with   external   parties,   with   the   exception   of   a   single   component   acting   as
interface towards compartments not belonging to the TOE.

/SR 20/ Information flow

Security policies should be enforced to guarantee that information flow is only possible
among   TOE   components.   Primarily,   eavesdropping   on   another,   non-cooperating
compartment must be foiled.

/SR 30/ Integrity of document to be signed or verified

TOE should guarantee that the displayed document cannot be corrupted while being
signed or verified.

/SR 40/ Trusted WORM Storage

The   TOE   should   use   a  trusted   storage   Write   Once   Read   Many   (WORM)   for   storing
documents   to   be   signed   or   verified   and   used   by   TOE   components   during   all
intermediate operations. The document is loaded once by the TOE and stored onto the
WORM storage; all components can then read the document but not modify it; the
document can be deleted at the end of operations.

/SR 50/ Trusted RW Storage

The   TOE   should   use   a   trusted   storage   Read/Write   for   temporary   files   during
operations.

/SR 60/ Integrity of the application

TOE   should   use   Trusted   Computing   functions   for   measuring   the   integrity   of   the
components that compose the TOE. The TOE should locally enforce the integrity of the
components (e.g. by using sealing for data required by TOE to be operational).

/SR 70/ Signature binding

TOE should bind the signature (with legal value) with the integrity state of the signing
platform (TCB and TOE) active during the signing operation. This way it is possible to
guarantee and report the integrity of the components to a remote (verifying) party.

Open_TC Deliverable 06c.2

24/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 5  Supplementary Requirements

Obligatory criteria, mandatory for successful completion.

 5.1  Preconditions

Requirements that have to be fulfilled already, because they were needed for the
development process.

/PR 100/ Trusted Computing Base

The TOE is build upon OpenTC, a security architecture for Trusted Computing Base.

/PR 200/ Reliable document viewer

The TOE should use at least one application that is considered reliable as viewer for
one specific document format (e.g. OpenDocument).

 5.2  Required Criteria

Mandatory criteria, that are obligatory for successful completion.

/RC 10/ Xen support

The realization of the use cases should be based on a Xen-based architecture.

/RC 20/ Single-user support

The TOE should support at least one user.

/RC 30/ Cryptographic devices

The TOE should support at least one hardware and one software cryptographic device
through standard interfaces (particularly PKCS#11).

/RC 40/ Document formats

The   TOE   should   support   virtually   any   type   of   document   format   via   plug-in   based
architecture for document viewers.

 5.3  Desired Criteria

Optional criteria, that are not mandatory for successful completion.

/DC 10/ Multi-user support

The security architecture should be able to handle multiple users.

/DC 20/ L4 support

The realization of the use cases should be based on an L4-based architecture.

Open_TC Deliverable 06c.2

25/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/DC 30/ Cryptographic devices

The TOE should support all common cryptographic devices - hardware and software -
through standard interfaces (particularly PKCS#11).

 5.4  Distinguishing Criteria

What our product does not provide.

 5.5  Execution Environment

This section specifies software and hardware the user requires at least to run our
product successfully.

 5.5.1  Software

Standard Linux 2.6.x distribution

Xenolinux 3.x.x (Linux 2.6.x running on top of Xen 3.x.x hypervisor)

OpenOffice 2.3 or higher

(optional) L4-Linux (Linux 2.6.x running on top of Fiasco, L4V2 µ-kernel)

 5.5.2  Hardware

Intel LT/VT or AMD-V Platform

TPM 1.2 Platform

 5.6  Development Environment

This   section   specifies   hard-   and   software   that   developers   need   at   least   to
implement the product successfully.

 5.6.1  Software

Linux 2.6.x

gcc 4.2.x

eclipse-3.1

OpenOffice 2.3 or higher

 5.6.2  Hardware

Intel LT/VT or AMD-V Platform

TPM 1.2 Platform

Open_TC Deliverable 06c.2

26/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 6  Architecture for WYSIWYS: Trusted Computing and

Virtualization

Nowadays many software manufacturers assert their digital signature applications are
compliant to WYSIWYS requirement; it is not really true. Even if a digital signature
application can be correct, ideally devoid of worms, it could not be the same for the
system where that software is installed.  Usually it is a PC class platform where an
operating   system   like   MS-Windows   or   Linux   and   applications   have   vulnerabilities.
These ones may compromise the whole signature system, if conveniently exploited
(see [1]). Furthermore, the Internet encourages the spread of malware or trojan horses
that a attacker may use to achieve his intents.
Very   often   a   user   installs   on   his   PC   any   kind   of   software   being   unaware   of   its
provenance or trustworthiness.  In those conditions how is it possible to know if the
installed software does exactly what the manufacturer has declared? The only way
could be checking the whole software source code; sometimes it is not available or, if
it is , analysing it requires an advanced knowledge in computer science and much
time.   Assuming   that   a   software   manufacturer   behaves   correctly,   which   way   a
“traditional” platform can be used for securely signing (or verifying) a document (or a
signature)? Moreover, how is it possible to guarantee that the input and the output of
the application have not been tampered with? The simplest solution may be to have
an isolated system, without any connection with other machines (the outside world),
where   hardware   and   software   are   carefully   checked.   In   that   machine   should   be
installed   only   the   operating   system,   the   essential   drivers   and   the   sign/verify
application.   Furthermore   in   that   computer   must   not   be   possible   to   install   other
software and only the owner must have physical access.
In addition, in order to guarantee the WYSIWYS requirement, other security criteria
should   be   met.  In   fact   some   threats   are  related   to  the   document  itself   when   it   is
shown to the signer and the verifier. Thus, in a possibly strict solution the document
must be created directly on the same machine used for signing and the signature
software must not allow neither the presence of active code in the document (i.e.
macro) nor hidden text. Or a document created on an untrusted platform should be
moved to a controlled platform used to validate the document with a trusted viewer
prior to signing.
These solutions appear, nevertheless, limiting because they prevent the utilization of
the machine for other purposes. Moreover, they are not still complete because they do
not   allow   proving   to   third   parties   that   the   signature   was   made   in   a   “protected”
environment namely with specific security characteristics that satisfy the WYSIWYS
requirement.
The suggested example is useful to focus on some relevant aspects: isolation, system
trustworthiness   (according   to   [2])   and   remote   attestation   of   platform   integrity.   All
these elements are the foundation of the software application, i.e. the TOE, whose
design   will   be   presented.   Such   application,   by   means   of   Trusted   Computing   and
virtualization, overcomes or mitigates the limitation of the model based on a physical
platform completely isolated.

 6.1  Compartments and integrity measures

To avoid having a physical platform being isolated from the the outside world, it is

Open_TC Deliverable 06c.2

27/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

possible to use virtualization techniques. This kind of technology allows executing on a
single   physical   computer   different   instances   of   virtual   machines   (VMs)   completely
isolated

1

  from   each   other.   This   allows   strongly  separating  into

compartments

the

software components being executed at the same time on a machine.
A central aspect of the application's design is the subdivision in functional modules
that will be executed on different VMs. Communication between modules will happen
through   well   known   interfaces   and   will   be   regulated   by   policies   that   will   limit   the
interaction down to the bare minimum. The compartments will have minimum size and
run verified software components. All these countermeasures minimize risks due to
vulnerabilities that can be present in the signature application. Particularly, isolation
and   strict   communication   policies   minimize   the   opportunity   that   a   bug   could   be
exploited   from   outside   the   application   –   namely   from   another   virtual   machine,   for
example, that is used by the user for the daily work or other physical machines. Or
that the effects of a possible malfunctioning of a component triggered during normal
operations compromises the security or the availability of other modules

2

.

All these components will be executed on a TCB (

Trusted Computing Base)

that is a

set   of   hardware   and   software   in   charge   of   VMs   management   and   security   policy
enforcement that implements security mechanisms and

Trusted Services

3

. The TCB

vouches for realization of a trusted path between the user and the application, and the
effective fulfilment of the policies that regulate the communications between VMs and
the   application   itself.   Finally,   it   guarantees   that   other   virtual   machines   cannot
interfere with the application and can interact with it only using a limited and well
known interface. It is therefore required that the TCB must be trustworthy.
To   the   architecture   previously   described   –   that   allows   satisfying   the   WYSIWYS
requirement   –   it   is   possible   to   apply   Trusted   Computing   technologies   that   allow
achieving additional guarantees during the signing or verification acts. (1) Each time
the signer uses the application, it guarantees that the signature system is in a specific
state (hopefully “

good”

) (integrity check), namely in the same state assumed during

the installation phase. (2) The verifier (or a third party, for example a judge in the
event of dispute) can verify that the signature was created on a platform that meets
the WYSIWYS requirement by identifying all components. (3) The verifier (or a third
party) can repeat in a reliable way the visualization experience of the document had
by the signer or could try to have another experience, however as close as possible to
the signer's one. The guarantees (2) and (3) form an evidence that makes a signature
with WYSIWYS technically more strong compared to signatures generated using legacy
software.
For this purpose the TCB must be bound to the TPM

(Trusted Platform Module)

that

measures all components and builds the

Chain Of Trust.

 Each component of the TCB

1 Each virtual machine cannot access the memory of other VMs running at the same time.

2 From this viewpoint, the most critical component is the document visualization software.

Ideally, for each document format should be developed an ad-hoc viewer, whose correctness

of implementation should be formally verified. Practically, it is highly improbable that a
software company decides to develop and maintain such kind of application. A pragmatic

approach to solve this problem can be using, as viewers, the legacy applications used to
create the documents: probably they implement the best interpretation of the document

formats but it is difficult to assume that they are correctly implemented.

3 The design of the application relies upon the properties and the services given by OpenTC

architecture. This guarantees the integrity of the measurements of the architecture and the
application.

Open_TC Deliverable 06c.2

28/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

must be measured before its execution

4

similarly for the application modules

5

.

The   measurements   are   useful   for   two   reasons:   (1)   retrieving   encrypted   data
associated to a specific integrity state of the platform (

unsealing)

, namely associated

to the TCB and the TOE, i.e. the signature application: the impossibility to access some
data shows to the signer that the state of the platform is changed; (2) reporting to
third   parties   the   integrity   state   of   the   platform   through   the   so-called   remote
attestation

6

.

For the daily operations, like handling e-mails and producing documents that will be
signed, the user can use one or more

untrusted

compartments; even if a virus or a

trojan horse were installed in one of them, the signature application would not be
compromised.

 6.2  Solutions for integrity binding

One of the problems to contend with is how to strongly bind a digital signature with an
attestation of the platform state. It is necessary to prove to a verifier that during the
signing time:

the platform was in a well-known state;

if the measured state was “good

7

  the signer watched the document correctly

shown and he signed it on his own free will

8

.

In order to carry out signatures with strong legal value (QES) according to Italian and
European laws, digital signatures must be generated using an external device (

Secure

Signature   Creation   Device   –   SSCD),

  like   a   smart   card,



which   must   be  certified   as

compliant with a Protection Profile [4] Common Criteria. SSCD hedges in the user's
private key; at signature time, it receives from the platform a hash of the file to sign
and a PIN (if the SSCD or the connecting device like a smart card reader does not have
a numerical keypad for inputting the PIN) essential for the authentication of the device
owner. If the PIN is correct,  the private key is unblocked and is used to apply the
signature   algorithm   to   the   document   hash;   the   result,   a   blob   that   represents   the
digital signature, is returned to the platform.
By using the TPM it is possible to prove that the SSCD has been controlled by a trusted
platform

9

 that was in a known state. The fact that the signer's key

K

sign

 is not protected

4 The measurements are stored in particular TPM's registers called PCR. Each PCR can be

updated only by means of an operation called “extending” PCRs: PCR

new

 = SHA1(PCR

old

||

Measurement) where the measurement is the hash of the binaries of the component.

5 In this case the measurement is the hash of the binaries of the compartment (i.e. the whole

file system) and of its configuration.

6 Measurements do not suggest that the software does not contains pitfalls or it is good, but

they allow identifying the components running on the machine, thus letting verify that a

known configuration is in place. In a signature application, the integrity measurements will
be useful for reporting, namely, that the application behaves correctly and guarantees

trusted paths.

7 A machine is intended to be in a good state if it behaves correctly.

8 All cases of legal repudiation are excluded whereas, also using a

good

platform that

guarantees correctness and technical non-repudiation, a person signs against his will

because is threaten or is of unsound mind.

9 This guarantees, for example, that the hash sent to the device was not replaced in transit or

the unblocking PIN of the device will not be stolen during the signature generation and after
injected by an attacker to make another signature.

Open_TC Deliverable 06c.2

29/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

by TPM poses a problem to be solved.
In the TCG architecture, the verification of the integrity state on a remote user side (in
this case the verification of a signature) is known as remote attestation. A technique
for producing an evidence that a particular event (for example the signature) happens
when the platform is in a particular state can be wrapping the event via cryptographic
methods, namely through digital  signatures,  between two remote attestations,  one
before   and   the   other   one   after   the   event   occurs.   If   the   states   returned   by   both
attestations   are   identical,   then  the  event   occurred   when  the  platform   was   in  such
state.
The   mechanism   chosen   for   the   attestation   is   implicit:   instead   of   the

TPM_quote()

operation, a TPM key sealed (namely associated to a particular state of the platform)
and certified is used.
Using   that   key   with   success   for   generating   a   signature   means   that   the   unsealing
operation succeeded, namely the platform is in the state indicated in the certification
applied to the key.
Consequently   the   association   between   digital   signature   with  legal   recognition
appended to a document and the integrity state of the platform at signing time is
realized with a solution based on multiple hierarchical signatures:

the three phases

bind.

To carry to the verifier the whole needed information (resolution, colour depth, result
of checks done on the document, etc.) for reproducing the same representation of the
document the signer experienced, a collection of state data will be the input  of the
signature  process that forms the first attestation, done with the sealed and certified
TPM key.
It   is  a   kind   of   attestation   with   no  interaction   with   a  verifier  during   the   attestation
process; therefore the random data normally chosen by the verifier to prevent replay
attacks   (namely   a   possible   reuse   of   integrity   informations)   must   be   supplied   in   a
different way. The first signature will be performed on the signer's public key and on
the document itself.
The data input for the first signature and the signature itself, will be signed together
with the document via a SSCD as by law enacted. From the cryptographic point of
view, the document does not need to be included in the second signature since it is
already   included   in   the   first   one.   Nevertheless,   for   compatibility   with   standardized
formats   and   legacy   digital   signature   applications,   it   is   necessary   to   include   the
document as main input to the second signature and the first signature as attribute to
be   signed   together   (i.e.   with   a   PKCS#7   envelope   [3]).   The   second   signature   is
generated by a SSCD (e.g. a smart card) and will be the input for the third signature
done by the TPM, as the second attestation. The third signature can be carried as
unsigned attribute (inside the PKCS#7 envelope).

 6.2.1  Keys and data structures

In order to describe the binding solution, it is necessary to list the keys and the data
structures that will be involved in the procedure:

Open_TC Deliverable 06c.2

30/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Signature key (

K

sign

)

: it is a key pair (

PK

sign

SK

sign

) used for signing a document with

legal  value. A digital certificate (X.509 [10]) issued by a Certificate Authority attests
the   association   between   the   key   and   the   owner.   For   signatures   with   strong   legal
recognition the private key

PK

sign

  is kept protected in a hardware

Personal Security

Environment

, the SSCD stated by the EU directive (i.e. a USB token or a smart card)

and it is never released outside.

Attestation Identity Key (AIK key,

K

AIK

)

:  the key pair

K

AIK

  (

PK

AIK

, SK

AIK

) represents

one of the possible platform identities to be used during a remote attestation; with this
respect   it   can   be   considered   as  an   alias   of   the

Endorsement   Key

(EK   Key)   which

represents the unique TPM identity. It is

non-migratable

 and its private part it is never

released by the TPM unencrypted - but only encrypted with the

Storage Root Key, SRK

Moreover, it is a key certified by a

Privacy CA

(PCA) that guarantees that the TPM is

genuine   through   the   EK   certificate.   It   is   typically   used   for   the   remote   attestation
(

TPM_Quote()

) or to certify other TPM keys (

Tspi_Key_CertifyKey()

).

The so called

Subject Key Attestation Evidence key

(SKAE Key, K

SKAE

)

: it is a TPM

key pair is

non-migratable



K

SKAE

 (PK

SKAE

, SK

SKAE

)

 and it is created after an AIK

(K

AIK

)

 has

been certified and installed. The private part of the key is

sealed

  with respect to a

specific configuration of the TCB. The public part is certified.

SKAE

: consists in (1) a

TPM_CERTIFY_INFO

 structure that contains the configuration of

the   TCB   when

K

SKAE

  was   generated  (and   that   must   be   in   place   to   let  the  key   be

released) and a digest of

PK

SKAE

, (2) the signature, through

K

AIK

 of the latter block.

SKAE

is used by TCB as proposed in [5].

 6.2.2  Three phases bind

Three   phases   bind   is  a  solution   based   on   three   signatures

  that   guarantees,   under

some conditions, the association between a digital signature on a document, created
with an external device, and the attestation of the platform integrity.
It is composed of three operations in sequence:

1. Attestation A – CERT-1

CERT-1 = Signature(PK

sign

||Hash(Document),K

SKAE

)

CERT-1

  is the signature generated with

K

SKAE

  on the public part of

K

sign

  (

PK

SIGN

),

i.e. the key that will be used for signing the document with legal recognition,
concatenated   with   the   hash   of   the   document   being   signed.

CERT-1

  can   be

considered as the statement that the document will be signed on this platform
using

SK

sign

 corresponding to

PK

sign

10

.

10

PK

sign

, furthermore, allows making CERT-1 distinguishable in case of parallel and

independent signature.

Open_TC Deliverable 06c.2

31/81

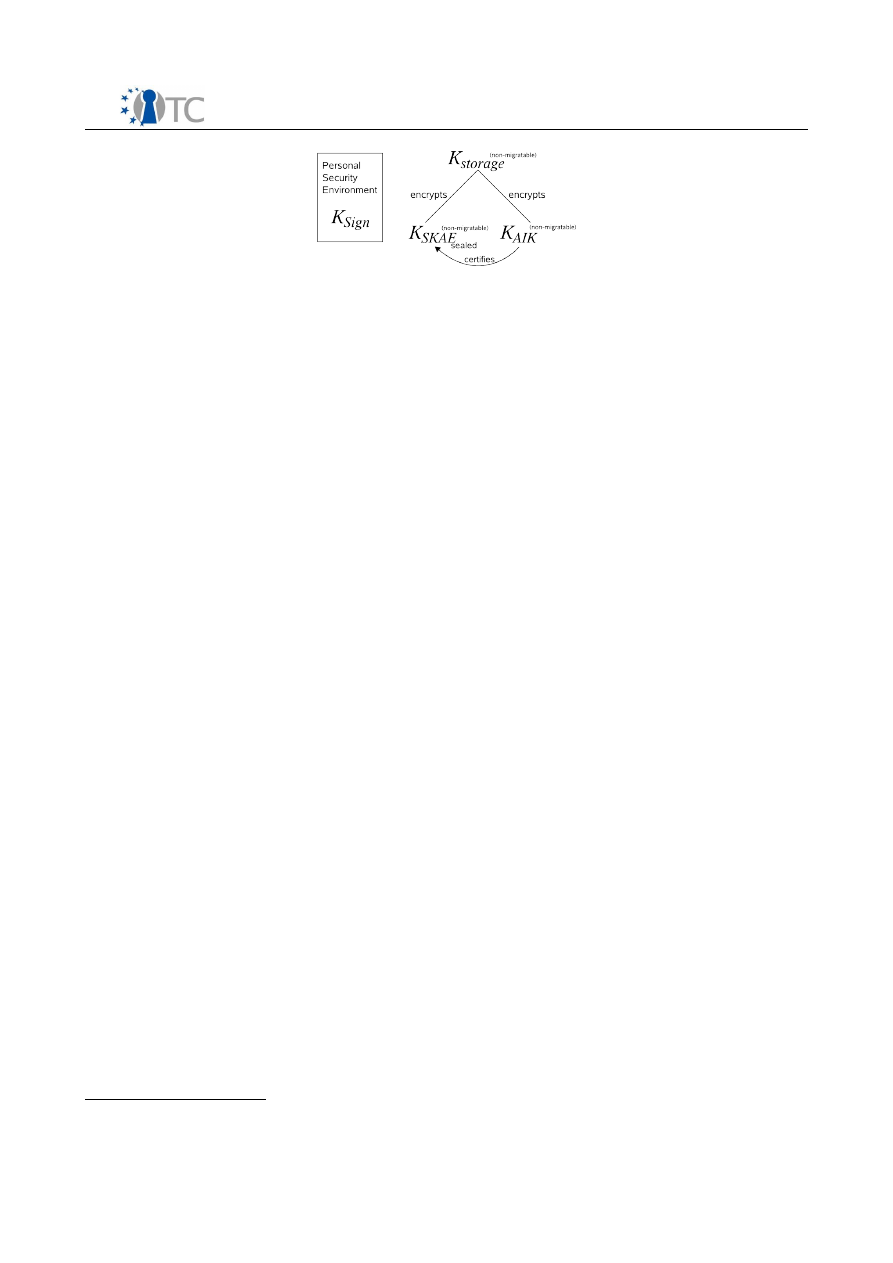

Figure 2: Keys

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

The attestation of the platform is implicit in the signature, in fact

K

SKAE

 is sealed

and it can be used only if the TCB is in a known state, i.e. the one certified by
SKAE.

2. Digital Signature with legal value

FDGT = Signature(Document||CERT-1,K

SIGN

)

It is the digital signature with legal value generated by a SSCD. CERT-1 will be
inserted   as   signed   attribute   in   the   PKCS#7   envelope.   This   step   asserts   that
CERT-1 existed before the generation of FDGT.

3. Attestation B – CERT-3

CERT-3 = Signature(FDGT,K

SKAE

)

This   signature   declares   that   FDGT   was   created   on   the   same   platform   that
signed CERT-1. The state of the TCB and of the application is the same as for
CERT-1 because of sealing: indeed it must be generated using the same sealed

K

SKAE

  used to create CERT-1. When CERT-3 is created the TCB must verify that

PK

sign

 included in CERT-1 verifies the signature FDGT (i.e.  that

PK

sign

 corresponds

to

SK

sign

 used to sign FDGT) to avoid the release of inconsistent associations.

 6.2.3  Conditions

The   three   phases   bind   requires   that   the   TCB  and  the  application   behaves  in  well-
defined ways:

Each of the three operations must be atomic and executed in sequence; if one
of   the   phases   fails,   all   data   (signatures   and   other   data)   resulting   from   the
previous phase must be deleted;

The TCB must assure that there is no leakage of sensitive information before
CERT-3 is issued (see Section 6.2.5);

CERT-1 attestation must not be considered of any value if released alone (i.e.
without FDGT and CERT-3);

Before the release of the last certification  block (CERT-3) all data previously
collected and all signatures previously created must be verified;

Open_TC Deliverable 06c.2

32/81

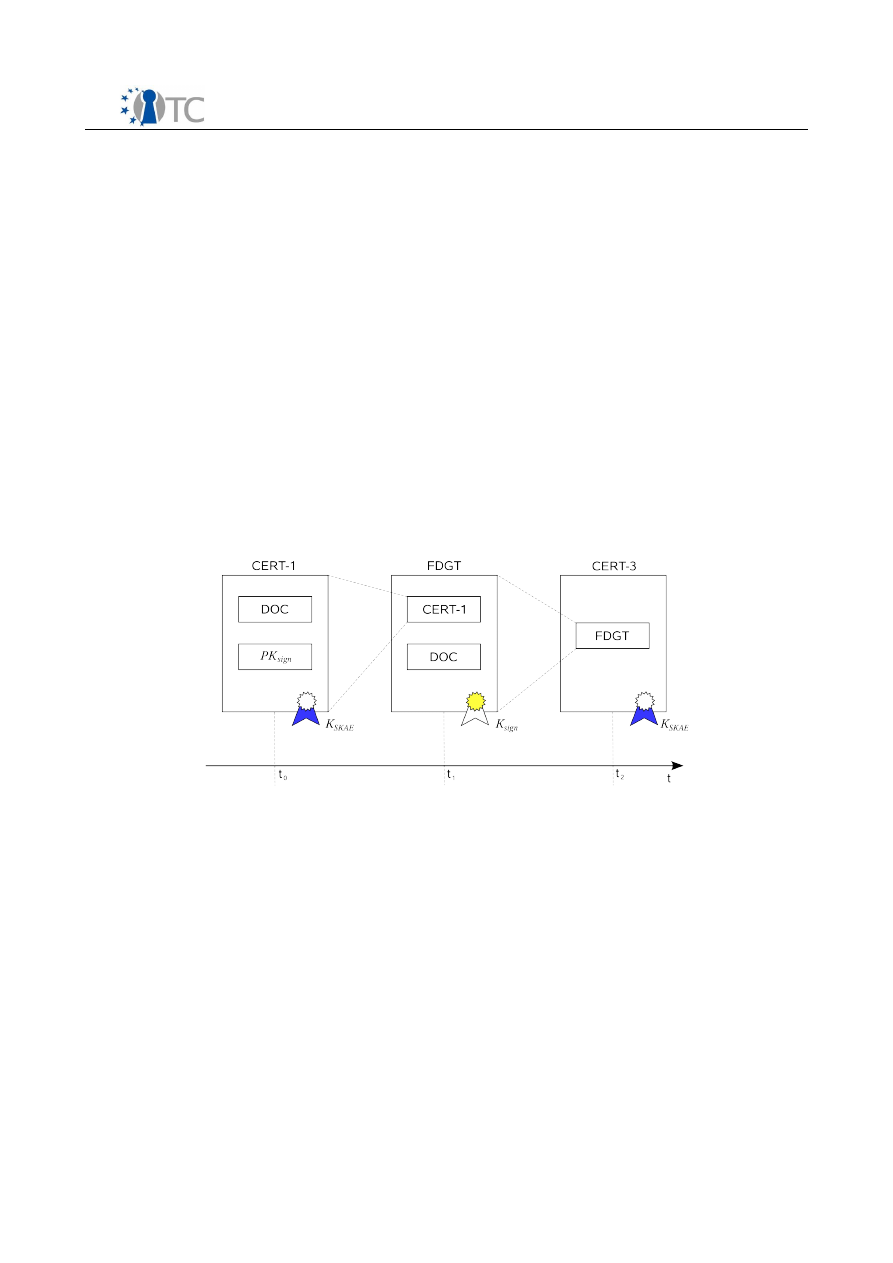

Figure 3: Three phase bind scheme

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

If the platform is hibernated while the signature procedure is in act, no sensitive
data must be written to the disk unless they are encrypted.

 6.2.4  Initialization phase

The initialization phase can be done the first time a signing device is used together
with a platform running the TOE (i.e. the WYSIWYS application). This procedure is split
in three steps:

1. AIK key creation and certification;
2. SKAE key creation and certification through the AIK generated in (1);
3. association of the SKAE key with the keys available on the signing devices.

The AIK must be certified by a Privacy CA that verifies if the TPM is genuine through
the analysis of EK certificate and other Trusted Computing credentials.
This procedure is not essential for the

three phases bind

, but it avoids the generation

of new TPM keys for the same user at each signature, thus making the operations
faster.
In order to make the SKAE credential associated with the signing key resident in the
device, the platform may ask a Proof-Of-Possession of the private key to avoid that a
third party may install on the system  keys it does not own, thus leading to a wrong
registration phase. This can be done by signing a dummy document. If the verification
succeeds, then the association between keys will be stored inside the application.
The registration phase should be only possible if the platform is in a well-known



state;

therefore it will be used with

sealing

in order to execute the TOE only if the platform is

in a good state.
If   the   platform   was   not   in   a   “good”   state   during   the   key   registration   phase,
TPM_CERTIFY_INFO structure will contain unknown PCR values not representing a good
configuration. The digital signature, in that case, would have the same validity as the
one generated on a traditional platform.

 6.2.5  Discussion on other types of binding

In this section  two alternatives  will be presented  to the three phase bind that can
guarantee   the   integrity   association   with   a   legacy   digital   signature   using   a   lower
number of steps and with more restrictive assumptions for the TCB.

Solution A: CERT-1, FDGT

In this scheme CERT-1 and FDGT are the same as described in Section 6.2.2 and are
executed   in   sequence.   The   TCB   must   guarantees   (1)   that   both   operations   are
executed in atomic way, (2) that no data is issued before the end of the operations
and (3) the signature made by SSCD is verified against the key included in CERT-1. If
the verification in (3) does not succeeded or (1) is unsatisfied than it is possible to
mount a replay attack.
An example follows:

1. A user performs the key registration procedure of his key;

K

SKAE

 is generated and

an association between the keys is created;

2. An attacker makes a device declare to be owned by the legitimate user with an

Open_TC Deliverable 06c.2

33/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

arbitrary

K

sign

, and generates CERT-1 in the signing platform;

3. The attacker, somehow, convinces  the user to sign (alternatively: the attacker

somehow   obtains   the   document   signed   by   the   user),   with   success,   on   a
different  platform, CERT-1 and the document associated to the user. This way
the attacker may assert that the user has signed the document using a “good”
platform.

Solution B: FDGT – CERT-3

In   this   scheme   FDGT   and   CERT-3   are   executed   in   sequence.   The   attestation   of
integrity is done after the signature with  legal recognition generated by SSCD. This
scheme is vulnerable.
An example follows:

1. A user performs the key registration procedure of his key;

K

SKAE

 is generated and

an association between the keys is created;

2. An attacker  convinces the user  to  sign,  on a different  platform,  an  arbitrary

document;

3. The   attacker   modifies   a   signing   device   to   assert   that   it   is   owned   by   the

legitimate user, registered during the the first step. Inside that device is held
the signature generated during the second step and the device's logic allows
releasing it when receives a “sign command”.

4. The attacker asks the trusted platform to sign the document created during the

second step using the modified device. In that way he succeeds to have the
certification that the signature has been generated on a trusted platform.

To solve this problem FDGT, should be modified by randomizing it. Another way can be
removing the keys registration procedure and generating TPM keys at every signature.
If the signatures are generated using RSA with probabilistic padding (PSS, see PKCS#1
version 2.1 [11]) or DSA, further modification are not required to make this scheme
robust.

 6.3  Proving the WYSIWYS requirement

The trusted platform realizes a trusted path, namely it guarantees that the input and
the output of the application are protected against unauthorized accesses from  other
applications.
Furthermore   the   signature   application   should   check   the   document   and   report   the
results of those checks in order to let a verifier look into them.
The result of those checks will be inserted on CERT-1. This asserts that the platform
guarantees that all those checks have been performed. Furthermore, by including in
CERT-1 all details concerning to visualization conditions (by the signer), the verifier
can re-create, in a trusted way, the experience had by the signer.
The relevant data that can be included in CERT-1 are:

application version;

file name with extension;

configuration of the viewer and of the environment during the visualization of
the document (resolution, colour depth);

Open_TC Deliverable 06c.2

34/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

duration of the document visualization;

way of visualization (zoom percentage and viewed pages);

properties of the document;

presence of macro;

presence of macro that depends on the time or on the machine configuration;

presence of hidden text (namely text with the same colour as the background);

sequence of warnings (about macro and hidden text) and choices made by the
user, important to provide the verifier with a report to make him/her able to
recreate the conditions and the configurations in place at signature time;

digest of visualization video streaming;

implicit information and explicit data about the transformations made on the
document before being visualized, for example a XSLt [6] transformation for a
XML document [7].

Open_TC Deliverable 06c.2

35/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 7  High-Level Software Architecture

 7.1  Introduction

This section contains some views of a high-level software architecture for the TOE, a
WYSIWYS application. In particular the granularity of the views is at package level;
each package includes a group of components that share the same level of strength
for security requirements. Such groups can be actually compartmented using different
virtual machines. To show the interactions among those virtual machines sequence
diagrams are used, thus overloading their semantic, since they are normally used to
show interactions among objects.

 7.2  Logical views

 7.2.1  Packages

In   figure  4  the   package   diagram   shows   the   'use'   relationships   among   different
packages.

Open_TC Deliverable 06c.2

36/81

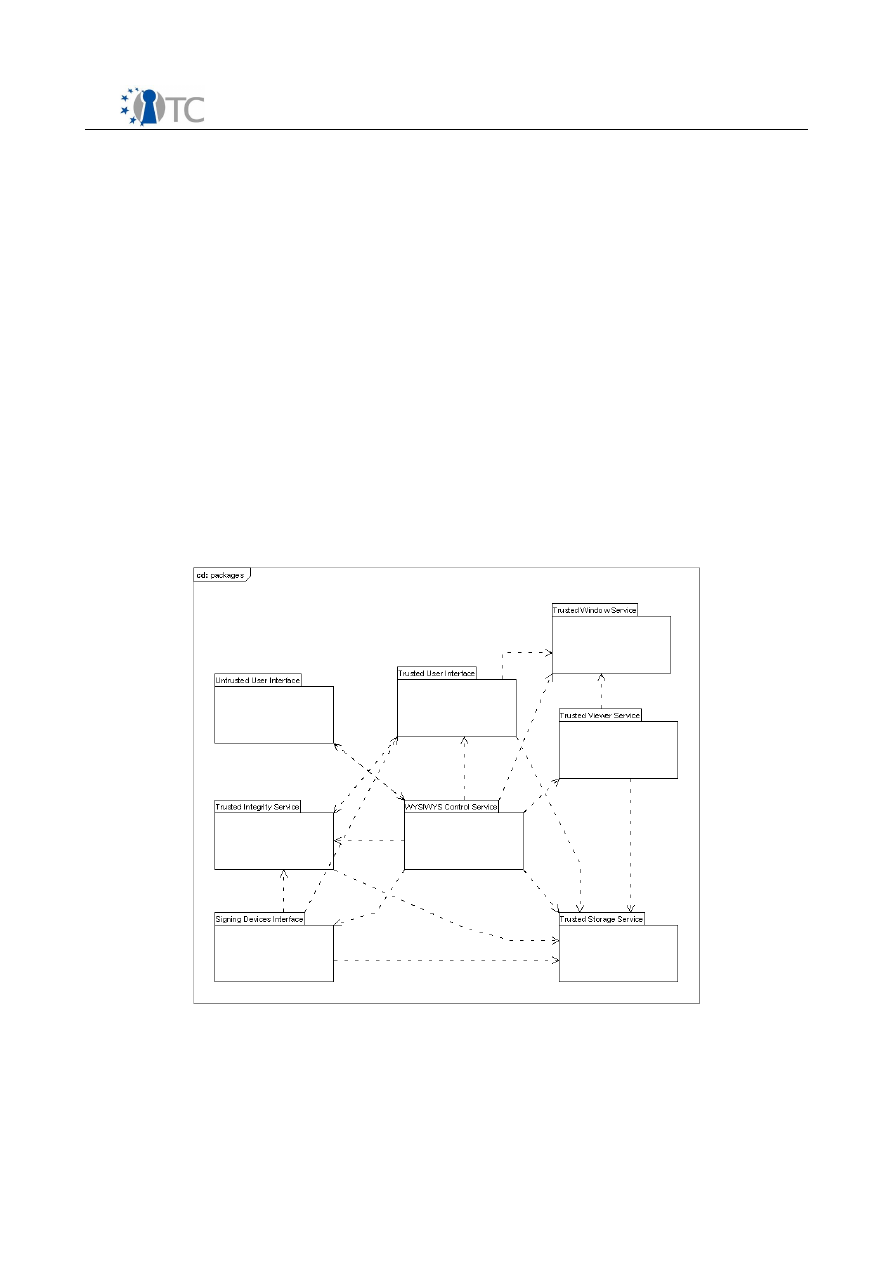

Figure 4: Package diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Untrusted User Interface

It   is   the   standard   interface   provided   to   the   user   by   the   environment   for   daily
operations   (like   browsing   the   Internet,   reading   e-mails   and   writing   documents);   it
allows the user to start the WYSIWYS application and to choose the document file to
sign or verify.

Trusted User Interface

It  is part   of  WYSIWYS  application   and  it  allows  the  user  to interact   with

WYSIWYS

Control Service

 to choose the operation (sign or verify) to be executed and the related

options.

WYSIWYS Control Service

It implements the application logic and controls all packages. It receives the document
file   to   be   signed   or   verified   from

Untrusted   User   Interface

  and   it   manages   the

interactions between all packages.

Signing Devices Interface

It   exposes   a   simple   API   to   give   access   to   the   signing   devices.   Different   types   of
devices  can   be  supported:   software   and   hardware   (commonly   used  smart-cards   or
TPM). Each user can use a (sub)set of all devices the platform makes available. Such
devices hold the users' keys.

Trusted Viewer Service

It   shows   the   document   to   be   signed   or   verified.   It   guarantees   a   trustworthy
visualisation using the correct viewer with regards to the document format.

Trusted Storage Service

It   allows   a   trusted   storage   of   the   document   file   for   all   WYSIWYS   operations.   It
implements a WORM storage (Write Once Read Many) which guarantees the integrity
of a file once written. Every package can write a new file (which can be read, but not
modified, by all other packages); no package but the Control Service can delete the
existing files.

Trusted Integrity Service

Controls all operations related to the integrity of the platform (i.e. interactions with the
TPM), including the creation of the platform integrity certifications that will be
embedded within the PKCS#7 envelope. It holds a database (TISdb) of keys useful for
the association between user device(s) keys and TPM keys.

Trusted Window Service

Controls which component's output must be displayed, i.e. which domain screen must
be put in foreground.

Open_TC Deliverable 06c.2

37/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 7.2.2  Use case realisation

Table 1 lists the required packages for the realisation of each use case. Then the
implementation of such use cases (with the details of the local attestation, i.e. the
certification) is described through the interaction of components grouped in packages
via sequence diagrams.

Open_TC Deliverable 06c.2

38/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Open_TC Deliverable 06c.2

39/81

Use Case

Required packages

/UC 30/ Send file to WYSIWYS application

Untrusted User Interface,
WYSIWYS Control Service,
Trusted Storage Service,
Trusted User Interface,
Signing Devices Interface,
Trusted Window Service.

/UC 40/ Display document

WYSIWYS Control Service,
Trusted Viewer Service,
Trusted Storage Service,
Trusted Recorder Service,
Trusted Window Service.

/UC 50/ Choose operation

Trusted User Interface,
WYSIWYS Control Service.

/UC 60/ Choose signing device & key

WYSIWYS Control Service,
Signing Devices Interface,
Trusted User Interface,
Trusted Integrity Service.

/UC 65/ Show signing attributes and
confirm

WYSIWYS Control Service,
Trusted User Interface,
Trusted Storage Service,
Trusted Integrity Service.

/UC 70/ Create signed document

Trusted Integrity Service,
WYSIWYS Control Service,
Untrusted User Interface,
Trusted User Interface,
Trusted Storage Service,
Signing Devices Interface,
Untrusted User Interface.

/UC 80/ Signature verification

WYSIWYS Control Service,
Trusted User Interface,
Signing Devices Interface,
Trusted Storage Service,
Trusted Integrity Service.

/UC 90/ Delete file & close sessions

Trusted User Interface,
WYSIWYS Control Service,
Trusted Storage Service,
Trusted Viewer Service,
Trusted Window Service.

Table 1: Packages required by use cases

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 30/ Send File to WYSIWYS application

The

User

 selects the file to be signed or verified through the

 Untrusted User Interface

that  sends   that   file   to

WYSIWYS   Control   Service.

The   file   is   then   sent   to

Trusted

Storage Service

that  saves it in the secure Write Only Read Many storage.

Trusted

Storage Service

  returns a result about the correctness of the saving operation. Then

WYSIWYS Control Service

 first checks whether the file includes only the document or

an envelope complete with a signature via

Signing Devices Interface

; then it activates

the

Trusted User Interface

 to interact with the

User

.

Open_TC Deliverable 06c.2

40/81

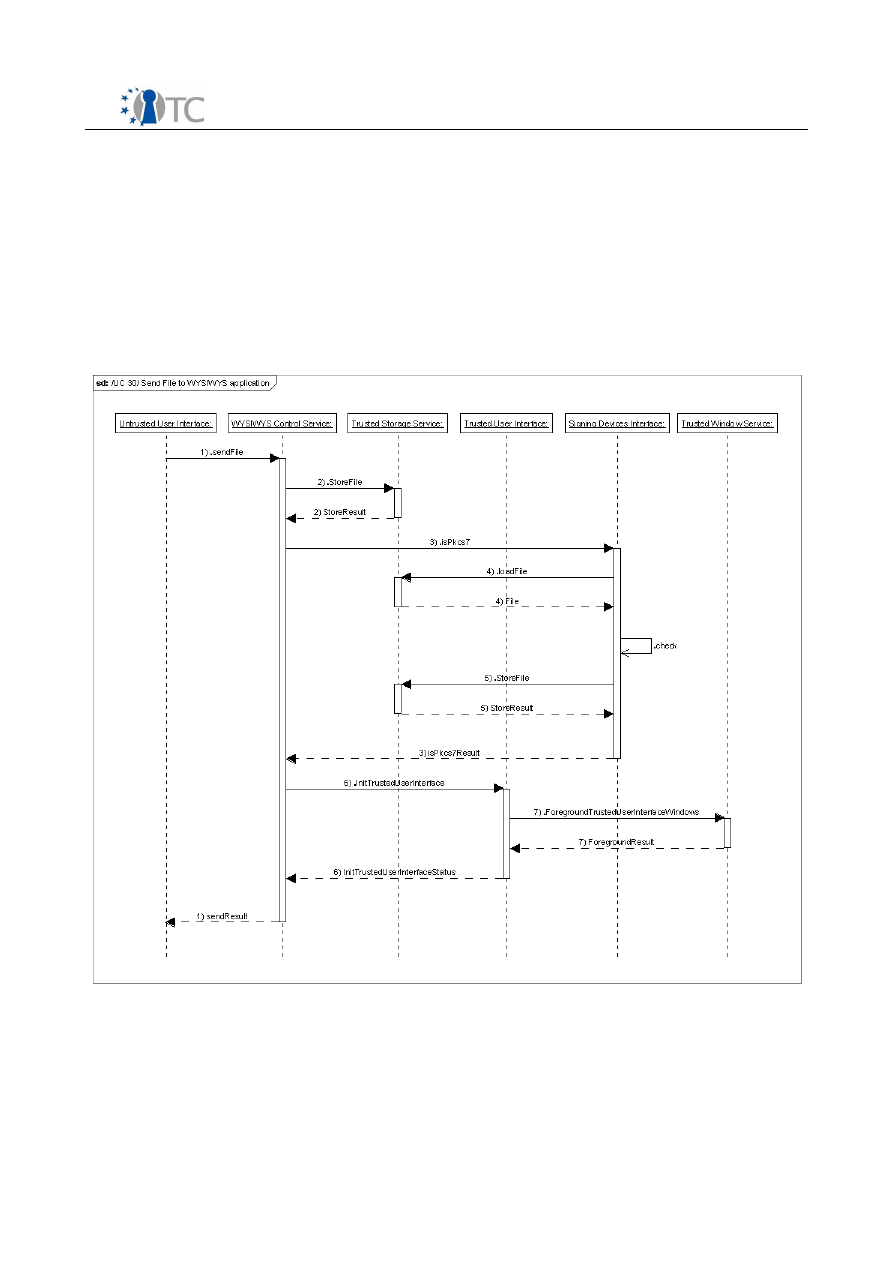

Figure 5: UC 30 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 40/ Display document

WYSIWYS   Control   Service

  requests

Trusted   Viewer   Service

  to   show   the   document.

Trusted Viewer Service

 loads the document file directly from

Trusted Storage Service

then   activates   the   proper   viewer   with   regards   to   the   file   format   and   shows   the
document. The

Trusted Viewer Service

 performs some checks (i.e. presence of macro

or hidden text), stores the results into the

Trusted Storage Service

 and returns a result

about the correctness of the display operation.

Open_TC Deliverable 06c.2

41/81

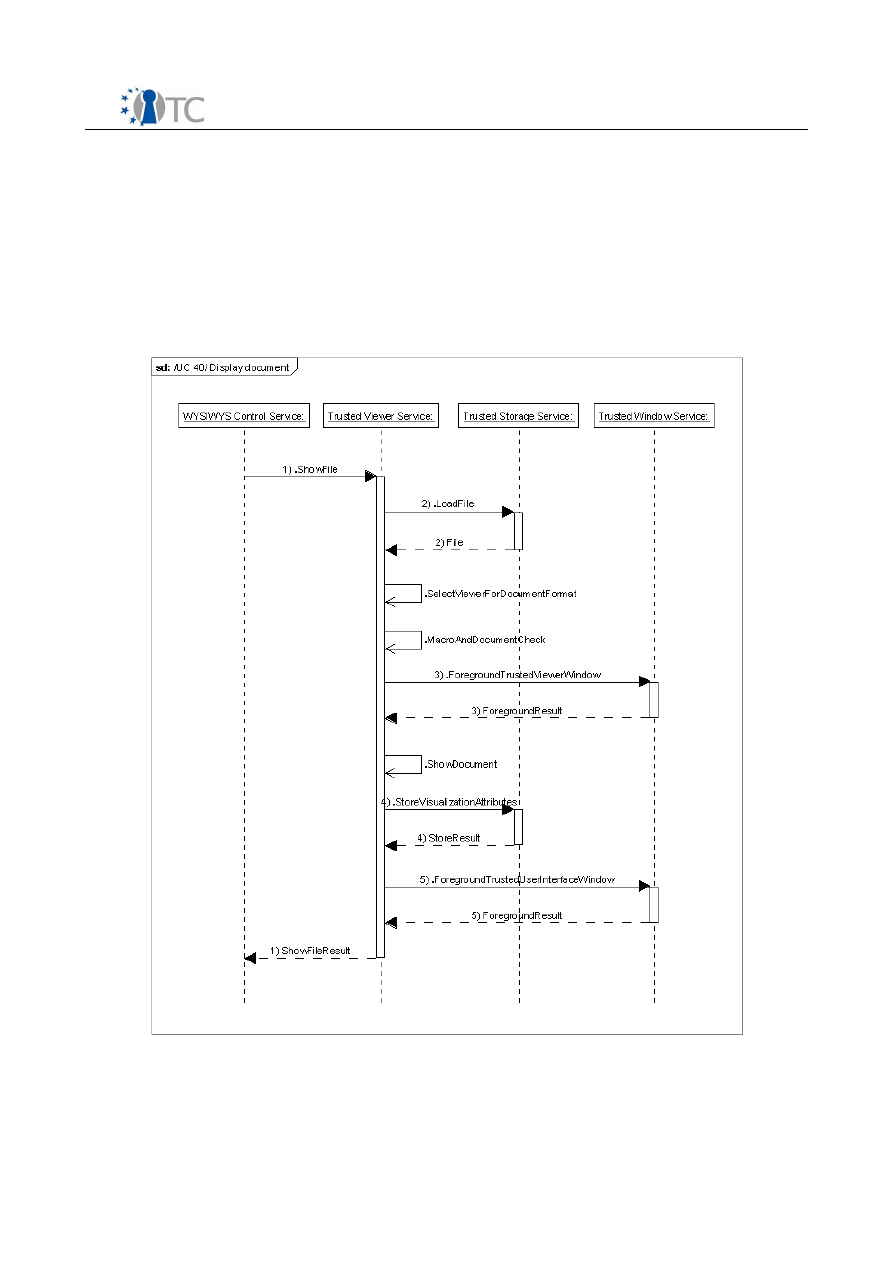

Figure 6: UC 40 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 50/ Choose operation

WYSIWYS Control Service

  requests

Trusted User Interface

  to show the list of allowed

operations (sign or verify) to

User

. He/she selects the wanted operation and the choice

is then taken in charge of by

WYSIWYS Control Service

.

Open_TC Deliverable 06c.2

42/81

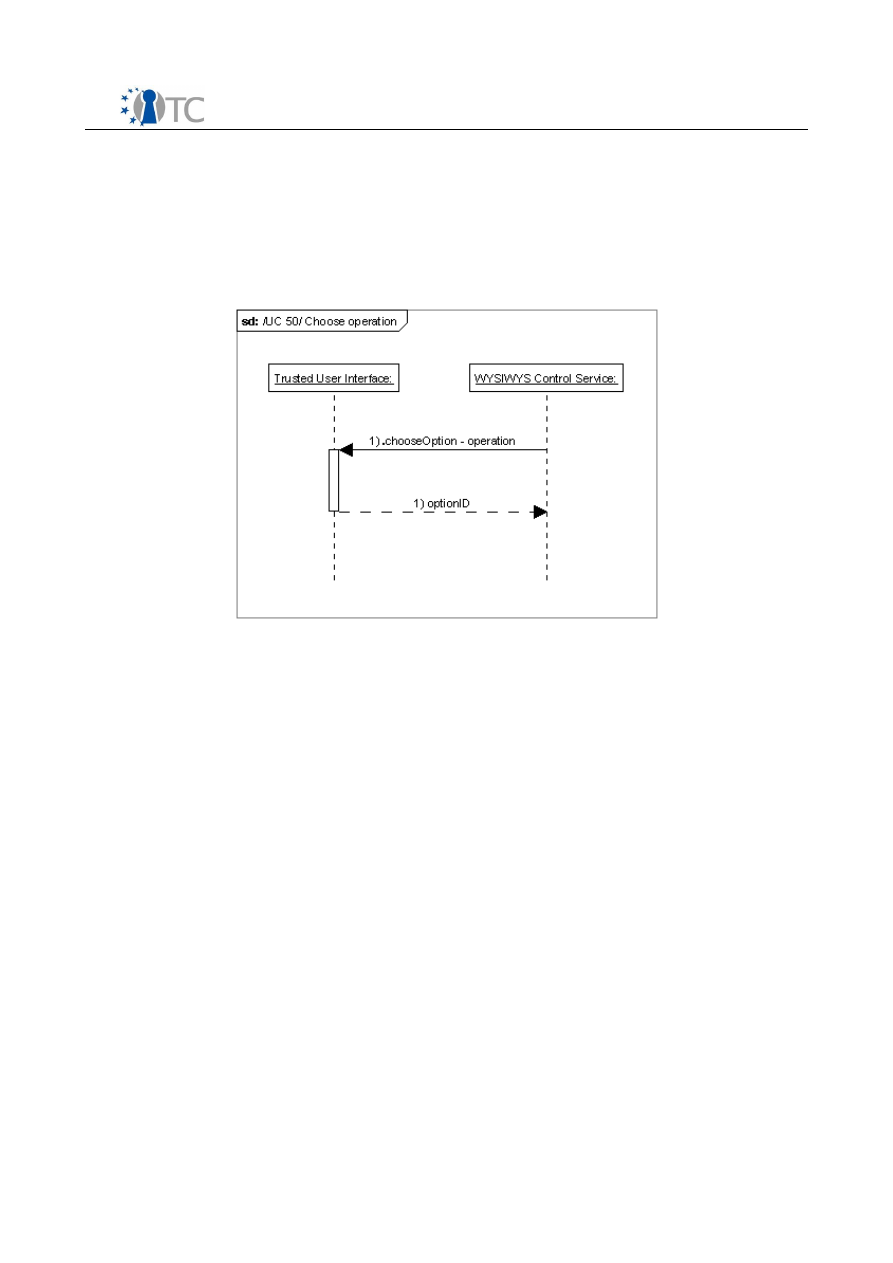

Figure 7: UC 50 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 60/ Choose signing device & key

WYSIWYS   Control   Service

has   received   the   command   to   sign   the   document,   so   it

requests

Signing Devices Interface

 for the list of available signing devices for the

User

Through

Trusted User Interface

  the

User

  chooses the  signing device to be used. A

similar sequence of operations is performed to allow the

User

to select the wanted

signing key for the chosen device.

Open_TC Deliverable 06c.2

43/81

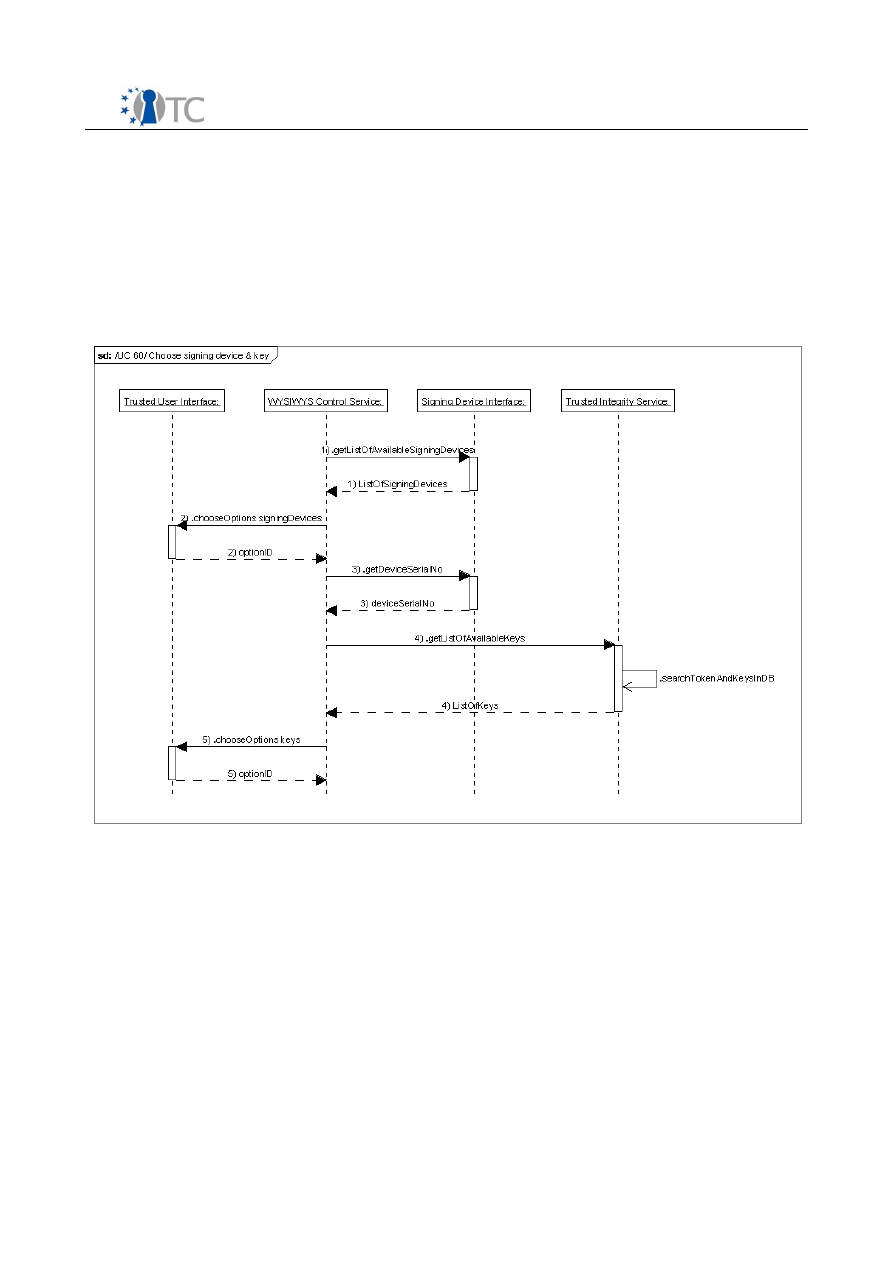

Figure 8: UC 60 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 65/ Show Signature attributes and confirm

WYSIWYS   Control   Service

  requests

Trusted   User   Interface

  to   show   the   signing

attributes.  The  latter  retrieves  from

Trusted  Integrity  Service

the  user's Public Key

Certificate, associated to the key selected by the user, and from the

Trusted Storage

Service

the visualization attributes previously stored. Then the

Trusted User Interface

formats the output and shows it to the user. At the end it asks the user if he/she really
wants to sign the showed document.

Open_TC Deliverable 06c.2

44/81

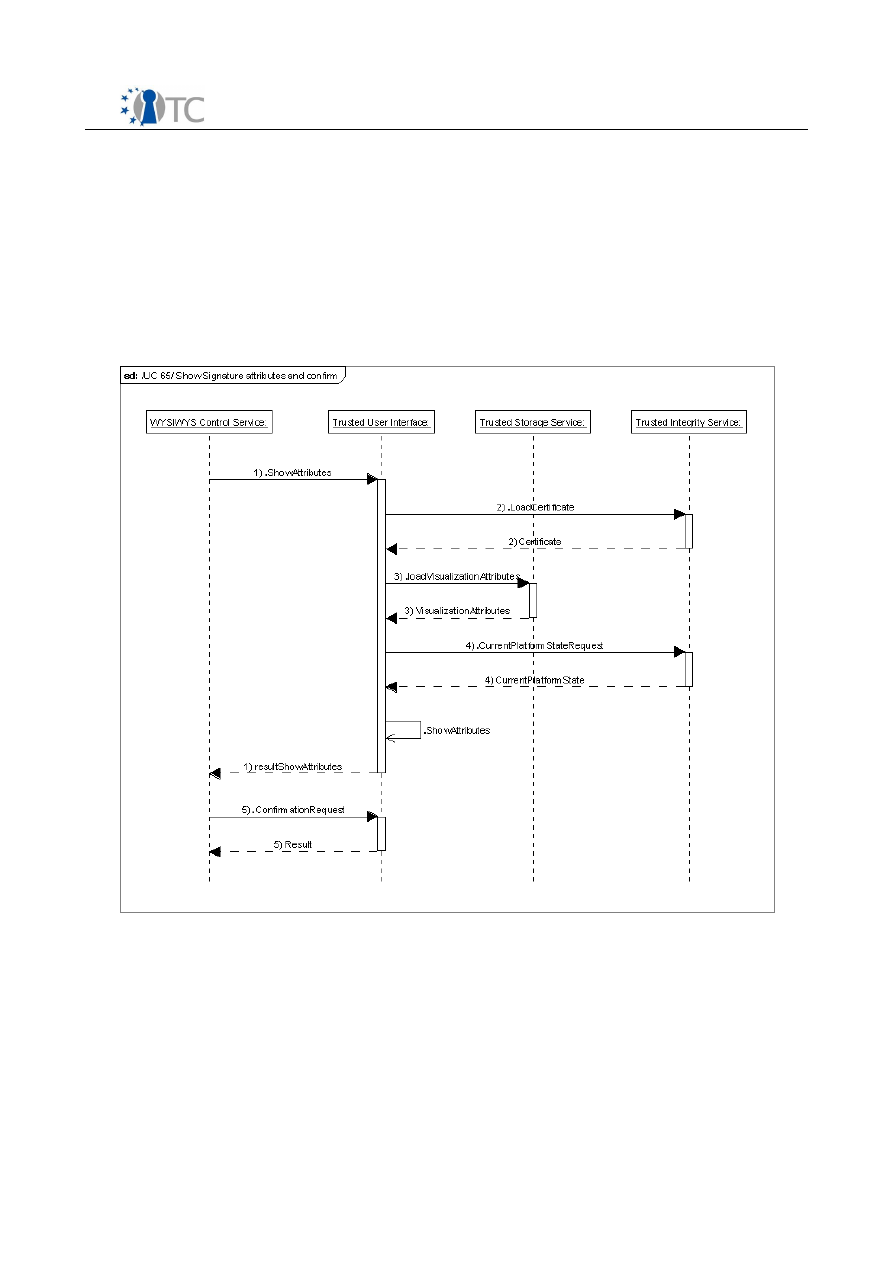

Figure 9: UC 65 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 70/ Create signed document

WYSIWYS Control Service

 requests

Trusted Integrity Service

to attest the state of the

platform.

Trusted Integrity Service

loads the document and the signing attributes from

Trusted Storage Service

, generates CERT1 by interacting with the TPM and stores it.

Then

WYSIWYS   Control   Service

  requests

Signing   Devices   Interface

  to   sign   the

document file.

Signing Devices Interface

  directly loads the document file and CERT1

from

Trusted Storage Service

  and  signs both using the chosen device and key: the

user   is   requested   to   input  the  PIN   through   the

Trusted   User   Interface

.   Then   the

PKCS#7 file just created is stored on the

Trusted Storage Service.

Lastly

WYSIWYS

Control   Service

  requests

Trusted   Integrity   Service

to  do  another   attestation   of   the

state   of   the   platform.

Trusted   Integrity   Service

loads   the   PKCS#7   envelope   just

generated and signs it, thus generating CERT3 that will be included in the envelope,
and   finally   it   returns   the   signed   document   to

User

  through   the

Untrusted   User

Interface

.

Open_TC Deliverable 06c.2

45/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Open_TC Deliverable 06c.2

46/81

Figure 10: UC 70 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 80/ Signature verification

WYSIWYS   Control   Service

  requests

Signing   Devices   Interface

  to   verify   a   signed

document.

Signing   Devices   Interface

  loads   the   file   directly   from

Trusted   Storage

Service,

  verifies the signature and if there is attestation information included in the

PKCS#7 envelope, it asks

Trusted Integrity Service

to check its validity. Then it returns

the result of the verification to

WYSIWYS Control Service

 that in turn returns the result

to

User

 through

Trusted User Interface

.

Open_TC Deliverable 06c.2

47/81

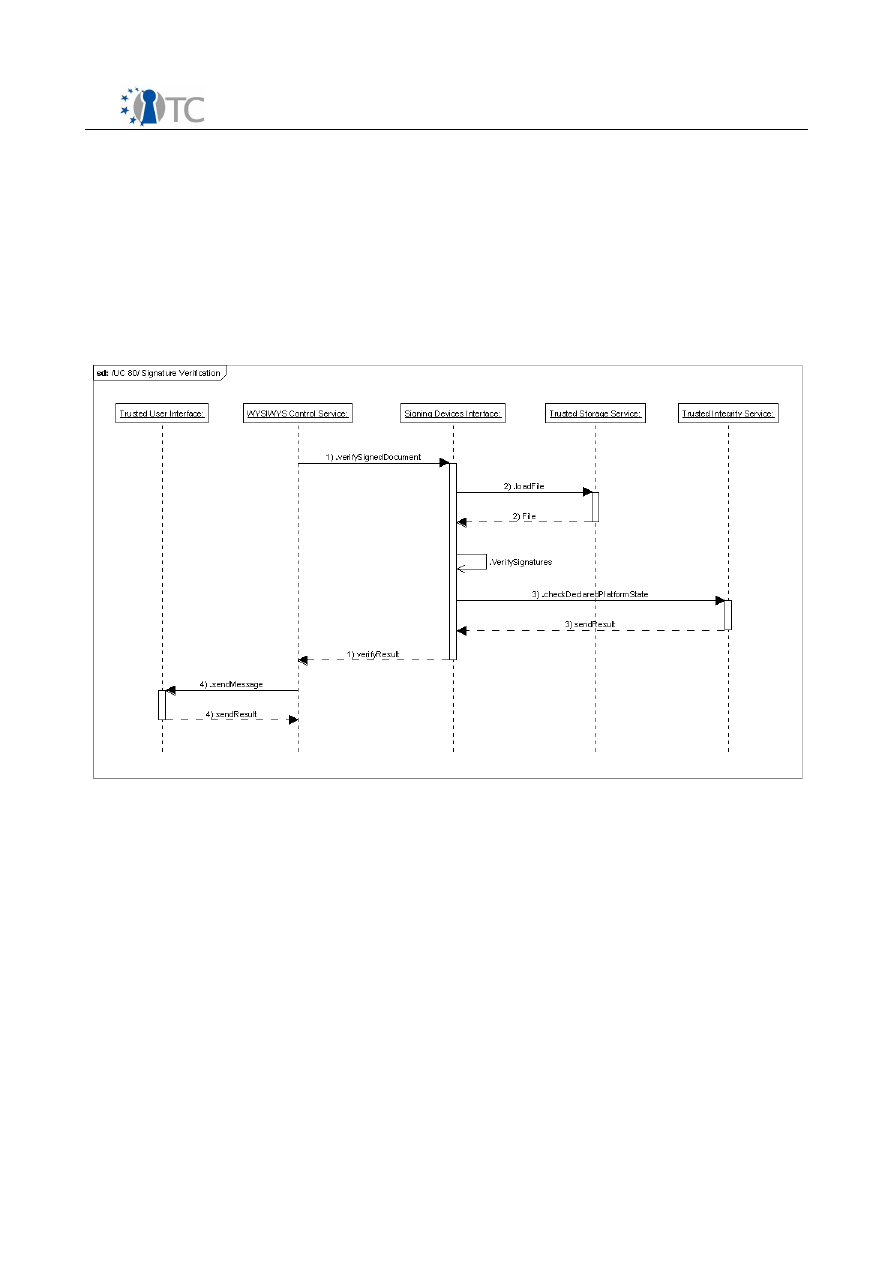

Figure 11: UC 80 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/UC 90/ Delete file & close sessions

WYSIWYS   Control   Service

  deletes   from

Trusted   Storage   Service

  the   file   previously

loaded upon user's choice, then it requests

Trusted Viewer Service

 and

Trusted User

Interface

  to   close   the   session   opened   for   the   requested   operation.   At   the   end,

WYSIWYS Control Service

requests

Trusted Window Service

to put the

Untrusted User

Interface

 to the foreground.

Open_TC Deliverable 06c.2

48/81

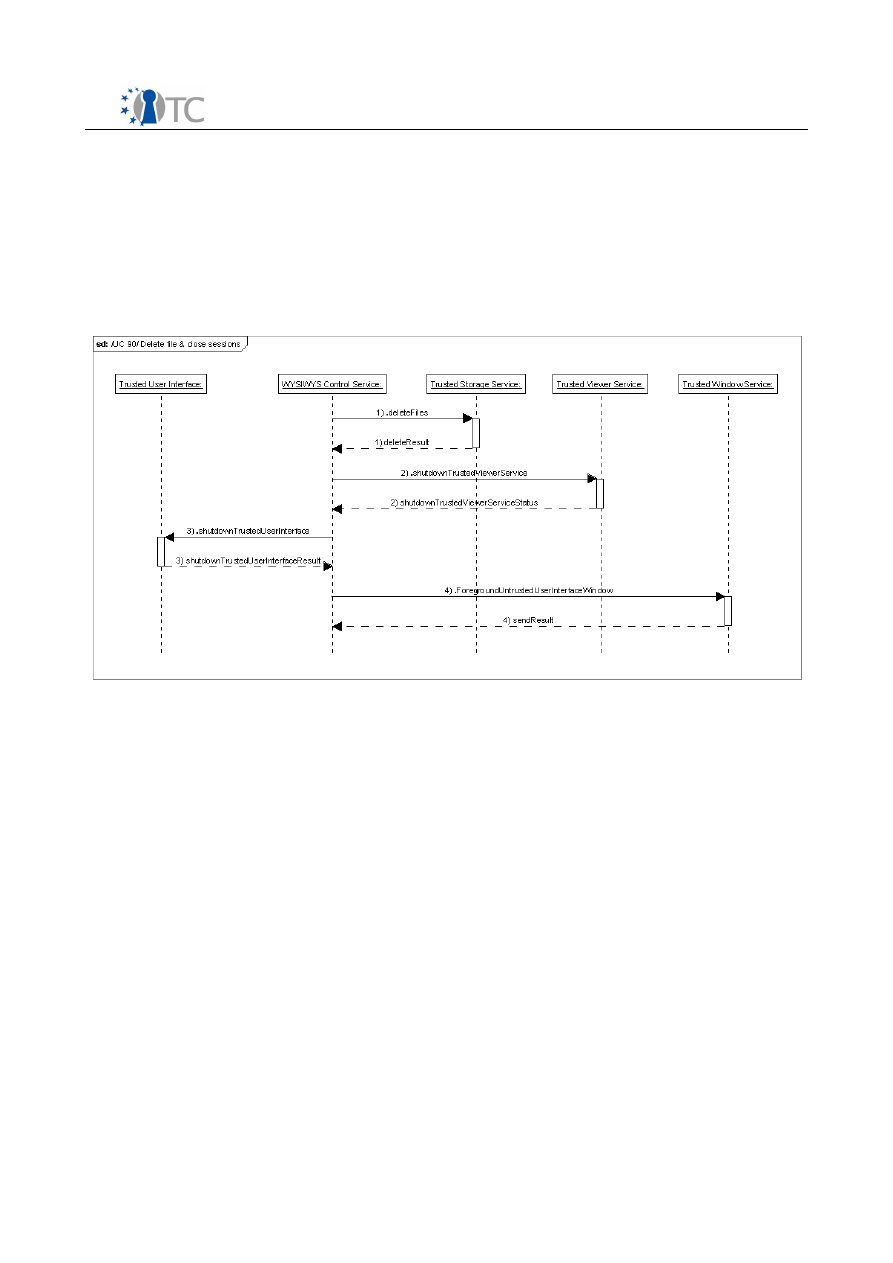

Figure 12: UC 90 sequence diagram

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8  Design

 8.1  Communication between modules

Each module should be able to exchange messages with the others for cooperation, in
order to delegate the execution of operations and receive results.

At low level, each module sends messages structured in as Tag-Length-Value (TLV), as
shown in Figure 13.
TLV messages are composed by three fields: a header called tag (T), a length field (L)
and a value field (V).
T   contains   the   command   that   the   module   must   execute   and   some   additional
controlling   information.   L   represents   the   length   of   the   field   V   expressed   in   bytes,
whereas V contains application data to transfer. The latter may encapsulate different
kinds of data that will be inserted in a precise sequence during the marshalling phase.
The application, typically, carries 16 or 32 bit integers or buffers of bytes.
T and L have a fixed length of respectively 16 and 32 bits, while V has a variable
length that can be at most 4GB. Sometimes modules do not have to exchange data
but only events; for this reason L and V are optional.

Figure 14 shows the structure of T field. As it is possible to observe, it is split in two
parts:

flags

 and

cmd

.

Flags are four (4 bits) and transport control information.

FREE: not used, for future uses;

GEN_ERROR: general application failure;

CMD_FAILED: activated only in a replay message which shows that a request
caused a failure;

Open_TC Deliverable 06c.2

49/81

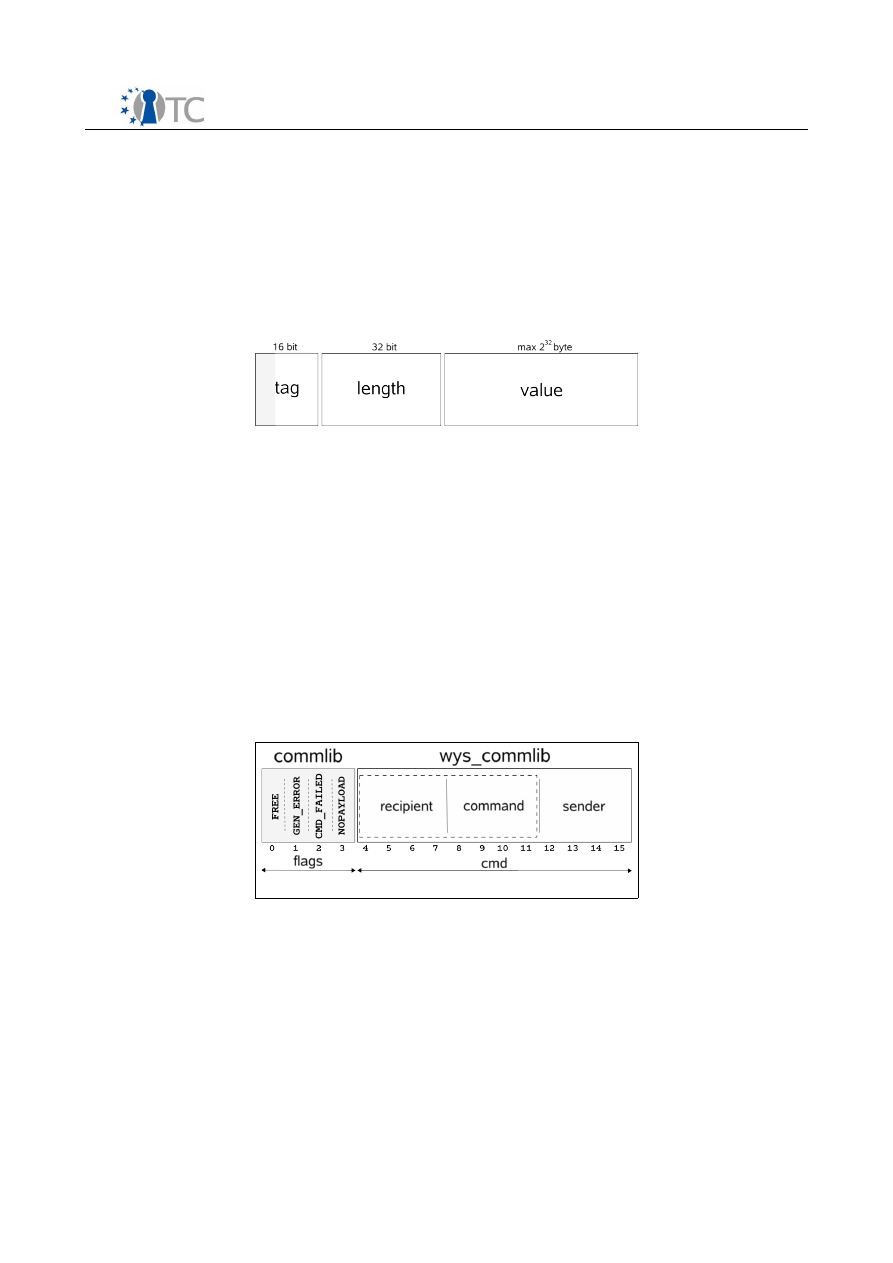

Figure 14: T field

Figure 13: Tag-Length-Value

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

NOPAYLOAD: the message has minimum length because it does not contain L
and V fields.

The remaining 12 bits are split in two subgroups:

recipient and command:

 8 bits referring to the operation that must be done

by the module;

sender:

  4 bits that refer to the module making the request.  In fact,  not all

modules can call all functions. This field is used to perform an additional check,
being aware that a component may change it at its convenience.

The  sub  field

command

  has meaning  only  inside  a module,  whereas

recipient

and

sender

have a global meaning. The list of possible values for those fields is reported in

the following table.

Module

Recipient

Sender

UNTRST_USER_INTERFACE

0x-0--

0x---0

TRST_CONTROL_SERVICE

0x-1--

0x---1

TRST_STORAGE_SERVICE

0x-2--

0x---2

TRST_USER_INTERFACE

0x-3--

0x---3

TRST_VIEWER_SERVICE

0x-4--

0x---4

TRST_SIGNING_DEV_INTERFACE

0x-5--

0x---5

TRST_INTEGRITY_SERVICE

0x-6--

0x---6

TRST_WINDOW_SERVICE

0x-7--

0x---7

The libraries involved in the message building are two:

commlib

 and

wys_commlib

. The

first   one   performs   data   marshalling   and   un-marshalling,   manages   the   errors   and
prepare   TLV   packet;   the   latter   handles   module   commands   and   implements   the
transport level abstraction.  Figure 15  shows the library stack used by each module
composing the application.

Open_TC Deliverable 06c.2

50/81

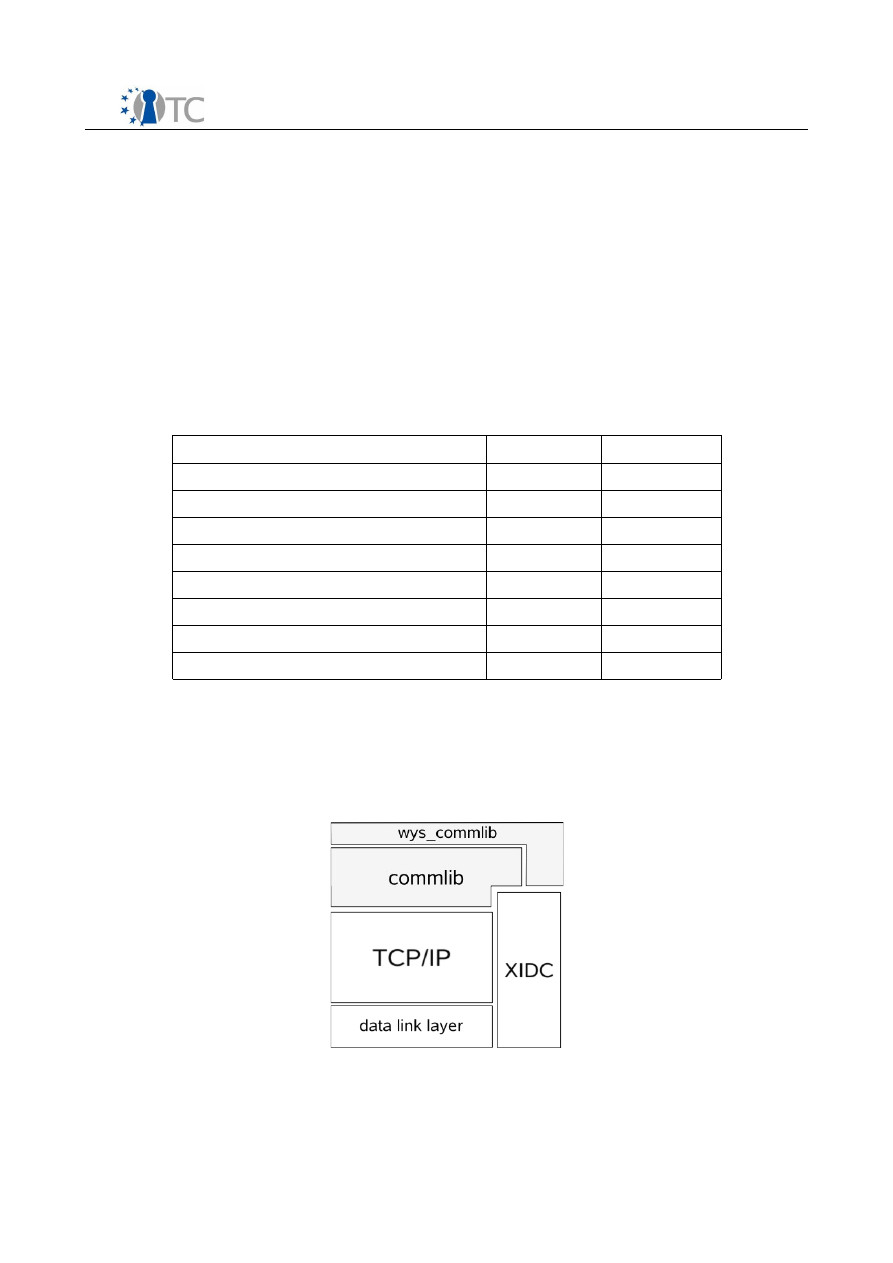

Figure 15: Stack of libraries

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.1.1

wys_commlib

 library

wys_commlib

 is a tiny library designed to support both TCP/IP and HP-XIDC transports.

It   is  an   abstraction   layer  that   provides,   as  an   interface,   two   main   functions   which
implement sending and receiving functionalities.

int _send_message (struct comm_type *_comm_type,

   uint16_t tag, uint32_t length,
   unsigned char *value);

int _recv_message (struct comm_type *_comm_type,

   uint16_t *tag, uint32_t *length,
   unsigned char *value);

_send_message

 allows sending a message to another module. It takes as parameters a

tag

 value, in accordance with the TLV structure previously defined, an

unsigned char

pointer to a buffer containing the data to send,

value

, and a 32 bits field,

length

, which

specifies the size in bytes of the buffer pointed by value.

_recv_message

  is   used   to   receive   a   message   sent   by   a   module.   Similarly   to   the

function for sending, it takes a pointer to the received tag, value and length.
Both functions take as parameter a pointer to a

comm_type

 structure that is defined as

follows:

typedef struct comm_type {

uint8_t

type;

uint16_t

source;

uint16_t

destination;

unsigned char

ct_data[14];

} COMM_TYPE, *PCOMM_TYPE;

comm_type

 is a generic structure that contains a field called

type

 which specifies the

underlying transport protocols and may assume two values, 0x00 (TCP/IP)

11

 and 0x01

(XIDC). Furthermore there are two fields in the structure  that specify the recipient
(

destination

) and the source of the current message. The

ct_data

  buffer allows the

specialization of that structure, reported as follows:

typedef struct comm_type_sock {

uint8_t

type;

uint16_t

source;

uint16_t

destination;

int

fd;

unsigned char

ct_zero[(sizeof(struct comm_type) -
sizeof(uint8_t) -
sizeof(uint16_t) -
sizeof(uint16_t) -
sizeof(int))];

} COMM_TYPE_SOCK, *PCOMM_TYPE_SOCK;

typedef struct comm_type_xidc {

uint8_t

type;

11 This value refers to the transport that can be set up through the system call:

socket (int

domain

, int

type

, int

protocol

)

 where

domain

 is AF_INET and

type

 is

SOCK_STREAM.

Open_TC Deliverable 06c.2

51/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

uint16_t

source;

uint16_t

destination;

xidc_t

*xidc_handle;

unsigned char

ct_zero[(sizeof(struct comm_type) -
sizeof(uint8_t) -
sizeof(uint16_t) -
sizeof(uint16_t) -
sizeof(xidc_t*))];

} COMM_TYPE_XIDC, *PCOMM_TYPE_XIDC;

The first one allows the communication with a module which is listening on a TCP port,
the last one allows opening a connection with a module that uses XIDC.
Moreover, the library provides other functions:

int _read_configuration_from_file (char *config_file);

It reads the configuration of WYSIWYS application from file. It takes as argument the
name of the configuration file. The file must be a list structured as follows:

<MODULE_NAME_1> <IP_ADDR>:<PORT>

<COMPARTMENT_NO>

<MODULE_NAME_2> <IP_ADDR>:<PORT>

<COMPARTMENT_NO>

...

<IP_ADDR>:<PORT>

 and

<COMPARTMENT_NO>

 are exclusive. This file defines which is the

transport   used   by   the   module;   this   way   the   library,   automatically   selects

comm_type_sock

or

comm_type_xidc

.

The function:

int _create_connection_to

(struct comm_type *_comm_type);

creates a connection to a module. It takes as argument a

_comm_type

  structure that

must have only the destination field initialized.
The function:

int _close_connection_to

(struct comm_type *_comm_type);

closes a connection opened by

_create_connection_to

 function.

If the operations end without errors, the functions return 1, otherwise 0.

Open_TC Deliverable 06c.2

52/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.1.2  Interactions between modules

All   interactions   between   modules   are   synchronous,   as   shown   in   the   sequence
diagrams. The source code implementing such interactions is organised in layers.

A module must execute the following operations (see Figure 16) to send a message to
another module:

1. allocate a

comm_type

 structure;

2. set the destination field of that structure;
3. call the function

_create_connection_to()

  and pass to it as parameter the

data structure set at step #2;

4. prepare the message and send with the function

_send_message()

.

Open_TC Deliverable 06c.2

53/81

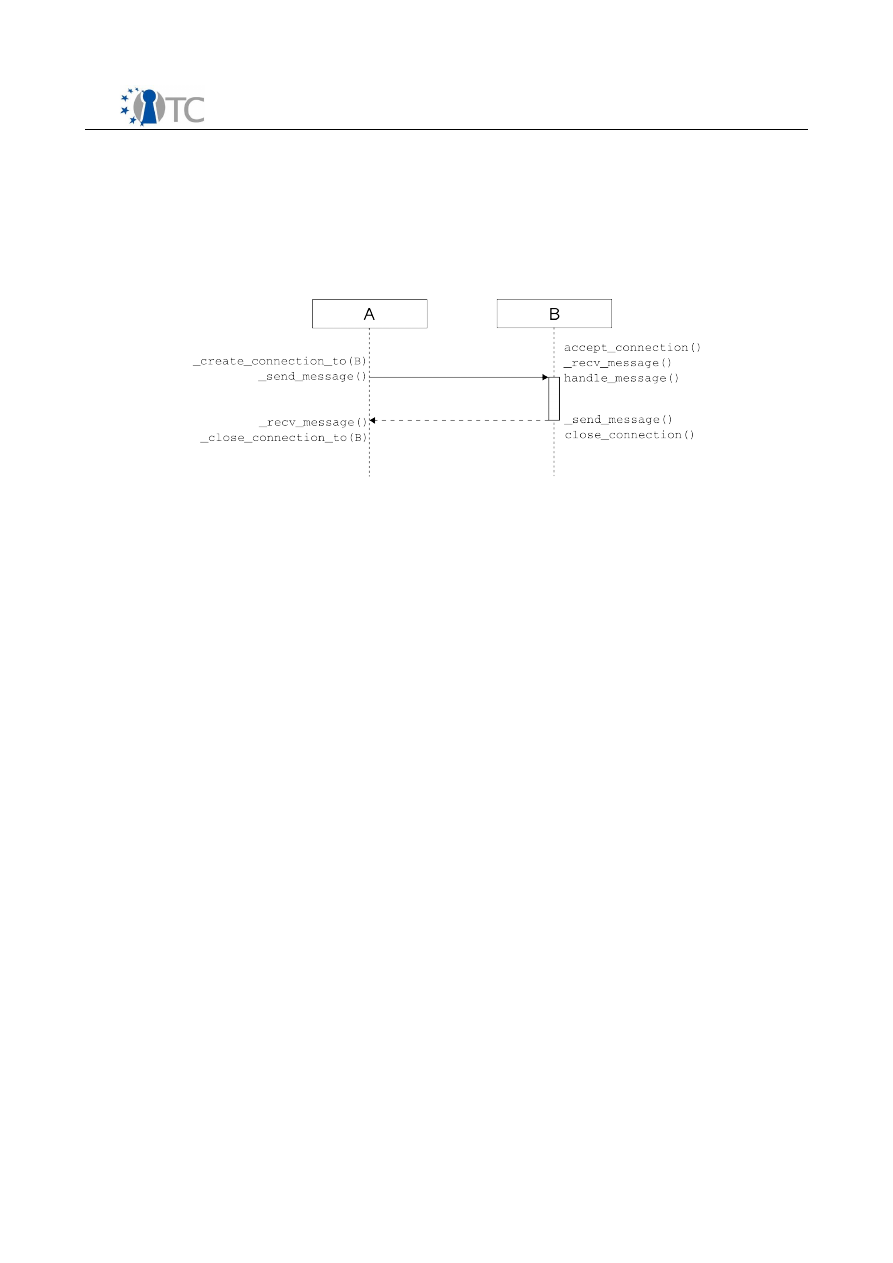

Figure 16: Interactions between modules

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2  Modules

 8.2.1  WYSIWYS Control Service (CS)

It implements the whole logic of the application and controls all other modules that
compose the signature system. It manages the life cycle of a signature or verification
request by saving the related data in a

SESSION

 structure defined as follows:

typedef struct session_state
{

uint16_t   file_id;
uint16_t   doc_id;
int        is_pkcs7;
uint16_t   cert1_id;
uint16_t   attrib_id;
uint16_t   video_id;
uint16_t   key_id;
char       key_serial[0xFF];
uint16_t   token_id;
char       token_serial[0xFF];
uint16_t   signed_file_id;
int        verify_result;

} SESSION, *PSESSION;

There are three data types stored in this structure:

file_IDs:

  allows   CS   to  retrieve   (or  refers   to)   a   file   stored   on   TS;   each   file_ID

number is unique for each file used by the application in a session and it is
chosen   by   TS.   In   SESSION   there   are:

file_id,   doc_id,   cert1_id,

attrib_id, video_id, signed_file_id;

results   from   operations   that   condition   the   execution   flow.   In   SESSION   are:

is_pkcs7, verify_result

;

values   that   depend   on   user's   choices.   In   SESSION   are:

key_id,   token_id,

key_serial[0xFF], token_serial[0xFF]

.

This module provides the interface exposed to a standard Virtual Machine used for
day-by-day   tasks   including  the  creation   of   the   document   to   be   signed   and   the
activation



of



the



WYSIWYS



application.

It can handle only one user's request at a time, thus making this application single-
user. This is the only one application module that can delete a file stored on TS.
CS exposes only one function:

SEND_FILE:

 allows receiving the data to sign or a PKCS#7 envelope to verify. It takes

as input a byte sequence that can be an OpenOffice Writer file or a PKCS#7 envelope
that contains a document and the related signature; it returns a value that indicates
the operation chosen by the user (sign/verify).

Command

Tag

Input parameters

Output parameters

SEND_FILE

0x00F0

uint8_t filebytes

uint16_t operation

Open_TC Deliverable 06c.2

54/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.2  Signing Device Interface (SDI)

It   controls   the   signing   device,   performs   the   digest   operation   in   software   and
implements the creation of the PKCS#7 envelope for signed documents.
SDI exposes the following functions:

SIGN_FILE:

 allows signing a document using the cryptographic device and the

key chosen by the user; for this purpose it uses the SDI driver linked with the
signing device. At the end of the procedure it saves the PKCS#7 envelope, that
contains the signature, in the Trusted Storage.
It takes as parameters: (1) the device serial number, (2) the key ID of the key
chosen by the user, (3) the ID of the document to sign and (4) the ID of CERT1
(3 and 4 are stored on TS).
Returns a file ID that identifies the signature in TS.
This function requires interacting with the following modules: Trusted Integrity
Service   (

LOAD_CERTIFICATE

),   Trusted   Storage   Service   (

LOAD_FILE,

STORE_FILE

) and Trusted User Interface (

PIN_REQ

).

This function can be called only from CS (/UC 70/).

IS_PKCS#7:

 checks if the sent file is in PKCS#7 format. If the result of this check

is “true”, it extracts the document from the envelope and saves it on TS.
It takes as parameters: (1) the ID of the file sent by the user.
It returns the result of the operation and optionally (if the sent file is in PKCS#7
format) the document ID returned by TS.
This function requires interacting with the  following modules: Trusted Storage
Service (

LOAD_FILE, STORE_FILE

).

This function can be called only from CS (/UC 30/).

GET_SIGNING_DEVICES:

 returns the list of the devices installed on the system.

It takes as parameters: none.
It returns a buffer of characters that contains the list of installed devices.
This function requires interacting with the following modules: none.
This function can be called only from CS (/UC 60/).

VERIFY_SIGNED_DOC:

 verifies the signature over a document.

It takes as parameters: (1) the ID of the file sent by the user.
IT returns the result of the operation.
This function requires interacting with the  following modules: Trusted Storage
Service (

LOAD_FILE

) and Trusted Integrity Service (

GET_PLATFORM_STATE

).

This function can be called only from CS (/UC 80/).

Open_TC Deliverable 06c.2

55/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Command

Tag

Input parameters

Output parameters

SIGN_FILE

0x00F0

uint8_t[]
tokenSerialID
uint8_t[] keyID
uint16_t  documentID
uint16_t  cert1ID

uint16_t  signatureID

IS_PKCS#7

0x00E0

uint16_t  fileID

uint16_t  file_ID
(0 if is_pkcs#7 is false)

GET_SIGNING_DEVICES

0x00D0

none

uint8_t[] availableDevs

VERIFY_SIGNED_DOC

0x00C0

uint16_t  fileID

uint16_t  verificationRes

Open_TC Deliverable 06c.2

56/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.3  Trusted Integrity Service (TIS)

It controls all operations related to the integrity of the platform (i.e. interactions with
the  TPM),   including  the  creation  of  the  platform  integrity  certifications  that  will  be
embedded within the PKCS#7 envelope. It holds a database (TISdb) of keys useful for
the association between user device keys and TPM keys.
TIS exposes the following functions:

GET_AVAILABLE_KEYS:

  returns   the   list   of   the   available   keys   for   a   particular

signing device registered in TISdb, that can be used for signing a document.
It takes as parameters: (1) the token serial ID of the device that will be used for
the signature.
It returns the list of signature keys registered in TISdb for the chosen device;
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 60/).

LOAD_CERTIFICATE:

 retrieves the user's Public Key Certificate (PKC) associated

to the chosen key.
It takes as parameters: (1) the token serial ID of the device that will be used for
the signature, (2) the key ID associated to the key chosen by the user.
It returns the DER-encoded PKC.
This function does not require interacting with other modules.
This   function   can   be   called   from:   Trusted   User   Interface   (/UC   65/),   Signing
Device Interface (/UC 70/).

GET_PLATFORM_STATE

returns the current PCR values

It takes as parameters: none.
It returns a buffer of characters that contains the current PCR values
This function does not require any interaction with other modules.
This function can be called only from TUI (/UC 65/).

CERT1_REQ:

 generates CERT1, namely a signature, made with a registered SKAE

key, over the hash of the document that the user is going to sign, the user's
Public Key Certificate corresponding to the key that will be used to sign the
document and the viewer attributes.
It takes as parameters: (1) the token serial ID of the device that will be used for
the signature, (2) the key ID associated to the key chosen by the user, (3) the ID
of the document to sign, (4) the ID of the viewer attributes.
It returns the ID of CERT1 in TS.
This function requires interacting with the  following modules: Trusted Storage
Service (

LOAD_FILE, STORE_FILE

).

This function can be called only from CS (/UC 70/).

CERT3_REQ:

 generates CERT3 namely a signature, made with a registered SKAE

key, over the signature data embedded in the PKCS#7 envelope: it contains

Open_TC Deliverable 06c.2

57/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

CERT1 and the legal signature made by the signing device. At the end it inserts
CERT3 as unsigned attribute in the PKCS#7 envelope.
It takes as parameters: (1) the ID of the PKCS#7 envelope stored on TS, (2) the
token serial ID of the device used for the signature, (3) the key ID associated to
the key chosen by the user, (4) the ID of CERT1 previously generated.
It returns the PKCS#7 envelope now including CERT3.
This function requires interacting with the  following modules: Trusted Storage
Service (

LOAD_FILE

).

This function can be called only from CS (/UC 70/).

CHECK_PLATFORM_STATE:

 checks if the sent PCR values are good by comparing

them with the “good values” contained in a reference database.
It takes as parameters: (1) a buffer that contains a TPM_PCR_INFO

12

 structure.

It returns the result of the check.
This function does not require any interaction with other modules.
This function can be called only from SDI (/UC 80/).

Command

Tag

Input parameters

Output parameters

GET_AVAILABLE_KEYS

0x00F0

uint8_t[] tokenSerialID

uint8_t[]
availableKeys

LOAD_CERTIFICATE

0x00E0

uint8_t[] tokenSerialID
uint8_t[] keyID

uint8_t[] filebytes

GET_PLATFORM_STATE

0x00D0 none

uint8_t[] filebytes

CERT1_REQ

0x00C0

uint8_t[] tokenSerialID
uint8_t[] keyID
uint16_t  documentID
uint16_t  attributesID

uint16_t  cert1ID

CERT3_REQ

0x00B0

uint16_t  signatureID
uint8_t[] tokenSerialID
uint8_t[] keyID
uint16_t  cert1ID

uint8_t[] filebytes

CHECK_PLATFORM_STATE 0x00A0

uint8_t[] filebytes

uint16_t result

12 Defined in TSS [16] specification.

Open_TC Deliverable 06c.2

58/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.4  Trusted Storage Service (TS)

It implements a Trusted Storage “Software Write Once Read Many” (SWORM) used to
store   the   document   being   signed/verified   and   other   data   shared   by   the   modules
during the operations.
Each file stored on TS is identified by a unique ID that allows modules to address the
file and retrieve it. All modules can store a file in TS but only CS can remove it.
TS exposes the following functions:

LOAD_FILE:

 allows a module to read a file stored on TS through its ID.

It takes as parameters: (1) the ID of the requested file.
It returns a buffer containing the bytes of the requested file.
This function does not require any interaction with other modules.
This   function   can   be   called   from:   Signing   Device   Interface   /UC   30/,   Trusted
Viewer Service /UC 40/, Trusted User Interface /UC 65/, Trusted Integrity Service
/UC 70/, Signing Device Interface /UC 70/, Signing Device Interface /UC 80/.

STORE_FILE:

 allows a module to write a file on TS.

It takes as parameters: (1) a buffer containing the file to store.
Returns an ID that identifies the file stored on TS.
This function does not require interacting with other modules.
This   function   can   be   called   from:   Control   Service   /UC   30/,   Signing   Device
Interface /UC 30/, Trusted Viewer Service /UC 40/, Trusted Recorder Service /UC
40/, Trusted Integrity Service /UC 70/, Signing Device Interface /UC 70/.

DELETE_FILE:

 allows a module to delete a file stored on TS.

It takes as parameters: (1) the ID of the file to delete.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS.

DELETE_ALL_FILES:

 allows a module to delete all files stored on TS.

It takes as parameters: none
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 90/).

Command

Tag

Input parameters

Output parameters

LOAD_FILE

0x00F0

uint16_t  fileID

uint8_t[] filebytes

STORE_FILE

0x00E0

uint8_t[] filebytes

uint16_t  fileID

DELETE_FILE

0x00D0

uint16_t  fileID

none

DELETE_ALL_FILES

0x00C0

none

none

Open_TC Deliverable 06c.2

59/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.5  Trusted User Interface (TUI)

It implements the Trusted Interface of the application towards the user: it is used to
request the type of operation to be performed (signing/verifying), to input the PIN for
the signing device (i.e. a smart card) and to show the attributes being signed.
TUI exposes the following functions:

INIT_TUI:

  initializes the user interface by clearing the screen and putting its

window in foreground.
It takes as parameters: none.
It returns: none.
This function requires interacting with the  following modules: Trusted Window
Service (

FOREGROUND_TUI_WIN

).

This function can be called only from CS (/UC 30/).

CHOOSE_OP:

 shows the list of available operations (sign/verify/exit).

It takes as parameters: none.
It returns a value representing the user's choice.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 50/).

CHOOSE_SD:

 shows the list of the available signing device and asks the user to

select one of them.
It takes as parameters: (1) a buffer containing the text (ASCII) data to show, in
this case the list of available devices.
It returns a value that represents the user's choice.
This function does not require interacting with other modules.
This function can be called only from CS (/UC 50/).

CHOOSE_KEY:

 shows the list with the available keys for a specific signing device.

Takes as parameters: (1) a buffer containing the text (ASCII) data to show, in
this case the list of available keys.
It returns a value that represents the user's choice.
This function does not require interacting with other modules.
This function can be called only from CS (/UC 60/).

SHOW_ATTRIBS

retrieves the signing attributes and shows them to the user.

It takes as parameters: (1) the token serial ID of the device that will be used for
the signature, (2) the key ID associated to the key chosen by the user, (3) the ID
of the attributes stored by the viewer.

It returns: none.

This function requires interacting with the following modules: Trusted Integrity
Service   (

LOAD_CERTIFICATE,   GET_PLATFORM_STATE

),   Trusted   Storage   Service

Open_TC Deliverable 06c.2

60/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

(

LOAD_FILE

).

This function can be called only from CS (/UC 65/).

CONFIRM_REQ:

 asks the user if he/she really wants to sign the document.

It takes as parameters: none.
It returns an integer that contains the user's choice.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 65/).

PIN_REQ:

 asks the user to input the PIN of his/her signing device.

It takes as parameters: none.
It returns a buffer containing the characters of the PIN typed by the user.
This function does not require any interaction with other modules.
This function can be called only from SDI (/UC 65/).

SHOW_RES:

 is used to tell the user the result of the signing operation, namely if

the signing process ended without errors or there were some problems during
the operation.
It takes as parameters: (1) a buffer of characters with the text (ASCII) data to
show.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 70/).

SEND_MSG:

 is used to tell the user the result of the verification process, namely

if the signature present in the PKCS#7 envelope and the attestation data (if
present) are valid.
It takes as parameters: (1) an integer that contains the result of the verification
phase.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 80/).

SHUTDOWN_TUI:

 shuts down the Trusted User Interface.

It takes as parameters: none.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 90/).

Open_TC Deliverable 06c.2

61/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Command

Tag

Input parameters

Output parameters

INIT_TUI

0x00F0

none

none

CHOOSE_OP

0x00E0

none

uint16_t operationId

CHOOSE_SD

0x00D0

uint8_t[]
availableDevices

uint16_t tokenID

CHOOSE_KEY

0x00C0

uint8_t[] availableKeys

uint16_t messageId

SHOW_ATTRIBS

0x00B0

uint16_t tokenSerialID
uint16_t keyId
uint16_t attributesID

none

CONFIRM_REQ

0x00A0

none

uint16_t user_choice

PIN_REQ

0x0090

none

uint8_t[] pin

SHOW_RES

0x0080

uint8_t[] result

none

SEND_MSG

0x0070

uint16_t
verification_result

none

SHUTDOWN_UUI

0x0060

none

none

Open_TC Deliverable 06c.2

62/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.6  Trusted Viewer Service (TVS)

It   implements   the   Trusted   Viewer   in   charge   of   correctly   presenting   the   document
being signed/verified to the user. If the user sends a document with an unsupported
format this component should shows a warning message.
This component should perform additional checks over the document (i.e. presence of
macro or hidden text) and should add the results as attributes within the signature.
TVS exposes the following functions:

SHOW_FILE:

  receives the document to show, selects a suitable viewer for the

file   and   shows   the   document.   At   the   same   time,   it   performs   checks   on   the
document and it retrieves information about the visualization environment, like
size of the viewer window and the colour depth.
It takes as parameters: (1) the ID of the document saved on TS.
It returns: the ID of the viewer attributes saved on TS.
This function requires interacting with the  following modules: Trusted Storage
Service   (

LOAD_FILE,   STORE_FILE

),   Window   Service   (

FOREGROUND_TVS_WIN,

FOREGROUND_TUI_WIN

).

This function can be called only from CS (/UC 90/).

SHUTDOWN_TVS:

 shuts down the Trusted Viewer.

It takes as parameters: none.
It returns: none.
This function does not require interacting with other modules.
This function can be called only from CS (/UC 90/).

Command

Tag

Input parameters

Output parameters

SHOW_FILE

0x00F0

uint16_t fileId

uint16_t
attributes_ID

SHUTDOWN_TVS

0x00E0

none

none

Open_TC Deliverable 06c.2

63/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.7  Trusted Window Service (TWS)

It controls the output of which component must be displayed, i.e. which domain screen
must be put in foreground.
TWS exposes the following functions:

FOREGROUND_TUI_WIN:

 puts in foreground the Trusted User Interface window.

It takes as parameters: none.
It returns: none.
This function does not require any interaction with other modules.
This function can be called from TUI (/UC 30/) and TVS (/UC 40/).

FOREGROUND_TVS_WIN:

 puts in foreground the Trusted Viewer Service window.

It takes as parameters: none.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from TVS (/UC 40/).

FOREGROUND_UUI_WIN:

 puts in foreground the Untrusted User Interface window.

It takes as parameters: none.
It returns: none.
This function does not require any interaction with other modules.
This function can be called only from CS (/UC 40/).

Command

Tag

Input parameters

Output parameters

FOREGROUND_TUI_WIN

0x00F0

none

none

FOREGROUND_TVS_WIN

0x00E0

none

none

FOREGROUND_UUI_WIN

0x00D0

none

none

Open_TC Deliverable 06c.2

64/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 8.2.8  Untrusted User Interface (UUI)

It interacts with CS to request the signing/verifying operations and it runs in a Virtual
Machine used for daily operations.
It does not exposes any function.

Open_TC Deliverable 06c.2

65/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 9  Implementation details

This section describes some details of the implemented prototype delivered as [12]
which also includes the complete usage instructions. The prototype is based on the
OpenTC Corporate Computing at Home prototype and works with Xen hypervisor.

 9.1  Three phase bind

Open_TC Deliverable 06c.2

66/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 9.1.1  Key Registration

For the generation of CERT-1 and CERT-3, a certified (called SKAE) TPM key is needed.
The latter should be associated to the key used for the signature of the document.
During   the   key   registration   phase   a   key   database   (DB)   is   created   in   TIS   whose
structure is shown in Figure 17.

For each smart card (or cryptographic device) there is a folder named with the device
serial number which contains:

the AIK key blob encrypted with SRK, used for certifying the SKAE key;

the Public Key Certificate associated to the AIK issued by a Privacy CA;

the SKAE key blob encrypted with SRK, sealed and certified by AIK;

as many folders as the key pairs available from the signing device named with
the key IDs: each folder contains the Public Key Certificate related to the key;

a file named “keys.dat” that describes all keys registered in the DB (used in /UC
60/ as response to the function call

getListOfAvailableKeys

).

The procedure for the generation of TISdb, explained in [12]



makes use of IAIK's

JtpmTools [13] for generating the AIK key and a command line tool, called “gen_skae”,
for generating and certifying the SKAE key.

Open_TC Deliverable 06c.2

67/81

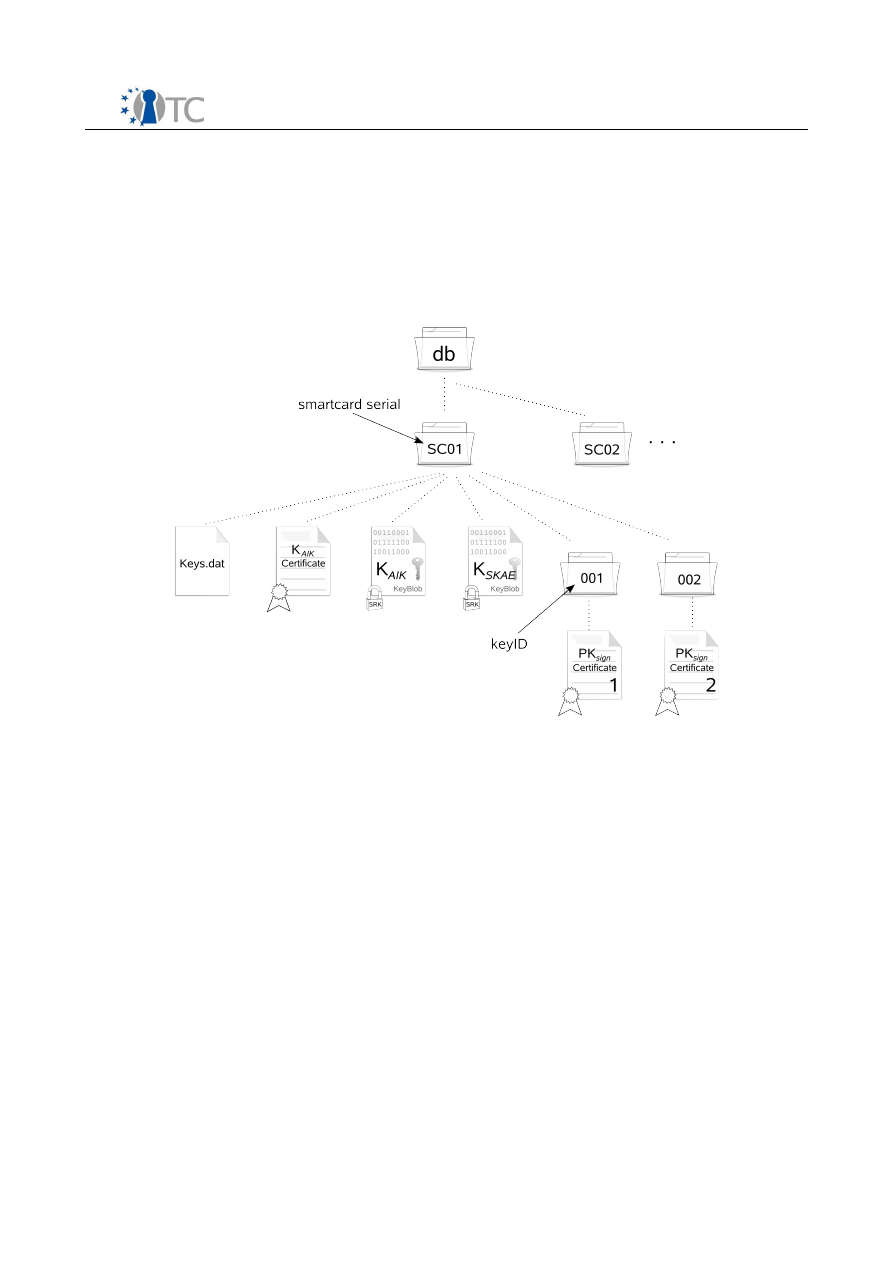

Figure 17: Trusted Integrity Service DB

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 9.1.2  Signature process

The operations performed by the WYSIWYS application to generate the signature are
executed as follows:

CERT1

After the signer has read the document and confirmed the signing operation, CS
requests TIS to generate CERT1. TIS retrieves from TS a copy of the document
the   signer   wants   to   sign   and   the   viewer's   attributes.   Using   OpenSSL,   TIS
extracts, from the user's Public Key Certificate associated to the selected key,
the

PK

sign

 and calculates the hash over the latter, the document and the viewer's

attributes. Then, the TPM tries to encrypt (i.e. to sign) the resulting hash using
the SKAE key associated to

PK

sign

. If this operation does not fail, this means that

the platform is in a good state, because of the successful unsealing of the SKAE
key.
All these data are MIME-encoded; an example follows:

Content-Type: multipart/mixed; boundary="=_MIME_CONTENT_BREAK_="

--=_MIME_CONTENT_BREAK_=
Content-Type: text/plain
Content-Disposition: attachment; filename="TVS_attributes"
Content-Transfer-Encoding: 7bit

resolution=1080x1024
color_depth=24bit
macro=NO_MACRO
hidden_text=NO
document_type=OpenOfficeDocument

--=_MIME_CONTENT_BREAK_=
Content-Type: text/plain
Content-Disposition: attachment; filename="pubkey_sign"
Content-Transfer-Encoding: 7bit

-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCyvcyNi/usH3KSYg2KPkJ7kmyU
ImUp4kp5u9CepO39IUAUpO/I3snJCztFBRvS5rdpP84+r8ZNQR6AJ8pESjcq90DJ
LsaapkEQtNBKOdY/s63CWwTIMyjtTl5ixig9HGXGBzGc0F76VREr5SzZKG+a5Foh
SOjSP6lbmcRyNgu01QIDAQAB
-----END PUBLIC KEY-----

--=_MIME_CONTENT_BREAK_=
Content-Type: text/plain
Content-Disposition: attachment; filename="document.hash"
Content-Transfer-Encoding: 7bit

85568d03040f4df4a2420a2aa4a2fc0ab1d9fc66

--=_MIME_CONTENT_BREAK_=
Content-Type: text/plain
Content-Disposition: attachment; filename="aik.cert"
Content-Transfer-Encoding: base64
MIIF4TCCBYugAwIBAgIHR1fF9q9GijANBgkqhkiG9w0BAQUFADBuMQswCQYDVQQGEwJBVDEXMBUG
A1UEChMOSlRwbVRvb2xzIEx0ZC4xHzAdBgNVBAsTFlRydXN0ZWQgQ29tcHV0aW5nIExhYnMxJTAj
BgNVBAMTHFRlc3QgQ2VydGlmaWNhdGlvbiBBdXRob3JpdHkwHhcNMDgxMjMxMDk1MjEyWhcNMDkx
MjMxMDk1MjEyWjAAMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAi3f4l1ryV0TUUea4
fREOGj/N3DcOuDeXlGxY4j5qAmb1fkJSidHUoQkiT0L9SPnbr9sRsoDsJ2/5Sv2VudUkwGVjGd60
exBYT1sroB5a4mgwwX/bCjvB2/M8NRQHf2UNEaLxEuhlHxldg9DKhPsady5yedhuB2LLLyST4UQs
j2bga8czggEqDRROfxyvslaYtbxTP3dgWBxIr7ObShpHCUYf/Ap/DLL78TF8R4Fp+8XiTG+tleE8

Open_TC Deliverable 06c.2

68/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

1p7rRQ8CYz4LnPbqa6B+YbzRTUITzIHjlJQRjY3Spb02op9iUbREREtgDVd1jWJR7KvKjfx5p1jT
...
//UOFmsyxIUlyN34iz05BQIDAQABo4IDsjCCA64wDwYDVR0TAQH/BAUwAwIBADCBrQYDVR0RAQH/
ZdoeyXJMxxvT+K9wwVFM6Rm82y8hz8RuHRKkq/A=
--=_MIME_CONTENT_BREAK_=

Content-Type: text/plain
Content-Disposition: attachment; filename="skae.pubkey"
Content-Transfer-Encoding: base64

LS0tLS1CRUdJTiBQVUJMSUMgS0VZLS0tLS0KTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FR
OEFNSUlCQ2dLQ0FRRUFockJrelc2UFBWT2dYT1pndStnUQpOVmFsTmJFd1ZWR3RJZUJlczV3YzJv
dE1OOXZvcmRVU1oyRUkzL05pQ09hdzdlTnRsS0lhQzJLRFZEYWdHT2FUCjVSUzY3cEdyUVdBOVdm
VHdadVRMcFZ1LzJKa2dicE1INHVZbVdGajBqcW1rMUFSdXVwTjlnZmtVdjloYWdWaTMKYzVhY09Q
NmNkU0pCMG1FVHpOWlU4dzhjRk9hV3RKRDFtUUlyMVU4alVmWGFaYk9rUUlaTnNXOFdMeGc2NGJF
UwpUNGo0ZXNIS0RuOEMyR0poRG4zc0pCNG1iVUtXSmxZZWowVTZmSlphS2JNSXNwbkIzdVUvMjk0
V3UvWUk0OGUzClhUeldTVHhSTFN0VUtlYU0yaDZCbmZ2TFk0alZFTzVCRkRqcU5FblFJZmRsK0ZT
RHFRYjYrZGJua2RtZXBTb3MKbndJREFRQUIKLS0tLS1FTkQgUFVCTElDIEtFWS0tLS0tCg==
--=_MIME_CONTENT_BREAK_=

Content-Type: text/plain
Content-Disposition: attachment; filename="TPM_CERTIFY_INFO"
Content-Transfer-Encoding: base64

AQEAAAAQAAAAAAEAAAABAAEAAgAAAAwAAAgAAAAAAgAAAACimYxY0SCuZkUCZi7Qb3b6Zpks/Gou
xlRiWwNO8QpsTJ9mg5Md4Ni4AAAAACwAAjAAJ+8fMxWJ6XuoYCy3voP52enY+WgAAAAAAAAAAAAA
AAAAAAAAAAAAAA==
--=_MIME_CONTENT_BREAK_=

Content-Type: text/plain
Content-Disposition: attachment; filename="tpm_signature_SKskae"
Content-Transfer-Encoding: base64
CxH9sEfQm92u2TYb2Z4TlQxGzPYlgF7TX9OMDO4Of5IOY6jBU0O1Q4L2bi7yaaMc2QFoVWsxWKrZ
KwOmYG/nXNxOAF4rDLhP2kN5S8WeEFtY3/02UlKVy4nmRBDj4wKUMsOU/X2ZIix/lV5XGPbxBloL
8j8eDK/LgVJgzirzE4YnMGUQuB32oMBnS2qq7/AjymR4RZh+Eo2+7OIwIyp+8GKz/P4X41l+HFMY
dW4NiaPnKpcdKGEb/gR8xGclIG9x8jB2y8L3X3N1r46JQ6por74sq5S0lZE96HvaYJxj44jfa+1P
bnH6B4Au5ArxAw2W8czWyBdttWQjWdkIIvOuNQ==
--=_MIME_CONTENT_BREAK_=--

At the end of the operation CERT1 is stored on TS.

DGTS

In this phase, performed by SDI, the user's document and CERT1 are retrieved
from TS and are legally signed through the signing device using the key chosen
by the user. CERT1 is inserted as Signed Attribute inside the PKCS#7 envelope.
SDI   includes   an   OpenSSL   PKCS#11   engine   for   OpenSSL   that   handles   the
communication with the signing device (i.e. a smart card).
At the end of the operation the PKCS#7 envelope is stored onto TS.

CERT3

In the last phase, TIS retrieves the PKCS#7 envelope previously generated and
calculates the hash over it. The latter is encrypted (i.e. signed) by the TPM,
using the SKAE key associated to

PK

sign

. This TPM signature is then inserted into

the PKCS#7 envelope as Unsigned Attribute.
At the end of the operation, if there no error occurred, the envelope is sent back
to the user.

Open_TC Deliverable 06c.2

69/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 9.1.3  WYSIWYS Application startup

The root file systems of all virtual machines that compose the application are stored in
a read-only image file on disk; this is the root file system of Xen's privileged Virtual
Machine called Domain-0, which constitutes the

Trusted Computing Base (TCB)

of the

system.
At the start of the whole system, firstly the components of the TCB



then the VMs of the

WYSIWYS application are measured and executed, thus continuing the

Chain of Trust

TCB's   measurements   are   stored   into   PCRs   0   to   15   while   WYSIWYS   application's
measurents in PCR 23.
The start of the VMs is executed according to a fixed sequence by the script

otc-

start-wysiwys

:

1. WYSIWYS Control Service
2. Trusted Storage Service
3. Trusted User Interface
4. Trusted Viewer Service
5. Signing Devices Interface

Each VM is started using the tool

ibmxm

, part of the IBM security services available

with   OpenTC

CC@H

  prototype,   which   measures   the   VM   and   its   configuration   file,

extends PCR 23 with that measurement and finally starts the VM.
These measurements are used to check the integrity of the whole WYSIWYS system; in
fact, the TIS database is stored on an image file encrypted with a symmetric key,

K

simm

that is in turn encrypted with a sealed asymmetric key

PK

tis

. This key is generated at

the configuration of the application. If the unsealing process fails, this means that the
image file of the TCB or a VM changed; since the decryption key for the TISdb cannot
be retrieved, accessing this DB is not possible; therefore all VMs that compose the
application are stopped.

Open_TC Deliverable 06c.2

70/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 9.1.4  Drivers

The   driver   model,   in   our   context,   is   used   to   support   new   components   without
modifying the module. This approach is used for all viewers in

Trusted Viewer Service

and all signing devices in

Signing Device Interface.

  This way it is possible to extend

the application  by  installing new viewers for other document formats or using other
devices for the legally valid signature.
A driver model, as the one implemented, is shown in Figure 18.

The application calls the driver functions using a controller that provides a standard
interface; this way the application component knows which is the driver used but does
not know any detail about its implementation.
Each driver is a dynamic library and must implement a function called

driver_entry

The latter is called when the driver is registered on the system and takes only one
parameter: a

driver_object

  structure that contains a set of not initialized function

pointers. The driver should register its implemented functions in that structure.

SDI Driver

A driver for

Signing Device Interface

allows using different devices, like new smart

cards   or   USB   cryptographic   tokens,   for   signing   a   document.   Using   a   new   device
requires writing a module that respects some conventions.
First of all, that module must be a dynamic linked library which exports a function
called

driver_entry()

, whose prototype is:

   void driver_entry( PSIGNING_DEVICE_DRV_OBJ driver_obj );

It takes as argument a pointer to the

signing_device_driver_obj

 structure defined

as follows:

   typedef struct signing_device_driver_obj {

       char    *signing_device_name;

       int     (*get_token_serial) (unsigned char **serial, uint32_t *serial_len);
       int     (*get_key_list)     (unsigned char **keys, uint32_t *keys_len);

Open_TC Deliverable 06c.2

71/81

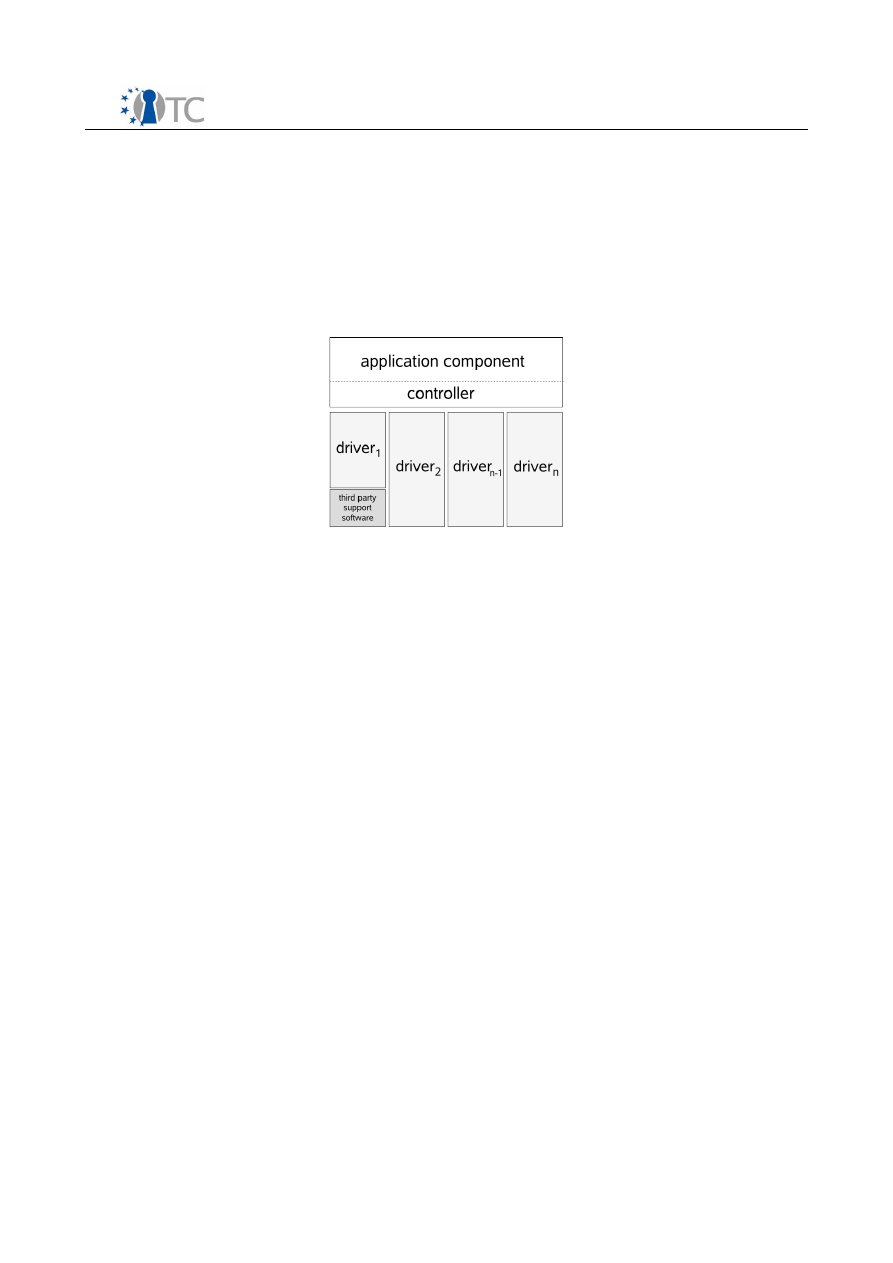

Figure 18: Drivel Model

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

       int     (*sign_document)    (unsigned char *document, uint32_t doc_len,
                                    unsigned char *certificate, uint32_t cert_len,
                                    unsigned char *sign_attrib, uint32_t aign_attr_len,
                                    unsigned char *pin, unsigned char *key_id,
                                    unsigned char **signature, uint32_t *sign_len);
       int     (*verify_document)  (unsigned char *document, uint32_t doc_len,
                                    unsigned char *signature, uint32_t sign_len,
                                    uint16_t *verify_result);

   } SIGNING_DEVICE_DRV_OBJ, *PSIGNING_DEVICE_DRV_OBJ;

In

driver_entry

this structure must be initialized by setting all pointers. Particularly

signing_device_name

should point to a buffer that contains the characters of the

driver's name and   each function pointer must point to one of the functions listed in
the following table:

Function

Description

Parameters

(*get_token_serial)

retrieve the serial

name of the token

IN

none

OUT

unsigned char **serial

must point to a buffer that

contains the serial no

uint32_t *serial_len

length of serial buffer

(*get_key_list)

retrieve a list

containing the keys

stored into the smart

card (not used)

IN

none

OUT

unsigned char **keys,

must point to a buffer that

contains a list of keys

separated by comma

uint32_t *keys_len

length of keys buffer

(*sign_document)

sign a document

IN

unsigned char *document

buffer that contains the

document to sign

uint32_t doc_len

document length in bytes

unsigned char *certificate

buffer that contains the

signatory's certificate

uint32_t cert_len

certificate length

unsigned char *sign_attrib

buffer that contains the

viewer's attributes

uint32_t aign_attr_len

attributes length

unsigned char *pin

points to a buffer that

contains the PIN inserted by

the user

unsigned char *key_id

points to a buffer that

contains the id of the key

selected by the user

OUT

unsigned char **signature

buffer with the signature

uint32_t *sign_len

length of the signature

(*verify_document)

IN

unsigned char *document

points to a buffer that

contains the document

uint32_t doc_len

length of the document

unsigned char *signature

points to a buffer that

contains the signature

uint32_t sign_len

length of the signature

OUT

uint16_t *verify_result

the result of the signature:

Open_TC Deliverable 06c.2

72/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

0 OK – 1 NOT OK

In case of double pointers, the called function is in charge of the memory allocation.
For the proof-of-concept of the WYSIWYS application delivered as  [13]  only one SDI
driver developed: it allows using the Smart Card included in the student ID card of
Politecnico di Torino (POLITO). The stack of used software is shown in Figure 19.

Open_TC Deliverable 06c.2

73/81

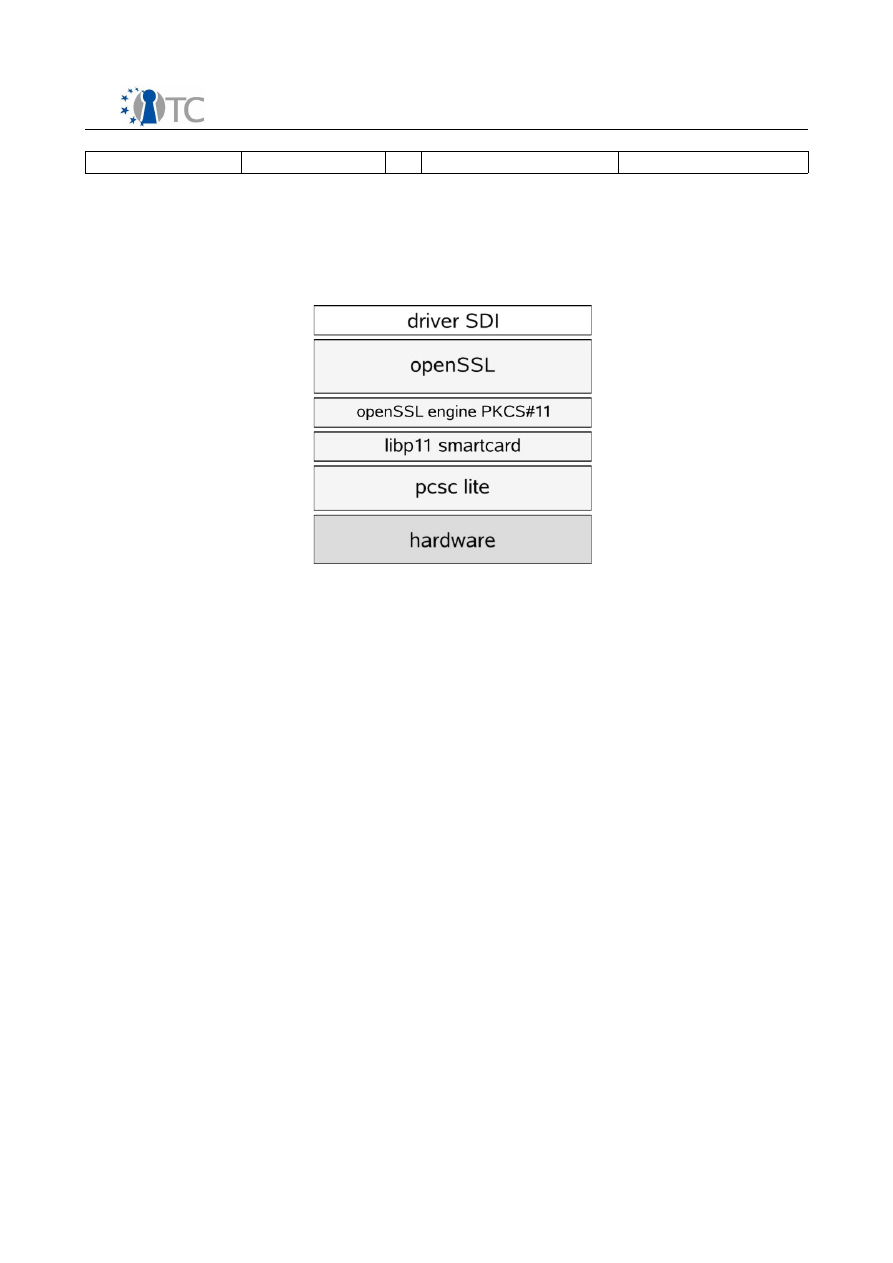

Figure 19: SDI software stack for

POLITO Student's Smart Card

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

TVS Driver

A  driver   for  Trusted   Viewer   Service   allows  extending   the   set   of   document   formats
supported   by   the   signing   application.   The   TVS   Driver   may   implement   additional
document checks, like the presence of macros and hidden text.  Using a new viewer
requires writing a module that respects some conventions.
First of all, this module must be a dynamic linked library which exports a function
called

driver_entry()

, whose prototype is:

   void driver_entry( PVIEWER_DRIVER_OBJECT driver_obj );

It takes as argument a pointer to a

viewer_driver_obj



structure defined as follows:

   typedef struct viewer_driver_obj {
       char    *viewer_name;
       int     (*show_document)        (char *path_data, char *filename,
                                        char **visualization_attributes_file);
       int     (*do_macro_check)       (char *path_data, char *filename,
                                        uint16_t *result);
       int     (*do_content_type_check)(char *path_data, char *filename)
                                        uint16_t *result);
       int     (*do_ocr_framebuf_check)(char *path_data, char *filename)
                                        uint16_t *result);
   } VIEWER_DRIVER_OBJECT, *PVIEWER_DRIVER_OBJECT;

In

driver_entry

this structure must be initialized by setting all pointers. Particularly

viewer_name

should point  to  a buffer  that  contains the  characters  of  the  viewer's

name   and   each   function   pointer   must   point   to   one   of   the   functions     listed   in   the
following table:

Function

Description

Parameters

(*show_document)

shows the

document

IN

char *path_data

character buffer with the absolute path

where the file is stored

char *filename

character buffer that contains the file

name

OUT

char
**visualization_
attributes_file

buffer that contains the viewer attributes

(*do_macro_check)

performs a

document macro

check

IN

char *path_data

character buffer with the absolute path

where the file is stored

char *filename

character buffer that contains the file

name

OUT

uint16_t *result

result of the check

(*do_content_type_check)

checks if the

document format

is compatible

with this driver

IN

char *path_data

character buffer with the absolute path

where the file is stored

char *filename

character buffer that contains the file

name

OUT

uint16_t *result

result of the check

(*do_ocr_framebuf_check)

performs

OCR/framebuffer

check

IN

char *path_data

character buffer with the absolute path

where the file is stored

char *filename

character buffer that contains the file

name

OUT

uint16_t *result

result of the check

Open_TC Deliverable 06c.2

74/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 10  Security requirements for signature creation applications

CEN CWA 14170 [14] specifies the

“Security requirements and recommendations for

Signature   Creation   Applications   that   generate   advanced   electronic   signatures   by
means of a secure signature-creation device”

.

All requirements defined in this document are listed in the following as sequence of
threats and for each of them the way the

WYSIWYS application

 meets it is described.

The analysis is reported in a table where the first column refers to a requirement in
[14], the second contains the title of the threat (as defined in [14]) and the last one
explains what the WYSIWYS application does to satisfy that requirement.
The reference to a requirement listed in CEN/CWA document, follows this convention:
/C-<chapter_number>-T<table>-<threat/requirement_number>/
where
<chapter_number>: is the chapter number in CWA 14170 ;
<table>: is the table number inside the chapter;
<threat/requirement_number>: is the row number inside the table.
The identifier

-A-

  is used to repeat the same text for the degree of satisfaction for

several threats.

Threat

Reference

Title of Threat

Satisfaction

Security Requirements for a Trusted Path

/C-7.2.1-T1-1/

Accidental   or   malicious   corruption  of   the
Data To Be Signed (DTBS) components

-A-

 : guaranteed by the platform if the TCB

is   in   a   “good”   state   and   the   signature
application   is   identified   by   means   of   the
measurements   that   match   reference
values.

/C-7.2.1-T1-2/

Accidental   or   malicious   breach   of
confidentiality

  of   the   Signer's

Authentication Data or DTBS components
or DTBSF

-A-

Security Requirements for a Public SCA operated by a service provider

/C-7.2.2-T2-1/

Disclosure   or   misuse   of   the   Signer's
Authentication Data or DTBS or DTBSF by
a   Public   SCS   operated   by   a   service
provider

Not taken into account.

Security Requirements for referencing the correct SD and Signature Attributes

/C-7.2.3-T3-1/

Substitution   of   one   or   more   DTBS   or
DTBSF components

-A-

Security requirements for Distributed Signature Creation Applications

Open_TC Deliverable 06c.2

75/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/C-7.3-T4-1/

Breach   of   Integrity   or   Confidentiality   of
Signer's   Authentication   Data   during
transfer between SCA components

The   design   makes   provision   that   the
application   is   not   physically   distributed
over different platforms.

/C-7.3-T4-2/

Breach of Integrity or Confidentiality of the
DTBS   or   DTBSF   during   transfer   between
SCA functions

Requirements for protection against un-trusted SCA components

/C-7.4-T5-1/

Interference from un-trusted processes
and communications ports of the SCA

Guaranteed by design.

Requirements of the DTBS

/C-7.6-T6-1/

Generation of an inappropriate signature

The   application   does   not   allow   to   sign   a
“null” document.

/C-7.6-T6-2/

Ambiguity of the signer's certificate
implied by the signature.

-A-

/C-7.6-T6-3/

Inappropriate presentation of the SD.

Guaranteed   by   design.   The   application
includes   the   Signer's   Document   Data
Content   type   of   the   document   as   Signed
Attribute,   so   that   a   verifier   may   interpret
the data in the right way.

Data content type requirements

/C-8.3-T7-1/

Mis-interpretation of the SD through lack
of Data Content Type information.

The   application   includes   the   Signer's
Document   Data   Content   type   of   the
document as Signed Attribute.

/C-8.3-T7-2/

Syntax fail

If the application does not include a viewer
for a specified  format  or  the  document  is
not   conforming   to   the   syntax,   the
application warns the signer of this fact and
allows   the   signer   to   abort   the   signature
process.

/C-8.3-T7-3/

Signing a document with an inappropriate
Data Content Type

Guaranteed   by   design.   The   application
does   not   allow   signing   documents   with
unsupported formats.

/C-8.3-T7-4/

Signing the wrong SD

Guaranteed by design.

/C-8.3-T7-5/

Signing falsified components of the SD.

The   application   allows   signing   only
documents  without  other  data   embedded.
Furthermore   it   does   not   allow   producing
parallel or hierarchical signatures.

/C-8.3-T7-6/

Accidental modification of the SD by the
signer.

When the document is shown to the user,
the viewer only has read-only access to it.
Modifying it during the presentation is not
possible.

/C-8.3-T7-7/

Inadequate SD presentation due to SDP
limitations

Not taken into account.

SD Non-ambiguity Requirements

/C-8.4-T9-1/

Ambiguity of SD Presentation

Taken into account in the design phase but
only partially implemented.

Open_TC Deliverable 06c.2

76/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

Requirements for Presentation Insensitive SDs

/C-8.5-T10-1/

Ambiguity of a non-presentable SD

Not taken into account.

Hidden Text and Active Code Requirements

/C-8.6-T11-1/

SD alterations

The application warns the signer about the
presentation of hidden text and active code
that   may   modify   the   presentation   of   the
document.

Security Requirements of the Signature Attribute Viewer

/C-9-T12-1/

Signing a wrong Signature Attribute

Guarantee   by   design.   Furthermore,   the
Signature Attributes are shown to the user.

/C-9-T12-2/

Accidental or malicious alteration of the
Signature Attributes by the SCA

Guaranteed by design.

/C-9-T12-3/

Signing Signature Attributes that may
automatically change before presentation
to the verifier.

The   application   does   not   allow   attributes
that contain active components.

/C-9-T12-4/

Referencing an invalid certificate in a
signature.

Not   taken   into   account   for   the   current
implementation.

Security Requirements of the Certificate Presentation

/C-9-T13-1/

Use of the wrong Certificate

The   application   shows   the   content   of   the
main   fields   of   the   certificate   selected   by
the user for the signature.

Security Requirements for obtaining the Signature Invocation

/C-10.2-T14-1/

Accidental invocation of the signature
process

The invocation of the signature application
is explicit and the activation of the signing
process is explicitly required.

Security Requirements for Inactivity Timeout

/C-10.3-T15-1/

An unattended SCA permits unauthorized
signatures generation

The signer authentication data (i.e. the PIN)
is used for a single signature, then it must
be input again.

User Interface Aspects

/C-10.6-T16-1/

Signer's actions undermine the process
safety.

The   application   user   interface   is
straightforward to prevent the signer from
creating security loopholes.

/C-10.6-T16-2/

Personal data revealed by signature
process interruption.

After   the   completion   of   each   signature
operation, the screen is cleared.

Security Requirements for the Signer's Authentication Component (knowledge based signer
authentication data)

/C-11.8-T18-1/

Unauthorised use of the SCDev

-A-

/C-11.8-T18-2/

Disclosure of the Signer's Authentication
Data by the SCA

-A-

/C-11.8-T18-3/

Accidental input of the wrong Signer's
Authentication Data

The   application   allows   inserting   the
authentication data only once.

/C-11.8-T18-4/

PIN/PW guessing

The   application   allows   inserting   the
authentication data only once.

Open_TC Deliverable 06c.2

77/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

/C-11.8-T18-5/

Detection and misuse of knowledge based
signer authentication data

-A-

/C-11.8-T18-6/

PIN/PW secrecy is  compromised

Not taken into account.

/C-11.8-T18-7/

Display of PIN or password

When   the   signer   types   the   PIN,   for   each
digit input an asterisk is shown.

/C-11.8-T18-8/

Typing error by change of PIN/PW

Not   taken   into   account   in   the   current
version of the application.

Security Requirements for the DTBSF component

/C-12.2-T19-1/

Wrong or incomplete DTBS production

-A-

Security Requirements for the DHC Component

/C-13.4-T20-1/

Weak hash algorithms

Not taken into account.

/C-13.4-T20-2/

Weak electronic signature input formats

Not taken into account.

/C-13.4-T20-3/

Wrong or incomplete DTBSR production

Associated requirement satisfied.

Security requirements for the SSC Component

/C-14.10-T21-1/ Wrong signature through malfunction of

the physical interface

Associated requirement satisfied.

/C-14.10-T21-2/ Eavesdropping or interfering at a wireless

interface between SCA and SCDev

Associated requirement satisfied.

/C-14.10-T21-3/ Wrong selection of the signature creation

data

Associated requirement satisfied.

/C-14.10-T21-4/ Wrong signature creation due to SSC

corruption

-A-

Security Requirements for the SSA Component

/C-16.1-T23-1/

Compromise by a faked public SCA

Associated requirement satisfied.

Security Requirements for Input Control

/C-18.5-T24-1/

Compromise of SCA components by
malicious code

-A-

/C-18.5-T24-2/

Compromise of SCA components by
intruders

-A-

/C-18.5-T24-3/

Compromise if faked SCA components are
installed

-A-

Open_TC Deliverable 06c.2

78/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 11  List of Abbreviations

Listing   of   term   definitions   and   abbreviations   used   in   the   overview   documents   and
architectural   design   specification   (IT   expressions   and   terms   from   the   application
domain).

Abbreviation

Explanation

AIK

Attestation Identity Key

CPU

Central Processing Unit

CWA

CEN Workshop Agreement

DSA

Digital Signature Algorithm

IT

Information Technology

PCR

Platform Configuration Register

PKC

Public Key Certificate

PKCS

Public Key Certificate Standard

PKI

Public Key Infrastructure

PSS

Probabilistic Signature Scheme

RSA

Rivest Shamir Adlemann

RW

Read/Write

SKAE

Subject Key Attestation Evidence

SSCD

Secure Signature Creation Device

TC

Trusted Computing

TCB

Trusted Computing Base

TCG

Trusted Computing Group

TOE

Target of Evaluation

TPM

Trusted Platform Module

VM

Virtual Machine

VMM

Virtual Machine Monitor

XML

eXtensible Mark-up Language

XSL

eXtensible Stylesheet Language

WORM

Write Once Read Many

WYSIWYS

What You See Is What You Sign

Open_TC Deliverable 06c.2

79/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 12  Acknowledgements

The authors want to thank Ahmad-Reza Sadeghi from Ruhr University Bochum and
Chris Stüble from Sirrix AG for providing the template used for the first part of this
document about the requirements and examples on how to use it. The authors want
also   to   thank   Francesco   Sartorio   for   the   substantial   contribution   to   the   original
requirements analysis.

Open_TC Deliverable 06c.2

80/81

background image





SWP06c WYSIWYS application design specification

FINAL 1.10

 13  References

[1]   Hanno   Langweg.   With   Gaming   Technology   towards   Secure   User   Interfaces.   In
ACSAC   ’02:   Proceedings   of   the   18th   Annual   Computer   Security   Applications
Conference, page 44, Washington, DC, USA, 2002. IEEE Computer Society.
[2] R. Shirey. Internet Security Glossary, Version 2. RFC 4949 (Informational), August
2007.
[3] Burton S. Kaliski. PKCS #7: Cryptographic Message Syntax Version 1.5. RFC 2315.
 (Informational), March 1998.
[4] Secure signature creation devices, CWA14169:2004. CEN Workshop Agreement,
CEN Information Society Standardization System, 2004.
[5] TCG  Infrastructure   Working Group  (IWG).  TCG  Infrastructure   Workgroup Subject
Key Attestation Evidence Extension, June 2005. Specification Version 1.0 Revision 7.
[6] W3C recommendation. XSL Transformations (XSLT), 1999. Version 1.0.
[7] W3C recommendation. XML.

http://www.w3.org/XML/.

[8] OpenTC deliverable: D06c.1 High level requirements specification.
[9] Directive 1999/93/EC on a Community framework for electronic signatures.
[10] ITU-T Recommendation X.509.
[11] RSA Laboratories, PKCS #1 v2.1: RSA Cryptography Standard.
[12] OpenTC deliverable: D06c.3 WYSIWYS application prototype.
[13] IAIK/OpenTC jTpmTools

(

http://trustedjava.sourceforge.net/index.php?item=jtt/readme

).

[14] Security requirements for signature creation applications, CWA14170:2004. CEN
Workshop Agreement, CEN Information Society Standardization System, 2004.
[15]   TCG   TPM   Main   Specification   (parts   1,2,3),   July   9,   2007,   Version   1.2   Level   2
Revision 103.
[16]   TCG   Software   Stack   (TSS)   Specification,   March   7,   2007,   Version   1.2,   Level   1,
Errata A.

Open_TC Deliverable 06c.2

81/81


Document Outline
