D08.2: Porting Security Services to a Mobile

Platform to Support a Trusted Mobile Application

Project number

IST-027635

Project acronym

Open_TC

Project title

Open Trusted Computing

Deliverable type

Report

Deliverable reference number

IST-027635/D08.2/Final

Deliverable title

“Porting Security Services to a Mobile
Platform to Support a Trusted Mobile

Application”

WP contributing to the

deliverable

WP8

Due date

30

th

 September 2008 - M35

Actual submission date

7

th

 October 2008

Responsible Organisation

RUB

Authors

RUB   (Alaa   Abdul-Hadi,   Andreas   Krügersen,

Hans   Löhr,   Ahmad-Reza   Sadeghi,   Marcel
Winandy),

COM2 (Eckhard Delfs),
IFX (David Jennings),

RHUL (Eimear Gallery)

Abstract

This document presents the “Secure Wallet”,

a countermeasure against identity theft on the
Internet.   The   Secure   Wallet   supports

automated secure logins on web-pages, using
Trusted Computing and Virtualisation on the

client   side.   We   analyse   the   security   of   our
approach and discuss related work. Moreover,

a   security   kernel   based   architecture   to
support   such   a   wallet   is   sketched,   together

with   an   architecture   for   a   prototype,   where
some part of the implementation is running on

a PC, and the other part on a mobile platform
(Infineon's   X-GOLD

TM

208   platform).   Recent

standardization   activities,   in   particular   the
TCG   Mobile   Reference   Architecture   and

OMTP TR1 specifications, are then examined
in light of the Secure Wallet use case.

Keywords

Trusted   Computing,   Secure   Wallet,   Identity
Theft, Mobile Trusted Platform

Dissemination level

Public

Revision

FINAL

Instrument

IP

Start   date   of   the
project

1

st

 November 2005

Thematic
Priority

IST

Duration

42 months



background image





Security Services for a Trusted Mobile Application

Final

Table of contents

1  Introduction..................................................................................................................5
2  The Secure Wallet Use Case and Prototype................................................................7

2.1 Overview of the Secure Wallet.................................................................................7

2.1.1 Classical phishing ...............................................................................................7
2.1.2 Malware phishing ...............................................................................................9
2.1.3 Countering phishing .........................................................................................10

2.2 Security Problem Definition ..................................................................................11

2.2.1 Threats...............................................................................................................11
2.2.2 Assumptions ......................................................................................................12
2.2.3 Objectives...........................................................................................................14
2.2.4 Security Objective Rationale ............................................................................15
2.2.5 Requirements ....................................................................................................16

2.3 Related Work .........................................................................................................18

2.3.1 Client-based Phishing Countermeasures .........................................................18
2.3.2 Server-based Phishing Countermeasures ........................................................20
2.3.3 Proxy Components ............................................................................................20

2.4 The General Secure Wallet Architecture ..............................................................21

2.4.1 Wallet Behavior .................................................................................................21
2.4.2 Design and Architecture ...................................................................................24

2.5 Security Analysis ...................................................................................................28

2.5.1 Attacks ...............................................................................................................29
2.5.2 Assumptions ......................................................................................................31
2.5.3 Protection against Classical Phishing Attacks .................................................31
2.5.4 Protection against Online Malware Phishing Attacks .....................................33
2.5.5 Protection against Offline Attacks ...................................................................37
2.5.6 Attacks on the Passwords .................................................................................38
2.5.7 Discussion .........................................................................................................39
2.5.8 Other Attacks ....................................................................................................40

2.6 Architectural Overview .........................................................................................40

2.6.1 Architecture on a PC..........................................................................................40
2.6.2  Storage Manager..............................................................................................41
2.6.3 X-GOLDTM 208-Based Architecture.................................................................45
2.6.4 Hybrid Architecture for Demo-Prototype.........................................................45

2.7 Porting and Test Concepts of the TPM emulator on X-GOLDTM 208..................47

2.7.1 Porting Concepts...............................................................................................48
2.7.2 Implementation strategy...................................................................................50
2.7.3 Architecture.......................................................................................................54

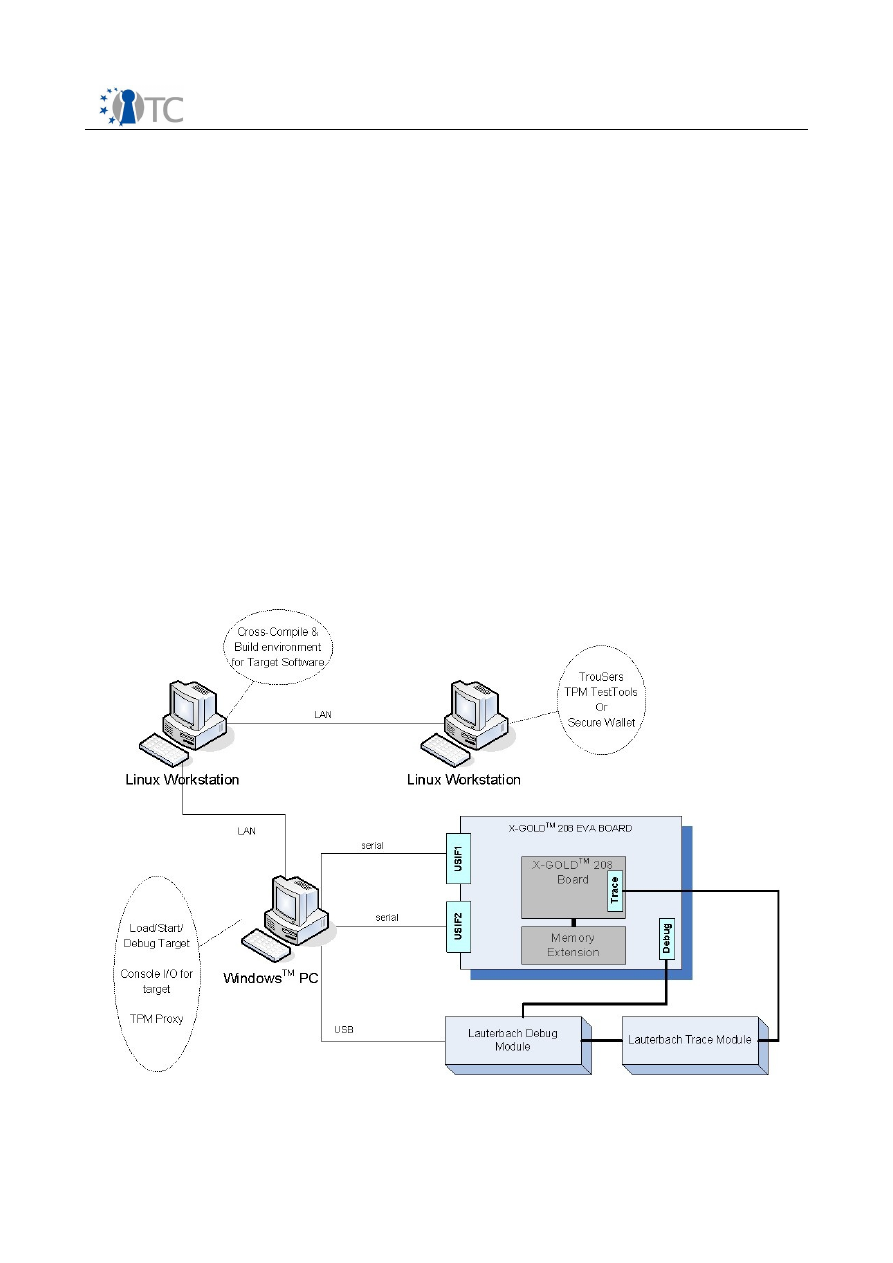

2.7.4 Test Architecture...............................................................................................57

3  TCG Support for the Secure Wallet Prototype..........................................................59

3.1 Requirements for a Robust Implementation of the Secure Wallet.......................59

3.1.1 Secure Wallet Application Installation..............................................................59
3.1.2 Secure Wallet Protocol Suite.............................................................................59
3.1.3 Summary of Requirements................................................................................63

3.2 Requirements Analysis...........................................................................................64
3.3 TCG Mappings........................................................................................................66

3.3.1 Revised Architectural Model.............................................................................66
3.3.2 Fundamental MTM command runs...................................................................68
3.3.3 Authenticated Boot Process..............................................................................72

Open_TC Deliverable D08.2

2/109

background image





Security Services for a Trusted Mobile Application

Final

3.3.4 Secure Boot Process..........................................................................................73
3.3.5 Maintaining Integrity.........................................................................................78
3.3.6 Secure Storage..................................................................................................80
3.3.7 Demonstrating Privilege....................................................................................82
3.3.8 Conclusions........................................................................................................85

4  OMTP TR1 and the Secure Wallet Prototype............................................................87

4.1 OMTP TR1 Summary..............................................................................................87

4.1.1 Security Enablers...............................................................................................87
4.1.2 Threat Model......................................................................................................89
4.1.3 TR1 Core Requirements....................................................................................91
4.1.4 Asset Protection.................................................................................................92
4.1.5 Trusted Execution Environment.......................................................................92
4.1.6 Use Case Overview............................................................................................94

4.2 Secure Wallet Architecture in the context of TR1................................................97
4.3 Proposal of the final porting of the secure wallet to the X-GOLD 208.................98
4.4 Platform Integrity and Authenticity.......................................................................98

4.4.1 Trusted Execution Environments....................................................................100
4.4.2 Secure Storage................................................................................................100
4.4.3 Secure User IO.................................................................................................102
4.4.4 Software Threats.............................................................................................102

4.5 Summary...............................................................................................................103

5  Conclusions..............................................................................................................104

Index of tables

Table 1: Threats and the objectives addressing them...................................................15
Table 2: Secure wallet application installation..............................................................59
Table 3: Starting the secure wallet................................................................................60
Table 4: Starting the secure wallet (alternative)...........................................................60
Table 5: Selecting a passphrase.....................................................................................60
Table 6: Selecting a passphrase.....................................................................................60
Table 7: Authenticating a user.......................................................................................61
Table 8: Authenticating a user (alternative)..................................................................61
Table 9: Changing a passphrase....................................................................................62
Table 10: Changing a passphrase (alternative).............................................................62
Table 11: Storing sensitive data.....................................................................................62
Table 12: Storing sensitive data (alternative)...............................................................62
Table 13: Accessing secure storage (application).........................................................63
Table 14: Accessing secure storage (application)(alternative).....................................63
Table 15: MTM permanent flags....................................................................................69
Table 16: MTM initialisation...........................................................................................69
Table 17: MTM start-up..................................................................................................69
Table 18: MTM save state..............................................................................................69
Table 19: Self testing......................................................................................................70
Table 20: Retrieving self test results.............................................................................70
Table 21: Creating an endorsement key pair................................................................70
Table 22: Accessing the public endorsement key..........................................................71
Table 23: Physically enabling an MTM..........................................................................71
Table 24: Physically disabling an MTM.........................................................................71
Table 25: Enabling/Disabling an MTM...........................................................................71

Open_TC Deliverable D08.2

3/109

background image





Security Services for a Trusted Mobile Application

Final

Table 26: Setting the state of the 'TPM_PF_OWNERSHIP' flag....................................72
Table 27: Taking ownership of an MTM.........................................................................72
Table 28: Activating an MTM.........................................................................................72
Table 29: MTM permanent flags....................................................................................74
Table 30: TPM_VERIFICATION_KEY structure.............................................................75
Table 31: TPM_RIM_CERTIFICATE structure................................................................76
Table 32: RIM installation...............................................................................................76
Table 33: RIM_Cert verification.....................................................................................76
Table 34: Loading a verification key..............................................................................76
Table 35: Disabling the loading of a root verification key.............................................77
Table 36: Incrementing a bootstrap counter.................................................................77
Table 37: Setting verified PCRs......................................................................................77
Table 38: Measurement verification and PCR extension...............................................77
Table 39: A transport session.........................................................................................81
Table 40: Creating a wrap key........................................................................................82
Table 41: Loading a key..................................................................................................82
Table 42: Sealing data using a storage key...................................................................82
Table 43: Authorising an MTM owner read of the public endorsement key................84
Table 44: Authorising a load key and an object seal.....................................................85
Table 45: MTM commands required in an MLTM and an MRTM in order to implement
the secure wallet mechanism.........................................................................................86

Index of figures

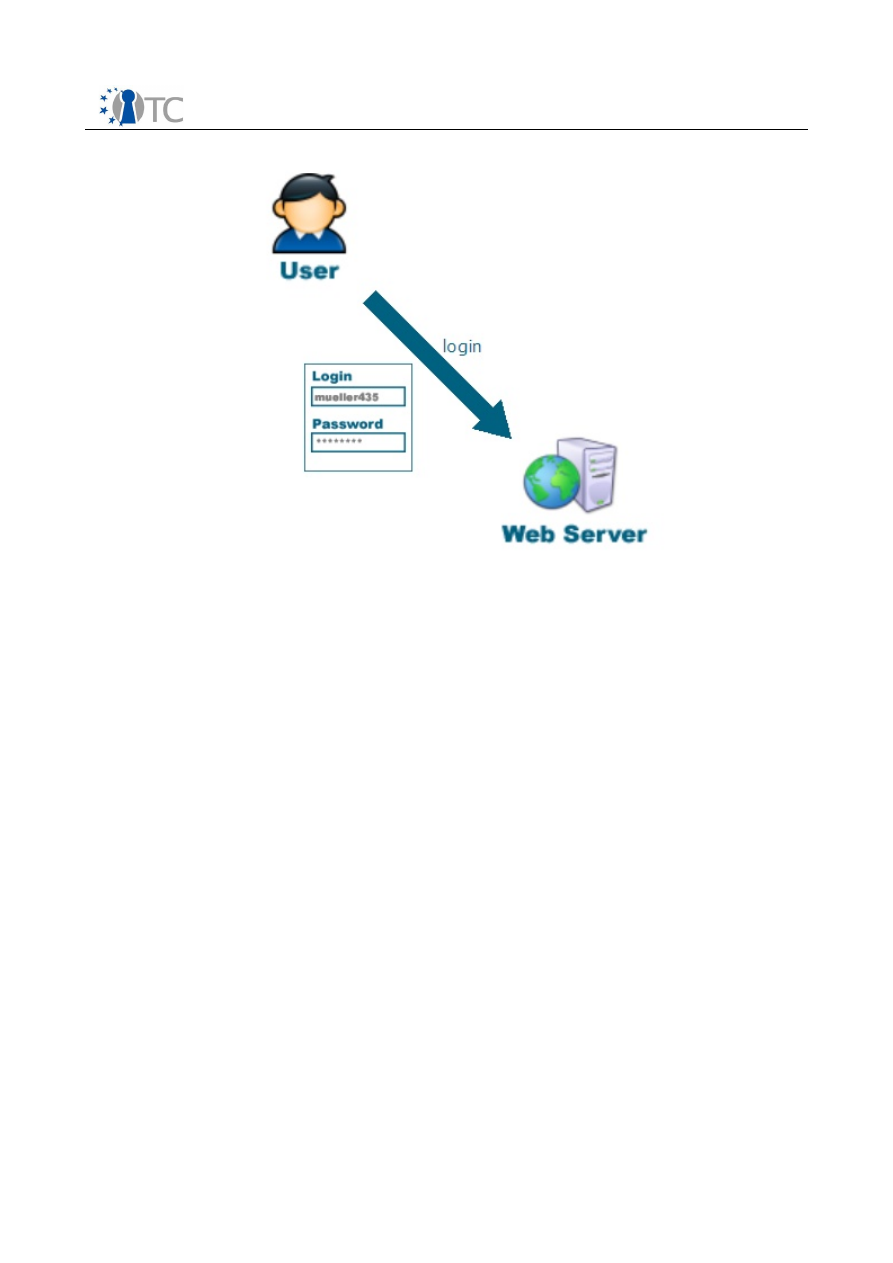

Figure 1: Web Server Login..............................................................................................9

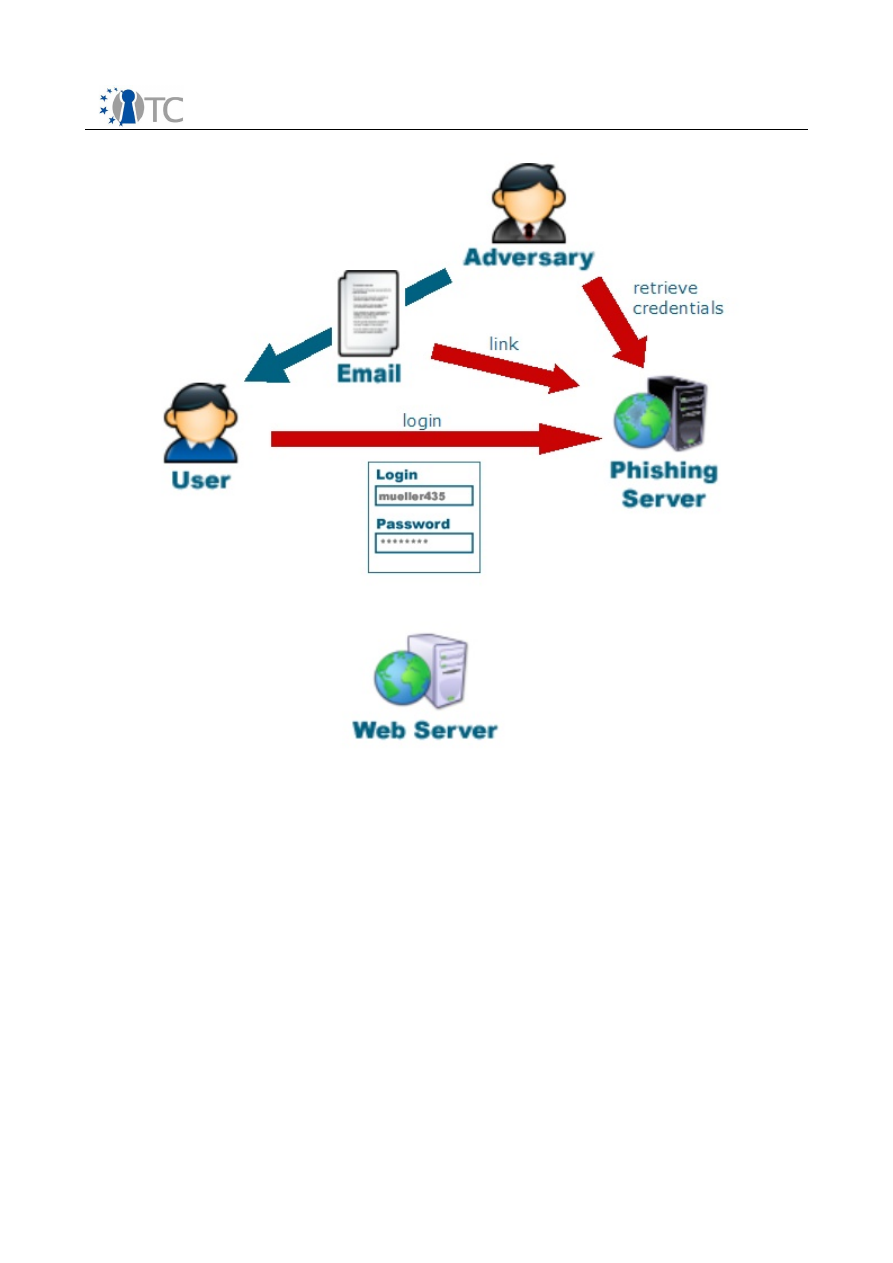

Figure 2: Classical Phishing Overview...........................................................................10

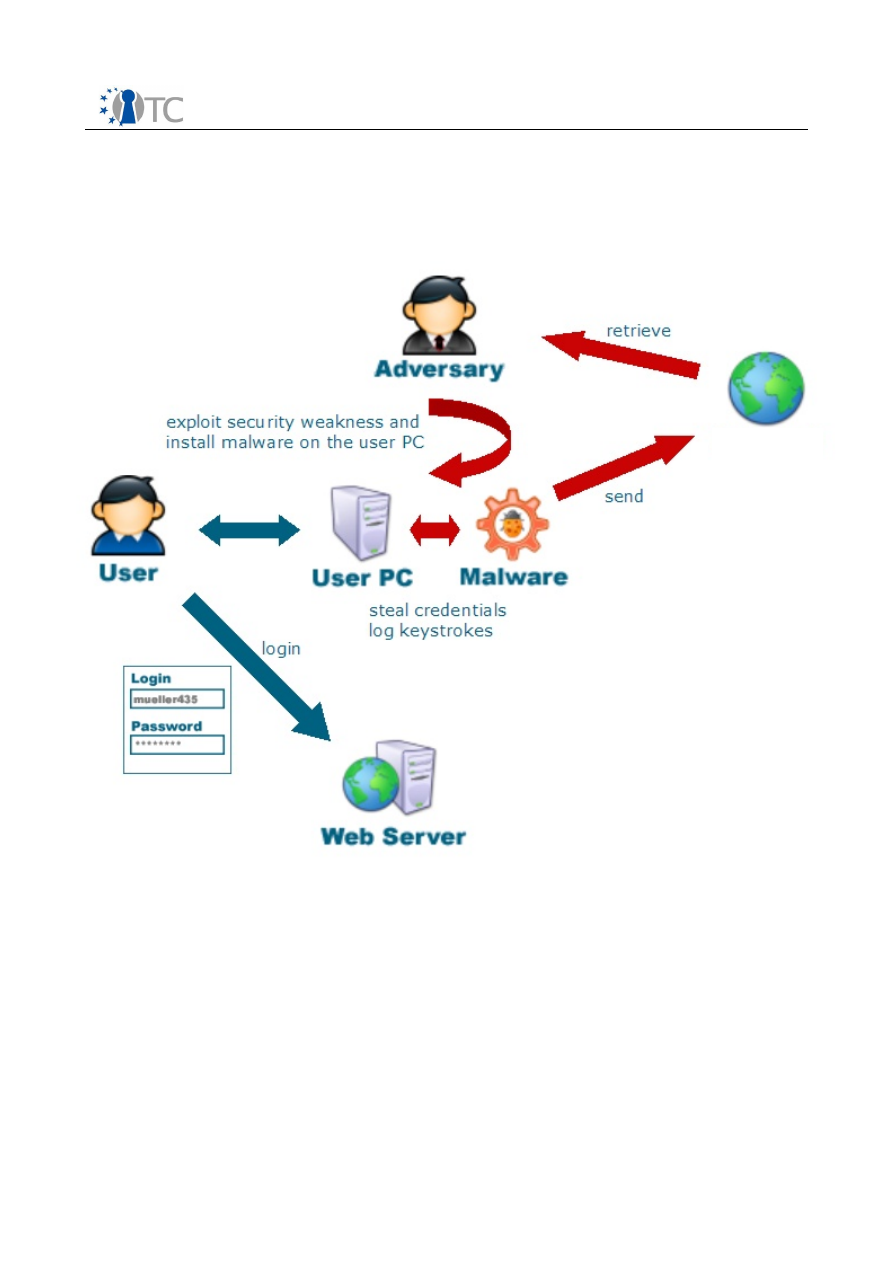

Figure 3: Malware Phishing Overview...........................................................................11
Figure 4: The Secure Wallet...........................................................................................22
Figure 5: Password fields are disabled automatically...................................................23

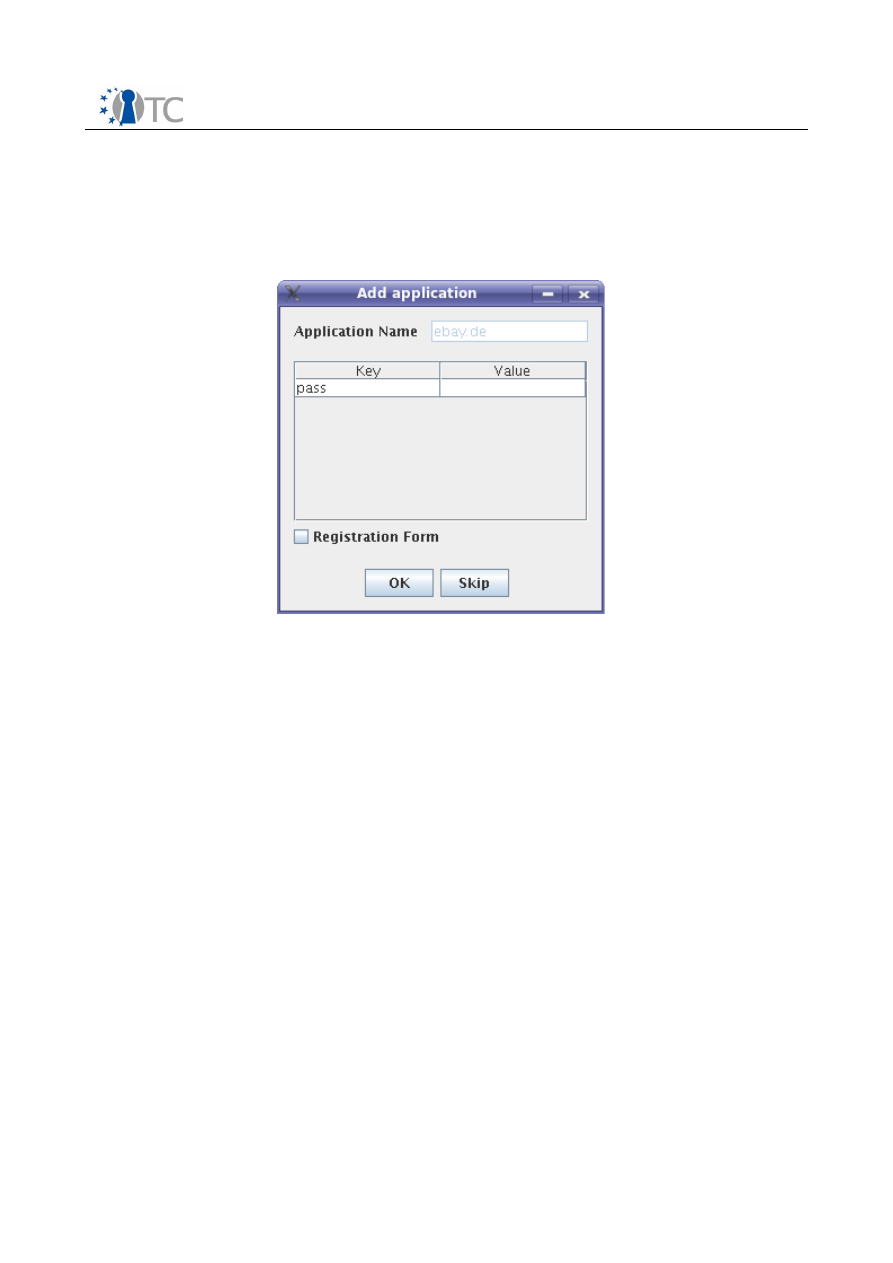

Figure 6: Setup dialog for a web site.............................................................................24

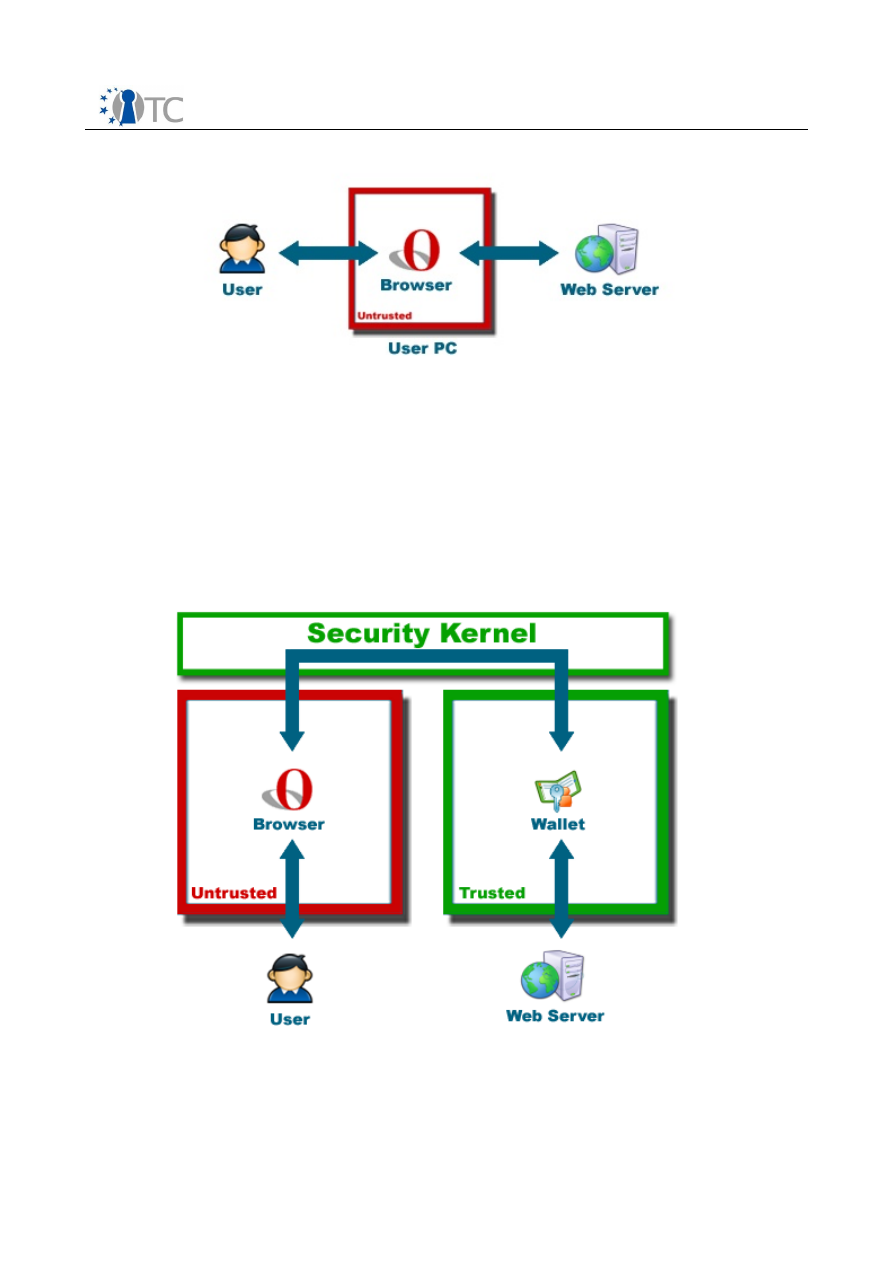

Figure 7: The Conventional System Model....................................................................27
Figure 8: The Secure Wallet System Model..................................................................27

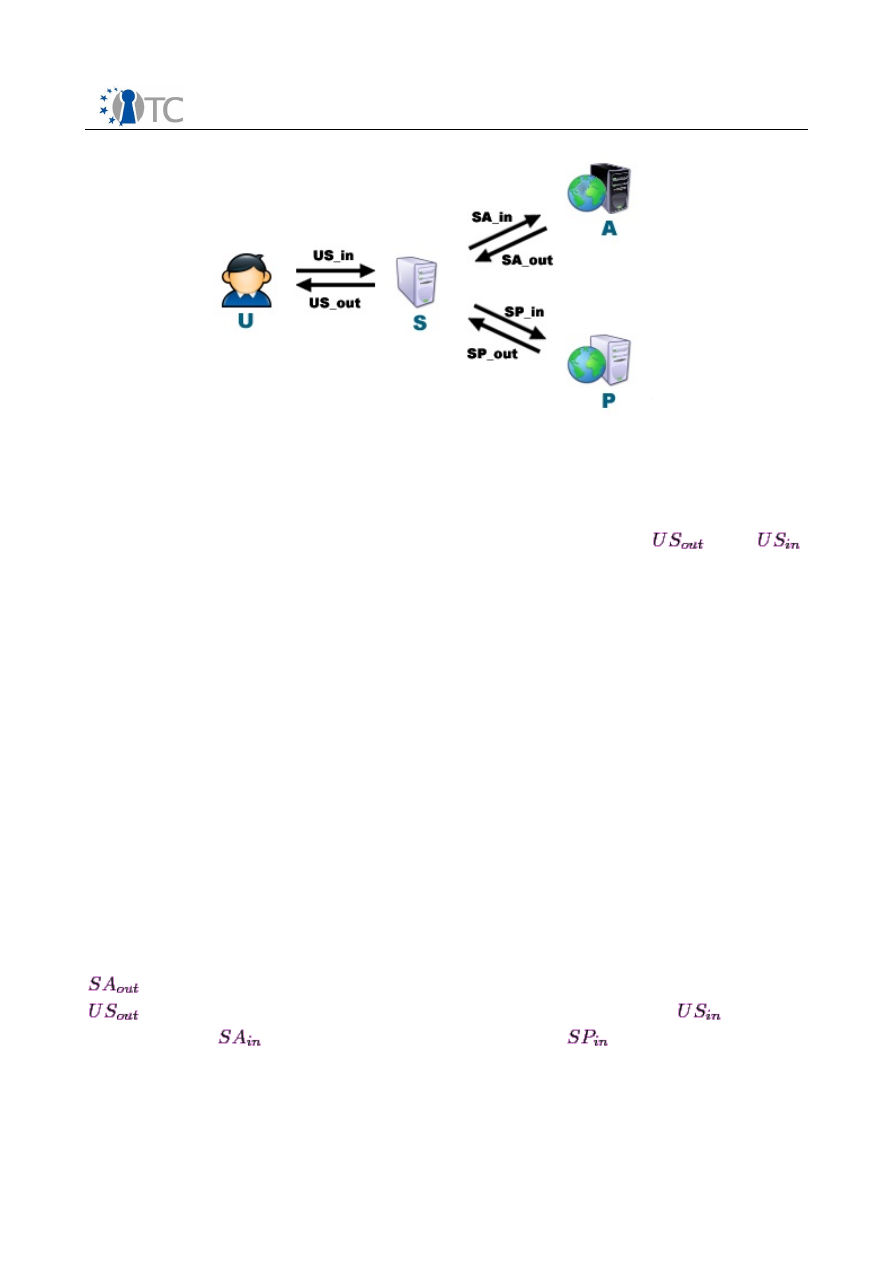

Figure 9: Simplified system model for the Secure Wallet ............................................30

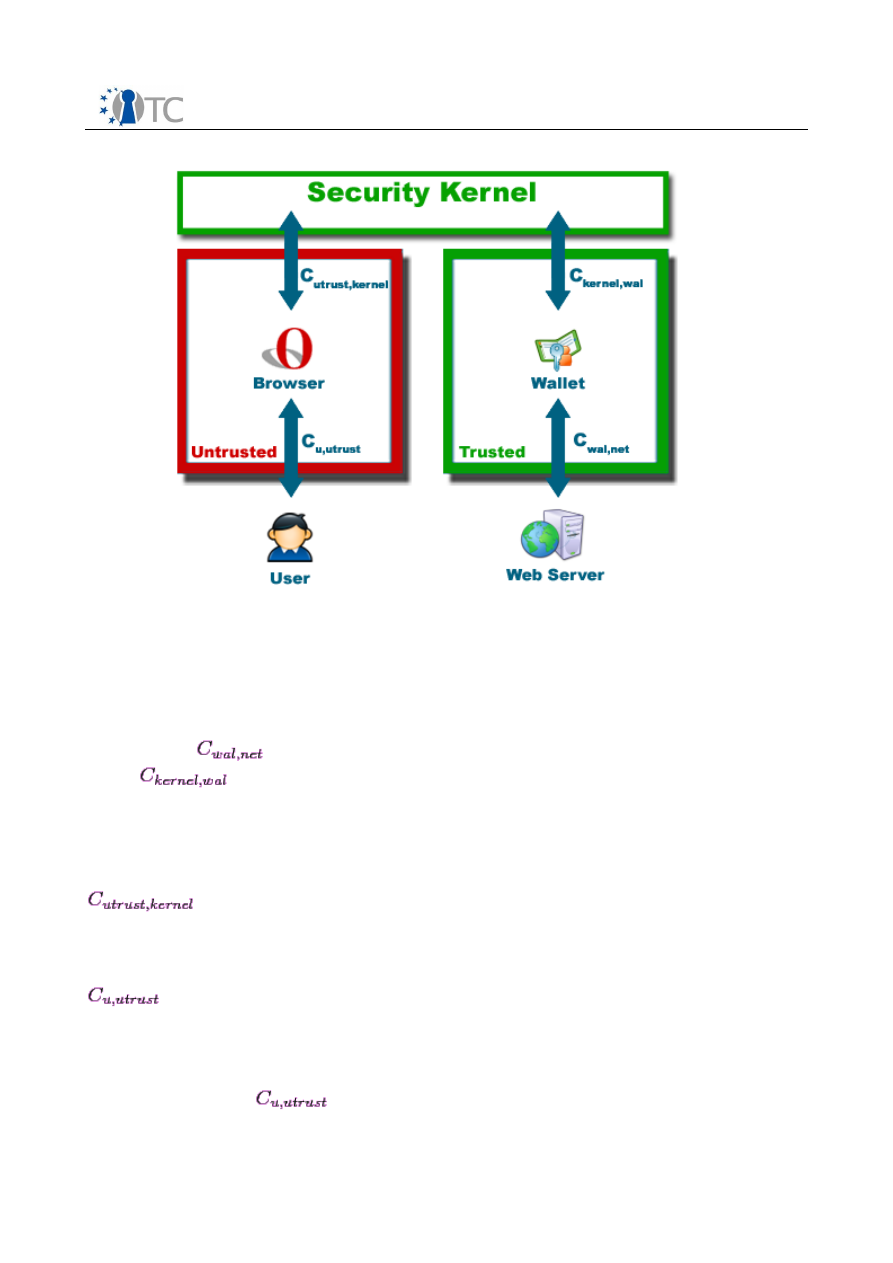

Figure 10: The Internal Communication Channels.......................................................36
Figure 11: System architecture for PC hardware.........................................................42
Figure 12: Implementation of the Storage Manager.....................................................44
Figure 13: Architectural overview for a demo-prototype. ............................................47
Figure 14: Development environment for TPM emulator on target.............................48
Figure 15: Basic target architecture for TPM emulator on L4/X-GOLDTM 208..........49
Figure 16: Linux TPM emulator architecture................................................................52
Figure 17: Basic prototyping deployment view.............................................................54
Figure 18: Component view of target software architecture........................................55
Figure 19: TPM emulator procedures on L4..................................................................56
Figure 20: TPM Proxy procedures.................................................................................57
Figure 21: Deployment view used for target testing ....................................................58
Figure 22:Message flow until start of Trousers daemon..............................................59
Figure 23: Example message exchange for a simple use case to read the public EK. 59
Figure 24: Secure wallet architecture...........................................................................68
Figure 25: A sample key hierarchy from a secure wallet provider engine...................81
Figure 26: Proposed architecture for final secure wallet prototype .........................100

Open_TC Deliverable D08.2

4/109

background image





Security Services for a Trusted Mobile Application

Final

Introduction

Identity theft has become one of the fastest growing crimes on the Internet, leading
to   huge   financial   losses   and   privacy   violations   [1,2].   Various   attacks   have   been
identified   in   the   past.   A   prominent   class   of   attacks   are   those   termed   as  illusion
attacks, such as phishing and pharming, where the user is lured to a faked site and
asked to disclose her identity credential information. Essentially, the attackers make
use of the fact that the average Internet user is unable to distinguish a legitimate site
from   a   fake   one,   and   the   underlying   security   mechanisms   and   indicators   do   not
efficiently and effectively support her in making the right decision [26]. Hence, the
first core security objective is to provide a strong password mechanism for the user
while reducing the user’s intervention with the system as much as possible. Ideally,
the user should not know the passwords. This requirement seems to be contradictory,
however, relying on a system that knows the passwords and automatically performs
the login on behalf of the user, including an automatic verification of the legitimacy
of the web site, prevents the mentioned attacks.
In   addition   to   illusion   attacks   and   the   related   social   engineering   attacks,   a   more
powerful class of attacks is due to malware compromising and infiltrating the user’s
computing   platform   with   malicious   code.   Examples   include   Trojan   horses   like
keyloggers

1

 or transaction generators

2

 [12,3]. Typical sources of malware are various

offers on supplementary software and plug-ins that may contain malicious code. In
this context,  commodity  operating  systems (OS’s)  cannot appropriately  prevent or
even   reduce   the   impact   of   these  attacks   since   they   still   suffer   from   various
conceptual   shortcomings:   beside   architectural   security   problems   and   the   inherent
vulnerabilities   resulting   from   high   complexity,   they   require   careful   system
administration skills which ordinary users typically do not have. Hence the second
main security objective is to have a small Trusted Computing Base (TCB) that can
provide the following security properties:

1. a secure execution environment for handling users’ authentication credentials,

ideally isolated from potentially malicious programs (isolation);

2. a secure user interface to interact with trusted applications, which cannot be

faked or eavesdropped by malicious programs (trusted path); and

3. a secure environment for the credentials when the system is offline (secure

storage). In particular, credentials are bound to the TCB to prevent attacks
where an adversary tries to gain access to the data by replacing software (e.g.,
booting a different OS).

Both   the   scientific   and   industrial   community   have   addressed   many   of   the   known
attacks   on   web   authentication   and   proposed   promising   identity   management
solutions to alleviate the threat of identity theft. On the one hand, delegated identity
management   systems,   where   the   user   calls   a   trusted   third   party   in   form   of   a
distributed server for hosting and providing identity information, exist but showed to
have deficiencies [32,34,62,54]. For example, as analysed in [32], authentication tools

1Keyloggers record all keystrokes of the user, especially during entering passwords, and
transmit them to a phisher.

2Transaction generators wait until the user has logged in, e.g., to her financial online
account, and create fraudulent transactions in the background.

Open_TC Deliverable D08.2

5/109

background image





Security Services for a Trusted Mobile Application

Final

such as Microsoft’s CardSpace [38] can successfully be attacked even in a weaker
adversary model (assuming the DNS is under the control of the adversary), whereas
our adversary model considers malware as well.
On   the   other   hand,   wallet-like   approaches   such   as  SpyBlock  [55,40,39],  Delegate
[43], Vault [45], or Wallet-Proxy [31] have gained more attention recently and seem
to be very promising towards secure web authentication. Those approaches use a
password wallet as authentication agent in an isolated trusted environment (using
virtual machines, or as with Delegate, a separate physical machine) to separate the
handling of credentials from the normal web browsing (see also [55,70]). The wallet-
based   approach   has   the   advantage   that   the   user   owns   a   “guardian   angel”   who
protects against disclosure of sensitive data and potentially prevents identity theft
caused by wrong user behavior. Further, there is no need to trust a distributed server
hosting  the   credentials.  Another   issue   is   that   a   wallet   can   perform   cryptographic
tasks   that   cannot   be   performed   by   the   user   or   provided   by   the   current   browser
implementations. In this work, we focus on password phishing. To protect against
transaction   generators,   the   secure   wallet   could   be   extended   according   to   ideas
presented in [40].
In this deliverable, we describe our approach to counter identity theft: the Secure
Wallet   use   case   and   prototype.   We   present   the   requirements   and   architecture,
analyse   the   security,   and   propose   a   prototype   implementation.   This   includes   the
architecture for a demonstrator using Infineon's X-GOLD

TM

208 (formerly called S-

GOLD3

TM

) mobile platform. Moreover, the relation of the Secure Wallet to current

mobile standards, in particular the TCG Mobile Reference Architecture and OMTP
TR1 specifications, is discussed.

Open_TC Deliverable D08.2

6/109

background image





Security Services for a Trusted Mobile Application

Final

The Secure Wallet Use Case and Prototype

In this section, we describe the Secure Wallet, our solution to counter identity theft
based on the concepts from [31], and give an overview of the system architecture. We
sketch the system architecture (based on generic security services as developed in
OpenTC WP05) that has been used for our prototype implementation on a PC. We
describe an architecture for a mobile platform, and propose a “hybrid” architecture
for   a   demo-prototype,   where   functionalities   are   split   between   a   PC   and   a   mobile
platform.

2.1 Overview of the Secure Wallet

According to the Anti-Phishing Working Group (APWG) [1], phishing attacks are still
on the rise. Especially crimeware attacks reached a new all-time high in December
2006, when the APWG recorded 340 unique applications designed for phishing and
identity theft. More than 28.000 different phishing sites were recorded during the
same month, each with an average online time of 4 days. Although those were about
10.000 sites less than in October and November, the number of phishing sites has
almost   tripled   since   summer   2006.   In   April   2007   that   number   almost   doubled   to
55.000 unique sites, whereas in the last months of 2007 it dropped to about 30.000
sites  again. Gartner  [11]  estimates direct  financial  losses  due  to phishing to  $2.8
billion in 2006, while indirect losses are much higher, including account replacement
costs   and   higher   expenses   for   mitigating   damage   in   trust   and   brand   values.   As
attacks increase in frequency and become more sophisticated with every generation,
increasing losses can be expected as well.
In this chapter, we describe the basic ideas underlying the secure wallet. Note that
we focus on password phishing. To address transaction generators, ideas from [40]
can be combined with our approach.

2.1.1 Classical phishing

Basically, there are two types of phishing attacks. We define the first category, which
is the oldest and still most widespread attack, as

classical phishing

. The normal user

login procedure for an arbitrary web server is shown in Figure 1. The user enters her
username and password into a web form provided by the web server and submits this
form.

Open_TC Deliverable D08.2

7/109

background image





Security Services for a Trusted Mobile Application

Final



Figure 1:

 Web Server Login

In the phishing attack, the phisher tries to lure the unwary victim to a faked web site,
which   is   designed   to   mimic   a   known   web   site   (e.g.   an   online   banking   site   of   a
common bank), using social engineering techniques. Such a lure typically is a spoofed
email that appears to come from the organization associated with the original web
site, asking to fill out some web form or to log into the victim's account in order to
prevent it from being locked down permanently. Those sites have in common that a
user with a given technical knowledge can distinguish them from the original sites by
comparing   the   URLs   or   other   security   indicators   (e.g.   an   SSL   certificate).   More
sophisticated   attacks   include   DNS   poisoning   techniques   (e.g.,   see   [75]),   thereby
using the URL of the original site and forwarding the request to the phisher's web
server. If the phisher was able to fake the site well enough to be plausible for the
victim, he hopes that the user enters her credential in order to use the site or to carry
out the requested operation (e.g. confirm her account). Since the phisher controls the
faked web site, he is in possession of the victim's credential afterwards.

Open_TC Deliverable D08.2

8/109

background image





Security Services for a Trusted Mobile Application

Final



Figure 2:

 Classical Phishing Overview

Websites that disclose personal information about their users, e.g. the fact whether a
specific email address is registered with it or not, can be used by phishers to build up
hostile profiles. Those profiles are then used by phishers to create custom phishing
mails tailored to the respective user, increasing the likelihood that the user believes
the mail [9]

2.1.2 Malware phishing

The other type of phishing attacks we define as

malware phishing

. Generally, those

attacks can be categorized as attempts to collect personal information directly at the
client through the use of malware, i.e. malicious software like trojans or keyloggers.
Malware can have various effects on the client system. Besides keyloggers, which
gather keystrokes and send them to the phisher, trojans can hijack browsers and
trick   users   by   altering   their   user   interface   or   redirecting   data   streams   to   rogue
servers.   More   sophisticated   tools   make   use   of   numerous   distributed   machines
gathering and collecting  data  silently   using covert  channels [42]. Phishers exploit
known   flaws   in   widely   used   software   (e.g.   buffer   overruns)   to   distribute   their

Open_TC Deliverable D08.2

9/109

background image





Security Services for a Trusted Mobile Application

Final

malicious code. As malware improves more and more, becoming increasingly resilient
to detection and countering techniques, phishing through malware seems appealing
and can be expected to increase in frequency. This is confirmed by the fact that in
December 2006 the number of unique variants of phishing malware increased by 110
to 340 [1]



Figure 3:

Malware Phishing Overview

2.1.3 Countering phishing

What   makes   countering   phishing   attacks   difficult   is   the   broad   range   of   different
attack vectors. On the one hand, the security engineer has to account for the unwary,
technically inexperienced user being tricked by a convincing web site fake. On the
other hand, credentials could also leak directly at the client without the user ever
noticing it (at least until the phisher makes use of the stolen data). While solutions
exist, targeting either the first or the second type of attacks in more or less detail,
there is still no technique available that protects against both threats equally. The
related work section provides some examples of existing solutions and illustrate why
they do not suffice to target both kinds of attacks.
This document takes up the idea from  [31]  and presents an implementation for the

Open_TC Deliverable D08.2

10/109

Server on
the Internet

background image





Security Services for a Trusted Mobile Application

Final

proposed   trusted   wallet.   This   wallet,   hence   called   Secure   Wallet,   will   be   used   to
securely store user credentials and authenticate to remote services on behalf of the
user without requiring specific security-related skills (i.e. as stated above, to be able
to recognize a web site fake or detect malware on her computer). In contrast to most
other solutions, the wallet will equally protect against classical and malware phishing
attacks.

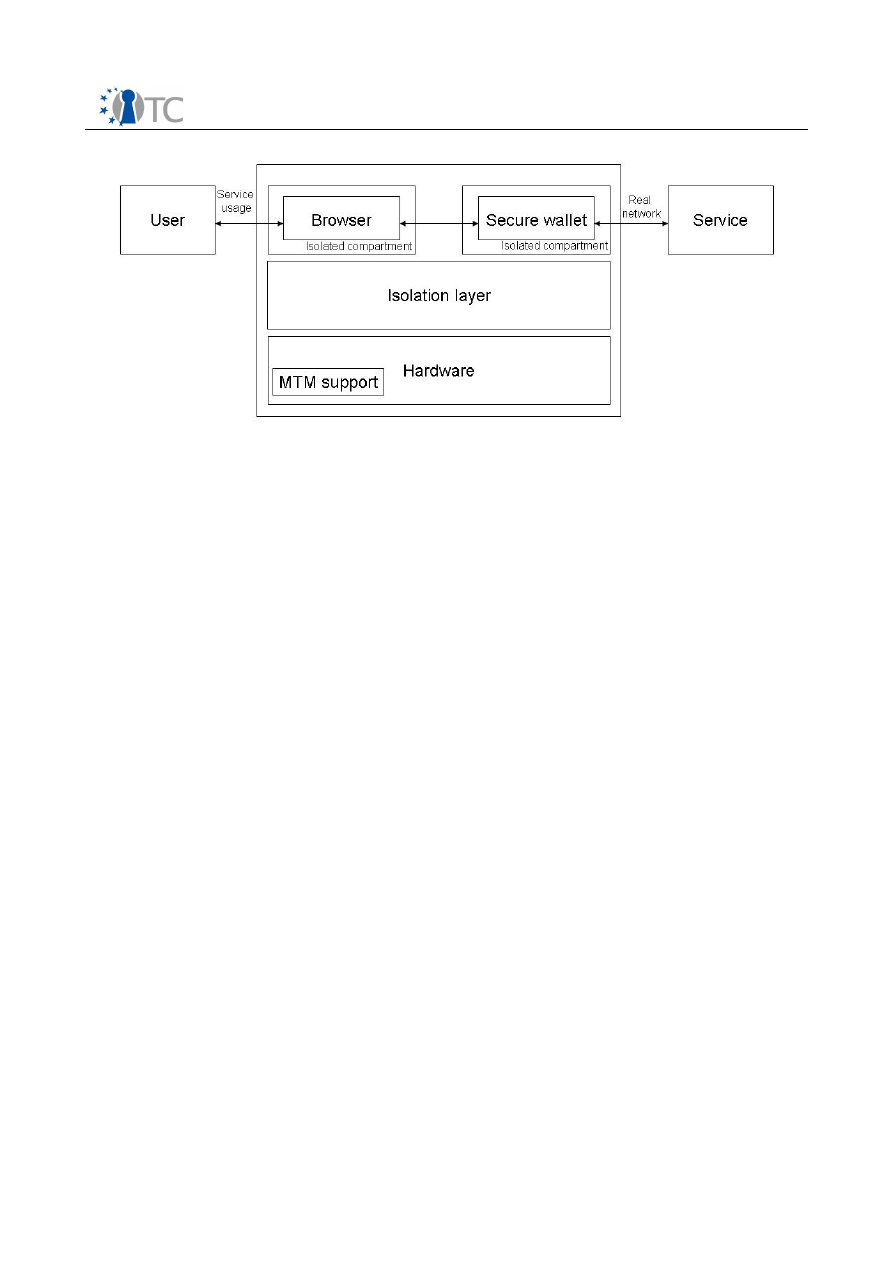

The   wallet   will   be   executed   on   top   of   a   virtualisation   platform   based   on   trusted
computing functionality. This platform provides integrity and isolation by combining
a security kernel and controlled access mechanisms. Running on top of this platform,
no malicious software will be able to access or intercept the credentials stored in the
wallet.

2.2 Security Problem Definition

2.2.1 Threats

Internet users are subject to the following security threats regarding their identities:

Threat 1

 (Identity Theft through Faked Web Sites)

The user U is lured to a faked

web site A where she enters her credential for the original site P, thereby exposing
them to the creator of the faked site.

The user may arrive at the fake site through different means, e.g., a spoofed email
containing a link to the site, a link on some other (probably not even compromised)
web site or through redirection by DNS poisoning. If the user disregards possible
security warnings or does not notice that browser security indicators are missing and
hence trusts the displayed content, she may be inclined to enter her credential



for the original site P in order to log into the fake site A. The adversary and creator of
the fake site A then can take  possession of the user's credential for the original site.
Afterwards, the adversary can use them to impersonate the user in order to perform
transactions or gain access to other data belonging to the user.

Threat 2

  (Malware Identity Theft)

Malicious software installed by an adversary A

on user U's system gathers identity data and credentials when they are entered by U
(for various applications). The software somehow exposes that data for A to retrieve.

Malicious software (i.e. malware) can be various kinds of trojans – maybe containing
keyloggers or other spyware – on the user's system. It could have been installed by
intention (and perhaps the user does not notice the software contains spyware), or
without the user ever noticing it. Depending on the type of malware, user credentials
may leak through different means. A keylogger might log all characters entered into
the target application, whereas a trojan might display a faked login dialog for the
target application persuading the user that it is the real application. Note that this
includes login forms on web sites as well, since the trojan could have altered the
browser's behavior.
As soon as the malware has gathered sufficient credentials, it will somehow contact
the adversary to send the gathered data to A, or it uses covert channels to expose the
data   at   some   public  place,   where   A  can  retrieve   it.   Afterwards,   A can     use   those
credentials to impersonate the user as described in Threat 1.

Threat 3

 (Wallet Credential Theft)

Malicious software reads the wallet's credential

store directly.

Open_TC Deliverable D08.2

11/109

background image





Security Services for a Trusted Mobile Application

Final

A reasonable approach for malicious software is to bypass all protection mechanisms
supplied by the Secure Wallet during web site setup or login and read the wallet's
credential   store   directly.   If   that   credential   store   is   not   sufficiently   protected,
attackers can gain access to all credentials that U has already stored.

Threat   4

  (Configuration   Modification)

Malicious   software   modifies   the   wallet's

configuration in order to somehow intercept unprotected credentials.

If a malicious program cannot overcome the wallet's defences while interacting with
a remote server or cannot read its credential store directly, it could try to change the
wallet's configuration to weaken its security or disable it completely. If the wallet's
configuration files are not protected from unauthorized access, malicious code could
alter them in any possible way.

Threat 5

 (Fake Dialog Attack)

Malicious software displays faked dialogs resembling

the wallet's user interface and lures the user to enter credentials into those faked
dialogs.

Instead of disguising as some other application where the user could possibly enter
credentials, malware could also try to disguise as the wallet itself. If the user has
learned   to   enter   credentials   only   into   the   wallet,   this   approach   would   be   more
promising than faking another application. Once the user is convinced that she uses
the original wallet, the malicious program can intercept any credentials entered.
An   additional   threat,   not   directly   addressed   by   this   work,   comprises   the   use   of
Transaction   Generators   [40]   to   generate   an   arbitrary   amount   of   unauthorized
transactions  once   the  user   has    successfully   logged  into  a  specific  web  site.   This
threat   is   not   introduced   by   the   wallet   concept   though,   but   is   a   general   threat
regarding web sites allowing for commercial transactions. Therefore, it will (briefly)
be discussed in the security analysis below.

2.2.2 Assumptions

As outlined in [31], the wallet solution is based on the following three assumptions:

Assumption 1

  (Honest Provider)

We assume that the service provider P and his

services used by the user U are not compromised.

If the service provider P did not reliably protect his services, malicious users are able
to steal identities directly from the provider's database. Therefore, P must enforce
that   his   services   cannot   be   exploited.   This   especially   holds   true   for   certifying
services. We assume that appropriate protection of the services includes the use of
secure communication protocols such as SSL/TLS.

Assumption   2

  (Genuine   Internet)

We   assume   that   U   uses   a   genuine   internet

connection, i.e. an adversary A cannot spoof the whole web.

Web spoofing attacks were first described by Felten et al. [28,71], and comprise an
attack where A is able to fake the whole internet and any associated service for a
user U. If such attacks were taken into account, the user would already disclose her
credentials to the adversary when signing up for a service. Therefore, it is assumed in
the following that U always signs up at an honest provider P using an unspoofed
internet connection.

Assumption 3

 (Ordinary User)

We assume that the user U is an ordinary Internet

user unable to properly authenticate a service provider P.

Open_TC Deliverable D08.2

12/109

background image





Security Services for a Trusted Mobile Application

Final

In order to authenticate a web site provided by P, the user has to verify the service
identifiers

. Such identifiers are the domain name, the 'https' protocol specifier in

the URL, and the SSL server certificate. However, studies show that most Internet
users cannot distinguish legitimate web sites from faked ones and do not understand
indicators, which signal trustworthiness, or where to look for those [36,37].

Assumption   4

  (Trustworthy   Public   Key   Infrastructure)

We   assume   that     a

trustworthy PKI exists, whose Certificate Authorities (CA) issue certificates for a web
site P only to individuals associated with P.

The   whole   point   of   a   public   key   infrastructure   lies   in   trusting   some   distinct
Certificate   Authorities   to   issue   certificates   only   to   authorized   individuals,   e.g.   a
certificate for www.ebay.com should only be issued to eBay Inc. or another entity
explicitly authorized by eBay Inc. If a CA does not conform to secure practices for the
verification of an applicant's identity, an arbitrary individual could, in theory, acquire
a certificate for any web site he desires, thus being able to impersonate that site in a
man-in-the-middle attack. Such an attack has been effective in the past at least once
for a prominent victim, when an attacker managed to disguise himself as a Microsoft
employee and acquired two certificates issued to Microsoft from Verisign [6].

Assumption   5

  (Private   Key   Protection)

We   assume   that   the   service   providers

protect the private keys of their  certificates sufficiently and revoke them as soon as
they are compromised or not used anymore.

If a service provider does not sufficiently protect his private keys, an adversary who
manages  to  steal   them  can  impersonate   the  service   provider   and  trick  users  into
disclosing   their   credentials.   This   kind   of   attack   cannot   be   countered   by   any
mechanisms on the client-side.

Assumption 6

  (Single Credential Storage Mechanism)

We assume that the user

enters all credentials into the wallet exclusively.

The wallet can only work to its maximum effect if the user uses it exclusively to store
her credentials for web sites. When she still attempts to enter credentials into web
sites directly or into other applications not associated with the wallet, no assumptions
can   be   made   about   the   credentials'   security   since   the   wallet   cannot   cover   those
external   factors.   This   also   includes   “recovery   options”   for   forgotten   passwords
offered by many websites. If the user uses such an option to get an email containing
the password, the adversary might obtain the password from this email, hence we
have to assume that the user does not use such options (which are not necessary in
any   case,   because   passwords   are   stored   by   the   secure   wallet).   In   practice,   this
assumption   is   more   realistic   and   thus   weaker   than   the   assumption   that   the   user
always verifies the results of SSL certificate verifications provided by the browser.

Assupmtion 7

(Feasability of Secure Software Development)

We assume that it is

possible to develop secure software components of limited complexity and to verify
their correctness.

Without secure software, we cannot protect the user's credentials. However, we try
to limit the number and complexity of trusted software components. For instance, we
do not assume that a complete web browser or an operating system where the user
can install software can be implemented securely. But we do assume that a basic
“security   kernel”   and   a   simple   secure   wallet   application   can   be   implemented
securely, and that the correctness of their implementation can be verified.

Open_TC Deliverable D08.2

13/109

background image





Security Services for a Trusted Mobile Application

Final

2.2.3 Objectives

The   main   objective   is   to   preserve   the

confidentiality   of   the   user's   credentials

However,   this  is   made   difficult   by   the   fact   that   most   service   providers   offer   only
entity authentication, i.e., authentication is based on the credentials alone and does
not   include   all   components   in   the   communication   path.   This   can   be   exploited   by
compromising such an unauthorized component. Therefore, the Secure Wallet will
attempt to achieve the following partial security objectives:

Objective   1

  (Protection   against   Fake   Sites)

Let   P   be   a   web   site   for   which   the

Secure Wallet stores U's credential

. The wallet will change

the password

 in order to prevent U from being able to disclose it to a fake site

. Moreover, the password generated by the wallet will be a

strong

 password with

high entropy, unique for each site, to protect against dictionary attacks and common
password attacks.

The   user   may   possibly   give   away   everything   she   knows   to   a   phishing   attack,
especially her credentials for a specific web site P. An effective way of preventing
credential leakage is not letting the user know those credentials. Thus, even if faced
with a faked web site

, U cannot disclose any secret information apart from the

outdated credential

 that U knew before the wallet changed it to

. In order

to prevent the adversary from computing

 from

 (in case he managed to

get

  from the unwary user), the wallet  incorporates random values into the

transformation.
This seems to have a great impact on usability, since U cannot log into the web sites
stored in the wallet from other computers anymore because she does not know the
password.   While   the   question   remains   whether   it   is   wise   for   U   to   expose   her
password to a possibly insecure or compromised computer beyond her control, there
are  certain   ways  to  improve   usability,   such   as  migrating  the   user's  data  to  other
platforms. Further work in this direction is needed.

Objective 2

  (Secure Environment)

The system S ensures that the Secure Wallet's

internal credential store can only be accessed if the wallet is executed in a secure
and trusted environment.

If the user attempts to execute the wallet in an insecure environment, the system
must   prohibit   further   access   to   the   wallet   to   prevent   leakage   of   credentials.
Therefore, the system must ensure that no security-critical components have been
compromised by verifying whether they have changed since the last time the wallet
was used.

Objective 3

 (Secure Storage)

The Secure Wallet uses a secure storage that cannot

be read by any other application.

The storage is the wallet's most important component since it contains all credentials
stored   by   the   user.   Unauthorized   applications   that   manage   to   read   the   wallet's
storage directly, immediately gain access to all credentials, rendering all the wallet's
other protection mechanisms useless. Therefore, the wallet must protect its storage
or rely on the system to sufficiently protect it. No other application than the wallet
should have access to that storage.

Objective 4

 (Secure Configuration)

The Secure Wallet software and configuration

Open_TC Deliverable D08.2

14/109

background image





Security Services for a Trusted Mobile Application

Final

cannot be altered by unauthorized applications in such a way that an adversary may
gain access to the user's credentials.

The configuration controls how the wallet is used or whether it is used at all. By
altering   the   configuration,   an   adversary   could   disable   the   wallet   completely   and
prevent it from protecting the user's credentials during web site login. Alternatively,
the wallet could be misconfigured to prevent affective protection of user credetials.
By modification of untrusted software components, an adversary should only be able
to prevent the automated login operations (i.e., denial of service) but should never
get   access   to   the   wallet's   credentials.   To   prevent   any   further   modifications,   the
configuration   files   must   be   stored   separately,   so   that   unauthorized   applications
cannot reach them. Moreover, the wallet software must not contain security-critical
implementation flaws, such as buffer overflows.

Objective   5

  (Secure   Input   and   Output)

No   other   application   should   gain

unauthorized access to input or output of the Secure Wallet .

A common attack of Trojan horse programs is to emulate password input dialogs. The
unwary user believes to enter her credentials into the genuine password dialog she
expects. Thus she exposes those credentials to the malicious program. Therefore, the
user must feel confident about the integrity, authenticity and confidentiality of the
communication path to the wallet application as well as the integrity and authenticity
of the secure wallet itself.

2.2.4 Security Objective Rationale

Objective 1 (

Protection against Fake Sites

) counters Threat 1 (

Identity Theft through

Faked Web Sites

). When the user does not know the password for a web site, she

cannot   give   that   password   away   to   an   adversary   trying   to   fake   the   web   site.
Therefore, faked web sites no longer pose a risk for the user's credentials.
Objective 3   (

Secure   Storage

)   counters   Threat 3   (

Credential   Theft

),   Objective 4

(

Secure   Configuration

)   counters   Threat 4   (

Configuration   Modification

)   and

Objective 5 (

Secure Input and Output

) is meant to prevent Threat 5 (

Disguising as

the Wallet

), since no malicious code can pretend to be the Secure Wallet as long as a

trusted path to the wallet exists and is used. In addition, when the system already
recognizes   unexpected  changes   to  security-critical   components,   protection   against
malware   is   significantly   increased.   Thus,   all   three   Objectives  3 to 5   together   with
Objective 2 (

Secure Environment

) counter Threat 2 (

Malware Identity Theft

).

Table 1:

 Threats and the objectives addressing them



Objective

Threat

Fake
Site

Env. Storage Config Input

Fake Sites

X









Malware



X

X

X

X

Credential Store





X





Config Modification





X



Fake Dialog









X

Open_TC Deliverable D08.2

15/109

background image





Security Services for a Trusted Mobile Application

Final

By ensuring a secure authentication process and preventing insecure communication
channels, both faked web sites and malicious programs lose their ability to disguise
as a trusted entity. Thus, the overall security objective, being the preservation of the
confidentiality of the user's credentials, is achieved if the partial objectives can be
achieved. The following table provides a compact overview of the discussed relations
between objectives and threats.

Assumption 1 (

Honest Provider

) is important to exclude the service provider system

from all security considerations. If the adversary can steal identities directly at the
provider, no action taken on the client can prevent that. Even if the adversary can
“only” compromise the provider instead of stealing the identities at once, the client
won't   presumably   detect   that.   Thus,   Assumption 1   is   crucial   for   all   following
considerations.
As already described in Assumption 2 (

Genuine Internet

), if an adversary was able to

spoof the whole internet, the user U would already disclose her credentials when
signing up for a service. In this case, no protections on the client side would have an
effect either.
On the other hand, if Assumption 3 (

Ordinary User

) is not taken into account, the

proposed solution will also work for a skilled user who knows how to distinguish a
phishing site from an original site (in the case of Threat 1). Regarding Threat 1, a
skilled user will probably refuse to install any kind of suspicious software in the first
place or recognize faked login dialogs displayed on her system. The assumption is
reasonable, though, because studies show that most Internet users do not possess
such knowledge and therefore it helps to prevent phishing attacks for a larger user
base.
The   importance   of   Assumption 4   (

Trustworthy   Public   Key   Infrastructure

)   becomes

immediately   clear   when   dealing   with   certificates   that   have   been   issued   without
authorization.   Certificates   represent   the   primary   source   of   trust   in   a   public   key
infrastructure. If there exists a certificate that seems to belong to a certain web site P
but was issued to an adversary A instead, A can impersonate P for arbitrary users
without them noticing.
If   an   adversary   manages   to   steal   a   private   key   from   a   service   provider   and
impersonates him  in a  form  of redirection  attack, there is nothing that  the client
could  do to  detect  that  apart  from verifying the   actual  web site   content.  Without
Assumption 5,   a   client   cannot   trust   a   single   certificate   since   it   could   possibly   be
stolen.

2.2.5 Requirements

In order to achieve the security objectives introduced above, both the system   (i.e.,
the platform together with the operating system) and the wallet must meet several
requirements. Those requirements are as follows:

Requirement 1

 (System Integrity)

The integrity of security-critical components in

S should not be compromised.

If malicious software infects critical system components in   , the system is rendered
incapable of providing protection against attacks and cannot meet the other security
requirements. Thus, security-critical components of   have to be isolated from non-

Open_TC Deliverable D08.2

16/109

background image





Security Services for a Trusted Mobile Application

Final

critical   components.   While   this   preserves   system   integrity   at   runtime,   additional
measures   must   be   taken   to   protect   against   offline-attacks,   e.g.   when   a   different
operation   system   is   booted.   A   secure   boot   mechanism   is   required   to   prevent
modification of initial system components.

Requirement 2

 (Isolation)

Runtime and offline protection of application code and

data in S must be assured.

The internal state or persistently stored state of processes must not be accessible by
malicious processes. Since malware may try to log the user's key strokes or modify
the   system   configuration,   applications   for   different   tasks   of   the   user   should   be
separated, such that they cannot interfere with each other. The Secure Wallet should
store the user's credentials securely. Thus, having a clearly security-related task, the
wallet's internal credential store should never be read by applications unrelated to
security tasks, e.g. a web browser or active scripts running therein.

Requirement  3

  (Information  Flow)

Credentials  should be  relayed  to  authorized

applications only.

Credentials   must   enter   and   leave   the   wallet   in   order   to   be   used   effectively.   If
credentials could not be passed on to other applications (e.g. in order to log into a
web site), the wallet has no other use than storing them. Only trusted components
known by the wallet or components that can identify and authorize themselves (e.g. a
remote web server using a valid SSL certificate) should gain access to any of the
stored   credentials.   The   wallet   should   warn   the   user   when   she   attempts   to   send
credentials over an insecure communication channel (e.g. to a web site without SSL
encryption).   Moreover,   inter-process   communication   should   only   be   performed
through   strictly   controlled   communication   interfaces,   i.e.   no   bypassing   of   those
interfaces should be possible.

Requirement   4

  (Trusted   Path)

No   other   application   should   gain   unauthorized

access to input or output of the application in S used by U to enter her credentials
(i.e., the secure wallet).

To   ensure   that   the   user   enters   credentials   only   into   the   wallet   and   no   other
applications can access the user's input, the system must provide a mechanism which
allows separation of input channels. While the user enters her credentials, she must
feel confident that those credentials are sent over a secure communication channel. A
visual proof of the current channel's security state should be displayed to the user at
all times.

Requirement   5

  (Robustness)

Wrong   configuration   or   setup   of   security-critical

components of S should not have adverse effects on the security features provided.

As pointed out in Assumption 3 (

Ordinary User

), this deliverable assumes an ordinary

user   without   any   technical   knowledge   to   configure   or   understand   security-critical
applications   or   indicators.   Thus,   any   configuration   necessary   to   fulfil   the   security
objective must be easy to understand and tolerate mistakes. In the context of the
wallet this implies that the user should preferably only enter user credentials without
having to worry about any inner workings. Because of assumption 3 (ordinary user),
this requirement does not only address usability: in order to protect the credentials of
unskilled users, the secure wallet

must

 be easy to setup ad configure.

Requirement 6

  (Authentication)

Unauthorized individuals should not be able to

access the wallet's data stored by other users.

Open_TC Deliverable D08.2

17/109

background image





Security Services for a Trusted Mobile Application

Final

On a multi-user system or in a multi-user environment (e.g. an open-plan office) the
system must ensure that credentials stored by one user are not accessible by other
users. A user has to authenticate herself before she can use the wallet and her stored
credentials. The system must provide a method to let the user authenticate herself.
This can either happen as part of a general user authentication or it can be specific to
the wallet. Moreover, the system's security policy may define that the user has to
reauthenticate herself after a specific timespan.

2.3 Related Work

2.3.1 Client-based Phishing Countermeasures

Several existing solutions add security toolbars to the browser's user interface that
should warn the user of fraudulent sites by checking certain indicators like a valid
SSL certificate or by maintaining a blacklist of known phishing sites. Examples of
such toolbars are TrustBar [37], Netcraft Toolbar [7] or SpoofGuard [22]. While those
solutions tend to lessen the success of phishing attacks, they are not sufficient to
counter them completely, as a recent study shows [69]. Users fail to continuously
check the displayed security indicators, since their primary goal is not security but to
finish the task that led them to the phishing site. Even when the toolbars showed
suspicious signs, users often did not know how to interpret them. They tend to trust
the actual web site content more than the security indicators that were installed. This
is especially harmful if a phishing site displays real web site content in a man-in-the-
middle attack or in a picture-in-picture attack, where a picture of a browser window
containing the image of a legitimate site is shown as the content of a fraudulent site
[41]
Dynamic   Security   Skins   [25]   offer   a   better   alternative   in   requiring   the   user   to
recognize only an image and a low-entropy password while freeing them from the
burden of checking all browser security indicators, but they have two drawbacks.
First, this approach is not resistant to malware attacks, since a trojan altering the
browser's behavior or user interface could fake the images by generating a matching
set   of   images   itself.   Second,   they   require   a   change   to   the   web   server,   which
significantly lowers the chance for this technique to be deployed.
A related approach was taken with Synchronized Random Dynamic Boundaries [73]
In   an   attempt   to   separate   status   information   from   web   site   content,   the   authors
implemented a protection scheme that changed the border colours of the browser
and its associated windows in random intervals, thereby exposing spoofed windows
generated by malicious code. While this technique does not require a change to the
web   server,   it   still   suffers   from   similar   drawbacks   as   the   dynamic   security   skin
approach, e.g., it is vulnerable to malware attacks.

Password Managers

Password managers are readily available for many different operating systems and
desktop   environments.   A   familiar   example   is   KWallet   [59]   included   in   the   KDE
Project.   Passwords   are   encrypted   and   stored   on   the   user's   system   and   can   be
automatically retrieved, e.g. by the Konqueror browser, whenever the user enters a
web site that the wallet has a password for. Such wallet approaches neither provide
Isolation nor a Trusted Path, though.
The Web Wallet [70] separates the input of credentials and the usage of a web site by

Open_TC Deliverable D08.2

18/109

background image





Security Services for a Trusted Mobile Application

Final

locking the HTML forms requiring credentials. After the user presses a predefined
security key, the Web Wallet verifies the security properties of the target web site
and displays a dialog to the user where she has to explicitly choose the destination
site   the   credentials   should   be   sent   to,   instead   of   displaying   simple   confirmation
dialogs. The user can choose from a list of web sites previously stored by the wallet.
While this is quite effective in countering classical phishing attacks, no protection
against malware attacks is provided.
Yee and Sitaker proposed the PassPet browser extension [72] which addresses the
issue of re-used passwords across multiple different web sites. It lets the user assign
a

pet name

  for each of her used sites and generates a new password incorporating

the domain name. When the user wants to log into one of her sites, she enters the pet
name into the extension and it copies her password into the designated password
fields. Similar to other password manager solutions, this is effective against classical
phishing but lacks resistance to certain kinds of malware attacks.

Platforms & Operating Systems

Virtualisation

To prevent malware attacks, a secure operating system is vital, and for the solution
proposed in this deliverable, virtualisation is an important building block. Because of
the abundance of literature on this topic, we do not provide a review of recent work
here, but refer the reader to previous work, such as [33,46,57].
Cox  et  al. [24]  introduced  the Tahoma  Web  browsing system which  added  a new
separate   trusted   software   layer   called   browser   operating   system   (BOS)   on   which
browsers   execute.   They   separated   several   browser   instances   running   in   the   Xen
virtual machine monitor [18], thereby isolating different web applications from each
other. While this approach proved to counter 87% of the browser flaws and malware
attacks presented in their paper, no protection against classical phishing is available.
This is due to the fact that Tahoma can only provide an isolated browser instance
when the user enters a phishing site but does not prevent her from actually entering
her   credentials.   Moreover,   offline   modification   of   critical   system   components   is
possible. Thus, malware attacks targeting the BOS itself are still feasible.
While   not   exactly   related   to   protection   of   credentials,   the   SpyBlock [40]   browser
extension employs a similar approach by using VMWare to set up a virtual machine
running an isolated web browser. While this defends against certain malware attacks,
it   suffers   from   the   same   problem   as   Tahoma,   i.e.   no   protection   against   classical
phishing attacks is provided.

Secure User Interfaces

The   security   of   user   interfaces   was   examined   by   several   papers.   Epstein   et   al.
introduced the Trusted X system [27] which aimed to replace the X windows system
found on UNIX systems with a security-enhanced version. In the course of creating
the   EROS   operating   system,   a   secure   GUI   called   EROS   Trusted   Window   System
(EWS)   was   also   developed [58].   A   minimum-complexity   secure   user   interface   was
introduced   with   Nitpicker [29],   which   is   an   implementation   based   on   an   L4-
microkernel [5] that adds floating labels to active views while dimming out inactive
views. This allows users to authenticate the application they are currently using.

Open_TC Deliverable D08.2

19/109

background image





Security Services for a Trusted Mobile Application

Final

Trusted Computing



Other   more   general   work   on   preventing   malware   attacks   focuses   on   integrity
preservation   and   verification.   The   authors   of   [16]   construct   a   chain   of   integrity
checks during the bootstrap process in an attempt to provide a

Secure Boot

. Their

AEGIS   system   compares   computed   cryptographic   hash   values   with   stored   digital
signatures previously associated with each bootstrap component utilizing a special
hardware component for reference. An implementation of this approach using a TPM
was shown in [48]
A similar attempt in secure booting was realized with TrustedGRUB [10], which is an
extension of the GNU GRUB bootloader. It allows detection of available TPMs and
measurement of arbitrary files during the boot process.
In [56]   an   integrity   measurement   system   for   Linux   is   presented.   The   system
measures all executable content that is loaded into the Linux system and protects
those measurements using a TPM. The loaded software stack can be proved to a third
party by using the TCG  attestation mechanisms.

2.3.2 Server-based Phishing Countermeasures

Several server-based countermeasures attempt to extend the SSL protocol in order to
effectively thwart man-in-the-middle attacks [21]. For such attacks, the man-in-the-
middle creates two SSL connections, one with the server and one with the client. To
prevent such attacks, the authors of [60] propose a password-based extension, while
[52] utilizes trusted mobile devices for automatic verification of web sites instead of
using the web browser for that task. By linking passwords to SSL sessions, Oppliger
et   al.   [51]   successfully   counter   man-in-the-middle   attacks   since   passwords   now
contain information about the parties involved in the communication.
While   these   approaches   are   effective   to   counter   classical   phishing   attacks,   they
provide no mechanisms for countering malware phishing attacks, since malware on
the user's system can still modify the communication.
A rather different anti-phishing approach was proposed by Birk et al. In their work
the authors fill collection servers of phishers with fingerprinted credentials and lure
them  to  virtual  accounts.  As  a  result,   they   attempt   to  profile   phishers  to  prevent
future   misuse   of   stolen   credentials.   Since   this   approach   does   nothing   to   prevent
current phishing attacks, it can be rather classified as a supporting measure [20]

2.3.3 Proxy Components

In 1997, Gabber et al. proposed the Janus Personalized Web Anonymizer [30] which
was an HTTP proxy that filtered incoming and outgoing traffic to anonymize the user.
It   was   executed   locally   and   set   up   as   the   browser's   HTTP   proxy.   Since   the   SSL
protocol   had  not   been   widely   adopted  yet,   it   provided  no  support   for   the   HTTPS
protocol.
The PwdHash browser extension [55] discussed the idea of an SSL-capable proxy that
is able to forge SSL certificates on the fly to enable inspection and filtering of SSL-
protected traffic. A related implementation approach is examined in [15]

Open_TC Deliverable D08.2

20/109

background image





Security Services for a Trusted Mobile Application

Final

2.4 The General Secure Wallet Architecture

To   prevent   the   user   from   disclosing   her   credentials   to   any   phishing   site,   a   new
trusted component is introduced. This component, hence called Secure Wallet, will
store all of the user's credentials for web sites and will be used as a proxy for the web
browser.



Figure 4:

 The Secure Wallet

The user will utilize her web browser for viewing web pages as before but will enter
her passwords only into the wallet. In order to access the wallet, she needs to request
a secure input path (i.e. a

trusted path

) from the system to ensure that only the wallet

receives her password inputs. Whenever she attempts to log into a web site with the
browser, the wallet will handle those login operations automatically by modifying the
browser's  requests.   Thus,   she   never   needs  to  enter   passwords   into  the   untrusted
browser again. In fact, password fields in the browser are locked to remind her that
passwords are not to be entered into the browser anymore.
By strengthening the user's passwords with random values and binding them to the
domain   they   belong   to,   the   wallet   also   prevents   common   password   attacks   and
dictionary   attacks.   Protection   against   malware   attacks   is   provided   by   taking
advantage   of   trusted   computing   functionality   and   strong   isolation   properties   of   a
suitable system platform.

2.4.1 Wallet Behavior

This   section   describes   the   general   behavior   of   the   wallet   system   from   a   user's
perspective.



General Use

The user opens her web browser and attempts to use a web site that requires a login.

1. The user enters the web page containing the login form for the web site. The

login   form's   password   fields   are   disabled,   i.e.   the   user   can   only   enter   non-
sensitive values directly into the browser (see also Figure 5)

2. After entering all required non-sensitive values into the login form, the user

clicks on the Submit button.

3. The browser receives the next site-specific web page indicating a successful

login and displays it.

Open_TC Deliverable D08.2

21/109

background image





Security Services for a Trusted Mobile Application

Final

4. The user can now use the web site as usual.



Figure 5:

 Password fields are disabled automatically



Web Site Setup

To enable the automatic login described above, the user must set up a web site in the
wallet. Setup for an existing account occurs the first time the user attempts to use it.

1. The user enters a value for each non-sensitive field in the login form (e.g. the

username) and clicks on the Submit button afterwards.

2. The   wallet   displays   a   notification   message   indicating   that   the   user   should

initiate the trusted path to the wallet.

3. The user initiates the trusted path to the wallet and sees a dialog containing all

password fields of the login form (see Figure 6)

4. The user enters her credentials and clicks on the OK button afterwards.
5. The   wallet   displays   a   security   message   requesting   the   user   to   initiate   the

password   changing   process   for   the   web   site   as   soon   as   she   returns   to   the
browser.

6. The user leaves the trusted path to the wallet and returns to her browser.
7. The browser displays the site-specific web page indicating a successful login.
8. The user changes her password for the web site (see below).
9. The user can now use the web site as usual and any further login attempts are

carried out as described above.

Note that registering a new account for a web site works in a similar way. The user

Open_TC Deliverable D08.2

22/109

background image





Security Services for a Trusted Mobile Application

Final

can   set   up  the  page   in   the  wallet   whether  or   not   the  registration   form  allows  to
choose the user password. If the registration form contains no password fields, some
providers pre-generate the password and send it by email, i.e. web site setup occurs
when the user first submits the login form and proceeds as described above. The
setup process for a registration form with password fields is slightly different from
the one shown above.



Figure 6:

 Setup dialog for a web site



Password Change

Changing of the user's password occurs in a similar way to setting up a web site in
the wallet.

1. The user enters the web page containing the form for changing her password

for the web site. The form's password fields have been disabled just like the
password fields in the login form had been before.

2. If any non-sensitive values are required, the user enters them and then clicks

on the Submit button.

3. The wallet displays a notification message, indicating that she should initiate

the trusted path to the wallet.

4. The user initiates the trusted path to the wallet and sees a dialog containing all

password  fields  of   the  password  changing  form.  A  password  changing  form
usually   contains   fields   for   entering   the   old   password   and   the   new   desired
password.

5. For each field, the user chooses between the two options “Fill in old password”

and “Generate new password” without entering passwords herself.

6. The user clicks on the OK button, leaves the trusted path to the wallet and

returns to her browser.



Registration Forms

If   the   registration   form   contains   fields   for   an   initial   password   choice,   the   setup
executes as described above. But when the user first submits the login form after
registration, a setup dialog will be displayed once again. This dialog works just like

Open_TC Deliverable D08.2

23/109

background image





Security Services for a Trusted Mobile Application

Final

the password change dialog, i.e. the user has to choose whether to use the stored
password for the password field in the login form (which is the obvious choice in this
case) or a newly generated password. After that, each subsequent login attempt will
execute as described above.

2.4.2 Design and Architecture

The design and architecture presented in the following was developped to address
the issues detailed in Section 2.2. Many of the general design decisions described in
this section have already been discussed in [31]. The purpose of this actual work was
to find a concrete approach to implement the wallet as a demo application while still
adding new ideas. In the process, some original ideas were refined or adapted to
accommodate the actual implementation.

Protection against Classical Phishing Attacks

This   section   provides   a   short   overview   of   the   general   design   decisions   and   their
impact on usability.

Deny credential input into the browser

An ordinary user is susceptible to all kinds of classical phishing attacks. For example,
a faked web site could trick her to enter her credentials for her home bank. Letting
the   user   enter   credentials   directly   into   the   browser   makes   it   hard   to   counter   all
various attacks. Thus, the first major design choice for the wallet was to deny the
user the ability to enter credentials directly into web forms. Instead, the user should
enter those credentials only into the wallet.
The most efficient way of preventing the user to enter credentials into the browser is
to simply lock all web forms by modifying the HTML source code and setting the
disabled  flag on all contained  <input type=”password”>  tags. The default behavior
for   logging   into   a   web   site   is   now   equivalent   to   entering   non-sensitive   data   and
clicking on the Submit button, i.e. the user is trained to just express her intent of
logging in without entering her password into the browser. All further steps required
for   logging   in   are   then   executed   by   the   wallet   internally.   Usually   that   means
replacing the empty web form variables for the password with the previously stored
user credentials and forwarding the modified login request to the web server. Note
that locking the password fields alone does not provide sufficient security since that
mechanism can be countered quite easily. The next section discusses this attack more
detailed.
To allow the wallet access to received web pages, it needs to be able to read and
modify the communication between the browser and the remote web server. Thus,
the wallet is realized as a web proxy and set up as the browser's HTTP and HTTPS
proxy. To free the user of the burden to verify the browser's security indicators of
web pages, the wallet will also verify those indicators automatically, e.g. by verifying
the remote server's SSL certificate and rejecting invalid connections. Furthermore,
the wallet will issue a warning when the user attempts to set up credentials for a site
unprotected by SSL since those credentials could be stolen by an eavesdropper.
Whenever the user clicks on the Submit button of a locked login form for a web site
that has not been set up in the wallet yet, the user has to enter her credentials into
the wallet. Data fields required for a successful login are extracted from the submit

Open_TC Deliverable D08.2

24/109

background image





Security Services for a Trusted Mobile Application

Final

request and compared to previously encountered login forms, i.e. the user enters a
value   for   all   fields  of  the   login   form.  This  is  the  only   time   when   the  user   should
actually type in her password. After the site has been set up, the password should not
have to be entered again.

Change the user's passwords

Locking   the   login   forms   is   just   a   visual   support   mechanism   and   not   foolproof   to
prevent   the   user   from   entering   credentials.   An   adversary   could   embed  JavaScript
code into his fake site that automatically unlocks all locked forms. Or the user could
be   tricked   by   cleverly   designed   malware   to   enter   her   credentials   into   other
applications  than the  browser  or the  wallet  (also  confer to the  next section  for a
discussion of malware protection). The paradigm that users should not know their
own passwords prevents such attacks to succeed. Furthermore, users tend to re-use
passwords   for   several   (or   even   all)   web   sites   because   it   is   tedious   or   even
unmanageable   to  memorize   a   new   password  for   each   new   site   the   user   registers
with.   This  way   an   adversary   could  gain   access  to   a  whole   range   of   web   sites  by
phishing the password of just one site (i.e. a

common password attack

). In practice,

those passwords also tend to be quite weak, mostly consisting of common words or
phrases, which makes them susceptible to dictionary attacks.
Thus,   the   second   major   design   choice   for   the   wallet   was   to   replace   the   user's
passwords with new passwords that are, on the one hand, unique to each web site
and, on the other hand, stronger than the usual user passwords. While changing the
passwords   automatically   (as   proposed   in [31])   would   be   desirable   from   a   security
perspective (this way the user could not omit the password changing process), this
approach fails due to the diversity of web site structures and technologies.
In   practice,   the   user   has   to   initiate   the   password   changing   process   herself.
Consequently, the user could decide not to change her password but let the wallet
only handle her known password. A common reason could be the inability to perform
a   login   from   other   computers   without   the   wallet   (at   least   in   the   current
implementation).   Secure   migration   of   wallet   data   could   improve   this   situation,
however, even in this case, a secure wallet is needed on all platforms from which the
user wants to log in. While user-initiated password change is conceptually less secure
than letting the wallet change the passwords, the wallet still provides a great deal of
protection against a wide range of attacks (also see the security analysis below). It
should be possible to enforce the decision to let the wallet change the passwords by a
suitable user training, which is a point for future work, though.
The password changing process does not require the user to type any passwords into
wallet. The previously stored password is already known to the wallet and the new
password is generated by the wallet and should not be known to the user. Thus, the
password changing dialog just provides two options for filling in the old and the new
password into the corresponding fields of the web form.



Protection against Malware Phishing Attacks

Providing isolation

A conventional system model is not sufficient to protect against malware phishing
attacks. The wallet will use a modified architecture based on a security kernel in
order to protect itself against malware attacks.

Open_TC Deliverable D08.2

25/109

background image





Security Services for a Trusted Mobile Application

Final



Figure 7:

 The Conventional System Model

Figure 7 shows the (simplified) conventional system model found in most desktop PCs
with  regard to internet  access through a web browser. The user utilizes her web
browser to connect to remote web servers and download web pages which can be
viewed or modified in the browser. Everything done inside the browser could possibly
affect   the   user's   system,   e.g.   the   user   could   download   and   execute   malicious
applications   or   active   content.   Such   applications   could   launch   malware   phishing
attacks against the user and log all her inputs to the browser or modify the browser's
appearance to deceive her. Whenever the user enters confidential information, such
malware could intercept it.



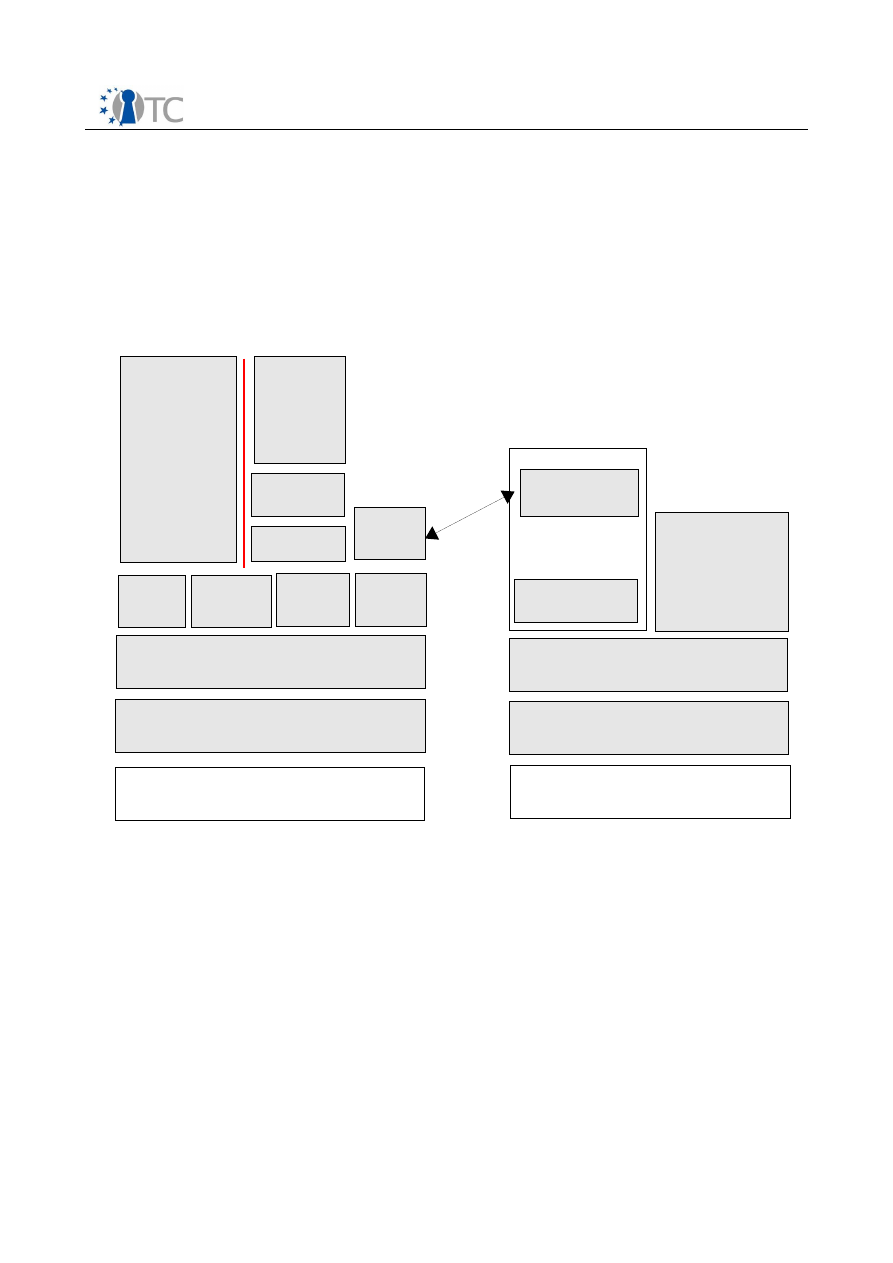

Figure 8:

 The Secure Wallet System Model

In order to counter those threats and achieve the security objectives described above,
a modified system model will be employed as shown in  Figure 8. The user PC in

Open_TC Deliverable D08.2

26/109

background image





Security Services for a Trusted Mobile Application

Final

Figure 7 corresponds to the red box in Figure 8 which is marked as

Untrusted

. This

box, hence called

compartment

, represents a separated part of the user's system,

isolated   from   other   such   compartments.   Inside     that   untrusted   compartment,   all
security-uncritical applications are executed, including the web browser. Applications
that   have   an   impact   on   security   will   be   executed   in   other   isolated,

trusted

compartments. No malicious software executed in the untrusted compartment should
have any access to security critical applications running in other compartments. To
achieve this, a security kernel is used to coordinate access between compartments
and provide basic security services.
To prevent malware from gaining access to the wallet's data, i.e. to prevent malware
phishing attacks, it will run in such a trusted compartment, thereby being completely
isolated   from   the   untrusted   user   compartment.   In   contrast   to   existing   solutions
implementing   a   password   manager   as   a   browser   plugin,   this   approach   restricts
communication   between   the   browser   and   the   wallet   to   a   single   communication
channel controlled by the security kernel. The wallet is set up as the browser's proxy
server and effectively becomes the new communication endpoint, i.e. the browser is
reset to its role as a graphical user interface, while the wallet handles all credentials
and login operations. Thus, credentials never pass into or out of the browser and no
malicious code running in the untrusted compartment can intercept them. To prevent
malicious code from

using

 the user's credentials, the secure wallet might be extended

with transaction confirmation [40].

Trusted Path

In order to access the wallet directly for entering or retrieving credentials, the user
has   to   initiate   a   trusted   path   which   is   also   supplied   by   the   security   kernel.   The
trusted path ensures that all input and output is handled by the wallet compartment
and cannot be intercepted by malicious software in other compartments. Note that
this is not  possible with a legacy system (e.g. Windows or Linux). Malware  could
forge   input   dialogs   to   imitate   the   wallet's   user   interface   and   trick   the   user   into
entering   her   credentials.   Windows   or   Linux   provide   no   inherent   way   to   set   up   a
trusted path to prevent such attacks.
We use a secure graphical user interface, called mGUI (as developped within OpenTC
workpackage 5), to provide a trusted path between the user and the secure wallet. A
secure attention key – in the current implementation F12 – can be used to switch
between  compartments.  No  compartment  or  application  other than the  mGUI can
intercept this key. Moreover, the topmost part of the screen is used by the mGUI to
display the compartment the user is interacting with (in our case, either the user
Linux   or   the   Secure   Wallet   compartment).   No   application   or   compartment   can
overwrite this section of the screen.

Trusted Computing

Virtualisation   and  a  security   kernel   alone   do  not  protect   against   malware   attacks
sufficiently.   An   attacker   could   still   mount   offline   attacks   against   the   wallet
compartment   or   the   security   kernel   itself   (e.g.   by   booting   a   different   operating
system from CD-ROM) and try to install malicious code.
To prevent this kind of attacks, the security kernel is executed on top of hardware
supporting   Trusted   Computing   functionality   based   on   a   Trusted   Platform   Module.
Such hardware is already shipped by several manufacturers and can be assumed to

Open_TC Deliverable D08.2

27/109

background image





Security Services for a Trusted Mobile Application

Final

be available. User credentials are encrypted with a sealed key that never leaves the
TPM   and   which   is   bound   to   the   platform   configuration   at   the   time   of   sealing.   If
malicious software alters binaries in the chain of trust, the TPM will refuse to unseal
the credentials that were stored using the original trustworthy system configuration.
This   way,   the   wallet   can   only   access   the   credentials   if   the   integrity   of   its
compartment is preserved and the environment is secure (cf. Objective 2).

Realization

An   important   requirement   for   realizing   the   wallet   is   the   preservation   of   existing
service   providers   and   infrastructures,   i.e.   they   should   not   require   changes   to
accommodate   the   wallet.   Without   this   requirement,   the   wallet's   chance   of   being
deployed and commercially used would be very low. Where changes to the user's
system have to be made, they should not require high costs for the provider and the
client.
The wallet itself is written in Java and is as such platform-independent. In order to
filter HTML web pages and HTTP requests, the Paros web proxy [8] is used, which is
also a Java application. Both components in conjunction provide protection against
classical phishing attacks and can be used on an arbitrary platform supporting Java.
To protect against malware phishing attacks, the system architecture in  Figure 8 is
realized by using the system developped within OpenTC workpackages 4 and 5. The
framework   uses   virtualisation   techniques   to   provide   several   instances   of   legacy
operating   systems   running   concurrently   but   each   with   its   own   set   of   virtual
resources.   Each   instance   will   represent   a   single   compartment,   although   a
compartment   generally   does   not   need   to   include   a   complete   operating   system   to
work.   The   ability   to   use   existing   operating   systems   supports   the   preservation   of
existing infrastructures. Thus, the untrusted user compartment will contain a legacy
operating system (i.e. L4Linux [4] in the case of this work).

2.5 Security Analysis

This chapter discusses all attacks that might be mounted against the Secure Wallet
or   any   of   its   associated   components   or   procedures.   It   will   show   that   all   threats
introduced in Section 2.1 can be  countered effectively  with the wallet. As already
pointed out before, there are two categories of phishing attacks: classical phishing
attacks  and malware phishing  attacks. Both  categories  will  be  handled  separately
since they require different protection mechanisms.
Figure 9  shows an abstract overview of the system model employed by the wallet.
The four involved entities are the user U, her system S, a remote web server P that U
wants to communicate with and a phishing server A set up by an adversary to gain
access   to   U's   credentials.   Several   communication   channels   exist   between   those
entities.   The   channel

  is   the   user's   input   channel   into   S   while   she   receives

output over the channel

 .

 is used by S to send HTTP requests to P and

returned HTML pages are received over

 . The adversary uses

 to send

fake messages or emails to S and receives HTTP requests from S on

 .

Open_TC Deliverable D08.2

28/109

background image





Security Services for a Trusted Mobile Application

Final



Figure 9:

 Simplified system model for the Secure Wallet

2.5.1 Attacks

The adversary can either directly target one of the entities or mount an attack on one
of the communication channels. He can especially eavesdrop on and modify all of the
network   channels  but   cannot   directly   attack   the   user   channels

  and

Attacks on an entity always use one or more of the illustrated channels to send and
receive messages. Furthermore, the phishing server A can be an arbitrary machine
on the internet except S and P and is just noted as a single machine for convenience.
Above, a list of potential threats for the user's credentials was given. Each of those
threats corresponds to a specific class of attacks in the system model shown above.
Threat 1 (

Identity Theft through Faked Web Sites

) is an attack directly on U. Threat 2

(

Malware Identity Theft

) can target the entities U (e.g., by showing a message that

tricks   the   user   into   revealing   her   credentials)   and   S,   the   network   channels   and
indirectly   the   user   channels   as   well.   Thus,   it   is   the   most   extensive   threat   in   the
system model. Threats 3 (

Credential Theft

) and 4 (

Configuration Modification

) only

target the entity S, while Threat 5 (

Fake Dialog Attack

) targets both entities U and S.

To show that those threats are ineffective and the security objectives have been met,
it is sufficient to show that attacks on each channel or entity are countered by the
wallet.

Attacks on U

Attacks   on   U   in   the   scope   of   Threat 1   can   be   categorized   as   classical   phishing
attacks,   which   are   a   subclass   of   social   engineering   attacks   where   A   sends   fake
messages to U in order to trick her to disclose credentials. For example, A creates a
fake email that imitates a mail originating from P but contains a link to A and uses

  to deliver it to S. The user receives and reads that email using the channel
 and (if deceived by it) acts upon the email using the channel

 to access

A,   i.e.   S   uses

  for   an   HTTP   request   instead   of

  .   Other   attacks   on   U

involving the entity S as well are discussed in the next paragraph. An analysis of
classical phishing attacks is provided below.

Open_TC Deliverable D08.2

29/109

background image





Security Services for a Trusted Mobile Application

Final

Attacks on S

Attacks on S attempt to gather or steal credentials on the user's system instead of
trying to trick U to disclose credentials to a phishing site directly. Such an attack
might either occur offline, e.g. by attempting to modify the system or to read the
credential store directly. Or it might occur online, i.e. by actively installing malicious
software on S while the system is running. Installation of such malware can occur by
exploiting a known security weakness of an application running on S or the adversary
might employ additional social engineering attacks to trick U to install the malware
willingly.
Depending on the kind of malicious software, it might attack the channel

  to

eavesdrop   on   credentials   entered   by   the   user   (keylogger),   or   it   might   attack   the
entity U and the channel

 by displaying a fake dialog where the user enters her

credentials, thereby redirecting

 as well (fake dialog attack). Alternatively, the

malware   can   target   a   specific   system   component   or   a   communication   channel
between two of those components. Those online attacks, and also offline attacks, will
be discussed in detail below.

Attacks on P

The adversary can also mount an attack on the remote web server P by breaking into
the system in order to steal credentials directly from P's database. Since this work
focuses on client-side defence against phishing attacks, this kind of attacks is out of
scope and will not be discussed further.
An  even  stronger  attack  is  setting  up an own  web server  (independent  of  P) and
letting the user register to it. This way the adversary either receives the original user
password   (possibly   re-used   at   P   as   well)   or   at   least   a   wallet-generated   password
derived from this original password. With that information, A can mount a dictionary
attack against the user's password and attempt to guess the password used for P.
Attacks against the user's passwords are discussed below.



Attacks on the channels

The channels

 and

 cannot be attacked directly by the adversary. He can

only   attack   them   indirectly   through   attacks   on   one   of   the   endpoints   of   those
channels, i.e. by attacking U or S. Those attacks have already been described above.
In   contrast,   A   can   attack   the   channels

  and

  directly   since   A   can   by

definition be any machine on the internet apart from S and P. The adversary might
either   try   to   eavesdrop   on   those   channels   in   order   to   passively   read   transmitted
credentials, or he could modify the communication. In addition, he could redirect the
channels so that

 is replaced by

 and

 by

 without S noticing

the redirection.
Eavesdropping on and modification of an SSL-protected channel can be assumed to
be   unfeasible   as   long   as   the   SSL   protocol   and   its   implementation   are   secure.
Unprotected channels could be tapped at any point during the transport, though, and
thus they are inherently insecure. As a result, if the user transmits credentials over a
plain HTTP connection, the adversary can eavesdrop on those credentials, regardless
of whether she uses the wallet or not. But even if the adversary gains the credentials

Open_TC Deliverable D08.2

30/109

background image





Security Services for a Trusted Mobile Application

Final

for P in this way, the wallet helps to confine the loss of credentials because each web
site has its own unique password generated by the wallet previously. A cannot gain
access to other servers than P with the stolen credential even if the user initially used
the same passwords for different web sites.
A   redirection   of   the   channels   can   be   seen   as   a   form   of   classical   phishing   attack
because even if the user does not notice that the channel has been redirected (e.g.
she enters the URL of P into her browser), she still expects to see the familiar web
pages of the original web server P, i.e. the adversary needs to fake the web site just
like in a normal classical attack. Therefore, redirection attacks are discussed as part
of the classical phishing attacks below.

2.5.2 Assumptions

Besides   the   assumptions   introduced   above,   the   security   analysis   suggests   two
additional   assumptions.   On   the   one   hand,   we   assume   that   the   user   is   trained   to
recognize the system's trusted path indicator (e.g. a red or green bar at the top of the
screen)   and   acts   upon   it   accordingly,   i.e.   she   does   not   enter   any   confidential
information if the trusted path indicator is red. On the other hand, we assume that
the user always changes the password for a web site after she has set it up in the
wallet, i.e. she does not know the password thereafter.

2.5.3 Protection against Classical Phishing Attacks

Classical phishing attacks are based on the user U attempting to access a web site on
web server P but instead arriving at a rogue web server A created by an adversary. U
may arrive in one of two ways at A. Either she enters the address of the fake site
directly  into her browser  or she  enters  the address  of P  and is redirected  to  the
phishing server A by a redirection attack. In both cases she is presented a faked web
site and might be persuaded to enter her credentials for the original site that has
been   faked.   The   difference   between   those   two   attacks   is   in   the   way   the   wallet
handles   them.   In   order   to   meet   Requirement 3   (

Information   Flow

)   with   regard  to

classical   phishing   attacks,   it   is   sufficient   to   show   that   the   adversary   cannot   gain
access to the user's credentials if she uses the wallet.

Fake Site Attack

If   the   adversary   uses   a   faked   SSL   certificate,   the   attack   is   detected   because   the
wallet  verifies all received SSL  certificates and  rejects sites  with  invalid  or  faked
certificates.   If   he   uses   a   legitimate   SSL   certificate

  issued   to   the   fake   host

address or uses no SSL at all, the web site is handed over to the browser for display
but the password fields of the login form are disabled. According to Assumption 3
(

Ordinary User

), we assume that U does not detect the phishing attempt by verifying

the browser's security indicators. Thus, the user clicks on the submit button to log in.
Now the attack is also detected because the wallet has stored credentials

  for

the host address of P and not

  for the host address of A. Therefore, the wallet

now runs the setup for A instead of using the credentials of P to log in.
Even if U decides to run the setup for A using the credentials

, the adversary will

still not gain the credentials

 because the wallet updates the entered credentials

Open_TC Deliverable D08.2

31/109

background image





Security Services for a Trusted Mobile Application

Final

to

.   The   hash   function   used   to   generate

  is   a   one-way

function   and   thus,   a   computationally   bounded   adversary   is   not   able   to   deduce



Unlocked Password Forms

The   wallet   locks   the   password   fields   of   each   web   form   by   inserting   the  disabled
attribute into the corresponding  <input>  tags. Thus, the user can no longer enter
values   and  cannot   submit   the   form  with   valid  content.   Yet,   it   is   also   easy   for   an
adversary to counter this. Each element of an HTML form is exposed through the
Document Object Model and has a disabled property. This property can be accessed
with   JavaScript   and  edited   while   the   page   is   displayed.   Thus,   an   attacker   who  is
aware of the wallet and wants to counter the wallet's locking mechanism after it has
locked the password fields for his phishing site, could include a script that unlocks all
login form elements either in the  OnLoad  event or after some arbitrary timespan.
Since there is an almost endless number of possibilities for the attacker to execute
this   JavaScript   code,   it   cannot   be   countered   effectively.   Basically   every
transformation the wallet applies to the login form could be reversed with JavaScript
code. Even if the wallet removed the form elements completely, they could be added
dynamically   at   runtime   again,   provided   that   the   attacker   knows   the   wallet's
transformation algorithm. Besides using JavaScript, the adversary could also employ
malware installed in the browser compartment to unlock locked password forms, i.e.
this attack is not confined to a JavaScript attack. An adversary targeting users with
security knowledge far below the average could even decide to include simple text
fields instead of password fields into his login forms so that the wallet would not lock
them in the first place.
As a result of all those considerations, the locking of password forms is not a security
enhancement since there is no way to guarantee that a form will stay locked. The
mechanism merely serves as a reminder for the user to use the Secure Wallet and not
the web form itself to login. If the adversary manages to unlock the password form,
the user might be tempted to enter her credentials into it, especially if she is not yet
accustomed to using the wallet. Because she does not know

 , she enters



into the password field and sends it to A. Thus, the adversary does not receive the
current credentials for P but outdated ones. If U uses

 for other web sites not

protected by the wallet as well, A might gain access to those sites, but the main
objective   being   the   preservation   of   the   confidentiality   of   the   user's   credentials   is
fulfilled with respect to P and other sites protected by the wallet.

Redirection Attack

A redirection attack in the wallet model (see Figure 9) is an attack that attempts to
replace the channels

 and

 with

 and

, respectively. Since the

wallet uses the host name of a web site to find the corresponding stored credentials,
only redirection attacks that preserve the original host name of P are relevant to this
discussion. A common example for this kind of attack is the DNS spoofing attack [19].
Other forms of redirection attacks targeting lower layers of the TCP stack, e.g. ARP
spoofing [68], have the same result as far as the wallet is concerned, i.e. the traffic is
routed to the rogue server A while the wallet receives P as the host name. Note that

Open_TC Deliverable D08.2

32/109

background image





Security Services for a Trusted Mobile Application

Final

although this attack is discussed as part of the classical phishing attacks, it can also
appear as a form of malware phishing attack if the redirection occurs inside of the
user's machine. The implications are the same, though.

If the adversary uses a legitimate SSL certificate

 issued to the fake host name

A, the attack will be detected immediately because the host name in the certificate
does not  match the original host name of P. All  other cases where the adversary
presents a certificate with the original hostname are countered by comparing the
digital fingerprints of the stored certificate and the certificate received during the
current SSL handshake.
There   are   several   possible   cases   where   the   fingerprints   do   not   match.   If   the
adversary manages to obtain a valid certificate for the host address of P in spite of
Assumption 4   (

Trustworthy   PKI

),   the   attack   is   detected   as   long   as   the   received

certificate   contains   another   public   key   than   the   stored   certificate.   Should   the
adversary be able to steal the private key of the stored certificate, the attack will not
be detected. It can only be detected if the key has been revoked because the wallet
should check certificate revocation lists (CRLs) every time the fingerprints do not
match. The case where the adversary can steal an active, unrevoked key is excluded
by Assumption 5 (

Private key protection

), though.

As already pointed out above, the client is unable to detect a redirection attack if the
connection is unprotected. Thus, the wallet will disclose the user's credentials if the
adversary redirects a plain HTTP connection. Protecting against this kind of attacks
is out of scope of this work. A service provider can provide protection by using the
SSL protocol.

2.5.4 Protection against Online Malware Phishing Attacks

A   malware   phishing   attack   attempts   to   steal   credentials   on   the   user's   system,
preferably without the user noticing the theft. Installation of malware can occur in
two   different   ways.   Either   it   may   be   installed

online

,   i.e.   while   the   machine   is

running, or

offline

, i.e. an adversary boots another operating system (e.g. from CD-

ROM) and installs the malware. This section deals with the online attacks. Offline
attacks are discussed in Section 2.7.5.

Confinement to the Untrusted Compartment

Most of the user's work takes place in the untrusted compartment. This untrusted
compartment represents the legacy system, i.e. a system without the security kernel
and the wallet. Thus, malware can be installed in this compartment in the same way
as on a legacy system. To meet Requirement 1 (

System Integrity

), it must be shown

that online malware attacks can only affect the untrusted compartment and cannot
be installed outside of this compartment.
The   security   kernel   and   all   other   compartments   are   not   designed   to   offer   any
mechanisms to install software at runtime. They are installed once and need not to be
changed   afterwards.   Ideally,   the   security   kernel   has   been   formally   verified   and
contains no security vulnerabilities. Since the kernel is based on a microkernel, it has
a very small size, which makes it easier to formally verify any security properties.
Moreover, it was developed with special care and focused on the security tasks it
provides.  Thus,   it   will   statistically   have   less  security   vulnerabilities  and  a  smaller
attack surface than legacy systems and hence, it is reasonable to assume that no

Open_TC Deliverable D08.2

33/109

background image





Security Services for a Trusted Mobile Application

Final

malware can successfully target the kernel itself.
Assuming that the security kernel provides isolation for the different compartments
(i.e.   it   meets   Requirement 2   (

Isolation

)),   malware   installed   in   one   compartment

cannot   affect   another   compartment   in   any   way.   If   the   untrusted   compartment
contains   any   malware,   it   has   no   effect   on   the   wallet   compartment   or   the   virtual
network   compartment.   Although   the   current   implementations   for   those   trusted
compartments use a full Linux system including the kernel and numerous libraries
and   are   as   such   vulnerable   to   various   attacks,   they   are   just   prototype
implementations.   A   release   implementation   could   realize   those   compartments   as
native   L4-services.   This   would   reduce   their   size   and   lower   their   attack   surface
significantly and we can assume that they cannot be direct malware targets just as
the security kernel itself.As a consequence, we can assume that the proposed system
architecture   only   allows   installation   of   malicious   software   in   the   untrusted
compartment and thus meets Requirement 1 (

System Integrity

). The concrete attacks

against the untrusted compartment are discussed in the next section.



Attacks against the Untrusted Compartment

Numerous malware attacks against the untrusted compartment are imaginable, since
this   compartment   represents   a   legacy   system.   Therefore,   all   attacks   targeting   a
legacy system could be mounted against the untrusted compartment as well. In fact,
we can assume that the whole compartment can be modified by an adversary in any
way.  Figure   10  shows   that   the   untrusted   compartment   has   two   primary
communication   channels,

  being   user   input   and  output   and



being the connection to the security kernel. To prove that the adversary can still not
gain access to the user's credentials, it is sufficient to show that the credentials are
(i) never sent over

  and (ii) never entered directly into the untrusted

compartment over

Open_TC Deliverable D08.2

34/109

background image





Security Services for a Trusted Mobile Application

Final



Figure 10:

 The Internal Communication Channels

The wallet discloses the user's credentials only as part of a HTTP POST request, i.e.
the variables contained in the request body are replaced with stored values. This
POST request, which is completely processed in the trusted wallet compartment, is
never sent back to the untrusted compartment but   directly to the intended remote
server using

 or to another trusted compartment dedicated to network access

using

. This also holds true if the POST request never reaches the wallet,

e.g. if the adversary prevents the requests from being sent to it. In this case the
request is never modified by the wallet and can receive no credentials. As a result,
credentials are never sent to the untrusted compartment or even forwarded through
it. No modification of the untrusted compartment can affect the wallet or the network
connection   in   such   a   way   that   the   adversary   receives   the   user's   credentials   over

Nevertheless, the adversary can attempt to receive credentials from the user directly.
Since we assume that he can modify the untrusted compartment in any way, he can
also   fake   any   user   interfaces   and   persuade   the   user   to   enter   credentials   using

. But even if the user is tricked by those faked user interfaces, the adversary

still receives no current credentials because the user does not know them anymore.
When the user set up the web site in the wallet, she also lets the wallet change her
password afterwards, i.e. the only credentials she actually knows of are the outdated
ones she used before. Thus, current credentials can never be sent to the untrusted
compartment using

.

Open_TC Deliverable D08.2

35/109

background image





Security Services for a Trusted Mobile Application

Final

In the following paragraphs some attacks that have been effective on legacy systems
in the past are discussed. These are (i) the installation of a key logger and (ii) the
display of fake dialogs to trick the user to enter her credentials. A third category of
potential attacks covers attacks on the browser to (iii) unlock forms previously locked
by the wallet or to (iv) remove the wallet's proxy assignment completely.

Trusted Path

Both the installation of a key logger and the display of a fake dialog are uncritical if
Requirement 4 (

Trusted Path

) is met and Assumption 6 (

Single Credential Storage

Mechanism

) holds true. Thus, for both cases it is sufficient to show that the trusted

path requirement is satisfied.
Assuming that the user enters credentials only into the wallet she has to somehow
access it. Since it resides in a separate compartment, in the current implementation
the user has to press the F12 key to switch compartments. The F12 key is intercepted
by   the   SecureGUI   and   cannot   be   received   by   any   compartment.   Therefore,   no
malware   in   the   untrusted   compartment   can   prevent   the   user   from   switching
compartments. After the user has switched to the trusted wallet compartment, the
untrusted   compartment   is   made   inactive   and   the   wallet   compartment   is   now   the
active one. The SecureGUI asserts that all user input is received only by the active
compartment,   i.e.   the   malware   in   the   untrusted   compartment   never   receives   any
keyboard events as long as the untrusted compartment  in inactive. As a result,  a
keylogger never gains access to any credentials entered into the wallet.
The display of faked dialogs, which is an attack commonly employed by trojan horse
programs, can be constrained to dialogs resembling the wallet interface because of
Assumption 6   (

Single   Credential   Storage   Mechanism

).   When   malware   displays   a

dialog imitating the wallet in the untrusted compartment, the trusted path indicator
still   shows  a   red  bar  at  the   top  of   the  screen   and  clearly   indicates  that   entering
credentials is not secure. A trained user will  notice this and be  suspicious of the
unexpected dialog because she knows that she normally has to press the F12 key to
invoke the wallet and that the wallet does not share its screen with her untrusted
applications.   Moreover,   the   Linux   running   in   the   untrusted   compartment   has   no
access to the trusted path indicator and therefore, no malware can paint over the
indicator   or   even   read   its   state   because   it   resides   beyond   the   accessible   screen
region.

Configuration Modification

By using the Secure Wallet, two new potential threats specific to the implementation
arise.   Malware   can   try   to   re-enable   locked   password   fields   after   they   have   been
locked by the wallet and it can attempt to disable the wallet at all. The first attack
was already  discussed  in  the  course   of  the  fake  site   attack. Independently  of  the
method with which the adversary unlocks the password fields, i.e. by using JavaScript
or by installing malware on the user's system, he cannot gain current credentials for
the site he is phishing passwords for.
The   second   attack   attempts   to   prevent   the   wallet   from   protecting   the   user's
credentials by removing the browser's proxy assignment. As a result, the wallet no
longer receives the browser's HTTP requests and can neither lock password fields
nor   perform   automatic   login   operations.   The   user   will   eventually   notice   that   the
wallet is inactive. Assuming that she does not know how to repair this issue, she will

Open_TC Deliverable D08.2

36/109

background image





Security Services for a Trusted Mobile Application

Final

not   be   able   to   log   into  sites  for   which   the   password   change   has  been   completed
because she does not know the passwords. The adversary does not learn her current
credentials but at most her outdated ones if she tries to log in with those credentials.
An advanced implementation might even redirect traffic to the wallet compartment
independent of the actual source. This would render a manual proxy assignment in
the browser unnecessary and the adversary could not disable the wallet in this way.
However, for this to work, the wallet compartment must be able to determine for all
network traffic if it should be allowed or denied, in order to prevent the adversary
from   circumventing   the   wallet.   Future   research   is   needed   to   decide   if   such   an
approach   can   be   used   to   support   arbitrary   web-based   logins   without   giving   the
adversary the possibility to disable the wallet, e.g., by tunneling web traffic through
other protocols.

2.5.5 Protection against Offline Attacks

Offline   attacks   denote   attacks   where   the   user's   system   S   is   not   running   and   the
adversary has physical access to it. For offline attacks, we can assume that booting
the   machine   himself   and   trying   to   impersonate   the   user   is   ineffective   for   the
adversary. However, he can still try to attack the hardware or modify the system in
order to break its security.

General Attacks

If the adversary has physical access to the system, he can directly attack a hardware
component.   He   might   either   replace   or   modify   a   component   or   just   take   the
credential store (i.e., the hard drive) with him and try to read it out on a less secure
system.
Replacement   or   modification   of   a   security-relevant   component   will   be   detected
during the next boot process since the TPM will yield different hash values in its PCR
registers   and   thus   not   be   able   to   decrypt   the   credentials   sealed   to   the   previous
hardware configuration.
Due to the same reason, reading the credential store directly fails, e.g. by removing
the hard disk and mounting it in another system. The credentials are sealed to the
hardware and software configuration present at the time of storing. Thus, without
restoring the initial configuration which in turn also restores the system's security
properties, the credentials cannot be unsealed.
The key used to encrypt the credentials is stored in the TPM permanently. Thus, a
conceivable attack is to attack the TPM itself in order to read out the encryption key.
This attack is out  of scope of this work, though. The TPM has to provide built-in
protection mechanisms against this kind of attacks.

Offline Malware Attacks



Besides   attacking   the   hardware,   the   adversary   might   also   attempt   to   modify   the
software configuration of the system. Due to the system's protection mechanisms this
is only possible in very limited ways while the system is booted. Thus, it might be
more   feasible  to  modify   critical  components  (e.g.  the  security  kernel   or  a  trusted
compartment)   while   it   is   offline.   A   simple   way   to   do   this   would   be   booting   the
machine   from   an   alternative   medium,   e.g.   from   CD-ROM,   and   accessing   and
modifying the hard drive afterwards.

Open_TC Deliverable D08.2

37/109

background image





Security Services for a Trusted Mobile Application

Final

Nevertheless   this   attack   is  also   detected  or   at   least   ineffective   depending  on   the
modifications applied. If the adversary modifies components inside of the untrusted
compartment he gains nothing as described above. If he modifies components that
are part of the trusted computing base, e.g. the security kernel, this attack will be
detected as described in the previous section. The TPM will compute different hash
values while booting and not be able to unseal the user's credentials since they were
encrypted with a different system configuration. Therefore, offline attacks are also
insufficient to gain access to the user's credentials.

2.5.6 Attacks on the Passwords

Common Password Attack

Instead of attacking the user or her system directly, the adversary may also attempt
to   guess   her   password.   Most   users   choose   weak   passwords   or   re-use   a   single
password for several or even all web sites. The adversary can capitalize on that by
phishing the password for a low-security site (e.g. a site without SSL protection) and
testing this password for the user's other accounts on high-security sites. This is also
known as a

Common Password Attack

Without the wallet, this attack has a high chance to succeed. By using the wallet,
however, the user can no longer re-use a single password for multiple sites because
the wallet  changes the  user's password and incorporates the domain name  and a
random value into it. Thus, even if the user still uses the same password for several
sites,   the   wallet   will   generate   a   distinct   password   for   each   site   and   provide   an
effective countermeasure against the common password attack.

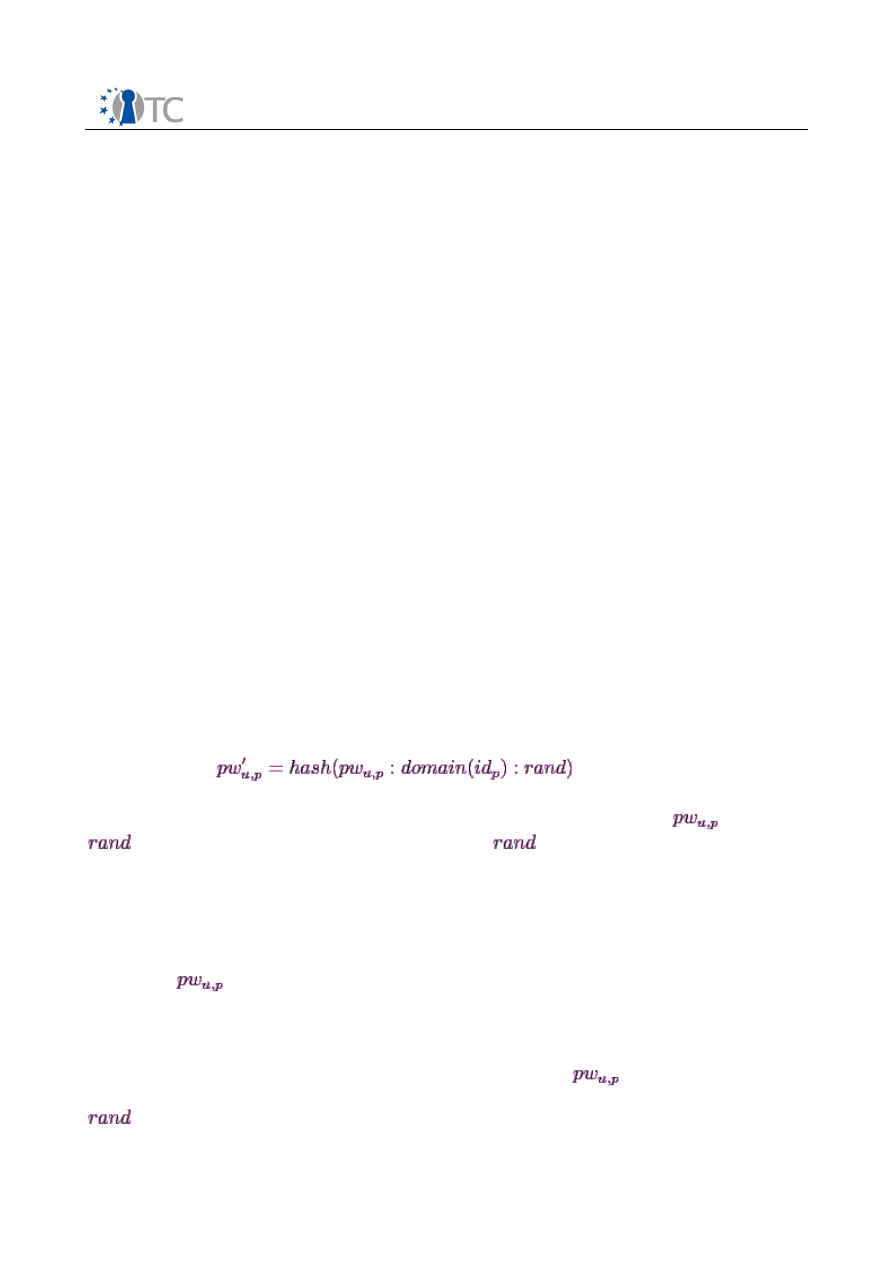

Dictionary attack without information

Still,   the   adversary   can   attempt   to   mount   a   dictionary   attack   against   a   phished
password   because   each   wallet-generated   password   is   a   hash   of   the   original   user
password:

(2.1)

In order to perform the dictionary attack, the adversary has to guess

 as well as

 while the domain name is known to him.

 is an

x

 bit salt value and it will

likely make guessing the password infeasible if

x

 is large enough. The next paragraph

discusses the recommended value for

x

Dictionary attack with an old password

There   are   some   scenarios   in   which   the   adversary   may   get   hold   of   an   old   user
password

.   For   example,   the   adversary   might   have   managed   to   disable   the

wallet by removing the proxy assignment in the browser as discussed above. When
the (unskilled) user now attempts to log into the adversary's phishing site, she might
be tempted to enter her old password.
If the adversary is in possession of an old user password

, the dictionary attack

becomes   more   feasible   because   the   only   unknown   value   in   equation (2.1)   is   now

. Since it is a random value, the adversary has to mount a brute force attack on

Open_TC Deliverable D08.2

38/109

background image





Security Services for a Trusted Mobile Application

Final

it. To prevent him from finding the correct salt value, it must be large enough to
make a brute force search infeasible.
A   modern   dual-core   CPU   is   able   to   compute   several   million   SHA-256   hashes   per
second [44]. Assuming an average of

  hashes per second, which corresponds to

about

 hashes per day and CPU, a brute force search for a salt value with 64 bits

would take about

  years on a single CPU. Even with clustered processors this

should be sufficient to prevent dictionary attacks using a known original password.
The time required for a dictionary attack can also be further increased by slowing the
hash function, a technique described in [35]

2.5.7 Discussion

Assumptions

Above, two additional assumptions were made for the security analysis. In practice, it
is not clear whether those assumptions actually hold true or whether the user acts
against them. Still it can be argued that the assumptions are weak compared to those
assumptions usually applied when not using the wallet.
The first assumption, being that the user recognizes the simple trusted path indicator
and acts upon it accordingly, is quite realistic and much weaker than the assumption
that   the   user   is   able   to   decide   whether   input   into   an   application   is   secure,   e.g.
whether   a   dialog   displayed   to   her   belongs   to   malicious   software.   Of   course,   this
assumption has to be confirmed by a representative user study.
The second assumption is probably less realistic in practice. Users might be tempted
to keep possession of their passwords to be able to log into web sites from other
machines   without   using   the   wallet.   Yet,   this   decision   is   prone   to   several   attacks
described in the course of the security analysis. For example, the user might ignore
the   trusted   path   indicator   and   enter   her   credentials   into   a   fake   dialog   or   the
adversary removes the wallet proxy assignment and unlocks all browser forms so that
the user is tempted to log in using the traditional way.
All   of   those   cases  lead  to  disclosure   of   the   user's   credentials  if   the   user   has  not
changed   the   passwords   before.   This   shows   the   importance   of   a   thorough   user
training. It is important for users to realize that not letting the wallet change their
passwords leaves room for potential phishing attacks.

Metatag Approach

If the assumption that users let the wallet change their passwords turns out to be too
strong in practice, additional steps must be taken to automate the password changing
process so that the user cannot avoid it. Providing metatags is a possible solution for
this problem. If the wallet has enough information about a web site to trigger the
password changing process itself, it can be integrated into the setup process and the
user has no choice but to let the wallet change the passwords.
While this is the optimal solution from a security standpoint, this approach has the
significant drawback to require specialized metatags for each supported web site.
Consequently, if the wallet has no metatags for a given web site, it cannot store the
user's passwords for it and offers no protection at all.

Open_TC Deliverable D08.2

39/109

background image





Security Services for a Trusted Mobile Application

Final

Password Knowledge

This work generally assumes that the user does not know the passwords for her web
sites after the wallet has changed them. Although the wallet does not initially display
the   changed   value,   the   user   could   still   use   the   wallet's   GUI   to   find   out   the   new
password.   Thus,   certain   classical   phishing   attacks   might   still   be   feasible   at   first
thought.
Yet,   it   can   be   argued   that   the   passwords   generated   by   the   wallet   are   hard   to
remember. Most users re-use their (often simple) passwords across many different
sites   (the   author   cannot   even   absolve   himself   from   that).   This   shows   that
remembering many different passwords is hard for most users. Taking into account
that the wallet makes full use of the available password length and generates pseudo-
random passwords (e.g. Xc7f3h2IK12u instead of mypassword23), it can be assumed
that   most   users   are   not   able   to   permanently   remember   the   wallet-generated
passwords even if they explicitly review them. However, as long as the user can still
view the password, it is impossible to prevent the disclosure completely (e.g., apart
from memorizing passwords, the user could also write them down).

2.5.8 Other Attacks

Transaction Generators

Due to the automation of login operations, the user loses a certain degree of control
over   the   browser's   actions.   A   modified   browser,   aware   of   the   wallet,   could   take
advantage of the fact that no user interaction is necessary to log into a specific web
site and carry out an arbitrary amount of transactions impersonating the user without
her   noticing   it.   Such   attacks   called

Transaction   Generators

  have   already   been

described by Jackson et al. [40]
This kind of attacks is not specific to the Secure Wallet but rather a generic problem
with transactions that can be committed without user interaction. A user without the
wallet is susceptible to this attack after having logged into a web site in the same
way   as   a   wallet   user.   Therefore,   it   is   out   of   scope   of   this   work   to   present   a
countermeasure.   Transaction   confirmation   (as   described   in   [40])   could   be
implemented in addition in the wallet compartment.

2.6 Architectural Overview

In this section, we sketch the architecture on a PC, describe an architecture for a
mobile platform, and propose a “hybrid” architecture for a demo-prototype, where
functionalities are split between a PC and a mobile (X-GOLD

TM

208-based) platform.

Section 2.7 will then discuss the X-GOLD

TM

208-based demonstrator prototype in more

detail. General information on this mobile platform can be obtained in [74].
For   the   PC-based   prototype,   the   Security   Services   developed   within   OpenTC
Workpackage 5 could be re-used.

2.6.1 Architecture on a PC

 shows the architecture, as it is currently implemented on PC hardware.

Open_TC Deliverable D08.2

40/109

background image





Security Services for a Trusted Mobile Application

Final

We use TrustedGRUB as  bootloader. TrustedGRUB measures the microkernel, L4env
and the security services (Compartment Manager etc.), and extends the PCRs.
The  Compartment  Manager  measures  and  starts  the Secure Wallet  and other  L4-
Linux compartments. These measurements are not written into PCRs, but stored in
memory only. In this manner, the Compartment Manager extends the authenticated
boot.   To   verify   the   integrity   of   a   compartment,   a   verifier   has   to   rely   on   the
conventional TCG chain of trust to verify the basic system (up to the Compartment
Manager), and additionally, the measurements of the compartment (as provided by
the Compartment Manager) have to be checked.

2.6.2  Storage Manager

This section describes the implementation of the Storage Manager

SM

 that enables

other   compartments   to   persistently   bind   their   local   states   to   their   actual
configuration while preserving integrity, confidentiality and freshness. A prototype of
the Storage Manager has been implemented within OpenTC Workpackage 5, which is
re-used here. The freshness requirement is not important for the secure wallet use

Open_TC Deliverable D08.2

41/109



Figure 11: System architecture for PC hardware.

PC Hardware with TPM

Compartment

Manager

Secure GUI

Network

Manager

Storage

  Manager

Legacy OS

(Here, L4 Linux)

Browser

L4 Linux Kernel

Secure Wallet

“Current version

implemented using

L4 Linux”

L4 Environment

L4 Microkernel

background image





Security Services for a Trusted Mobile Application

Final

case because replay attacks are not an issue. However, in other use cases, freshness
may be required. Thus, it should be considered in the design of the Storage Manager
as a generic security service. We first give an short overview and then describe the
realisation of secure storage that will be extended by an additional freshness layer to
provide

trusted

 storage. At the end of this section, we briefly describe the protocols

for the initialisation of

SM

, as well as for storing to and loading from trusted storage

(using

SM

).

Overview:

 The Storage Manager is invoked by a compartment to store a data object

persistently   preserving   confidentiality   and   integrity   –   optionally   with   additional
restrictions

rest

  (e.g.,   freshness,   certain   user   id).

SM

  invokes   the   Compartment

Manager to retrieve the actual configuration of the respective compartment and to
bind   the   data   object   to   that   compartment   configuration

cmp_conf

.

SM

creates/updates a metadata entry for the corresponding data object with the data
object   identifier

d

ID

,   its   freshness   detection   information

f

,   i.e.,   the   actual

cryptographic hash value, and all relevant access restrictions

rest

3

 with its index

i

SM

SM

  extends the data object with integrity verification information, synchronises its

monotonic counter

c

SM

, encrypts the data object and the updated index using the key

k

SM

and writes it on untrusted persistent storage. Since

i

SM

 is the base of security for

SM

,

i

SM

  is sealed to

SM

’s configuration via the sealed key

k

SM

. Thus only the same,

trusted Storage Manager configuration is able to unseal and use

k

SM

 again. On a load

request,

SM

  again   uses   the   Compartment   Manager   to   compare   the   invoking

compartment   configuration   with   the   one   of   the   compartment   that   has   stored   the
respective data object before. On a successful verification,

SM

  reads and decrypts

the data object from the untrusted persistent storage and verifies its integrity. Before
the   data   object   is   committed   to   the   requesting   compartment,

SM

  also   verifies

possibly existing additional restrictions such as freshness or a certain user id.

Trusted Storage:



SM

  offers trusted storage to bind the data of a compartment to

the compartment while preserving integrity and confidentiality. Therefore,

SM

 uses a

cryptographic   hash   function

4

  to   calculate   the   data   object’s   hash   value   and   a

symmetric   cipher

5

  with   its   internal   cryptographic   secret   key

k

SM

bound   to   its

configuration to encrypt data objects together with their actual hash values. Then

SM

writes   the   encrypted   blob   to  untrusted   persistent   storage   providing   at   least
availability.   The   key

k

SM

in   turn   is   sealed   to   the   configuration   of

SM,

  using

functionality   of   the   TPM   so   that   only   the   same,   trusted   Storage   Manager
configuration is able to unseal and use the key again. During a load operation, the
data object is decrypted and verified for integrity using the appended hash value.

3 Further access restrictions can be a certain user id, group id or date of expiry.

4 Our implementation currently uses SHA-1.
5 Our implementation currently uses AES.

Open_TC Deliverable D08.2

42/109

background image





Security Services for a Trusted Mobile Application

Final

Figure   12  depicts   our   trusted   storage   implementation.   Our   trusted   storage
compartment   basically   offers   two   trusted   channels

load[]

  and

store[]

  while   the

storage compartment itself uses two  untrusted  channels namely

read[]

  and

write[]

from an untrusted storage compartment to persistently write, respectively read, data
(however, the untrusted storage should provide availability).

6

If

SM

 receives a data object

d

 via

store[d, rest]

SM

 internally creates or updates the

object’s metadata

7

  and calculates its hash value

i

  to verify integrity. Then the  data

together with

i

 is encrypted with the internal cryptographic secret key

k

SM

 using the

function

e

  :=

encrypt

[

d

||

i

]  (to provide confidentiality). The encrypted data

e

  will

afterwards  be   written   on  untrusted  storage   using

d

ID

  :=

write[e]

  that   returns  the

object   identifier

d

ID

.   Conversely,   if

e

  is   read   from  the   untrusted   storage   via

e

  :=

read[d

ID

]

 it will be decrypted to

data

 and

i

 via

decrypt[e]

 using

k

SM

. Before returning

d

  to

load[]

,

SM

  verifies   the   integrity   of

d

  and   further   access   restrictions   (e.g.,   a

certain   user   id)   based   on   the   corresponding   metadata   in

SM

’s   index   using   the

function

verify[d, i]

 .

In order to provide fresh trusted storage, we enhance

SM

 by an additional layer for

managing freshness of data objects. This extension consists of a (currently abstract)
function

f

  :=

memorize[d]

  that updates the internal data structure

FRESH

  with the

freshness value

f

. Afterwards, data will be stored persistently ensuring confidentiality

and   integrity   using   secure   storage.   On

load[]

  from   secure   storage,   the   function

6 For the realisation of availability we suggest solutions based on high redundancy, i.e., by the
utilisation of multiple distributed storage locations (e.g., USB sticks or online sites) assisted

by an appropriate RAID system. In case of failure of a particular storage device, it is still
possible to retrieve data from alternative storage mirrors.

7



More details on storage metadata are given at the end of this section.

Open_TC Deliverable D08.2

43/109

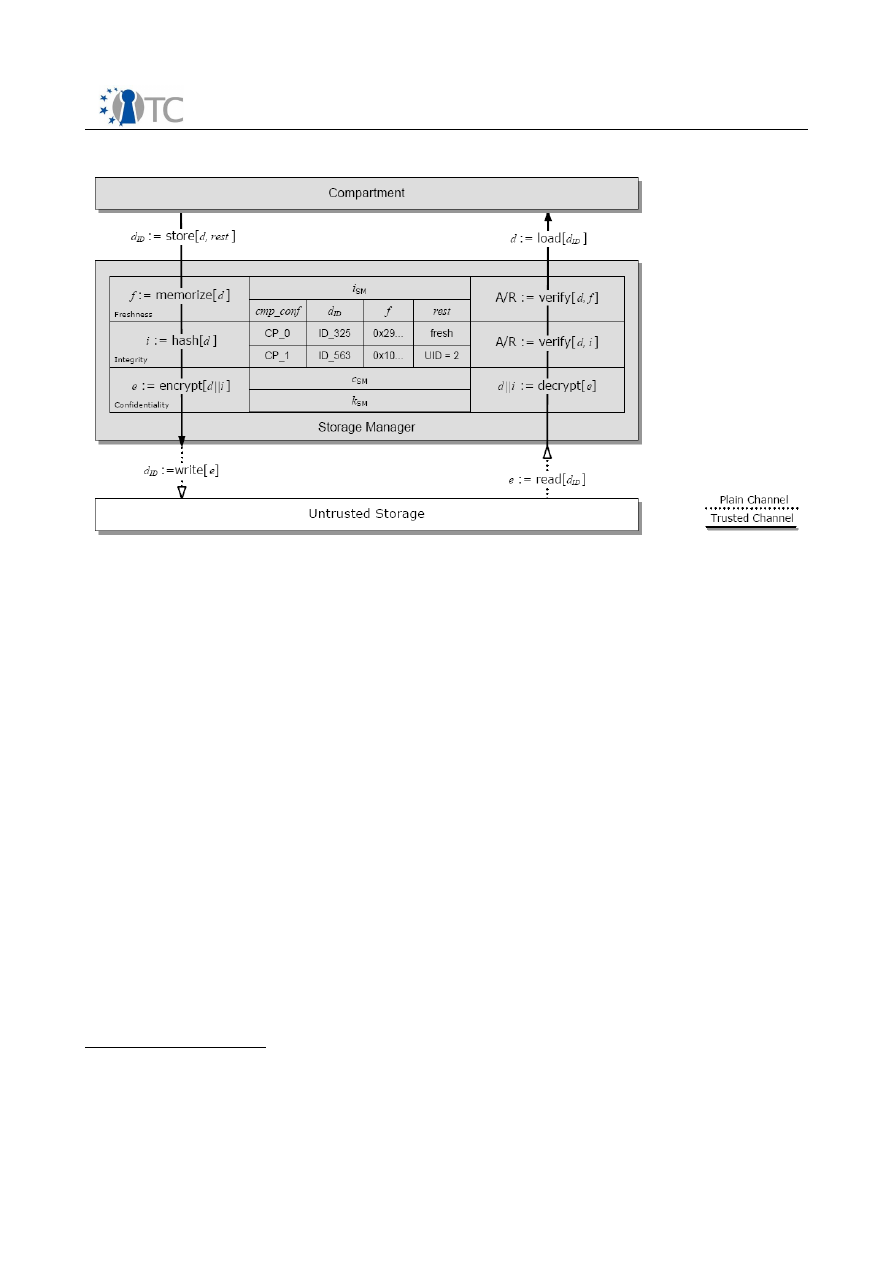

Figure 12: Implementation of the Storage Manager

background image





Security Services for a Trusted Mobile Application

Final

verify[d,  f]

  additionally verifies that the received data object

d

  is the last one being

stored.
To provide such freshness detection,

SM

  uses an additional metadata field to store

the cryptographic hash value

hash(d)

  that defines the last stored version of

d

. On

load[]

SM

 calculates

hash(d)

 again and checks if it matches the hash value of the last

store. In order to ensure freshness of these metadata, the index of

SM

 itself has to be

stored fresh. We therefore analysed to what extent TPMs of version 1.1b and 1.2 can
be used to realise a fresh index for

SM

.

DI-Register:  TPMs version 1.1b provide a Data Integrity Register (DIR) that
can persistently store a 160 bit value. Unfortunately, access to this register is
only authorised by the TPM owner secret implying that the TPM owner can
always   perform   replay   attacks.   The   only   solution   would   be   to   distribute
platforms   with   an   activated   TPM   and  an   owner   authorisation   secret   that   is
unknown to the user. This solution does not conform to the TCG specification
that demands that TCG-enabled platforms have to be shipped with no owner
installed.

SRK   Regeneration:   An   alternative   way   to   prevent   replay   attacks   based   on
TPMs  version 1.1b would be to create a new Storage Root Key (SRK) before
the   system   is   shut   down.   Regeneration   of   the   SRK   would   prevent   that
previously created TPM encryption keys can be used any more. Unfortunately,
an   SRK   can   only   be   renewed   by   the

TakeOwnership

  function   which   itself

requires a previously

OwnerClear

  that itself disables the TPM. Therefore, an

online regeneration of the SRK seems to be impossible.

NV-RAM: TPMs version 1.2 provide a limited amount of non-volatile (NV-) RAM
to  which  access  is  restricted  to authorised  entities.  So called NV-Attributes
define which entities are authorised to write to and/or read from the NV-RAM.
Thus, data integrity can be preserved by storing a hash value of the data into
the   NV-RAM   and   ensuring   that   only   the   Storage   Manager   can   access   the
authorisation secret.

Secure Counter: A TPM version 1.2 supports at least four monotonic counters.
Based on this functionality, the freshness of data can be detected by securely
concatenating it with the actual counter value.

As a result of our previous analysis, we showed that TPMs version 1.1b cannot be
used   to   provide   fresh   storage   as   required   to   enforce   stateful   licenses   and/or   to
transfer   licenses,   as   it   is   needed   for   digital   rights   management,   for   example.
Therefore,  we  decided to  realise   trusted storage   based  on  the  monotonic  counter
functionality of TPMs version 1.2. For the secure wallet, however, freshness is not
needed, hence the functionality provided by a TPM of version 1.1b is sufficient.
A   monotonic   hardware   counter   allows   us   to   securely   maintain   versioning   of   an
arbitrary data component, by keeping a software counter synchronised with one (of
four guaranteed) hardware counters of the TPM.

SM

manages an internal software

counter that, every time SM updates its index, is incremented synchronously with the
monotonic   hardware   counter.   If   both   mismatch   at   any   time,   outdated   data   is
detected, which will be handled according to the actual security policy. However, in
order to employ a TPM monotonic counter,

SM

 has to be initialised correctly. On the

initial setup SM uses the TPM to create its internal cryptographic key

k

SM

 that then

Open_TC Deliverable D08.2

44/109

background image





Security Services for a Trusted Mobile Application

Final

will be sealed to the actual platform configuration.
To   enable   freshness   detection   and   thus   trusted   storage,  SM  creates   a   monotonic
counter

c

SM

 with  authentication data

auth

, e.g., a secret password. The initial setup

finishes with the creation of

SM

’s internal metadata index

i

SM

  and the saving of the

sealed key blob and the encrypted index on untrusted storage.
After a platform reboot,

SM

 reads the key blob from the untrusted storage and asks

the TPM to unseal its internal key. The TPM is able to unseal

k

SM

 if the platform has

the same configuration as it was at the sealing process, thus preventing a modified

SM

 to access

i

SM

.

Then

SM

  uses

k

SM

to decrypt its metadata index read from the untrusted storage.

Finally,

SM

  verifies the freshness of

i

SM

  by comparing the decrypted counter  of

i

SM

with the actual counter value of the corresponding TPM counter

c

SM

.

To   bind   a   compartment’s   data   object   persistently   to   its   actual   configuration   the
following has to be done: After the mapping of compartment identifier to the actual
compartment   configuration   using   the   Compartment   Manager

CM

,

SM

  updates

i

SM

with   the   corresponding   metadata   as  well   as  the   incremented  software   counter   to
enable freshness detection for

i

SM

. Afterwards,

SM

 writes both, the data objects and

the   updated   index,   on   the   untrusted   storage,   encrypted   with   k

SM

.   Finally,

SM

synchronises its software counter with the TPM’s monotonic hardware counter and
returns the data object identifier.
We complete the scenario with loading a compartment’s data object again: After the
mapping   of   requesting   compartment   identifier   to   the   actual   compartment
configuration using

CM

SM

 reads the requested data object from untrusted storage

and decrypts it using

k

SM

. Before returning data to the corresponding compartment,

SM

 verifies all access restrictions (e.g., freshness, or a certain user id) given on store

via

rest

 based on the corresponding metadata in

i

SM

 and verifies that the requesting

compartment has the same configuration as it was on

store[]

.

2.6.3 X-GOLD

TM

208-Based Architecture

Ideally,   the   architecture   on   the   X-GOLD

TM

208   platform   [74]   should   look   almost

identical to the PC-based architecture. However, there are some differences:

1. The L4 microkernel, L4env, and the Security Services must be protected by the

secure boot feature of X-GOLD

TM

208, instead of the authenticated boot used by

TCG-compliant PCs. Compartments are measured the same way as on the PC
platform (i.e., it is not necessary to protect them by secure boot).

2. For   the   trusted   storage,   the   mobile   system   must   use   the   cryptographic

functionality   of   the   X-GOLD

TM

208   instead   of   a   hardware   TPM.   As   in   the

demonstration architecture presented below, this can be achieved by using a
(modified) TPM “emulator”, which is implemented on top of X-GOLD

TM

208 and

provides a TPM (or MTM) compatible interface.

2.6.4 Hybrid Architecture for Demo-Prototype

Unfortunately,  it   is not   possible   to implement   the  entire  system on   the  mobile  X-
GOLD

TM

208 platform within the scope of the OpenTC project (for instance, porting

drivers   to   the   microkernel-based   system   is   a   substantial   effort).   However,   some
functionalities   can   be   implemented   on   the   mobile   platform   to   demonstrate   the

Open_TC Deliverable D08.2

45/109

background image





Security Services for a Trusted Mobile Application

Final

concept.   We   propose   to  adapt   the   architecture   shown   in  Figure   11  for   a   system,
where some parts are still running on a PC. The result is shown in Figure 13: the PC
platform communicates with the mobile platform via a serial interface.

Communication between PC and X-GOLD

TM

208 platform

We use a serial line for the communication between the PC and mobile platform. The
functions needed by the (modified) Storage Manager for sealing will be executed on
the X-GOLD

TM

208 platform. For the communication, with the X-GOLD

TM

208 board, a

proxy is used, hence the Wallet-PC does not have to handle the serial communication
directly. Instead, TCP sockets are used for the communication between the Wallet-PC
and proxy (see below).

Open_TC Deliverable D08.2

46/109



Serial Line



Figure 13: Architectural overview for a demo-prototype.

Only some core functionalities are implemented on the mobile platform, the rest has to be

provided by the PC.

PC Hardware with TPM

X-GOLD Hardware

L4 Microkernel

L4 Microkernel

L4 Environment

L4 Environment

X-GOLD

Crypto Driver

Compartment

Manager

Secure GUI

Network

Manager

Storage

  Manager

L4 Linux Kernel

L4 Linux

Comm.Serv.

to X-GOLD

Communication

Service to PC

Legacy OS

(Here, L4 Linux)

TPM Emulator

Browser

Secure Wallet

(Current version

implemented using

L4 Linux)

background image





Security Services for a Trusted Mobile Application

Final

2.7 Porting and Test Concepts of the TPM emulator on X-GOLD

TM

208

In   this   section   we   will   focus   on   development   and   test   aspects   related   to   the
implementation of the TPM emulator on the Infineon X-GOLD

TM

208 (formerly called

S-GOLD3

TM

) platform. The following three components were used as a starting point:

The L4Linux port on X-GOLD

TM

208 done by Technische Universität Dresden

within the OpenTC project;

The GNU cross-compile tool chain configured for ARM cores (GCC 4.1.2, bin-
tools 2.17);

The Linux TPM Emulator developed by Mario Strasser [61], ETH Zürich.

In order to be able to test the target application using existing open-source TPM tools
the following software packages were deployed:

The TSS TrouSerS  Software Stack [13,67], developed by IBM;

The TPM toolset on top of TrouSerS, developed by IBM;

The TPM Manager [14], an open source GUI to configure TPMs, developed by
Ruhr-Universität Bochum and Sirrix AG within the EMSCB project.

Furthermore, the L4 build environment from TU Dresden was deployed to generate
code   images   executable   on   the   X-GOLD

TM

-208   based   platform.   The   entire

development environment is depicted in Figure 14.

Figure 14: Development environment for TPM emulator on target

Open_TC Deliverable D08.2

47/109

background image





Security Services for a Trusted Mobile Application

Final

2.7.1 Porting Concepts

The basic target architecture for the TPM emulator running on the L4 platform is
depicted in Figure 15.

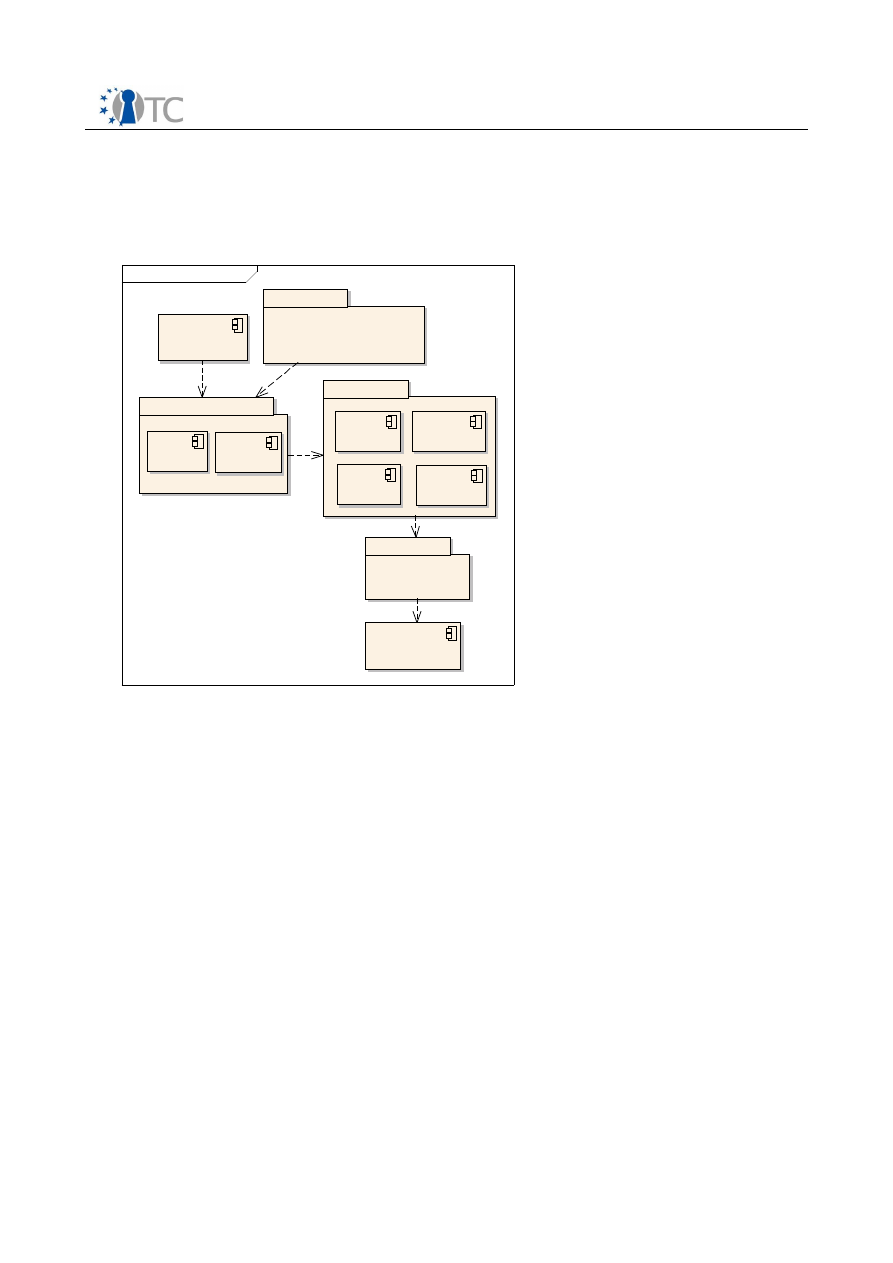

Figure 15: Basic target architecture for TPM

emulator on L4/X-GOLD

TM

208

L4 Application Layer

L4   Server   +   Application
Library Layer

-   Management   of   physical
memory
- Loading L4 Applications
- Console I/O
- Semaphores
- ...

The L4 Microkernel

The Hardware Platform

As can be seen in the diagram, the TPM emulator is configured as a dedicated L4
application which runs independently of Linux. The benefit of this architecture can be
seen in the fact that it provides a fair amount of isolation which is important when
considering various types of software attacks.

Since the TPM emulator was actually developed as a Linux kernel module, see ref.
[61], and given the limited scope of this demonstrator, it would also have been an
option to deploy a dedicated Linux compartment instead. But the practical drawback
of that approach is clearly given by the fact that it requires to include the entire
Linux kernel into the target application software build. Given the complex and time-
consuming software build procedure and taking into account the time to load a large
software   image   via   the   Debugger   onto   the   target,   this   procedure   would   have
significantly slowed down the development and test phase of the TPM emulator.

On   the   contrary,   the   chosen   concept   to   restrict   the   TPM   emulator   to   services
available in the L4env environment enables to omit L4Linux from the software build
and thus, keep the target software image footprint low. This benefit has to be paid
with slightly increased software porting effort.

Open_TC Deliverable D08.2

48/109

cmp Basic Architecture

L4 Kernel

L4env Servers

L4Linu x

TPM emulator

X-GOLD208

Loade r

DMPhys

Name s

Ex ec

L4 Application Libraries

Thread

l4rm

background image





Security Services for a Trusted Mobile Application

Final

Assumptions and development constraints

In this section we will briefly address the development constraints, mainly given by
the limited scope of the demonstrator:

Only minimalistic support of TPM commands required for the secure wallet
demonstrator

It   is   not   required   to   support   the   full   scope   of   TPM   commands   in   order   to
demonstrate the use of an embedded TPM emulator for a specific secure wallet use
case. Instead only a subset of commands is required. Within the WP08 work group
it was suggested that a TPM sealing procedure could be a good example. On the
other hand, also a sealing procedure requires the TPM to be in a certain state, e.g.
a   storage   root   key   needs   to   be   present   and   ownership   credentials   need   to   be
known.   Also   the   platform   configuration   registers   need   to   contain   a   reasonable
value in order to resemble a realistic scenario.

No support of secure or authenticated boot for the software running on the
target

We saw virtually no benefit in implementing a procedure measuring the L4
software image, since the mechanism as such is already known and deployed
in   mobile   phones   (OMTP   TR0   [49]).   Also,   it   needs   to   be   taken   into
consideration, that the target software build basically contains the L4/L4env
and the TPM emulator application. On the other hand, the PC containing the
software   wallet   application   runs   on   a   different   architecture   and   includes
different   software   images.   So   the   measurement   results   on   these   platforms
would be different which prevents a simple re-use. Furthermore, right after
booting the target, the TPM emulator with its measuring capabilities does not
even exist, so it would need to be preceded by other mechanisms. The results
of these measurements would then need to be passed to the TPM emulator
once it is started in its L4 domain.

No software driver available for on-board storage of non-volatile data

Whereas the memory extension module of the evaluation board features a non-
volatile   NOR   flash   device,   it   was  not   considered  realistic   to  develop   a   suitable
driver   within   the   L4   environment.   Flash   drivers   usually   turn   out   to   be   rather
complex software components, taking into consideration the various requirements
which need to be addressed: management of power-failure, wear levelling of erase
units and so forth. It would also have been possible to provide a NOR flash driver
in the L4Linux environment, and provide a basic file store/retrieve API towards the
TPM emulator via L4. This would generally be a recommendable solution, as it
avoids the problems arising from sharing peripheral ownership between different
execution   domains   (L4Linux,   TPM   emulator).   But,   in   addition   to   the
implementation  effort,  a  drawback  of  this approach  is  given   by  the  fact  that  it
requires the inclusion of L4Linux into the target software build, which we wanted
to avoid, see previous section.

Open_TC Deliverable D08.2

49/109

background image





Security Services for a Trusted Mobile Application

Final

Only serial interface available for communication with external host

This   is   not   a   major   obstacle,   since   a   TPM   does   not   have   to   deal   with   large
messages. The evaluation board also features connectors with higher bandwidths
such as USB or MMC, but we saw little value in developing driver functionality for
these devices. For that reason we stayed with using the serial interface (115 kbit/s)
which is already used for the L4 console I/O and the L4 kernel debugger.

No usage of GNU multi-precision library (GMP)

The standard Linux TPM emulator makes use of the GNU multi-precision library in
order to perform big integer arithmetic. For two reasons we decided to not use this
library for the emulator running on L4. First, the library is rather large and has
further dependencies to other system libraries. In a realistic deployment scenario,
the TPM emulator software footprint should be kept as small as possible in order
to reduce weaknesses arising from complexity. Second, the X-GOLD

TM

208 already

features hardware acceleration for big integer exponentiation which enables the
deployment of a suitable driver with a rather small memory footprint.

2.7.2 Implementation strategy

After analysing the Linux TPM emulator code structure and taking into account the
restrictions listed in the previous section, the following decisions were taken:

Replacing the software cryptographic functions of the Linux emulator with a
driver using the X-GOLD

TM

208 cryptographic hardware facilities.

In   particular   this   concerns   almost   all   functions   contained   in   the   /crypto
directory of the Linux emulator.

Public RSA key exponentiation

Private RSA key exponentiation

Hashing according to SHA-1

Generation of RSA key pairs

Whereas   in   a   realistic   scenario   the   driver   would   be   implemented   in   an   event-
driven   state,   e.g.   triggered   by   interrupts   signalling   the   completion   of   certain
hardware procedures, it was decided to go for a simpler solution, where the driver
basically polls status registers. The benefit of this approach is that it has no impact
on the L4 microkernel, since no interrupt routines need to be registered. The only
required step for the L4 task running the TPM emulator is to map the associated
peripheral   address   range   into   its   own   memory   space   and   request   it   to   be
configured as non-cacheable.
In   a   later   step   the   microkernel   and   the   driver   may   be   updated   to   support   an
interrupt-driven behavior.

Design the TPM emulator as a dedicated L4 task communicating via a serial
connection with the external PC running the secure wallet demonstrator

In Figure 16 a component diagram of the Linux TPM emulator is presented. In the

Open_TC Deliverable D08.2

50/109

background image





Security Services for a Trusted Mobile Application

Final

Linux user space a possible use case scenario based on the IBM TrouSerS TPM
software stack is included.

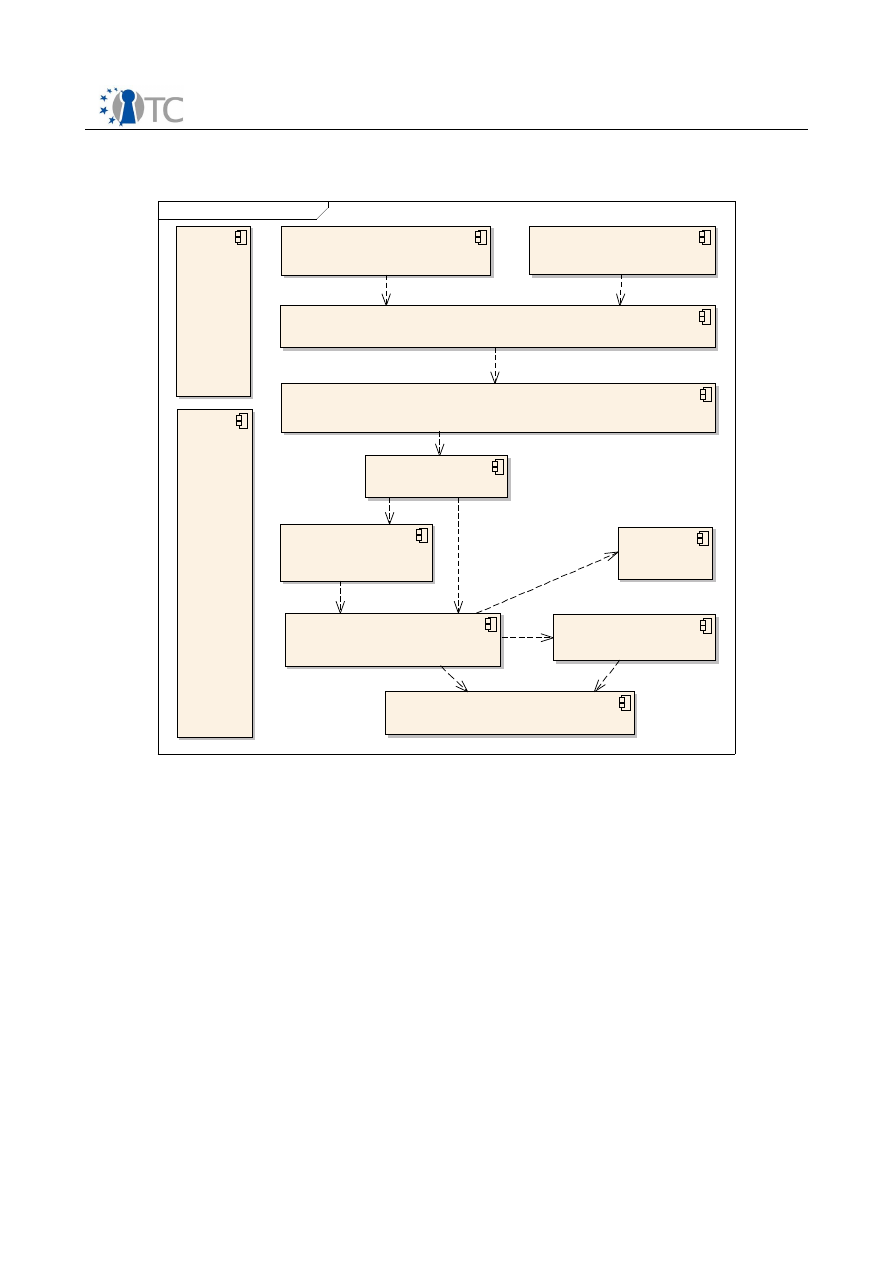

Figure 16: Linux TPM emulator architecture

In   the   Linux   world   the   TPM   emulator   is   designed   as   a   kernel   module   which
basically behaves as a daemon being triggered by TPM commands received via the
/dev/tpm interface.

Whereas the Linux kernel provides a substantially richer set of services compared
to the L4/L4env scenario, fortunately the TPM emulator core itself has only very
few platform dependencies. For this reason the layer containing the Linux kernel
dependent parts could be easily stripped off, so that the emulator in L4 becomes a
simple task which is launched immediately after starting the target. Afterwards the
emulator behaves like a server which waits for commands from the remote host.

Deploy   dedicated   serial   interface   for   exchanging   TPM   commands   and   TPM
emulator control data between target and host

The   L4   already   uses   one   Universal   Serial   Interface   (USIF)   peripheral   for
general   console   I/O   and   kernel   debugging   purposes.   In   order   to   keep   this
functionality independent from the TPM command/response exchange, it was

Open_TC Deliverable D08.2

51/109

cmp TPM emulator on Linux

TPM Crypto Services

TPM Emulator Execution Engine

TPM Command

Marshalling Engine

GNU Multiprecision Library

TPM NVM

Manage r

/dev/tpm

Linux

Kernel

services

(random,

log, debug,

file access,

sockets,

signals,

time, ...,)

TPM software stack e.g. TrouSerS

Linux

Userspace

TPM Command Tools

TPM Manager

TPM daemon

background image





Security Services for a Trusted Mobile Application

Final

decided to use a second dedicated serial peripheral exclusively for the L4 task
running   the   TPM   emulator.   As   the   X-GOLD

TM

208   features   multiple   USIF

peripherals and the evaluation board hosts a corresponding number of serial
connectors, this was a straight-forward approach. Similar to the management
of   the   crypto   peripheral,   the   driver   functionality   was   included   into   the
emulator task and the peripheral address range was mapped into its address
space. An interrupt-driven behavior may be later on added here as well.
For reliability reasons this USIF peripheral is operated using hardware flow
control, which also needs to be configured at the host site.

Use host to store and retrieve non-volatile TPM data

For a reasonable deployment the TPM emulator needs to be able to store its non-
volatile   data   generated   during   a   session   of   TPM   commands   and   to   retrieve   it
during initialization. In order to overcome the aforementioned problem of missing
flash driver software for the L4 environment, we decided to deploy a thin protocol
to   be   terminated   by   both   TPM   emulator   on   the   target   and   the   host   PC.   This
protocol should not only carry TPM commands and their responses but as well
some  dedicated commands to be able  to store  and retrieve TPM data remotely
from the host.
When it comes to storing confidential TPM data such as private key exponents or
authentication   credentials   in   a   non-volatile   memory   device,   it   is   apparent   that
appropriate   protection   facilities   are   required   which   address   all   relevant   threat
scenarios. The standard Linux TPM emulator does not provide any measures for
this, it simply streams all data into a single large byte packet and stores it in a
kernel   file   system.   For   simplicity   reasons   we   also   did   not   apply   any   explicit
measures. In a real deployment scenario of course a suitable protection scheme is
required. General recommendations on a secure data storage have been defined in
OMTP TR1 [50].

Remove Direct Anonymous Attestation (DAA) from the emulator

After investigating the implementation of the DAA related functions we decided to
omit the related TPM commands from the target build. The reason was that the
porting effort for the respective big integer arithmetic operations was considered
too high and we did not have any use case within the scope of the secure wallet
demonstrator.

Use Lauterbach scripting for static configuration of on-chip peripherals

From the TPM emulator perspective, most of the X-GOLD

TM

208 peripherals and

system core functions can be configured statically. For example it is not necessary
for the prototype to apply power measurement optimizations by changing clock
settings or voltage levels. For this reason it became apparent to assemble all static
configurations into a single Lauterbach script, which configures all necessary chip
functions before the target software is loaded and started.

Use a proxy at the host site for direct communication with the target

Open_TC Deliverable D08.2

52/109

background image





Security Services for a Trusted Mobile Application

Final

Instead   of   communicating   directly   between   the   target   and   the   PC   running   the
secure wallet application, a proxy is inserted in between. The tasks of this proxy
are:

Initiate the serial communication path towards the target;

Set up a TCP server socket for exchange of TPM commands with the
client (i.e. the secure wallet PC);

Provide the TPM emulator non-volatile data and request its initialisation
based on this data;

Request the TPM emulator to transmit its current non-volatile data to
the proxy and store it locally in a file system;

Transparently   pass   TPM   commands   received   over   the   TCP   socket
connection from the client via the serial link to the target and wait for
the response;

Transparently   pass   TPM   responses   received   over   the   serial   interface
from the target, return it via the TCP socket to the client and wait for the
next command from the client.

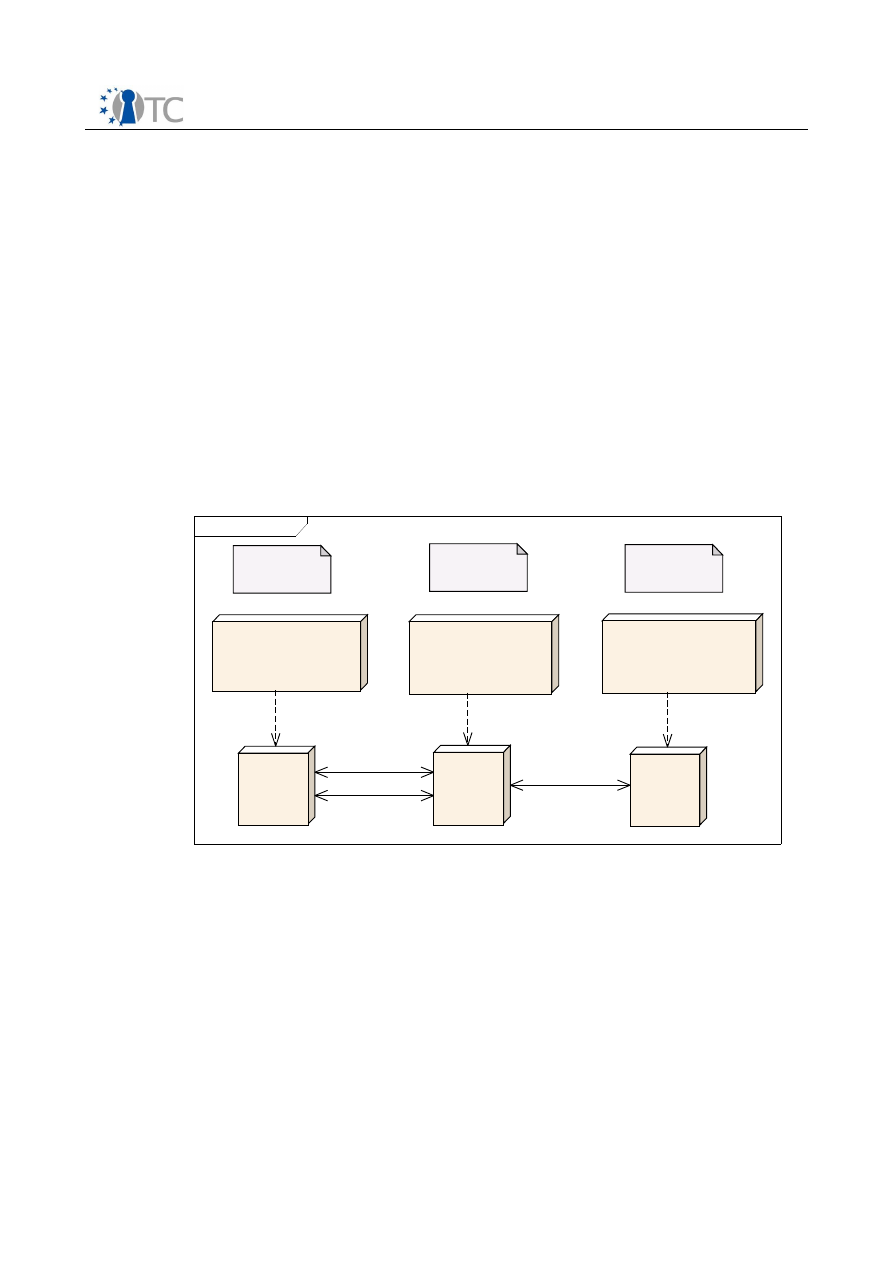

Figure 17: Basic prototyping deployment view

The benefit of this approach is that the secure wallet PC does not have to deal with
setting up the TPM emulator, managing its non-volatile data and taking care of the
proprietary protocol on the serial interface. From a secure wallet PC perspective,
the proxy simply behaves as a remote TPM connected via a TCP socket.
As   the   L4   target   is   loaded   and   started   via   a   Lauterbach   Debugger   application
running under Windows

TM

, and since the L4 console I/O can also be operated by a

serial terminal running in this domain (e.g. HyperTerminal), it was a  natural   step
to also implement the proxy under this operating system.

Open_TC Deliverable D08.2

53/109

deployment Basic

«device»

X-GOLD 208

EVA Board

«execution environment»

L4/L4env on X-GOLD 208

«device»

PC

«device»

PC

«execution environment»

Microsoft Windows 2000

«execution environment»

Linux

TPM emulator

Proxy
Console I/O

Secure Wallet

serial 1

serial 2

LAN

background image





Security Services for a Trusted Mobile Application

Final

2.7.3 Architecture

In   this   section   we   will   present   some   architectural   details   of   the   TPM   emulator
running under L4. A basic overview of the software components and how they are
related to each other is given in Figure 18.

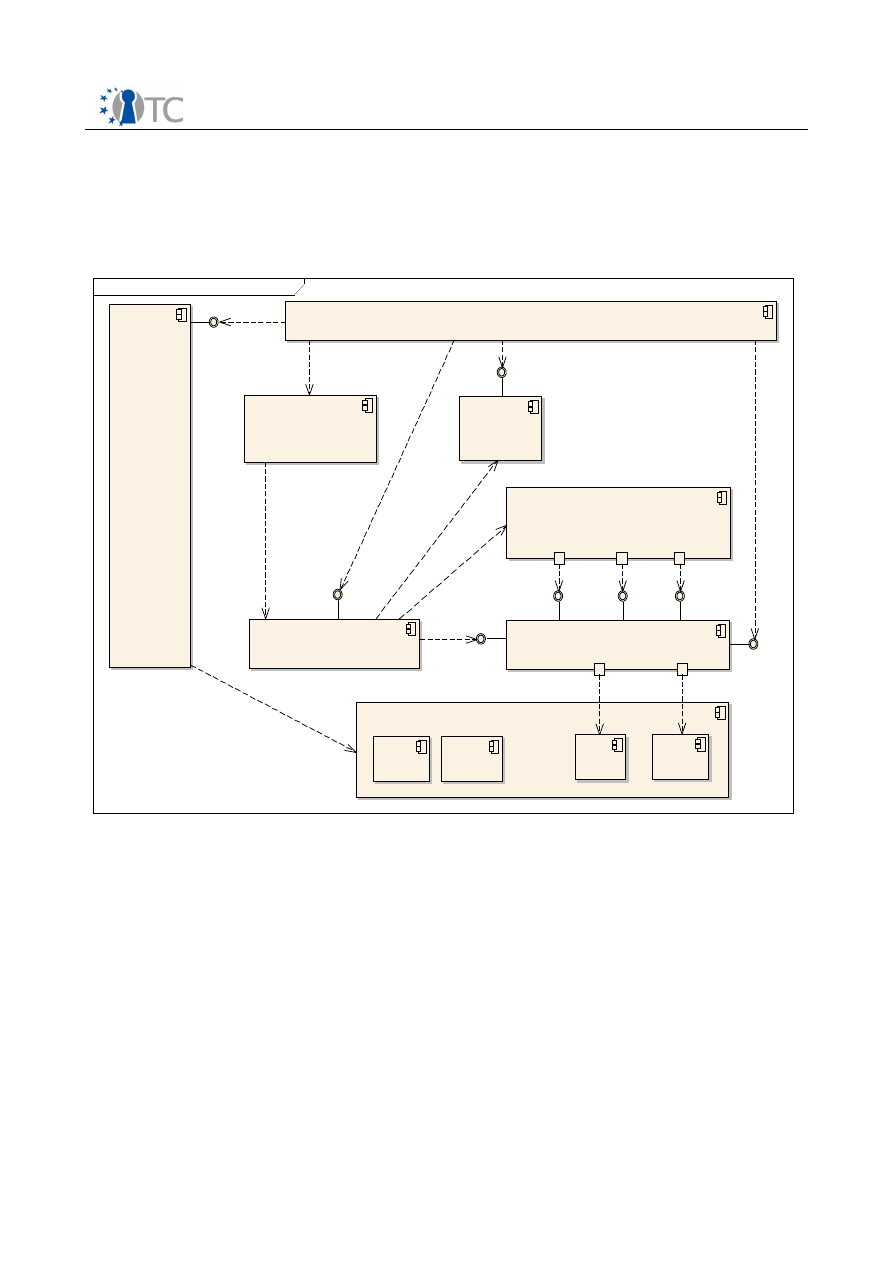

Figure 18: Component view of target software architecture

As can be seen from the diagram, the platform specific services are integrated into a
single component (ISG3-Service-Driver). This is done in order to keep the changes to
the original Linux TPM emulator source components as limited as possible. The ‘TPM
Emulator Main’ component is basically a replacement of the Linux TPM daemon. It
takes care of all communication towards the proxy, initialises the emulator with non-
volatile   data   and   passes/fetches   TPM   commands/responses   to/from   the   emulator
core.
Note that the diagram only lists one dependency towards the L4/L4env environment,
which reflects the memory mapping functionality in order to map two peripherals
into   the   emulator   task   space.   This   is   apparently   a   simplification,   since   the   TPM
emulator also makes use of a few other basic L4 services. An example is the console
output (debug printout) which is routed via L4 kernel services to the second serial
interface (USIF2) of the baseband processor.

Open_TC Deliverable D08.2

54/109

cmp TPM emulator on L4/X-GOLD(TM) 208

ISG3 Service Driver

KeyGen IF

RSA IF

Random IF

USIF1 IF

Hash IF

TPM Emulator Main

X-GOLD 208

ARM9

Crypto

USIF1

USIF2

TPM Crypto Services

TPM NVM

Manage r

Load/Store NV mem IF

TPM Emulator Execution Engine

Emulator
Init/Shutdown IF

TPM Command

Marshalling Engine

L4 / L4env

L4 I/O map IF

background image





Security Services for a Trusted Mobile Application

Final

The  following  Figure  19  gives an  overview  of  the functional  behavior of  the  TPM
emulator.

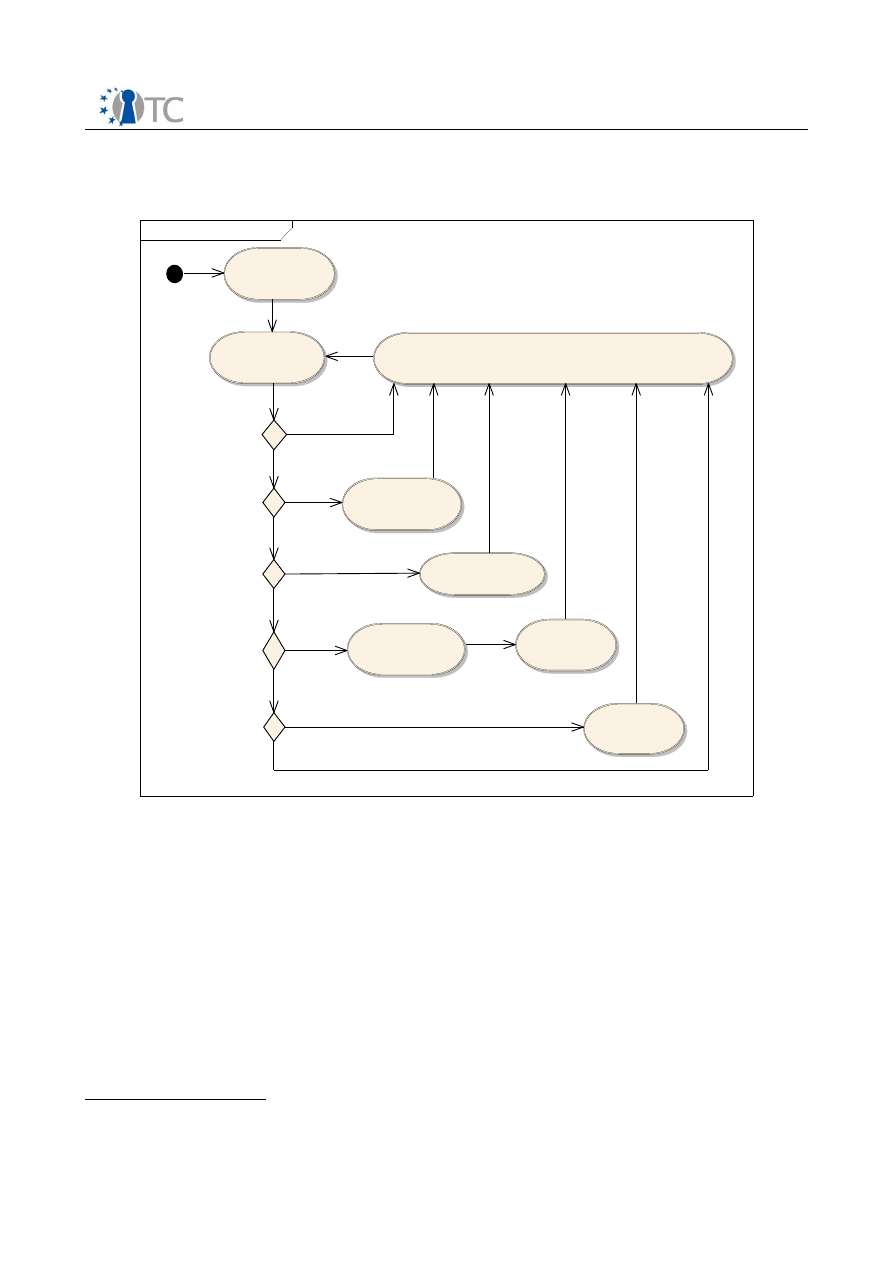

Figure 19: TPM emulator procedures on L4

The corresponding procedures of the TPM proxy running at the host site are depicted
in Figure 20. In order to set up a complete processing chain, the following steps need
to be executed:

1. Configure the target and load target software image via Lauterbach Debugger
2. Start of L4 kernel on target
3. Start of TPM emulator on target
4. Start of TPM proxy
5. Start of TPM client (Secure Wallet PC or patched

8

 TrouSerS daemon)

8 The device driver (TDDL) layer of the TrouSerS daemon needs to be patched in order to

support communication with a remote TPM connected via a TCP socket.

Open_TC Deliverable D08.2

55/109

stm States TPM Emulator

Start

Wait for Proxy

Command

Hello Command

Send Response to Prox y

Check Target

Peripheral Access

Initialize Emulator

engine with NV data

Initialize Emulator

engine with default

data

Get NV data from

Emulator engine

Retrieve NV data
Command

Reset Emulator
Command

Init Emulator
Command (NV data)

Emulator

Shutdow n

Execute TPM

command

TPM Command

OK

OK or FAILURE

OK

Return message type with zero message content

NV data

OK (NV data)

OK (TPM Response)

TPM Command

background image





Security Services for a Trusted Mobile Application

Final

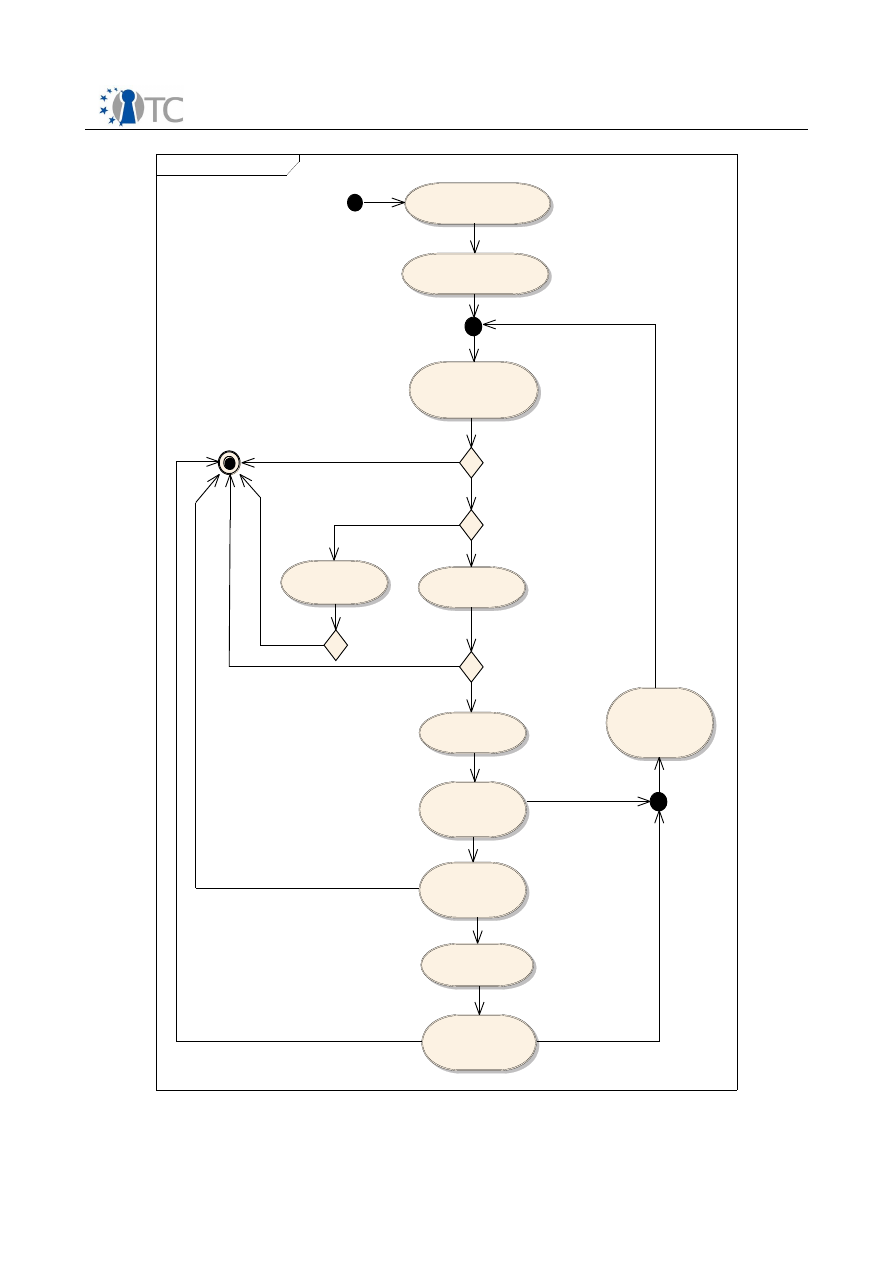

Figure 20: TPM Proxy procedures

Open_TC Deliverable D08.2

56/109

stm Proxy procedures

Start

Setup TCP server to

TPM Daemon

Setup serial link to

Target

Check serial

communication using

HELLO protocol

Target online?

End

Initialise Target

with NV data

Initalise Target

with default data

NV data present in
local file system

Initialisation OK?

Initialisation OK?

Wait for TPM

client to connect

Wait for TPM

command from

TPM client

Forward TPM

command to

Target

Wait for response

from Target

Send target

response to TPM

client

Junction

Junction

Fetch NV data

from Target and

store it in local

file system

Target communication failure

No

No

No

No

Client link

terrmination

Target communication failure

Client link

termination

background image





Security Services for a Trusted Mobile Application

Final

2.7.4 Test Architecture

The   entire   deployment   view   for   the   test   architecture   is   given   in   Figure  21.   An
example which visualises the message exchange between the involved nodes is given
in figures 22 and 23. In the chosen scenario the TPM owner running a TPM command
tool requests the public endorsement key (EK) to be read from the TPM.

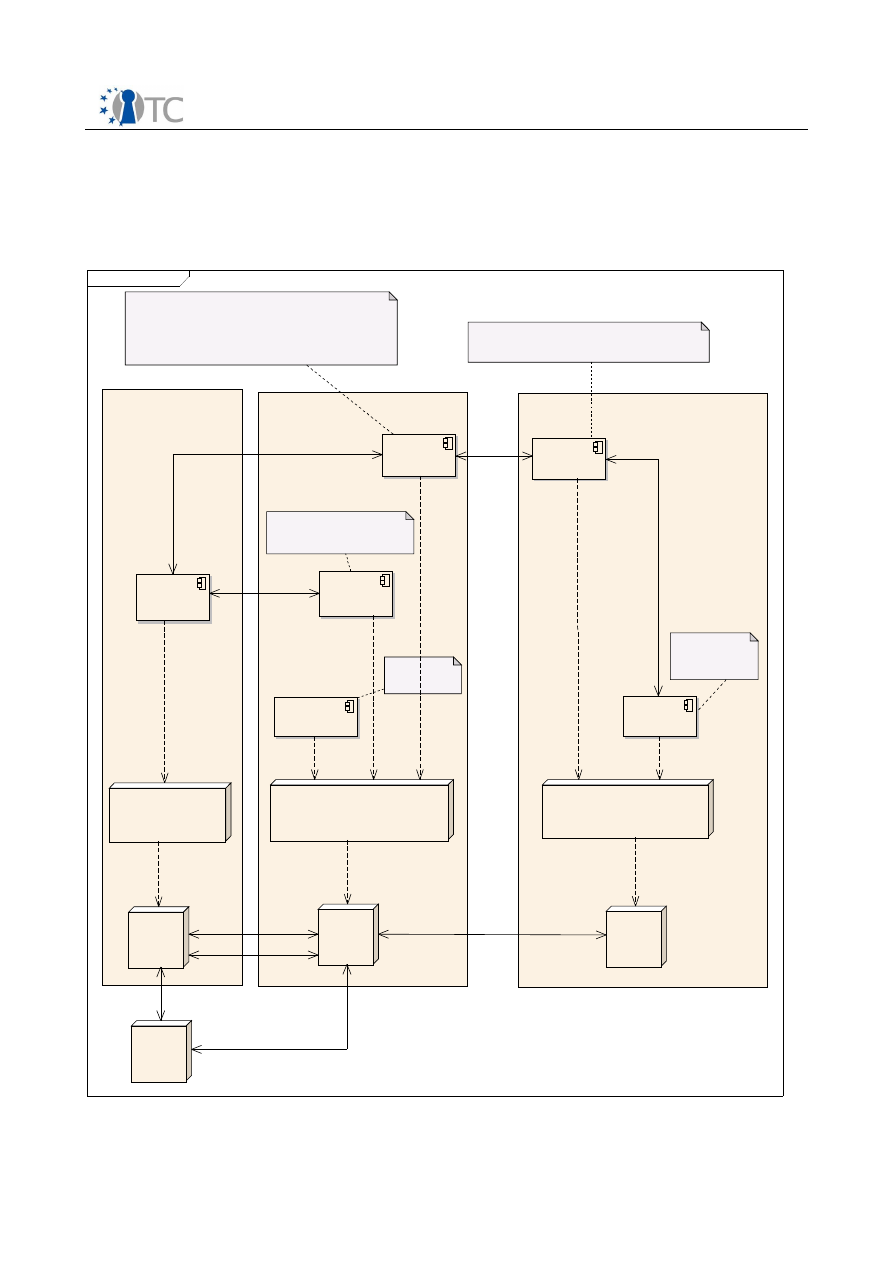

Figure 21: Deployment view used for target testing

Open_TC Deliverable D08.2

57/109

deployment Detailed

Linux Test Environment

Windows - Target Control and interface to Test

Environment

L4 on Target

«execution environment»

L4/L4env on X-GOLD 208

«device»

X-GOLD 208

EVA Board

«device»

PC

«device»

PC

«execution environment»

Linux

«execution environment»

MS Windows 2000

«device»

Lauterbach

Power Trace

TPM Emulator

Program

Lauterbach

Trace32 Program

TPM Proxy

Program

Trousers

Daemon

TPM Command

Tool

USIF Terminal

Application

Initializing TPM Emulator
Loading/Storing NV mem data to Target
Forwarding TPM commands from Trousers Daemon to TPM Emulator
Returning TPM responses from TPM Emulator to Trousers Daemon
Converting TPM commands/responses from UART to TCP/IP

Translating TSS related function calls to TPM commmands
Exchange of TPM commands/responses with TPM Proxy

L4 Kernel Debugger Access
Start of TPM Emulator
Console I/O of L4 and TPM Emulator

Loading and
Starting Target

Command line based
tool to execute TPM
commands

USIF1

USIF2

JTAG

LAN

USB

Console I/O
over serial

TPM

commands
over TCP/IP

TPM commands/responses

over serial

background image





Security Services for a Trusted Mobile Application

Final

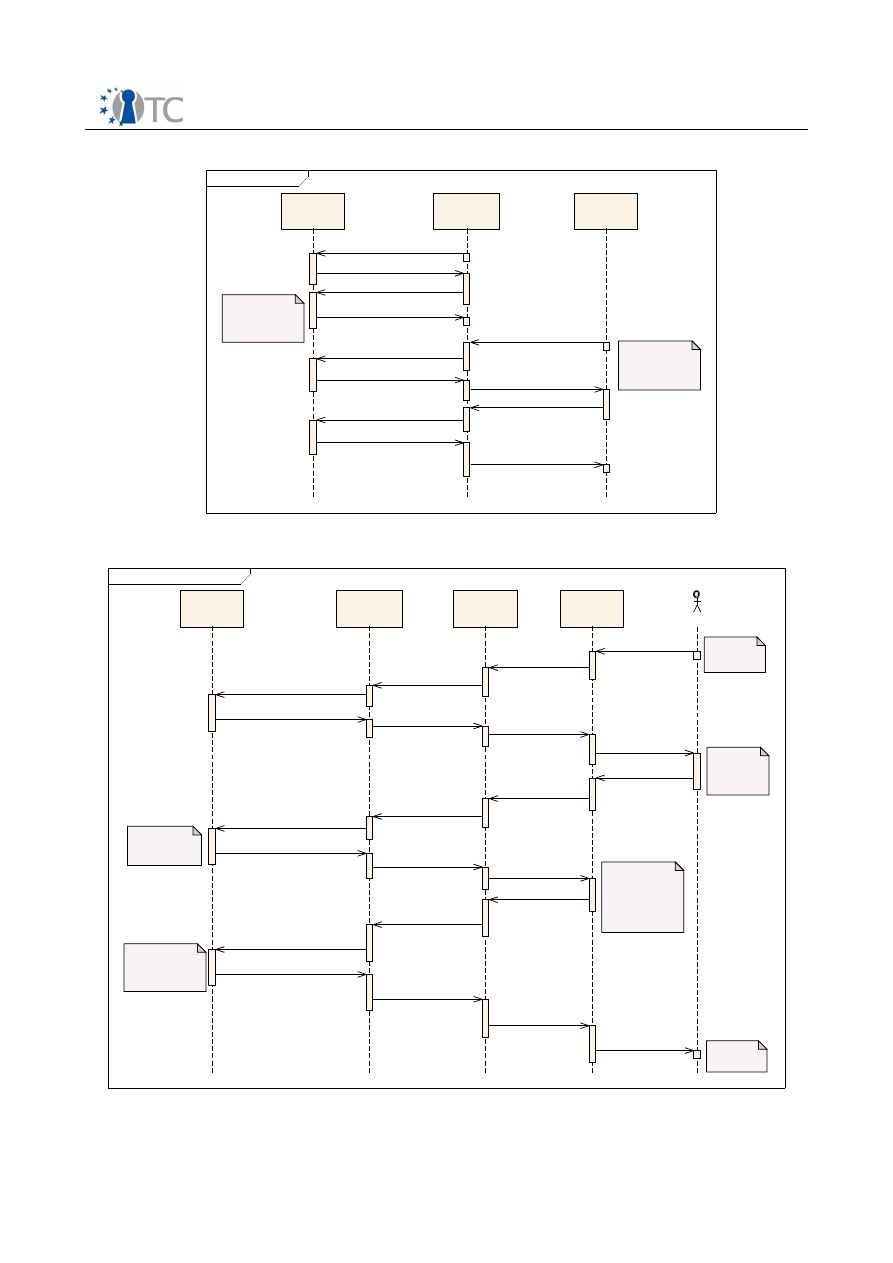

Figure 22:Message flow until start of Trousers daemon

Figure 23: Example message exchange for a simple use case to read the public EK

Open_TC Deliverable D08.2

58/109

sd Read protected public EK

TPM Emulator

TPM Proxy

Trousers

Daemon

TPM

Command

Tool

TPM Owner

TPM Owner enters
command to read
public EK

TPM Owner is
prompted to enter
the authorization
password

TPM Owner gets
public EK

TPM verifies
authentication
credentials

Calculate
authentication
credentials based
on on nonce and
passphrase

Generate nonce

get Public EK()

TPM_ORD_ReadPubEK()

TPM_ORD_ReadPubEK()

FAILURE(TPM_DISABLED)

FAILURE(DISABLED)

Authenticate Req()

Authent.

Response(Password)

TPM_ORD_OIAP()

TPM_ORD_OIAP()

OK(Nonce)

OK(Nonce)

OwnerReadInternalPubEK(Auth)

OwnerReadInternalPubEK(Auth)

OK(PubEK)

OK(PubEK)

sd Initial_messages

TPM Emulator

TPM Proxy

Trousers

Daemon

TPM Self test with NV data

Fallback to def ault if  NV
data corrupt

Capability  Inv estigation
executed multiple times...

HELLO()

HELLO_OK()

INIT_TPM(NV_data)

INIT_OK()

Get_Capability()

Get_Capability()

OK(cap)

OK(cap)

Get_Capability()

Get_Capability()

cap()

OK(cap)

background image





Security Services for a Trusted Mobile Application

Final

TCG Support for the Secure Wallet Prototype

In   this   chapter   we   examine   the   secure   wallet   with   a   view   to   specifying   what
functionality is required of a Trusted Mobile Platform (TMP) if it is to facilitate a
robust   implementation   of   this   mechanism.   The  numbered   list   of   functional
requirements   accumulated   is   then   utilised   to   determine  the   architectural
components, based on the TCG mobile reference architecture [63], and the functions,
as specified in the TCG MTM specification [64], which meet these requirements.

3.1 Requirements for a Robust Implementation of the Secure Wallet

Section 3.1.1 describes the process by which a secure wallet application is installed
on   a   device.   This   process   is   analysed   in   order   to   extract   any   threats   which   may
impact upon the device if the secure wallet application is not robustly implemented.
Following this, the functionality required of a TMP in order to mitigate these threats
is described.

Section 3.1.2 examines the fundamental steps in each of the protocols defined within
the   secure   wallet   suite   described   in   section   2.4.   Following   each   of   the   protocol
descriptions, the threats which may impact upon the security of the protocols, if the
secure wallet application is not robustly implemented, are highlighted. As above, the
functionality required of a TMP in order to mitigate these threats is also described.

Section 3.1.3 summarises the requirements extracted throughout sections 3.1.1 and
3.1.2.

3.1.1 Secure Wallet Application Installation

Before a secure wallet application can be executed by a mobile device user, it must
be installed on the mobile device. The following step, described in table  2, must be
completed when installing a secure wallet application on a mobile device.

Step

Description

The secure wallet application code must be installed on the device.

Table 2: Secure wallet application installation

Unless   the   device   implementation   of   the   secure   wallet   mechanism   is   robust,   a
number of threats may impact on the device.

Unauthorised modification of the secure wallet application code on installation
into the device.

Unauthorised   modification   of   the   secure   wallet   application   code   while   in
storage on the device.

Using the list of threats outlined above, the following requirement can be derived for
a TMP, if it is to facilitate the secure installation of a secure wallet application.

1. The TMP SHALL provide a mechanism so that the secure wallet application

code  can   be   integrity-protected   on   installation   into   and   in   storage   on   the
device.

3.1.2 Secure Wallet Protocol Suite

The secure wallet mechanism has been defined as a set of six protocols

[47]

:

Starting the secure wallet;

Open_TC Deliverable D08.2

59/109

background image





Security Services for a Trusted Mobile Application

Final

Setting a user passphrase;

Authenticating a user;

Changing a passphrase;

Storing sensitive data; and

Accessing secure storage (by an application).

3.1.2.1 Starting the Secure Wallet

There are two possible ways by which a secure wallet application can be started, as
shown in tables 3 and 4.

Step

Description

The user clicks on the secure wallet icon or menu item.

2

The secure wallet is started.

Table 3: Starting the secure wallet

Step

Description

The secure wallet is started automatically at system boot.

Table 4: Starting the secure wallet (alternative)

Unless the implementation of the secure wallet mechanism is robust, the following
threat may impact upon the device.

Unauthorised   modification   of   the   secure   wallet   application   code   while
executing on the device.

Using the threat outlined above, the following additional requirement can be derived
for   a   TMP,   if   it   is   to   facilitate   a   robust   implementation   of   the   secure   wallet
mechanism.

2. The TMP SHALL provide a mechanism so that the secure wallet application

code can be integrity-protected while executing on the device.

3.1.2.2 Setting a User Passphrase

Once  a   secure   wallet   application   has  been   installed,   a  user   can  set   a  passphrase
which is used by the secure wallet application to authenticate him/her.

Step

Description

The user selects “passphrase”.

2

The secure wallet asks the user for a new passphrase.

3

The user enters his new passphrase twice.

4

The secure wallet stores the passphrase if both passphrases are
identical.

T

able 5: Selecting a passphrase

Step

Description

The user selects “passphrase”.

2

The secure wallet asks the user for a new passphrase.

3

The user enters his new passphrase twice.

4

The   secure   wallet   does   not   store   the   passphrase   if   both
passphrases are different.

Table 6: Selecting a passphrase

Open_TC Deliverable D08.2

60/109

background image





Security Services for a Trusted Mobile Application

Final

Unless the implementation of the secure wallet mechanism is robust, the following
additional threats may impact upon the device.

Unauthorised reading/copying of the passphrase on installation/input into the
device.

Unauthorised   modification   of   the   passphrase   on   installation/input   into   the
device.

Unauthorised   reading/copying   of   the   passphrase   while   in   storage   on   the
device.

Unauthorised modification of the passphrase while in storage on the device.

Using the list of threats outlined above, the following additional requirements can be
derived for a TMP, if it is to facilitate a robust implementation of the secure wallet
mechanism.

3. The   TMP   SHALL   provide   a   mechanism   so   that   a   passphrase  can   be

confidentiality-protected during its installation/input.

4. The TMP SHALL provide a mechanism so that a passphrase  can be integrity-

protected during its installation/input.

5. The TMP SHALL provide an access control mechanism so that a passphrase

can only be accessed by authorised entities.

6. The   TMP   SHALL   provide   a   mechanism   so   that   a   passphrase   can   be

confidentiality-protected while in storage on the device.

7. The TMP SHALL provide a mechanism so that a passphrase can be integrity-

protected while in storage on the device.

3.1.2.3 Authenticating a User

The passphrase set by the user, as described in section 3.1.2.2, is subsequently used
by the secure wallet application in order to authenticate a user attempting to gain
access as described in tables 7 and 8.

Step

Description

The system asks the user to authenticate him/herself.

2

The user enters a passphrase.

3

The   secure   wallet   compares   the   passphrase   to   the   stored
passphrase.

4

The secure wallet grants the user access.

Table 7: Authenticating a user

Step

Description

The system asks the user to authenticate himself.

2

The user enters a passphrase.

3

The   secure   wallet   compares   the   passphrase   to   the   stored
passphrase.

4

The secure wallet denies the user access.

Table 8: Authenticating a user (alternative)

This protocol does not introduce any additional threats.

Open_TC Deliverable D08.2

61/109

background image





Security Services for a Trusted Mobile Application

Final

3.1.2.4 Changing a Passphrase

A user passphrase may be changed using the processes described in tables 9 and 10.



Step

Description

The user selects “change passphrase”.

2

The secure wallet asks for a new passphrase.

3

The user enters his new passphrase twice.

4

The secure wallet updates the passphrase if both passphrases are
identical.

Table 9: Changing a passphrase

Step

Description

The user selects “change passphrase”.

2

The secure wallet asks for a new passphrase.

3

The user enters his new passphrase twice.

4

If   both   new   passphrases   are   not   identical   the   secure   wallet
displays an error message.

Table 10: Changing a passphrase (alternative)

This protocol does not introduce any additional threats.

3.1.2.5 Storing Sensitive Data

Tables  11  and  12  describe the process by which a user can store data (e.g. user
credentials) using the secure wallet mechanism.

Step

Description

The user selects “enter secret data”.

2

The user enters the data.

3

The user presses “OK” to confirm data storage.

4

The secure wallet presents a list of applications.

5

The user may select an application which may access the sensitive
data, e.g. a particular browser.

6

The sensitive data is securely stored for the chosen application.

Table 11: Storing sensitive data

Step

Description

The user selects “enter secret data”.

2

The user enters the data.

3

The  user  presses  “cancel”  to  abort  data  storage  and  nothing  is
stored.

Table 12: Storing sensitive data (alternative)

Unless the implementation of the secure wallet mechanism is robust, the following
additional threats may impact upon the device.

Unauthorised reading/copying of sensitive data on installation into the device.

Unauthorised modification of sensitive data on installation into the device.

Unauthorised reading/copying of sensitive data while in storage on the device.

Unauthorised modification of sensitive data while in storage on the device.

Using the list of threats outlined above, the following additional requirements can be

Open_TC Deliverable D08.2

62/109

background image





Security Services for a Trusted Mobile Application

Final

derived for a trusted mobile platform, if it is to facilitate a robust implementation of
the secure wallet mechanism.

8. The   TMP   SHALL   provide   a   mechanism   so   that   sensitive   data  can   be

confidentiality-protected during its installation.

9. The TMP SHALL provide a mechanism so that sensitive data can be integrity-

protected during its installation.

10.The TMP SHALL provide an access control mechanism so that sensitive data

can only be accessed by authorised entities.

11.The   TMP   SHALL   provide   a   mechanism   so   that   sensitive   data   can   be

confidentiality-protected while in storage on the device.

12.The TMP SHALL provide a mechanism so that sensitive data can be integrity-

protected while in storage on the device.

3.1.2.6 Accessing Secure Storage

Tables  13  and  14  describe   how   data   may   be   accessed   by   an   application.   In   the
current wallet implementation (which targets web logins), an http proxy that handles
the authentication (see Sec. 2.4) is the only application using the wallet.

Step

Description

An end-user works with an application.

2

The   application   requires   sensitive   data   (for   example,   when
connecting to a banking web server).

3

The application contacts the secure wallet.

4

The secure wallet gives the    application access  to the  sensitive
data.

5

The application uses the sensitive data.

Table 13: Accessing secure storage (application)

Step

Description

The user works with an application.

2

The   application   requires   sensitive   data   (for   example   when

connecting to a banking site).

3

The application contacts the secure wallet.

4

The secure wallet denies the application access to the sensitive

data.

Table 14: Accessing secure storage (application)(alternative)

Unless the implementation of the secure wallet mechanism is robust, the following
additional threats may impact upon the device.

Unauthorised reading/copying of the sensitive data while in use on the device.

Unauthorised modification of the sensitive data while in use on the device.

Using the list of threats outlined above, the following additional requirements can be
derived for a TMP, if it is to facilitate a robust implementation of the secure wallet
mechanism.

13.The   TMP   SHALL   provide   a   mechanism   so   that   the   sensitive   data  can   be

confidentiality-protected while in use on the device.

14.The   TMP   SHALL   provide   a   mechanism   so   that   the   sensitive   data  can   be

integrity-protected while in use on the device.

3.1.3 Summary of Requirements

This section summarises the requirements from the secure wallet use-case.

Open_TC Deliverable D08.2

63/109

background image





Security Services for a Trusted Mobile Application

Final

SecureWallet1:

  The TMP SHALL  provide  a mechanism so that the secure wallet

application code can be integrity-protected on installation into and in storage on the
device.

SecureWallet2:

The  TMP SHALL provide a mechanism so that  the secure wallet

application code can be integrity-protected while executing on the device.

SecureWallet3:

The TMP SHALL provide a mechanism so that a passphrase can be

confidentiality-protected during its installation/input.

SecureWallet4:

The TMP SHALL provide a mechanism so that a passphrase can be

integrity-protected during its installation/input.

SecureWallet5:

The TMP SHALL provide an access control mechanism so that a

passphrase can only be accessed by authorised entities.

SecureWallet6:

The TMP SHALL provide a mechanism so that a passphrase can be

confidentiality-protected while in storage on the device.

SecureWallet7:

The TMP SHALL provide a mechanism so that a passphrase can be

integrity-protected while in storage on the device.

SecureWallet8:

The TMP SHALL provide a mechanism so that the sensitive data can

be confidentiality-protected during its installation.

SecureWallet9:

The TMP SHALL provide a mechanism so that the sensitive data can

be integrity-protected during its installation.

SecureWallet10:

The TMP SHALL provide an access control mechanism so that the

sensitive data can only be accessed by authorised entities.

SecureWallet11:

The TMP SHALL provide a mechanism so that sensitive data can

be confidentiality-protected while in storage on the device.

SecureWallet12:

The TMP SHALL provide a mechanism so that sensitive data can

be integrity-protected while in storage on the device.

SecureWallet13:

The TMP SHALL provide a mechanism so that sensitive data  can

be confidentiality-protected while in use on the device.

SecureWallet14:

The TMP SHALL provide a mechanism so that sensitive data can

be integrity-protected while in use on the device.

3.2 Requirements Analysis

Requirements

SecureWallet1

 and

SecureWallet2

   necessitate that the integrity of

software (i.e. the secure wallet application) can be checked, and, that if unauthorised
modification is detected, that appropriate action is taken.

Open_TC Deliverable D08.2

64/109

background image





Security Services for a Trusted Mobile Application

Final

In order to meet requirement

SecureWallet1

  an authenticated boot mechanism in

combination with a secure storage mechanism could be used.

An   authenticated   boot   mechanism   facilitates   the   reliable   measurement   and
storage of the software state of a TMP; and

A secure storage mechanism ensures that security sensitive information, such
as a user passphrase, cannot be accessed and/or utilised if a specified platform
component,   for   example,   the   secure   wallet   code,   has   been   modified   in   an
unauthorised way.

Alternatively, in order to meet requirements

SecureWallet1

 and

SecureWallet2

, a

secure   boot   mechanism   could   be   deployed   to   ensure   that   only   legitimate   and
authorised software can be loaded at boot time. Run-time integrity protection and/or
verification   mechanisms   could   then   be   used   in   conjunction   with   a   secure   boot
mechanism   in   order   to   ensure   that   the   software   environment   remains   in   a
trustworthy state after boot.

A secure boot mechanism enables the reliable measurement and verification of
a TMP's software state at start-up. Any unauthorised, yet successful, attempt
to modify a protected software component should result in one of the following
three scenarios [23] at boot time.

The   system   could   continue   booting   as  normal   but   issue   a   warning.   This
approach   gives   little   protection   against   attack.   Malicious   or   corrupted
software components can still be executed.

The   system   could   opt   not   to   execute   the   component   whose   integrity   is
compromised. This, however, leaves the system open to denial of service
attacks.

Finally, the system could attempt to recover and correct the inconsistency
using a trusted source before executing or using the component.

A runtime integrity-checking mechanism facilitates the accurate measurement
and   verification   a   TMP's   software   state   while   it   is   in   operation.   Any
unauthorised   yet   successful   attempt   to   modify   a   protected   software
component, for example, the secure wallet application code, during runtime,
should result in one of the following two scenarios.

The system could continue as normal but issue a warning. This approach,
however,   gives   little   protection   against   attack.   Attacks   may   still   be
successfully   executed   against   software   components   running   on   the
platform.

The   system   could   make   the   majority   of   its   services   unavailable   if   the
integrity of a software component is compromised. The platform would then
have to be rebooted in order to transition back into a trusted state. This,
however, leaves the system open to denial of service attacks.

Alternatively, a mechanism, such as software isolation, which aims to prevent
an attack impacting the runtime integrity of the platform could be adopted.

Requirements

SecureWallet3

 to

SecureWallet14

 can be summarised as follows.

A mechanism is required so that data may be input into the TMP, where either
its:

o

Integrity; or

o

Integrity   and   confidentiality   must   be   protected   (i.e.   a   trusted   path   is
required).

A mechanism is required so that data stored on the TMP is protected with
respect to its:

Open_TC Deliverable D08.2

65/109

background image





Security Services for a Trusted Mobile Application

Final

o

Integrity; or

o

Integrity and confidentiality.

A mechanism is required so that confidentiality and integrity-protected data
can   only   be   accessed   by   authorised   entities,   for   example   the   secure   wallet
mechanism running as expected.

A mechanism is required so that data in use on the TMP is protected with
respect to its:

o

Integrity; or

o

Integrity and confidentiality.

Protected storage functionality, which enables data to be protected on input into,
while in storage on and while in use on a device is necessary so that requirements

SecureWallet3

 to

SecureWallet14

 can be met.

3.3 TCG Mappings

In this section we consider whether and how the functional requirements summarised
in section 3.1.3 can be met assuming a TMP as defined by the TCG Mobile Phone
Working Group (MPWG) in [63] and [64] which also incorporates an isolation layer
(namely, an L4 microkernel).

In section 3.3.1 the model defined in section 2.4.2 is re-examined and modified to
support a TMP. This section also describes the properties of a TMP, as defined in the
previous  paragraph,  and  assumed for the  remainder  of this  section. Section 3.3.2
explores the fundamental command runs which need to be completed on any TCG
compliant MTM before its security mechanisms can be utilised. Sections 3.3.3 and
3.3.4 examine authenticated and secure boot mechanisms. Section 3.3.5 examines
runtime integrity protection and verification mechanisms. Section 3.3.6 shows how
secure  storage  can  be   provided.  Section   3.3.7   describes  the  process  by  which  an
entity can demonstrate knowledge of an authorisation value/secret bound to a key
object, data object, or an 'owner authorised command' so that access to the object or
use of an 'owner authorised command' can be permitted by an MTM. We conclude in
section 3.3.8.

3.3.1 Revised Architectural Model

We now revisit the secure wallet use-case architectural model  described in section
2.4.2.  We  require   the  addition   of  a  new   functional   component,   namely   a   TMP,  in
place of the mobile device shown in figure 24.

Open_TC Deliverable D08.2

66/109

background image





Security Services for a Trusted Mobile Application

Final

Figure 24: Secure wallet architecture

A TMP, as defined by the TCG

[63,64]

 is comprised of a set of engines, whereby an

engine is described as a construct capable of manipulating data, providing evidence
that it can be trusted to report the current state of the host platform and providing
evidence   about   the   host   platform's   current   state.   Each   trusted   mobile   platform
stakeholder has its own engine, where the principal stakeholders in a mobile phone
include   the   device   manufacturer,   network   operator,   service   providers   and   users.
Each   engine   provides   platform   services   on   behalf   of   its   stakeholder   and   also
incorporates  functionality  similar  in many  ways  to a  traditional  TCG  PC  platform.
Each engine

[63]

:

has protected capabilities and shielded locations such that trusted services,
which must not be subverted, can be implemented;

can   use   attestation   identities   to   prove   that   information   originated   from   a
trusted platform;

has access to a set of 'roots-of trust' such that 'normal services' provided by the
engine can be measured and those measurements reported;

has access to protected storage functionality, with a Storage Root Key and its
subsequent hierarchy; and

may implement other TCG functions depending on the intended functionality of
the engine's 'measured normal services' (see bullet three above).

TMP engines may be categorised as either mandatory or discretionary.

A   mandatory   engine   provides   the   prerequisite   functionality   of   a   TMP,   for
example that required to comply with regulations which govern the operation
of   mobile   platforms   in   cellular   radio   systems.   Mandatory   engines   must   be
supported by a Mobile Remote owner Trusted Module (MRTM), which supports
secure boot and does not permit a local operator to remove the stakeholder
from the engine.

A   discretionary   engine   provides   services   that   may   be   added,   removed   and
turned   on/of   without   the   consent   of   any   external   service   provider.
Discretionary   engines   must   be   supported   by   a   Mobile   Local   owner   Trusted
Module (MLTM), which is not required to support secure boot and permits a
local operator to remove the stakeholder from the engine.

The device manufacturer and device owner define the mandatory engines which may
exist   on   their   platforms.   A   device   owner   may   also   list   the   discretionary   engines

Open_TC Deliverable D08.2

67/109

background image





Security Services for a Trusted Mobile Application

Final

permitted.

An engine may be implemented using trusted and/or measured resources. In order to
construct a trusted resource, namely a 'root of trust', a trusted entity must vouch for
a specific instantiation of that resource

[63]

. Alternatively, in the case of a measured

resource,   a   reliable   entity   measures   an   instantiation   of   a   resource   and   a   second
reliable entity provides a trustworthy reference measurement for comparison

[63]

. A

TMP, as defined here, is also assumed to enable isolated execution of software.

There are numerous scenarios which may result in the implementation of a secure
wallet mechanism as described in section 2.1. The secure wallet may, for example, be
provided by a third party service provider and implemented by a TMP end-user who
may be the device owner. Such a service is non-essential and therefore provided on
the device by a service provider discretionary engine. This particular service provider
engine would be listed in the DeviceOwner_discretionaryEngineList and is supported
by   an   MLTM.   In   this   case,   the   local   operator/end   user   of   the   device   would   be
permitted to remove the service provider from the engine at any stage.

Alternatively, we can envisage a scenario in which a corporate entity is the device
owner and requires all device operators (namely employees) to use the secure wallet
mechanism. In this case, the device owner may list the agent installer engine which
provides the  secure  wallet  functionality  in the  DeviceOwner_mandatoryEngineList.
This implies that the engine would be supported by an MRTM and would not permit a
local operator to remove the stakeholder from the engine.

In short, we can imagine scenarios in which the engine providing the secure wallet
mechanism is discretionary and supported by an MLTM and, equally, scenarios in
which the engine is mandatory and therefore supported by an MRTM.

In   the   remainder   of   this   chapter,   we   investigate   whether   the   trusted   computing
mechanisms   provided   by   discretionary   and   mandatory   TMP   engines   meet   the
requirements described in section 3.1.3. If a particular mechanism is provided by a
TMP, we examine the architecture components and commands required to leverage
it.

3.3.2 Fundamental MTM command runs

Before we examine the MTM commands, which can be used to fulfil authenticated
boot, secure boot and secure storage requirements, as described in section 3.2, we
review a number of MTM commands which need to be executed in order to initialise
an MTM for use.

3.3.2.1 MTM Permanent Flags

Firstly, in table 15, we define a number of MTM permanent flags the use of which is
discussed   in   this   chapter.   MTM   permanent   flags   are   used   to   maintain   the   state
information for the MTM [65]. The values of these commands are not affected by the

TPM_Startup

command.

Name

Description

TPM_PF_READPUBEK

This flag may be set to

TRUE

or

FALSE

. It indicates whether the

public endorsement key can be read with or without owner

Open_TC Deliverable D08.2

68/109

background image





Security Services for a Trusted Mobile Application

Final

Name

Description

authorisation. The default value is

TRUE

.

TPM_PF_DISABLE

This flag may be set to

TRUE

or

FALSE

and indicates whether

MTM is disabled or enabled. The default value is

TRUE

.

TPM_PF_OWNERSHIP

This flag may be set to

TRUE

or

FALSE

and indicates whether or

not an entity can be take ownership of the MTM. The default
value is

TRUE

.

TPM_PF_DEACTIVATED

This flag may be set to

TRUE

or

FALSE

and indicates whether

the MTM is deactivated or activated. The default value is

TRUE

.

Table 15: MTM permanent flags

3.3.2.2 MTM Initialisation

The MTM must be first be initialised.

TPM_Init

 is a physical method of initialising the

MTM. This command puts the MTM into a state where it waits for

TPM_Startup

, a

command   which   specifies   the   type   of   the   initialisation   required.   The   MTM
initialisation command is shown in table 16. This command must be implemented in
both an MRTM and an MLTM.

TPM_Init

T

able 16: MTM initialisation

3.3.2.3 MTM Start-up

After MTM initialisation the MTM must be started up. The

TPM_Startup

 command is

always preceded by

TPM_Init

. This command must be implemented in both an MRTM

and an MLTM. An MTM can startup in one of three possible modes. The chosen mode
depends on the event that caused the reset and the operations on the MTM that need
to be completed in response to the event. The 3 modes include:

clear

 start,

save

 start

and

deactivated

 state. For an initial engine start up, a

clear

 start would normally be

used, where all variables go to their default or non-volatile values. During a

save

 start

the   MTM   recovers   and   restores  variable   values  saved   on   a   prior

TPM_SaveState

During a

deactivated

  start an MTM turns itself off and requires another

TPM_Init

before the MTM will execute in a fully operational state. A

clear

 start is permitted by

an   MRTM   and   an   MLTM.   A

save

  start   is   dependent   on   the   implementation   of

TPM_SaveState

, which is an optional command on both an MRTM and an MLTM. A

deactivated

  start   must   not   be   supported   by   an   MRTM   and   may   be   optionally

supported by an MLTM.  The

TPM_Startup

  command is shown in table  17  and the

T

PM_SaveState

 is shown in table 18.

TPM_Startup

Table 17: MTM start-up

TPM_SaveState

Table 18: MTM save state

Open_TC Deliverable D08.2

69/109

background image





Security Services for a Trusted Mobile Application

Final

3.3.2.4 MTM Self-testing

During the initialisation process, there are a minimal set of self tests completed by
the MTM. In order to ensure a more thorough self test the commands shown in table
19 may be executed. Results of self tests are held in the MTM and can be retrieved
using the command described in table  20. These three commands are required in
both an MRTM and an MLTM.

Continue self-test process:

TPM ContinueSelfTest

This command causes the MTM to test
the MTM internal functions not tested

at initialisation.

Complete a full self-test:

TPM_SelfTestFull

Requests   that   the   MTM   completes   a
full self test.

Table 19: Self testing

TPM_GetTestResult

Table 20: Retrieving self test results

3.3.2.5 Endorsement Key Generation

The endorsement key pair is defined as optional in a TMP MRTM and mandatory in a
TMP MLTM. If an endorsement key pair is used however, the command set which
enables   its   handling   must   be   implemented.  An   endorsement   key   pair   may   be
generated using an external key generator. Alternatively, an  endorsement key pair
may   be   generated   using   either   of   the   commands   shown   in   table  21.   The

TPM_CreateEndorsementKeyPair

  command   may   be   optionally   implemented   in   an

MRTM but is required in an MLTM. The

TPM_CreateRevokableEK

command, which

causes a revocable endorsement key pair to be generated, may also be implemented
on an MRTM and an MLTM as it is considered optional for both.

Before   generating   an   endorsement   key   pair,  calls   may   be   made   to   the

TPM_GetCapability

 to determine whether or not an endorsement key already exists.

TPM_CreateEndorsementKeyPair

TPM_CreateRevokableEK

Table 21: Creating an endorsement key pair

3.3.2.6 Accessing a Public Endorsement Key

Table 22 shows how a public endorsement key can be accessed. Access to the public
endorsement key is necessary before an entity can take ownership of an MTM as it is
used during the take ownership process in order to input data into the MTM securely.

TPM_ReadPubek



is   required   in   an   MRTM   if   indeed   the

TPM_CreateEndorsementKeyPair

has been implemented. Otherwise, the command is

unnecessary.   The

TPM_ReadPubek

command   is   required   in   an   MLTM.   The

TPM_OwnerReadInternalPub

is   optional   in   an   MRTM   (as   was   the   case   for

Open_TC Deliverable D08.2

70/109

background image





Security Services for a Trusted Mobile Application

Final

RPM_ReadPubek;

its   implementation   will   be   dependent   on   the   implementation   of

TPM_CreateEndorsementKeyPair

) and required in an MLTM.

Open access to the public endorsement key:

TPM_ReadPubek

Disable the public read of public endorsement key:

Often   by   default,   once   the   MTM   has   acquired   an   owner,   the   flag   which
indicates whether or not open access to the public endorsement key is allowed,

TPM_PF_READPUBEK

, is set to

FALSE

 so that the public endorsement key can

only be read by the MTM owner. This flag may however be changed using the

optional

TPM_SetCapability

 command which requires owner authorisation.

TPM_SetCapability

MTM owner read of public endorsement key:

TPM_OwnerReadInternalPub

Table 22: Accessing the public endorsement key

3.3.2.7 Enabling an MTM

The MTM must be enabled; that is the

PM_PF_DISABLE

 flag must be set to

FALSE

. It

is assumed that an MRTM is always enabled. In the case of an MLTM, this may be
achieved using the required commands shown in table 23.

TPM_PhysicalEnable

The MTM owner must enable the platform before any
MTM commands can be utilised.

Table 23: Physically enabling an MTM

In   order   to   physically   disable   the   MLTM   before   it   has   acquired   an   owner,   the
commands shown in table 24 can be executed.

TPM_PhysicalDisable

Table 24: Physically disabling an MTM

Once an MLTM has acquired an owner, he or she may also enable or disable the
MTM using the required

TPM_OwnerSetDisable

 command which changes the state of

the

TPM_PF_DISABLE

 flag to either

TRUE

 or

FALSE

. This command is shown in table

25.

TPM_OwnerSetDisable

Used to change the status of the

TPM_PF_DISABLE

flag.

Table 25: Enabling/Disabling an MTM

3.3.2.8 The Ownership Flag

In   order   for   a   user   to   take   ownership   of   an   MTM,   the   ownership   flag,

TPM_PF_OWNERSHIP

 flag must be set to

TRUE

 using the commands shown in table

26. In an MRTM the default value for this flag is

TRUE

, so this command is excluded

Open_TC Deliverable D08.2

71/109

background image





Security Services for a Trusted Mobile Application

Final

and in an MLTM this command is required.

 TPM_SetOwnerInstall

Used to set the value of the

TPM_PF_OWNERSHIP

flag to

TRUE

 so that an entity can take ownership of

an MTM.

Table 26: Setting the state of the '

TPM_PF_OWNERSHIP

' flag

3.3.2.9 Taking Ownership of an MTM

In an MRTM the

TPM_TakeOwnership

 command is optional. This command may not

be necessary if there is no endorsement key pair and an AIK and SRK have been pre-
installed. In order for an entity to take ownership of an MLTM, the following steps
must be completed.

1. The public endorsement key must be accessed, as described in table 22.
2. MTM owner authorisation data must be input into the MTM.
3. An SRK must be generated inside the MTM.
4. The authorisation data for the SRK must be input (if required) into the MTM.
5. A tpmproof must be generated. A tmpProof is a 160-bit secret that is generated

by the MTM when the

TPM_TakeOwnership

command is executed. This secret

is   associated   with   non-migratable   objects   so   that   an   MTM   can   identify   the
objects which it has created.

Steps 2 to 5 can be completed using the take ownership command shown in table 27.

TPM_TakeOwnership

Table 27: Taking ownership of an MTM

3.3.2.10 MTM Activation

Finally, an MTM must be activated; this will result in the

TPM_PF_ACTIVATED

  flag

being set to

FALSE

. It is assumed that an MRTM is always activated. In the case of an

MLTM, this may be achieved using the required command shown in table 28.

TPM_PhysicalSetDeactivated

Table 28: Activating an MTM

3.3.3 Authenticated Boot Process

SecureWallet1

  to

SecureWallet14

, as described in section 3.2, may be partially

met   through   the   deployment   of   an   authenticated   boot   mechanism,   where   an
authenticated boot is defined as the process by which the state of a platform engine
can be reliably measured and stored.

An authenticated boot is supported by both a mandatory and a discretionary TMP
engine as defined in  [63]. In order to support such a mechanism an engine must
comprise of a Root of Trust for Measurement (RTM) and a Root of Trust for Storage
(RTS).

A RTM is required to accurately measure at least one integrity measurement in
an   engine,   and   report   the   integrity   measurement   to   the   RTS.   This   may   be
accomplished using the MTM PCR extension command,

TPM_Extend.

Open_TC Deliverable D08.2

72/109

background image





Security Services for a Trusted Mobile Application

Final

A RTS is required to accept integrity measurements and record them. Both an
MRTM   and   an   MLTM,   which   incorporate   the   RTS   in   a   mandatory   and   a
discretionary   engine   respectively,   are   required   to   have   a   set   of   Platform
Configuration Registers.

It   is   envisaged   that   an   authenticated   boot   process   for   a   TMP   engine   will   closely
resemble   that   of   a   PC   platform.   Very   basically,   an   engine   RTM   may   for   example
measure   its   own   configuration   and   the   configuration   of   img1   (the   next   software
component   to   be   loaded   and   executed   on   the   platform   engine),   saving   the
measurement to an MTM PCR and a summary of the measurement to a log file stored
on   the   engine.   Measurement   functionality   integrated   into   img1   continues   the
measurement   process,   saving   the   measurement   of   img2   (the   next   software
component to be loaded and executed on the platform engine), to an MTM PCR and a
summary to the log file. It then passes control to img2. This process continues until
all the specified software in the engine has been reliably measured. Measurements
stored during the authenticated boot process may be utilised in secure storage and
attestation   mechanisms.   The   exact   process   by   which   a   trusted  mobile   platform  is
booted, its integrity measured and its integrity measurements stored, needs to be
specified for each TMP architecture, just as for the PC client in [66].

3.3.4 Secure Boot Process

SecureWallet1

  and

SecureWallet2

  as defined  in section 3.2, may be met through

the deployment of a secure boot mechanism, where a secure boot is defined as the
process   by   which   the   state   of   an   engine   can   be   reliably   measured,   verified   and
stored.
A secure boot mechanism must be supported by a mandatory device manufacturer
engine, should be supported by all other mandatory engines and may be supported by
discretionary   engines.   In   order   to   support   such   a   mechanism   an   engine   must
incorporate a RTM, a RTS and a Root of Trust for Verification (RTV).

A RTM is required to accurately measure at least one integrity measurement in
an engine, and report the integrity measurement to the RTV.

A RTV is required to accept an integrity measurement from the RTM and verify
it against the corresponding reference integrity measurement before reporting
it to the RTS. This is accomplished using the

MTM_VerifyRIMCertAndExtend

.

A RTS is required to accept integrity measurements from the RTV and record
them.   Both   an   MRTM   and   an   MLTM,   which   incorporate   the   RTS   for   a
mandatory and a discretionary engine respectively, are required to have a set
of PCRs.

Before an engine can be securely booted, it must be provisioned with an asymmetric
public key called a Root Verification Authority Identifier (RVAI). The RVAI must be
integrity-protected   within   an   MTM.   For   example,   an   integrity   check   sum   for   the
asymmetric public key may be stored in an MTM shielded location. Alternatively, the
asymmetric public key may be signed using a private key associated with the MTM.

The corresponding RVAI private key is securely stored by the engine's stakeholder.
The root verification authority, i.e. the engine's stakeholder, may use the private key
to either sign:

a certificate which contains a reference integrity measurement for a particular
software component, namely a RIM_Cert; or

a   Rim_Auth_Cert,   in   which   the   public   key   of   another   authority   (a   so-called

Open_TC Deliverable D08.2

73/109

background image





Security Services for a Trusted Mobile Application

Final

RIM_Auth) is authorised to create/sign RIM_Certs

.

A   RIM_Cert   may   be   classified   as   external   or   internal.   External   RIM_Certs   are
generated outside the MTM, may be valid for a number of platforms and are signed
by   RIM_Auths.   Internal   RIM_Certs   are   generated   from   external   RIM_Certs   and
authorised by the engine itself. Internal RIM_Certs are integrity protected using an
engine's internal verification key, a secret unique to the engine's MTM.

An MTM which enables a secure boot must also support two monotonic counters:

counterBootstrap

,   which   is   used   in   order   to   verify   the   validity   of   the   first

executable image; and

counterRIMProtect

, which is used to protect internal RIM_Certs from re-flash

attacks.

To summarise, in table  29, we define the MTM permanent data associated with an
engine's secure boot mechanism.

Name

Description

counterBootstrap

This field contains the current value of the counterBootstrap
monotonic counter.

counterRimProtectId

This field contains the current value of the counterRIMProtect

monotonic counter.

integrityCheckRootSize

This field indicates the length of the data held in the

integrityCheckRootData

field in bytes.

integrityCheckRootData

This field contains an immutable cryptographic binding of a

single MRTM instance to (a) RVAI(s) in the case of a mandatory
engine or an immutable cryptographic binding of a single MLTM

instance to (a) RVAI(s) in the case of a discretionary engine.

internalVerificationKey

This field contains a secret unique to an MTM used in the
creation (i.e. authorisation and integrity protection) of internal

RIM_Certs from external RIM_certs.

Table 29: MTM permanent flags

A   RVAI   and   a   Rim_Auth_Cert   are   represented   in   an   MTM   by   the

TPM_VERIFICATION_KEY

structure



which is composed of the parameters defined in

table 30.

Name

Description

tag

This   field

contains

the

value

'

TPM_TAG_VERIFICATION_KEY

'.

usageFlags

This field define the capabilities associated

with the key.

parentId

This field contains an identifier for the key's
parent key, if indeed one exists.

myId

This field contains an identifier for the key

defined in the structure.

referenceCounter

This field defines the name and the value of

Open_TC Deliverable D08.2

74/109

background image





Security Services for a Trusted Mobile Application

Final

the counter to which the key structure is
bound.

keyAlgorithm

This field contains an algorithm identifier for

the key.

keyScheme

This field defines the manner by which the

integrityCheckData

 field can be validated

using the

keyData

.

extensionDigestSize

The length in bytes of the

extensionDigest

field

extensionDigest

A buffer containing a hash of the proprietary

extension data.

keySize

The length of the

keyData

 field.

keyData

The verification key, be it a RVAI or indeed a
RIM_Auth key.

integrityCheckSize

The length of the

integrityCheckData

 field.

integrityCheckData

An integrity check of the

TPM_VERIFICATION_KEY

.

Table 30:

TPM_VERIFICATION_KEY

 structure

A Rim_Cert takes the form of a

TPM_RIM_CERTIFICATE

structure which is composed

of the parameters defined in table 31.

Name

Description

tag

Must be set to

TPM_TAG_RIM_CERTIFIC

ATE

label

A proprietary label.

rimVersion

A version number for the RIM certificate.

referenceCounter

This field defines the name and the value of
the counter to which the key structure is

bound.

state

This field contains the expected values of the
engine's PCRs at the time of certificate use.

Unless the value in this field matches that of
the engine's PCRs the certificate will not be

accepted.

measurementPcrIndex

This field specifies the PCR that is to be
extended with

measurementValue

 using the

TPM_VerifyRIMCertAndExtend

 command.

measurementValue

This field contains the value to be extended
into the PCR – '

measurementPcrIndex

'.

parentId

The identity of the key of the

TPM_VERIFICATION_KEY

 used to verify the

structure.

extensionDigestSize

The length in bytes of the

extensionDigest

.

extensionDigest

This field contains a hash of the proprietary

extension data.

integrityCheckSize

The length of the data in the

Open_TC Deliverable D08.2

75/109

background image





Security Services for a Trusted Mobile Application

Final

'

integrityCheckData

' field.

integrityCheckData

An integrity check on the

TPM_RIM_CERTIFICATE

.

Table 31:

TPM_RIM_CERTIFICATE

 structure

In order to enable a secure boot process, RIM_Certs must initially be installed in an
engine. The command used for RIM installation is shown in table 32. This command
is used to generate internal RIM certificates from external RIM certificates.  During
this conversion:

all fields of the external RIM_Cert input are written to the structure for an
internal RIM_Cert.

the



counterReference



->



counterSelection



field   is   set   to

MTM_COUNTER_SELECT_RIMPROTECT

.

the value of the permanent data field counterRIMProtectId +1 is inserted into
the

counterReference

 ->

counterValue

 field.

the

integrityCheckdata

  for   the   internal   RIM_Cert   is   generated   using   the

TPM_Internal_Verification_Key

  as a HMAC key and written to

rimCertOut

  ->

integrityCheckData

.

The   size   of   the

integrityCheckData

  is   written   into   the

rimCertOut

  ->

integrityCheckDataSize

.

TPM_InstallRIM

Table 32: RIM installation

The resultant internal RIM_Certs can be checked using

TPM_VerifyRIMCert

 as shown

in table 33.

TPM_VerifyRIMCert

When   this   command   is   called   the   RIM_Cert
syntax,   verification   key,   counter   value   and

integrityCheckData are validated.

Table 33: RIM_Cert verification

The

TPM_LoadVerificationKey

  command,   shown   in   table  34,   is   used   to   load

verification keys into an MTM (including the RVAI). Verification key loading can be
authorised using one of the following means.

1. The   key   may   be   loaded   into   the   MTM   before   integrity   checking   has   been

enabled,   i.e.   the

MTM_STANY_FLAG

  ->

loadVerificationrootKeyEnabled

  =

TRUE

.

This enables a verification root key (namely a RVAI) to be loaded when the

MTM  is first manufactured or customised for a particular engine.

2. A   cryptographic   hash   or   equivalent   may   be   embedded   in

MTM_PERMANANT_DATA

 ->

integrityCheckRootData

 in the MTM.

3. The loading may be authorised by the MTM owner.
4. The key to be loaded may be signed by an authentic, authorised and already

loaded

TPM_VERIFICATION_KEY

.

TPM_LoadVerificationKey

Table 34: Loading a verification key

Open_TC Deliverable D08.2

76/109

background image





Security Services for a Trusted Mobile Application

Final

The

  TPM_LoadVerificationRootKeyDisable

command, as shown in table  35,



disables

the functionality to load a verification root key as described in step 1 above.

TPM_LoadVerificationRootKeyDisable

This



command



sets

loadVerificationrootKeyEnabled = FALSE

Table 35: Disabling the loading of a root verification key

The

 TPM_IncrementBootstrapCounter

command increments

MTM_Permanent_Data

 –

>

CounterBootstrap

. In order to execute this command a RIM_Cert containing the

incremented   counter   value   and   signed   using   as

TPM_VERIFICATION_KEY

  whose

usage   flags   have



TPM_VERIFICATION_KEY_USAGE_SIGN_RIM_CERT



and

TPM_VERIFICATION _KEY_USAGE_INCREMENT_BOOTSTRAP

 set must be input.

TPM_IncrementBootstrapCounter

Table 36: Incrementing a bootstrap counter

The



TPM_SetVerifiedPCRSelection



command

is

used

to

set

MTM_PERMANANT_DATA -> verifiedPCRs. This field lists the PCRs into which only
verified   measurement   values   can   be   written.   This   command   may   be   called   when

MTM_STANY_FLAG

  ->

loadVerificationrootKeyEnabled

  =

TRUE

,  else   it   requires

MTM owner authorisation.

TPM_SetVerifiedPCRSelection

Table 37: Setting verified PCRs

As   stated   above,   the

TPM_VerifiyRIMCertAndExtend

  command   is   used   to   verify   a

measurement against a RIM contained in the corresponding RIM_Cert and, given a
successful   validation,   to   extend   the   PCR   listed   in   the   RIM_Cert   with   the
measurement.

TPM_ VerifiyRIMCertAndExtend

Table 38: Measurement verification and PCR extension

Given the scenario in which a corporate entity is the device owner who requires all
device   operators   (namely   employees)   to   use   the   secure   wallet   mechanism   and
assuming   therefore   that   the   device   owner   has   listed   the   service   provider   engine
which



provides



the



secure



wallet



functionality



in



the

DeviceOwner_mandatoryEngineList

,   and   that   the   service   provider   engine   is

supported by an MRTM, the secure boot of this engine may proceed as follows.

Prior to a secure boot:

1. A service provider RVAI must be loaded using

MTM_LoadVerificationKey

.

2. Once the RVAI has been loaded, the flag which enables a

TPM_VERIFICATION_KEY

 to be loaded without the completion of any integrity

checks, must be set to false,

MTM_STANY_FLAGS

 ->

loadVerificationrootKeyEnabled

 =

FALSE

, using the

MTM_LoadVerificationRootKeyDisable

 command.

3. MTM permanent data must be set:

MTM_PERMANENT_DATA

 ->

counterBootstrap

 = the current value of the Bootstrap counter

counterRIMProtectId

 = the current value of the RIMProtect counter

integrityCheckRootSize

 = the size of an integrity value for the RVAI

Open_TC Deliverable D08.2

77/109

background image





Security Services for a Trusted Mobile Application

Final

integrityCheckRootData

 = the value of an integrity value for the RVAI

internalVerificationData

 = the engine's internal verification key

verificationAuth

 = the

verificationAuth

 used to authorise

MTM_InstallRIM

 and

updates of the

counterRIMProtect

.

4. While   the   RVAI   may   be   used   either   to   sign   a   RIM_Auth_Certs   or   sign   a

RIM_Cert   it   is   considered   best   policy   to   use   the   RVAI   for   signing
RIM_Auth_Certs only.
For this use-case we therefore require the generation and upload of a second
public key pair which is then used in order to protect secure wallet data using

MTM_LoadVerificationKey

.

5. The   private   key   from   this   newly   loaded   RIM_Auth   key   is   then   used   by   the

service provider to sign an external RIM_Cert for the secure wallet application.
This  RIM_Cert   must   then   be   installed  on   the   service   provider   engine   using

MTM_InstallRIM.

6. Once   an   internal   RIM_Cert   has   been   created   it   may   be   verified   within   the

engine using the

MTM_VerifyRIMCert

 command.

7. Finally, the MTM owner must specify the PCR which is to be extended with a

verified   secure   wallet   application   measurement   using   the

MTM_SetVerifiedPCRSelection

 command.

Following this the RTM, i.e. the first measurement agent running within an engine,
can retrieve a list of components to be measured (for simplicity sake, we assume that
the   secure   wallet   is   the   only   component   within   this   engine   to   be   measured   and
verified) and measures the first component. The RTV, i.e. the first verification engine
agent running within an engine, then retrieves the expected value of the measured
component and calls

MTM_VerifyRIMCertAndExtend

 which results in the comparison

of   the   calculated   measurement   against   the   expected   software   component's
measurement. The measurement is then stored to an MTM PCR by the RTS and a
summary of the measurement stored to a log file in the engine. If at any point the
expected value of a software component cannot be located or indeed an expected
value does not match the measured value then the boot process is aborted.

The exact process by which a trusted mobile platform is securely booted, its integrity
measured, verified and its integrity measurements stored, needs to be specified for
each TMP architecture, just as for the PC client in [66].

3.3.5 Maintaining Integrity

As  stated  in  the   previous  section,  TMP   engines  (with   the   exception   of  the   device
manufacturer   engine)   are   not   required   to   support   a   RTV.   An   engine   which   does
support   a   RTV,   and   therefore   a   secure   boot   mechanism,   may   also   support   a
mechanism which enables the integrity of an engine to be maintained after boot.
Within   the   mobile   reference   architecture  [63]  three  engine   states   are   described,
namely

initialisation

success

 and

failed

:

An

initialisation

  state  indicates that the RTS is not fully operational and that

since start-up no software measurements have yet been verified.

success

 state represents the state of an engine when the RTS is operational

and all software measurements which require verification have been matched
to their corresponding RIMs.

failed

 state indicates that the RTS is not operational (and cannot become so)

or that, since start-up, some integrity measurement which required verification

Open_TC Deliverable D08.2

78/109

background image





Security Services for a Trusted Mobile Application

Final

has failed to a match its expected RIM.

Ideally,   a   platform   would   remain   in   a

success

  state   during   run-time.   In   order   to

achieve this a preventative approach is required to run-time integrity maintenance.
Suggested mechanisms which enable an engine to remain in a

success

 state include

but are not limited to the following.

The protection of critical functions using hardware. In this case program code
or   critical   data   could   be   stored   in   Read   Only   Memory   (ROM)   or   one-time
programmable memory, for example.

Software may be isolated using hardware mechanisms (whereby critical MTM
functionality   is   implemented   on   a   separate   chip   for   example)   or,   indeed,
software mechanisms (through the use of a trusted execution environment or
full virtualisation).

Software may be simplified. By reducing the complexity and size of software it
becomes easier to make it error free and verify it as such.

The installation of particular types of software may be heavily restricted. For
example,   the   installation   of   native   software   may   not   be   permitted.
Alternatively, an operating system may enforce strong access controls which
restrict the installation of certain software.

Certain   security   checks   may   be   completed   on   software   at   installation,   for
example,   verification   of   integrity   checks,   public   key   certificates,   digital
signatures   and   the   code   itself.   Given   a   failed   integrity   check,   certificate
revocation, a failed digital signature verification or indeed if on examination
code   contains   the   signature   of   known   malware,   the   application   will   not   be
loaded onto the device.

Alternatively, a platform may transition from a

success

 state to a

failed

 state. In this

case,   the   transition   must   be   detected   and   the   consequences   of   such   a   transition
limited. A reactive approach to run-time integrity is comprised of two elements: a
detection element and a reaction element.

The   detection   element   described   within   the   mobile   reference   architecture   is
essentially an extension of the secure boot mechanism. It requires a Primary Run-
time   Measurement/Verification   Agent   (PRMVA)   which   must   reliably   measure   and
verify   at   least   one   software   component   running   on   the   host   engine.   A   secondary
RMVA, which is measured and verified by the PRMVA may also exist if the PRMVA is
unable to perform all the necessary checks alone.
The expected runtime RIM of a software component may be different to the expected
boot time RIM. Therefore, run-time measurements are verified against run-time RIMs
contained within RIM_run Certs. A RIM_run Cert may be classified as external or
internal and may be in the form of a RIM_Cert or indeed in a proprietary format. An
external RIM_run Cert may be created by the engine's stakeholder and input into the
device.   Alternatively,   RIM_run   Certs   may   be   generated   by   the   engine   itself   by
measuring each code image just after it has been launched. It is pivotal, however,
that every effort is made to ensure that false negatives between run-time software
component measurements and RIM_run Certs are avoided. In order to achieve this a
software image may be loaded into the same memory location each time, for example,

Open_TC Deliverable D08.2

79/109

background image





Security Services for a Trusted Mobile Application

Final

or the static part of a software component may be measured as opposed to the entire
component.

An engine's stakeholder specifies how often and/or under what conditions runtime
measurement   and   verification   occurs.   Policies   for   run-time   measurement   and
verification   essentially   fall   into   one   of   two   classes,   time-based   checks   which   are
completed at regular intervals or alternatively, event-based checks.

3.3.6 Secure Storage

Requirements

SecureWallet3

 to

SecureWallet14

 can be partially met through the

deployment of a secure storage mechanism.

3.3.6.1 Key Hierarchy

Each TMP stakeholder can incorporate his own key hierarchy. Here the focus is on
the secure wallet provider. A sample key hierarchy from a secure wallet provider
engine is represented in figure 25.

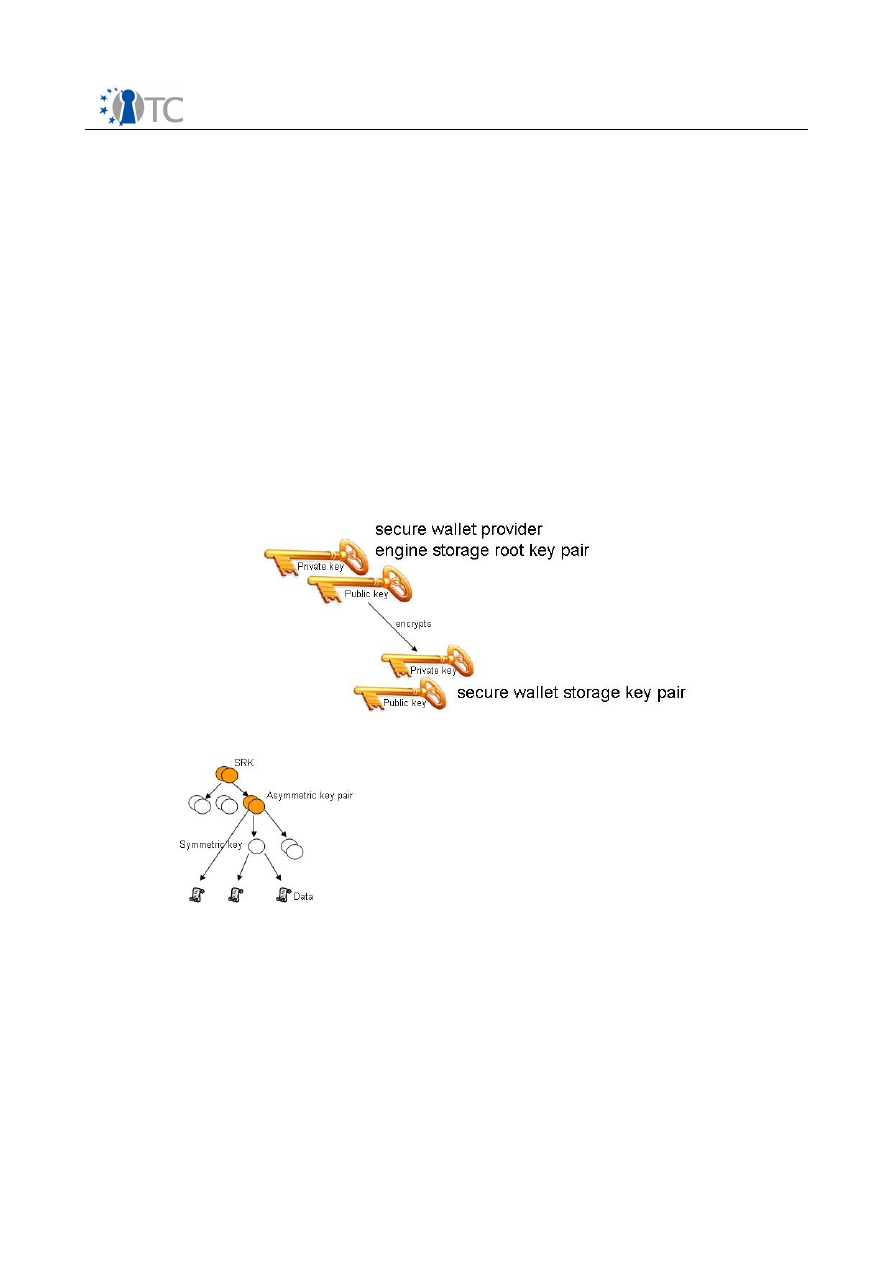

Figure 25: A sample key hierarchy from a secure wallet provider engine

3.3.6.2 Installing Integrity and Confidentiality Sensitive Data

In   order   to   import   sensitive   data   into   a   secure   wallet   for   protection,   a   secure
transport session can be set up with the engine's MTM so that all input parameters
into  the   secure   storage   commands  described  below   can   be   protected  while   being
communicated to the MTM.

Transport security enables the establishment of a secure channel between the MTM

Open_TC Deliverable D08.2

80/109

background image





Security Services for a Trusted Mobile Application

Final

and secure processes, o

ff

ering confidentiality and integrity protection of commands

sent to the MTM. It also provides a logging function such that all commands sent to
the MTM during a transport session can be recorded.

Session establishment involves the generation of 20 bytes of transport authorisation
data   by   the   caller,   for   use   between   the   caller   and   the   MTM.   This   transport
authorisation data has two purposes:

It is used to generate a secret key for use in encrypting commands from the
application to the MTM; and

It is also used to generate a secret HMAC key to provide origin authentication
and integrity protection for the

TPM_ExecuteTransport

 command.

The authorisation data is generated by the caller and encrypted under a public key
whose   corresponding   private   key   is   available   only   to   the   MTM.   The   key   used   is
pointed to in the

encHandle

 field of the

TPM_EstablishTransport

 command.

A transport session is established, used and terminated using the commands shown
in table 39.

Establish transport session:

TPM_EstablishTransport

Execute transport session:

TPM_ExecuteTransport

Close transport session:

This command completes the transport session, and if logging is switched on, a
signed hash of all operations completed during the session is output. In order to

complete   this   command   run,   a   signing   key   must   have   been   created   for   this
purpose and its handle communicated as input to the:

TPM_ReleaseTransportSigned

Table 39:

 A transport session

If an inherent confidentiality-protected channel exists between the MTM and its RTM
and RTV transport session functionality is considered optional on both an MRTM and
an MLTM. Else this functionality is required in both cases.

3.3.6.3 Secure Storage of and Access Control to Sensitive Data

Data which needs to be both integrity and confidentiality protected, may be MACed
and encrypted using cryptographic functionality provided for by a TCG independent
Cryptographic  Infrastructure  (CI)  implemented  on  the  platform.  This  CI may  then
utilise the MTM so that a

TPM_Seal

 can be called and the MAC and encryption keys

stored   securely,   where   the   sealing   mechanism   can   confidentiality   protect   the
symmetric   keys   and   ensure   that   they   are   only   accessible   by   the   legitimate
application, namely the secure wallet application.

Alternatively,   sensitive   data   which   needs   to   be   both   integrity   and   confidentiality

Open_TC Deliverable D08.2

81/109

background image





Security Services for a Trusted Mobile Application

Final

protected, may be directly sealed by the MTM such that it is only accessible to a
particular legitimate secure wallet application.

Integrity protection is not explicitly provided by the sealing mechanism. In order to
integrity protect sealed data, 20 bytes of authorisation data needs to be associated
with it. This authorisation data then needs to be sealed to a particular application (or
PCR values which represent a trustworthy platform environment in which a correctly
functioning version  of the particular application  is running). In this way, only  the
correctly functioning application can unseal the authorisation data and then unseal
the protected data. Data protected in this way can only be unsealed if knowledge of
the correct authorisation data is demonstrated and the current platform environment
is represented by the PCR values bound to the data when it was sealed.

In   order  to  protect  data  input  to  the  secure  wallet,   a key  hierarchy   as  described
above must initially be set-up and then the data sealed to the appropriate PCRs using
the 'Secure Wallet Storage Key (SWSK)' (a non-migratable storage key) such that it
can only be accessed by the secure wallet application.

1. Load the secure wallet provider SRK and obtain a handle to the SRK.
2. The secure wallet storage key needs to be created under the secure wallet

SRK, as shown in table 40.

TPM_CreateWrapKey

Table 40:

 Creating a wrap key

3. Load the SWSK, as shown in table 41.

TPM_LoadKey2

Table 41:

 Loading a key

4. Finally, seal the secure wallet sensitive data or, indeed, the symmetric keys

used to confidentiality and integrity-protect the secure wallet sensitive data,
using the SWSK, as shown in table 42.

TPM_Seal

Table 42:

 Sealing data using a storage key

Secure   storage   functionality,   as   described   by   the   TCG,   cannot   prevent   the
unauthorised deletion of stored data. Both an MRTM and an MLTM are required to
implement the commands shown in table 40, 41 and 42.

3.3.6.4 Security of the Secure Wallet Sensitive Data While in Use

The PCRs which represent the execution environment into which the secure wallet
data   can   be   released   are   presumed   to   represent   be   a   secure   and   trustworthy
environment.   Isolation   techniques   described   in   chapter   2   can   be   used   to   protect
sensitive secure wallet data while in use on the platform.

3.3.7 Demonstrating Privilege

In   order   to   demonstrate   the   level   of   privilege   required   to   execute   various   MTM
commands:

Open_TC Deliverable D08.2

82/109

background image





Security Services for a Trusted Mobile Application

Final

An entity may demonstrate physical presence at the platform; or, alternatively,

An entity may demonstrate knowledge of the required authorisation data.

There are three particular occasions where demonstration of physical presence at the
platform may be necessary in order to execute particular MLTM commands. These
occasions include the operation of commands that control the MLTM when the MLTM
owner   has   lost   cryptographic   authorisation   information;   to   authorise   an   MLTM
command in a way that can not be subverted by rogue software; or to temporarily
deactivate an MLTM.

Physical presence must not, however, be supported in an MRTM as the entity who is
in control of the engine is assumed to be absent and the operator of the phone is not
considered to be in control of the phone. In conjunction with this, owner authorised
commands may not be implemented on a mandatory engine and if owner authorised
commands   are   implemented   it   is   assumed   that   the   owner-authorisation   data   is
backed-up remotely.

As an alternative to physical presence, cryptographic authorisation mechanisms may
be used to authenticate an owner to their MTM, or to authorise the release and use of
MTM protected objects. An authorisation value must be 20 bytes long, for example, a
hashed password or 20 bytes from a smartcard. It must always be treated as shielded
data and only ever used in the authorisation process.

Many   of   the   MTM   commands   described   throughout   this   chapter  (specifically   the
MTM   owner   authorised   commands)  may   require   knowledge   of   the   required
authorisation   data   to   be   demonstrated   before   access   to   either   an   MTM   owner
authorised   command,   a   key   or   even   a   data   object   is   permitted.   A   variety   of
authorisation data is held by an MTM, including:

Unique MTM owner authorisation data, input of which is required before any
'owner-authorised MTM command' may be executed;

MTM  object   usage   authorisation   data,  input   of  which  is required before  an
object protected by the MTM may be accessed; and

MTM object migration authorisation data, input of which is required before an
MTM key object can be migrated.

In order to demonstrate knowledge of the relevant authorisation data to the MTM, an
entity   may   deploy   one   of   two   challenge-response   protocols,   namely   the   Object
Independent   Authorisation   Protocol   (OIAP)   or   the   Object   Specific   Authorisation
Protocol (OSAP).

OIAP is the more flexible and efficient of the two challenge-response authorisation
protocols. Once an OIAP session has been established, it can be used to demonstrate
knowledge of the authorisation data associated with a particular MTM object or MTM
command.

For   example,   if   the   MTM   owner   wishes   to   read   the   public   endorsement   key
knowledge of the owner authorisation data must be initially demonstrated, in order to
gain access to the public endorsement key, as shown in table 43.

TPM_OIAP

Open_TC Deliverable D08.2

83/109

background image





Security Services for a Trusted Mobile Application

Final

TPM_OwnerReadInternalPub

T

able 43:

 Authorising an MTM owner read of the public endorsement key

The second protocol defined in the TCG specifications is OSAP. This protocol allows
for the establishment of a session to prove knowledge of the authorisation data for a
single MTM object, and minimises the exposure of long-term authorisation values. It
may   be   used   to   authorise   multiple   commands   without   additional   session
establishment   but,   as   we   discuss   below,   the

TPM_OSAP

  handle   specifies   a   single

object to which all authorisations are bound.

During this protocol an ephemeral secret is generated (via the HMAC of the session
nonces exchanged at the beginning of the protocol, with the target MTM object's
authorisation data used as the HMAC key) by the MTM and the caller, which is used
to prove knowledge of the MTM object authorisation data.

This   particular   protocol   must   also   be   used   with   operations   that   set   or   reset
authorisation data, e.g. sealing or creating a wrap key. In order to input the required
authorisation data a number of steps must be followed:

1. The

TPM_OSAP

 command must be called.

TPM_OSAP

 creates the authorization

handle, the shared secret and generates

nonceEven

 and

nonceEvenOSAP

.

2. The required MTM command is called.
3. The shared secret which is generated can be used not only to authorise use of

the parent object but also to input the authorisation data for a newly created
child object, for example a new key or sealed data object.

4. Once this has been completed, the OSAP session can be kept open in order to

authorise another command which is bound to the same parent object.

We will now re-examine the load key command run shown in table  41, where we
assume that the key, SWSK, is to be loaded by the input of a wrapped key blob. It is
also assumed that the engine's SRK is loaded and its handle is available, and that the
parent key, the engine's SRK, requires authorisation.

In   order   to   load   the   SWSK,   knowledge   of   the   SRK   authorisation   data   must   be
demonstrated. When the SWSK has been loaded, a seal command, as described in
table 42, is called. Use of the SWSK must also be authorised.

In this case, the user can demonstrate knowledge of the parent wrapping key (the
SRK) authorisation data when loading the non-migratable key, SWSK, using an OIAP,
for example. When sealing the secure wallet data using the SWSK, knowledge of the
SWSK  authorisation  data can  be  demonstrated  and  the  authorisation  data for the
sealed data inserted using the shared key established during the initial steps of the
OSAP. This process is shown in table 44.

Assume we have the handle of the engine's SRK

TPM_OIAP

TPM_LoadKey2

Open_TC Deliverable D08.2

84/109

background image





Security Services for a Trusted Mobile Application

Final

Now we have the handle to SWSK seal data:

TPM_OSAP

TPM_Seal

Table 44: Authorising a load key and an object seal

3.3.8 Conclusions

We have utilised the requirements extracted in section 3.2 from the analysis of the
secure   wallet   use-case   designed   by   RUB   in   order   to   examine   which   architectural
components, based on TCG mobile reference architecture [63], and which functions,
as specified in the TCG MTM specification [64], could be used to facilitate its robust
implementation. The  components and functionality required in order to implement
the secure wallet mechanism will be used in specifying and analysing the methods by
which   a   subset   of  MTM  functionality   can   be   provided   given   an   X-GOLD

TM

208/a

generic OMTP TR1 device.

Table  45  summaries the subset of MTM commands required in order to enable this
use-case. Regardless of whether the secure wallet mechanism is implemented on a
mandatory or a discretionary engine, an authenticated boot mechanism is required.
In order to implement an authenticated boot mechanism, the TMP must incorporate:

A RTM; and

A RTS (including PCRs).

If the secure wallet mechanism is implemented on a mandatory engine, a secure boot
mechanism may be leveraged. In order to implement a secure boot mechanism, the
TMP must incorporate:

A RTM;

A RTV;

A RTS (incorporating PCRs).

A RVAI;

A list of keys authorised to sign RIM_Certs;

An internal verification key;

Two monotonic counters:

counterRIMProtect

counterBootstrap

Platform component RIM_Certs;

A policy for platform recovery; and

Policies for RIM certificate revocation and update.

In   order   to   maintain   integrity   after   boot,   a   number   of   preventative   and   reactive
approaches may be deployed. We assume the use of software isolation through the
deployment of virtualisation technology (namely, an L4 microkernel).

In order to implement this use-cases, it is also required that the TMP engine can be
taken ownership of. In conjunction with this, basic functionality, such as self testing,
is   also   needed.   Secure   storage   and   command   authorisation   functionality   is   also

Open_TC Deliverable D08.2

85/109

background image





Security Services for a Trusted Mobile Application

Final

mandatory in order to robustly implement the secure wallet mechanism.

Table 45: MTM commands required in an MLTM and an MRTM in order to implement

the secure wallet mechanism

MLTM

MRTM

 device TPM

TPM_Init

TPM_Init

TPM_Startup

TPM_Startup

TPM_SelfTestFull

TPM_SelfTestFull

TPM_ContinueSelfTest

TPM_ContinueSelfTest

TPM_GetTestResult

TPM_GetTestResult

TPM_SetOwnerInstall

This command may not be required in an MRTM as it

may be pre-installed with an SRK and an AIK.

TPM_OwnerSetDisable

An MRTM can never be disabled.

TPM_PhysicalEnable

An MRTM is always enabled so this command is not

required.

TPM_PhysicalDisable

An MRTM can never be disabled.

TPM_PhysicalSetDeactivated

An MRTM can never be deactivated.

TPM_TakeOwnership

This command may not be required in an MRTM as it

may be pre-installed with an SRK and an AIK.

TPM_Seal

TPM_Seal

TPM_CreateWrapKey

TPM_CreateWrapKey

TPM_LoadKey2

TPM_LoadKey2

TPM CreateEndorsementKeyPair

An MRTM may not contain an endorsement key pair so

this command is considered optional.

TPM_ReadPubek

An MRTM may not contain an endorsement key pair so

this command is considered optional.

TPM_OwnerReadInternalPub (optional)

An MRTM may not contain an endorsement key pair so

this command is considered optional.

TPM_Extend

TPM_Extend

TPM_OIAP

TPM_OIAP

TPM_OSAP

TPM_OSAP

TPM_EstablishTransport (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_EstablishTransport (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_ExecuteTransport (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_ExecuteTransport (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_ReleaseTransportSigned (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_ReleaseTransportSigned (required if no inherent

confidentiality-protected channel exists between the

MTM and the RTM/RTV)

TPM_ReadCounter

TPM_ReadCounter

-

TPM_InstallRIM

-

TPM_VerifyRIMCert

-

TPM_LoadVerificationKey

-

TPM_LoadVerificationRootKeyDisable

-

TPM_IncrementBootstrapCounter

-

TPM_SetVerifiedPCRSelection

-

TPM_VerifyRIMCertAndExtend

Open_TC Deliverable D08.2

86/109

background image





Security Services for a Trusted Mobile Application

Final

OMTP TR1 and the Secure Wallet Prototype

In this section we consider the secure wallet prototype in the context of the recently
published   OMTP   (Open   Mobile   Terminal   Platform)   TR1   Advanced   Trusted
Environment recommendations document [50]. We will consider a final architecture
where the secure wallet has been completely ported to the X-GOLD

TM

208.

First of all we briefly summarize the main features of the OMTP TR1 document. For
details, the reader is advised to consult the original document.

4.1 OMTP TR1 Summary

OMTP TR1 is a successor to the OMTP TR0 Trusted Environment document [49].
OMTP   TR1   has   been   aligned   with   current   threats   and   business   requirements.
Although   TR1   is   concerned   with   mobile   equipment   security,   which   means   the
handset, it also acknowledges that a UICC (Universal Integrated Circuit Card) would
in   many   cases   meet,   and   exceeds   the   security   requirements   defined   in   the   TR1
recommendations document. The UICC is the chip card used in mobile phones on
GSM and UMTS networks. It is best known as the location of the SIM application. It
can   also   host   other   applications.   Many   of   the   OMTP   TR1   Security   Enabler
requirements and the TR1 use cases make reference to the UICC.

Where as OMTP TR0 defines a basic threat model, TR1 has a much more detailed
threat model, and all requirements reference the threat model where relevant. Two
security profiles called profile 1 and profile 2 are defined. Profile 1 is a subset of
profile 2, and these profiles define which threats have to be defended against. Profile
1   assets   must   mostly   be   only   defended   against   software   attacks   and   some   basic
hardware attacks. Profile 2 assets must be defended against software attacks and
more advanced hardware attacks.

The document is partitioned into two parts. Part 1 consists of security enablers. Part
2 consists of some example use cases.

4.1.1 Security Enablers

In this section we summarize the security enablers defined in the TR1 document.

Trusted Execution Environment (TEE)

This is an execution environment for executing security sensitive programs. It meets
a defined set of security requirements, resists a defined set of threats, and within this
scope ensures that a program executes as it was designed to execute.

Secure Storage (SST)

The   secure   storage   facility   helps   the   TEE   to   handle   security   sensitive   objects.   It
stores the sensitive objects in a way that the security properties of the objects are

Open_TC Deliverable D08.2

87/109

background image





Security Services for a Trusted Mobile Application

Final

maintained within the scope of a defined set of threats.

Flexible Secure Boot (FSB)

FSB requirements ensure the integrity of the ME (Mobile Equipment) code base at
boot time, and also defines requirements for securely updating the code image via an
external connection to the ME. Again these requirements are within the scope of a
defined set of threats.

Generic Bootstrap Architecture (GBA)

3GPP GBA is a generic method which can be used by arbitrary application functions
in the mobile network to authenticate users and establish a shared secret. It is based
on the fact that both network and USIM share a 128-bit secret key K

i

. The MNO

(Mobile   Network   Operator)   stores   the   secret   keys   for   all   subscribers   in   a
Authentication Center (AUC), which is connected to the Home Location Register. The
secret keys never leave the AUC and SIM domain.

An AKA (Authentication and Key Agreement) protocol is executed between the USIM/
ISIM and the mobile network in order to generate a confidentiality session key (CK)
and integrity session key (IK). An ISIM is a further application which can run on the
UICC. It is part  of the IMS (Internet Protocol Multimedia Subsystem), which is a
framework  for  delivering IP  Multimedia over  GSM/UMTS mobile  networks.  In  the
case   of   ME   based   GBA   ,   upon   successful   network   verification,   the   USIM/ISIM
delivers the confidentiality and integrity keys CK and IK to the mobile station, where
they   are   used   to   generate   the   shared   secret   with   the   target   network   application
function.

The   GBA  requirements  are   concerned   with   which   level   of   TEE   the   sensitive   GBA
software should run on the ME. There are also requirements regarding protection of
the confidentiality and integrity of the CK and IK if delivered to the ME. There are
also further requirements regarding access restriction for applications running on
the UE (User Equipment) which request access to the GBA functions on the USIM.
These access controls are not specifically supported by any additional cryptographic
mechanisms,   and   would   therefore   need   to   be   by   supported   access   control
mechanisms   built   into   the   software   architecture   of   the   ME.   Most   of   the   OMTP
requirements are based on references to the relevant 3GPP specifications.

Run-Time Integrity Checking (RIC)

TR0   was   mostly   concerned   with   boot   time   security   when   considering   platform
integrity. Where as TR0 did make references to run-time checking, there were no
detailed requirements. The purpose of RIC is to check system integrity, post of boot.
The RIC requirements do not define what must be checked by the RIC, but rather the
robustness rules for the RIC mechanisms.

Some important principles are laid out. For  example the RIC  may be a hardware
mechanism or could also be software mechanism in a TEE. The RIC cannot be used to
check resources upon which it relies. For example, if the RIC is executed within a
TEE, it cannot be used to check the integrity of that TEE. Also, it must not be possible
for   less   trusted   software   to   manipulate   this   TEE   or   other   RIC   assets.   All   the

Open_TC Deliverable D08.2

88/109

background image





Security Services for a Trusted Mobile Application

Final

requirements are made with reference to the threat model.

What is actually checked depends on the system. This could be the main OS. Access
Control   Lists   or   other   sensitive   system   assets.   The   specification   also   considers   a
primary and secondary RIC. The secondary RIC could be a software mechanism used
by the main OS. TR1 states that the primary RIC must verify the integrity of the
secondary RIC.

Secure Access to User Input/Output Facility (SUIO)

The SUIO requirements are concerned with the input and output of data between the
user  and the  TEE where  a trusted application  is executing.  SUIO   assets  are  only
required to be defending against software attacks. The IO facilities here could be a
keyboard, touch-screen, display etc.

Secure Interaction of UICC with Mobile Equipment (SUM)

The   SUM   requirements   are   concerned   with   creating   and   maintaining   a   secure
channel between the ME and the UICC. The required function is that the UICC can
authenticate the ME, or perhaps a specific TEE running in the ME, and a secure
channel can be created between the ME (or TEE) and the UICC. This allows a secure
application to be partitioned between the ME and the UICC.

4.1.2 Threat Model

As already mentioned TR1 has a much more detailed threat model than TR0. Seven
threat groups have been defined.

4.1.2.1 Group 1 (Hardware Modules used for Accessing Memories)

These are threats which are based on misuse of on chip bus master modules, other
than the main CPU, which could be used to access security sensitive memory ranges
for example. These types of attacks are considered, especially since master modules
usually do not have any MMU type hardware built into them.

4.1.2.2 Group   2   (CLCD   (Color   LCD   Controller)   used   for   displaying   memories   and
interfering with displayed data)

These threats are similar to group 1, but allow any accessed sensitive data to be
displayed.

4.1.2.3 Group   3   (Bypass   security   by   removal   of   battery   power   or   removal   of
external memory card)

These threats are concerned with putting the ME in an unknown state, or preventing
it from completing a sensitive operation by power removal. Memory card is included
as if sensitive information were stored on it, it may be possible to manipulate the
handset behavior with respect to these sensitive objects by removing the memory

Open_TC Deliverable D08.2

89/109

background image





Security Services for a Trusted Mobile Application

Final

card.

4.1.2.4 Group 4 (Attack by replacement of flash when power is off (pre-boot))

A secured handset which does not allow the code image in flash to be altered could
still be attacked by de-soldering the flash and replacing it with hacked code.

4.1.2.5 Group 5 (Extract secret via bus monitoring)

Confidential   data   could   be   extracted   from   the   ME   if   it   passes   between   the   main
processor and external flash or DRAM, by probing the connections between these
components.

4.1.2.6 Group 6 (Mod chip attacks on data in external RAM)

These   are   quite   advanced   threats.   They   are   concerned  with   the   use   of   additional
hardware built into the ME which can be used to manipulate data or code at runtime,
as it is in transit between the main CPU and external memory. This could alter the
behaviour of the ME.

4.1.2.7 Group 7 (Attack by replacement of flash when power is on (post-boot))

This threat is based on a physical attack on the handset. The handset is modified with
additional   logic   (and   perhaps   memory   components)   so   that   the   memory   image   is
swapped post boot, with modified code.

4.1.2.8 Software Threats

Software threats are handled as a set of best practices.

Software Quality Measures

Improving   the   quality   of   the   software   is   concerned   with   removing   security
vulnerabilities which could be exploited. The types of measures which are advised
include special attention to validation of security code, external review, reduce size of
the security code, and use of an execution environment with reduced instruction set
(Java for example).

Definition of API Related Coding Techniques

Techniques are described which avoid problems due to poorly designed APIs. These
include separation of security APIs from other APIs, isolation of security code from
other code so that a different boundary is crossed when calling security APIs than
when calling standard APIs, and use type safe APIs on the security boundary.

Definition of buffer overflow techniques

Buffer overflow attacks are a common method used to attack systems. TR1 describes
some techniques to counter such attacks. They include use of type safe API (which

Open_TC Deliverable D08.2

90/109

background image





Security Services for a Trusted Mobile Application

Final

keep track of buffer sizes), and using verification tools which analyse source code for
buffer overflow vulnerabilities, prevent areas used for stacks and heaps from being
executable.

Definition of execution isolation techniques to address software attacks

These techniques are concerned with isolating the scope of an attack. This means
that if a vulnerability is found, it does not mean that the whole system is vulnerable.
Methods including hardware isolation, and use of microkernel architectures, can be
used to achieve this security goal.

Definition of concurrent processing threats

This is concerned with vulnerabilities due to race conditions in the operating system.
Possible ways to combat these types of attacks is to use a simple thread model in the
the security software domain.

4.1.3 TR1 Core Requirements

TR1 has a set of requirements which are valid throughout the whole document for all
Security Enabler and use case requirements. It starts by defining asset grouping.
These are split into sensitive TR1 code assets, data assets, hardware assets, and key
assets.

TR1   then   defines   some   base   requirements   for   software   threats,   and   hardware
threats,   and   specifies   which   for   profile   1   and   2   which   threats   must   be   defended
against.

4.1.3.1 Requirements to protect against software threats

For   both   profile   1   and  profile   2,  TR1   requires  use  of   the   techniques  proposed  in
‘Definition   of   software   Quality   Measures’,   ‘Definition   of   API   Related   Coding
Techniques, ‘Definition of Buffer Overflow Protection Mechanisms’.

Only profile 2 is required to defend the TR1 asset’s security properties against the
threats   described   in   ‘Hardware   Modules   used   for   Accessing   Memory’   and   ‘CLCD
used for Displaying Memories and Interfering with Displayed Data’.

Further,   only   profile   2   is   recommended   to   make   use   of   methods   described   in
‘Definition of Concurrent Processing Threats’, and ‘Definition of Execution Isolation
Techniques to Address Software Attacks’.

4.1.3.2 Requirements to protect against hardware threats

The security properties of TR1 profile 1 and 2 code, data, and key assets are required
to be protected against attacks based on battery or card removal (threat group 3),
and attacks based on the removal of flash when the mobile phone is not powered
(threat group 4).

Open_TC Deliverable D08.2

91/109

background image





Security Services for a Trusted Mobile Application

Final

Only   profile   2   TR1   confidential   assets   are   required   to   be   defended   against   bus
probing threats (threat group 5), and only profile 2 TR1 Key Assets are required to be
protected against ‘Mod chip attacks on data in external memory’ (threat group 6),
and ‘Attack by replacement of flash when power is on’ (threat group 7).

4.1.3.3 Debug Requirements

The debug requirements refer to the TR0 debug requirements, but are a little more
specific regarding threat profile. The most important point is that debug assets which
are used to debug a profile 2 TEE must also be of profile 2.

4.1.3.4 Cryptographic Requirements

TR1 also defines a set of cryptographic requirements. These are quite similar to TR0
HUK   (Hardware   Unique   Key)   requirements.   Some   changes   are   that   the   RSA   key
length was increased from 1024 to 2048 bit, and the SHA digest length was also
increased from SHA1 (160 bit) to SHA-256 for protecting authenticity.

4.1.4 Asset Protection

Each TR1 enabler or Use Case description has an asset table. Each asset has its type
defined (data, code, keys etc.), and the security property required for this property is
defined. All the TR1 enablers and Use Cases specifically refer to an HUK as an asset.
The security properties which are defined are integrity, confidentiality, authenticity,
and non-replay. Often the requirement for defending a property is very specific to the
use case.

4.1.5 Trusted Execution Environment

In this section we look at the TEE is a little more detail since this is one of the most
important security enablers for TR1. TR1 begins by introducing the concept of an
Execution Environment (EE), being a set of hardware/software components.

Further,   TR1   describes   a   typical   set   of   core   components   for   the   execution
environment itself. These are a processing unit which define the EE Instruction Set
Architecture (ISA), a set  of connections (buses for example),  physical memory for
storing data  and  code,  a  mechanism  for  initializing the  boot  process,  and  the  EE
code, data and keys.

The EE has a set of facilities which it makes available to Applications.
The applications need some form of interface. This could be an API or an ISA.

EEs will vary in complexity, they may provide dynamic management of code (thread
management,   task   switching,   the   possibility   to   load  and   unload   applications   etc.).
Further, the code may be natively executed or interpreted.

The   environment   may   also   provide   memory   management.   This   allows   areas   of
memory  to be  allocated/de-allocated,  and control  access  to memory  depending  on
what   application  is  currently   running  in  the   environment.   Other  facilities  such  as

Open_TC Deliverable D08.2

92/109

background image





Security Services for a Trusted Mobile Application

Final

storage and retrieval of data in non volatile memory may also be provided.

The EE may also offer facilities which allow an application to communicate with the
external world. This could be to something local such as keyboard and display, or
something remote such as a network connection.

As already mentioned more than one application may execute in an EE. The EE may
provide facilities to allow the applications to communicate with each other. The EE
may also provide facilities to install, upgrade and generally manage applications. This
may   include   identifying   users   and   processes,   and   assign   them   credentials   and
permissions so that access control policies may be enforced.

A   system   may   contain   multiple   Execution   Environments,   and   they   may   share
resources, or have resources allocated to a particular EE. In this case, the resource
must   be   protected   from   other   EEs.   TR1   assumes   that   some   of   the   EEs   will   have
access to a Hardware Unique Key as defined in TR0. TR1 also assumes that a TEE
will always have access to secure storage facilities.

Applications running in an EE could be a service to a user, or to another application.
An application running in an EE could be another EE. Example of EEs are a CPU, an
Operating System, a Virtual Machine or a UICC.

TR1 considers two sets of security requirements (profile 1 and profile 2) as already
mentioned. If an EE meets these security requirements of a particular profile, it can
then be referred to as a TEE of this profile.

4.1.5.1 Open Trusted Execution Environment

TR1 also defines an Open Trusted Execution Environment. This type of TEE is quite
specific to operator requirements. An Open TEE is a TEE which allow the MNO to
install applications into it ‘post manufacturing’. Further, an Open TEE must support a
UICC secure channel, the Generic Bootstrap Architecture, and secure user IO.

4.1.5.2 Trusted Execution Environment Requirements

The TR1 TEE requirements are partitioned into groups. These are:

TEE Core Requirements

These are generally concerned with TEE HUK requirements

TEE Cryptographic Requirements

These are concerned the level of cryptographic support required by a TEE

TEE Keys

This is a set of requirements concerned with key handling within the TEE.

Open_TC Deliverable D08.2

93/109

background image





Security Services for a Trusted Mobile Application

Final

TEE Facilities

These requirements are concerned with the facilities required for the different types
of TEE. Examples of required facilities are SUIO, SST and SUM.

TEE Application Lifecycle

These requirements are concerned with the rules for installing applications within a
TEE.

TEE Application Requirements

The requirements are mostly concerned with isolation of applications within a TEE,
and also checking the authenticity/integrity of applications before letting them run.

TEE Self Protection Requirements

These requirements are mostly concerned with securely booting the TEE, and make
references to the FSB facility.

TEE Isolation Requirements

These requirements are mostly concerned with protecting the TEE and its resources
from others EEs.

Inter-Execution Environment Communications

This   is   a   set   of   requirements   which   are   concerned   with   how   TEEs   and   EEs   can
securely communicate with each other.

One of the basic TEE requirements is access to a Secure Storage facility. We will look
at the OMTP T1 Secure Storage structures and requirements when we analyse the
Secure Wallet prototype architecture.

4.1.6 Use Case Overview

TR1   includes   three   use   cases.   These   are   Broadcast   Service   Protection,   Trusted
Device Management, and Mobile Commerce. We will briefly look at them here, and
summarize which of the TR1 security enablers are made use of for each of them.

4.1.6.1 Broadcast Service Protection

The broadcast service protection use case concentrates on the Open Mobile Alliance
(OMA) BCAST Smart Card Profile. OMA BCAST is concerned with content broadcast
services which are encrypted in order to control the consumption of these services.

In the Smart Card profile much of the security is centered on the use of a UICC. As
TR1 points out, the UICC has a Trusted Execution Environment like facility with on
chip card secure storage. The UICCs are generally designed to defend against threats
which are often out of scope for a mobile phone baseband controller. OMA BCAST

Open_TC Deliverable D08.2

94/109

background image





Security Services for a Trusted Mobile Application

Final

Smart Card Profile defines that the long term keys are stored on the UICC.

The TR1 Broadcast requirements mostly deal with the protection of the keys which
are in the ME. These are short terms keys, such as traffic keys, or binding keys for
binding   the   UICC   to   the   ME.   The   requirements   reference   the   TR1   SUM   (Secure
Interaction   of   UICC   with   Mobile   Equipment).   The   Broadcast   Service   Protection
requirements   also   define   the   use   of   TEEs   and   SSTs   in   order   to   protect   the   key
objects. This also means that the FSB requirements must be met for this use case.

OMA   BCAST   also   makes   use   of   GBA   for   key   distribution,   so   the   TR1   GBA
requirements are also relevant.

4.1.6.2 Trusted Device Management

The Trusted Device Management use case is concerned with the requirements for a
secure   TR1   implementation   of   the   Open   Mobile   Alliance   Device   Management
protocol.  This use case is divided into two sub use cases.

These are:

Trusted Firmware Management (Update)

Firmware refers here top the basic software of the ME including device drivers.

Trusted Software Management

This refers to any software other than the firmware. The types of functions required
are installation, update, removal, activation and deactivation.

In OMA Device Management, the firmware/software on a device is managed by a
management server.

The Access Control List is one of the most security sensitive assets. This defines for
each management server what types of management commands can be executed on
the   device.   If   the   Access   Control   List   is   manipulated,   then   the   device   can   be
compromised by an attacker.

The actual requirements are centred on the protection of a device management key.
This is classified as a sensitive object which must be handled by an SST facility. The
requirements also define that the security properties of the device management keys
shall be protected, and that the key is only accessible by the appropriate firmware or
software management code.

The download and update management code must be verified before execution. This
could be at boot, in which case this can be managed by the secure boot. The Trusted
Device Management use case also has some optional requirements for Secure User
IO. TR1 does not go into this in detail, but one possible reason would be so that the
end user can safely make a decision on whether to carry out a software update based
on the information displayed on the screen.

Requirements for handling of a download package are handled by referring to the

Open_TC Deliverable D08.2

95/109

background image





Security Services for a Trusted Mobile Application

Final

Flexible Secure Boot security enabler. Further, if the downloaded application is to be
installed   into   a   TEE,   then   the   installation   process   must   follow   the   TEE   Lifecycle
Requirements.

4.1.6.3 Mobile Commerce

The mobile commerce use case referred to by TR1 is quite specific. It focuses on
proximity payment where the most sensitive part of the application is in the UICC.
The ME provides a User Interface (UI) to the payment application.

The ME has a browser which communicates with a web server situated on the UICC
via   an   HTTP   connection.   This   partitioning   is   based   on   the   proximity   payment
architecture   as   recommended   in   the   GSM   Association   NFC   (Near   Field
Communication) technical guidelines.

The use case is broken up into two parts

1. The user has an application activated in her UICC by holding it close to a Point

of   Sale.   The   mobile   commerce   application   indicates   to   the   user   that   a
transaction   is   pending.   The   user   enters   a   PIN   so   that   the   transaction   can
complete.

2. The user has an application activated in her UICC by holding it close to a Point

of   Sale.   The   mobile   commerce   application   indicates   to   the   user   that   a
transaction is pending. The user is only required to enter a PIN if the amount
of money involved is above a certain limit.

The main assets involved in this use case are:

a   mobile   application   certificate   used   to   allow   the   mobile   application   to
authenticate itself to the UICC, and a root certificate for authenticating the
mobile application certificate.

Each with the security properties integrity and authenticity

The mobile application code, data, and keys.

All with security properties integrity and authenticity plus confidentiality
for the keys.

Data exchanged between the user and the mobile application via the keyboard
and display.

With   security   properties   integrity,   authenticity,   non-replay   plus
confidentiality for the keypad interface.

A session key for creating a secure channel between the mobile application
and the UICC.

With security properties integrity and confidentiality.

A PIN for activating the payment service

With security properties integrity, confidentiality and non-replay.

Threats to the Mobile Commerce Application

The mobile commerce application code, data, and certificates need to be protected

Open_TC Deliverable D08.2

96/109

background image





Security Services for a Trusted Mobile Application

Final

from


Bypass security by removal of battery power or removal of external memory
card

Attack by replacement of flash when power is off (pre-boot)

This is for profile 1 and profile 2 applications.

To  recap,   only   profile   2  mobile   commerce   application   code,   data,   and  certificates
need to be protected against threats

Hardware Modules used for Accessing Memories

CLCD used for displaying memories and interfering with displayed data

Extract secret via bus monitoring

Mod chip attacks on data in external RAM

Attack by replacement of flash when power is on(post-boot)

Further, only profile 2 mobile commerce application keys need to be protected from

Extract secret via bus monitoring

Mod chip attacks on data in external RAM

The mobile commerce use case also specifically has requirements for secure user IO
for keyboard and display for both profile 1 and profile 2. But it must be noted that
TR1 only defines a profile 1 SUIO.

There are also requirements for a secure storage utility if PIN and session key data
are to survive for more than one session.

The certificates that are used must also be integrity protected. Although not stated in
the TR1 requirements document, this could be managed by including them in the
secure boot, or secure application loading mechanisms and then isolating them in a
TEE.

The mobile commerce application must be checked at installation. It is advised to
check it prior to execution, and optionally it can be checked at run time using a RIC.

Although not specifically stated, the mobile commerce use case could make good use
of a TEE, SST, FSB.

4.2 Secure Wallet Architecture in the context of TR1

In   order   to   understand   the   secure   wallet   architecture   in   the   scope   of   the   TR1
recommendations   document,   we   will   briefly   compare   it   with   one   of   the   TR1   use
cases. The mobile TV and the device management use cases are too dissimilar to the
secure   wallet   use   case,   and   we   will   not   discuss   them   further.   The   TR1   mobile
commerce example is the closest use case to the secure wallet mobile application, so
we will now contrast and compare them.

Open_TC Deliverable D08.2

97/109

background image





Security Services for a Trusted Mobile Application

Final

Both   use   cases   are   concerned   with   a   form   of   payment,   but   they   are   still   quite
different. The TR1 mobile commerce use case is very UICC centric, where as the
secure wallet, in its final form would be completely implemented on the baseband
controller.

Although the TR1 use case makes intensive use of the UICC security capabilities it
also does place security requirements on the baseband controller, as does the secure
wallet.

The  TR1 mobile commerce application makes use  of the security  enablers Secure
User IO, Trusted Execution Environment, Secure Storage, and the basic trust in the
platform is established by a secure boot. In the following sections we show that the
Secure   Wallet   also   has   these   requirements,   and   we   will   map   the   the   basic
architecture of the secure wallet to TR1 security enablers. The TR1 security enablers,
Generic Bootstrap Architecture and Secure Interaction of the UICC with the Mobile
Equipment are not relevant to the secure wallet use case, and will not be considered
further.

Before we begin this it should be stated that the secure wallet is defined to defend
against software attacks. For this reason we consider the architecture in terms of a
TR1 profile 1 requirements.

4.3 Proposal of the final porting of the secure wallet to the X-GOLD 208

In the current prototype, a TPM emulator, which makes use of the X-GOLD

TM

208

cryptographic hardware, has been ported to the X-GOLD

TM

208, see section

2.7

. In a

final architecture, the complete secure wallet prototype would be ported to the X-
GOLD

TM

208.

In this final prototype, the L4 microkernel and L4 environment would run on top of
the X-GOLD

TM

 208 hardware. There would be seven L4 applications running in the L4

environment.   These   would   be   the   secure   GUI,   the   Compartment   Manager,   the
Storage Manager, the Network Manager, the TPM emulator, the wallet application,
and the legacy browser.

The TPM emulator would make use of the X-GOLD

TM

  208 hardware as it currently

does, but in addition, the Storage Manager could also make use of the X-GOLD

TM

 208

hardware. The X-GOLD

TM

  208 has a hardware key which can be used by the AES

hardware in order to encrypt and decrypt sensitive objects.

The L4 microkernel would also provide isolation between the L4 applications. Some
form of policy manager would be required so that only authorized communication
between the L4 applications would be possible.

As in the current prototype, two versions of the L4 Linux could be ported. One would
contain the secure wallet application, and the other would be the legacy OS in which
all the ‘non-secure’ software could run. This scenario is depicted in Figure 26.

4.4 Platform Integrity and Authenticity

One   of   OMTP   TR0   and   TR1’s   most   basic   requirements   is   the   establishment   of
platform integrity through a secure boot. Platform integrity and authenticity can be

Open_TC Deliverable D08.2

98/109

background image





Security Services for a Trusted Mobile Application

Final

provided by the X-GOLD

TM

208 secure boot.

Figure 26: Proposed architecture for final secure wallet prototype

In this architecture, the X-GOLD 208 secure boot would be used as the first stage of a
boot process which securely instantiates an 'immutable'  Root Trust of Enforcement
(RTE), as defined in the Trusted Computing Group Mobile Reference Architecture.
This RTE would then build further Roots of Trusts in the platform. These Roots of
Trust   would   then   be   used   to   establish   the   integrity   and   authenticity   of   the   L4
microkernel,   the   L4   environment,   and   the   L4   applications   including   the   TPM
emulator. Although not shown here, a measurement agent could then make use of the
TPM in order to verify the integrity of the the rest of the software as it was loaded.
This would possibly be handled by the compartment manager.

Open_TC Deliverable D08.2

99/109

cmp Final Architecture

L4 Kernel

L4env Servers

L4Linux (Instance 1)

TPM

emulator

X-GOLD 208

Loade r

DMPhys

Name s

Ex ec

L4 Application Libraries

Thread

l4rm

...

Storage

Manage r

Compartment

Manage r

L4 Linux (Instance 2)

Secure Wallet

Application

JVM

Secure

GUI

Network
Manage r

Legacy

Browser

background image





Security Services for a Trusted Mobile Application

Final

4.4.1 Trusted Execution Environments

The secure wallet prototype is actually a set of communicating Trusted Execution
Environments.

We list the TEEs in the architecture below.

L4 microkernel: This is the most basic TEE in the system. All other TEEs run
on top of this TEE.

L4 environment:  This is the TEE in which all the L4 applications run. The L4
microkernel provides the isolation between these TEE applications.

L4 Linux for secure wallet: The L4 Linux is also a TEE since it is isolated from
the legacy Linux which would be open to untrusted applications.

JVM running in trusted L4 Linux:  The JVM is also a TEE. In this application
only the single secure wallet application runs in the JVM, but the JVM could
offer isolation for other secure applications.

Authorized   Communication   between   the   TEEs   can   be   provided   by   the   L4
Environment as long as a policy manager is implemented. In this architecture, if we
consider the secure application to be running in the JVM, then it would have access
to   secure   storage,   and   cryptographic   services   (possibly   provided   by   the   TPM
emulator) via the L4 environment.

4.4.2 Secure Storage

In this section we look at the secure storage utility of the secure wallet prototype. We
also briefly look at some OMTP TR1 Secure Storage requirements.

The Secure Wallet prototype architecture makes use of two types of secure storage.

Secure storage as part of the TPM emulator

Hardware support provided by the X-GOLD

TM

208 cryptographic hardware

The TPM emulator only offers asymmetric cryptographic operations as TPM
commands

Secure storage used by the storage manager

This would also make use of the X-GOLD

TM

208 cryptographic hardware,

and   could   make   direct   use   of   the   symmetric   encryption/decryption
hardware.

We   consider   the   storage   manager   first.   The   storage   manager   runs   in   its   own
compartment. Its purpose  is to store components whilst preserving their integrity
and confidentiality.

We briefly review the operation of the Storage Manager before we look at out it mpas
to the TR1 definition of SST. When the Storage Manager is invoked to store data by a
compartment, the storage manager calls the compartment manager in order to get
the configuration data of the invoking compartment. The Storage Manager stores a

Open_TC Deliverable D08.2

100/109

background image





Security Services for a Trusted Mobile Application

Final

data object with an index value, which contains the meta data belonging to the data
object.   This   includes   a   hash   of   the   invoking   compartment,   and   possibly   access
restriction rules for this data object.

The index value is critical to the security properties of the stored object. The stored
object and its index value are encrypted using the storage manager symmetric key
k

SM

. We will consider the k

SM

later.

If a compartment makes a request to the Storage Manager to retrieve an object, the
Storage Manager checks that this particular compartment has the rights to retrieve
this object. It does this by invoking the compartment manager to compare the index
value   of   the   calling   compartment   (which   will   have   been   measured   and   stored   at
system   boot),   with   the   index   value   stored   with   the   retrieved   object.   The   storage
manager   may   also  check   the   user   id   of   the   calling  entity   from   within   the   calling
compartment. The retrieved object is only delivered to the calling compartment if the
index check passes, and if the user requesting the object is authorized to receive the
retrieved object.

The retrieved object and index value are decrypted using the k

SM.

k

SM

 is sealed to the

storage   manager.   This   is   done   using   the   TPM   sealing   function.   k

SM

  can   only   be

unsealed by the TPM if the configuration of the storage manager matches that of the
storage manager which sealed it in the first place. A modified storage manager would
therefore not be able to access the k

SM

.

We consider now how the secure wallet Storage Manager maps to the structures
defined in the OMTP TR1 Secure Store requirements. OMTP TR1 SST defines a key
manager which is responsible for handling secure storage keys. In the case of the
secure wallet prototype, the key manager is partitioned between the TPM emulator
and the Secure Storage compartment. The Secure Storage root key is protected by
the TPM emulator. TR1 refers to this key as the SST key manager key. It should be
noted   that   even   in   a   profile   1   system,   the   key   manager   key   has   to   be   protected
against all of the defined hardware threats, as well as the profile 1 software threats.
Care would have to taken with the final implementation, if these requirements were
to be met. Further, the storage manager key needs to be securely passed from the
TPM emulator to the storage manager compartment. OMTP TR1 places requirements
on inter TEE secure communication when sensitive objects need to passed between
TEEs.

OMTP TR1 SST also defines an Applications Assets Manager. The Application Asset
Manager is the heart of the SST utility. It is the Application Asset Manager which
calls   the   SST   Key   Manager.   OMTP   TR1   defines   that   only   the   Application   Asset
Manager must have access to the SST Key Manager. In the Secure Wallet Prototype,
the Application Asset Manager roughly maps to the secure wallet prototype's Storage
Manager. As the key manager runs inside the storage manager compartment, access
to   the   key   manager   can   be   controlled   by   the   storage   manager.   The   TR1   SST
requirements can then be met as long as the compartment manager ensures that only
the key manager has access to the Secure Storage root key.

In the OMTP TR1 Secure Storage requirements, it is suggested that the Application
Assets Manager could store the security properties and access policies for a sensitive
object. The secure wallet prototype's Storage Manager implements these functions

Open_TC Deliverable D08.2

101/109

background image





Security Services for a Trusted Mobile Application

Final

through the use of the index value which is stored with the sensitive object.

OMTP TR1 places additional requirements on the Application Asset Manager. Two of
the fundamental requirements are

1. The   Application   Asset   Manager   must   be   able   to   bind   the   identity   of   an

application supplied by a TEE or EE to a sensitive object, and limit access to
the sensitive object to this particular application.

2. The Application Asset Manager must also maintain an access control policy for

the sensitive objects under its control.

The secure wallet prototype can meet these requirements. It achieves this through
the process of binding objects to the configuration of the compartments which use
the secure storage utility. This functionality is not concentrated in the secure wallet
prototype storage manger. The storage manager provides this functionality through
the use of the compartment manager.

TR1 SST also has requirements which state that an application should not be able to
compute the storage key of another application. Again this is achieved in the secure
wallet  prototype through the use of the  configuration checking capabilities of the
compartment manager.

4.4.3 Secure User IO

As previously mentioned, the SUIO requirements are concerned with the input and
output   of   data   between   the   user   and   the   TEE   where   a   trusted   application   is
executing.
This fits quite well with the secure wallet architecture.

The architecture defines a trusted path between the secure GUI, the keyboard and
the secure wallet application, which is running in a TEE. The secure wallet prototype
provides   such   a   trusted   path.   The   security   and   isolation   of   the   trusted   path   is
enforced by the L4 environment.

4.4.4 Software Threats

We   already   mentioned  that   the   secure   wallet   has  been   defined  to  be   resistant   to
software threats. This generally aligned to a TR1 profile 1 security level. TR1 Secure
Storage   key   management   requirements   are   an   exception   and   TR1   still   require
protection from hardware threats.

The   profile   1   software   required   software   measures   are   covered   by   ‘Definition   of
software Quality Measures’, ‘Definition of API Related Coding Techniques, ‘Definition
of Buffer Overflow Protection Mechanisms’.

These can only be met by careful coding, code reviews, and especially careful design
of TEE interfaces. The secure wallet architecture assists in the implementation of
these measures by concentrating the security facilities in isolated Trusted Execution
Environments.

Open_TC Deliverable D08.2

102/109

background image





Security Services for a Trusted Mobile Application

Final

In fact, the secure wallet prototype architecture implements the security measure
proposed   in   TR1   by   the   ‘Definition   of   Execution   Isolation   Techniques   to   Address
Software Attacks’. This is a profile 2 requirement, but the secure wallet architecture
makes extensive use of these techniques. This locates the TR1 security classification
of the secure wallet prototype software architecture somewhere between a profile 1
and profile 2.

4.5 Summary

In Section 4, we first summarized the OMTP TR1 recommendations. We selected the
OMTP TR1 security enablers and use cases which were most relevant to the secure
wallet prototype architecture. These were the security enablers Trusted Execution
Environment, Secure Storage, Secure Access the User Input/Output facility, Flexible
Secure   Boot/Secure   Boot,   and   Runtime   Integrity   Checking.   Generic   Bootstrap
Architecture and Secure Interaction of the UICC and Mobile Equipment were not
considered as these UICC centric security enablers were not relevant to the secure
wallet prototype.

We compared the Secure Wallet use case with the OMTP TR1 mobile commerce use
case, and although we found some similarities, there were also many differences. The
security enablers were seen as more promising for our work.

An   initial   and   non-exhaustive   analysis  was  carried   out   in   order   to  judge   how   the
secure   wallet   prototype   architecture   mapped   to   the   TR1   requirements.   The
implemented   prototype   was   not   used   for   the   analysis.   Instead   we   considered   a
theoretical successor to the secure wallet prototype, where the complete system had
been ported to the X-GOLD

TM

208.

We found that the basic platform security for OMTP TR0 and TR1 are based on a
secure boot. The X-GOLD

TM

208 can also provide general platform integrity through

its secure boot feature. One of the most important security enablers of TR1 is the
TEE. We saw that the secure wallet prototype architecture can be viewed as a set of
communicating   Trusted   Execution   Engines.   The   prototype   also   provides   a   Secure
Storage and Secure Access to User Input/Output facility generally in line with an
OMTP TR1 profile 1 classification. The secure storage was made possible due to the
hardware   cryptographic   functions   and   unique   key   provided   by   the   X-GOLD

TM

208

hardware.

The major security strength of the prototype was due to the strong isolation provided
by   the   compartment   manager.   This   isolation   is   generally   only   found   in   an   OMTP
profile 2 architecture. The prototype would not meet all profile 2 requirements, as it
was not defined to protect against all of the OMTP TR1 physical threats.

Areas   for   further   work   would   be   a   more   detailed   analysis   of   the   secure   wallet
prototype and the OMTP TR1 requirements.

Open_TC Deliverable D08.2

103/109

background image





Security Services for a Trusted Mobile Application

Final

Conclusions

In   this   deliverable,   we   proposed   the

Secure   Wallet

  as   a   countermeasure   against

identity theft and examined the use case from different points of view. In particular,
the   realization   of   such   a   solution   on   a   mobile   platform   and   its   deployment   with
respect to relevant mobile standards have been considered.

A   PC-based   prototype   of   the   Secure   Wallet   has   been   implemented,   whereas   the
realization of the demonstrator described in Section 2.7 is still ongoing. Given that
the TCG Mobile Trusted Module (MTM) specification was published when much of
the   work   for   our   prototype   was   already   in   progress,   and   since   the   sealing
functionality   (which   is   the   major   Trusted   Computing   functionality   needed   for   the
Secure Wallet) provided by MTMs does not deviate from the TPM 1.2 specification, it
seems   reasonable   to   use   a   modified   TPM   emulator   –   equipped   with   a   driver   for
accessing the existing security chip – to provide Trusted Computing functionality for
the demonstrator. However, it is anticipated that in the future MTMs (possibly based
on a similar mechanism to access vendor-specific mobile hardware) will be employed
instead.

In   our   theoretical   work,   we   addressed   the   most   relevant   and   recent   standards

relating   to   the   implementation   of   a   trusted   mobile   platform.  We   examined   which
architectural components, based on the TCG mobile reference architecture [63], and
which functions, as specified in the TCG MTM specification [64], could be used to
facilitate a robust implementation of the secure wallet mechanism. The components
and functionality required in order to implement the secure wallet will be used in
specifying and analysing the methods by which a subset of MTM functionality can be
provided given an X-GOLD

TM

208/a generic OMTP TR1 device. We also examined the

secure wallet use case in light of OMTP TR1.

Open_TC Deliverable D08.2

104/109

background image





Security Services for a Trusted Mobile Application

Final

Bibliography

[1]   Anti   Phishing   Working   Group.   Phishing   Activity   Trends   Report(s),   2005-2007.

http://www.antiphishing.org

.

[2] ID theft ring hits 50 banks, security firm says, 2005.

http://news.cnet.com/2100-7349_3-5823591.html

.

[3] New Trojans plunder bank accounts, 2006.

http://news.cnet.com/2100-7349_3-6041173.html

.

[4] L4 linux.

http://os.inf.tu-dresden.de/L4/LinuxOnL4/

.

[5] The l4 μ-kernel.

http://os.inf.tu-dresden.de/L4/

.

[6] Microsoft warns of hijacked certificates.

http://www.news.com/2100-1001-254586.html

.

[7] Netcraft toolbar. 2004.

http://toolbar.netcraft.com

.

[8] Paros Java Proxy.

http://www.parosproxy.org/

.

[9] Phishers get personal.

http://news.com.com/Phishers+get+personal/2100-7349_3-5720672.html

.

[10] TrustedGRUB.

Http://www.trust.rub.de/home/concluded-projects/trustedgrub/

.

[11] Gartner Press Releases 2006.

http://www.gartner.com/it/page.jsp?id=498245

.

[12] Pop-up program reads keystrokes, steals passwords, 2004.

http://news.cnet.com/

2100-7349_3-5251981.html

.

[13]

TrouSerS – the Open-Source TCG Software Stack,

http://trousers.sourceforge.net/

[14]

TPM Manager v0.5, April 2008,

http://sourceforge.net/projects/tpmmanager

[15] Andre Adelsbach, Sebastian Gajek, and Joerg Schwenk. Visual Spoofing of SSL-
Protected Web Sites and Effective Countermeasures. In Information Security Practice
and Experience, First International Conference, ISPEC 2005, Singapore, April 11-14,
2005, Proceedings, pages 204-216. Springer, 2005.
[16] W. A. Arbaugh, D. J. Farber, and J. M. Smith. A secure and reliable bootstrap
architecture. In S&P ‘97: Proceedings of the 1997 IEEE Symposium on Security and
Privacy, page 65, Washington, DC, USA, 1997. IEEE Computer Society.

[17]   B.   Balacheff,   L.   Chen,   S.   Pearson,   D.   Plaquin,   and   G.   Proudler.   Trusted
Computing   Platforms:   TCPA   Technology   in   Context.   Prentice   Hall,   Upper   Saddle
River, New Jersey, USA, 2003.
[18] Paul Barham, Boris Dragovic, Keir Fraser, Steven Hand, Tim Harris, Alex Ho,
Rolf Neugebauer, Ian Pratt, and Andrew Wareld. Xen and the art of virtualization. In
SOSP   ‘03:   Proceedings   of   the   nineteenth   ACM   symposium   on   Operating   systems
principles, pages 164-177, New York, NY, USA, 2003. ACM.
[19]   Steven   M.   Bellovin.   Using   the   domain   name   system   for   system   breakins.   In

Open_TC Deliverable D08.2

105/109

background image





Security Services for a Trusted Mobile Application

Final

SSYM’95: Proceedings of the 5

th

  conference on USENIX UNIX Security Symposium,

Berkeley, CA, USA, 1995. USENIX Association.
[20]   Dominik   Birk,   Sebastian   Gajek,   Felix   Grobert,   and   Ahmad-Reza   Sadeghi.
Phishing   phishers   –   observing   and   tracing   organized   cybercrime.   In  ICIMP   ‘07:
Proceedings   of   the   Second   International   Conference   on   Internet   Monitoring   and
Protection, page 3, Washington, DC, USA, 2007. IEEE Computer Society.
[21] Peter Burkholder. SSL Man-in-the-Middle Attacks.

http://www.sans.org/rr/papers/60/480.pdf

.

[22] Neil Chou, Robert Ledesma, Yuka Teraguchi, and John C. Mitchell. Client-side
defense   against   web-based   identity   theft.   In  Proceedings   of   the   Network   and
Distributed  System Security  Symposium,   NDSS  2004,  San  Diego,  California,  USA,
2004.

[23] P.C. Clark and L.J. Hoffman. BITS: A Smartcard Protected Operating System.
Communications of the ACM, 37(11): 66-94, November, 1994.
[24] Richard S. Cox, Steven D. Gribble, Henry M. Levy, and Jacob Gorm Hansen. A
safety-oriented  platform  for   web  applications.   In  SP   ‘06:  Proceedings  of  the   2006
IEEE Symposium on Security and Privacy (S&P’06), pages 350-364, Washington, DC,
USA, 2006. IEEE Computer Society.
[25] Rachna Dhamija and J. D. Tygar. The battle against phishing: Dynamic security
skins.   In  SOUPS   ‘05:   Proceedings   of   the   2005   symposium   on   Usable   privacy   and
security, pages 77-88, New York, NY, USA, 2005. ACM.

[26] R. Dhamija, J. D. Tygar, and M. Hearst. Why Phishing Works. In Proceedings of
the Conference on Human Factors in Computing Systems (CHI2006), 2006.
[27] Jeremy Epstein, John McHugh, Hilarie K. Orman, R. Pascale, Ann B. Marmor-
Squires,   B.   Danner,   C.   Martin,   M.   Branstad,   J.   Benson,   and   D.   Rothnie.   A   high
assurance window system prototype.  Journal of Computer Security, 2(2-3):159-190,
1993.
[28] E.W Felten, D. Balfanz, D. Dean, and D. Wallach. Web spoofing: An internet con
game.  Technical   Report   540-96,  Dept.   of  Computer  Science,   Princeton   University,
1996.
[29]   Norman   Feske   and   Christian   Helmuth.   A   Nitpicker’s   guide   to   a   minimal
complexity   secure   GUI.   In  ACSAC   ‘05:   Proceedings   of   the   21

st

  Annual   Computer

Security Applications Conference, pages 85-94, Washington, DC, USA, 2005. IEEE
Computer Society.
[30] Eran Gabber, Phillip B. Gibbons, Yossi Matias, and Alain J. Mayer. How to make
personalized   web   browsing   simple,   secure,   and   anonymous.   In  Financial
Cryptography, First International Conference, FC ‘97, Anguilla, British West Indies,
February   24-28,   1997,   Proceedings,   volume   1318   of  Lecture   Notes   in   Computer
Science, pages 17-32. Springer, 1997.

[31]  Sebastian  Gajek,  Ahma-Reza  Sadeghi,   Christian  Stüble,  and  Marcel  Winandy.
Compartmented   security   for   browsers   –   or   how   to   thwart   a   phisher   with   trusted
computing. In  Proceedings of the Second International Conference on Availability,
Reliability and Security (ARES 2007), pages 120-127. IEEE, 2007.

[32]   S.   Gajek,   J.   Schwenk,   and  X.   Chen.   On   the   insecurity   of   Microsoft’s   identity

Open_TC Deliverable D08.2

106/109

background image





Security Services for a Trusted Mobile Application

Final

metasystem cardspace. Technical Report HGI TR-2008-004, Horst Goertz Institute for
IT-Security, 2008.
[33] Tal Garfinkel, Ben Pfaff, Jim Chow, Mendel Rosenblum, and Dan Boneh. Terra: a
virtual machine-based platform for trusted computing. In  SOSP ‘03: Proceedings of
the   nineteenth   ACM   symposium   on   Operating   systems   principles,   pages   193-206,
New York, NY, USA, 2003. ACM.

[34]   T.  Groß  and  B.  Pfitzmann.  SAML   artifact   information   flow   revisited.   In  IEEE
Workshop on Web Services Security, 2006.
[35] J. Alex Halderman, Brent Waters, and Edward W. Felten. A convenient method
for securely managing passwords. In WWW ‘05: Proceedings of the 14

th

 international

conference on World Wide Web, pages 471-479, New York, NY, USA, 2005. ACM.
[36]   Amir   Herzberg.   Browsers   defenses   against   phishing,   spoofing   and   malware.
Cryptology ePrint Archive, Report 2006/083, 2006.

http://eprint.iacr.org/2006/083

.

[37]   Amir   Herzberg   and   Ahmad   Gbara.   Security   and   identication   indicators   for
browsers against spoofing and phishing attacks. Cryptology ePrint Archive, Report
2004/155, 2004.

http://eprint.iacr.org/2004/155

.

[38]   D.   P.   Jablon.   Strong   password-only   authenticated   key   exchange.  Computer
Communication Review, 26(5):5–26, 1996.

[39]   C.   Jackson,   D.   Boneh,   and   J.   Mitchell.   Spyware   resistant   web   authentication
using virtual machines.

http://crypto.stanford.edu/spyblock/

, 2006.

[40] C. Jackson, D. Boneh, and J. Mitchell. Transaction generators: Root kits for web.
In 2nd USENIX Workshop on Hot Topics in Security (HotSec ’07), 2007.

[41] Collin Jackson, Daniel R. Simon, Desney S. Tan, and Adam Barth. An evaluation
of   extended   validation   and   picture-in-picture   phishing   attacks.   In  Financial
Cryptography   and   Data   Security,   11

th

  International   Conference,   FC   2007,   and   1

st

International Workshop on Usable Security, USEC 2007, Scarborough, Trinidad and
Tobago, February 12-16, 2007. Revised Selected Papers, pages 281-293. Springer,
2007.
[42] Markus Jakobsson and Adam Young. Distributed phishing attacks. Cryptology
ePrint Archive, Report 2005/091, 2005.

http://eprint.iacr.org/2005/091

.

[43] R. C. Jammalamadaka, T. W. van der Horst, S. Mehrotra, K. E. Seamons, and N.
Venkasubramanian. Delegate: A proxy-based architecture for secure website access
from   an   untrusted   machine.   In  22nd   Annual   Computer   Security   Applications
Conference (ACSAC’06), pages 57–66. IEEE Computer Society, 2006.

[44]   Stephen   Kost.   Hashing   Credit   Card   Numbers:   Unsafe   Application   Practices.

http://www.integrigy.com/security-
resources/whitepapers/Integrigy_Hashing_Credit_Card_Numbers_Unsafe_Practices.p
df

.

[45] P. C. S. Kwan and G. Durfee. Practical uses of virtual machines for protection of
sensitive   user   data.   In  Information   Security   Practice   and   Experience   Conference
(ISPEC 2007). Springer, 2007.
[46] Jochen Liedtke. On micro-kernel construction. In SOSP, pages 237-250, 1995.

Open_TC Deliverable D08.2

107/109

background image





Security Services for a Trusted Mobile Application

Final

[47] H. Löhr, A.-R. Sadeghi, C. Stüble, M. Winandy. Secure Wallet. Open_TC Internal
Deliverable. Ruhr-Universitat Bochum, Horst Gortz Institute for IT Security, Bochum,
Germany, January, 2007.
[48] John Marchesini, Sean W. Smith, Omen Wild, Josh Stabiner, and Alex Barsamian.
Open-Source Applications of TCPA Hardware. In ACSAC ‘04: Proceedings of the 20

th

Annual   Computer   Security   Applications   Conference   (ACSAC’04),   pages   294-303,
Washington, DC, USA, 2004. IEEE Computer Society.

[49]

OMTP   (Open   Mobile   Terminal   Platform)   Trusted   Environment   TR0,   March

2006,

http://www.omtp.org/Publications.aspx

[50]

OMTP (Open Mobile Terminal Platform) Advanced Trusted Environment TR1,

May 2008,

http://www.omtp.org/Publications.aspx

[51]   Rolf   Oppliger,   Ralf   Hauser,   and   David   A.  Basin.   SSL/TLS   session-aware   user
authentication   –   Or   how   to   effectively   thwart   the   man-in   the-middle.  Computer
Communications, 29(12):2238-2246, 2006.
[52] Bryan Parno, Cynthia Kuo, and Adrian Perrig. Phool-proof Phishing Prevention.
In Financial Cryptography and Data Security, 10

th

 International Conference, FC 2006,

Anguilla, British West Indies, February 27-March 2, 2006, Revised Selected Papers,
pages 1-19. Springer, 2006.
[53] Birgit Pfitzmann, James Riordan, Christian Stüble, Michael Waidner, and Arnd
Weber.   The   PERSEUS   system   architecture.   In   Dirk   Fox,   Marit   Kuehntopp,   and
Andreas Pfitzmann, editors,  VIS  2001, Sicherheit  in komplexen  IT-Infrastrukturen,
pages 1-18. Vieweg Verlag, 2001.

[54]   B.   Pfitzmann   and   M.Waidner.   Analysis   of   liberty   single-sign-on   with   enabled
clients. IEEE Internet Computing, 7(6):38–44, 2003.
[55]   Blake   Ross,   Collin   Jackson,   Nick   Miyake,   Dan   Boneh,   and   John   C.   Mitchell.
Stronger   password   authentication   using   browser   extensions.   In  SSYM’05:
Proceedings of the 14

th

  conference on USENIX Security Symposium, Berkeley, CA,

USA, 2005. USENIX Association.
[56] Reiner Sailer, Xiaolan Zhang, Trent Jaeger, and Leendert van Doorn. Design and
implementation   of   a   TCG-based   integrity   measurement   architecture.   In  SSYM’04:
Proceedings of the 13

th

  conference on USENIX Security Symposium, Berkeley, CA,

USA, 2004. USENIX Association.
[57]   Jonathan   S.   Shapiro   and   Norman   Hardy.   Eros:   A   principle-driven   operating
system from the ground up. IEEE Software, 19(1):26-33, 2002.
[58]  Jonathan S. Shapiro,  John Vanderburgh,  Eric  Northup,  and David Chizmadia.
Design   of   the   eros   trusted   window   system.   In  Proceedings   of   the   13

th

  USENIX

Security Symposium, August 9-13, 2004, San Diego, CA, USA, pages 165-178, 2004.
[59] George Staikos. Kwallet - The KDE Wallet System.

http://www.staikos.on.ca/staikos/papers/2003/kwallet-kastle-2003.ps

.

[60]   Michael   Steiner,   Peter   Buhler,   Thomas   Eirich,   and   Michael   Waidner.   Secure
password-based cipher suite for tls. ACM Trans. Inf. Syst. Secur., 4(2):134-157, 2001.

[61] Mario Strasser (ETH Zurich), Heiko Stamer, Jesus Molina. The TPM Emulator –
Software based TPM Emulator for Unix),

http://tpm-emulator.berlios.de/

Open_TC Deliverable D08.2

108/109

background image





Security Services for a Trusted Mobile Application

Final

[62] F. Stumpf, O. Tafreschi, P. Roeder, and C. Eckert. A robust integrity reporting
protocol for remote attestation. In Proceedings of the Second Workshop on Advances
in Trusted Computing (WATC’06 Fall), Tokyo, December 2006.

[63] TCG MPWG. TCG Mobile Reference Architecture. TCG specification Version 1.0
Revision 1, The Trusted Computing Group (TCG), Portland, Oregon, USA, June, 2007.

[64]   TCG   MPWG.   TCG   Mobile   Trusted   Module   Specification.   TCG   specification
Version 1.0 Revision 1, The Trusted Computing Group (TCG), Portland, Oregon, USA,
June, 2007.

[65] TCG. TPM Main, Part 2 TPM Data Structures. TCG Specification Version 1.2
Level 2 Revision 85, The Trusted Computing Group (TCG), Portland, Oregon, USA,
February, 2005.

[66]   TCG.   TCG   PC   Client   Specific   Implementation   Specification   for   Conventional
BIOS.   TCG   specification   Version   1.2   Final,   The   Trusted   Computing   Group   (TCG),
Portland, Oregon, USA, July, 2005.

[67] TCG. TCG Software Stack Specification. TCG Specification Version 1.2 Level 1,
The Trusted Computing Group (TCG), Portland, Oregon, USA, January, 2006.

[68]   Sean   Whalen,   Sophie   Engle,   and   Dominic   Romeo.   An   Introduction   to   ARP
Spoofing,



2001.

http://www.rootsecure.net/content/downloads/pdf/arp_spoofing_slides.pdf

.

[69] Min Wu, Robert C. Miller, and Simson L. Garfinkel. Do security toolbars actually
prevent   phishing   attacks?   In  CHI   '06:   Proceedings   of   the   SIGCHI   conference   on
Human Factors in computing systems, pages 601-610, New York, NY, USA, 2006.
ACM.

[70]   Min   Wu,   Robert   C.   Miller,   and   Greg   Little.   Web   wallet:   preventing   phishing
attacks   by   revealing   user   intentions.   In  SOUPS   '06:   Proceedings   of   the   second
symposium   on   Usable   privacy   and   security,   pages   102-113,   New   York,   NY,   USA,
2006. ACM.

[71]   E.   Ye,   Y.   Yuan,   and   S.   Smith.   Web   Spoofing   Revisited:   SSL   and   Beyond.
Technical   Report   2002-417,   Dartmouth   College,   Hanover,   2002.

http://www.cs.dartmouth.edu/~sws/pubs/TR2002-417.pdf

.

[72] Ka-Ping Yee and Kragen Sitaker. Passpet: convenient password management and
phishing protection. In SOUPS '06: Proceedings of the second symposium on Usable
privacy and security, pages 32-43, New York, NY, USA, 2006. ACM.

[73]   Zishuang   (Eileen)   Ye,   Sean   Smith,   and   Denise   Anthony.   Trusted   paths   for
browsers. ACM Trans. Inf. Syst. Secur., 8(2):153-186, 2005.

[74]

Infineon, Product Brief PMB 8877, S-GOLD3, Turbo engine for EDGE-enabled

multimedia phones,

www.infineon.com/mobilesolutions

[75] Steven Bellovin.  Security Problems in the TCP/IP Protocol Suite. In Computer
Communications Review 2:19, pp. 32-48, 1989.
