Related/previous work landscape
Deliverable 1b (short version)
Created within the OpenTC project
Bochum/Berlin, October December 2006
(internal use only)
Authors:
Dipl.-Inf. Yacine Gasmi
Dipl.-Inf. Patrick Stewin
Supervision:
Prof. Dr.-Ing. Ahmad-Reza Sadeghi
Dipl.-Inf. Christian Stüble
Contents
Part II
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
1.1 Important terms and de nitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
2 Strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.1 Search queries and search area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.2 Problems with scanned patent publications . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.3 Entering a patent publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.4 Database server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.5 Entry form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
3 Problems and time-consuming obstacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
3.1 General problems regarding patent publications . . . . . . . . . . . . . . . . . . . . . . .
9
3.2 Problems regarding the patent search with Delphion . . . . . . . . . . . . . . . . . . . .
9
4 Statistical evaluation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 Patent List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 A boot process for a computer, a boot ROM and a computer having a boot ROM . . . 17
6.2 A boot process for a computer, a boot ROM and a computer having a boot ROM . . . 17
6.3 A method and apparatus for securing communications between a smartcard and a
terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
A List of appropriate search terms (in alphabetical order) . . . . . . . . . . . . . . . . . . . . 21
B Detailed evaluation results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
C PDF le list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
D Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Part II
Deliverable 1b
1 Introduction
The present document forms the nal report of the preliminary inquiry about the related and
previous work landscape in the area of Trusted Computing (and virtualization). The work was done
by the authors within a three-month project and provides a basis for a subsequent comprehensive
risk analysis within the OpenTC project.
The report should, under the terms of the contract, include the following three partial perfor-
mances:
1
1. Extended list of patent publications from deliverable 1a (cf. Gasmi and Stewin, 2006)
2. Improved categorization
3. Statistical evaluation of the results
The main objective was to glean the relevant patent publications concerning Trusted Computing
(that may affect the OpenTC project) and assign them to both, functional categories and the
different workpackages of the project. As the generation of an exhaustive list turned out to be too
extensive to be ful lled within the limited resources of the project, the second objective was to give
a documentation of the work and the faced dif culties, to simplify future work in this eld.
1.1 Important terms and de nitions
To interpret the collected patent publications, it is indispensable to know the meaning of the
following terms:
•
Kind code: To distinguish between the different types of patent publications, the publication
number contains an alphanumeric coding: the kind code. It indicates the level of publication
(e.g. `patent after modi cation`). The kind codes are assigned separately in each country and
can therefore differ (in their meaning) from country to country. A complete list of existing
kind codes offers The Thomson Corporation (2006c). Relevant for the present work is the
subset of kind codes in table 1.1.
•
Patent family: The Thomson Corporation (n.d.) de nes a patent family as a set of individual
patents granted by various countries [. . . ] (that includes) all the equivalent patent applications
corresponding to a single invention, covering different geographical regions.
1 The appendant DVD contains the following les:
•
Related/previous work landscape (deliverable 1a)
•
Related/previous work landscape (deliverable 1b, short version)
•
Related/previous work landscape (deliverable 1b, full version)
•
MySQL database backups
•
Self-written PHP scripts
•
L
A
TEXcode of the full version of this document
•
All collected publications in portable document format (PDF)
4
Kind code
Meaning
European Patent Of ce (EPO) (EP)
A1
Publication of application with search report
A2
Publication of application without search report
A3
Publication of search report
B1
Patent
United States (US)
A
United States patent
A1
Patent application publication within the Trial Voluntary Protest Program (TVPP)
B1
Reexamination certi cate - rst reexamination
B2
Reexamination certi cate - second reexamination
World Intellectual Property Organization (WIPO) (WO)
A1
Publication of the international application with international search report
A2
Publication of the international application without international search report
A3
Subsequent publication of the international search report
Table 1.1: Meaning of kind codes in patent publications (cf. The Thomson Corporation, 2006c)
•
DW-Record: The Derwent World Patents Index (DWPI), developed by The Thomson Corporation
(2005), is a database that adds value to the information in original patent documents ,
basically by providing a sophisticated classi cation system as well as rewritten patent titles
and abstracts. Furthermore the DWPI enables the identi cation of non-conventional
equivalents that occur when a patent is led outside of the priority deadline , i.e. equivalent
patents with different priority dates
2
are listed within the same patent family.
A record in the DWPI (DW-Record) is indexed by a Primary Accession Number (e.g. 1996-412885)
which is a unique identi cation number assigned by Derwent to the rst patent in each
patent family, and therefore to the database record created for that family (The Thomson
Corporation, n.d.).
2 The priority date indicates the initial date of ling of a patent application, normally in the applicant's domestic
patent of ce. This date is used to help determine the novelty of an invention (cf. The Thomson Corporation,
n.d.).
2 Strategy
To nd patent publications, the Delphion Research Intellectual Property Network was utilized. Delphion is
a research tool for worldwide patent publications developed by The Thomson Corporation (2006a).
It offers an advanced search form that was used to perform more complex search queries (cf.
section 2.1). Publications were collected in work les. A work le offers a mechanism to download
all publications as PDF les. Thus, it was possible to analize the publications of ine. When a
relevant publication was found, it was entered in a MySQL database via a web form (cf. sections

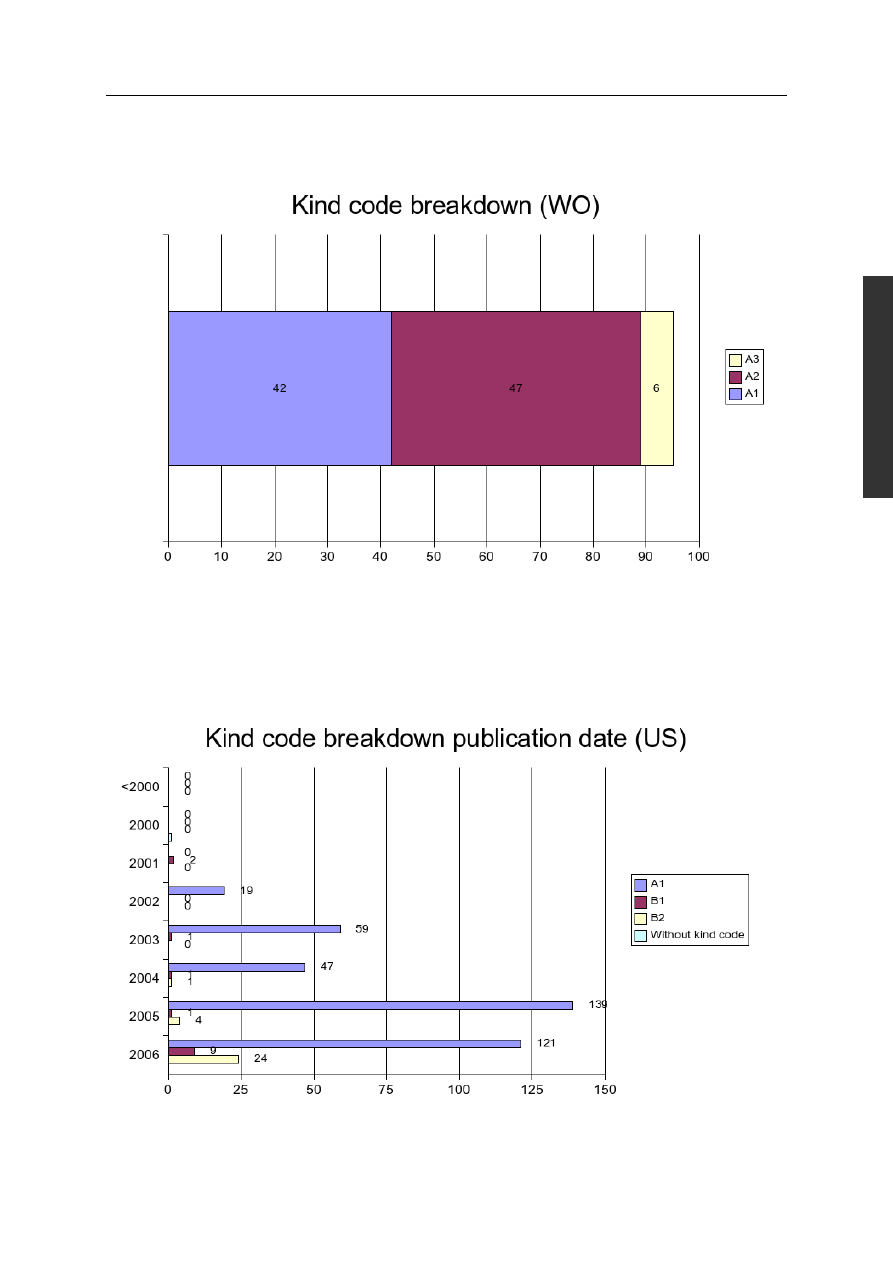

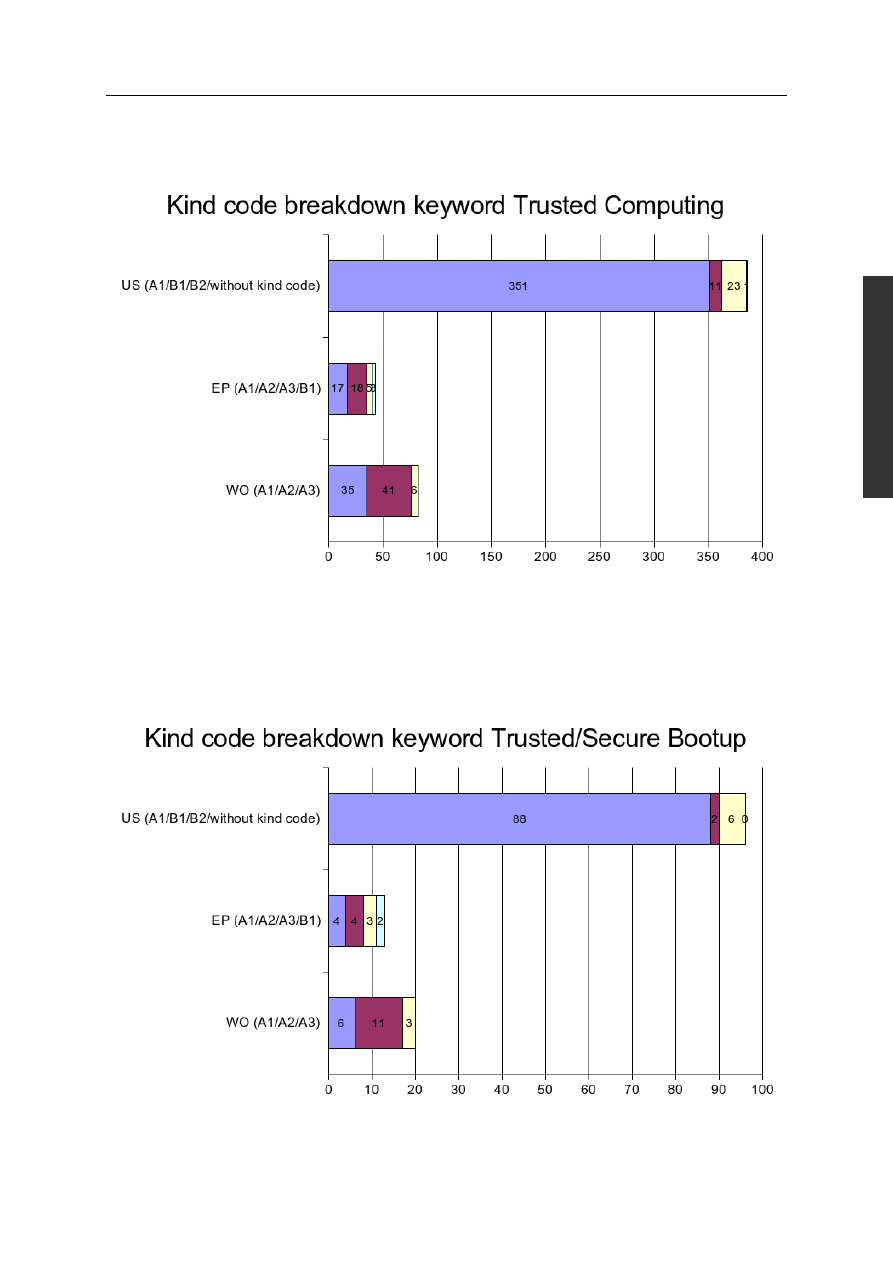

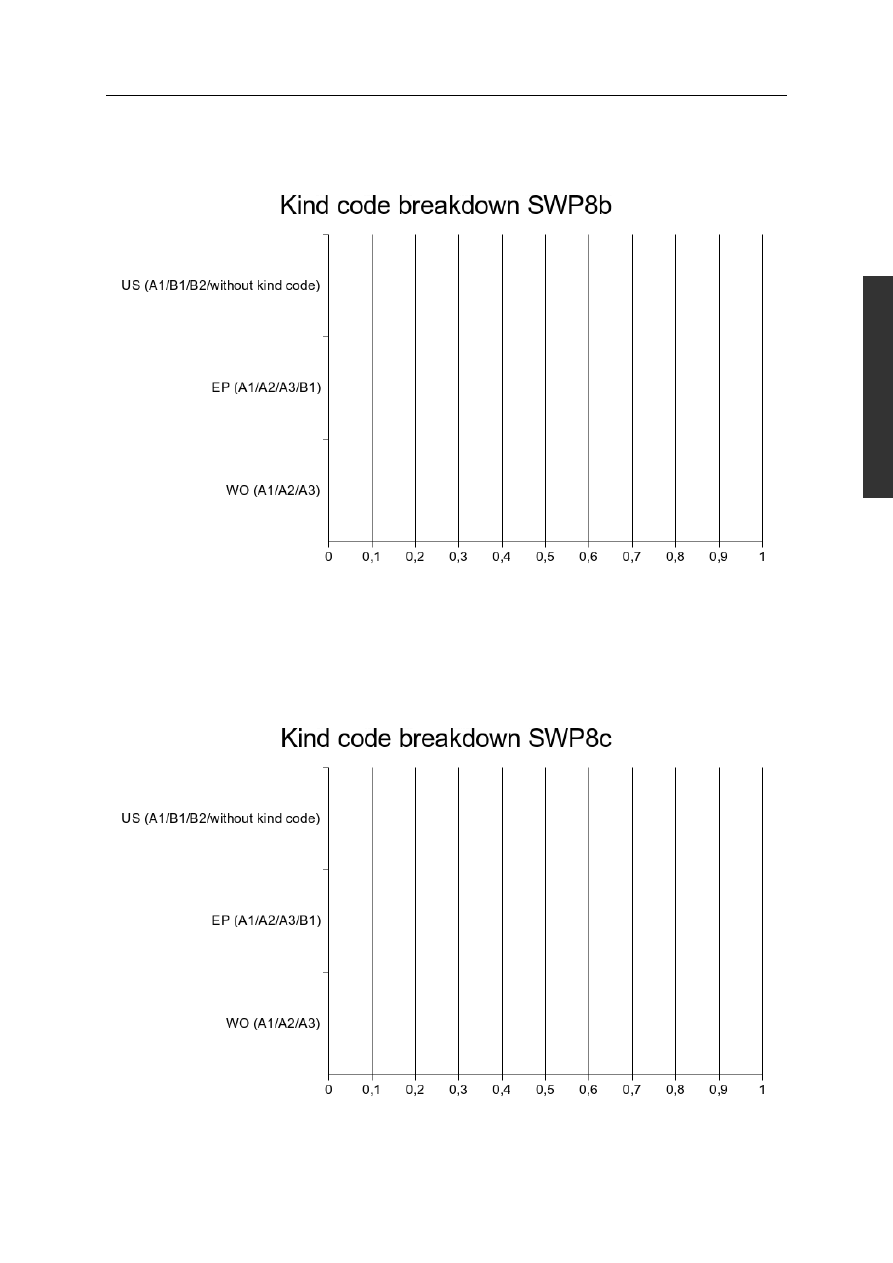

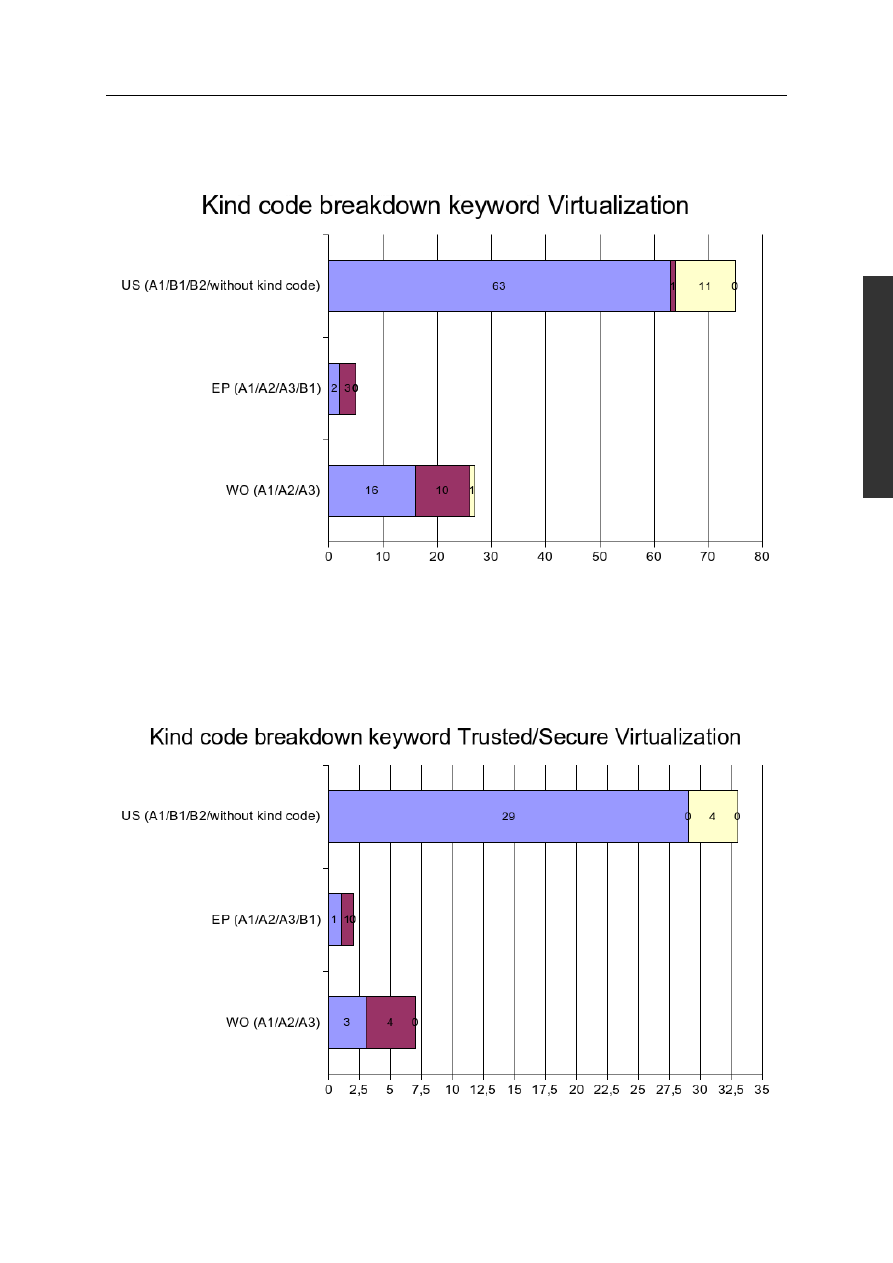

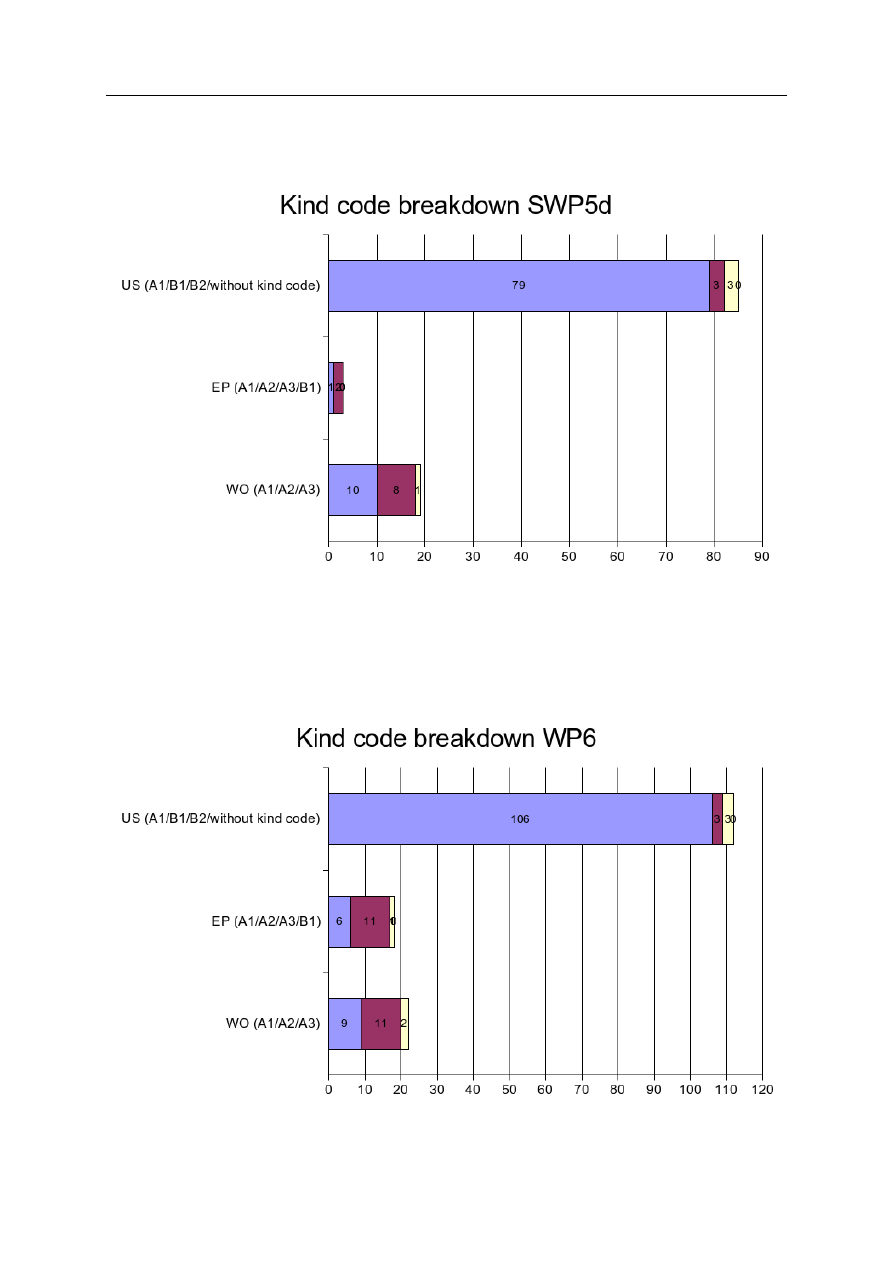

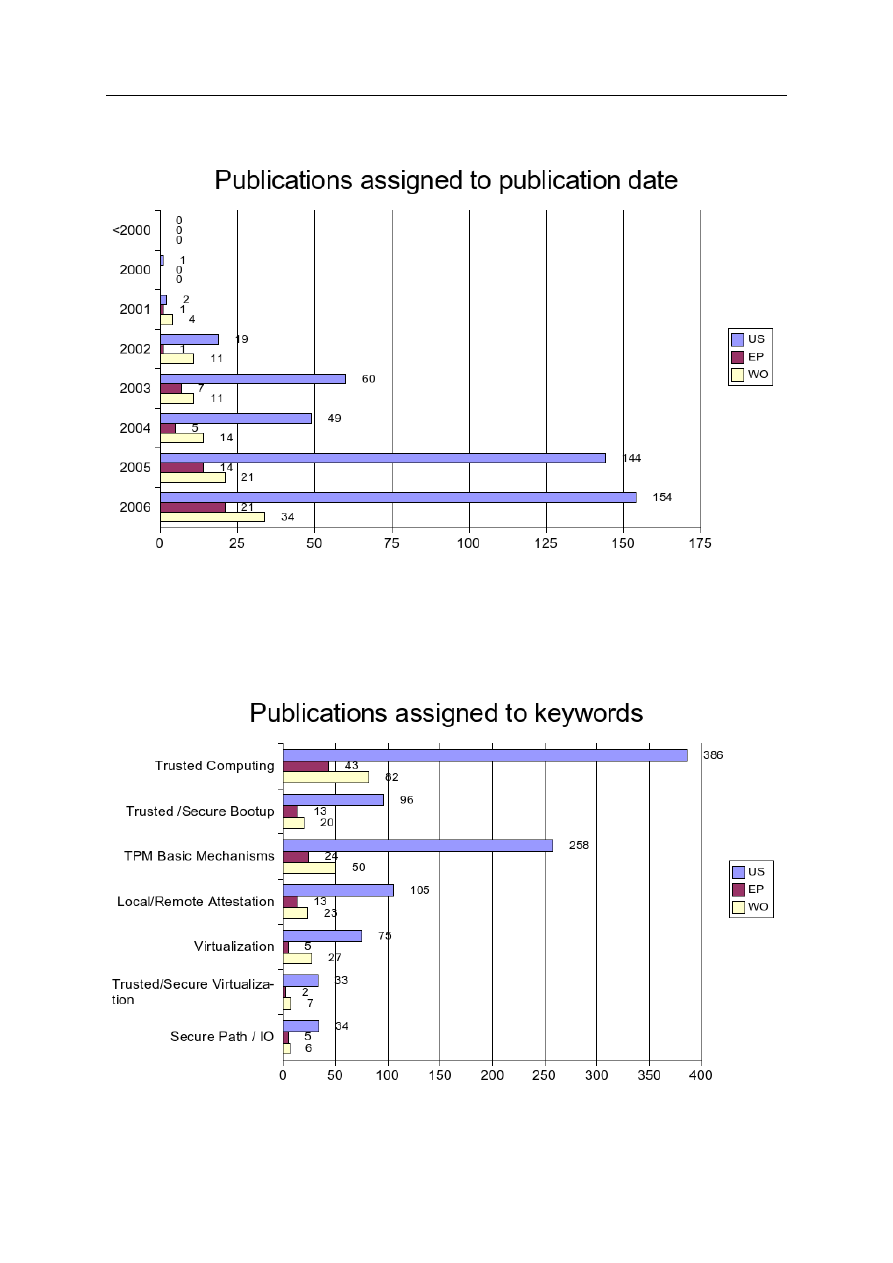

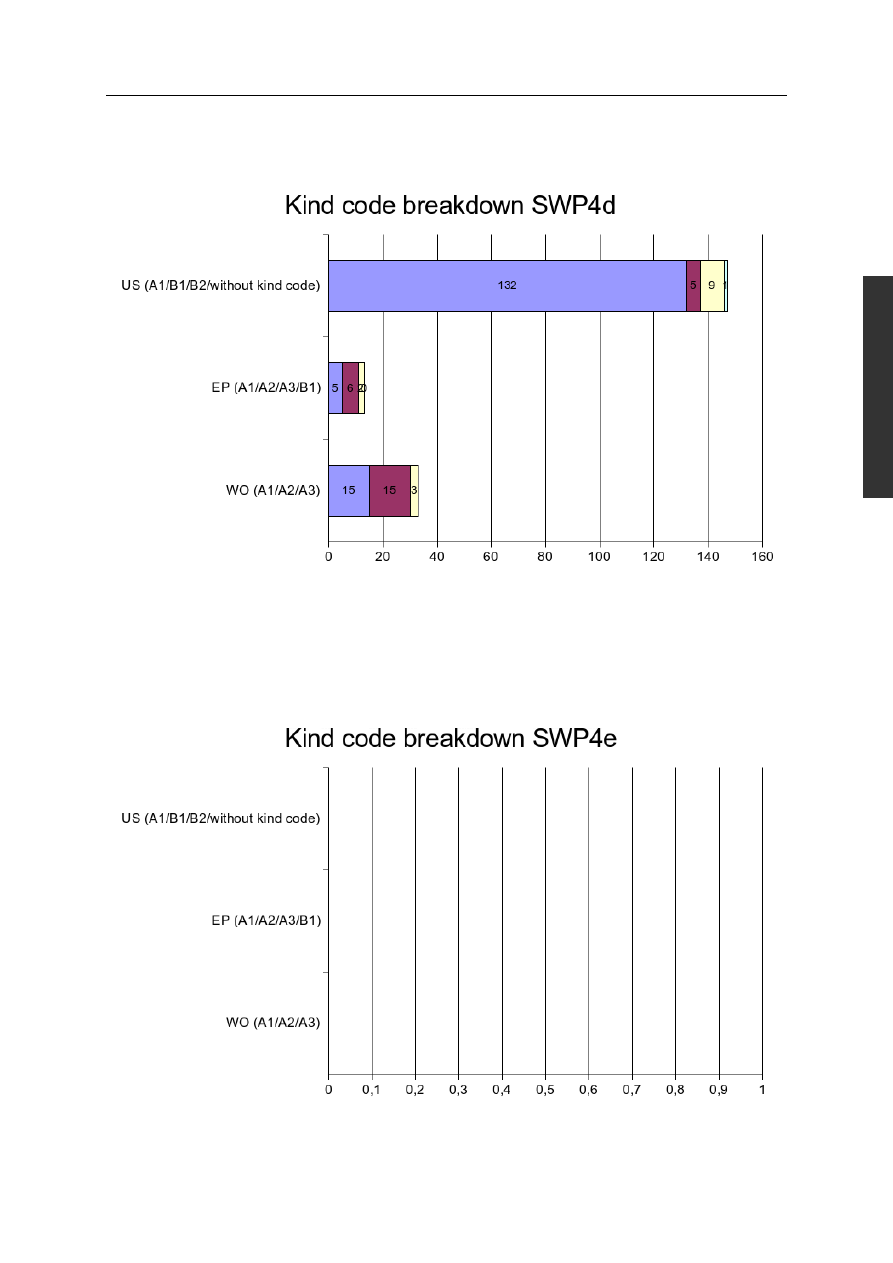

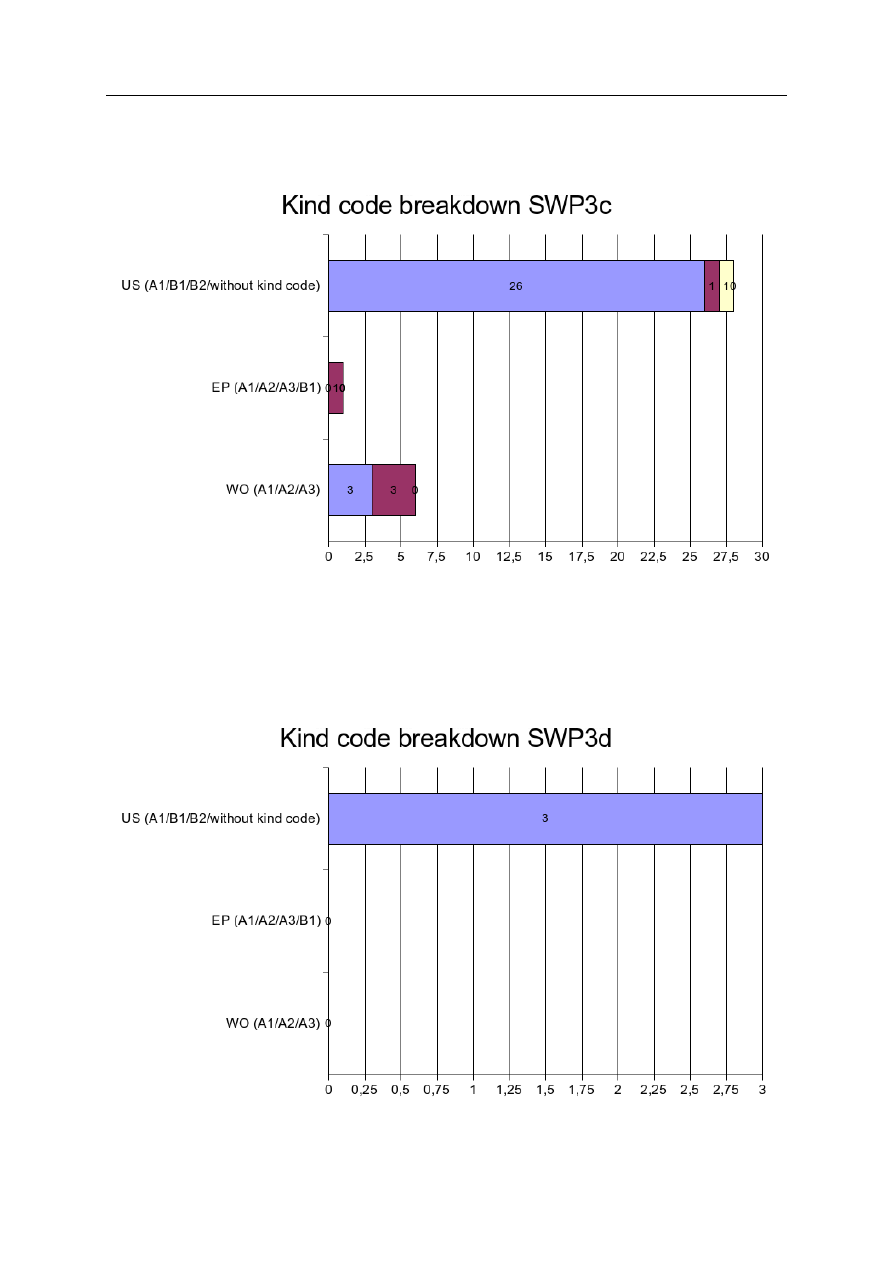

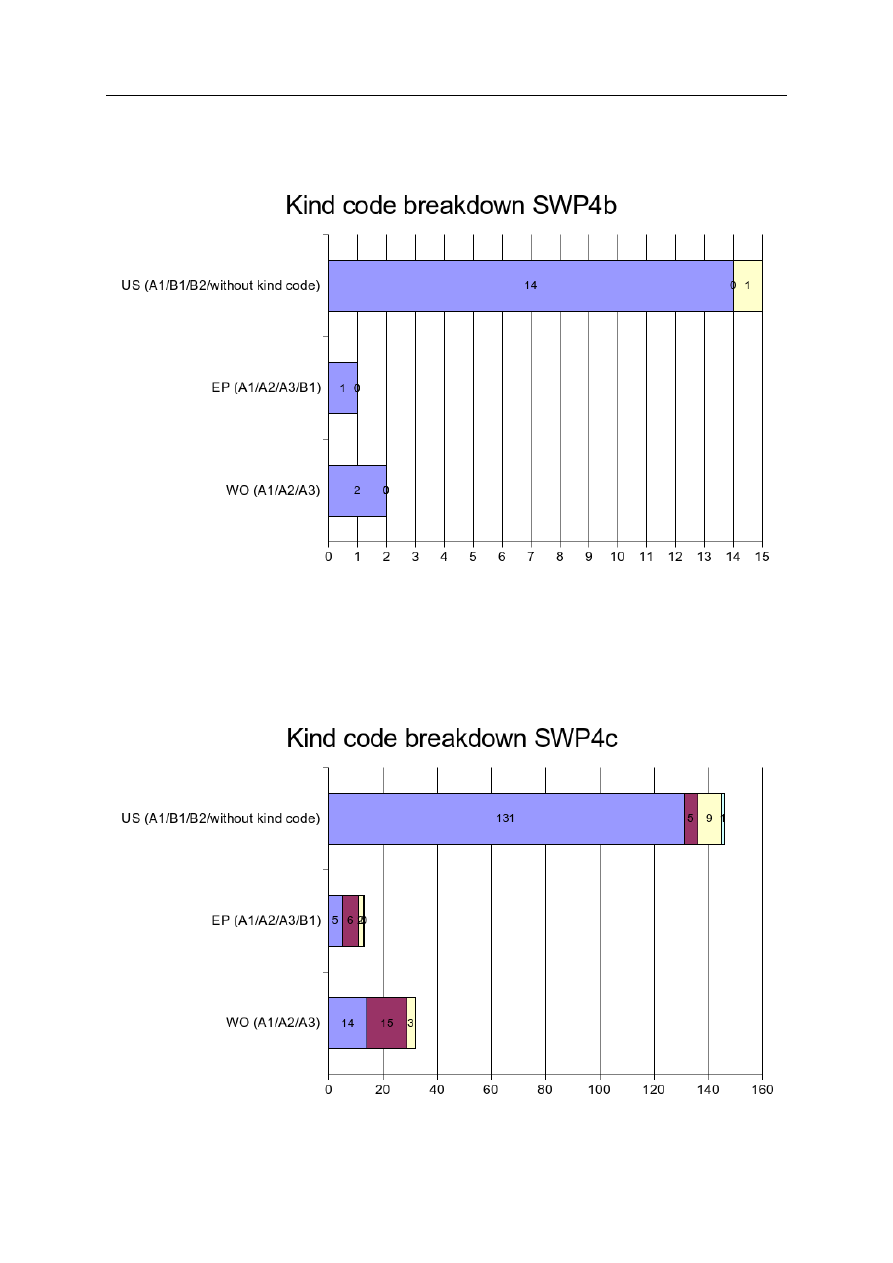

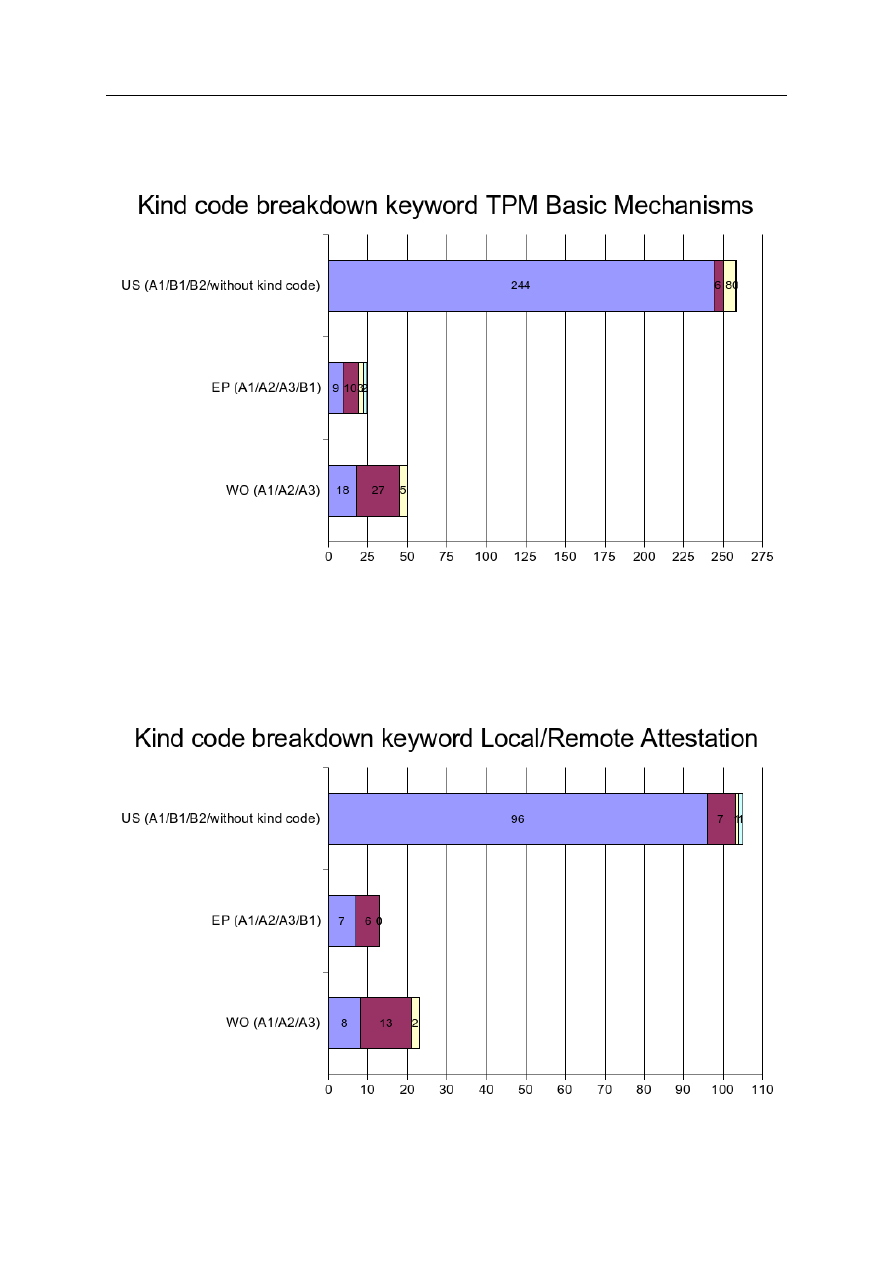

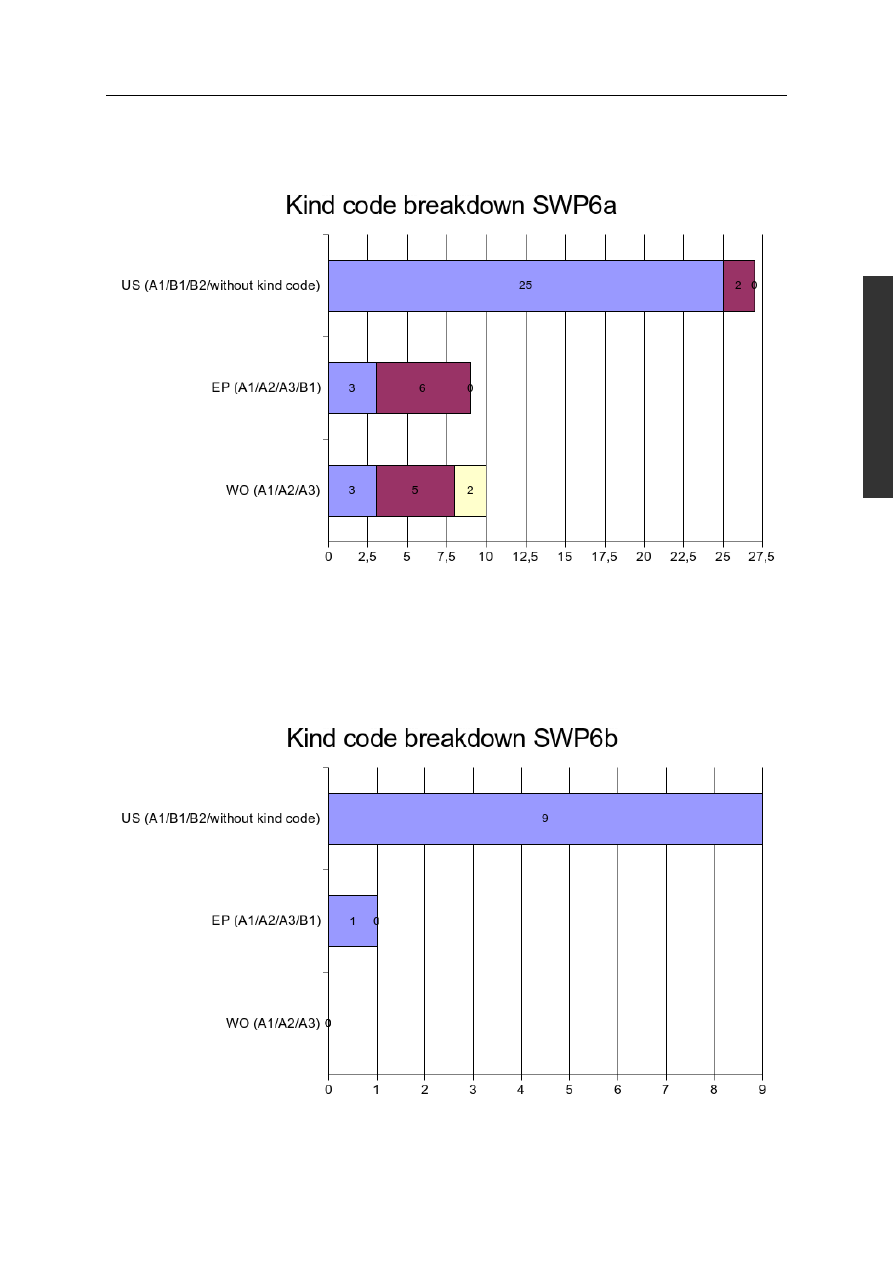

2.4 and 2.5). The nal results, based on the number of entered publications of each kind code (cf.

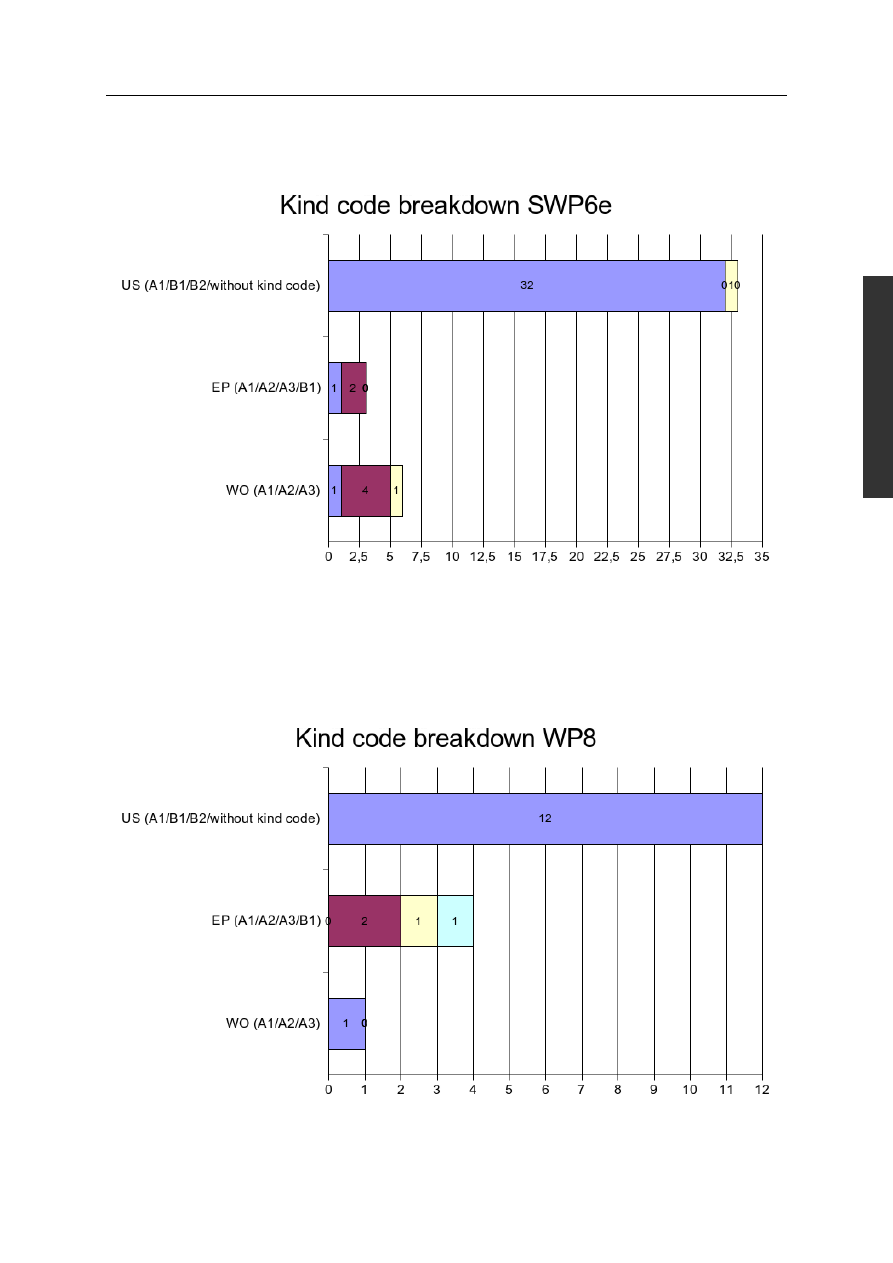

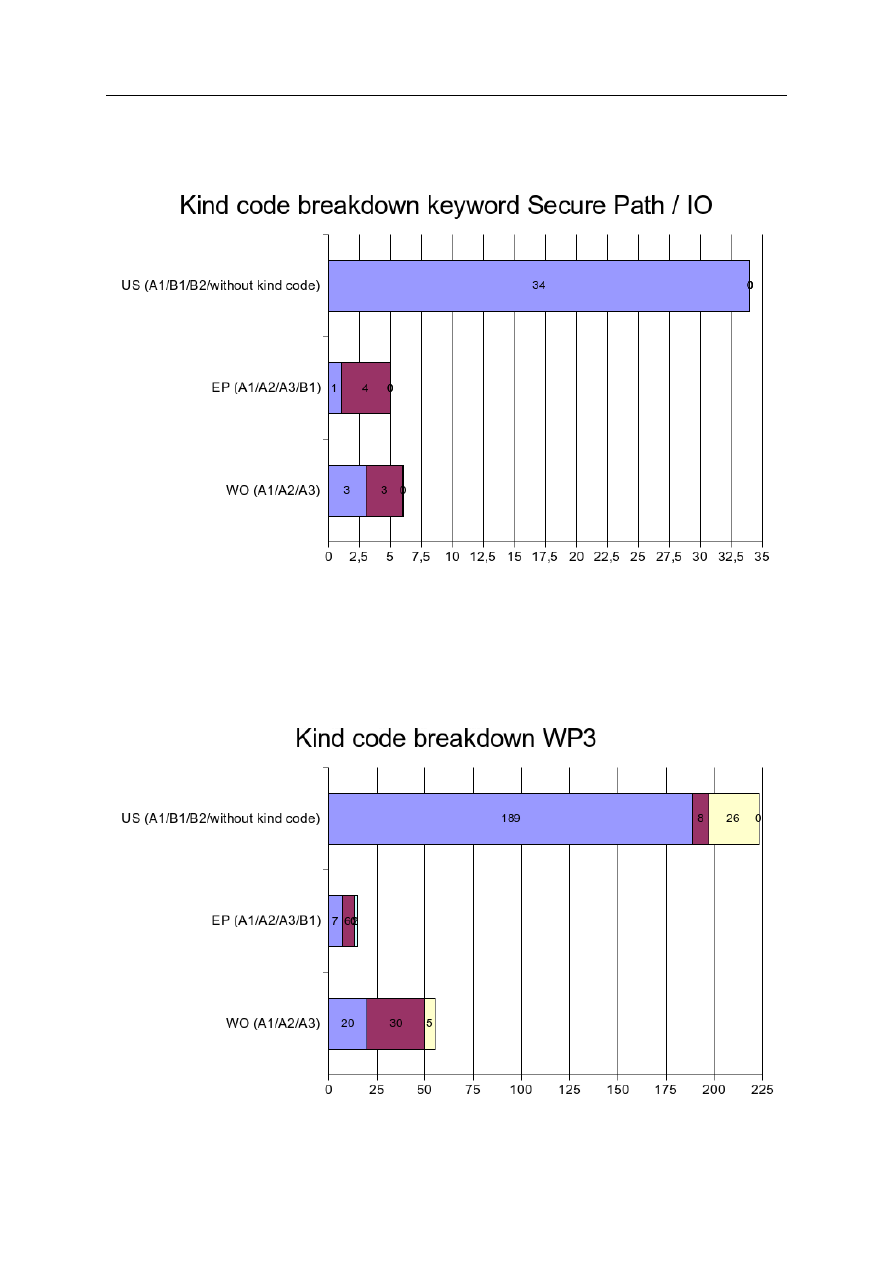

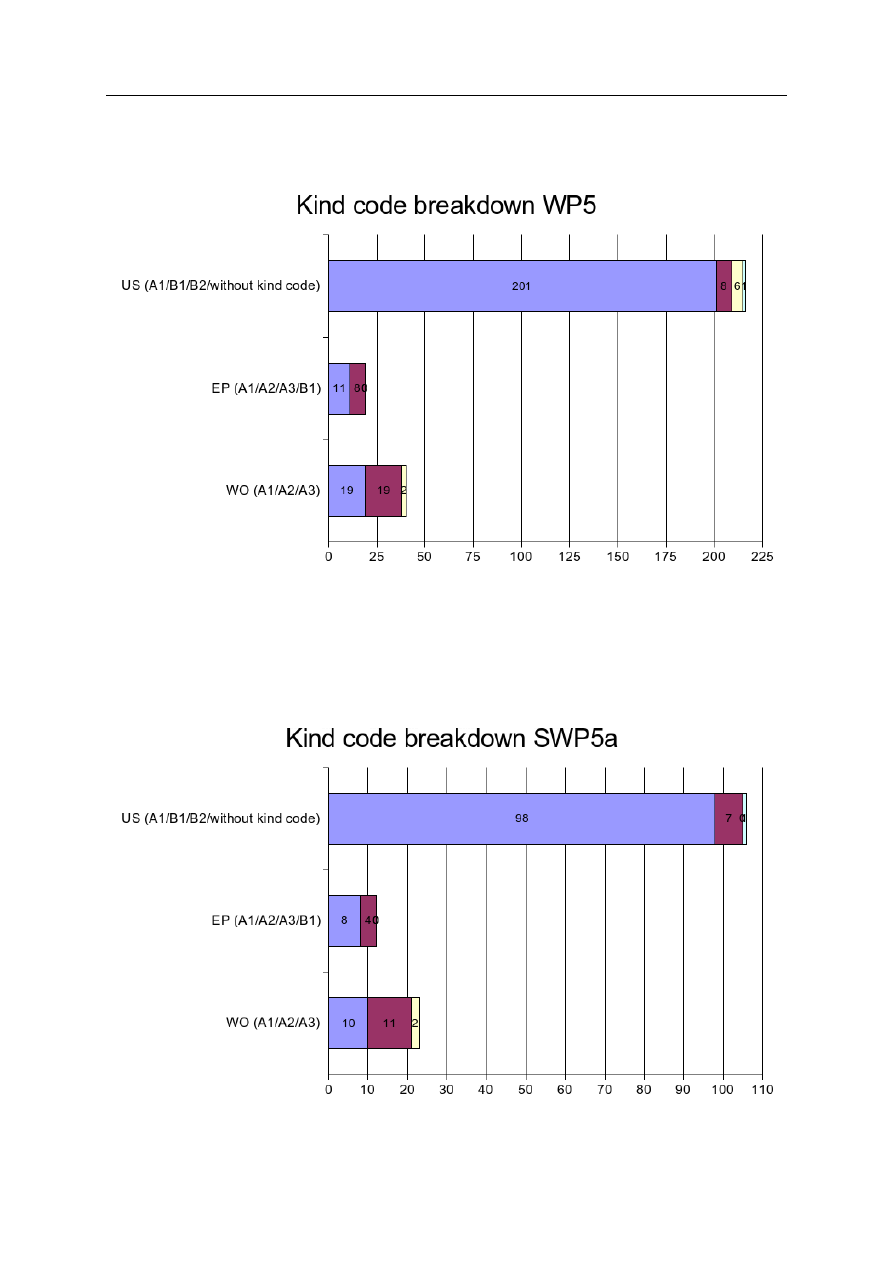

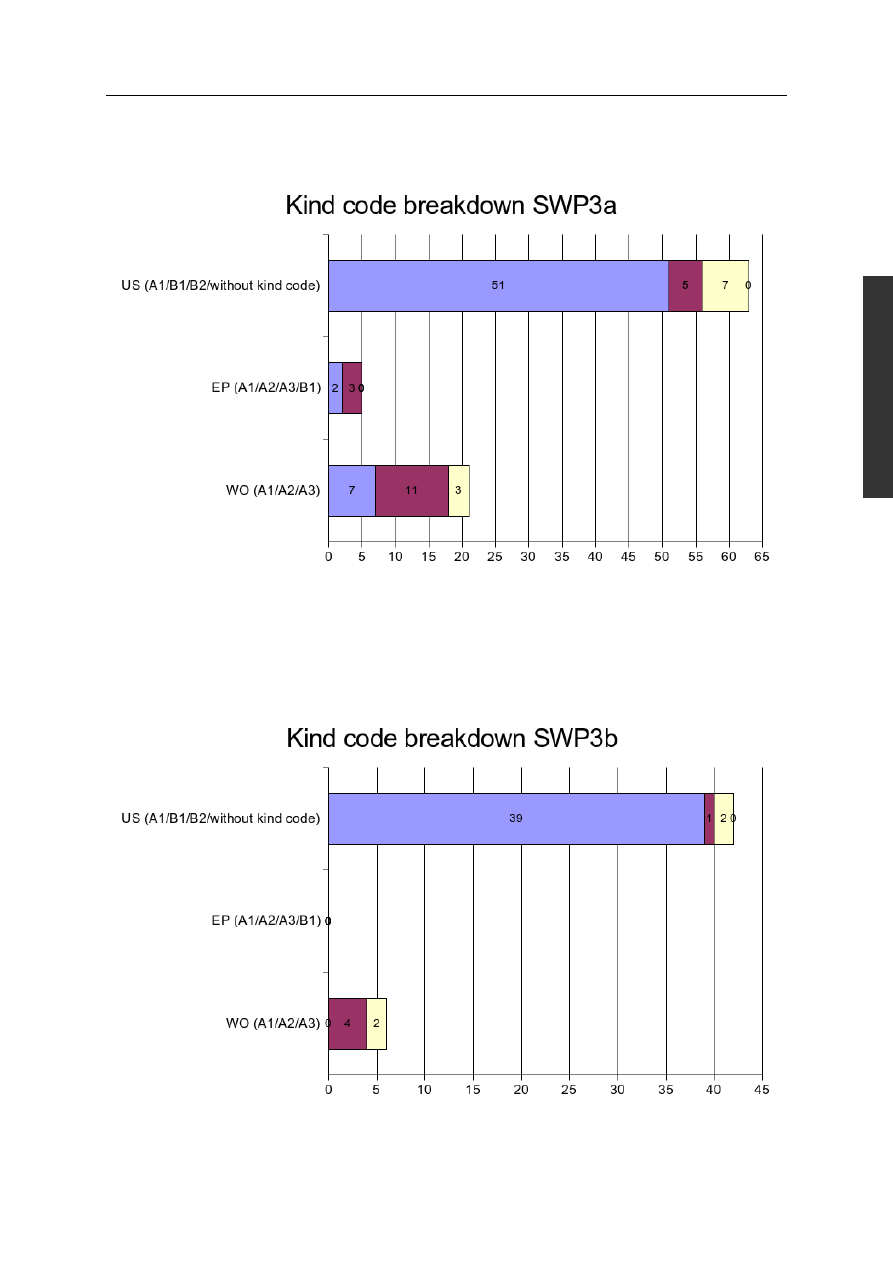

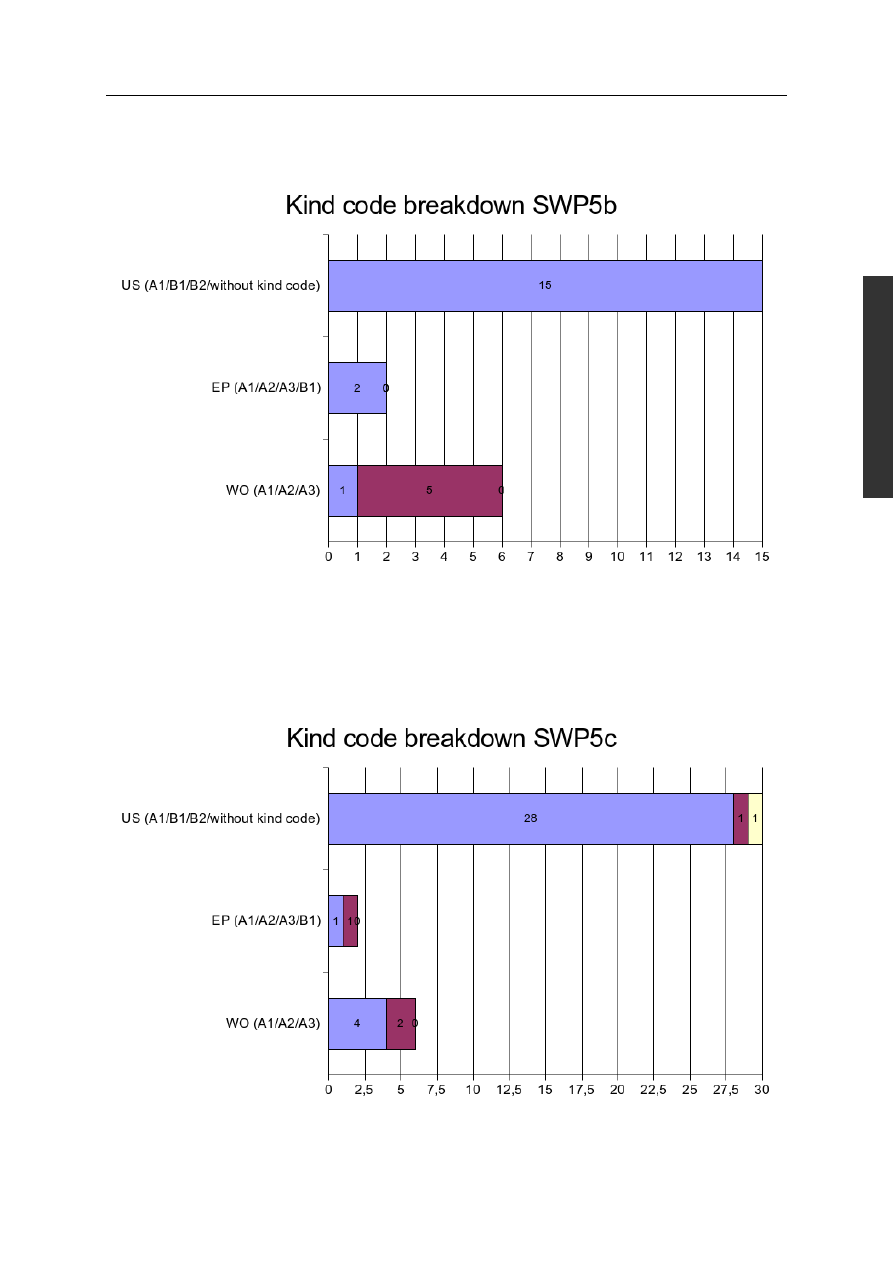

table 1.1), were visualized as block diagrams (see section 5 and appendix B).
2.1 Search queries and search area
To improve the patent search, an appropriate retrieval strategie was developed,
3
which nally
comprised (cf. Gasmi and Stewin, 2006, p.3):
4
1. Patent search based on keywords
2. (Extension of the search by taking basic ideas into account)
3. (Tracing of references among patents/publications)
To facilitate the keyword-based patent search, the OpenTC website (OpenTC Consortium, 2006b)
and several TC publications (e.g. Kuhlmann, 2006) were sifted through to identify relevant keywords
and hence, to build up a list of appropriate search terms (see appendix A). Unfortunately, steps
two and three of the retrieval strategy could not be performed, because of the high number of
keyword-based search results. To give an example, the rst two chosen search terms were ((attestation)
) AND (PD>=1987-01-01)
5
(more than 6,000 search results) and ("trusted" AND "virtualization")
6
(number of search results: 297). Obviously, the search area de ned by the list of keywords turned
out to be too wide to be covered within this report. Therefore the following search queries were
de ned to reduce the number of search results:
7
•
((("binding" AND "Trusted Platform Module")) ) AND (PD>=1987-01-01 )
•
((("key protection" AND "Trusted Platform Module")) ) AND (PD>=1987-01-01 )
•
((("logging" AND "trusted platform module")) ) AND (PD>=1987-01-01 )
•
((((("public" OR "private") AND "key") AND "trusted platform module")) )
AND (PD>=1987-01-01 )
•
((("sealing" AND "Trusted Platform Module")) ) AND (PD>=1987-01-01 )
•
((((("secure" OR "trusted") AND ("path" OR "channel" OR "io" OR "input/output" OR "i/o"))
AND "trusted platform module")) ) AND (PD>=1987-01-01 )
3 Starting point was the guidance from the European Patent Of ce (n.d.).
4 Related and previous work publications were ignored due to the extensive and time-consuming patent search.
5 The search term de nes a full-text search for the keyword attestation among all publications since 1987. The search
includes derivations of the keyword, e.g. attest.
6 The string comprises all publications that include both keywords, trusted and virtualization. Derivations are
excluded by using quotation marks.
7 According to the terms of the contract
6
•
((("trusted computing" AND ("TCG" OR "TCPA"))) ) AND (PD>=1987-01-01 )
•
((((("trusted" OR "secure" OR "authenticated") AND ("boot" OR "bootup"))
AND "trusted platform module")) ) AND (PD>=1987-01-01 )
Keep in mind that the queries mentioned above were performed in october and november of
2006. Subsequenty led patent publications were not incorporated.
Another problem arose from large patent families and their huge amount of publications regarding
the same invention. To cope with the unequal validity periods of different patent publications, the
following approach was chosen:
•
All publications were entered into a MySQL database. Filtering of multiple publications
regarding the same invention can be performed with an appropriate database query.
8
As
ltering key, the elds Title and DW-Record can be used.
•
The patent search was restricted to US, EU and WO publications.
2.2 Problems with scanned patent publications
Downloaded PDF les often contained images of typewritten text that prevented keyword search
(e.g. attestation) in such publications.
9
An optical character recognition (OCR) program was
necessary to translate the images into machine-readable/searchable text. For this report the OCR
software OCR Shop XTR (for Linux) which is developed by Vividata (2005) was evaluated.
10
2.3 Entering a patent publication
Due to the time restrictions, it was not possible to read the publications completely. To decide
whether or not an invention is relevant for OpenTC, the following publication parts were analized:
•
Abstract
•
Drawings
•
Background of the Invention
•
Summary of the Invention (in parts)
•
Claims (mostly the rst/main claim).
Furthermore a patent document was searched for certain keywords (e.g. attestation, binding or
virtualization). Sections that contained a keyword were also taken into account. When a positive
decision was made, the invention was added to the database.
2.4 Database server
This report contains a backup of the database.
11
To use the backup, the following server con gu-
ration should work:
12
8 Patent families of the entered publications are not complete.
9 Only US and WO patent publications were affected.
10 The software was not able to convert every PDF document. From time to time the conversion process failed with
a segmentation fault.
11 The MySQL database les can be found on the DVD appendant to this document.
12 This report was generated with the help of that server con guration. Additionally, the server was placed in a virtual
private network for security reasons. Requests could only be sent via a SSL connection. Furthermore, data were
saved on an encrypted loop device.
Strateg
y
7
•
OpenSuSE 10.1
•
MySQL 5.0.18
•
PHP 5.1.2
•
Apache 2.2.0
•
PhpMyAdmin 2.8.0.3
•
Self-written PHP scripts (to convert the database into L
A
TEXcode) and a web-based entry
form
2.5 Entry form

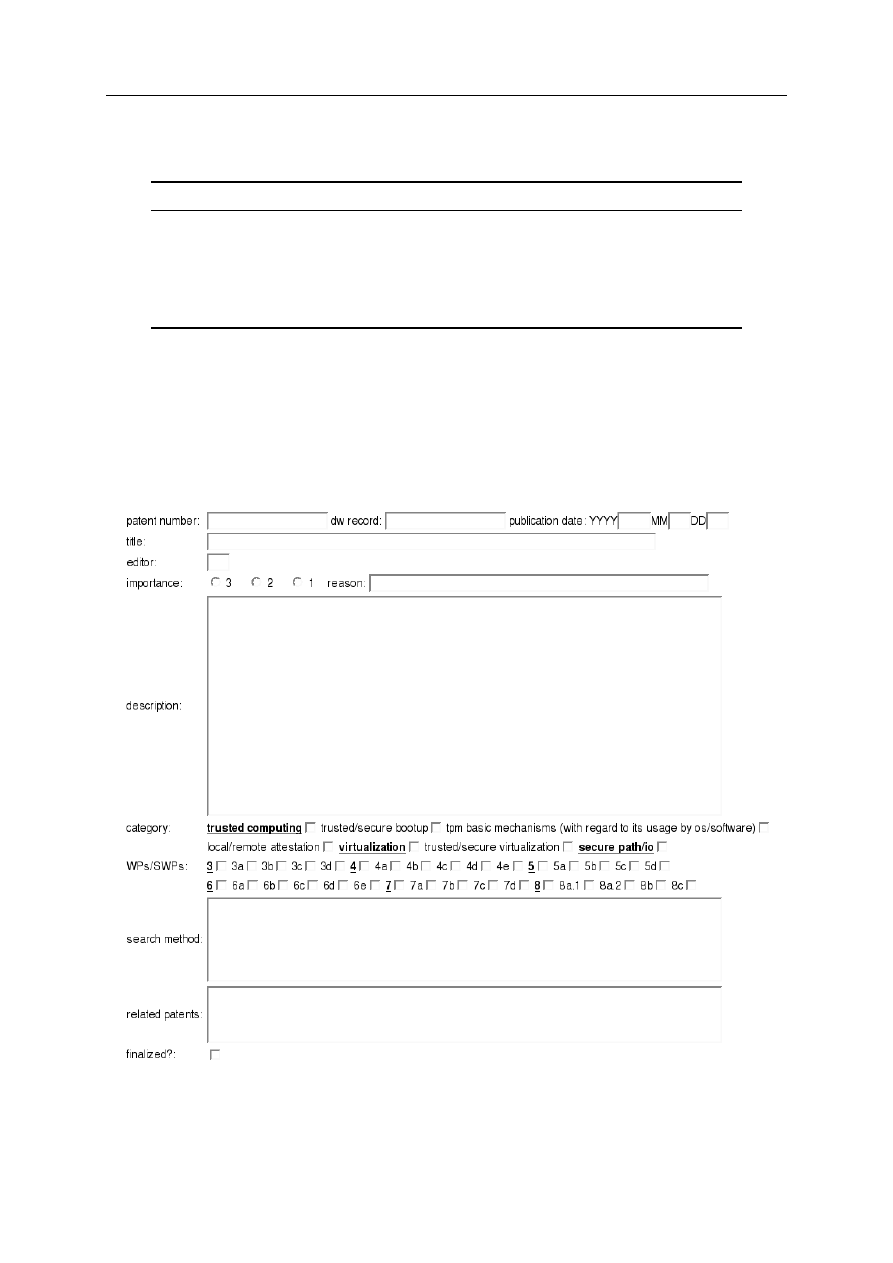

Figure 2.1 shows the web-based entry mask. The following input elds were used to collect
information about a publication:
•
Publication number: The number was taken from the PDF document (without / ).
•
Derwent record: The record number was copied from the pd ndex.txt le, that was down-
loaded along with the PDF documents.
•
Publication date: The publication date was also fetched from the PDF le.
•
Title: The publication title was adopted from the PDF le.
•
Editor: The editor eld was for internal use only.
•
Importance: Level 3 means high importance for the OpenTC project, level 1 represents low
importance. Keep in mind that the decision had to be made relatively fast and therefore
should be treated with reserve.
•
Brief description: To ensure basic comprehension, a brief description of the invention was
written. Actually, to save valuable time, the publication abstracts were mostly cited instead of
writing a new brief description.
•
Search method: The search query string that was used to perform a search query using
Delphion was entered in this input eld.
•
Related patents: This eld was used to insert references to other patent publications men-
tioned in the publication.
•
Finalized?: The nalized eld was for internal use only.
The entries were rounded off by assigning the publications to both, functional categories and
OpenTC workpackages (cf. OpenTC Consortium, 2006a). The used categories are listed in table
2.1. Keep also in mind that the assignments to the categories and workpackages were made
comparatively fast, too.
8
Categories
Subcategories
Trusted computing Trusted/secure bootup
TPM basic mechanisms (with regard to its usage by OS/SW)
Local/remote attestation
Virtualization
Trusted/secure virtualization
Trusted path/io
Table 2.1: Used categories and subcategories
Figure 2.1: Database entry mask
3 Problems and time-consuming obstacles
As mentioned before, several dif culties had to be faced during the patent research, that had an
adverse effect on the work. In the following the main problems are pointed out regarding patent
publications in general as well as the patent research with Delphion.
3.1 General problems regarding patent publications
•
Huge patent families (e.g. with DW-Record 1996-412885) with lots of members that represent
the same invention, as well as up to hundreds of related publications (e.g. US6658568B1 has
104 family members and more than 300 references to patent publications) complicate the
generation of a representative patent landscape. Even several patent publications may belong
to the same patent (e.g. US7085935B1 and US7013484B1).
•
Some publications have misspellings (e.g. US20050257048A1 describes a le locker, but
mentions a `Fire Locker` in the publication title) or inconsistencies (e.g. slight modi cations)
in their titles.
•
The use of different terms (e.g. safer, trusted or trustworthy computing) complicates the
determination of appropriate search terms and hence, has an adverse effect on the search
results.
•
Related patents or applications are often referred by their application or patent number
instead of stating the publication number (e.g. 11/253,460 instead of US20060036851A1).
Hence, a connection/link to related publications within the database (which are all indicated
by their publication number) is not obvious.
•
Some publications do not have a kind code that indicates the publication type (e.g. US6167521).
3.2 Problems regarding the patent search with Delphion
•
Some publications have different DW-Records although they refer to the same invention (e.g.
US20050289067A1 and US20030194094A1), some publications do not have a DW-Record at
all (e.g. WO2006111615A1).
•
When the original patent document is not available, Delphion puts a comparable publication
into the PDF document without changing the le name (e.g. the le EP01384126A2.pdf
contains not the expected publication EP1384126A2 but WO02086684A2).
•
Not all patent family members are listed as search results. Especially when searching for
keywords, the results often do not include the corresponding search reports (EP and WO
publications with kind code A3), probably because of the missing description that usually
contains the keywords.
4 Statistical evaluation
Due to the limited project resources and the chosen strategy (cf. chapter 2), the results of the
statistical evaluation should be treated with reserve.
Patent family inconsistencies
Limiting the search strategy to keywords resulted in an inconsistent entry of patent family
members (i.e. application and patent publications corresponding to the same invention) into
the database. Using the DW-Record in the statistical evaluation to lter family members would
not have been an appropriate solution, because some entries do not have a DW-Record and a
differentiation between application and patent publications would still have been necessary.
Furthermore the collected publications had to be categorized and assigned to the work packages
relatively fast and on the basis of very little information (cf. section 2.5).
Nevertheless, some interesting information can be extracted from the collected data, e.g. the
increasing amount of patent applications during the last years, as can be seen in gure 4.2. An
overview over all the collected publications is given in gure 4.1. Figure 4.3 shows the publications
broken down by the used keywords whereas gure 4.4 takes the different OpenTC work packages
into account. Some detailed evaluation results are listed in appendix B.
Figure 4.1: Collected Publications
12
Figure 4.2: Publications broken down by publication year
Figure 4.3: Publications broken down by keywords
Statistical
ev
aluation
13
Figure 4.4: Publications broken down by OpenTC work packages
5 Conclusion
As described in the present nal report, the limited project resources led to some weaknesses in the
results:
•
The search strategy was limited to keywords. A (probably more effective) search for ideas
could not be performed.
•
Statements on the covered search area or the percentage of identi ed relevant patent publi-
cations can hardly be made.
•
The determination of relevance, functional category and concerned work packages had to be
done relatively fast and on the basis of very little information.
•
To accelerate work, the publication abstracts were mostly copied from the PDF le to the
database, i.e. a future publication of the work/database should be done without the brief
descriptions for copyright reasons.
•
The results of the statistical evaluation should be treated with reserve because of the incon-
sistencies regarding patent family members.
Recommendations for future work
The use of a central server and a web frontend (if working in a team) facilitated the work a lot. To
gain time when adding equivalent publications (family members) to the database, a duplicate button
or the like (together with a script-based automated report generation) is very helpful.
To get better results, more time should be budgeted to analize a publication (regarding relevance,
functional category and concerned work package). Deeper knowledge about the OpenTC project
is necessary to improve the categorization and the assignment of publications to the OpenTC work
packages.
The search strategy should not be limited to keywords but take ideas into account. Particularly
when looking for ideas, the Derwent World Patents Index could be a powerful tool to improve the
search. So far the search was limited to patent publications. To build a representative related and
previous work landscape, it has to be extended to other publications (IP research).
6 Patent List
6.1 A boot process for a computer, a boot ROM and a computer having a
boot ROM
•
Publication number: EP1283464A1 / Derwent record: 2003-212740
•
Publication date: 2003-02-12
•
Keywords
Trusted Computing
Trusted/Secure Bootup
TPM Basic Mechanisms (with regard to
its usage by OS/SW)
•
WorkPackages/SubWorkPackages
WP3
•
Brief description/abstract
A client platform receives a boot image via an internet protocol. An integrity check may be
performed using a TCPA module.
•
Search method/query
((("trusted computing" AND ("TCG" OR "TCPA"))) ) AND (PD>=1987-01-01 )
•
Related patents
•
Relevance
relates to secure boot but it is different from the TCG approach
6.2 A boot process for a computer, a boot ROM and a computer having a
boot ROM
•
Publication number: US20030046529A1 / Derwent record: 2003-212740
•
Publication date: 2003-03-06
•
Keywords
Trusted Computing
Trusted/Secure Bootup
TPM Basic Mechanisms (with regard to
its usage by OS/SW)
•
WorkPackages/SubWorkPackages
WP3
•
Brief description/abstract
A client platform receives a boot image via an internet protocol. An integrity check may be
performed using a TCPA module.
•
Search method/query
((("trusted computing" AND ("TCG" OR "TCPA"))) ) AND (PD>=1987-01-01 )
•
Related patents
•
Relevance
relates to secure boot but it is different from the TCG approach
18
6.3 A method and apparatus for securing communications between a
smartcard and a terminal
•
Publication number: WO2006044979A1 / Derwent record: 2006-305190
•
Publication date: 2006-04-27
•
Keywords
Trusted Computing
TPM Basic Mechanisms (with regard to its usage by OS/SW)
Secure Path/IO
•
WorkPackages/SubWorkPackages
WP5 SWP5a WP6 SWP6d SWP6e
•
Brief description/abstract
An approach for securing communication between a terminal and one of a smartcard and
a smartcard reader. A command to initiate a local link transport layer protection protocol
session between a terminal and one of a smartcard and a smartcard reader is received at the
smartcard or smartcard reader. Responsive to the command, the smartcard or smartcard
reader then participates in a handshake process between the terminal and one of the smartcard
and the smartcard reader. The handshake process includes mutual authentication. Data is
then provided from one of the smartcard and the smartcard reader to the terminal via a
trusted tunnel after successful completion of the handshake process.
•
Search method/query
((("binding" AND "Trusted Platform Module")) ) AND (PD>=1987-01-01 )
•
Related patents
•
Relevance
mutual authentication between platform and smartcard, TPM basically used for protected
storage
Appendix
A List of appropriate search terms (in alphabetical order)
(Bold marked terms are already handled.)
Applied trust veri cation, Assurance for trust properties, Attestation, Attestation identity, At-
testation identity key, Attestation kernel, Authentication, Basic management interface, Binary at-
testation, Binding, BLOB, Boot-up measurement, Certi cate extensions, Chain of authenticated
software, Chain of trust, Compartment, Compartment security manager, Controlled loading, Co-
operative security models, Corporate computing on home pc, Corporate virtual machine, Critical
applications such as trusted banking or e-commerce software, Critical infrastructure, Cross-platform
security management framework, Cryptographic interface, Cryptographic checksum, Cryptographic
co-processor, Cryptographic coprocessor, Cryptographic processor, Data integrity, Data sealing,
Device driver environment, Distributed policy enforcement, Domain, DRM core, Dynamic in-
tegrity checking, Encrypted le service, Endorsement Key, Enforcement mechanism, Enhanced
trust, Fallback security, Fiasco, File encryption, Flow control policies, Global security framework,
Guest operating system, Hardware based security, Hardware root of trust, Hardware support for vir-
tualization, Hardware virtualization, Hardware-based security, Hardware-based security extensions,
Hybrid Xen / L4 approaches, Hypervisor, Hypervisor layer, Hypervisor-based operating environ-
ments, Identity management, Insecure operating systems, Insecure systems software hardware,
Integral trust and security, Integrated trust and security, Integrity, Integrity checks, Integrity check-
sum, Integrity constraints, Integrity measurement, Integrity methodology, Integrity of the system,
IPsec, Isolated virtual machine, Isolation, Isolation and information ow control, Java integration,
Java TSS, jTSS, Key management, Key management infrastructure, Key management kernel, Key
storage, L4, License translation manager, Management virtual machine, Mandatory access control,
Master key, Microkernel, Multi-compartment graphical user interface, Multifactor authentication,
Multilateral security, Multilateral trust, Multiple hypervisors, Multiple trusted platforms, Multiple
virtual personal computer instances, Mutual attestation, Negotiating policies, Network security
manager, Nexus, Open security evaluation, Open trusted computing, Open trusted methodology,
OpenSSH, OpenSSL, OpenTC, Operating system security, Palladium, Para-virtualization, Payload
virtual machine, PCR, Personal trusted computing architecture, PET, PKCS#11, Platform authen-
tication, Platform con guration register, Platform security, Policy domains, Policy enforcement,
Privacy-enabled security veri cation, Privacy-preserving protocols, Private electronic transaction,
Property-based attestation, Protected chip, Protected compartments, Protected environment, Pro-
tected execution environment, Protected hardware, Protected hardware environment, Protected
key management, Protected storage, Protection levels, Public key BLOB, Racoon IKE, Remote
attestation, Remote platform, Remote user interface, Remote veri cation, Remote virtual machine,
Resource sharing policies, Root of trust, Scalable attestation, Scalable security, Sealing, Secure
channel, Secure computer, Secure computing base, Secure core, Secure CPU initialization, Secure
device, Secure device virtualization, Secure environment, Secure hardware, Secure hardware archi-
tecture, Secure kernel, Secure key management, Secure layer, Secure media player, Secure message
exchange infrastructure, Secure migration, Secure migration of virtual machines, Secure operating
system, Secure path, Secure sandboxing, Secure software, Secure SSL transaction, Secure state,
Secure storage, Secure system, Secure virtual machine, Securely stored, Securing platforms and pro-
tecting data, Security architecture enhancement, Security credential, Security enforcement, Security
enhanced processor, Security hardware module, Security management interface, Security policy, Se-
curity policy enforcement, Security proof, Security property, Security service layer, Security service
virtual machine, Security state monitoring and management, SLB 9635 TT 1.2, SLD 9630 TT 1.1,
22
A List of appropriate search terms (in alphabetical order)
Social trust, Software con guration, Software trustworthiness, Speci c platform state, SSH, SSL,
Standard cryptographic protocols, Storage security manager, Strong isolation, System integrity state,
Tamper-resistant, TBB, TC, TC based encrypted le system, TC mechanism, TC-integrated, TC-use,
TCcert, TCG hardware platform, TCG platform, TCG Software Stack, Terra, Threats errors and
malfunctions, TPM , TPM driver, TPM emulator, TPM hardware driver , TPM spec. , TPM spec-
i cation , TPM version detection, TPM virtualization, TPM-based, TPM-enabled, TPM-enabling,
TPM-like, Transaction security contract, TrouSerS , Trust, Trust and security , Trust and security
pro les, Trust domains, Trust issues, Trust layers, Trust problems, Trusted administrator, Trusted
application environment, Trusted base, Trusted boot process, Trusted browser, Trusted building
block, Trusted but verify, Trusted certi cate, Trusted channel, Trusted compartment, Trusted
components, Trusted computer, Trusted computing, Trusted computing architecture, Trusted
computing base, Trusted computing certi cate, Trusted computing framework, Trusted Comput-
ing Group, Trusted computing on an embedded platform, Trusted computing system, Trusted core,
Trusted core service, Trusted credential, Trusted device, Trusted device driver, Trusted environ-
ment, Trusted function, Trusted grid computing, Trusted GUI, Trusted hardware, Trusted hardware
driver, Trusted hardware module , Trusted i/o, Trusted identity, Trusted infrastructure, Trusted in-
put/output, Trusted io, Trusted Java, Trusted kernel, Trusted key, Trusted key management, Trusted
layer, Trusted Linux modules, Trusted Linux operating system, Trusted Linux platform, Trusted
list of users, Trusted message exchange infrastructure, Trusted mobile operating system, Trusted
mobile phone, Trusted module, Trusted operating system, Trusted operating system layers, Trusted
OS, Trusted party, Trusted path, Trusted platform , Trusted platform module , Trusted platform
service, Trusted secure mobile platform, Trusted security, Trusted service provider, Trusted smart-
card, Trusted software, Trusted software components, Trusted software layer, Trusted software
module, Trusted software stack , Trusted state, Trusted storage, Trusted system, Trusted tech-
nologies, Trusted third party, Trusted user interface, Trusted virtualization, Trusted virtualization
architecture, Trusted virtualization layer, TrustedOS, Trustworthy applications, Trustworthy report-
ing of platform states, Trustworthy system architecture, TSS , TSS-stack, TTP, Trustworthy entity,
Universal virtualisation layers, Untrusted network, Untrusted systems software hardware, User
credential, User security manager, Validate a given virtual machine, Verify the integrity, Virtual CPU,
Virtual data center, Virtual disk space service provider, Virtual rewall, Virtual hardware, Virtual
infrastructure management, Virtual IT infrastructure, Virtual machine infrastructure, Virtual ma-
chine monitor, Virtual memory, Virtual network card, Virtual network connection, Virtual storage,
Virtual TPM, Virtual TPM device, Virtualisation, Virtualization cooperation, Virtualization engine,
Virtualization environment, Virtualization layer, Virtualization of computers, Virtualization security
mechanism, Virtualization software, Virtualization-enabled, Virtualized data center, Virtualized de-
vice, Virtualized keyboard driver, What you see is what you sign, WYSIWYS, Xen, Zero knowledge
authentication

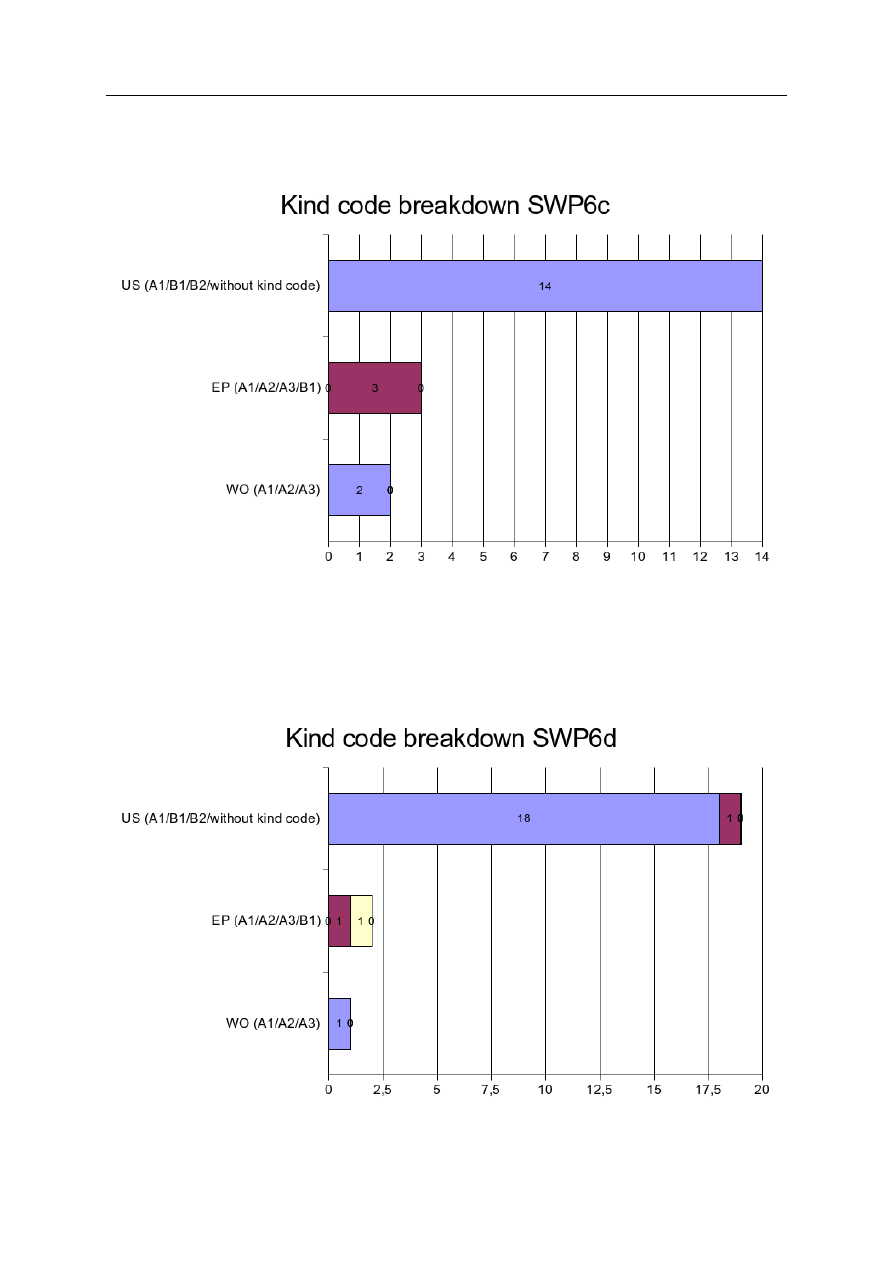

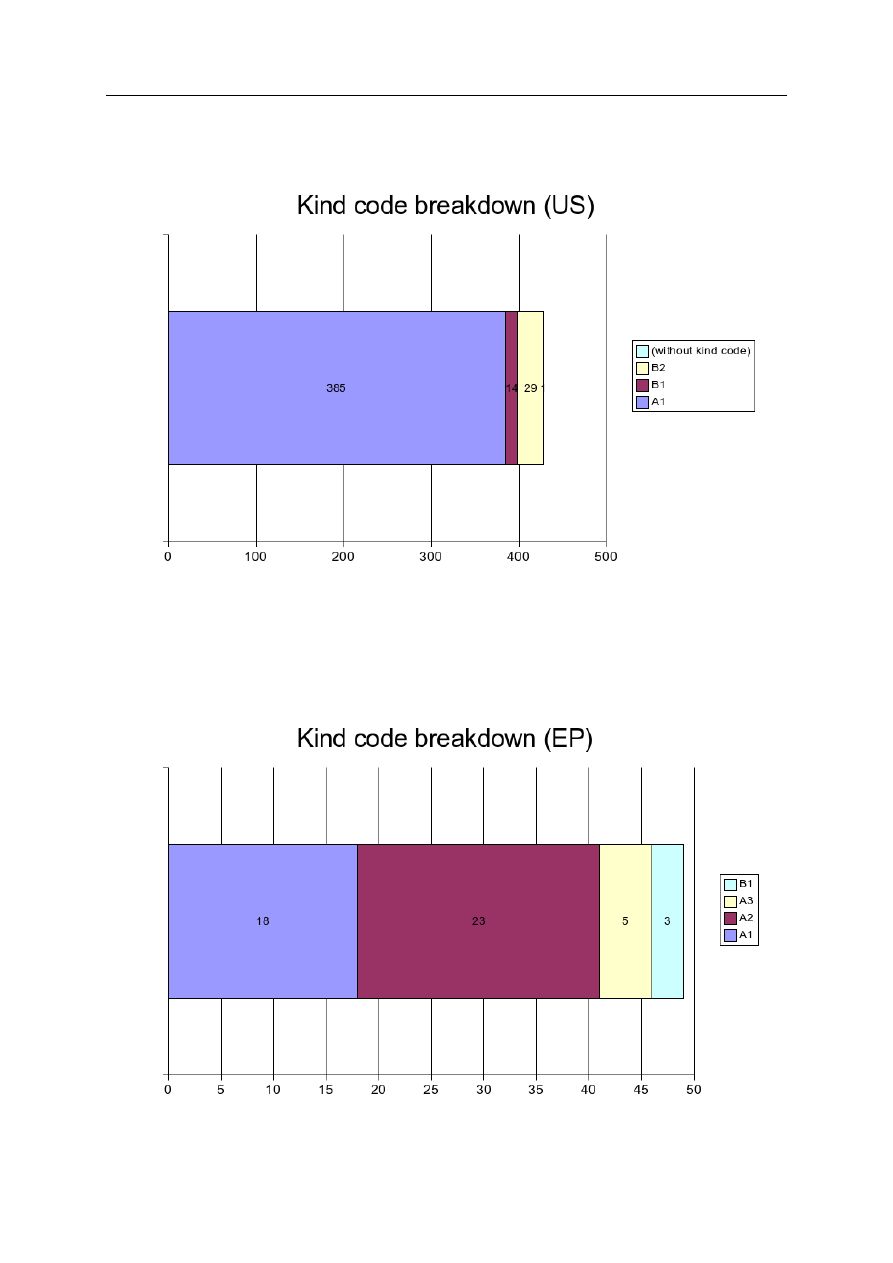

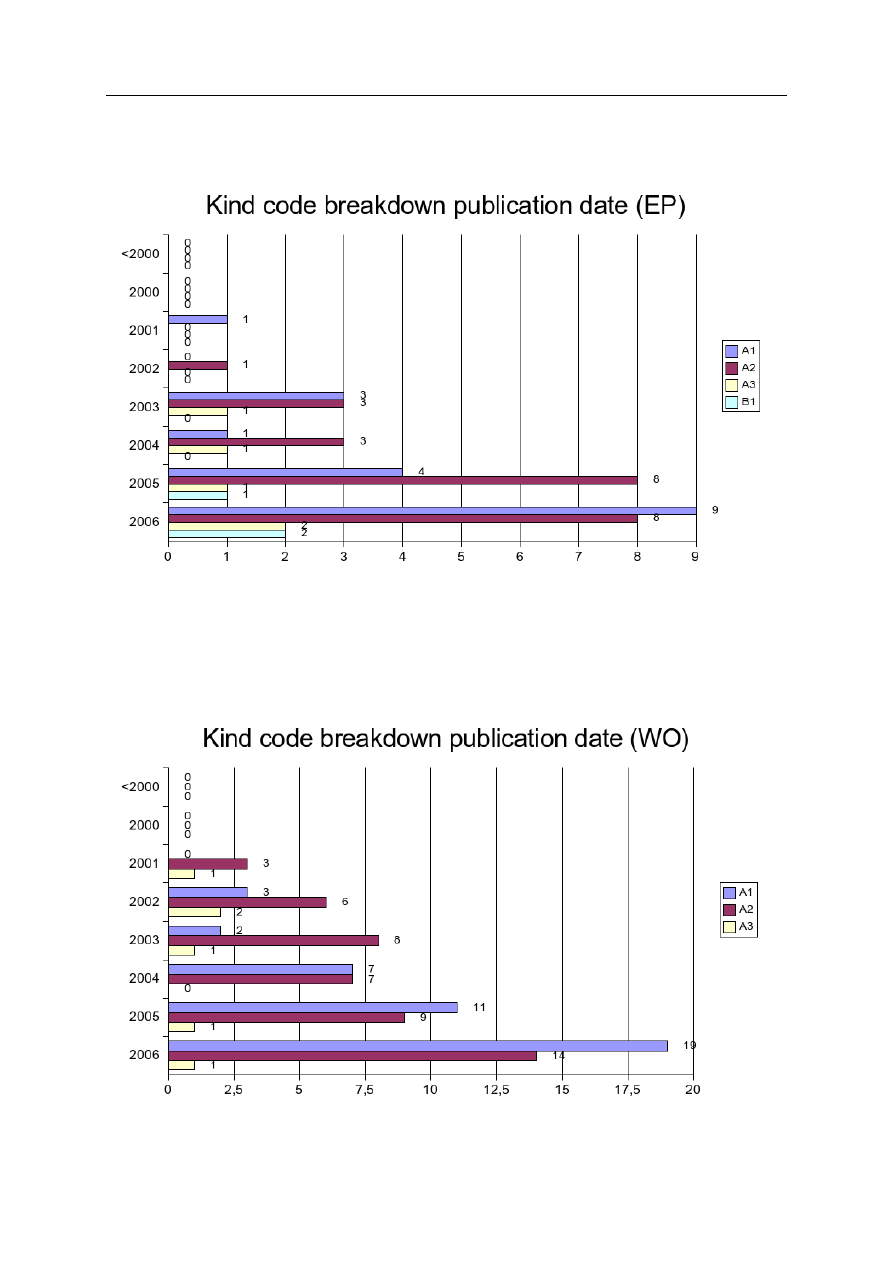

B Detailed evaluation results
Appendix
25
Appendix
27
Appendix
29
Appendix
31
Appendix
33
Appendix
35
Appendix
37
Appendix
39
Appendix
41
Appendix
43
C PDF le list
•
Publication number: EP0738058A2
PDF le: EP00738058A2.pdf
(not in database)
•
Publication number: EP1045308A2
PDF le: EP01045308A2.pdf
(not in database)
•
Publication number: EP1045308B1
PDF le: EP01045308B1.pdf
(not in database)
•
Publication number: EP1267246A2
PDF le: EP01267246A2.pdf
(in database)
•
Publication number: EP1271282A2
PDF le: EP01271282A2.pdf
(in database)
•
Publication number: EP1280042A2
PDF le: EP01280042A2.pdf
(in database)
•
Publication number: EP1282023A1
PDF le: EP01282023A1.pdf
(in database)
•
Publication number: EP1282024A1
PDF le: EP01282024A1.pdf
(in database)
•
Publication number: EP1282027A1
PDF le: EP01282027A1.pdf
(in database)
•
Publication number: EP1283464A1
PDF le: EP01283464A1.pdf
(in database)
•
Publication number: EP1294157A2
PDF le: EP01294157A2.pdf
(in database)
•
Publication number: EP1294157A3
PDF le: EP01294157A3.pdf
(in database)
•
Publication number: EP1294157B1
PDF le: EP01294157B1.pdf
(in database)
•
Publication number: EP1309916B1
PDF le: EP01309916B1.pdf
(in database)
•
Publication number: EP1314086B1
PDF le: EP01314086B1.pdf
(in database)
•
Publication number: EP1384126A2
PDF le: EP01384126A2.pdf
(in database)
•
Publication number: EP1408651A2
PDF le: EP01408651A2.pdf
(not in database)
•
Publication number: EP1422646A2
PDF le: EP01422646A2.pdf
(in database)
•
Publication number: EP1450257A2
PDF le: EP01450257A2.pdf
(not in database)
•
Publication number: EP1450258A2
PDF le: EP01450258A2.pdf
(not in database)
•
Publication number: EP1457936A3
PDF le: EP01457936A3.pdf
(in database)
•
Publication number: EP1465073A2
PDF le: EP01465073A2.pdf
(not in database)
•
Publication number: EP1465100A1
PDF le: EP01465100A1.pdf
(in database)
•
Publication number: EP1482404A2
PDF le: EP01482404A2.pdf
(not in database)
•
Publication number: EP1484891A2
PDF le: EP01484891A2.pdf
(in database)
•
Publication number: EP1487151A2
PDF le: EP01487151A2.pdf
(not in database)
•
Publication number: EP1505475A2
PDF le: EP01505475A2.pdf
(in database)
•
Publication number: EP1505475A3
PDF le: EP01505475A3.pdf
(in database)
•
Publication number: EP1508999A2
PDF le: EP01508999A2.pdf
(not in database)
•
Publication number: EP1517575A2
PDF le: EP01517575A2.pdf
(not in database)
•
Publication number: EP1524596A2
PDF le: EP01524596A2.pdf
(in database)
•
Publication number: EP1526424A2
PDF le: EP01526424A2.pdf
(in database)
•
Publication number: EP1526425A2
PDF le: EP01526425A2.pdf
(in database)
46
C PDF le list
•
Publication number: EP1526426A2
PDF le: EP01526426A2.pdf
(in database)
•
Publication number: EP1526429A2
PDF le: EP01526429A2.pdf
(not in database)
•
Publication number: EP1526454A2
PDF le: EP01526454A2.pdf
(not in database)
•
Publication number: EP1536306A1
PDF le: EP01536306A1.pdf
(in database)
•
Publication number: EP1536654A2
PDF le: EP01536654A2.pdf
(in database)
•
Publication number: EP1542112A1
PDF le: EP01542112A1.pdf
(in database)
•
Publication number: EP1557741A2
PDF le: EP01557741A2.pdf
(not in database)
•
Publication number: EP1574928A1
PDF le: EP01574928A1.pdf
(not in database)
•
Publication number: EP1574978A1
PDF le: EP01574978A1.pdf
(in database)
•
Publication number: EP1587282A2
PDF le: EP01587282A2.pdf
(not in database)
•
Publication number: EP1589399A1
PDF le: EP01589399A1.pdf
(in database)
•
Publication number: EP1594032A2
PDF le: EP01594032A2.pdf
(in database)
•
Publication number: EP1594032A3
PDF le: EP01594032A3.pdf
(in database)
•
Publication number: EP1594083A1
PDF le: EP01594083A1.pdf
(not in database)
•
Publication number: EP1617587A1
PDF le: EP01617587A1.pdf
(in database)
•
Publication number: EP1621955A1
PDF le: EP01621955A1.pdf
(in database)
•
Publication number: EP1621956A1
PDF le: EP01621956A1.pdf
(in database)
•
Publication number: EP1635529A1
PDF le: EP01635529A1.pdf
(in database)
•
Publication number: EP1643341A2
PDF le: EP01643341A2.pdf
(in database)
•
Publication number: EP1643675A1
PDF le: EP01643675A1.pdf
(in database)
•
Publication number: EP1655920A2
PDF le: EP01655920A2.pdf
(in database)
•
Publication number: EP1669864A1
PDF le: EP01669864A1.pdf
(in database)
•
Publication number: EP1674963A1
PDF le: EP01674963A1.pdf
(in database)
•
Publication number: EP1677190A2
PDF le: EP01677190A2.pdf
(in database)
•
Publication number: EP1679632A2
PDF le: EP01679632A2.pdf
(in database)
•
Publication number: EP1679632A3
PDF le: EP01679632A3.pdf
(in database)
•
Publication number: EP1679634A2
PDF le: EP01679634A2.pdf
(in database)
•
Publication number: EP1683555A2
PDF le: EP01683555A2.pdf
(in database)
•
Publication number: EP1683556A2
PDF le: EP01683556A2.pdf
(in database)
•
Publication number: EP1689145A1
PDF le: EP01689145A1.pdf
(in database)
•
Publication number: EP1693804A2
PDF le: EP01693804A2.pdf
(in database)
•
Publication number: EP1703430A1
PDF le: EP01703430A1.pdf
(in database)
•
Publication number: EP1705936A2
PDF le: EP01705936A2.pdf
(in database)
•
Publication number: US5214700
PDF le: US05214700__.pdf
(not in database)
•
Publication number: US5915085
PDF le: US05915085__.pdf
(not in database)
•
Publication number: US6044367
PDF le: US06044367__.pdf
(not in database)
•
Publication number: US6067545
PDF le: US06067545__.pdf
(not in database)
Appendix
47
•
Publication number: US6081900
PDF le: US06081900__.pdf
(not in database)
•
Publication number: US6101508
PDF le: US06101508__.pdf
(not in database)
•
Publication number: US6167521
PDF le: US06167521__.pdf
(in database)
•
Publication number: US6185601
PDF le: US06185601__.pdf
(not in database)
•
Publication number: US6233685B1
PDF le: US06233685__.pdf
(in database)
•
Publication number: US6327652B1
PDF le: US06327652__.pdf
(in database)
•
Publication number: US6425083
PDF le: US06425083__.pdf
(not in database)
•
Publication number: US6546434
PDF le: US06546434__.pdf
(not in database)
•
Publication number: US6629081
PDF le: US06629081__.pdf
(not in database)
•
Publication number: US6640302
PDF le: US06640302__.pdf
(not in database)
•
Publication number: US6658568B1
PDF le: US06658568__.pdf
(in database)
•
Publication number: US6678833B1
PDF le: US06678833__.pdf
(in database)
•
Publication number: US6754815
PDF le: US06754815__.pdf
(not in database)
•
Publication number: US6760441
PDF le: US06760441__.pdf
(not in database)
•
Publication number: US6769058
PDF le: US06769058__.pdf
(not in database)
•
Publication number: US6779168
PDF le: US06779168__.pdf
(not in database)
•
Publication number: US6782349B2
PDF le: US06782349__.pdf
(in database)
•
Publication number: US6789189
PDF le: US06789189__.pdf
(not in database)
•
Publication number: US6795905
PDF le: US06795905__.pdf
(not in database)
•
Publication number: US6820199
PDF le: US06820199__.pdf
(not in database)
•
Publication number: US6820202
PDF le: US06820202__.pdf
(not in database)
•
Publication number: US6851054
PDF le: US06851054__.pdf
(not in database)
•
Publication number: US6851114
PDF le: US06851114__.pdf
(not in database)
•
Publication number: US6857059
PDF le: US06857059__.pdf
(not in database)
•
Publication number: US6886035
PDF le: US06886035__.pdf
(not in database)
•
Publication number: US6889298B2
PDF le: US06889298__.pdf
(in database)
•
Publication number: US6892302
PDF le: US06892302__.pdf
(not in database)
•
Publication number: US6901586
PDF le: US06901586__.pdf
(not in database)
•
Publication number: US6915430
PDF le: US06915430__.pdf
(not in database)
•
Publication number: US6925557B2
PDF le: US06925557__.pdf
(in database)
•
Publication number: US6931530
PDF le: US06931530__.pdf
(not in database)
•
Publication number: US6934817
PDF le: US06934817__.pdf
(not in database)
•
Publication number: US6938156
PDF le: US06938156__.pdf
(not in database)
•
Publication number: US6941458
PDF le: US06941458__.pdf
(not in database)
•
Publication number: US6944300B2
PDF le: US06944300__.pdf
(in database)
•
Publication number: US6948065B2
PDF le: US06948065__.pdf
(in database)
•
Publication number: US6950936
PDF le: US06950936__.pdf
(not in database)
48
C PDF le list
•
Publication number: US6950940
PDF le: US06950940__.pdf
(not in database)
•
Publication number: US6952773
PDF le: US06952773__.pdf
(not in database)
•
Publication number: US6957336
PDF le: US06957336__.pdf
(not in database)
•
Publication number: US6959381
PDF le: US06959381__.pdf
(not in database)
•
Publication number: US6976162B1
PDF le: US06976162__.pdf
(in database)
•
Publication number: US6978369
PDF le: US06978369__.pdf
(not in database)
•
Publication number: US6981154
PDF le: US06981154__.pdf
(not in database)
•
Publication number: US6983368B2
PDF le: US06983368__.pdf
(in database)
•
Publication number: US6986042B2
PDF le: US06986042__.pdf
(in database)
•
Publication number: US6986052
PDF le: US06986052__.pdf
(not in database)
•
Publication number: US6990579B1
PDF le: US06990579__.pdf
(in database)
•
Publication number: US6990666
PDF le: US06990666__.pdf
(not in database)
•
Publication number: US6993648B2
PDF le: US06993648__.pdf
(in database)
•
Publication number: US6996710B1
PDF le: US06996710__.pdf
(in database)
•
Publication number: US6996748B2
PDF le: US06996748__.pdf
(in database)
•
Publication number: US7000829B1
PDF le: US07000829__.pdf
(in database)
•
Publication number: US7010691
PDF le: US07010691__.pdf
(not in database)
•
Publication number: US7013384B2
PDF le: US07013384__.pdf
(in database)
•
Publication number: US7013481B1
PDF le: US07013481__.pdf
(in database)
•
Publication number: US7013484B1
PDF le: US07013484__.pdf
(in database)
•
Publication number: US7020738B2
PDF le: US07020738__.pdf
(in database)
•
Publication number: US7020758
PDF le: US07020758__.pdf
(not in database)
•
Publication number: US7024555
PDF le: US07024555__.pdf
(not in database)
•
Publication number: US7028149B2
PDF le: US07028149__.pdf
(in database)
•
Publication number: US7028185
PDF le: US07028185__.pdf
(not in database)
•
Publication number: US7035963B2
PDF le: US07035963__.pdf
(in database)
•
Publication number: US7036020
PDF le: US07036020__.pdf
(not in database)
•
Publication number: US7039655
PDF le: US07039655__.pdf
(not in database)
•
Publication number: US7039827
PDF le: US07039827__.pdf
(not in database)
•
Publication number: US7043616
PDF le: US07043616__.pdf
(not in database)
•
Publication number: US7047414
PDF le: US07047414__.pdf
(not in database)
•
Publication number: US7047416B2
PDF le: US07047416__.pdf
(in database)
•
Publication number: US7058807B2
PDF le: US07058807__.pdf
(in database)
•
Publication number: US7069234
PDF le: US07069234__.pdf
(not in database)
•
Publication number: US7069442B2
PDF le: US07069442__.pdf
(in database)
•
Publication number: US7072807
PDF le: US07072807__.pdf
(not in database)
•
Publication number: US7073042B2
PDF le: US07073042__.pdf
(in database)
Appendix
49
•
Publication number: US7073059B2
PDF le: US07073059__.pdf
(in database)
•
Publication number: US7076655B2
PDF le: US07076655__.pdf
(in database)
•
Publication number: US7076669B2
PDF le: US07076669__.pdf
(in database)
•
Publication number: US7076802B2
PDF le: US07076802__.pdf
(in database)
•
Publication number: US7082507
PDF le: US07082507__.pdf
(not in database)
•
Publication number: US7082533
PDF le: US07082533__.pdf
(not in database)
•
Publication number: US7082615
PDF le: US07082615__.pdf
(not in database)
•
Publication number: US7085933B2
PDF le: US07085933__.pdf
(in database)
•
Publication number: US7085935B1
PDF le: US07085935__.pdf
(in database)
•
Publication number: US7089418B1
PDF le: US07089418__.pdf
(in database)
•
Publication number: US7092949
PDF le: US07092949__.pdf
(not in database)
•
Publication number: US7095859B2
PDF le: US07095859__.pdf
(in database)
•
Publication number: US7096204B1
PDF le: US07096204__.pdf
(in database)
•
Publication number: US7096354
PDF le: US07096354__.pdf
(not in database)
•
Publication number: US7103529B2
PDF le: US07103529__.pdf
(in database)
•
Publication number: US7103771B2
PDF le: US07103771__.pdf
(in database)
•
Publication number: US7107285
PDF le: US07107285__.pdf
(not in database)
•
Publication number: US7107460B2
PDF le: US07107460__.pdf
(in database)
•
Publication number: US7111176
PDF le: US07111176__.pdf
(not in database)
•
Publication number: US7117284
PDF le: US07117284__.pdf
(not in database)
•
Publication number: US7117376B2
PDF le: US07117376__.pdf
(in database)
•
Publication number: US7121460B1
PDF le: US07121460__.pdf
(in database)
•
Publication number: US7124327B2
PDF le: US07124327__.pdf
(in database)
•
Publication number: US7127548
PDF le: US07127548__.pdf
(not in database)
•
Publication number: US7127606B2
PDF le: US07127606__.pdf
(in database)
•
Publication number: US20020016913A1
PDF le: US22016913A1.pdf
(in database)
•
Publication number: US20020023217A1
PDF le: US22023217A1.pdf
(in database)
•
Publication number: US20020026575A1
PDF le: US22026575A1.pdf
(in database)
•
Publication number: US20020059286A1
PDF le: US22059286A1.pdf
(in database)
•
Publication number: US20020059356A1
PDF le: US22059356A1.pdf
(not in database)
•
Publication number: US20020065776A1
PDF le: US22065776A1.pdf
(not in database)
•
Publication number: US20020065869A1
PDF le: US22065869A1.pdf
(not in database)
•
Publication number: US20020065874A1
PDF le: US22065874A1.pdf
(not in database)
•
Publication number: US20020065876A1
PDF le: US22065876A1.pdf
(not in database)
•
Publication number: US20020065945A1
PDF le: US22065945A1.pdf
(not in database)
•
Publication number: US20020066021A1
PDF le: US22066021A1.pdf
(not in database)
•
Publication number: US20020066022A1
PDF le: US22066022A1.pdf
(not in database)
50
C PDF le list
•
Publication number: US20020080974A1
PDF le: US22080974A1.pdf
(in database)
•
Publication number: US20020083332A1
PDF le: US22083332A1.pdf
(in database)
•
Publication number: US20020087877A1
PDF le: US22087877A1.pdf
(in database)
•
Publication number: US20020092003A1
PDF le: US22092003A1.pdf
(not in database)
•
Publication number: US20020103889A1
PDF le: US22103889A1.pdf
(in database)
•
Publication number: US20020112113A1
PDF le: US22112113A1.pdf
(not in database)
•
Publication number: US20020120575A1
PDF le: US22120575A1.pdf
(in database)
•
Publication number: US20020120863A1
PDF le: US22120863A1.pdf
(in database)
•
Publication number: US20020129248A1
PDF le: US22129248A1.pdf
(in database)
•
Publication number: US20020134837A1
PDF le: US22134837A1.pdf
(in database)
•
Publication number: US20020161907A1
PDF le: US22161907A1.pdf
(not in database)
•
Publication number: US20020169717A1
PDF le: US22169717A1.pdf
(in database)
•
Publication number: US20020180778A1
PDF le: US22180778A1.pdf
(in database)
•
Publication number: US20020188711A1
PDF le: US22188711A1.pdf
(not in database)
•
Publication number: US20020188763A1
PDF le: US22188763A1.pdf
(in database)
•
Publication number: US20020194389A1
PDF le: US22194389A1.pdf
(in database)
•
Publication number: US20020194482A1
PDF le: US22194482A1.pdf
(in database)
•
Publication number: US20020194496A1
PDF le: US22194496A1.pdf
(in database)
•
Publication number: US20020196946A1
PDF le: US22196946A1.pdf
(in database)
•
Publication number: US20030014372A1
PDF le: US23014372A1.pdf
(in database)
•
Publication number: US20030023872A1
PDF le: US23023872A1.pdf
(in database)
•
Publication number: US20030028807A1
PDF le: US23028807A1.pdf
(in database)
•
Publication number: US20030033495A1
PDF le: US23033495A1.pdf
(in database)
•
Publication number: US20030037231A1
PDF le: US23037231A1.pdf
(in database)
•
Publication number: US20030037233A1
PDF le: US23037233A1.pdf
(in database)
•
Publication number: US20030037244A1
PDF le: US23037244A1.pdf
(in database)
•
Publication number: US20030037246A1
PDF le: US23037246A1.pdf
(in database)
•
Publication number: US20030037255A1
PDF le: US23037255A1.pdf
(not in database)
•
Publication number: US20030041250A1
PDF le: US23041250A1.pdf
(in database)
•
Publication number: US20030046529A1
PDF le: US23046529A1.pdf
(in database)
•
Publication number: US20030046542A1
PDF le: US23046542A1.pdf
(in database)
•
Publication number: US20030046589A1
PDF le: US23046589A1.pdf
(in database)
•
Publication number: US20030051133A1
PDF le: US23051133A1.pdf
(in database)
•
Publication number: US20030051171A1
PDF le: US23051171A1.pdf
(in database)
•
Publication number: US20030053630A1
PDF le: US23053630A1.pdf
(in database)
•
Publication number: US20030061494A1
PDF le: US23061494A1.pdf
(in database)
•
Publication number: US20030061497A1
PDF le: US23061497A1.pdf
(in database)
Appendix
51
•
Publication number: US20030069973A1
PDF le: US23069973A1.pdf
(not in database)
•
Publication number: US20030074230A1
PDF le: US23074230A1.pdf
(in database)
•
Publication number: US20030074294A1
PDF le: US23074294A1.pdf
(in database)
•
Publication number: US20030074548A1
PDF le: US23074548A1.pdf
(in database)
•
Publication number: US20030084278A1
PDF le: US23084278A1.pdf
(in database)
•
Publication number: US20030084285A1
PDF le: US23084285A1.pdf
(in database)
•
Publication number: US20030088748A1
PDF le: US23088748A1.pdf
(in database)
•
Publication number: US20030088776A1
PDF le: US23088776A1.pdf
(in database)
•
Publication number: US20030095665A1
PDF le: US23095665A1.pdf
(not in database)
•
Publication number: US20030097561A1
PDF le: US23097561A1.pdf
(not in database)
•
Publication number: US20030097562A1
PDF le: US23097562A1.pdf
(not in database)
•
Publication number: US20030097565A1
PDF le: US23097565A1.pdf
(not in database)
•
Publication number: US20030097569A1
PDF le: US23097569A1.pdf
(not in database)
•
Publication number: US20030097570A1
PDF le: US23097570A1.pdf
(not in database)
•
Publication number: US20030097573A1
PDF le: US23097573A1.pdf
(not in database)
•
Publication number: US20030101136A1
PDF le: US23101136A1.pdf
(not in database)
•
Publication number: US20030101344A1
PDF le: US23101344A1.pdf
(not in database)
•
Publication number: US20030105810A1
PDF le: US23105810A1.pdf
(not in database)
•
Publication number: US20030105965A1
PDF le: US23105965A1.pdf
(in database)
•
Publication number: US20030105980A1
PDF le: US23105980A1.pdf
(in database)
•
Publication number: US20030110372A1
PDF le: US23110372A1.pdf
(in database)
•
Publication number: US20030115151A1
PDF le: US23115151A1.pdf
(not in database)
•
Publication number: US20030115453A1
PDF le: US23115453A1.pdf
(in database)
•
Publication number: US20030115463A1
PDF le: US23115463A1.pdf
(not in database)
•
Publication number: US20030126200A1
PDF le: US23126200A1.pdf
(not in database)
•
Publication number: US20030126233A1
PDF le: US23126233A1.pdf
(not in database)
•
Publication number: US20030126442A1
PDF le: US23126442A1.pdf
(in database)
•
Publication number: US20030126453A1
PDF le: US23126453A1.pdf
(in database)
•
Publication number: US20030126454A1
PDF le: US23126454A1.pdf
(in database)
•
Publication number: US20030131152A1
PDF le: US23131152A1.pdf
(not in database)
•
Publication number: US20030133575A1
PDF le: US23133575A1.pdf
(in database)
•
Publication number: US20030135385A1
PDF le: US23135385A1.pdf
(not in database)
•
Publication number: US20030135727A1
PDF le: US23135727A1.pdf
(in database)
•
Publication number: US20030138105A1
PDF le: US23138105A1.pdf
(in database)
•
Publication number: US20030145222A1
PDF le: US23145222A1.pdf
(in database)
•
Publication number: US20030149833A1
PDF le: US23149833A1.pdf
(not in database)
•
Publication number: US20030158960A1
PDF le: US23158960A1.pdf
(not in database)
52
C PDF le list
•
Publication number: US20030159056A1
PDF le: US23159056A1.pdf
(in database)
•
Publication number: US20030163711A1
PDF le: US23163711A1.pdf
(in database)
•
Publication number: US20030174842A1
PDF le: US23174842A1.pdf
(in database)
•
Publication number: US20030177176A1
PDF le: US23177176A1.pdf
(not in database)
•
Publication number: US20030182431A1
PDF le: US23182431A1.pdf
(not in database)
•
Publication number: US20030182561A1
PDF le: US23182561A1.pdf
(in database)
•
Publication number: US20030188113A1
PDF le: US23188113A1.pdf
(in database)
•
Publication number: US20030188165A1
PDF le: US23188165A1.pdf
(in database)
•
Publication number: US20030188173A1
PDF le: US23188173A1.pdf
(in database)
•
Publication number: US20030188179A1
PDF le: US23188179A1.pdf
(in database)
•
Publication number: US20030191943A1
PDF le: US23191943A1.pdf
(in database)
•
Publication number: US20030194094A1
PDF le: US23194094A1.pdf
(in database)
•
Publication number: US20030196083A1
PDF le: US23196083A1.pdf
(in database)
•
Publication number: US20030196085A1
PDF le: US23196085A1.pdf
(in database)
•
Publication number: US20030196088A1
PDF le: US23196088A1.pdf
(in database)
•
Publication number: US20030196099A1
PDF le: US23196099A1.pdf
(in database)
•
Publication number: US20030196100A1
PDF le: US23196100A1.pdf
(in database)
•
Publication number: US20030196110A1
PDF le: US23196110A1.pdf
(in database)
•
Publication number: US20030196111A1
PDF le: US23196111A1.pdf
(in database)
•
Publication number: US20030208338A1
PDF le: US23208338A1.pdf
(in database)
•
Publication number: US20030221114A1
PDF le: US23221114A1.pdf
(in database)
•
Publication number: US20030226014A1
PDF le: US23226014A1.pdf
(not in database)
•
Publication number: US20030226016A1
PDF le: US23226016A1.pdf
(in database)
•
Publication number: US20030226031A1
PDF le: US23226031A1.pdf
(in database)
•
Publication number: US20030226040A1
PDF le: US23226040A1.pdf
(in database)
•
Publication number: US20030229794A1
PDF le: US23229794A1.pdf
(in database)
•
Publication number: US20030229802A1
PDF le: US23229802A1.pdf
(in database)
•
Publication number: US20030229900A1
PDF le: US23229900A1.pdf
(not in database)
•
Publication number: US20040003265A1
PDF le: US24003265A1.pdf
(in database)
•
Publication number: US20040003272A1
PDF le: US24003272A1.pdf
(in database)
•
Publication number: US20040003273A1
PDF le: US24003273A1.pdf
(in database)
•
Publication number: US20040003288A1
PDF le: US24003288A1.pdf
(in database)
•
Publication number: US20040005051A1
PDF le: US24005051A1.pdf
(not in database)
•
Publication number: US20040015700A1
PDF le: US24015700A1.pdf
(not in database)
•
Publication number: US20040025052A1
PDF le: US24025052A1.pdf
(not in database)
•
Publication number: US20040025162A1
PDF le: US24025162A1.pdf
(not in database)
•
Publication number: US20040030755A1
PDF le: US24030755A1.pdf
(not in database)
Appendix
53
•
Publication number: US20040030901A1
PDF le: US24030901A1.pdf
(in database)
•
Publication number: US20040031058A1
PDF le: US24031058A1.pdf
(not in database)
•
Publication number: US20040039946A1
PDF le: US24039946A1.pdf
(in database)
•
Publication number: US20040049702A1
PDF le: US24049702A1.pdf
(not in database)
•
Publication number: US20040054850A1
PDF le: US24054850A1.pdf
(not in database)
•
Publication number: US20040064457A1
PDF le: US24064457A1.pdf
(in database)
•
Publication number: US20040073806A1
PDF le: US24073806A1.pdf
(in database)
•
Publication number: US20040078572A1
PDF le: US24078572A1.pdf
(in database)
•
Publication number: US20040083366A1
PDF le: US24083366A1.pdf
(in database)
•
Publication number: US20040093505A1
PDF le: US24093505A1.pdf
(in database)
•
Publication number: US20040103272A1
PDF le: US24103272A1.pdf
(not in database)
•
Publication number: US20040103281A1
PDF le: US24103281A1.pdf
(in database)
•
Publication number: US20040103299A1
PDF le: US24103299A1.pdf
(in database)
•
Publication number: US20040109569A1
PDF le: US24109569A1.pdf
(in database)
•
Publication number: US20040117318A1
PDF le: US24117318A1.pdf
(in database)
•
Publication number: US20040117358A1
PDF le: US24117358A1.pdf
(not in database)
•
Publication number: US20040117616A1
PDF le: US24117616A1.pdf
(in database)
•
Publication number: US20040117625A1
PDF le: US24117625A1.pdf
(in database)
•
Publication number: US20040125949A1
PDF le: US24125949A1.pdf
(not in database)
•
Publication number: US20040128528A1
PDF le: US24128528A1.pdf
(in database)
•
Publication number: US20040128549A1
PDF le: US24128549A1.pdf
(in database)
•
Publication number: US20040133668A1
PDF le: US24133668A1.pdf
(not in database)
•
Publication number: US20040139202A1
PDF le: US24139202A1.pdf
(not in database)
•
Publication number: US20040147251A1
PDF le: US24147251A1.pdf
(in database)
•
Publication number: US20040151319A1
PDF le: US24151319A1.pdf
(in database)
•
Publication number: US20040153644A1
PDF le: US24153644A1.pdf
(in database)
•
Publication number: US20040160446A1
PDF le: US24160446A1.pdf
(not in database)
•
Publication number: US20040165588A1
PDF le: US24165588A1.pdf
(not in database)
•
Publication number: US20040165728A1
PDF le: US24165728A1.pdf
(in database)
•
Publication number: US20040172534A1
PDF le: US24172534A1.pdf
(in database)
•
Publication number: US20040172542A1
PDF le: US24172542A1.pdf
(in database)
•
Publication number: US20040172545A1
PDF le: US24172545A1.pdf
(in database)
•
Publication number: US20040177264A1
PDF le: US24177264A1.pdf
(in database)
•
Publication number: US20040186906A1
PDF le: US24186906A1.pdf
(not in database)
•
Publication number: US20040187122A1
PDF le: US24187122A1.pdf
(not in database)
•
Publication number: US20040193883A1
PDF le: US24193883A1.pdf
(in database)
•
Publication number: US20040193888A1
PDF le: US24193888A1.pdf
(in database)
54
C PDF le list
•
Publication number: US20040193917A1
PDF le: US24193917A1.pdf
(in database)
•
Publication number: US20040194104A1
PDF le: US24194104A1.pdf
(in database)
•
Publication number: US20040199578A1
PDF le: US24199578A1.pdf
(not in database)
•
Publication number: US20040199769A1
PDF le: US24199769A1.pdf
(in database)
•
Publication number: US20040205070A1
PDF le: US24205070A1.pdf
(in database)
•
Publication number: US20040205203A1
PDF le: US24205203A1.pdf
(in database)
•
Publication number: US20040205341A1
PDF le: US24205341A1.pdf
(in database)
•
Publication number: US20040205353A1
PDF le: US24205353A1.pdf
(in database)
•
Publication number: US20040205362A1
PDF le: US24205362A1.pdf
(in database)
•
Publication number: US20040210320A1
PDF le: US24210320A1.pdf
(not in database)
•
Publication number: US20040210591A1
PDF le: US24210591A1.pdf
(in database)
•
Publication number: US20040210724A1
PDF le: US24210724A1.pdf
(not in database)
•
Publication number: US20040210768A1
PDF le: US24210768A1.pdf
(not in database)
•
Publication number: US20040210906A1
PDF le: US24210906A1.pdf
(in database)
•
Publication number: US20040218414A1
PDF le: US24218414A1.pdf
(not in database)
•
Publication number: US20040225659A1
PDF le: US24225659A1.pdf
(not in database)
•
Publication number: US20040225952A1
PDF le: US24225952A1.pdf
(not in database)
•
Publication number: US20040230540A1
PDF le: US24230540A1.pdf
(in database)
•
Publication number: US20040230794A1
PDF le: US24230794A1.pdf
(in database)
•
Publication number: US20040230797A1
PDF le: US24230797A1.pdf
(not in database)
•
Publication number: US20040230970A1
PDF le: US24230970A1.pdf
(in database)
•
Publication number: US20040236960A1
PDF le: US24236960A1.pdf
(not in database)
•
Publication number: US20040249911A1
PDF le: US24249911A1.pdf
(not in database)
•
Publication number: US20040249973A1
PDF le: US24249973A1.pdf
(not in database)
•
Publication number: US20040249974A1
PDF le: US24249974A1.pdf
(not in database)
•
Publication number: US20040250099A1
PDF le: US24250099A1.pdf
(not in database)
•
Publication number: US20040250110A1
PDF le: US24250110A1.pdf
(in database)
•
Publication number: US20040250121A1
PDF le: US24250121A1.pdf
(not in database)
•
Publication number: US20040250126A1
PDF le: US24250126A1.pdf
(in database)
•
Publication number: US20040267578A1
PDF le: US24267578A1.pdf
(in database)
•
Publication number: US20040268135A1
PDF le: US24268135A1.pdf
(in database)
•
Publication number: US20040268140A1
PDF le: US24268140A1.pdf
(in database)
•
Publication number: US20050005135A1
PDF le: US25005135A1.pdf
(not in database)
•
Publication number: US20050005136A1
PDF le: US25005136A1.pdf
(not in database)
•
Publication number: US20050010760A1
PDF le: US25010760A1.pdf
(in database)
•
Publication number: US20050010811A1
PDF le: US25010811A1.pdf
(in database)
•
Publication number: US20050012830A1
PDF le: US25012830A1.pdf
(not in database)
Appendix
55
•
Publication number: US20050021968A1
PDF le: US25021968A1.pdf
(in database)
•
Publication number: US20050028003A1
PDF le: US25028003A1.pdf
(in database)
•
Publication number: US20050033721A1
PDF le: US25033721A1.pdf
(in database)
•
Publication number: US20050033722A1
PDF le: US25033722A1.pdf
(in database)
•
Publication number: US20050033972A1
PDF le: US25033972A1.pdf
(in database)
•
Publication number: US20050033978A1
PDF le: US25033978A1.pdf
(not in database)
•
Publication number: US20050033982A1
PDF le: US25033982A1.pdf
(in database)
•
Publication number: US20050033987A1
PDF le: US25033987A1.pdf
(in database)
•
Publication number: US20050033991A1
PDF le: US25033991A1.pdf
(in database)
•
Publication number: US20050038887A1
PDF le: US25038887A1.pdf
(not in database)
•
Publication number: US20050039003A1
PDF le: US25039003A1.pdf
(in database)
•
Publication number: US20050039013A1
PDF le: US25039013A1.pdf
(in database)
•
Publication number: US20050039016A1
PDF le: US25039016A1.pdf
(in database)
•
Publication number: US20050039031A1
PDF le: US25039031A1.pdf
(in database)
•
Publication number: US20050044016A1
PDF le: US25044016A1.pdf
(not in database)
•
Publication number: US20050044404A1
PDF le: US25044404A1.pdf
(in database)
•
Publication number: US20050044408A1
PDF le: US25044408A1.pdf
(in database)
•
Publication number: US20050044433A1
PDF le: US25044433A1.pdf
(in database)
•
Publication number: US20050055588A1
PDF le: US25055588A1.pdf
(in database)
•
Publication number: US20050058294A1
PDF le: US25058294A1.pdf
(in database)
•
Publication number: US20050060485A1
PDF le: US25060485A1.pdf
(in database)
•
Publication number: US20050060503A1
PDF le: US25060503A1.pdf
(in database)
•
Publication number: US20050060561A1
PDF le: US25060561A1.pdf
(in database)
•
Publication number: US20050060568A1
PDF le: US25060568A1.pdf
(in database)
•
Publication number: US20050066191A1
PDF le: US25066191A1.pdf
(in database)
•
Publication number: US20050066230A1
PDF le: US25066230A1.pdf
(not in database)
•
Publication number: US20050066355A1
PDF le: US25066355A1.pdf
(in database)
•
Publication number: US20050069135A1
PDF le: US25069135A1.pdf
(in database)
•
Publication number: US20050071280A1
PDF le: US25071280A1.pdf
(in database)
•
Publication number: US20050071472A1
PDF le: US25071472A1.pdf
(not in database)
•
Publication number: US20050071645A1
PDF le: US25071645A1.pdf
(in database)
•
Publication number: US20050071677A1
PDF le: US25071677A1.pdf
(in database)
•
Publication number: US20050076186A1
PDF le: US25076186A1.pdf
(in database)
•
Publication number: US20050080753A1
PDF le: US25080753A1.pdf
(in database)
•
Publication number: US20050081020A1
PDF le: US25081020A1.pdf
(not in database)
•
Publication number: US20050081065A1
PDF le: US25081065A1.pdf
(in database)
•
Publication number: US20050081199A1
PDF le: US25081199A1.pdf
(in database)
56
C PDF le list
•
Publication number: US20050086326A1
PDF le: US25086326A1.pdf
(in database)
•
Publication number: US20050086509A1
PDF le: US25086509A1.pdf
(in database)
•
Publication number: US20050086511A1
PDF le: US25086511A1.pdf
(in database)
•
Publication number: US20050091192A1
PDF le: US25091192A1.pdf
(not in database)
•
Publication number: US20050091214A1
PDF le: US25091214A1.pdf
(not in database)
•
Publication number: US20050091486A1
PDF le: US25091486A1.pdf
(in database)
•
Publication number: US20050091494A1
PDF le: US25091494A1.pdf
(in database)
•
Publication number: US20050091496A1
PDF le: US25091496A1.pdf
(in database)
•
Publication number: US20050091503A1
PDF le: US25091503A1.pdf
(in database)
•
Publication number: US20050091530A1
PDF le: US25091530A1.pdf
(in database)
•
Publication number: US20050091535A1
PDF le: US25091535A1.pdf
(not in database)
•
Publication number: US20050091655A1
PDF le: US25091655A1.pdf
(not in database)
•
Publication number: US20050091658A1
PDF le: US25091658A1.pdf
(not in database)
•
Publication number: US20050097260A1
PDF le: US25097260A1.pdf
(not in database)
•
Publication number: US20050105734A1
PDF le: US25105734A1.pdf
(in database)
•
Publication number: US20050108171A1
PDF le: US25108171A1.pdf
(in database)
•
Publication number: US20050108518A1
PDF le: US25108518A1.pdf
(not in database)
•
Publication number: US20050108534A1
PDF le: US25108534A1.pdf
(in database)
•
Publication number: US20050108564A1
PDF le: US25108564A1.pdf
(in database)
•
Publication number: US20050114682A1
PDF le: US25114682A1.pdf
(in database)
•
Publication number: US20050114683A1
PDF le: US25114683A1.pdf
(in database)
•
Publication number: US20050114686A1
PDF le: US25114686A1.pdf
(in database)
•
Publication number: US20050114687A1
PDF le: US25114687A1.pdf
(in database)
•
Publication number: US20050120219A1
PDF le: US25120219A1.pdf
(in database)
•
Publication number: US20050125513A1
PDF le: US25125513A1.pdf
(not in database)
•
Publication number: US20050125593A1
PDF le: US25125593A1.pdf
(not in database)
•
Publication number: US20050129244A1
PDF le: US25129244A1.pdf
(in database)
•
Publication number: US20050132031A1
PDF le: US25132031A1.pdf
(in database)
•
Publication number: US20050132122A1
PDF le: US25132122A1.pdf
(in database)
•
Publication number: US20050132177A1
PDF le: US25132177A1.pdf
(in database)
•
Publication number: US20050132182A1
PDF le: US25132182A1.pdf
(in database)
•
Publication number: US20050132229A1
PDF le: US25132229A1.pdf
(in database)
•
Publication number: US20050133582A1
PDF le: US25133582A1.pdf
(in database)
•
Publication number: US20050135626A1
PDF le: US25135626A1.pdf
(in database)
•
Publication number: US20050136968A1
PDF le: US25136968A1.pdf
(in database)
•
Publication number: US20050137889A1
PDF le: US25137889A1.pdf
(in database)
•
Publication number: US20050138159A1
PDF le: US25138159A1.pdf
(not in database)
Appendix
57
•
Publication number: US20050138370A1
PDF le: US25138370A1.pdf
(in database)
•
Publication number: US20050138384A1
PDF le: US25138384A1.pdf
(in database)
•
Publication number: US20050138389A1
PDF le: US25138389A1.pdf
(in database)
•
Publication number: US20050138393A1
PDF le: US25138393A1.pdf
(in database)
•
Publication number: US20050138399A1
PDF le: US25138399A1.pdf
(not in database)
•
Publication number: US20050138423A1
PDF le: US25138423A1.pdf
(in database)
•
Publication number: US20050138427A1
PDF le: US25138427A1.pdf
(not in database)
•
Publication number: US20050138434A1
PDF le: US25138434A1.pdf
(in database)
•
Publication number: US20050141717A1
PDF le: US25141717A1.pdf
(in database)
•
Publication number: US20050144440A1
PDF le: US25144440A1.pdf
(in database)
•
Publication number: US20050144443A1
PDF le: US25144443A1.pdf
(in database)
•
Publication number: US20050144477A1
PDF le: US25144477A1.pdf
(in database)
•
Publication number: US20050149722A1
PDF le: US25149722A1.pdf
(in database)
•
Publication number: US20050149726A1
PDF le: US25149726A1.pdf
(in database)
•
Publication number: US20050149729A1
PDF le: US25149729A1.pdf
(in database)
•
Publication number: US20050149730A1
PDF le: US25149730A1.pdf
(in database)
•
Publication number: US20050149733A1
PDF le: US25149733A1.pdf
(in database)
•
Publication number: US20050149924A1
PDF le: US25149924A1.pdf
(not in database)
•
Publication number: US20050152539A1
PDF le: US25152539A1.pdf
(in database)
•
Publication number: US20050154890A1
PDF le: US25154890A1.pdf
(in database)
•
Publication number: US20050154930A1
PDF le: US25154930A1.pdf
(in database)
•
Publication number: US20050157881A1
PDF le: US25157881A1.pdf
(in database)
•
Publication number: US20050160251A1
PDF le: US25160251A1.pdf
(in database)
•
Publication number: US20050160281A1
PDF le: US25160281A1.pdf
(in database)
•
Publication number: US20050163317A1
PDF le: US25163317A1.pdf
(in database)
•
Publication number: US20050166024A1
PDF le: US25166024A1.pdf
(in database)
•
Publication number: US20050166051A1
PDF le: US25166051A1.pdf
(in database)
•
Publication number: US20050172134A1
PDF le: US25172134A1.pdf
(in database)
•
Publication number: US20050177749A1
PDF le: US25177749A1.pdf
(in database)
•
Publication number: US20050182940A1
PDF le: US25182940A1.pdf
(in database)
•
Publication number: US20050182952A1
PDF le: US25182952A1.pdf
(in database)
•
Publication number: US20050182973A1
PDF le: US25182973A1.pdf
(not in database)
•
Publication number: US20050187966A1
PDF le: US25187966A1.pdf
(in database)
•
Publication number: US20050187980A1
PDF le: US25187980A1.pdf
(not in database)
•
Publication number: US20050193222A1
PDF le: US25193222A1.pdf
(not in database)
•
Publication number: US20050198412A1
PDF le: US25198412A1.pdf
(not in database)
•
Publication number: US20050204126A1
PDF le: US25204126A1.pdf
(in database)
58
C PDF le list
•
Publication number: US20050207407A1
PDF le: US25207407A1.pdf
(in database)
•
Publication number: US20050210180A1
PDF le: US25210180A1.pdf
(in database)
•
Publication number: US20050210231A1
PDF le: US25210231A1.pdf
(in database)
•
Publication number: US20050210467A1
PDF le: US25210467A1.pdf
(in database)
•
Publication number: US20050213768A1
PDF le: US25213768A1.pdf
(in database)
•
Publication number: US20050216577A1
PDF le: US25216577A1.pdf
(in database)
•
Publication number: US20050216736A1
PDF le: US25216736A1.pdf
(in database)
•
Publication number: US20050221766A1
PDF le: US25221766A1.pdf
(in database)
•
Publication number: US20050223007A1
PDF le: US25223007A1.pdf
(in database)
•
Publication number: US20050223221A1
PDF le: US25223221A1.pdf
(in database)
•
Publication number: US20050223239A1
PDF le: US25223239A1.pdf
(in database)
•
Publication number: US20050228687A1
PDF le: US25228687A1.pdf
(in database)
•
Publication number: US20050228993A1
PDF le: US25228993A1.pdf
(in database)
•
Publication number: US20050229008A1
PDF le: US25229008A1.pdf
(in database)
•
Publication number: US20050229011A1
PDF le: US25229011A1.pdf
(in database)
•
Publication number: US20050232285A1
PDF le: US25232285A1.pdf
(not in database)
•
Publication number: US20050234909A1
PDF le: US25234909A1.pdf
(in database)
•
Publication number: US20050235141A1
PDF le: US25235141A1.pdf
(in database)
•
Publication number: US20050240558A1
PDF le: US25240558A1.pdf
(not in database)
•
Publication number: US20050240995A1
PDF le: US25240995A1.pdf
(in database)
•
Publication number: US20050240998A1
PDF le: US25240998A1.pdf
(in database)
•
Publication number: US20050243740A1
PDF le: US25243740A1.pdf
(not in database)
•
Publication number: US20050246505A1
PDF le: US25246505A1.pdf
(in database)
•
Publication number: US20050246521A1
PDF le: US25246521A1.pdf
(in database)
•
Publication number: US20050246525A1
PDF le: US25246525A1.pdf
(in database)
•
Publication number: US20050246552A1
PDF le: US25246552A1.pdf
(in database)
•
Publication number: US20050251806A1
PDF le: US25251806A1.pdf
(not in database)
•
Publication number: US20050251857A1
PDF le: US25251857A1.pdf
(in database)
•
Publication number: US20050251865A1
PDF le: US25251865A1.pdf
(in database)
•
Publication number: US20050251867A1
PDF le: US25251867A1.pdf
(in database)
•
Publication number: US20050252971A1
PDF le: US25252971A1.pdf
(not in database)
•
Publication number: US20050257048A1
PDF le: US25257048A1.pdf
(in database)
•
Publication number: US20050257073A1
PDF le: US25257073A1.pdf
(in database)
•
Publication number: US20050257079A1
PDF le: US25257079A1.pdf
(in database)
•
Publication number: US20050257272A1
PDF le: US25257272A1.pdf
(in database)
•
Publication number: US20050262352A1
PDF le: US25262352A1.pdf
(not in database)
•
Publication number: US20050262571A1
PDF le: US25262571A1.pdf
(in database)
Appendix
59
•
Publication number: US20050268032A1
PDF le: US25268032A1.pdf
(not in database)
•
Publication number: US20050268093A1
PDF le: US25268093A1.pdf
(in database)
•
Publication number: US20050268103A1
PDF le: US25268103A1.pdf
(in database)
•
Publication number: US20050273602A1
PDF le: US25273602A1.pdf
(in database)
•
Publication number: US20050275661A1
PDF le: US25275661A1.pdf
(in database)
•
Publication number: US20050278253A1
PDF le: US25278253A1.pdf
(in database)
•
Publication number: US20050278499A1
PDF le: US25278499A1.pdf
(in database)
•
Publication number: US20050278563A1
PDF le: US25278563A1.pdf
(in database)
•
Publication number: US20050278775A1
PDF le: US25278775A1.pdf
(in database)
•
Publication number: US20050283601A1
PDF le: US25283601A1.pdf
(in database)
•
Publication number: US20050283640A1
PDF le: US25283640A1.pdf
(not in database)
•
Publication number: US20050283826A1
PDF le: US25283826A1.pdf
(in database)
•
Publication number: US20050286746A1
PDF le: US25286746A1.pdf
(in database)
•
Publication number: US20050288056A1
PDF le: US25288056A1.pdf
(in database)
•
Publication number: US20050289067A1
PDF le: US25289067A1.pdf
(in database)
•
Publication number: US20050289343A1
PDF le: US25289343A1.pdf
(in database)
•
Publication number: US20050289347A1
PDF le: US25289347A1.pdf
(in database)
•
Publication number: US20050289646A1
PDF le: US25289646A1.pdf
(in database)
•
Publication number: US20060002427A1
PDF le: US26002427A1.pdf
(in database)
•
Publication number: US20060004944A1
PDF le: US26004944A1.pdf
(in database)
•
Publication number: US20060005000A1
PDF le: US26005000A1.pdf
(in database)
•
Publication number: US20060005009A1
PDF le: US26005009A1.pdf
(in database)
•
Publication number: US20060005254A1
PDF le: US26005254A1.pdf
(in database)
•
Publication number: US20060010079A1
PDF le: US26010079A1.pdf
(in database)
•
Publication number: US20060010326A1
PDF le: US26010326A1.pdf
(in database)
•
Publication number: US20060013399A1
PDF le: US26013399A1.pdf
(in database)
•
Publication number: US20060013400A1
PDF le: US26013400A1.pdf
(in database)
•
Publication number: US20060013402A1
PDF le: US26013402A1.pdf
(in database)
•
Publication number: US20060015717A1
PDF le: US26015717A1.pdf
(in database)
•
Publication number: US20060015718A1
PDF le: US26015718A1.pdf
(in database)
•
Publication number: US20060015719A1
PDF le: US26015719A1.pdf
(in database)
•
Publication number: US20060015723A1
PDF le: US26015723A1.pdf
(in database)
•
Publication number: US20060015732A1
PDF le: US26015732A1.pdf
(in database)
•
Publication number: US20060015749A1
PDF le: US26015749A1.pdf
(not in database)
•
Publication number: US20060015751A1
PDF le: US26015751A1.pdf
(in database)
•
Publication number: US20060015860A1
PDF le: US26015860A1.pdf
(in database)
•
Publication number: US20060015869A1
PDF le: US26015869A1.pdf
(in database)
60
C PDF le list
•
Publication number: US20060020781A1
PDF le: US26020781A1.pdf
(in database)
•
Publication number: US20060020785A1
PDF le: US26020785A1.pdf
(in database)
•
Publication number: US20060021029A1
PDF le: US26021029A1.pdf
(in database)
•
Publication number: US20060021032A1
PDF le: US26021032A1.pdf
(not in database)
•
Publication number: US20060021041A1
PDF le: US26021041A1.pdf
(not in database)
•
Publication number: US20060026418A1
PDF le: US26026418A1.pdf
(in database)
•
Publication number: US20060026419A1
PDF le: US26026419A1.pdf
(in database)
•
Publication number: US20060026422A1
PDF le: US26026422A1.pdf
(in database)
•
Publication number: US20060026423A1
PDF le: US26026423A1.pdf
(in database)
•
Publication number: US20060026693A1
PDF le: US26026693A1.pdf
(in database)
•
Publication number: US20060036851A1
PDF le: US26036851A1.pdf
(in database)
•
Publication number: US20060041932A1
PDF le: US26041932A1.pdf
(in database)
•
Publication number: US20060047944A1
PDF le: US26047944A1.pdf
(in database)
•
Publication number: US20060047974A1
PDF le: US26047974A1.pdf
(not in database)
•
Publication number: US20060048228A1
PDF le: US26048228A1.pdf
(in database)
•
Publication number: US20060053277A1
PDF le: US26053277A1.pdf
(in database)
•
Publication number: US20060053294A1
PDF le: US26053294A1.pdf
(in database)
•
Publication number: US20060053302A1
PDF le: US26053302A1.pdf
(in database)
•
Publication number: US20060059363A1
PDF le: US26059363A1.pdf
(in database)
•
Publication number: US20060064752A1
PDF le: US26064752A1.pdf
(in database)
•
Publication number: US20060069828A1
PDF le: US26069828A1.pdf
(in database)
•
Publication number: US20060070066A1
PDF le: US26070066A1.pdf
(in database)
•
Publication number: US20060072748A1
PDF le: US26072748A1.pdf
(in database)
•
Publication number: US20060072760A1
PDF le: US26072760A1.pdf
(in database)
•
Publication number: US20060072762A1
PDF le: US26072762A1.pdf
(in database)
•
Publication number: US20060074600A1
PDF le: US26074600A1.pdf
(in database)
•
Publication number: US20060074618A1
PDF le: US26074618A1.pdf
(not in database)
•
Publication number: US20060075223A1
PDF le: US26075223A1.pdf
(in database)
•
Publication number: US20060075242A1
PDF le: US26075242A1.pdf
(in database)
•
Publication number: US20060075252A1
PDF le: US26075252A1.pdf
(in database)
•
Publication number: US20060075264A1
PDF le: US26075264A1.pdf
(in database)
•
Publication number: US20060075312A1
PDF le: US26075312A1.pdf
(in database)
•
Publication number: US20060080259A1
PDF le: US26080259A1.pdf
(in database)
•
Publication number: US20060080737A1
PDF le: US26080737A1.pdf
(in database)
•
Publication number: US20060085630A1
PDF le: US26085630A1.pdf
(in database)
•
Publication number: US20060085637A1
PDF le: US26085637A1.pdf
(in database)
•
Publication number: US20060085784A1
PDF le: US26085784A1.pdf
(in database)
Appendix
61
•
Publication number: US20060085844A1
PDF le: US26085844A1.pdf
(in database)
•
Publication number: US20060085845A1
PDF le: US26085845A1.pdf
(in database)
•
Publication number: US20060085848A1
PDF le: US26085848A1.pdf
(in database)
•
Publication number: US20060089121A1
PDF le: US26089121A1.pdf
(in database)
•
Publication number: US20060090084A1
PDF le: US26090084A1.pdf
(in database)
•
Publication number: US20060090085A1
PDF le: US26090085A1.pdf
(in database)
•
Publication number: US20060090136A1
PDF le: US26090136A1.pdf
(in database)
•
Publication number: US20060095505A1
PDF le: US26095505A1.pdf
(in database)
•
Publication number: US20060095961A1
PDF le: US26095961A1.pdf
(in database)
•
Publication number: US20060095967A1
PDF le: US26095967A1.pdf
(not in database)
•
Publication number: US20060100010A1
PDF le: US26100010A1.pdf
(in database)
•
Publication number: US20060100912A1
PDF le: US26100912A1.pdf
(not in database)
•
Publication number: US20060101286A1
PDF le: US26101286A1.pdf
(in database)
•
Publication number: US20060101507A1
PDF le: US26101507A1.pdf
(in database)
•
Publication number: US20060104443A1
PDF le: US26104443A1.pdf
(not in database)
•
Publication number: US20060104474A1
PDF le: US26104474A1.pdf
(in database)
•
Publication number: US20060106585A1
PDF le: US26106585A1.pdf
(not in database)
•
Publication number: US20060107032A1
PDF le: US26107032A1.pdf
(in database)
•
Publication number: US20060107034A1
PDF le: US26107034A1.pdf
(in database)
•
Publication number: US20060107054A1
PDF le: US26107054A1.pdf
(in database)
•
Publication number: US20060111111A1
PDF le: US26111111A1.pdf
(in database)
•
Publication number: US20060111880A1
PDF le: US26111880A1.pdf
(not in database)
•
Publication number: US20060112267A1
PDF le: US26112267A1.pdf
(in database)
•
Publication number: US20060112308A1
PDF le: US26112308A1.pdf
(not in database)
•
Publication number: US20060112420A1
PDF le: US26112420A1.pdf
(in database)
•
Publication number: US20060112423A1
PDF le: US26112423A1.pdf
(in database)
•
Publication number: US20060114917A1
PDF le: US26114917A1.pdf
(not in database)
•
Publication number: US20060117177A1
PDF le: US26117177A1.pdf
(in database)
•
Publication number: US20060117181A1
PDF le: US26117181A1.pdf
(in database)
•
Publication number: US20060117212A1
PDF le: US26117212A1.pdf
(not in database)
•
Publication number: US20060117325A1
PDF le: US26117325A1.pdf
(not in database)
•
Publication number: US20060123226A1
PDF le: US26123226A1.pdf
(not in database)
•
Publication number: US20060123403A1
PDF le: US26123403A1.pdf
(in database)
•
Publication number: US20060123416A1
PDF le: US26123416A1.pdf
(in database)
•
Publication number: US20060123425A1
PDF le: US26123425A1.pdf
(not in database)
•
Publication number: US20060123467A1
PDF le: US26123467A1.pdf
(not in database)
•
Publication number: US20060123477A1
PDF le: US26123477A1.pdf
(not in database)
62
C PDF le list
•
Publication number: US20060123479A1
PDF le: US26123479A1.pdf
(not in database)
•
Publication number: US20060129743A1
PDF le: US26129743A1.pdf
(in database)
•
Publication number: US20060129824A1
PDF le: US26129824A1.pdf
(in database)
•
Publication number: US20060130060A1
PDF le: US26130060A1.pdf
(in database)
•
Publication number: US20060133604A1
PDF le: US26133604A1.pdf
(in database)
•
Publication number: US20060133612A1
PDF le: US26133612A1.pdf
(in database)
•
Publication number: US20060135121A1
PDF le: US26135121A1.pdf
(in database)
•
Publication number: US20060136341A1
PDF le: US26136341A1.pdf
(in database)
•
Publication number: US20060136570A1
PDF le: US26136570A1.pdf
(not in database)
•
Publication number: US20060136680A1
PDF le: US26136680A1.pdf
(in database)
•
Publication number: US20060136708A1
PDF le: US26136708A1.pdf
(in database)
•
Publication number: US20060136713A1
PDF le: US26136713A1.pdf
(in database)
•
Publication number: US20060136717A1
PDF le: US26136717A1.pdf
(in database)
•
Publication number: US20060136910A1
PDF le: US26136910A1.pdf
(in database)
•
Publication number: US20060137018A1
PDF le: US26137018A1.pdf
(not in database)
•
Publication number: US20060137022A1
PDF le: US26137022A1.pdf
(in database)
•
Publication number: US20060140572A1
PDF le: US26140572A1.pdf
(not in database)
•
Publication number: US20060143311A1
PDF le: US26143311A1.pdf
(in database)
•
Publication number: US20060143431A1
PDF le: US26143431A1.pdf
(in database)
•
Publication number: US20060143446A1
PDF le: US26143446A1.pdf
(in database)
•
Publication number: US20060143710A1
PDF le: US26143710A1.pdf
(not in database)
•
Publication number: US20060146057A1
PDF le: US26146057A1.pdf
(in database)
•
Publication number: US20060150246A1
PDF le: US26150246A1.pdf
(not in database)
•
Publication number: US20060150248A1
PDF le: US26150248A1.pdf
(in database)
•
Publication number: US20060155555A1
PDF le: US26155555A1.pdf
(not in database)
•
Publication number: US20060155988A1
PDF le: US26155988A1.pdf
(in database)
•
Publication number: US20060156008A1
PDF le: US26156008A1.pdf
(in database)
•
Publication number: US20060156398A1
PDF le: US26156398A1.pdf
(in database)
•
Publication number: US20060161769A1
PDF le: US26161769A1.pdf
(in database)
•
Publication number: US20060161784A1
PDF le: US26161784A1.pdf
(in database)
•
Publication number: US20060161790A1
PDF le: US26161790A1.pdf
(in database)
•
Publication number: US20060161972A1
PDF le: US26161972A1.pdf
(in database)
•
Publication number: US20060167823A1
PDF le: US26167823A1.pdf
(in database)
•
Publication number: US20060168583A1
PDF le: US26168583A1.pdf
(not in database)
•
Publication number: US20060173941A1
PDF le: US26173941A1.pdf
(not in database)
•
Publication number: US20060174094A1
PDF le: US26174094A1.pdf
(not in database)
•
Publication number: US20060179265A1
PDF le: US26179265A1.pdf
(not in database)
Appendix
63
•
Publication number: US20060179294A1
PDF le: US26179294A1.pdf
(not in database)
•
Publication number: US20060179416A1
PDF le: US26179416A1.pdf
(not in database)
•
Publication number: US20060184764A1
PDF le: US26184764A1.pdf
(not in database)
•
Publication number: US20060184778A1
PDF le: US26184778A1.pdf
(not in database)
•
Publication number: US20060184785A1
PDF le: US26184785A1.pdf
(in database)
•
Publication number: US20060184802A1
PDF le: US26184802A1.pdf
(in database)
•
Publication number: US20060185011A1
PDF le: US26185011A1.pdf
(not in database)
•
Publication number: US20060185015A1
PDF le: US26185015A1.pdf
(not in database)
•
Publication number: US20060185017A1
PDF le: US26185017A1.pdf
(in database)
•
Publication number: US20060190986A1
PDF le: US26190986A1.pdf
(in database)
•
Publication number: US20060190987A1
PDF le: US26190987A1.pdf
(in database)
•
Publication number: US20060191015A1
PDF le: US26191015A1.pdf
(in database)
•
Publication number: US20060193327A1
PDF le: US26193327A1.pdf
(not in database)
•
Publication number: US20060195617A1
PDF le: US26195617A1.pdf
(not in database)
•
Publication number: US20060195618A1
PDF le: US26195618A1.pdf
(not in database)
•
Publication number: US20060195619A1
PDF le: US26195619A1.pdf
(not in database)
•
Publication number: US20060195620A1
PDF le: US26195620A1.pdf
(not in database)
•
Publication number: US20060195623A1
PDF le: US26195623A1.pdf
(not in database)
•
Publication number: US20060195626A1
PDF le: US26195626A1.pdf
(not in database)
•
Publication number: US20060195634A1
PDF le: US26195634A1.pdf
(not in database)
•
Publication number: US20060195642A1
PDF le: US26195642A1.pdf
(not in database)
•
Publication number: US20060195644A1
PDF le: US26195644A1.pdf
(not in database)
•
Publication number: US20060195663A1
PDF le: US26195663A1.pdf
(not in database)
•
Publication number: US20060195673A1
PDF le: US26195673A1.pdf
(not in database)
•
Publication number: US20060195674A1
PDF le: US26195674A1.pdf
(not in database)
•
Publication number: US20060195675A1
PDF le: US26195675A1.pdf
(not in database)
•
Publication number: US20060195690A1
PDF le: US26195690A1.pdf
(not in database)
•
Publication number: US20060195848A1
PDF le: US26195848A1.pdf
(not in database)
•
Publication number: US20060195907A1
PDF le: US26195907A1.pdf
(in database)
•
Publication number: US20060198358A1
PDF le: US26198358A1.pdf
(not in database)
•
Publication number: US20060198368A1
PDF le: US26198368A1.pdf
(not in database)
•
Publication number: US20060198448A1
PDF le: US26198448A1.pdf
(not in database)
•
Publication number: US20060200615A1
PDF le: US26200615A1.pdf
(not in database)
•
Publication number: US20060200680A1
PDF le: US26200680A1.pdf
(in database)
•
Publication number: US20060209724A1
PDF le: US26209724A1.pdf
(not in database)
•
Publication number: US20060209863A1
PDF le: US26209863A1.pdf
(not in database)
•
Publication number: US20060212606A1
PDF le: US26212606A1.pdf
(not in database)
64
C PDF le list
•
Publication number: US20060212608A1
PDF le: US26212608A1.pdf
(not in database)
•
Publication number: US20060212620A1
PDF le: US26212620A1.pdf
(not in database)
•
Publication number: US20060212659A1
PDF le: US26212659A1.pdf
(not in database)
•
Publication number: US20060212840A1
PDF le: US26212840A1.pdf
(not in database)
•
Publication number: US20060212870A1
PDF le: US26212870A1.pdf
(not in database)
•
Publication number: US20060212932A1
PDF le: US26212932A1.pdf
(not in database)
•
Publication number: US20060212939A1
PDF le: US26212939A1.pdf
(in database)
•
Publication number: US20060217072A1
PDF le: US26217072A1.pdf
(in database)
•
Publication number: US20060218621A1
PDF le: US26218621A1.pdf
(in database)
•
Publication number: US20060218649A1
PDF le: US26218649A1.pdf
(in database)
•
Publication number: US20060218651A1
PDF le: US26218651A1.pdf
(in database)
•
Publication number: US20060224790A1
PDF le: US26224790A1.pdf
(not in database)
•
Publication number: US20060224878A1
PDF le: US26224878A1.pdf
(in database)
•
Publication number: US20060225127A1
PDF le: US26225127A1.pdf
(in database)
•
Publication number: US20060227773A1
PDF le: US26227773A1.pdf
(not in database)
•
Publication number: US20060230165A1
PDF le: US26230165A1.pdf
(not in database)
•
Publication number: US20060230401A1
PDF le: US26230401A1.pdf
(in database)
•
Publication number: US20060230439A1
PDF le: US26230439A1.pdf
(in database)
•
Publication number: US20060236125A1
PDF le: US26236125A1.pdf
(not in database)
•
Publication number: US20060236127A1
PDF le: US26236127A1.pdf
(in database)
•
Publication number: US20060236369A1
PDF le: US26236369A1.pdf
(in database)
•
Publication number: US20060242428A1
PDF le: US26242428A1.pdf
(in database)
•
Publication number: US20060244596A1
PDF le: US26244596A1.pdf
(in database)
•
Publication number: WO0142889A2
PDF le: WO00142889A2.pdf
(in database)
•
Publication number: WO0146846A2
PDF le: WO00146846A2.pdf
(not in database)
•
Publication number: WO0146889A2
PDF le: WO00146889A2.pdf
(not in database)
•
Publication number: WO0175564A2
PDF le: WO00175564A2.pdf
(in database)
•
Publication number: WO0175564A3
PDF le: WO00175564A3.pdf
(in database)
•
Publication number: WO0182202A2
PDF le: WO00182202A2.pdf
(not in database)
•
Publication number: WO0190968A1
PDF le: WO00190968A1.pdf
(not in database)
•
Publication number: WO0198906A2
PDF le: WO00198906A2.pdf
(in database)
•
Publication number: WO0203196A2
PDF le: WO00203196A2.pdf
(in database)
•
Publication number: WO02003196A3
PDF le: WO00203196A3.pdf
(in database)
•
Publication number: WO0203208A2
PDF le: WO00203208A2.pdf
(not in database)
•
Publication number: WO0208870A2
PDF le: WO00208870A2.pdf
(not in database)
•
Publication number: WO0213116A1
PDF le: WO00213116A1.pdf
(in database)
•
Publication number: WO0213444A2
PDF le: WO00213444A2.pdf
(in database)
Appendix
65
•
Publication number: WO0213445A2
PDF le: WO00213445A2.pdf
(in database)
•
Publication number: WO0213455A1
PDF le: WO00213455A1.pdf
(in database)
•
Publication number: WO0217076A2
PDF le: WO00217076A2.pdf
(in database)
•
Publication number: WO0244850A2
PDF le: WO00244850A2.pdf
(not in database)
•
Publication number: WO02060121A1
PDF le: WO02060121A1.pdf
(in database)
•
Publication number: WO02065275A1
PDF le: WO02065275A1.pdf
(not in database)
•
Publication number: WO02065290A1
PDF le: WO02065290A1.pdf
(not in database)
•
Publication number: WO02086684A2
PDF le: WO02086684A2.pdf
(in database)
•
Publication number: WO02086684A3
PDF le: WO02086684A3.pdf
(in database)
•
Publication number: WO02087136A2
PDF le: WO02087136A2.pdf
(not in database)
•
Publication number: WO02101504A2
PDF le: WO02101504A2.pdf
(in database)
•
Publication number: WO03027835A2
PDF le: WO03027835A2.pdf
(in database)
•
Publication number: WO03052565A1
PDF le: WO03052565A1.pdf
(in database)
•
Publication number: WO03058412A2
PDF le: WO03058412A2.pdf
(in database)
•
Publication number: WO03061188A1
PDF le: WO03061188A1.pdf
(not in database)
•
Publication number: WO03073208A2
PDF le: WO03073208A2.pdf
(not in database)
•
Publication number: WO03073245A2
PDF le: WO03073245A2.pdf
(in database)
•
Publication number: WO03081388A2
PDF le: WO03081388A2.pdf
(not in database)
•
Publication number: WO03085497A2
PDF le: WO03085497A2.pdf
(in database)
•
Publication number: WO03085498A2
PDF le: WO03085498A2.pdf
(in database)
•
Publication number: WO03085498A3
PDF le: WO03085498A3.pdf
(in database)
•
Publication number: WO03090048A2
PDF le: WO03090048A2.pdf
(in database)
•
Publication number: WO03090051A2
PDF le: WO03090051A2.pdf
(in database)
•
Publication number: WO03090053A1
PDF le: WO03090053A1.pdf
(in database)
•
Publication number: WO03096669A2
PDF le: WO03096669A2.pdf
(not in database)
•
Publication number: WO03102745A2
PDF le: WO03102745A2.pdf
(not in database)
•
Publication number: WO03104981A2
PDF le: WO03104981A2.pdf
(in database)
•
Publication number: WO2004003711A2
PDF le: WO04003711A2.pdf
(in database)
•
Publication number: WO2004003824A1
PDF le: WO04003824A1.pdf
(in database)
•
Publication number: WO2004004855A1
PDF le: WO04004855A1.pdf
(in database)
•
Publication number: WO2004012038A2
PDF le: WO04012038A2.pdf
(not in database)
•
Publication number: WO2004015585A1
PDF le: WO04015585A1.pdf
(not in database)
•
Publication number: WO2004034238A2
PDF le: WO04034238A2.pdf
(in database)
•
Publication number: WO2004051444A2
PDF le: WO04051444A2.pdf
(in database)
•
Publication number: WO2004051923A1
PDF le: WO04051923A1.pdf
(in database)
•
Publication number: WO2004053867A2
PDF le: WO04053867A2.pdf
(in database)
•
Publication number: WO2004057798A1
PDF le: WO04057798A1.pdf
(not in database)
66
C PDF le list
•
Publication number: WO2004059420A2
PDF le: WO04059420A2.pdf
(not in database)
•
Publication number: WO2004059503A1
PDF le: WO04059503A1.pdf
(not in database)
•
Publication number: WO2004061628A2
PDF le: WO04061628A2.pdf
(in database)
•
Publication number: WO2004061630A1
PDF le: WO04061630A1.pdf
(in database)
•
Publication number: WO2004061631A1
PDF le: WO04061631A1.pdf
(in database)
•
Publication number: WO2004066277A2
PDF le: WO04066277A2.pdf
(not in database)
•
Publication number: WO2004066278A2
PDF le: WO04066278A2.pdf
(not in database)
•
Publication number: WO2004090701A2
PDF le: WO04090701A2.pdf
(in database)
•
Publication number: WO2004092947A1
PDF le: WO04092947A1.pdf
(not in database)
•
Publication number: WO2004095269A2
PDF le: WO04095269A2.pdf
(not in database)
•
Publication number: WO2004095770A1
PDF le: WO04095770A1.pdf
(not in database)
•
Publication number: WO2004095773A2
PDF le: WO04095773A2.pdf
(in database)
•
Publication number: WO2004097734A2
PDF le: WO04097734A2.pdf
(not in database)
•
Publication number: WO2004104797A1
PDF le: WO04104797A1.pdf
(in database)
•
Publication number: WO2004104825A1
PDF le: WO04104825A1.pdf
(in database)
•
Publication number: WO2005001666A2
PDF le: WO05001666A2.pdf
(in database)
•
Publication number: WO2005001666A3
PDF le: WO05001666A3.pdf
(in database)
•
Publication number: WO2005013126A1
PDF le: WO05013126A1.pdf
(in database)
•
Publication number: WO2005020542A1
PDF le: WO05020542A1.pdf
(in database)
•
Publication number: WO2005024568A2
PDF le: WO05024568A2.pdf
(not in database)
•
Publication number: WO2005026951A1
PDF le: WO05026951A1.pdf
(in database)
•
Publication number: WO2005033914A1
PDF le: WO05033914A1.pdf
(in database)
•
Publication number: WO2005038609A2
PDF le: WO05038609A2.pdf
(in database)
•
Publication number: WO2005038634A2
PDF le: WO05038634A2.pdf
(in database)
•
Publication number: WO2005038634A3
PDF le: WO05038634A3.pdf
(not in database)
•
Publication number: WO2005038635A2
PDF le: WO05038635A2.pdf
(in database)
•
Publication number: WO2005038635A3
PDF le: WO05038635A3.pdf
(not in database)
•
Publication number: WO2005043360A1
PDF le: WO05043360A1.pdf
(in database)
•
Publication number: WO2005045556A2
PDF le: WO05045556A2.pdf
(not in database)
•
Publication number: WO2005052770A1
PDF le: WO05052770A1.pdf
(in database)
•
Publication number: WO2005052841A2
PDF le: WO05052841A2.pdf
(not in database)
•
Publication number: WO2005059713A2
PDF le: WO05059713A2.pdf
(in database)
•
Publication number: WO2005069102A1
PDF le: WO05069102A1.pdf
(in database)
•
Publication number: WO2005073846A2
PDF le: WO05073846A2.pdf
(in database)
•
Publication number: WO2005081855A2
PDF le: WO05081855A2.pdf
(not in database)
•
Publication number: WO2005085971A1
PDF le: WO05085971A1.pdf
(not in database)
•
Publication number: WO2005099201A2
PDF le: WO05099201A2.pdf
(not in database)
Appendix
67
•
Publication number: WO2005101160A1
PDF le: WO05101160A1.pdf
(in database)
•
Publication number: WO2005101197A2
PDF le: WO05101197A2.pdf
(in database)
•
Publication number: WO2005101794A1
PDF le: WO05101794A1.pdf
(in database)
•
Publication number: WO2005106672A2
PDF le: WO05106672A2.pdf
(not in database)
•
Publication number: WO2005109184A1
PDF le: WO05109184A1.pdf
(in database)
•
Publication number: WO2005109337A1
PDF le: WO05109337A1.pdf
(not in database)
•
Publication number: WO2005111813A2
PDF le: WO05111813A2.pdf
(not in database)
•
Publication number: WO2005114339A2
PDF le: WO05114339A2.pdf
(not in database)
•
Publication number: WO2005116804A2
PDF le: WO05116804A2.pdf
(in database)
•
Publication number: WO2005120005A1
PDF le: WO05120005A1.pdf
(not in database)
•
Publication number: WO2005122055A2
PDF le: WO05122055A2.pdf
(in database)
•
Publication number: WO2005124505A1
PDF le: WO05124505A1.pdf
(in database)
•
Publication number: WO2006001916A2
PDF le: WO06001916A2.pdf
(in database)
•
Publication number: WO2006002282A1
PDF le: WO06002282A1.pdf
(in database)
•
Publication number: WO2006002368A2
PDF le: WO06002368A2.pdf
(in database)
•
Publication number: WO2006002368A3
PDF le: WO06002368A3.pdf
(in database)
•
Publication number: WO2006005763A2
PDF le: WO06005763A2.pdf
(in database)
•
Publication number: WO2006008199A2
PDF le: WO06008199A2.pdf
(not in database)
•
Publication number: WO2006010007A1
PDF le: WO06010007A1.pdf
(in database)
•
Publication number: WO2006010692A2
PDF le: WO06010692A2.pdf
(in database)
•
Publication number: WO2006011888A1
PDF le: WO06011888A1.pdf
(in database)
•
Publication number: WO2006011943A1
PDF le: WO06011943A1.pdf
(in database)
•
Publication number: WO2006012197A2
PDF le: WO06012197A2.pdf
(in database)
•
Publication number: WO2006012291A2
PDF le: WO06012291A2.pdf
(in database)
•
Publication number: WO2006019614A2
PDF le: WO06019614A2.pdf
(in database)
•
Publication number: WO2006023151A2
PDF le: WO06023151A2.pdf
(in database)
•
Publication number: WO2006025952A2
PDF le: WO06025952A2.pdf
(in database)
•
Publication number: WO2006029940A1
PDF le: WO06029940A1.pdf
(in database)
•
Publication number: WO2006029941A1
PDF le: WO06029941A1.pdf
(in database)
•
Publication number: WO2006029942A1
PDF le: WO06029942A1.pdf
(in database)
•
Publication number: WO2006037798A1
PDF le: WO06037798A1.pdf
(in database)
•
Publication number: WO2006039616A1
PDF le: WO06039616A1.pdf
(in database)
•
Publication number: WO2006044979A1
PDF le: WO06044979A1.pdf
(in database)
•
Publication number: WO2006045660A2
PDF le: WO06045660A2.pdf
(not in database)
•
Publication number: WO2006045844A1
PDF le: WO06045844A1.pdf
(in database)
•
Publication number: WO2006045845A1
PDF le: WO06045845A1.pdf
(in database)
•
Publication number: WO2006045846A1
PDF le: WO06045846A1.pdf
(in database)
68
C PDF le list
•
Publication number: WO2006045847A1
PDF le: WO06045847A1.pdf
(in database)
•
Publication number: WO2006057878A2
PDF le: WO06057878A2.pdf
(in database)
•
Publication number: WO2006058314A2
PDF le: WO06058314A2.pdf
(not in database)
•
Publication number: WO2006059335A1
PDF le: WO06059335A1.pdf
(in database)
•
Publication number: WO2006060571A2
PDF le: WO06060571A2.pdf
(not in database)
•
Publication number: WO2006062814A2
PDF le: WO06062814A2.pdf
(not in database)
•
Publication number: WO2006063002A2
PDF le: WO06063002A2.pdf
(not in database)
•
Publication number: WO2006063003A2
PDF le: WO06063003A2.pdf
(not in database)
•
Publication number: WO2006063274A1
PDF le: WO06063274A1.pdf
(in database)
•
Publication number: WO2006067739A2
PDF le: WO06067739A2.pdf
(not in database)
•
Publication number: WO2006071610A1
PDF le: WO06071610A1.pdf
(in database)
•
Publication number: WO2006071630A2
PDF le: WO06071630A2.pdf
(in database)
•
Publication number: WO2006071839A2
PDF le: WO06071839A2.pdf
(not in database)
•
Publication number: WO2006074023A2
PDF le: WO06074023A2.pdf
(not in database)
•
Publication number: WO2006074258A2
PDF le: WO06074258A2.pdf
(in database)
•
Publication number: WO2006076134A2
PDF le: WO06076134A2.pdf
(in database)
•
Publication number: WO2006085854A2
PDF le: WO06085854A2.pdf
(not in database)
•
Publication number: WO2006091755A2
PDF le: WO06091755A2.pdf
(in database)
•
Publication number: WO2006093995A2
PDF le: WO06093995A2.pdf
(not in database)
•
Publication number: WO2006100522A1
PDF le: WO06100522A1.pdf
(in database)
•
Publication number: WO2006111615A1
PDF le: WO06111615A1.pdf
(in database)
•
Publication number: WO9953415A1
PDF le: WO09953415A1.pdf
(not in database)
D Bibliography
European Patent Of ce (n.d.), `Seven points to consider before starting your search', GB Esp@cenet:
http://gb.espacenet.com/search97cgi/s97_cgi.exe?Action=FormGen&Template=gb/EN/
[2006-11-03].
Gasmi, Y. and Stewin, P. (2006), `Related/previous work landscape Deliverable 1a', internal report.
Deliverable 1a can be found on the DVD that belongs to this document.
INDICARE Monitor (2006), volume 2, No 12.
Kuhlmann, D. (2006), OpenTC an open approach to trusted virtualization, in The INformed DIalogue about
Consumer Acceptability of DRM Solutions in Europe INDICARE Monitor (2006), S. 47 50.
OpenTC Consortium (2006a), `Open Trusted Computing: Functional Diagram', Open Trusted Computing
(OpenTC) Consortium:
http://www.opentc.net/info/pictures/funtional_overview.gif
[2006-12-29].
OpenTC Consortium (2006b), `Welcome to OpenTC', Open Trusted Computing (OpenTC) Consortium:
[2006-11-03].
The Thomson Corporation (2005), `Using Derwent', The Thomson Corporation:
http://www.delphion.com/help/using_derwent
[2006-12-28].
The Thomson Corporation (2006a), `Delphion Research intellectual property network - international and
US patent search database', The Thomson Corporation:
[2006-11-03].
The Thomson Corporation (2006c), `Patent kind codes by country', The Thomson Corporation:
http://www.delphion.com/help/kindcodes
[2006-12-28].
The Thomson Corporation (n.d.), `Glossary of Thomson Scienti c terminology', The Thomson
Corporation:
http://scientific.thomson.com/support/patents/patinf/terms/
[2006-12-28].
Vividata (2005), `OCR Shop XTR', Vividata:
http://www.vividata.com/be_xtr_overview.html
[2006-12-28].
